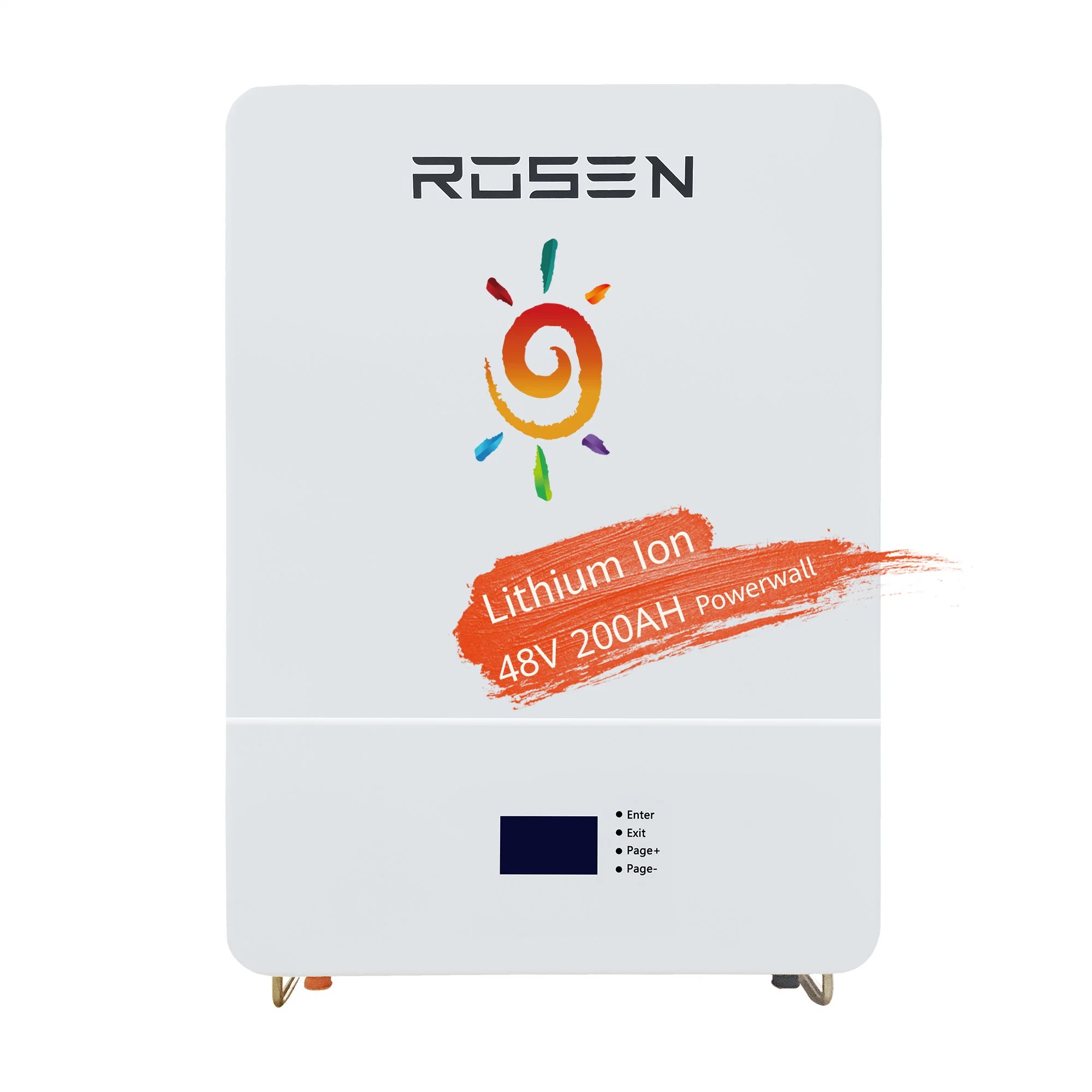

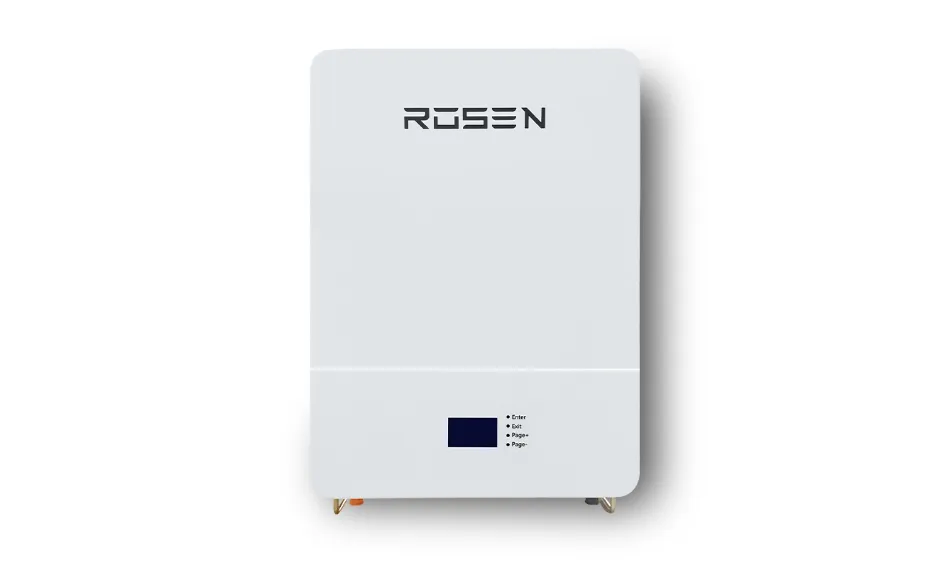

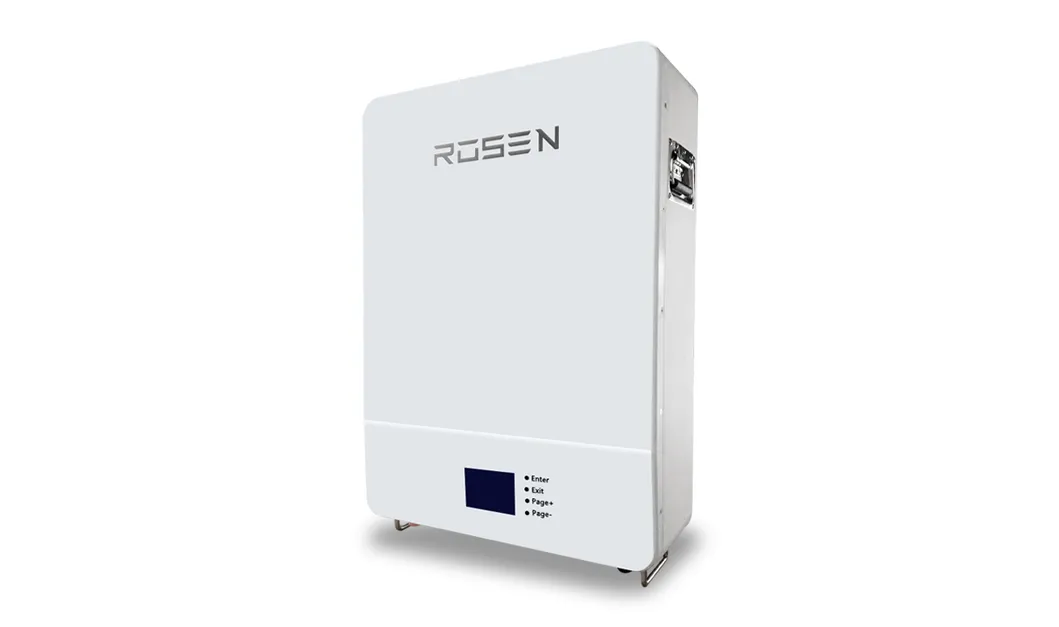

The Lithium battery features a compact design, integrated LCD screen, and convenient setting buttons. It supports Bluetooth monitoring on smartphones and comes with all necessary cables and accessories ready for installation. Custom OEM options with specific logo designs are available.
These Lithium Ion Powerwall series are widely utilized in residential and commercial solar systems. Featuring over 6000 deep cycles and up to 90% Depth of Discharge (DOD) with high-quality phosphate battery cells, this Powerwall has gained global recognition for performance and reliability.
The Powerwall can be installed in parallel with a combiner box for enhanced protection. It includes an integrated BMS communication protocol, ensuring comprehensive compatibility with various hybrid and off-grid inverters.
| Type | Module | Powerwall Models | |||
|---|---|---|---|---|---|
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | LFP48V300AH |
| Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah | 300Ah |
| Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 | 14.4 |
| Max Discharge [A] | 50 | 100 | 150 | 200 | 300 |
| Net Weight [kg] | 35 | 68 | 95 | 108 | 144 |
| Dimension [mm] | 442*480*185 | 680*495*185 | 680*495*185 | 680*495*185 | 1020*495*190 |
| Operating Temp | -20 ~ 50 [ºC] | ||||
| Life Cycles | >6000 | ||||

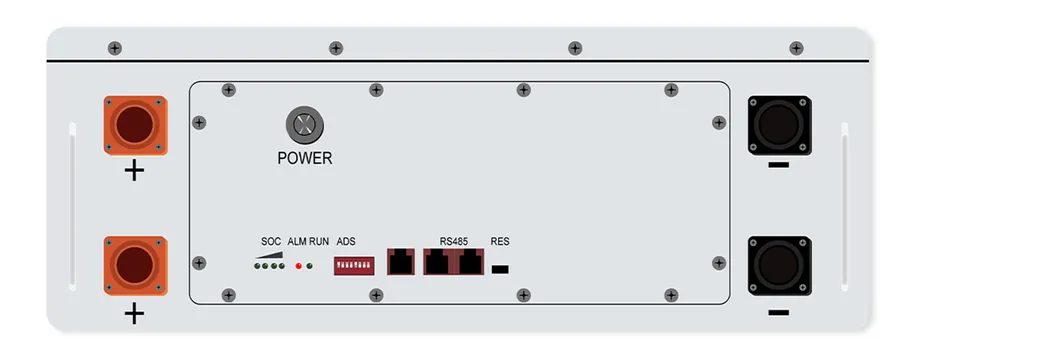

| Communication | CAN / RS485 / DRY CONTACT | ||||
| Safety Standards | TUV / CE / EN62619 / IEC62040 / UN38.3 | ||||
| Warranty | 10 Years | ||||

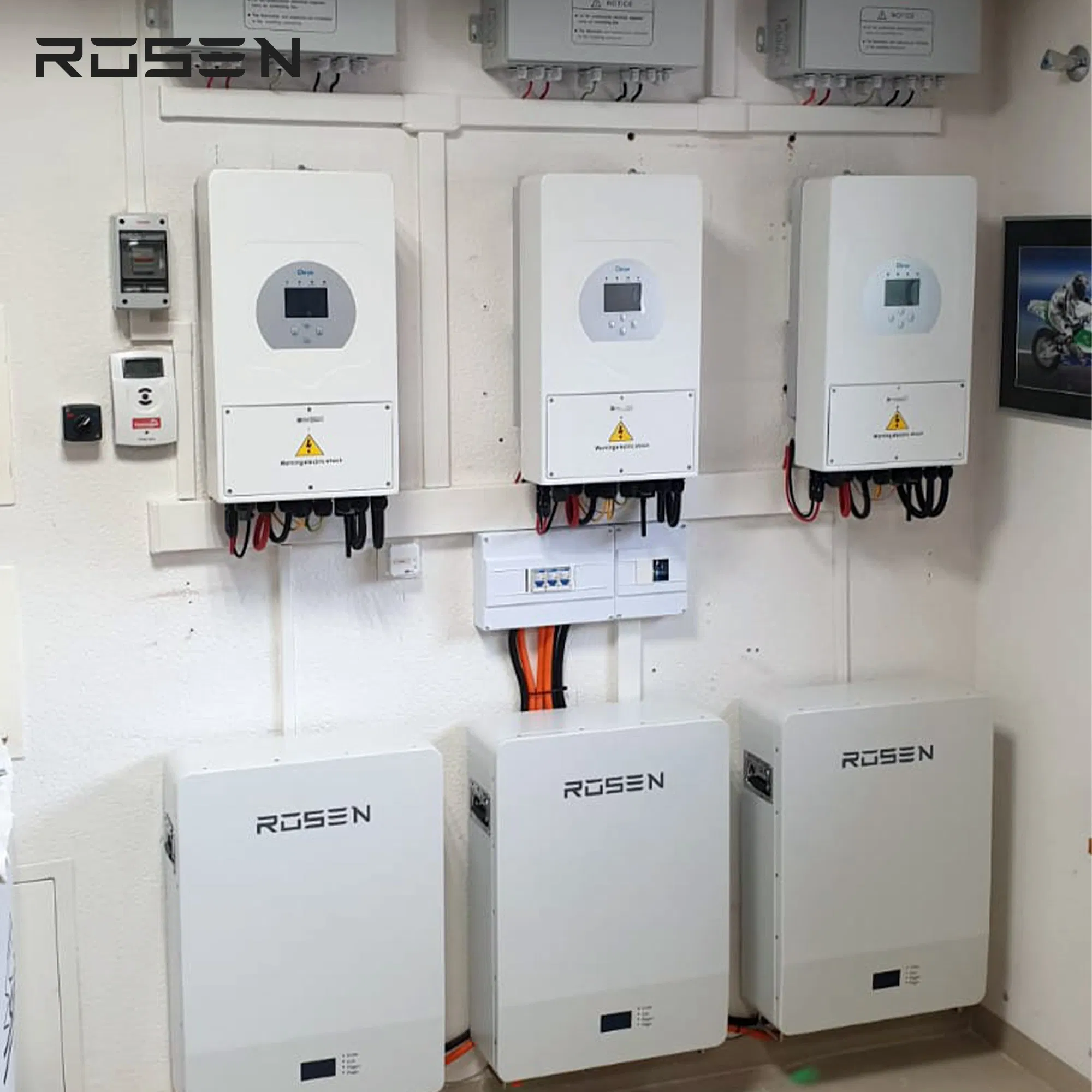

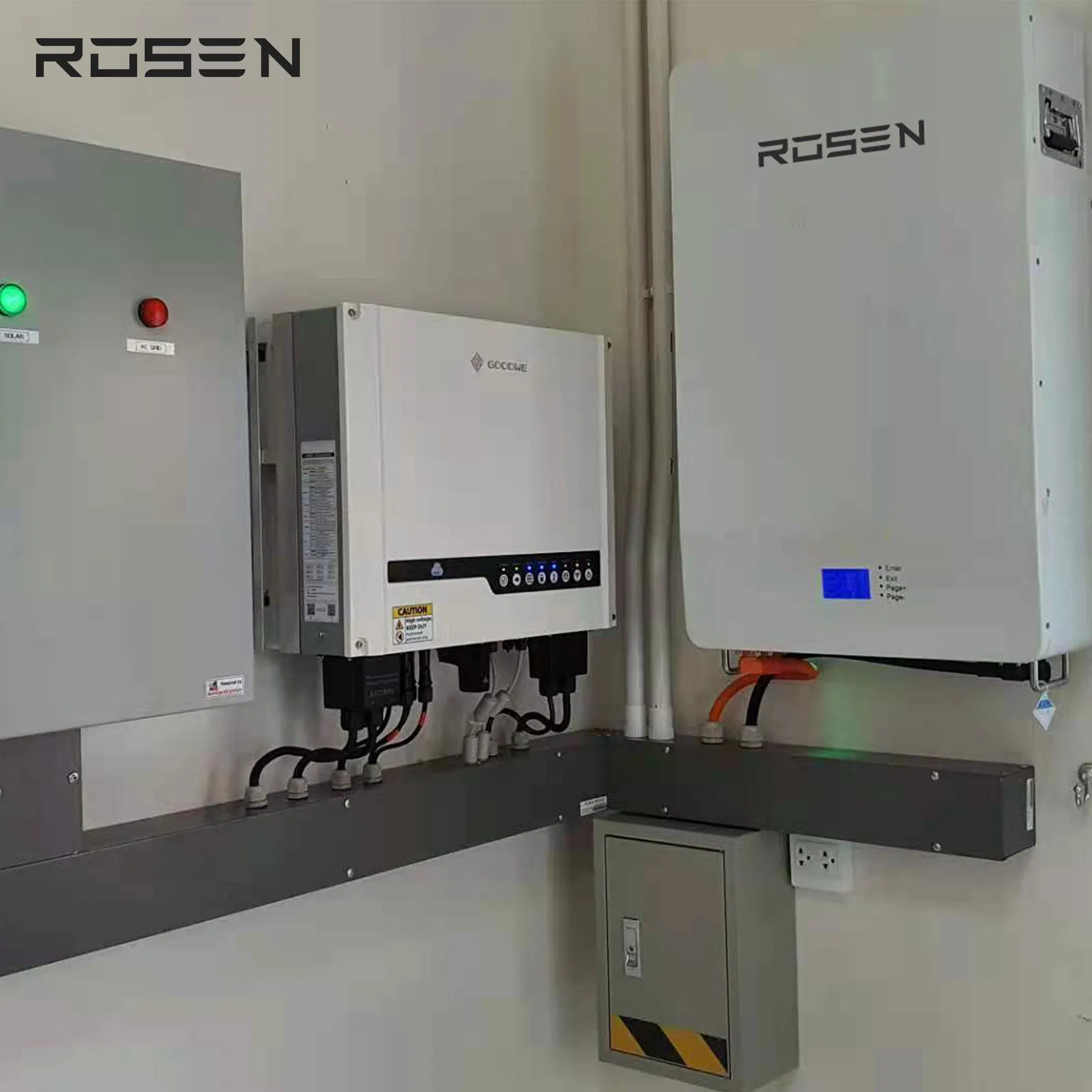

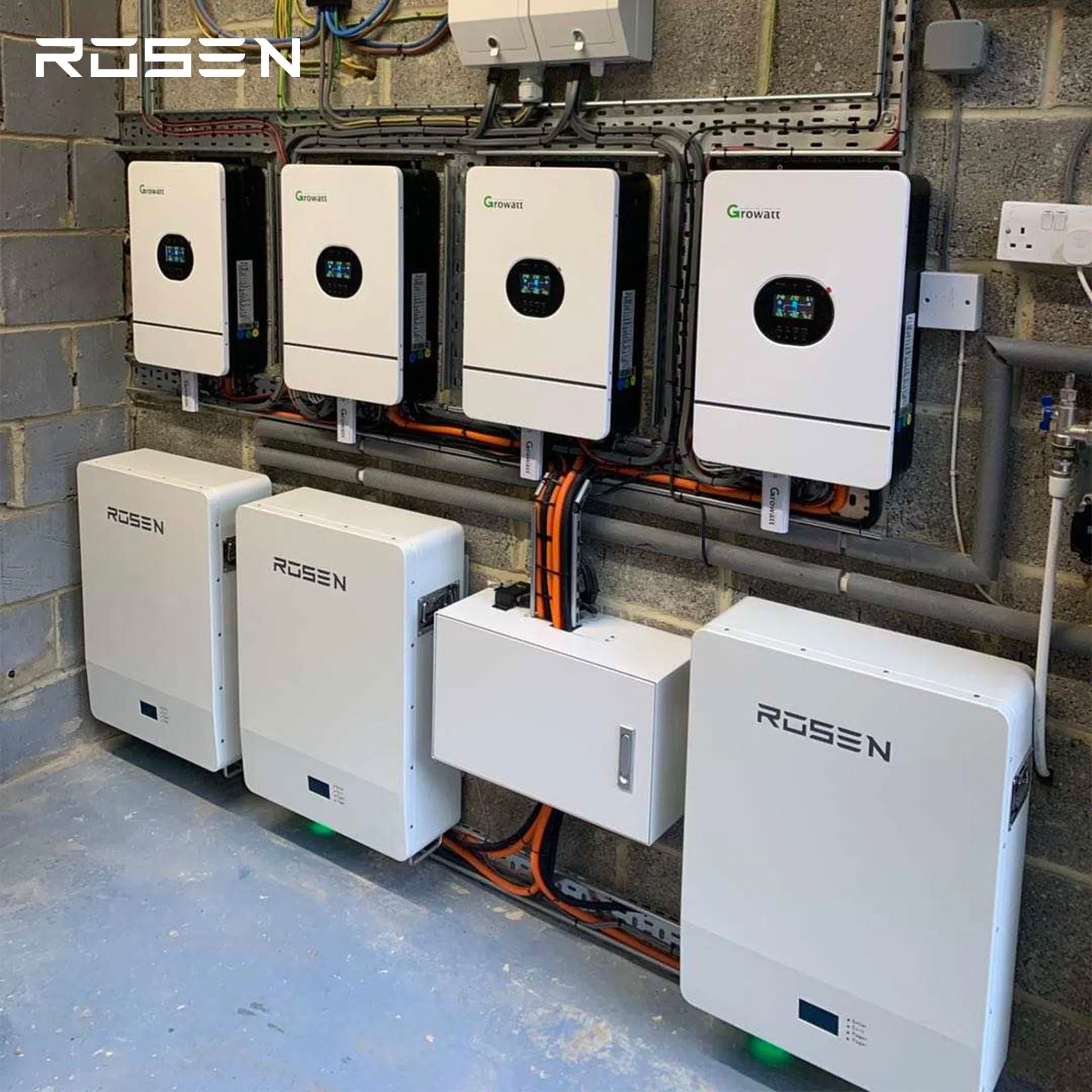

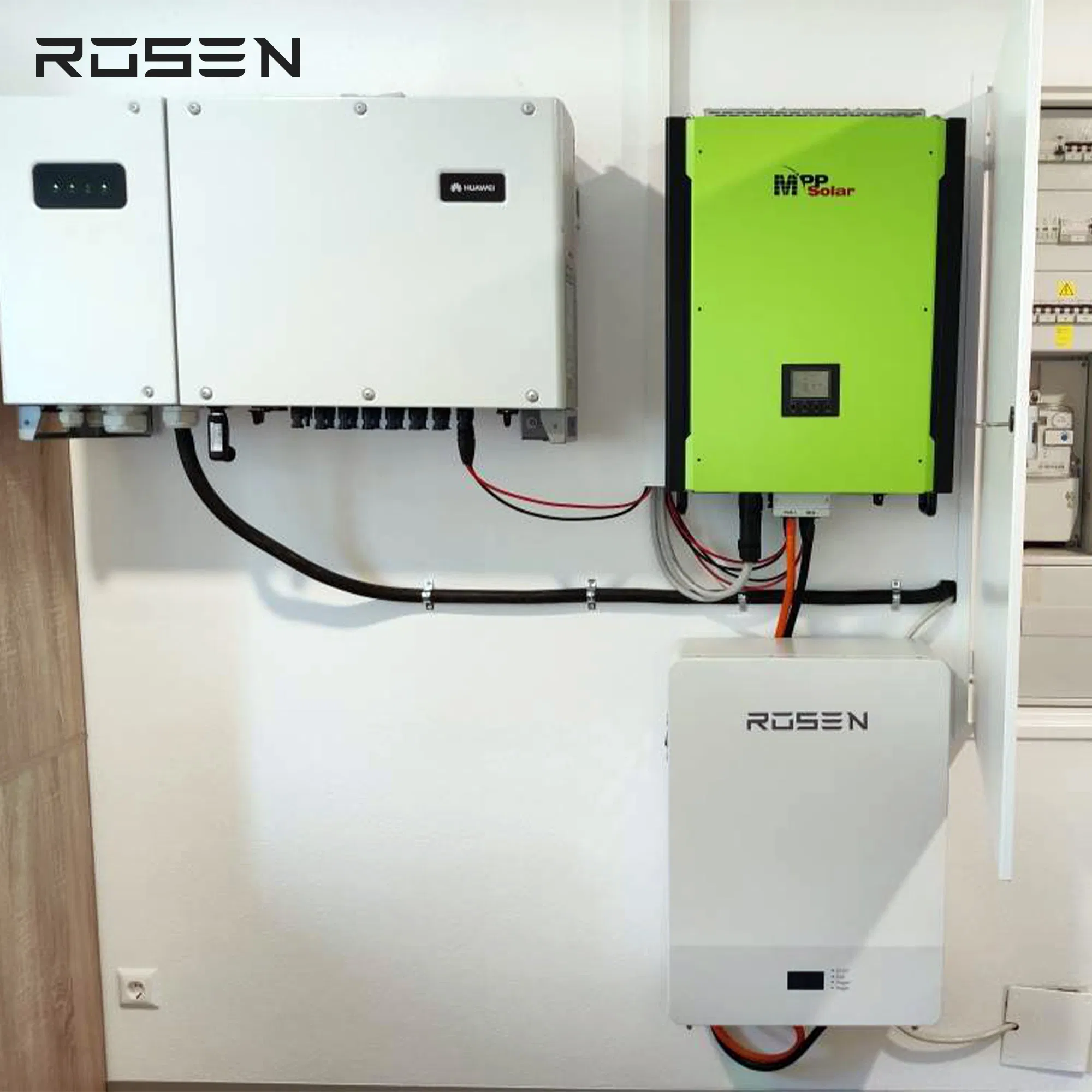

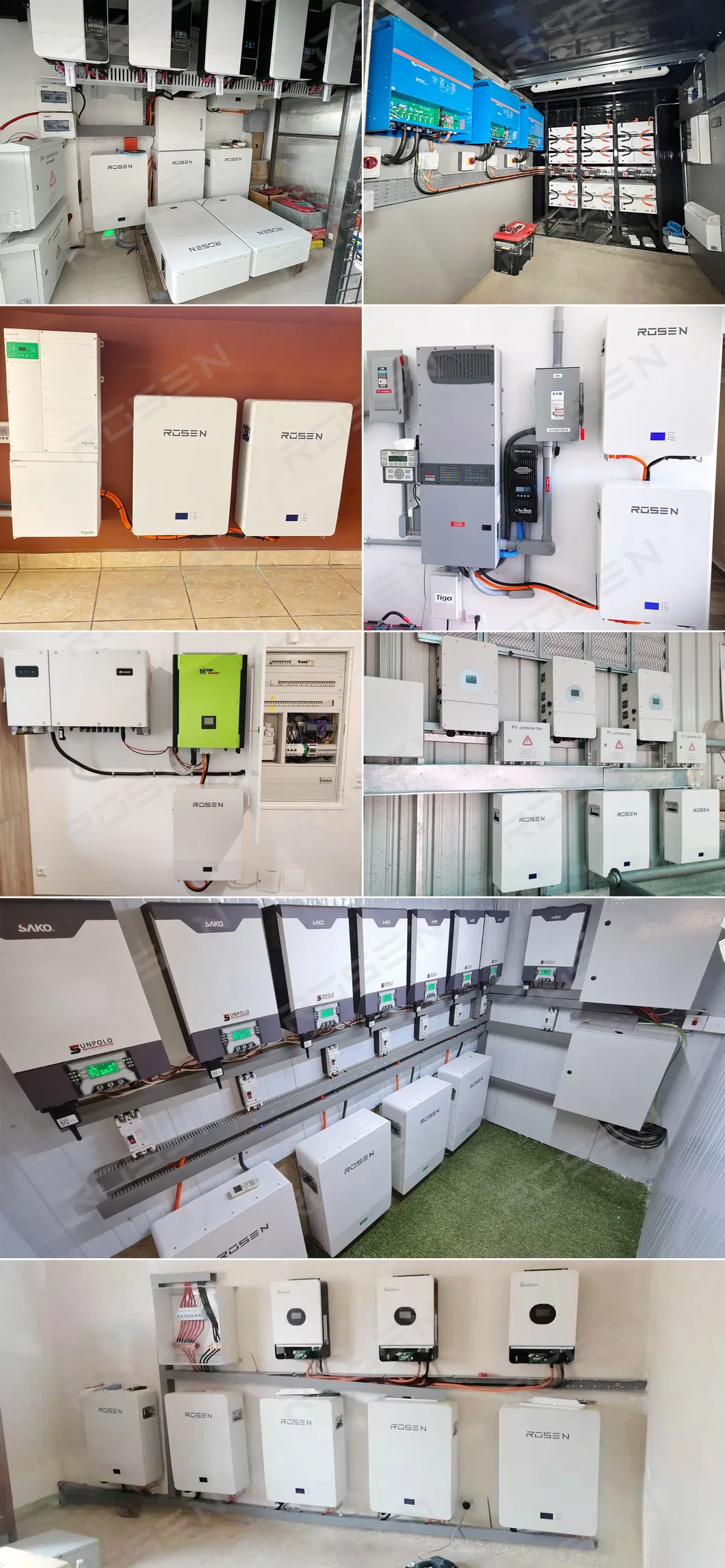

Lithium battery projects are successfully installed for both residential and commercial solar applications. Home projects typically utilize Powerwall types (48Vdc or 51.2Vdc) ranging from 50Ah to 400Ah, ensuring compatibility with major hybrid solar storage inverters (3kw - 12kw). Commercial BESS projects cater to industrial needs with capacities reaching 100kw to 10MW, utilizing containerized designs and programmable EMS. All installations prioritize safety with MSDS and UN38.3 certifications.
