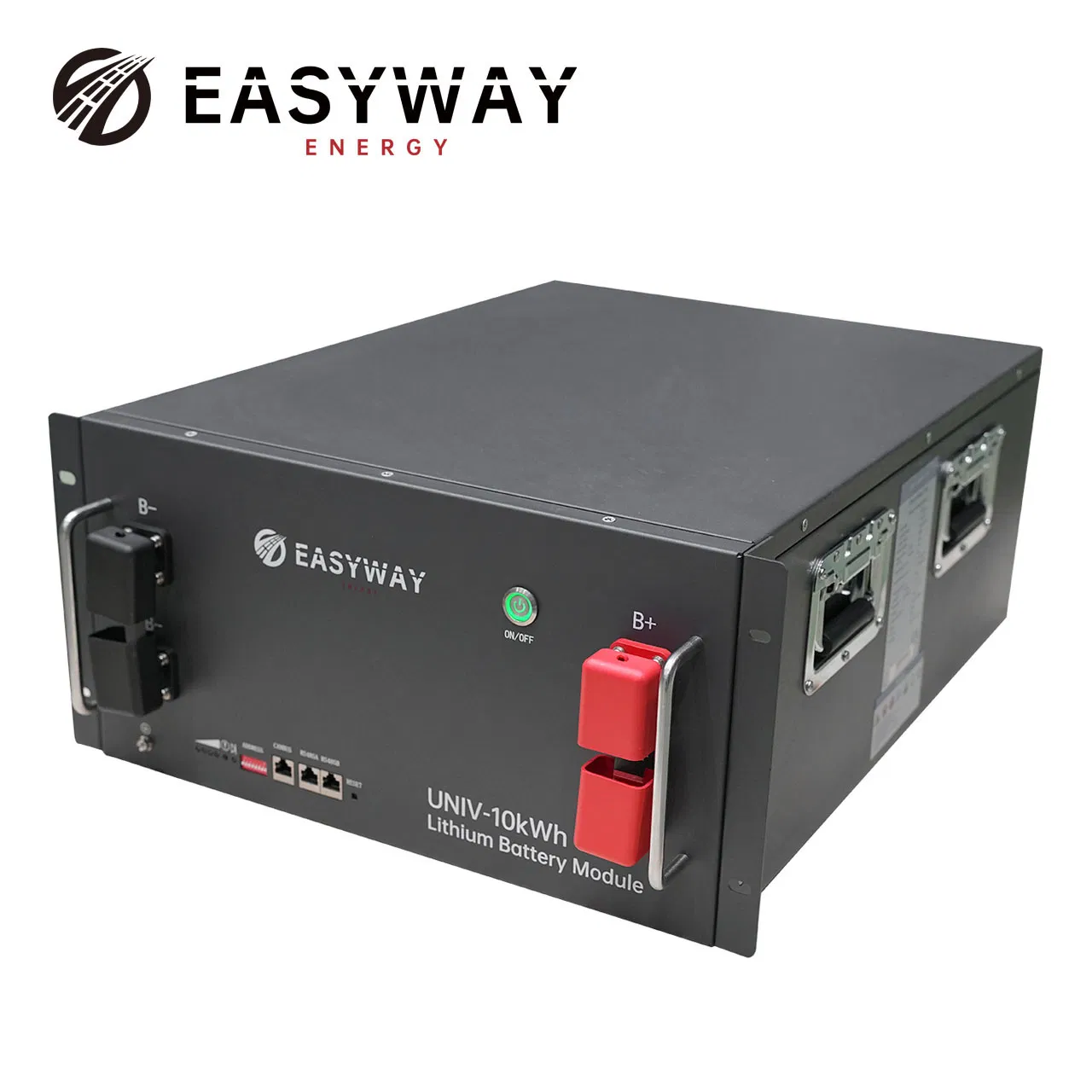

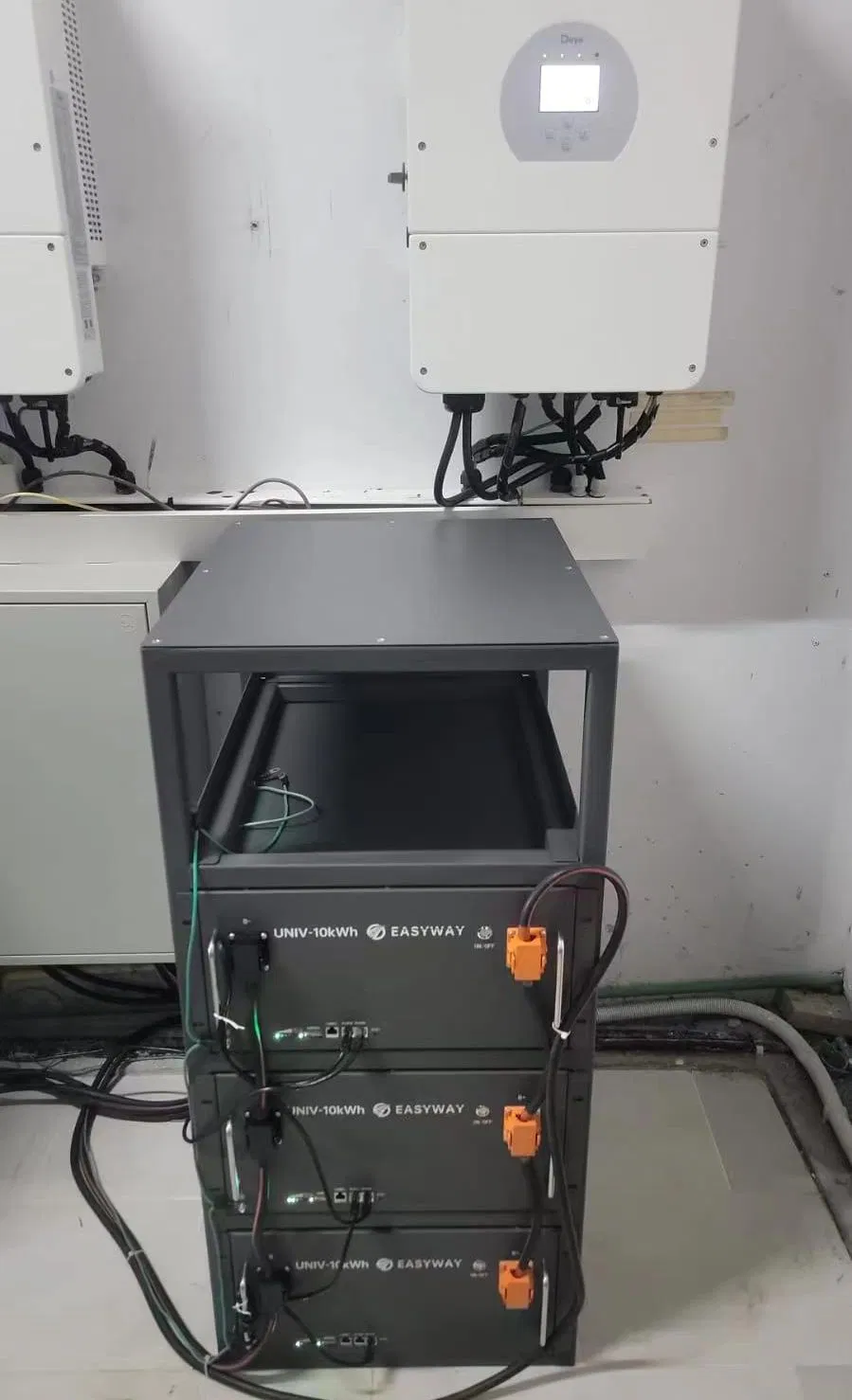

Rack Mounted Lithium Iron Phosphate Battery LiFePO4 Rechargeable 48V 200ah for Home

Still deciding? Get samples of $ !
Order Sample

Product Description

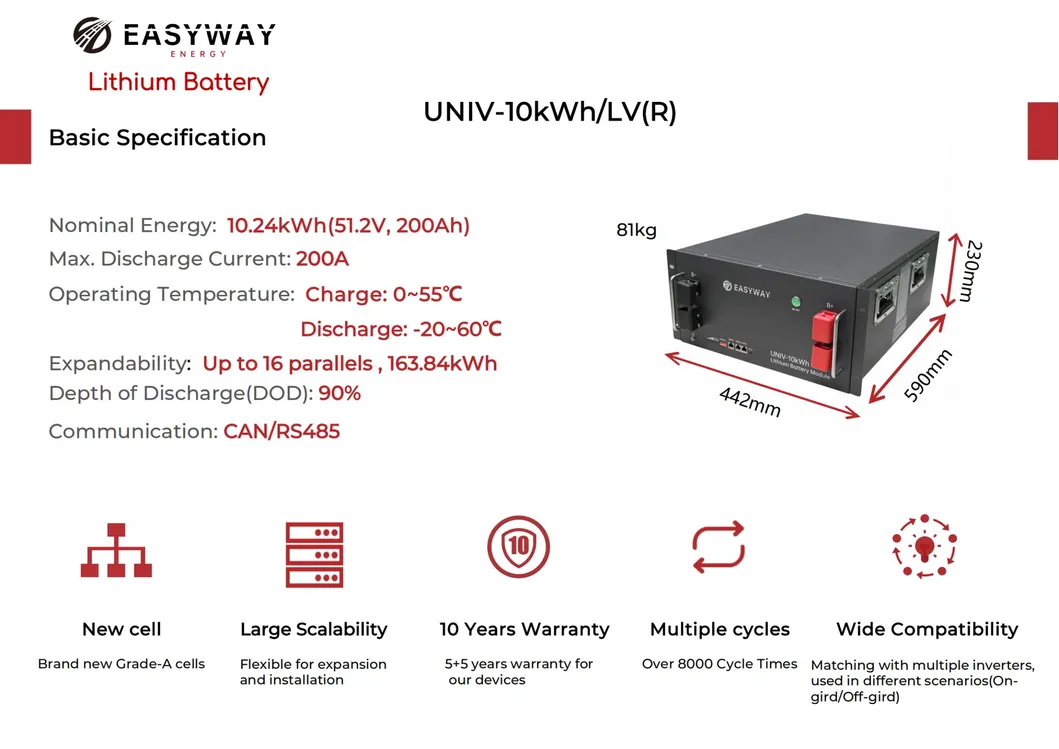

Basic Specifications
Model NO.UNIV-10kWh/LV(R)
Rated Capacity200Ah
Standard Voltage51.2V
Voltage Range44.8V ~ 57.6V
UsageSolar Power System
ElectrolyteLi-ion (LiFePO4)
Dimension(L*W*H)442*230*590 mm
Warranty10 Years
Weight81kg
Cycle Time>8000 @25ºC, 80%DOD
Max. Parallel NumbersUp to 16P
CommunicationCAN / RS485
IP RatingIP20
Product Description

Deep Cycle Rack Mounted Lithium Iron Phosphate Battery LiFePO4 Rechargeable 48V 200ah for Energy Storage System

Rack Mounted Battery Battery Features Banner
Key Features
  • Digital Monitoring System APP
  • High Inverter Compatibility
  • Brand new grade A cells from world top 10 companies
  • CANbus Standard Connection
  • Natural Cooling System

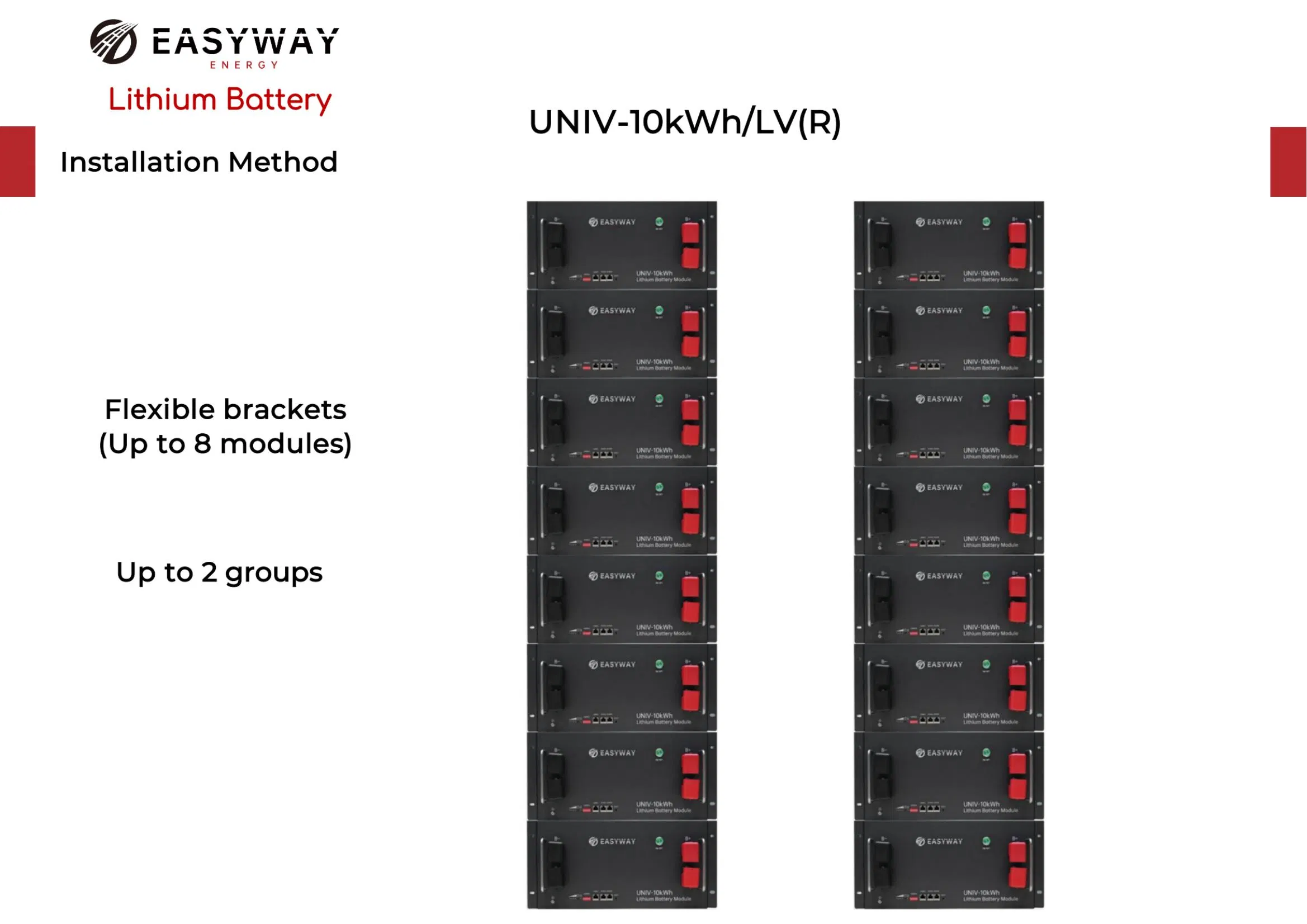

  • Assembly freely in series or parallel up to 16P
  • 10 Years Limited Warranty

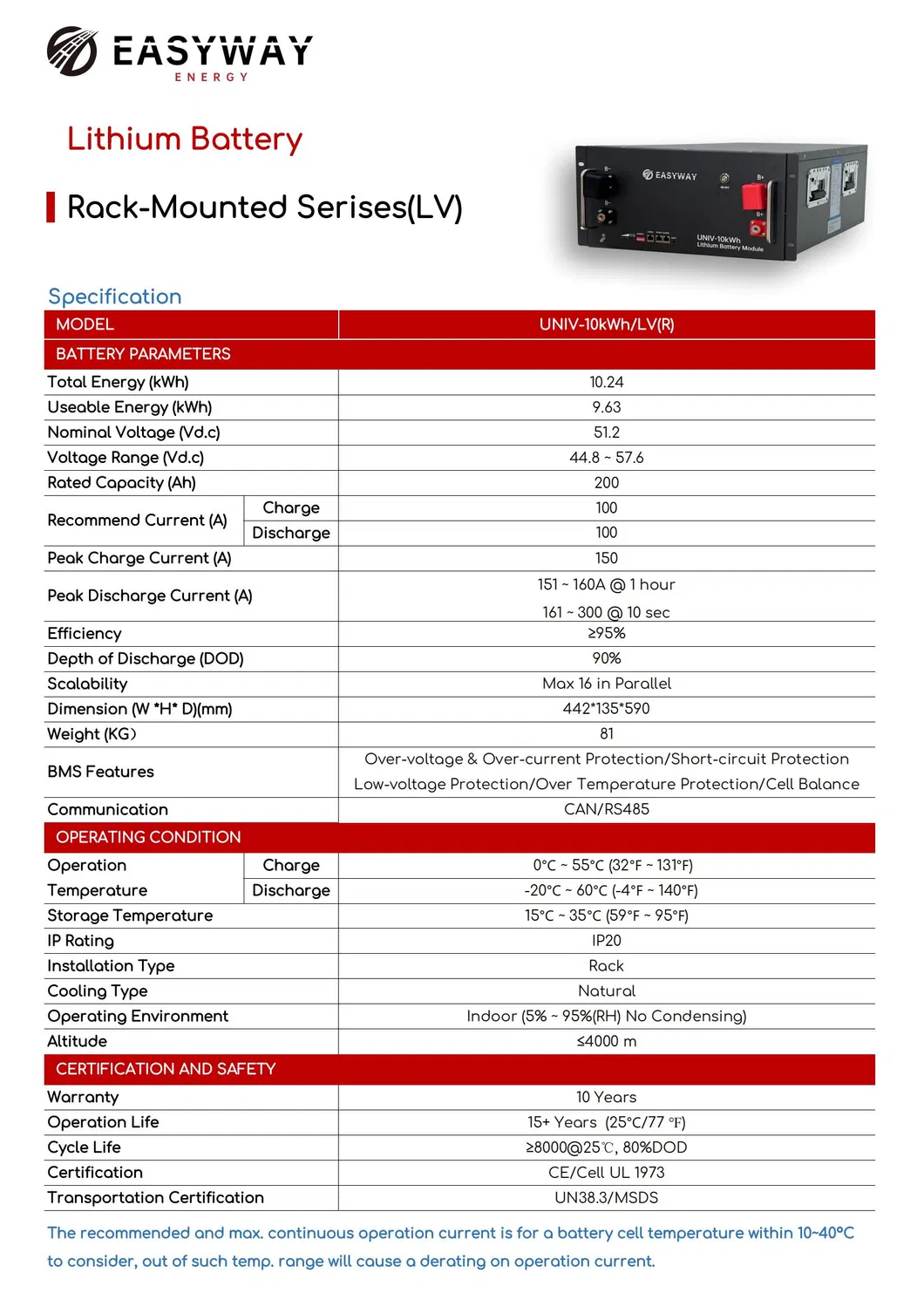

Technical Parameters
Parameter Details
Nominal Voltage51.2V
Recommend CurrentCharge: 120A / Discharge: 120A
Max. CurrentCharge: 150A / Discharge: 150A
Depth of Discharge (DOD)90%
Operation TemperatureCharge: 0ºC ~ 55ºC | Discharge: -20ºC ~ 60ºC
CertificationCE / Cell UL 1973 / UN38.3 / MSDS

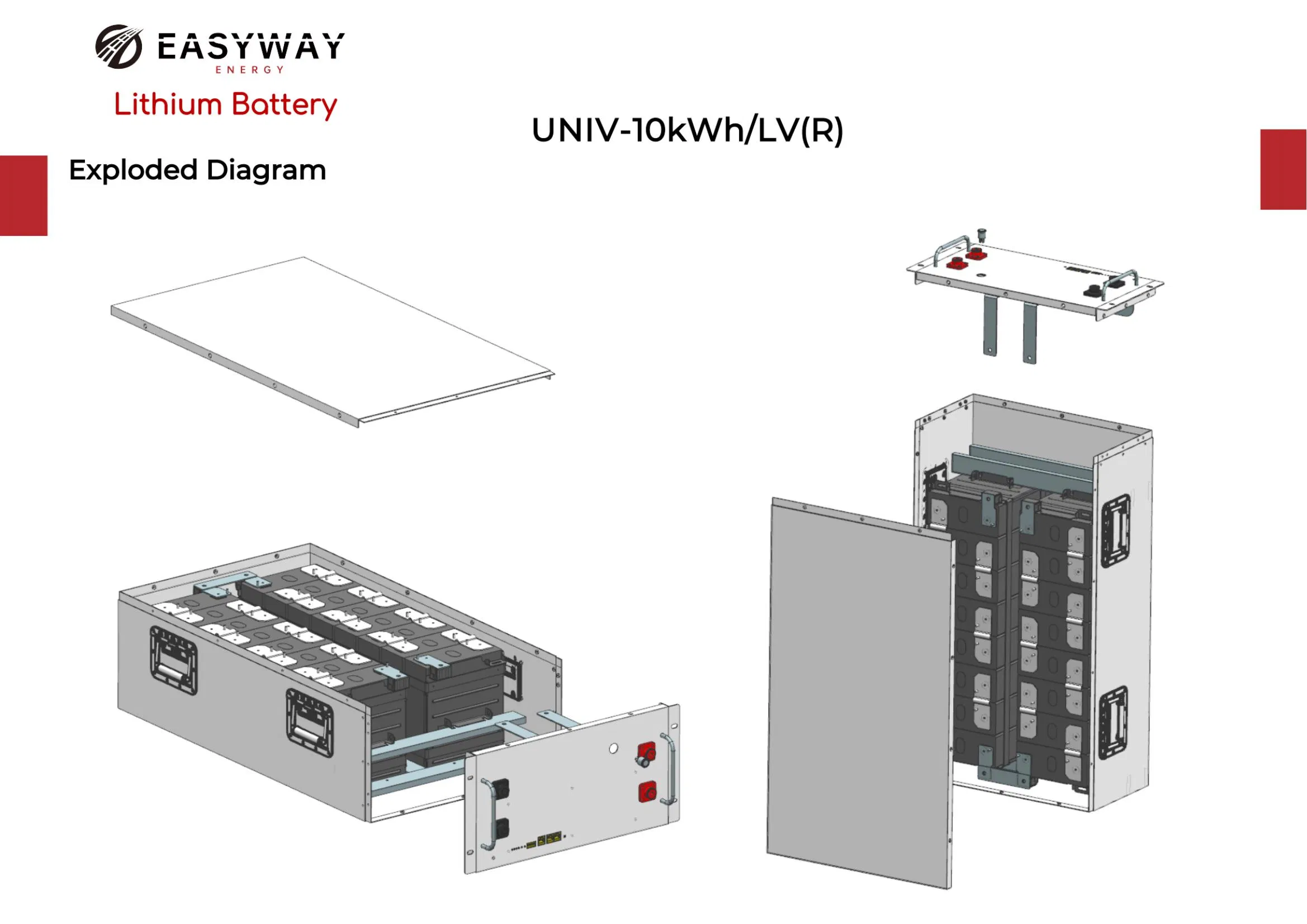

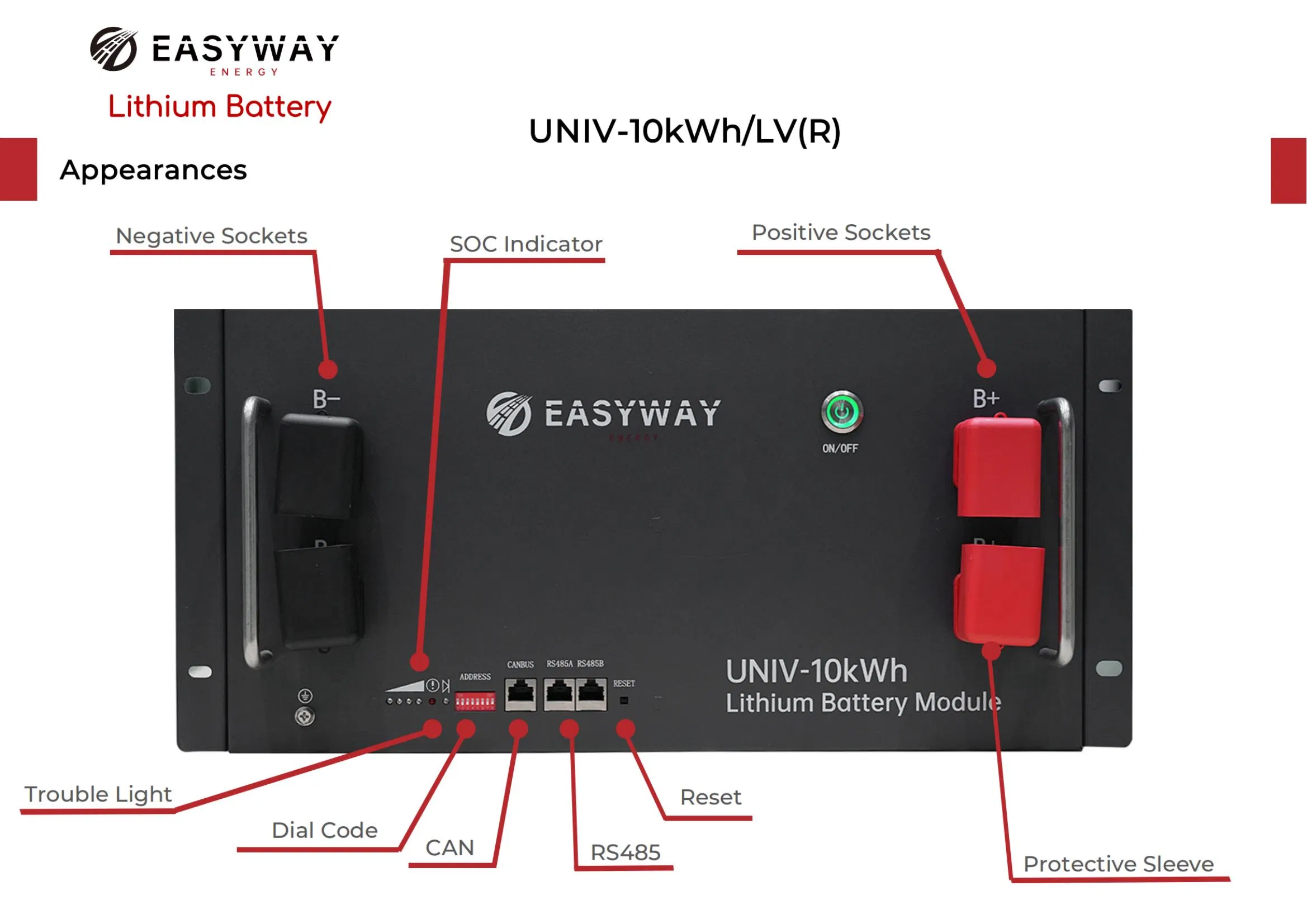

Technical Drawing
Packaging & Delivery
Package Size52.00cm * 69.00cm * 39.00cm
Package Gross Weight100.000kg
Standard Packing1 unit in a Carton or Wooden Case
Frequently Asked Questions
Are you a manufacturer or trading company?

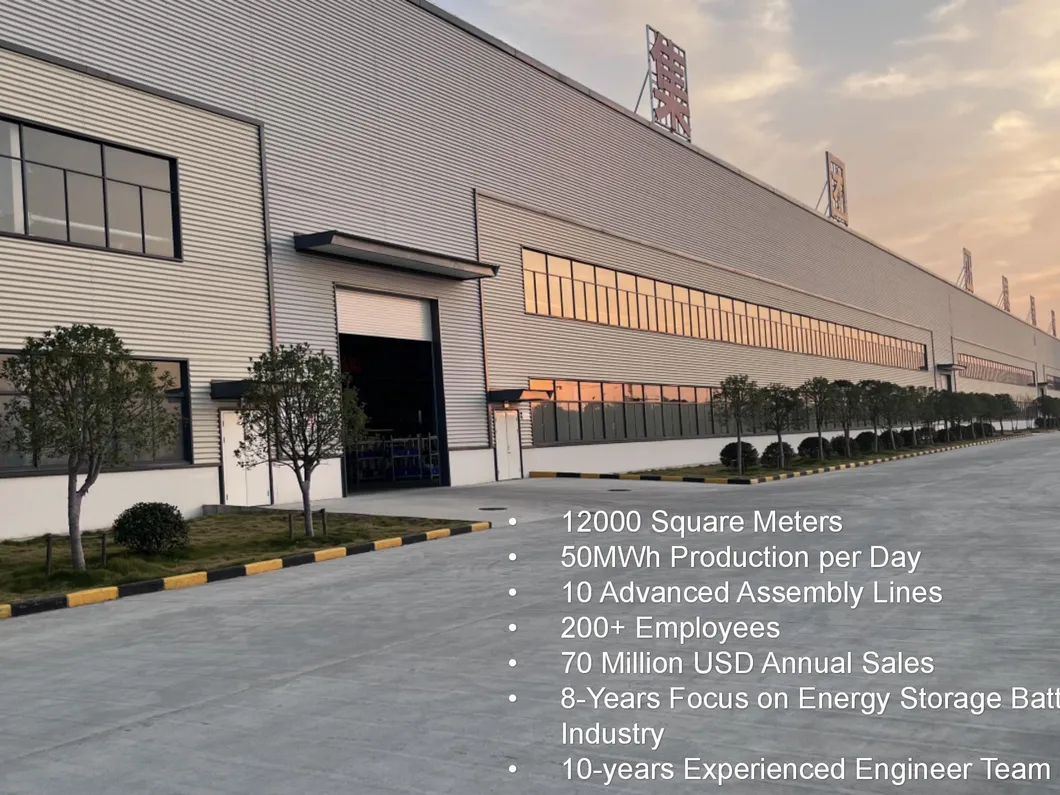

We are a professional manufacturer with over 10 years of experience in the battery industry.
What is the expected lifespan of the battery?
Our batteries are built with Grade A LiFePO4 cells, offering a cycle life of up to 6000+ to 8000+ cycles at 80% Depth of Discharge (DoD).
How long is the warranty period?
We offer a comprehensive 10-year limited warranty (5+5 years) which includes technical support and replacement of BMS or battery units if necessary.
Which inverter brands are compatible with your batteries?
Our BMS supports CANbus and RS485 communication protocols, making them compatible with most well-known inverter brands on the market.
What is the typical delivery time?
Standard delivery is usually within 30 days, though this may vary based on order quantity and specific requirements.
Do you have the necessary safety certifications?
Yes, our products carry CE, MSDS, and UN38.3 certifications to ensure safe transportation and international compliance.
