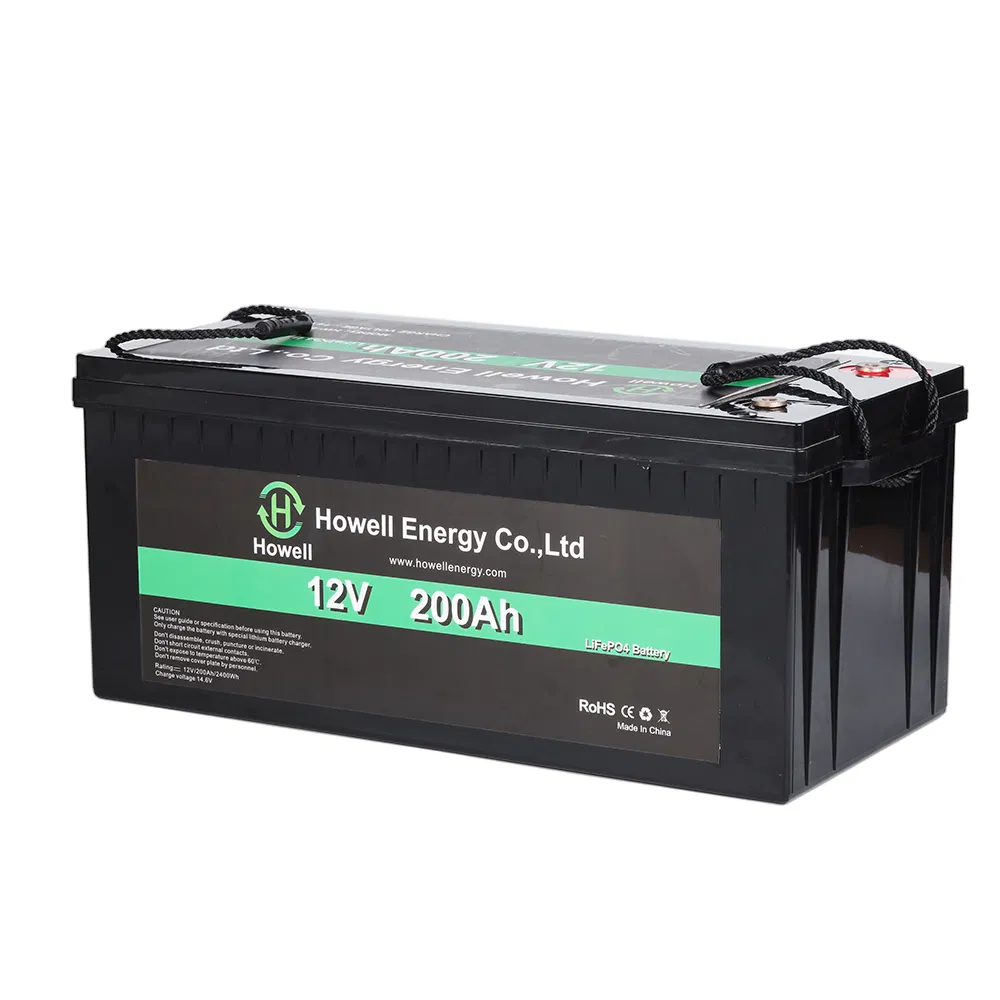

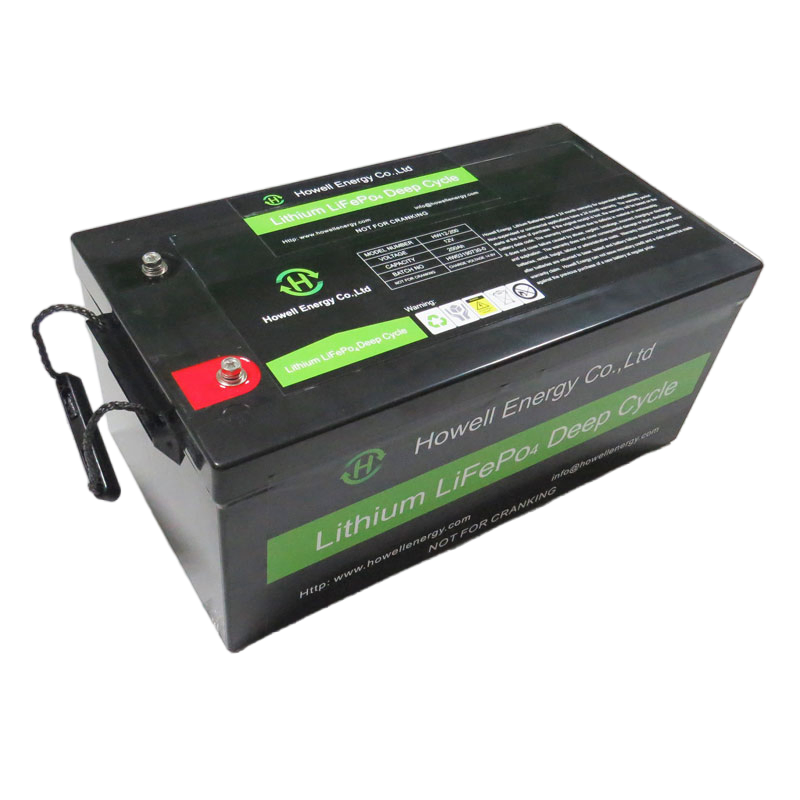

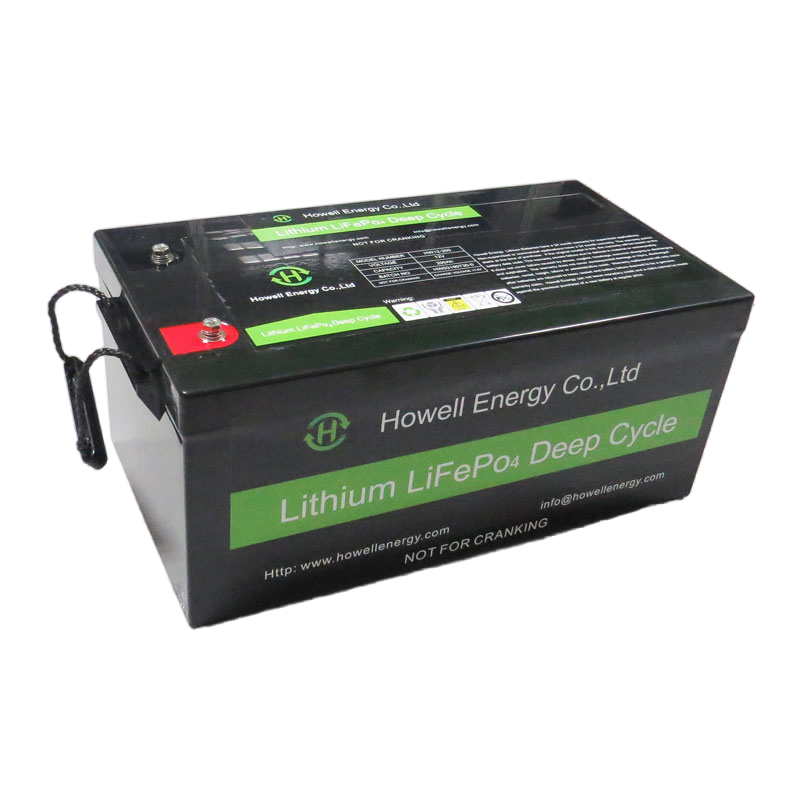

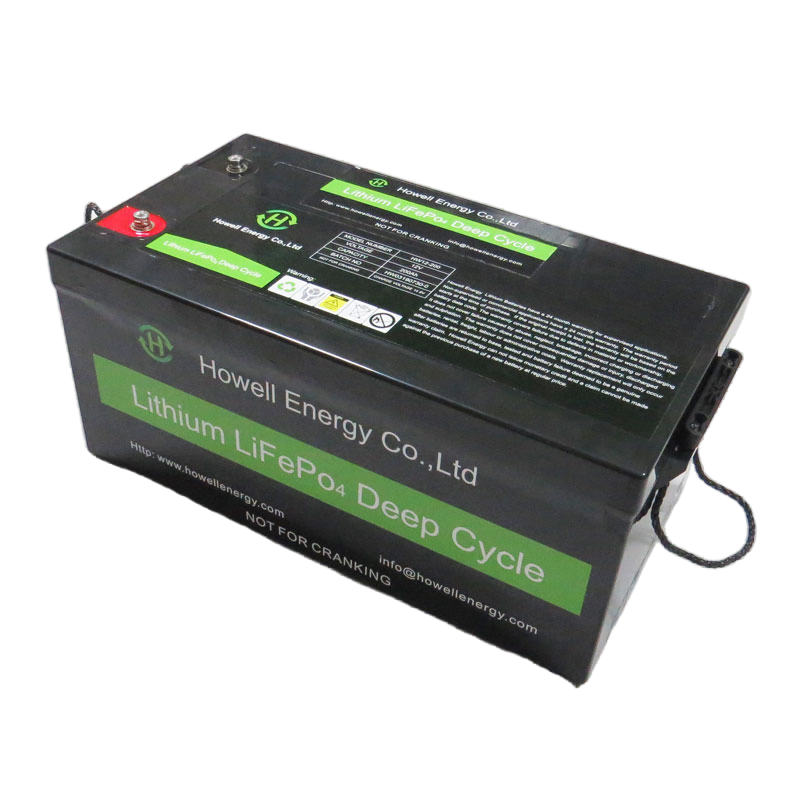

Rechargeable Solar Storage Battery 12.8V 100ah 12V 24V 48V 200ah Lithium Iron Phosphate LFP LiFePO4 Battery Pack for Solar Lighting/Telecom/RV/Marine/Golf/UPS/

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Specifications

Model NO.
HWE-4F200
Nominal Capacity
200Ah
Cycle Life
6000 Times
Voltage
12.8V
Calendar Life
10 Years
Discharge Current
100A (Continuous)
Dimension
522*238*220mm
Weight
Approx: 28kg
Housing
ABS+PC Housing
Protection
IP65
Battery Feature Banner

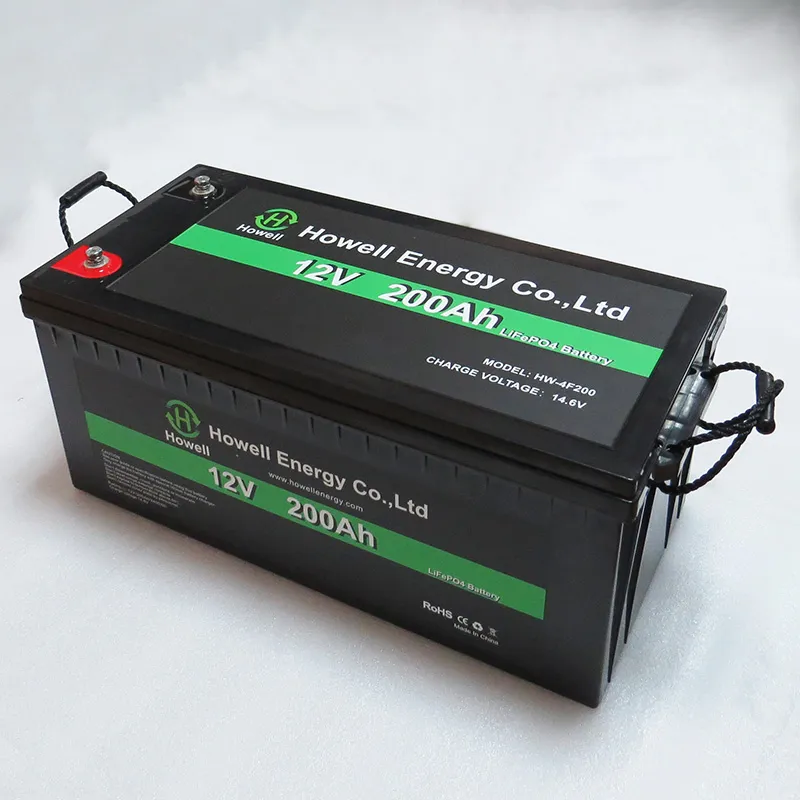

Product View 1

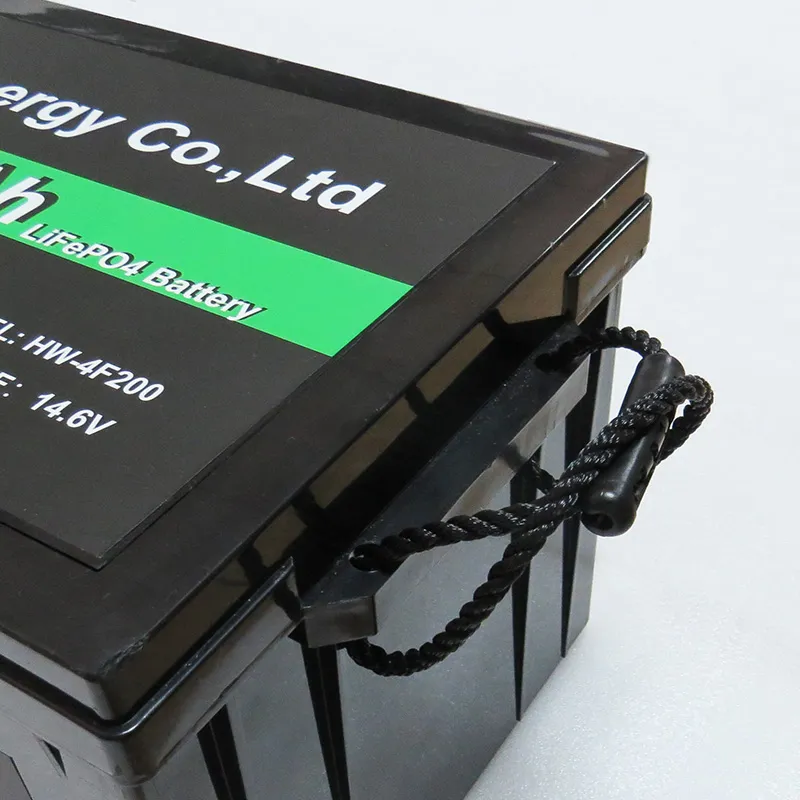

Product View 2

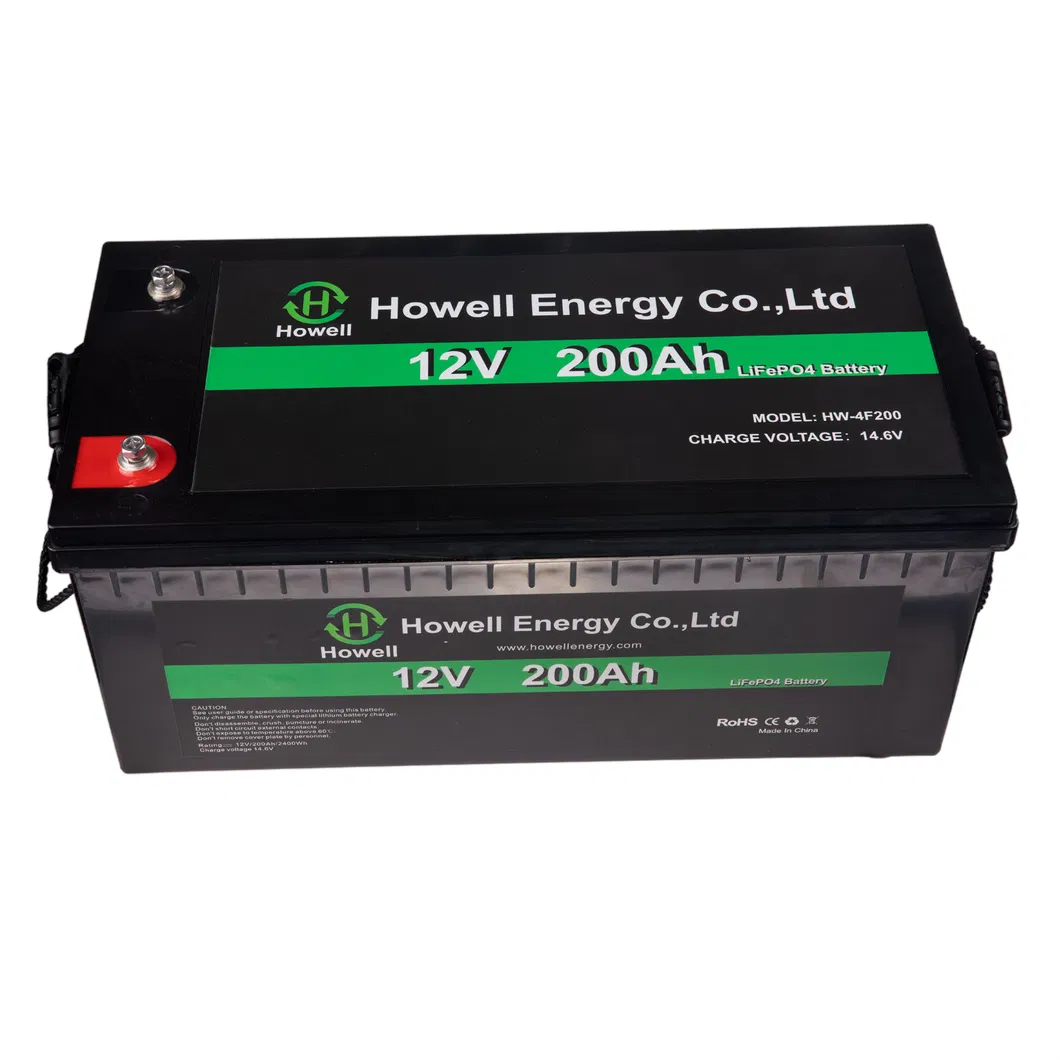

Product View 3

📝 Technical Data Sheet

No. Item General Parameter
1Nominal Voltage12.8V
2Nominal Capacity200Ah
3Energy2560Wh
4Efficiency99%
5Self Discharge<2% per month
6Max Continuous Discharge100A
7Peak Discharge Current220A (≤5s)
8Recommended Charge Voltage14.6V
9Charge Temperature0 to 45ºC
10Discharge Temperature-20 to 60ºC
11Terminal TypeM8
Process Banner
Internal Structure
BMS System
⭐ How to boost your battery life?
  • Use partial-discharge cycles
  • Avoid charging to 100% capacity
  • Select the correct charge termination method
  • Limit the battery temperature
  • Avoid high charge and discharge currents
  • Avoid very deep discharges (below 2 V or 2.5 V)

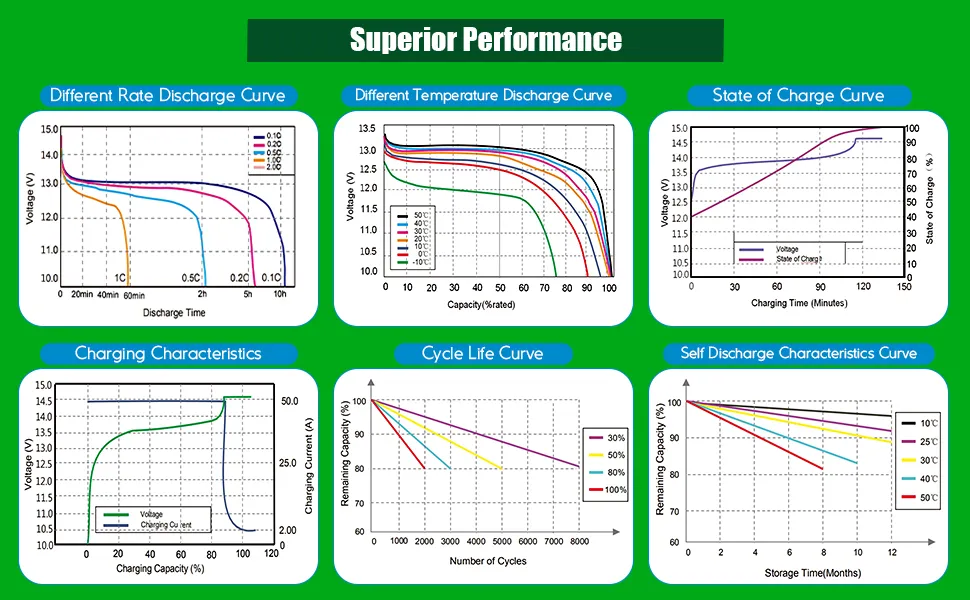

Performance Diagram
❄️ Storing LiFePO4 in Cold Weather
  • Regular cleaning of battery
  • Keep the battery at 40%-50% charge level during storage
  • Warm up the battery before charging during winter
  • Choose a dry, cool and temperature-controlled place
  • Use high-quality battery management systems

📦 Packaging & Delivery

Package Size
60.00cm * 30.00cm * 30.00cm
Gross Weight
23.000kg
Transport Package
Wooden Carton

❓ Frequently Asked Questions

Q1. Can I have a sample order for the Battery?

A: Yes, we welcome sample orders to test and check quality.

Q2. What is the standard lead time?

A: Samples typically need 5-10 days, while mass production requires 25-30 days.

Q3. Is there a MOQ limit for Battery orders?

A: We offer low MOQ; 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by UPS or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping are also optional.

Q5. Do you offer a guarantee for the products?

A: Yes, we offer a 1-2 year warranty on our products.

Q6. How do you handle faulty products?

A: Our products are produced under a strict quality control system with a defective rate of less than 0.2%. During the guarantee period, we will send new batteries with new orders or repair defective batches.
