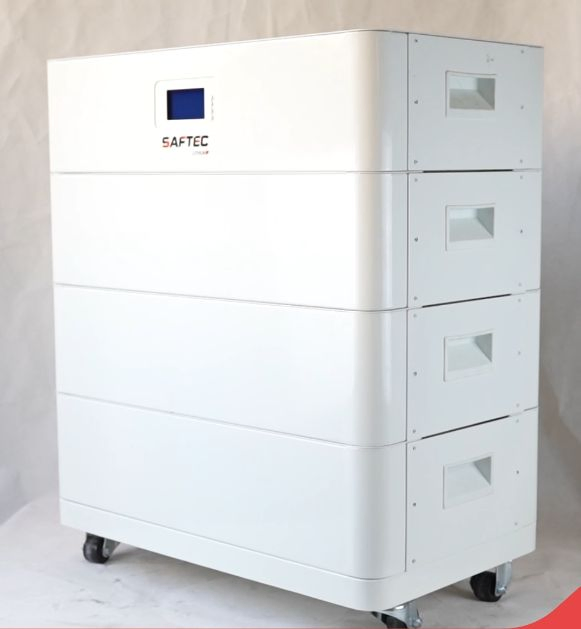

Saftec 48V Home 20kwh 48volts Lithium Ion Rechargeable Battery Price Modular Battery Pack

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Size
Medium
OEM
Available
Standard Charge Current
30A
Max Charge Current
50A
Standard Discharge Current
50A
Max Discharge Current
100A
Communication
RS232, RS485, CAN
Operation Life
10 Years
Scalable
Max 10 Packs
Certification
CE, RoHS, UN38.3, SGS, ISO9001, ISO14000
Specification
5-50Kwh
HS Code
8507
Modular Battery Pack

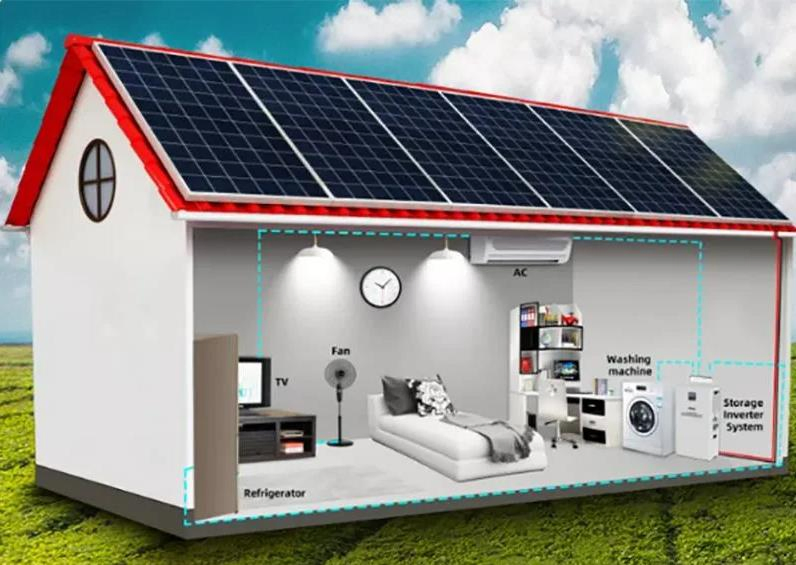

Home energy storage systems utilize energy generated by rooftop solar installations and home wind turbines, as well as low-cost electricity from social power systems, to store energy for peak usage. These systems serve as essential emergency power supplies and significantly reduce electricity expenses for families.

As new energy solutions move into the residential market, these storage systems are becoming vital, particularly for homes equipped with photovoltaic or wind turbine systems. In regions with unstable power supply, the demand for reliable household energy storage is exceptionally strong.

Technical Parameters

Type STC-48V100AH STC-51.2V100AH
Capacity102Ah102Ah
Standard Voltage (Vdc)4851.2
Standard Charge Current30A30A
Max Charge Current50A50A
Max Discharge Current100A100A
CommunicationRS232 RS485 CANRS232 RS485 CAN
Operation Temperature0-50ºC0-50ºC
Weight43kg45kg

Product Advantages

🛡️
Safe BMS: Advanced protection, balanced management, and multi-protocol communication for real-time remote monitoring.
🔋
Flexible Capacity: Options ranging from 2.5 kwh up to 20 kwh to suit various household needs.
📐
Modular Design: Compact size (490*490*135) and light weight (approx. 30Kg) allowing for parallel connection and easy installation.
⚙️
Maintenance-Free: Design life of 10+ years with zero maintenance required, significantly reducing TCO.
🔄
Seamless Upgrade: Compatible with existing devices and lead-acid battery replacement without extra equipment.
🌐

Application Scenarios

Solar Energy Storage Grid Energy Storage Substation Systems Photovoltaic Systems Building Energy Storage Communication Base Stations Data Centers Electric Forklifts AGV & Robotics

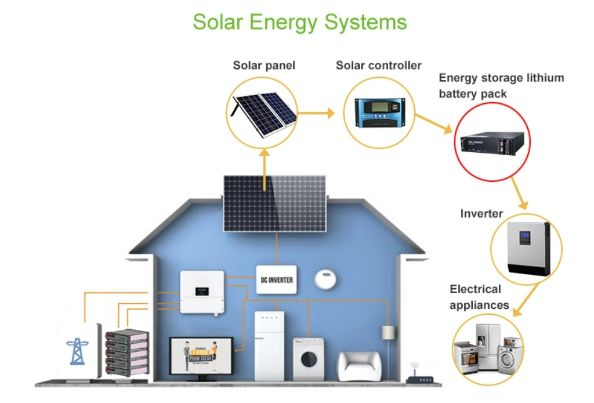

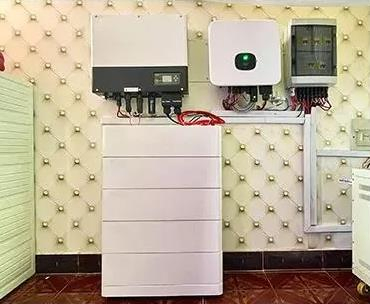

Solar Energy System

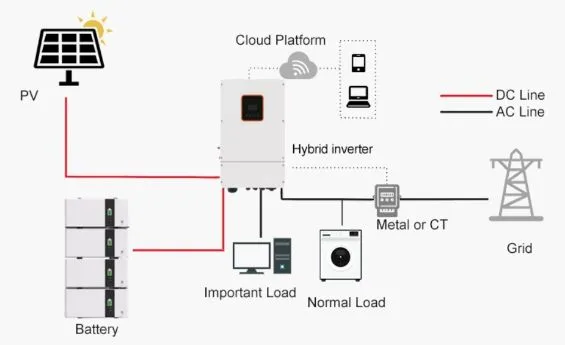

Battery Monitoring
💎

Key Features

LiFePO4 Cell: High energy density and safety stability.
Series Connection: Up to 10 modules can be connected and stacked.
SOC Algorithm: Accurate SOC calculation with self-calibration.
Real-time Monitoring: 3-level protection for cell voltage with automatic alarms.
Energy Solution
📦

Product Portfolio

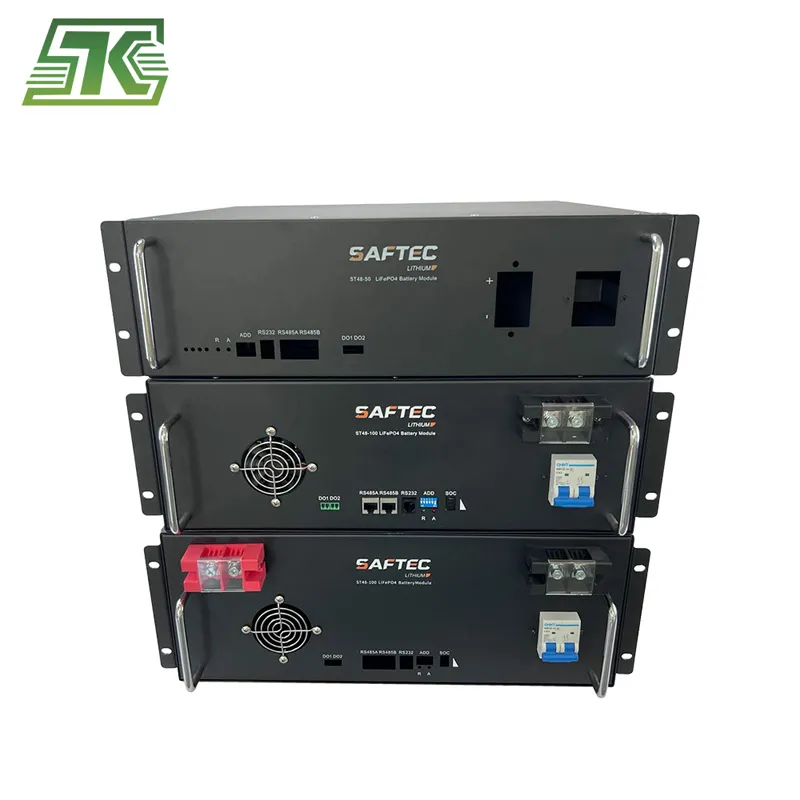

Battery Model A

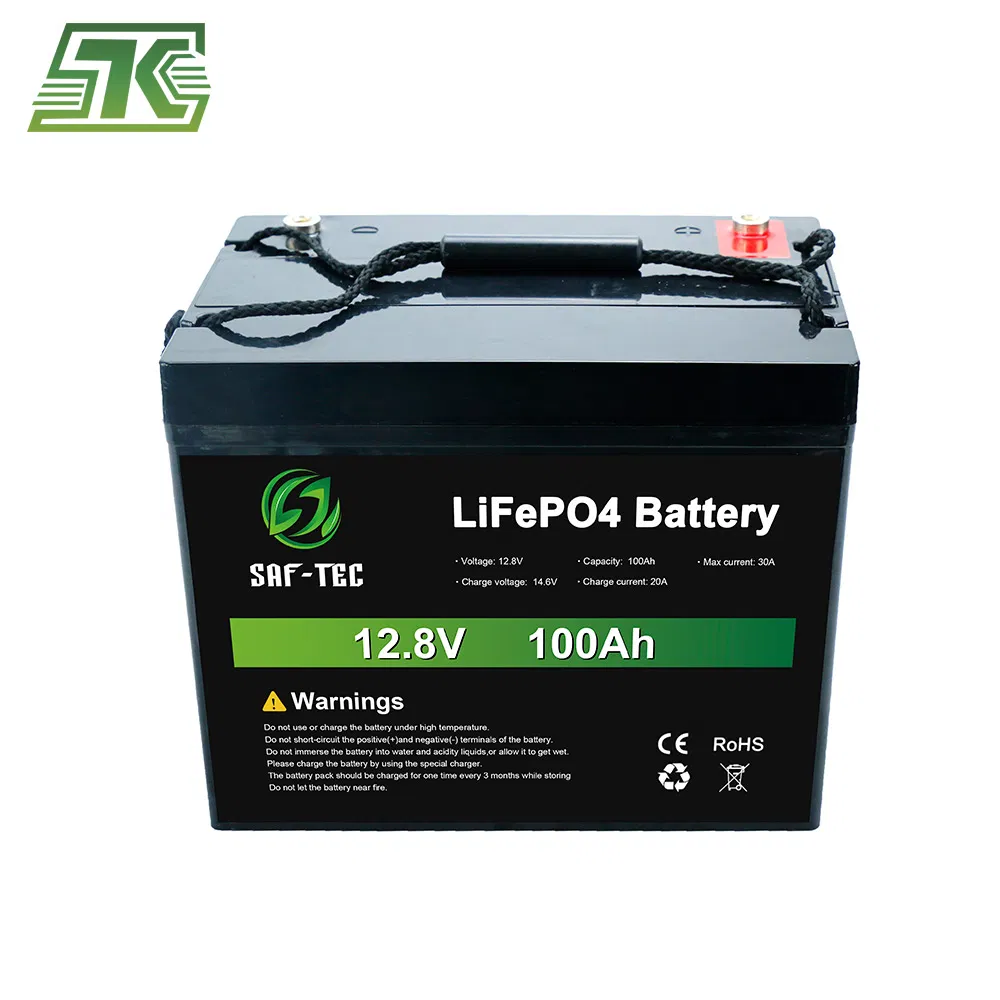

Battery Model B

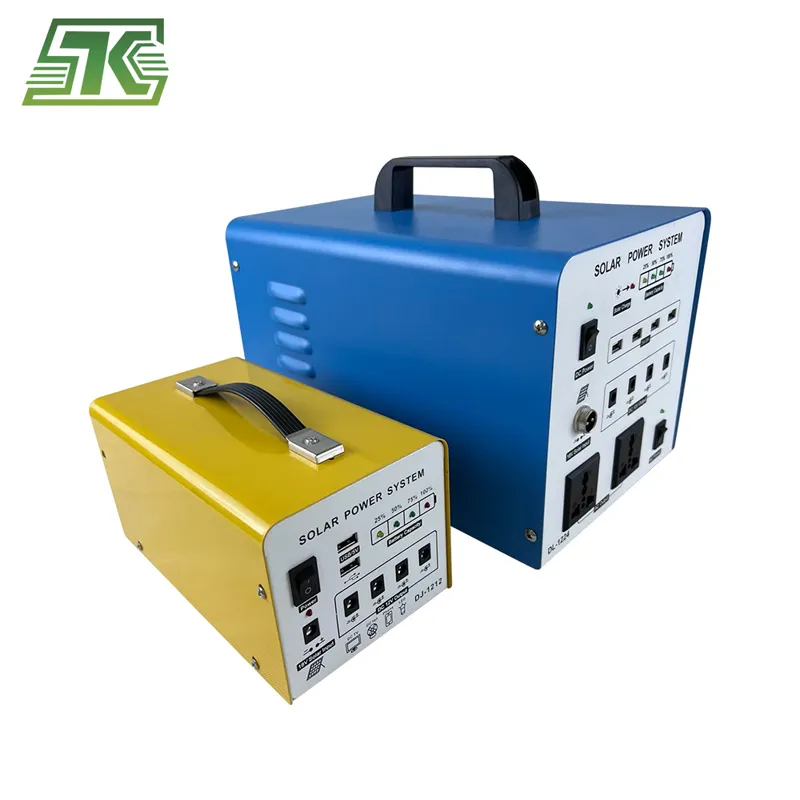

Battery Model C
?

Frequently Asked Questions

What is the expected lifespan of these battery packs?
The system is designed for a 10-year operation life with maintenance-free performance under proper care.
How many battery packs can be connected together?
The system is scalable and supports connecting up to 10 battery packs in series or parallel configurations.
Is the system compatible with existing lead-acid equipment?
Yes, it features a seamless upgrade design that works with existing devices including lead-acid batteries and supports floating charge modes.
What kind of protection does the BMS provide?
The integrated BMS provides 3-level protection for cell voltage, balanced management, and real-time status monitoring with automatic alarms.
Which communication protocols are supported?
The batteries support standard RS232, RS485, and CAN communication protocols for easy integration.
Can the batteries be used for commercial purposes?
Absolutely. In addition to home storage, they are suitable for data centers, grid storage, electric forklifts, and communication base stations.
