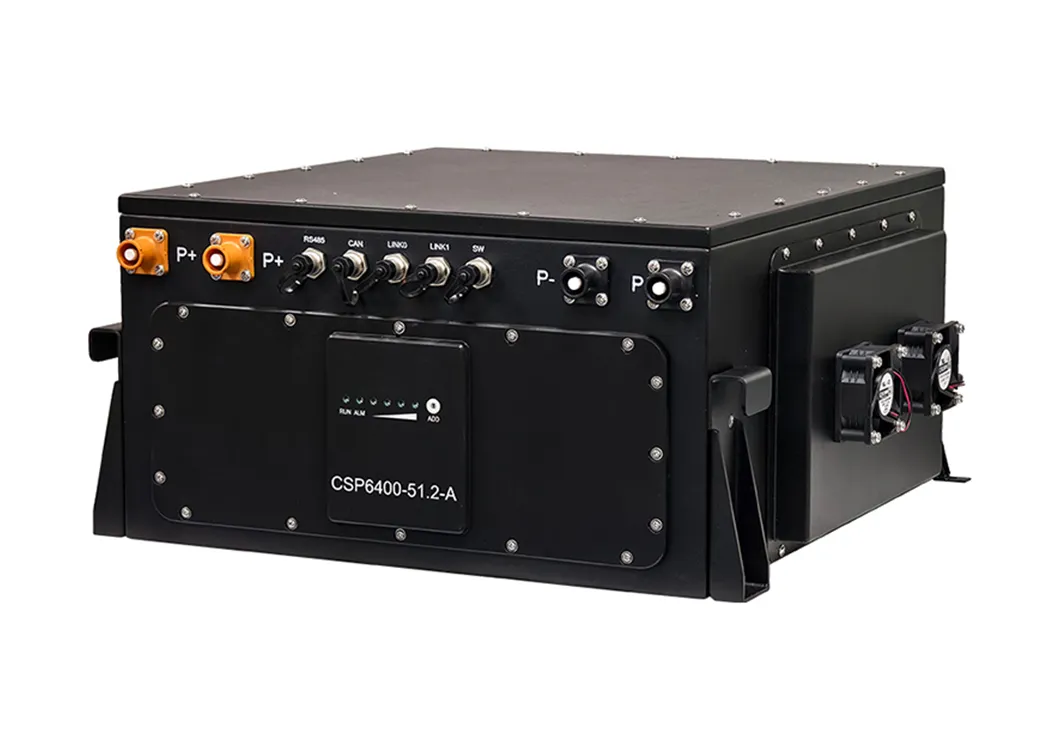

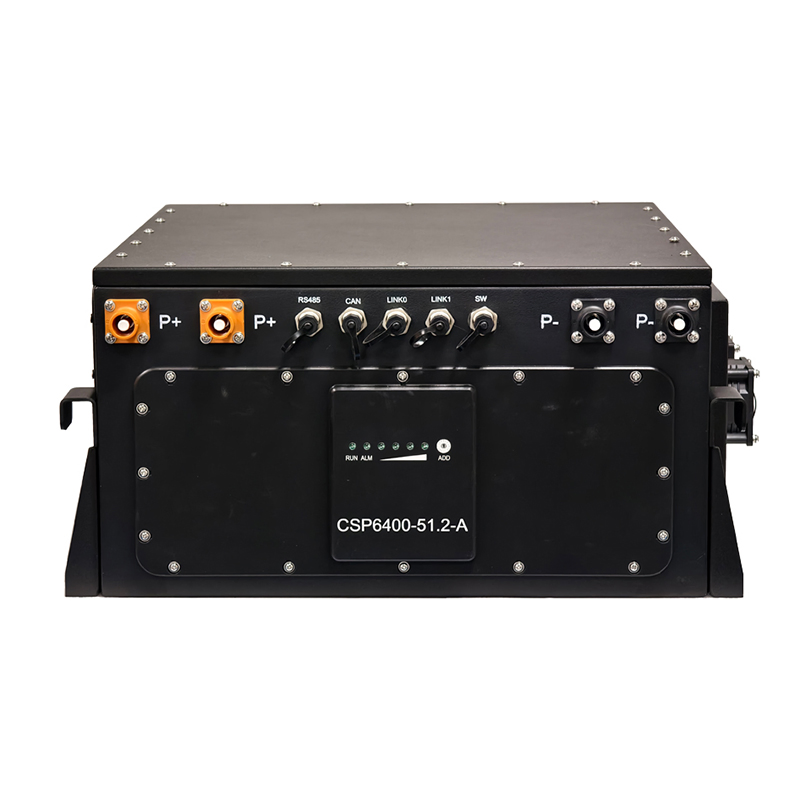

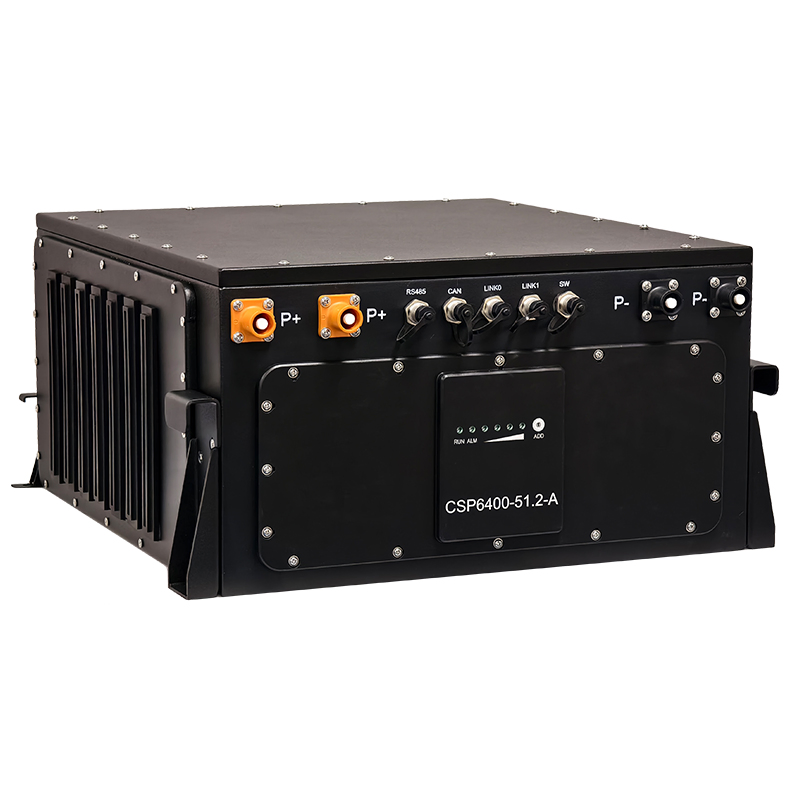

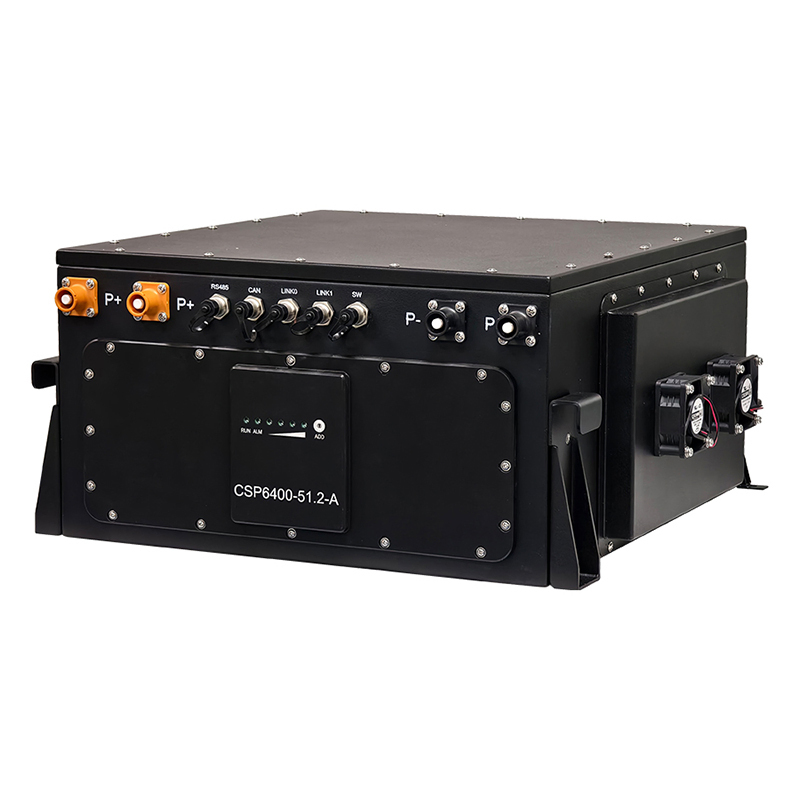

Where industrial power meets limitless scalability. Each CSP-6400 battery module packs 6.4kWh LFP cells at 51.2V voltage, engineered to seamlessly parallel-connect maximum 16 units via smart BMS -- delivering 102.4kWh on demand. Armored with IP65 weatherproofing, it thrives in -35°C to 50°C extremes while vibration-resistant structures defy rugged terrains. From mobile construction sites to off-grid emergency backup, our modular design redefines energy resilience for outdoor challenges. CSP-6400 ESS - powering productivity, built to endure.
| Model | CSP6400-51.2 |
|---|---|
| Nominal Voltage (V) | 51.2 |
| Nominal Energy (Wh) | 6400 |
| Maximum Output Power (W) | 6400 |
| Cell Type | LFP(1P16S) |
| Protection Class | IP65 |
| Operating temperature(ºC) | -10 ~ 50 (Charging) / -35 ~ 50 (Discharging) |
| Heating Function | Active self-heating |
| Weight (kg) | ≈56 |
| Dimensions(LxWxH,mm) | 482x420x217 |
| Cycle Life (25ºC,0.5C) | ≥4000 |
| Communication | RS-485, CAN |
| Scalability | Max. 16 batteries in parallel |
The company is a globally recognized leader in advanced lighting and cutting-edge energy storage solutions, proudly serving as a strategic partner to the world's top-tier light tower manufacturers. With a relentless focus on innovation, quality, and sustainability, we are committed to driving the global transition to clean energy. Since established in 2007, the manufacturer has built a sound reputation for being a specialist of LED lights for Mining, Industrial, Commercial and Sports application for domestic and international markets. Since 2020, in response to the global call for energy conservation and emissions reduction, we have developed series of energy storage products based on lithium battery, to provide hybrid or solar solutions for industrial illumination and energy systems.
