16.0768kwh 51.2V Air-Cooled Lithium Ion Batteries Pack Modular

1 / 5

16.0768kwh 51.2V Air-Cooled Lithium Ion Batteries Pack Modular

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:Modular

Product Name:LiFePO4 Battery Pack 51.2V 16kwh

Cell Model:BS-F-1p16s-314A-B

Electric Energy:16.076kWh

Rechargeable:Yes

Size:470*728*230mm

Weight:100kg

Application:Energy Storage System

Production Capacity:1.2 Gw/Year

HS Code:85414020

Product Description

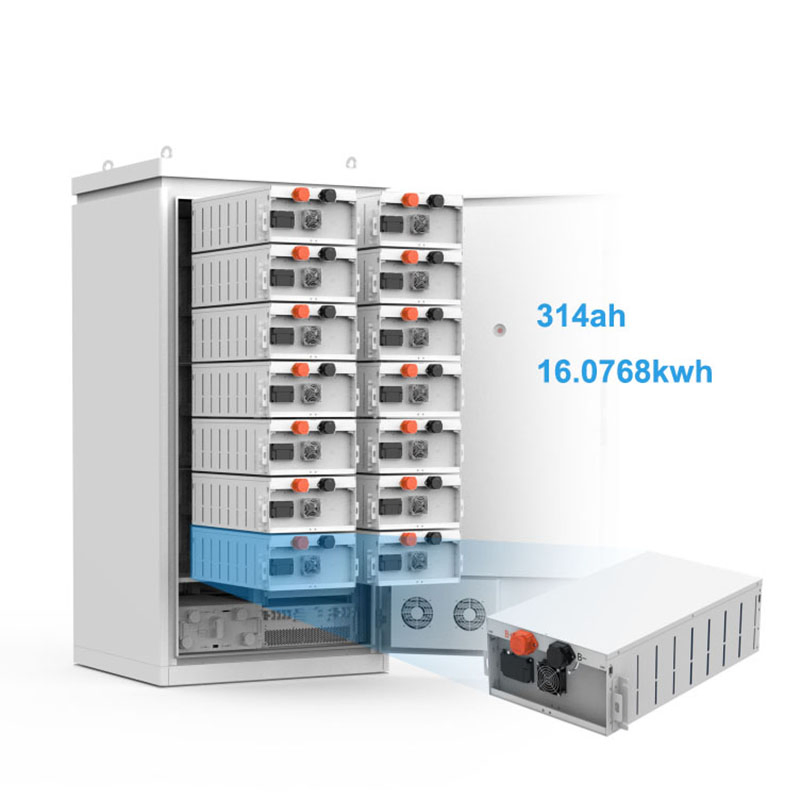

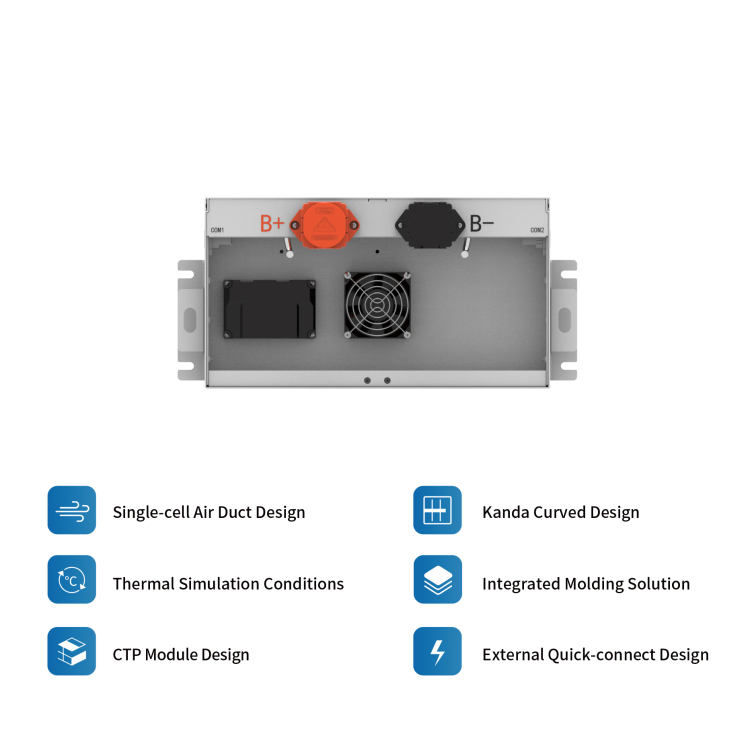

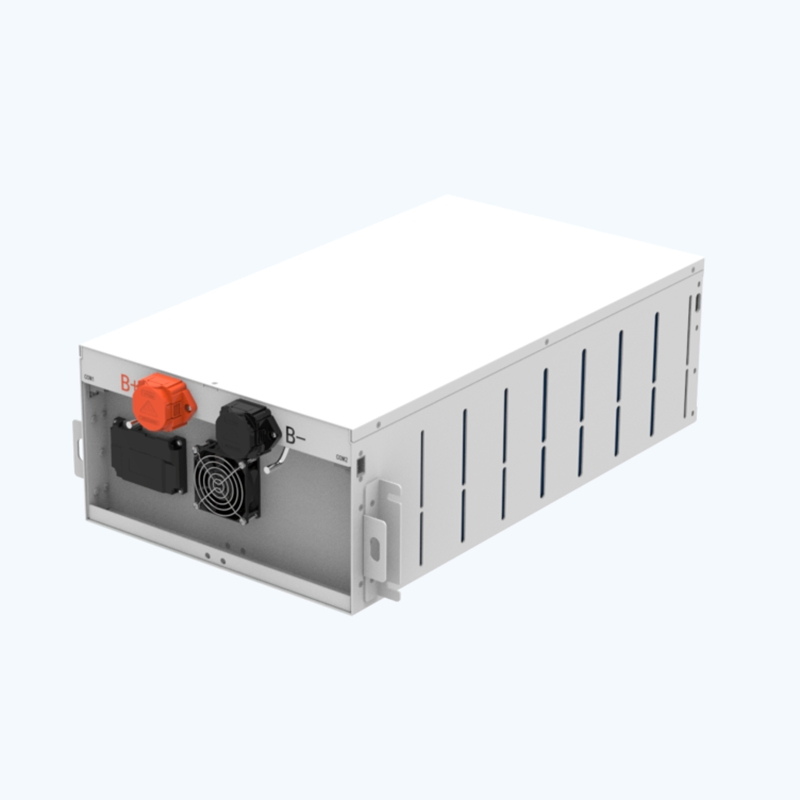

Air-Cooled LFP Battery Pack (BS-F-1P16S-314A-B)

The BS-F-1P16S-314A-B Air-Cooled Battery Pack is a high-performance lithium iron phosphate (LFP) energy storage solution designed for safety, reliability, and efficient thermal management. Utilizing 314Ah LFP cells in a 1P16S configuration, it delivers a nominal voltage of 51.2V and a total energy capacity of 16.076kWh.

With a robust forced air cooling system, the battery pack ensures stable operation even under continuous charge and discharge cycles, supporting standard currents up to 1P. Its operating voltage range from 44.8V to 57.6V makes it suitable for various renewable energy storage, telecom backup, and industrial power applications.

Key Features:

Cell Chemistry: LFP 314Ah for enhanced safety and cycle life
Nominal Energy: 16.076kWh
Cooling: Advanced forced air cooling for thermal stability
Charge/Discharge Rate: 0.5P/1P standard operation
Certifications: Fully certified to IEC 62619, EN 62477-1, and IEC 63056 standards
Compact Design: Space-saving dimensions ideal for cabinet or rack integration

Technical Specifications

Specification	Parameter
DC Parameter	Details
Cell type	LFP 314Ah
Module type	BS-F-1P16S-314A-B
Combination mode	1P16S
Nominal voltage (V)	51.2V
Rated capacity (Ah)	314Ah
Nominal energy (kWh)	16.076kWh
Standard charging current	0.5P/1P
Standard discharge current	0.5P/1P
Cooling Mode	Forced Air Cooling
Operating voltage (V)	44.8~57.6V
Size (WDH mm)	470728230
Certification Standard	IEC62619, EN62477-1, IEC 63056

Packaging & Shipping

Package Size:960.00cm * 680.00cm * 500.00cm

Gross Weight:150.000kg

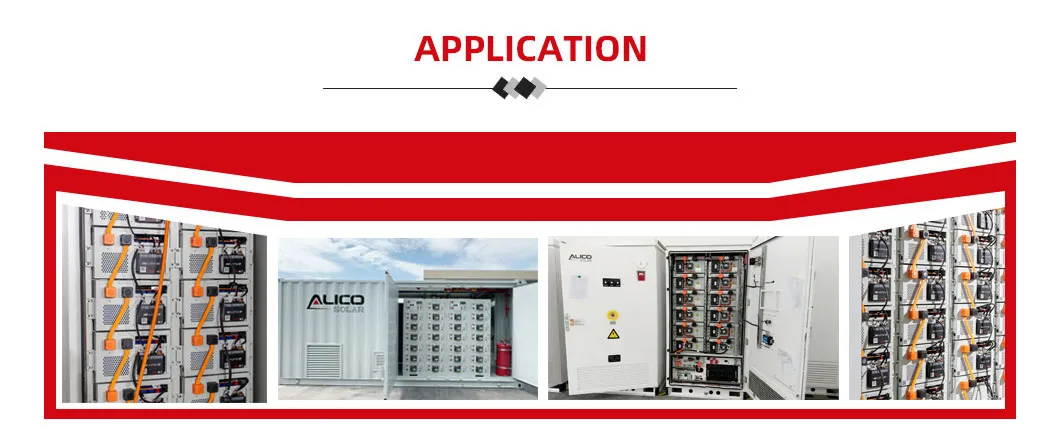

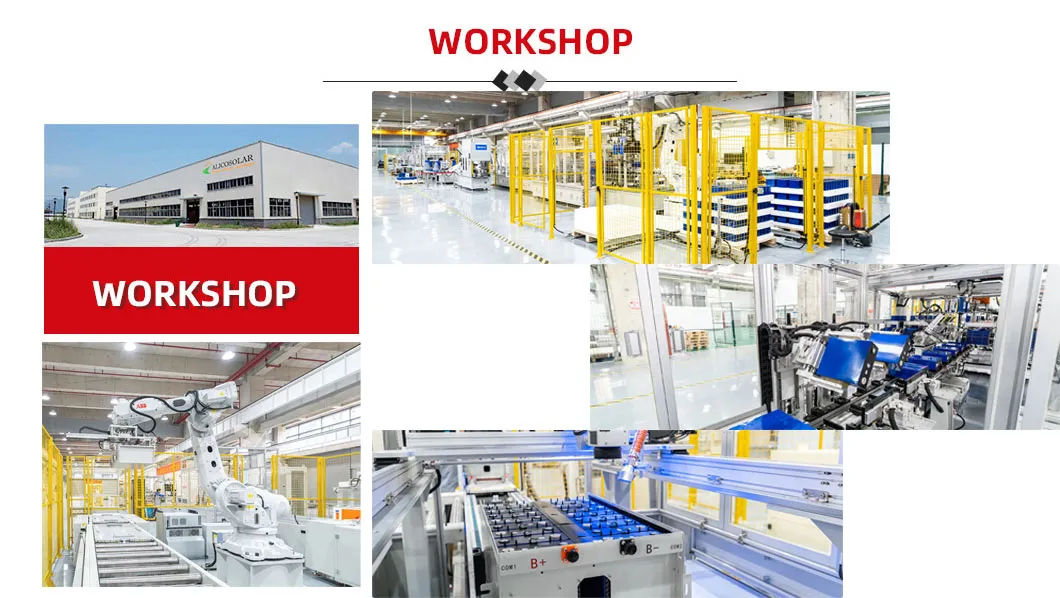

Applications & Facilities

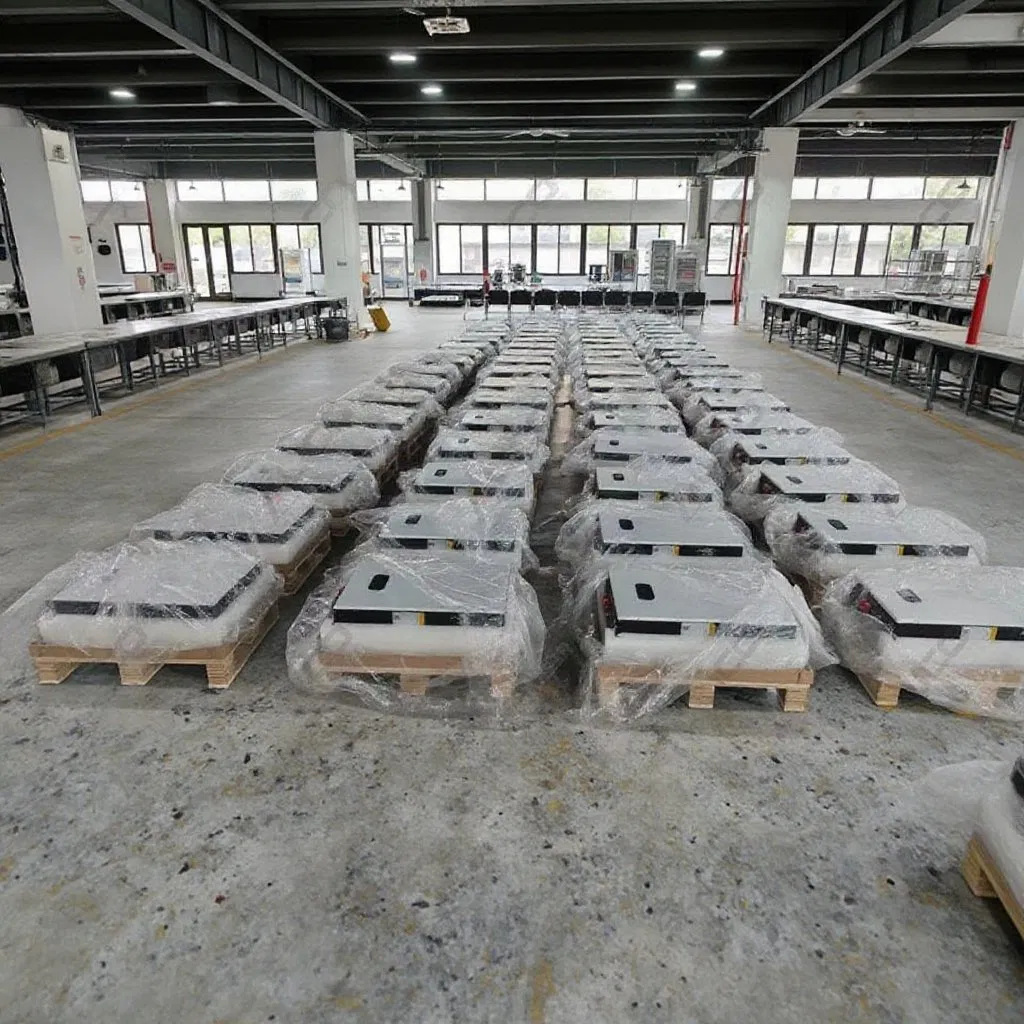

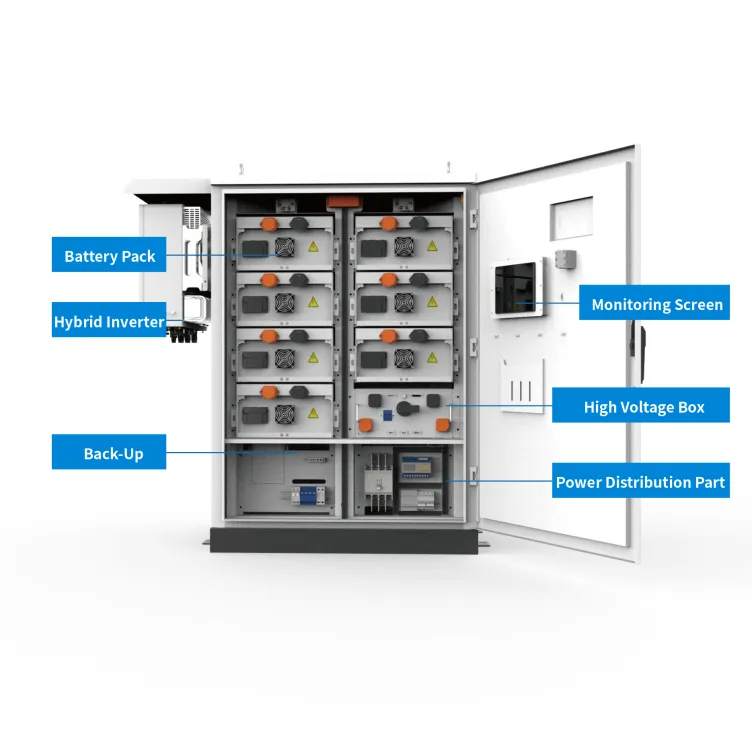

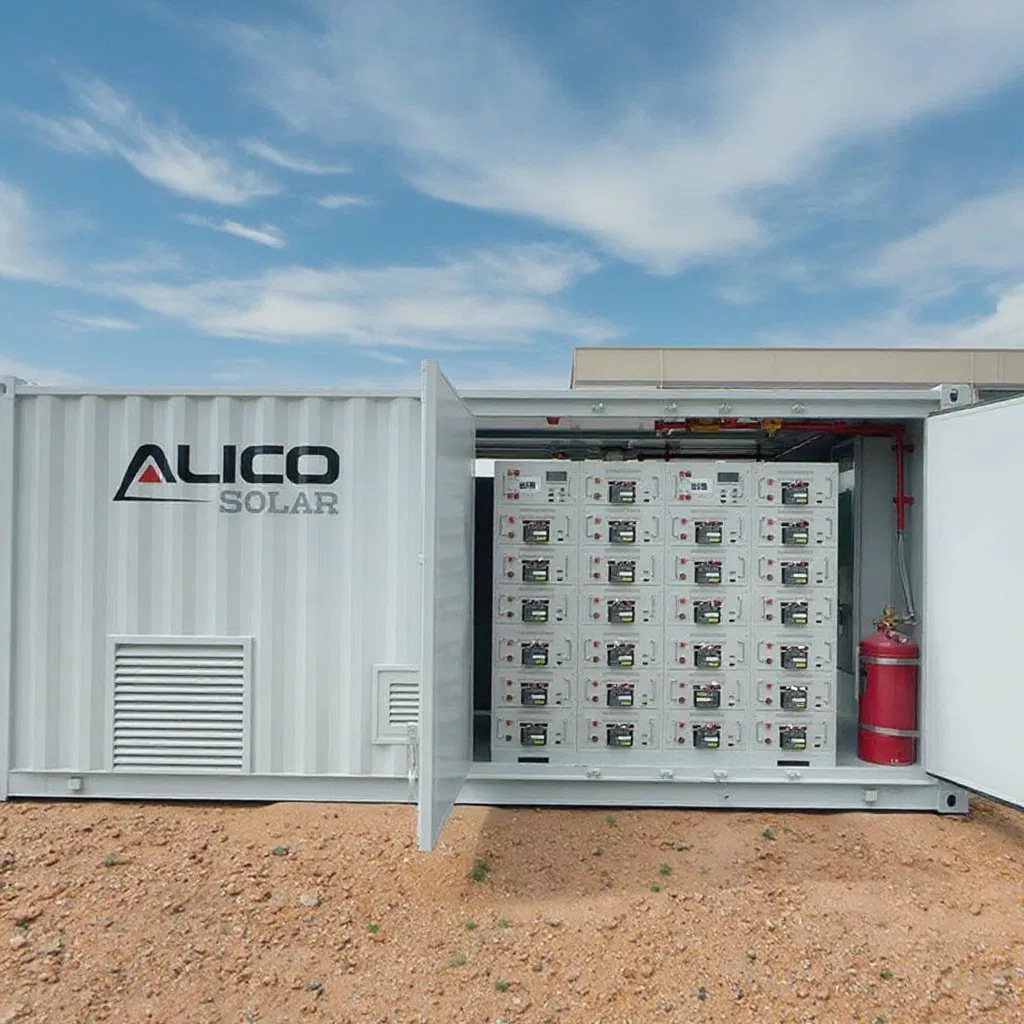

Hot Sales Products

Frequently Asked Questions

Q1: What is the primary use for the BS-F-1P16S-314A-B battery pack?

It is specifically designed for high-capacity Energy Storage Systems (ESS), including renewable energy storage, industrial power backup, and telecom applications.

Q2: How does the forced air cooling system benefit the battery?

The forced air cooling system maintains thermal stability, ensuring the battery operates within safe temperature ranges even during continuous 1P charging and discharging cycles.

Q3: What certifications does this battery pack carry?

The system is fully compliant with international safety standards, including IEC 62619, EN 62477-1, and IEC 63056.

Q4: Can this modular unit be integrated into standard racks?

Yes, its compact dimensions (470mm x 728mm x 230mm) are optimized for easy integration into standard industrial cabinets and racks.

Q5: What is the nominal energy and voltage of a single module?

Each module provides a nominal voltage of 51.2V and a total energy capacity of 16.076kWh.

Q6: What type of battery cells are used in this pack?

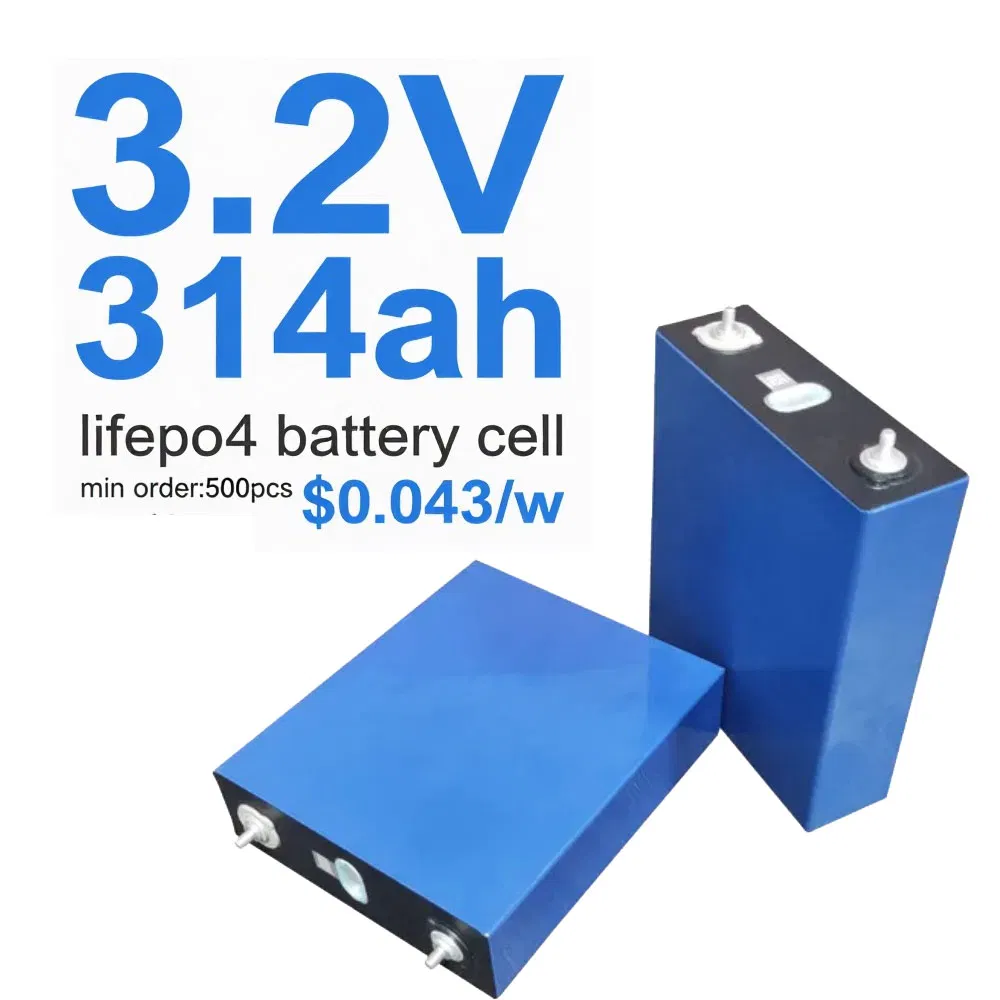

It utilizes high-quality Lithium Iron Phosphate (LiFePO4/LFP) 314Ah cells, known for their long cycle life and superior safety profile.
