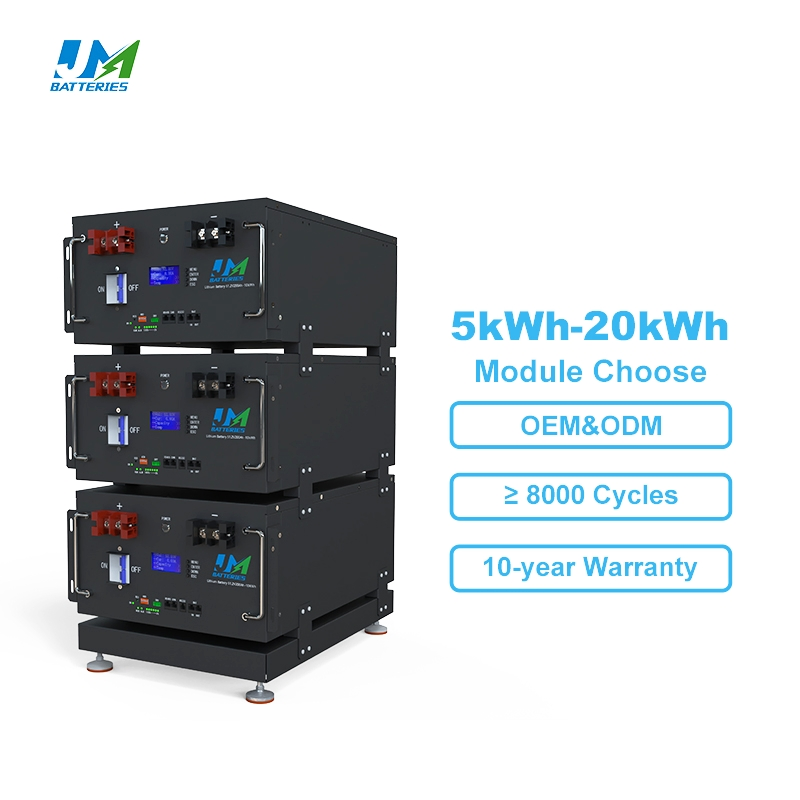

Jm 51.2V Modular Catl Cells 48V 100ah UPS Lithium Ion Battery Pack with BMS for Solar System

i

Basic Specifications

Model NO.

JM-R-51.2V

Battery Type

LiFePO4 Battery Pack

Standard Voltage

48V/51.2V

Rated Capacity

100-400ah

Battery Energy

10.24kwh (Customized)

Cycle Life

≥8000 Cycles

BMS

Jbd-100A-16s

Parallel Number

Up to 15 Units

Communication

CAN / RS485 / RS232

Usage

Home and Commercial Storage

★

Product Highlights

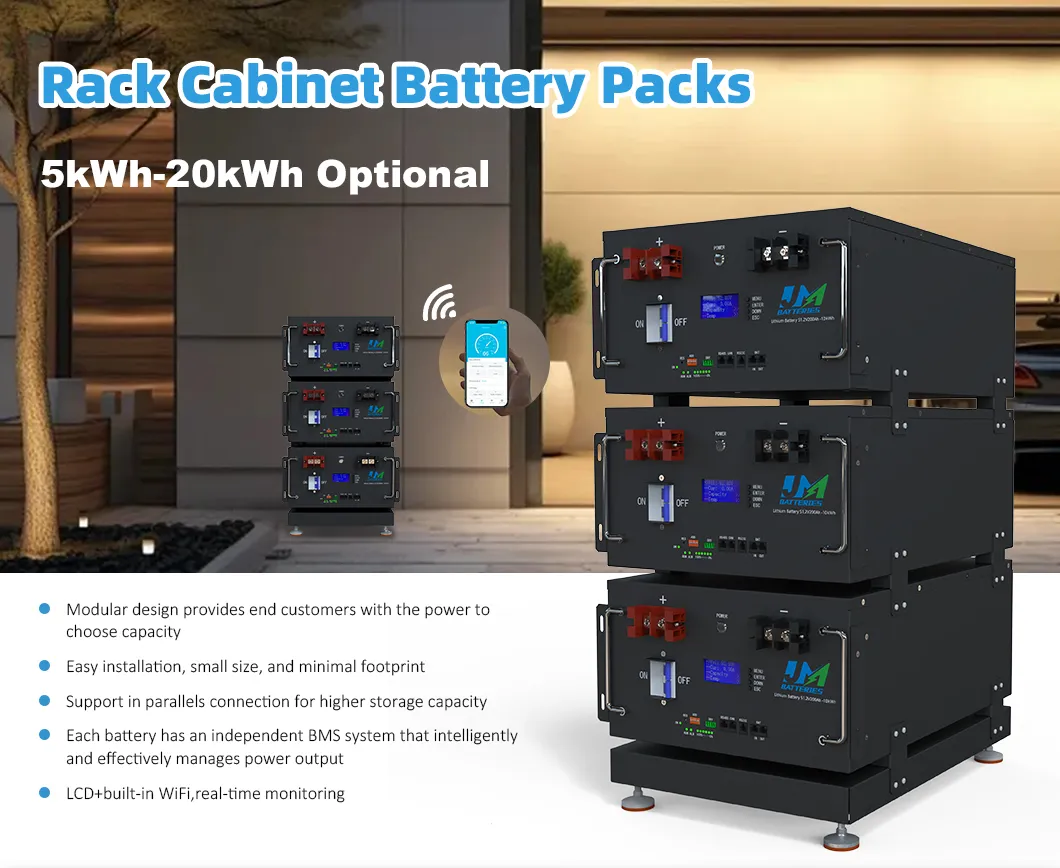

Server Rack Mounted Battery --- High-performance 51.2V modular design for reliable energy storage.

Modular design with customizable capacity (5.12-20.48kWh)

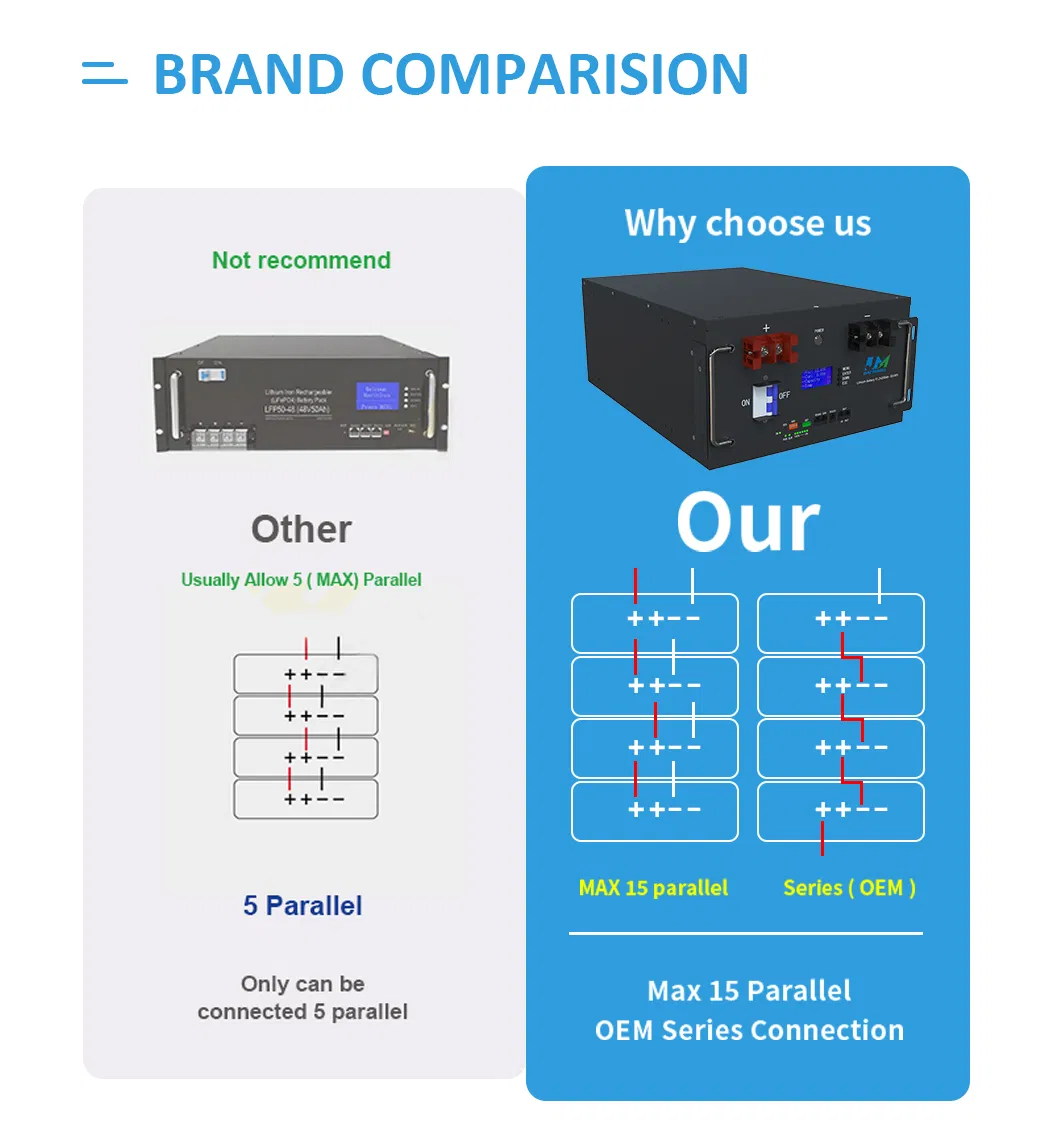

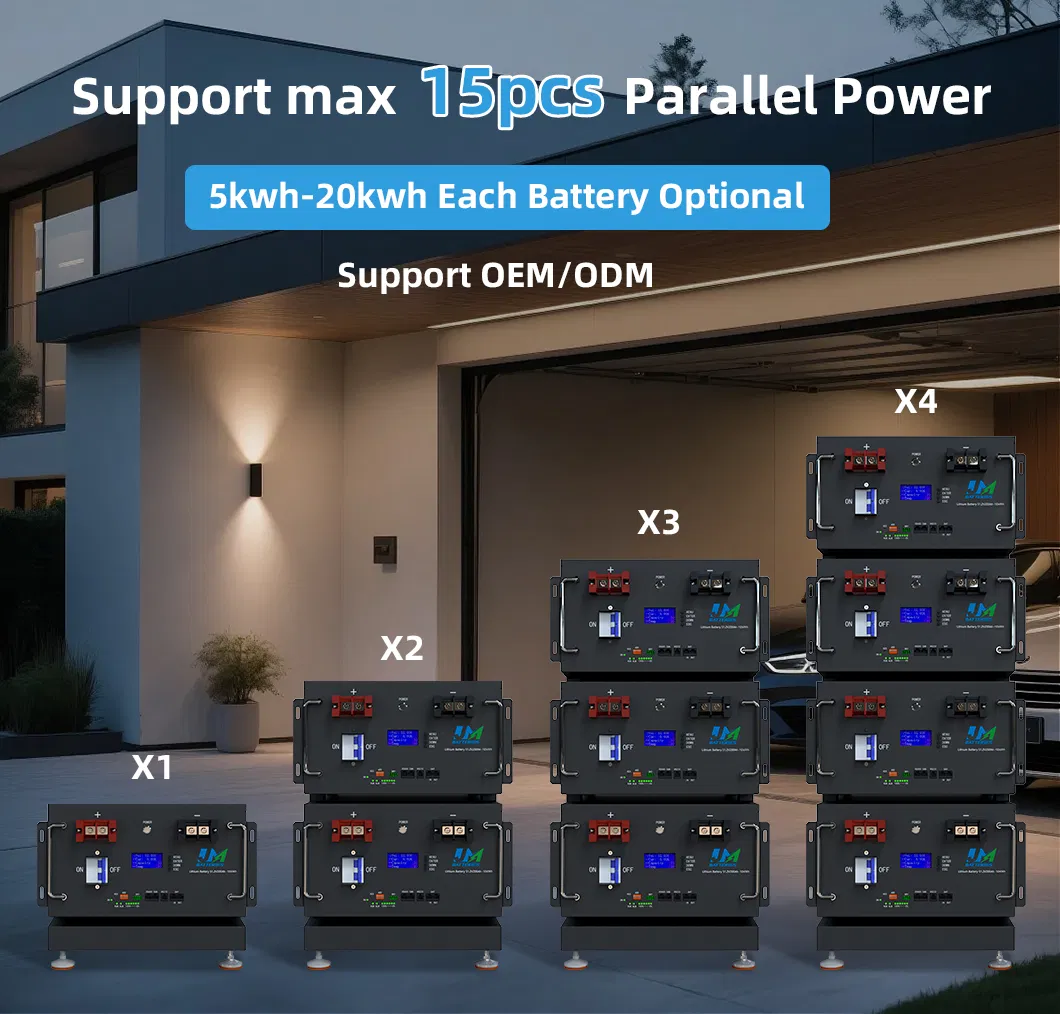

Supports up to 15 parallel connections for scalable storage
Independent BMS for intelligent and safe power management
LiFePO4 cells with 8000-cycle long lifespan
Easy installation, minimal footprint and low maintenance

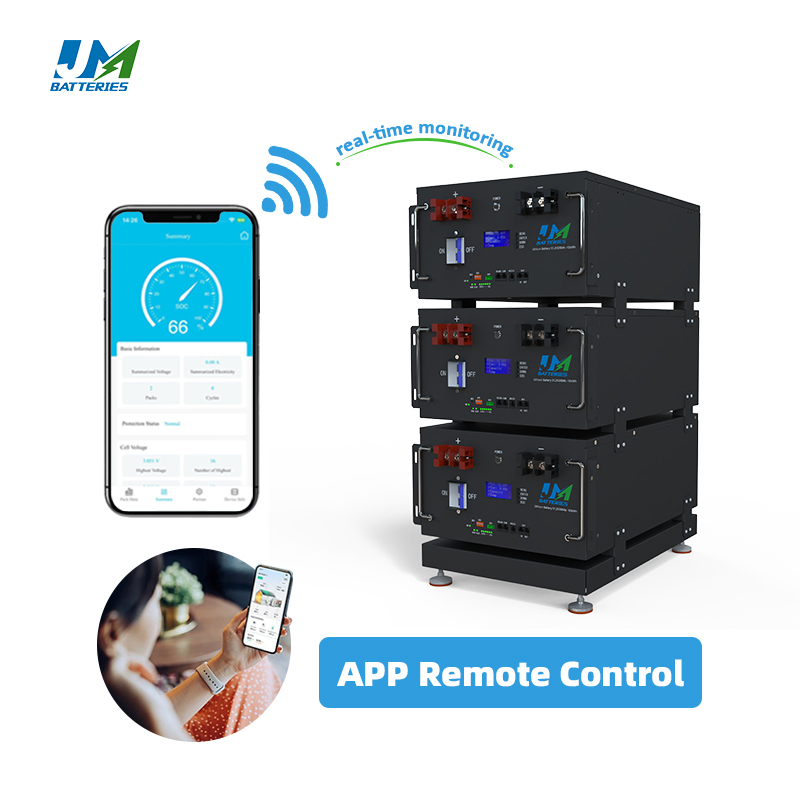

LCD + built-in WiFi for real-time monitoring
Compatible with major inverter brands (DEYE, Growatt, etc.)
Wide operating temperature range (-20°C ~ 60°C)
OEM/ODM customization support available

⚙

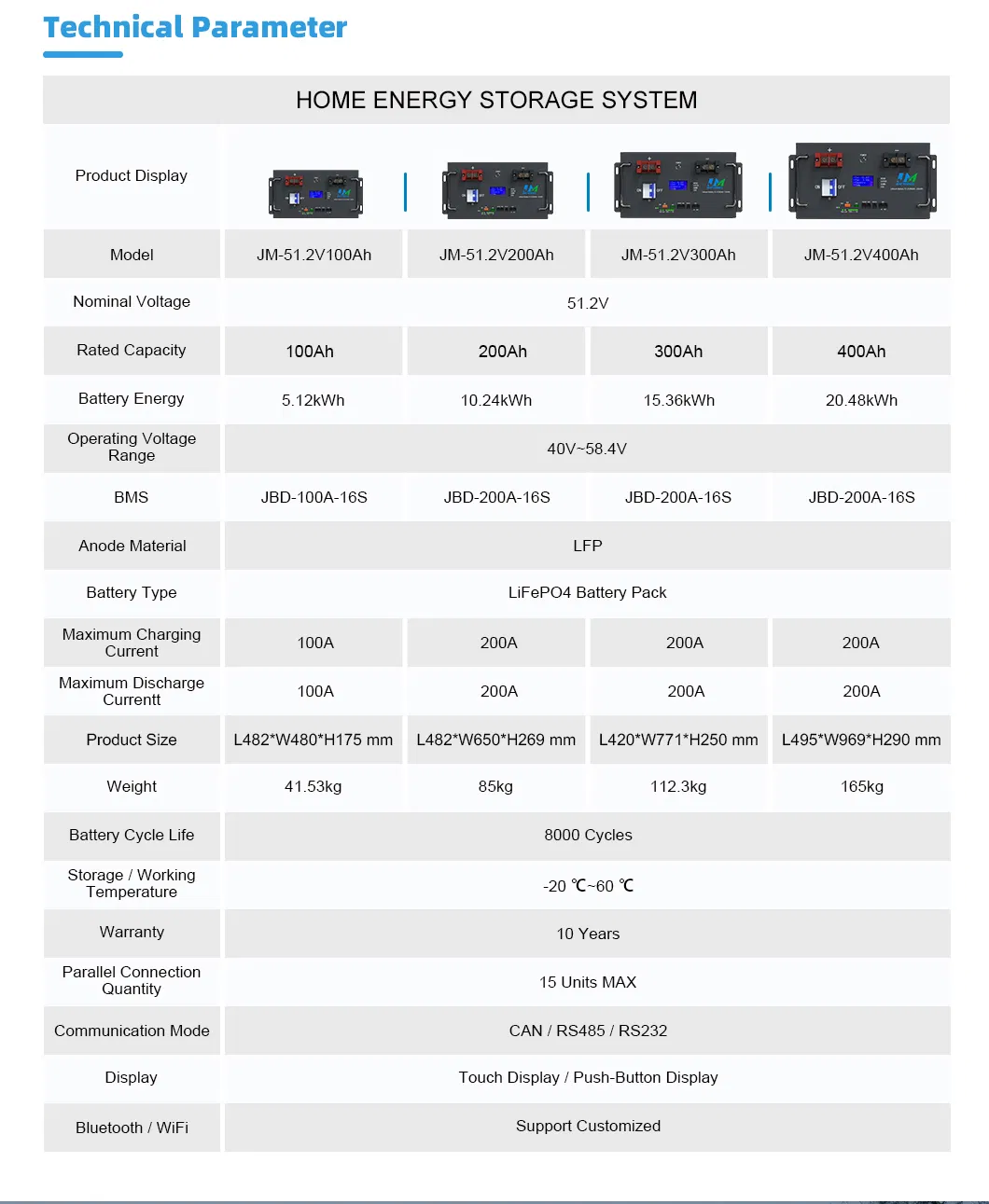

Technical Parameters

Model	Jm-R-51.2V
Nominal Voltage	51.2V
Rated Capacity	100-400ah
Battery Energy	5-20kWh
Operating Voltage Range	40V-58.4V
Support Inverter Brands	DEYE, Growatt, PYLONTECH, SMA, MUST, GOODWE, and more
Maximum Charging Current	100-200A
Maximum Discharge Current	100-200A

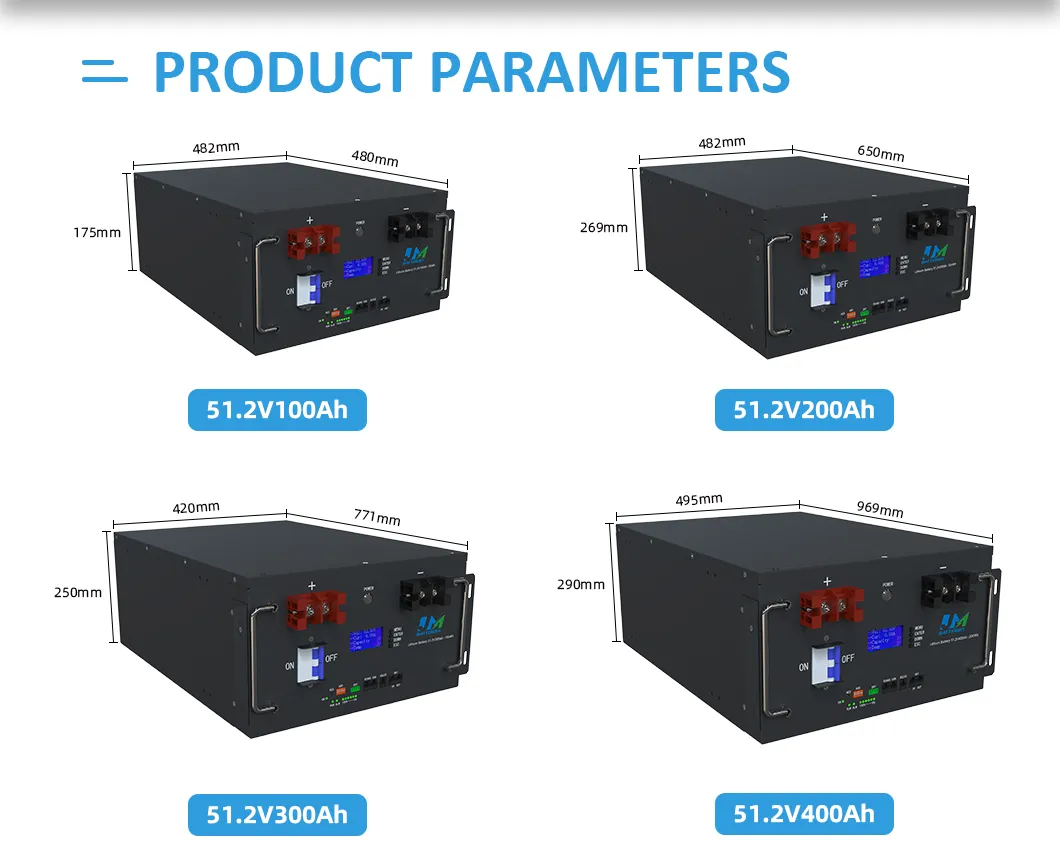

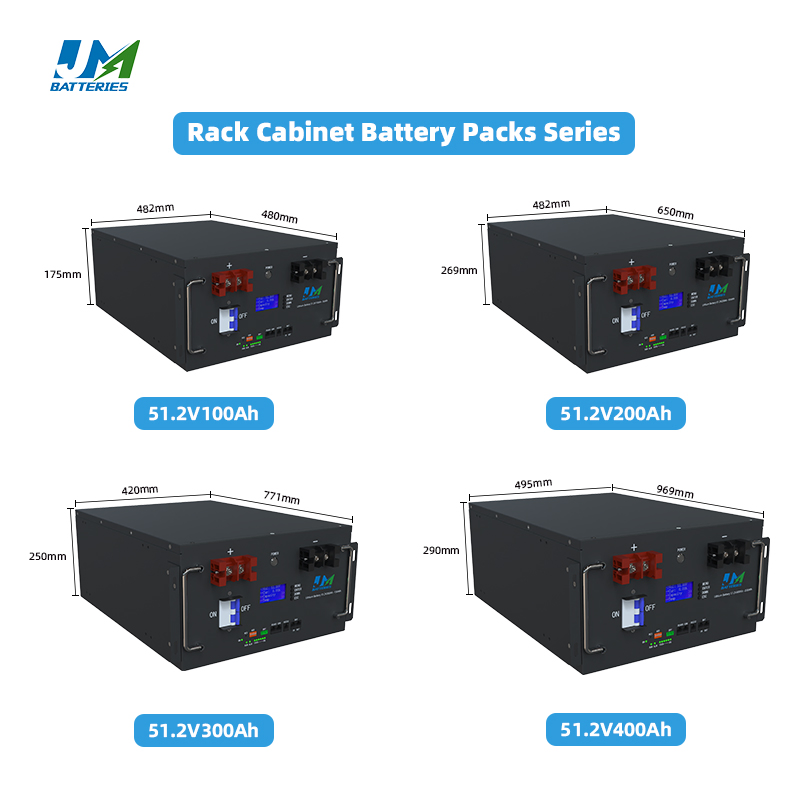

Product Size	L482-495 * W480-969 * H175-300 mm
Working Temperature	-20 ºC ~ 60 ºC
Warranty	10 Years
Display	Touch Display / Push-Button Display

📷

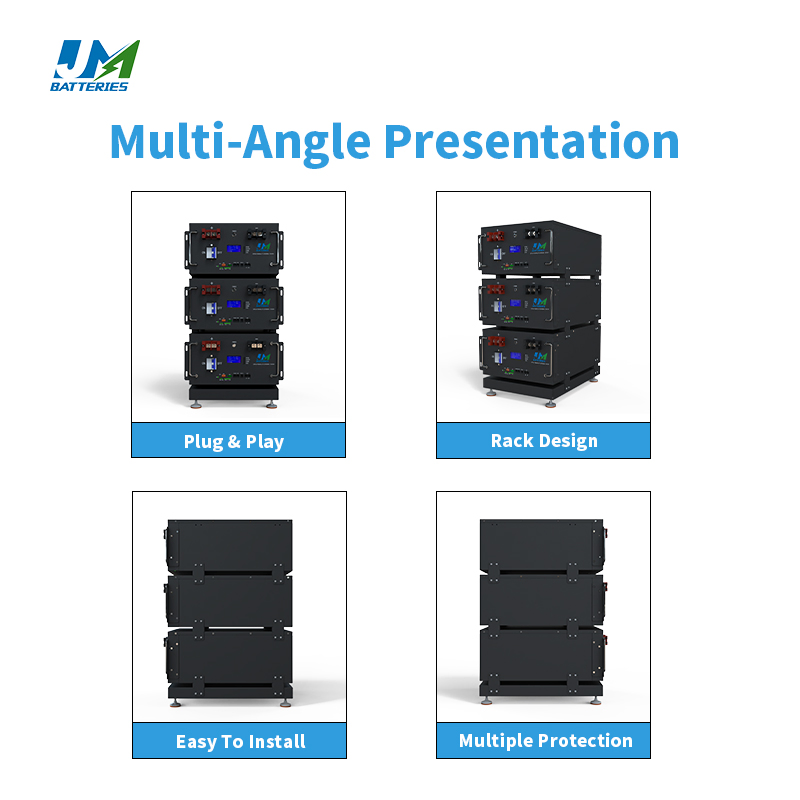

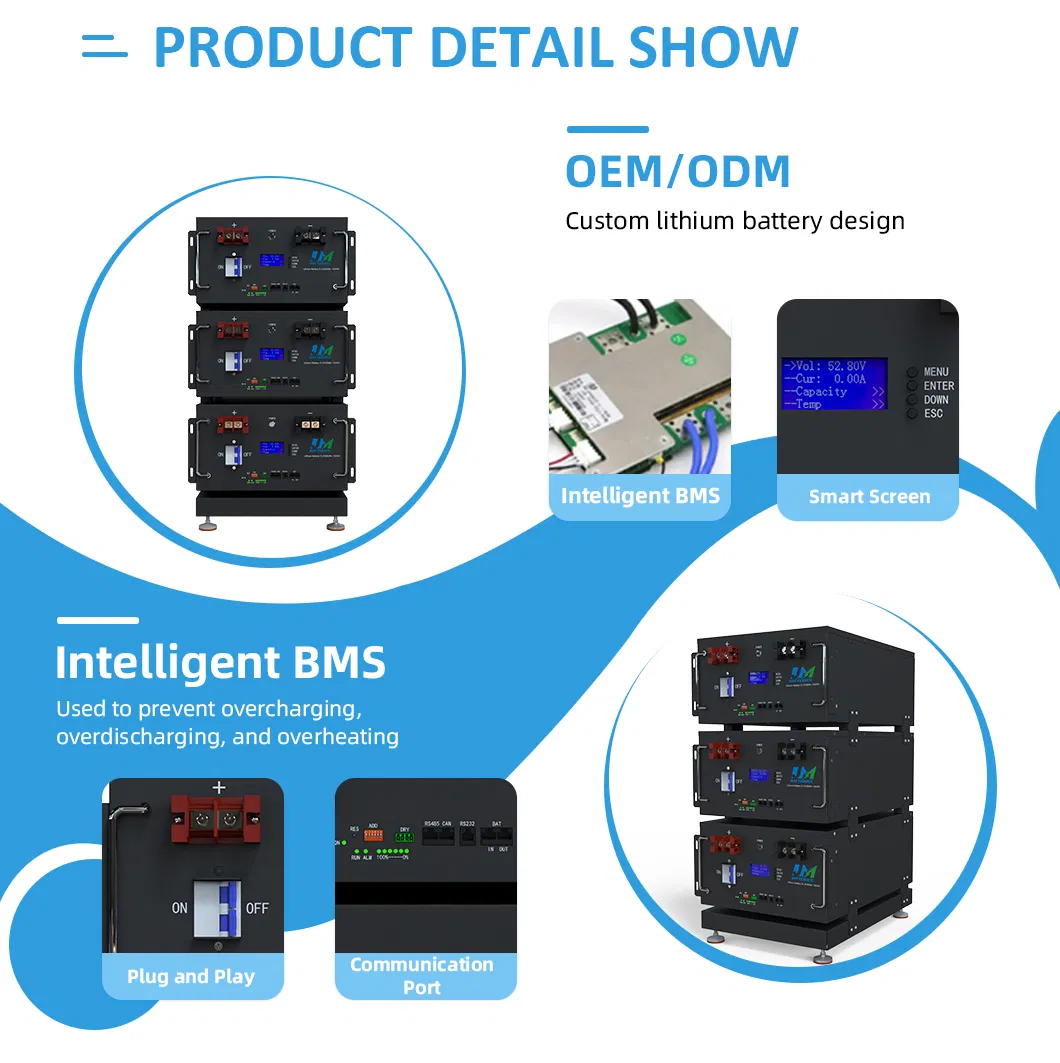

Detailed Photos

📦

Packaging & Shipping

Package Size

71.00cm * 46.00cm * 27.00cm

Gross Weight

120.000kg

Transport Package

Wooden Box

Lead Time

7 days (1-2 Pcs); Negotiable (>2 Pcs)

🏢

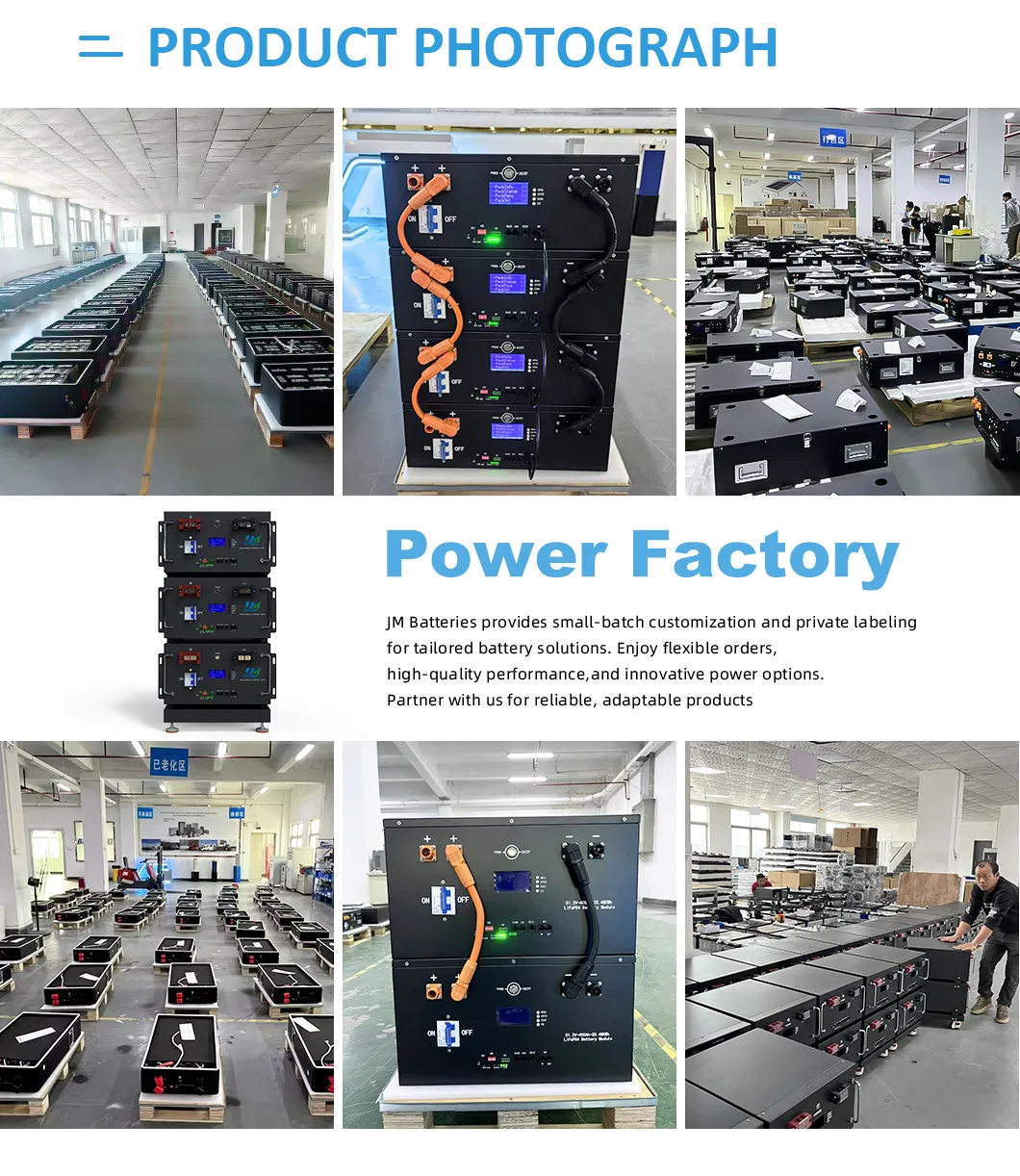

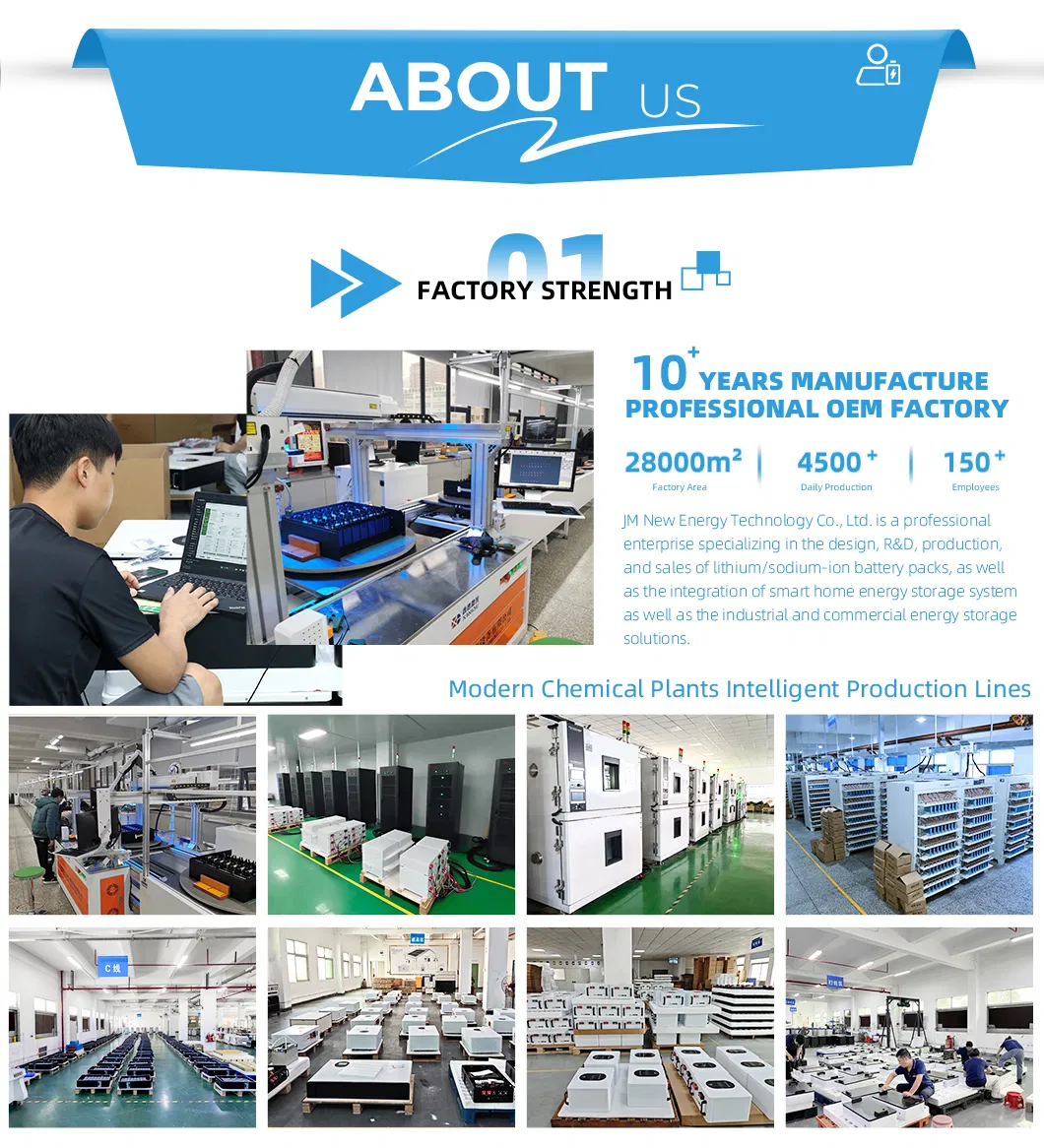

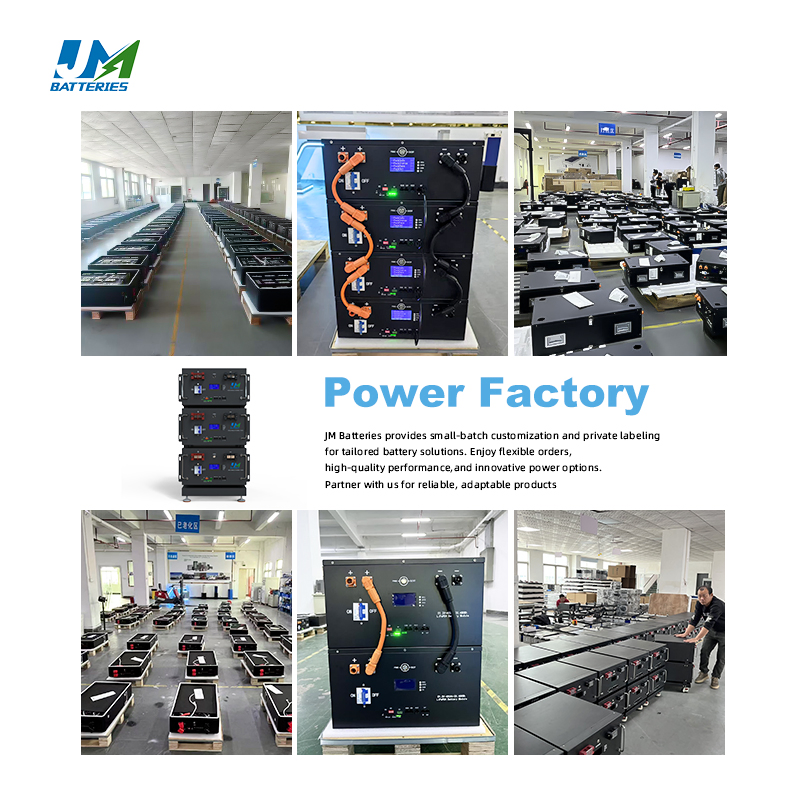

Manufacturing & Facilities

?

Frequently Asked Questions

Who are we?

We are a professional manufacturer of solar energy storage products, specializing in high-quality LiFePO4 battery packs for residential and commercial use since 2017.

How can we guarantee quality?

We provide a pre-production sample before mass production and conduct a strict final inspection before shipment to ensure the highest standards.

What can you buy from us?

Our product range includes Lithium Batteries, Lithium Battery Packs, Solar Batteries, Solar Energy Storage Batteries, and Custom High Voltage Battery systems.

Why should you buy from us instead of other suppliers?

We are an established enterprise integrating product design, research and development, manufacturing, and technical service with years of expertise in new energy solutions.

What services can we provide?

We offer flexible delivery terms (FOB, EXW, CIF, DDP) and accept various payment methods including T/T, L/C, Credit Card, and more, supported by professional English and Chinese speaking staff.

What is the expected lifespan of the battery?

Our LiFePO4 battery packs are designed for longevity, offering a cycle life of ≥8000 cycles and come with a 10-year warranty.
