Advanced Modular Prismatic Battery Pack Assembly for Evs

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Basic Specifications

Condition

New

Automation

Automatic

After-sales Service

Engineers Available Overseas

Transport Package

Wooden Box Packing

Origin

China

Production Capacity

12ppm

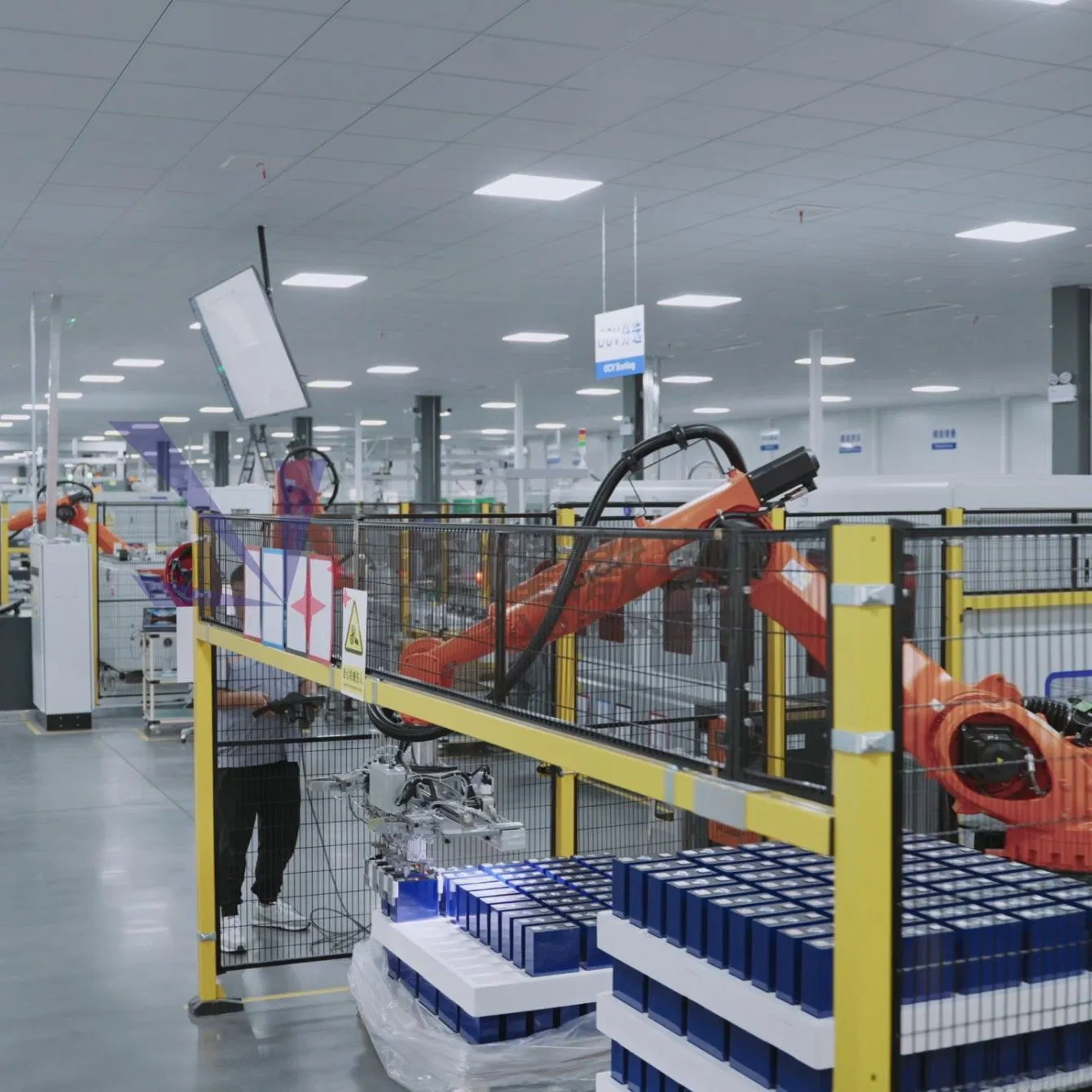

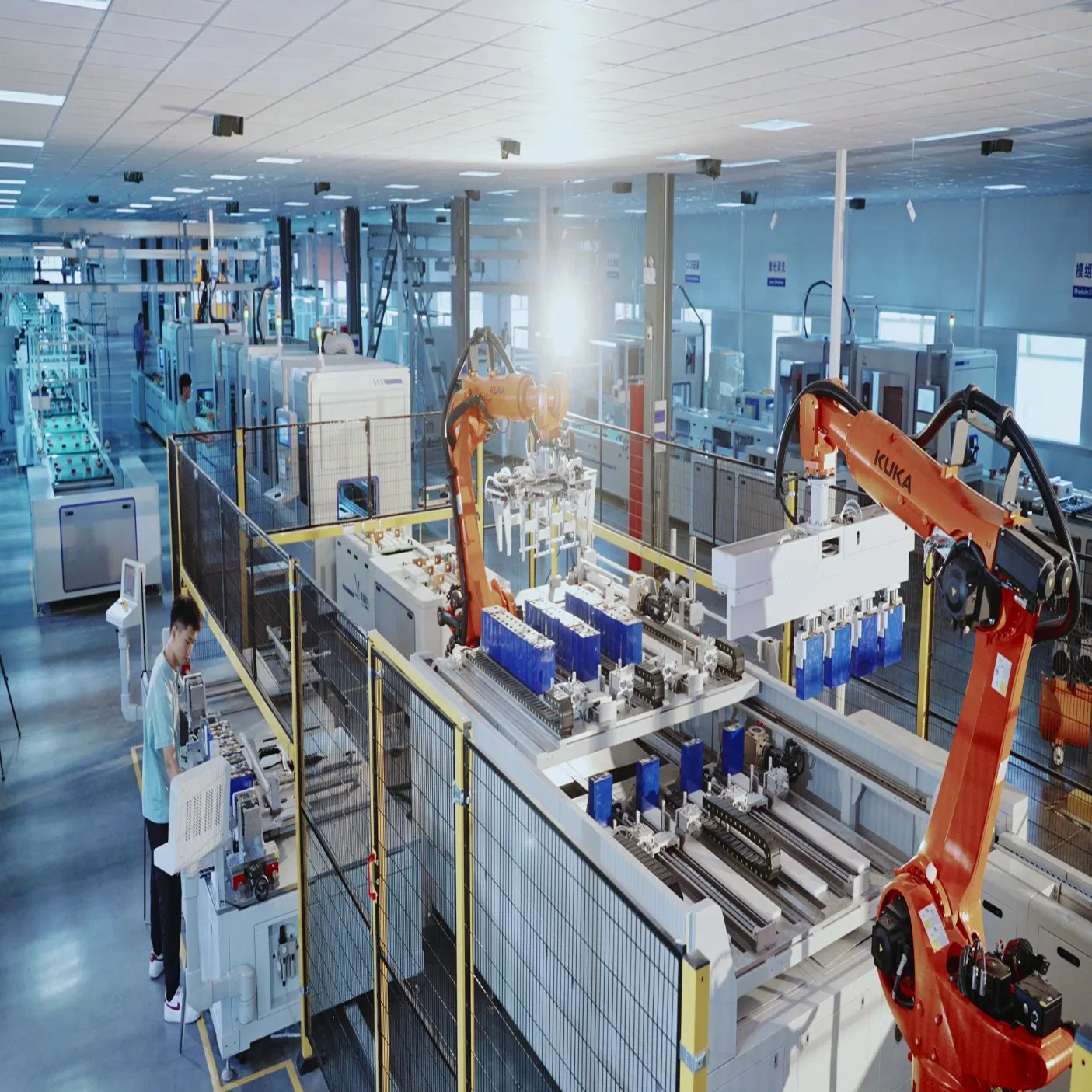

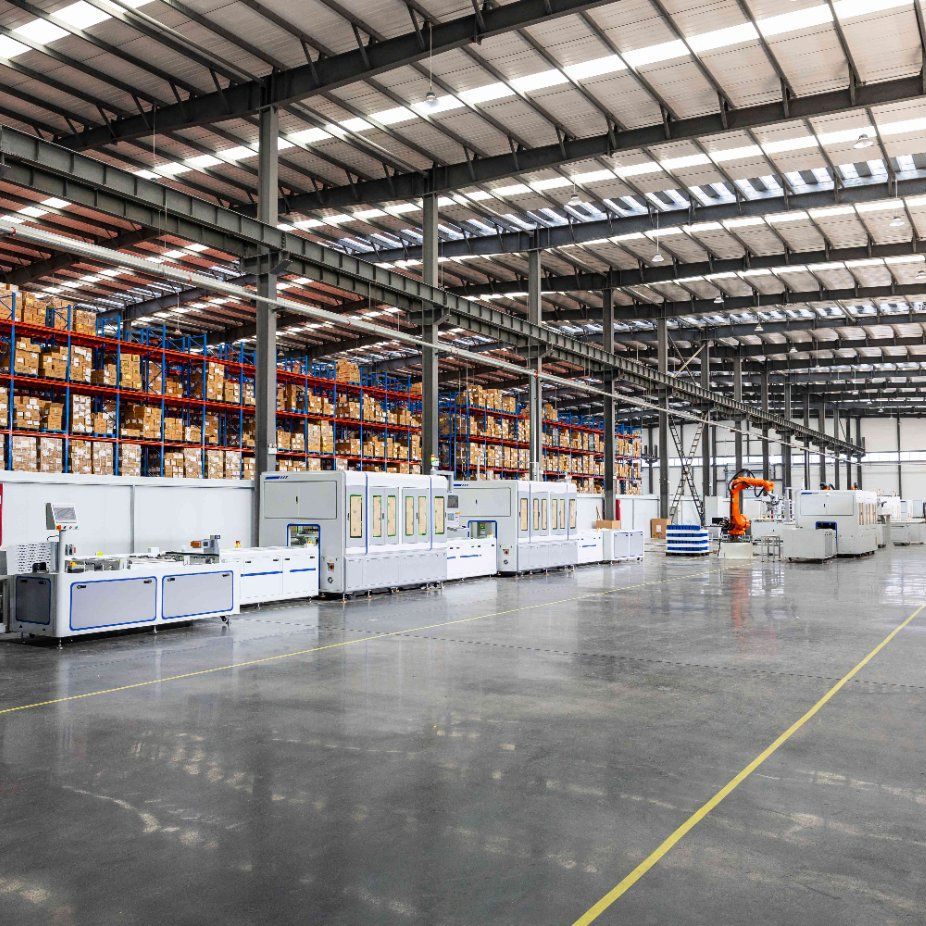

The Energy Storage Prismatic Battery Module PACK Production Line is an efficient, intelligent, and customized automated production line specifically designed for the energy storage field. It is ideal for applications in large-scale energy storage systems, home energy storage, and industrial energy storage. By integrating advanced laser welding technology, automated assembly systems, and intelligent detection equipment, it provides a production solution with high consistency and reliability.

Key Features

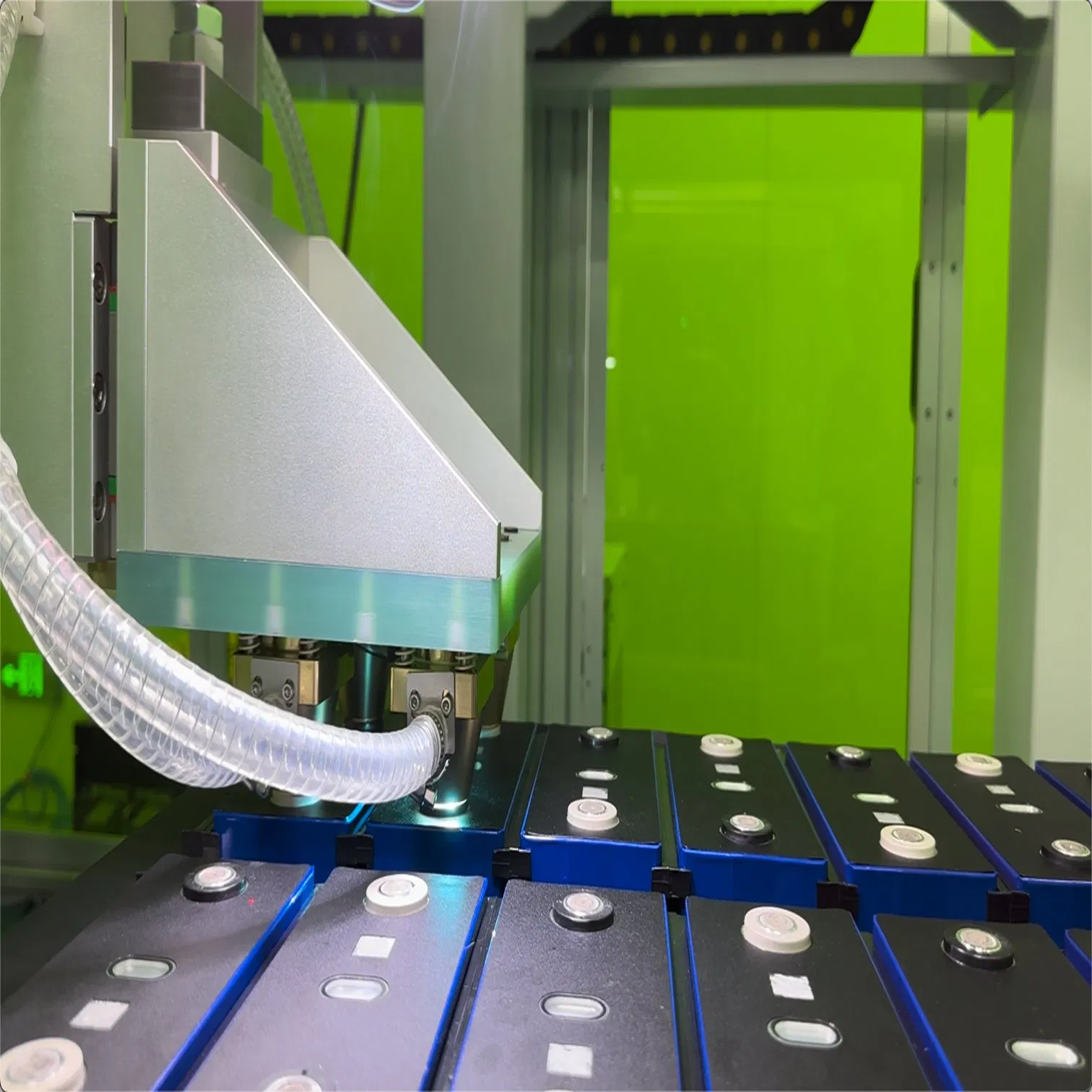

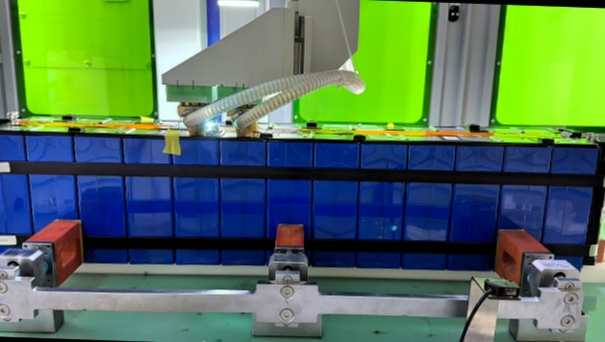

High-Precision Laser Welding

6000W fiber laser with welding precision of ±0.1mm.
Contact-free process, zero splatter pollution, compliant with high cleanliness standards.

Fully Automated Production

Production cycle: 12-18 PPM (adjustable), supporting 7x24 continuous operation.
Automation rate ≥95%, covering feeding, stacking, welding, and detection.

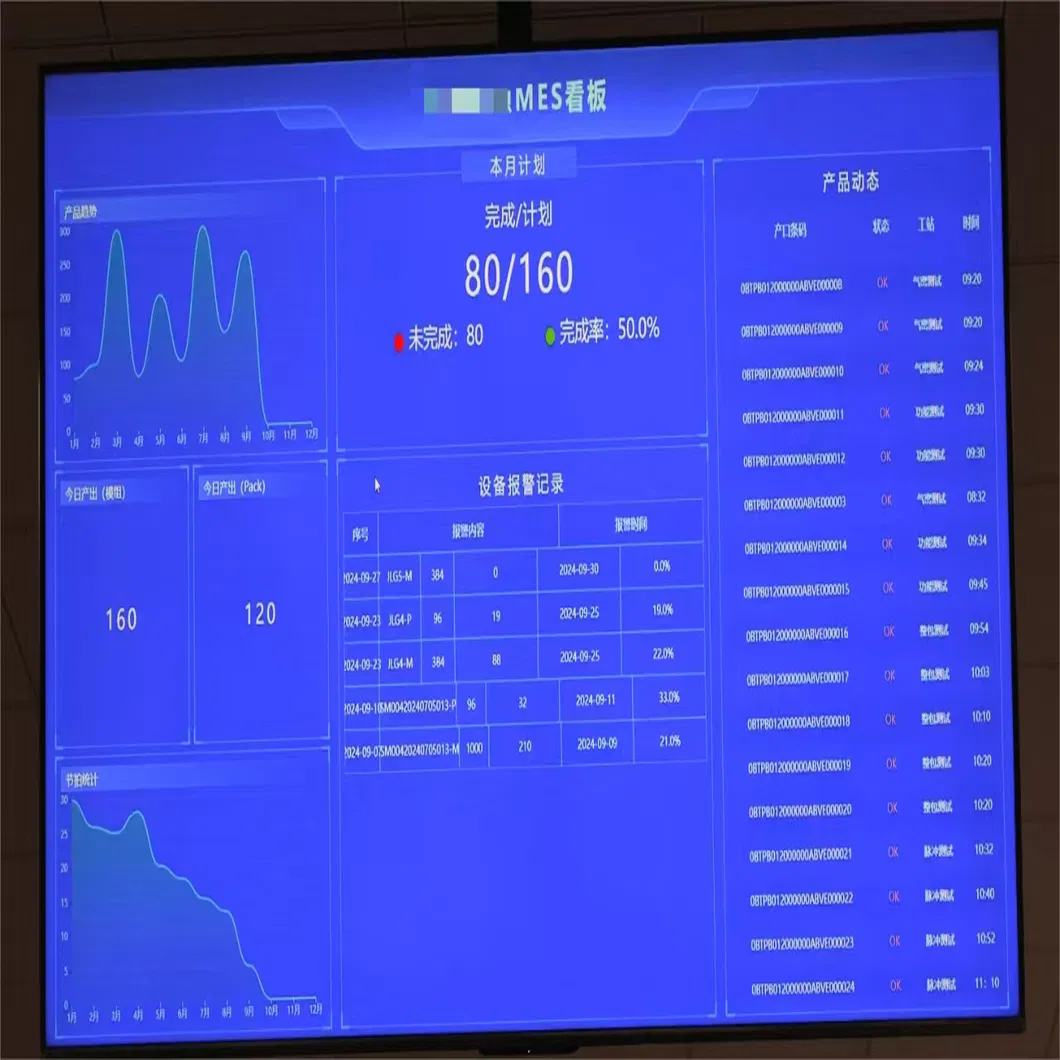

Intelligent Monitoring

Integrated BMS and self-developed PLC control system, compatible with MES.
Real-time detection of 20+ parameters (voltage, insulation, etc.) with AI alerts.

Technical Specifications

Category	Parameter	Value
Laser Welding	Laser Power	6000W
	Welding Precision	±0.1mm
Automation	Cycle Rate	12-18 PPM
	Automation Rate	≥95%
Detection	Detection Parameters	20+ (Voltage, Resistance, etc.)
Compatibility	Supported Cell Types	Prismatic/Cylindrical/Blade
Quality	Yield Rate	≥99.5%

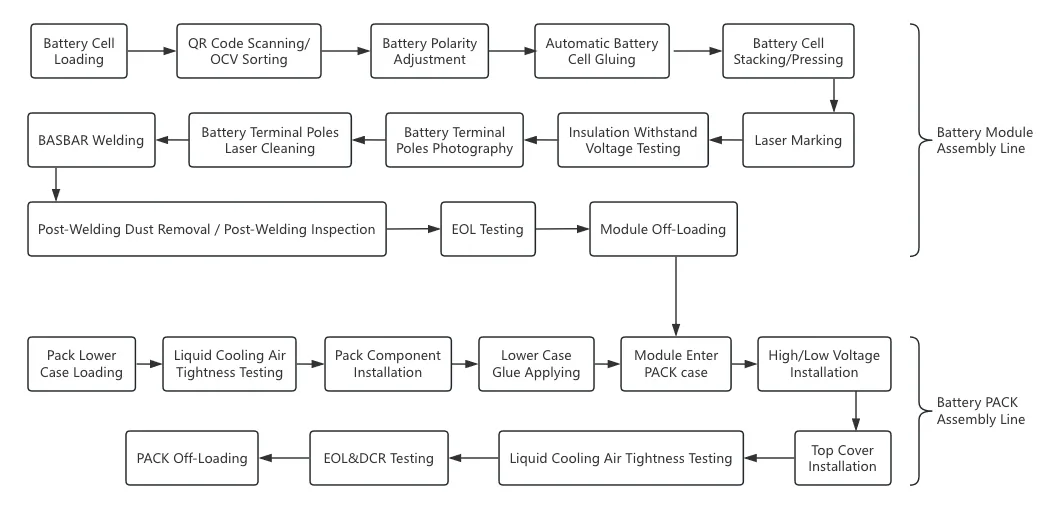

Process Flow & Applications

Application Fields

Large-scale Grid Storage, Home Battery Packs, Industrial Micro-grids, and Factory Backup Power.

Services & Support

Customized Solution Design, Comprehensive Technical Training, and 24-hour Quick-Response After-sales.

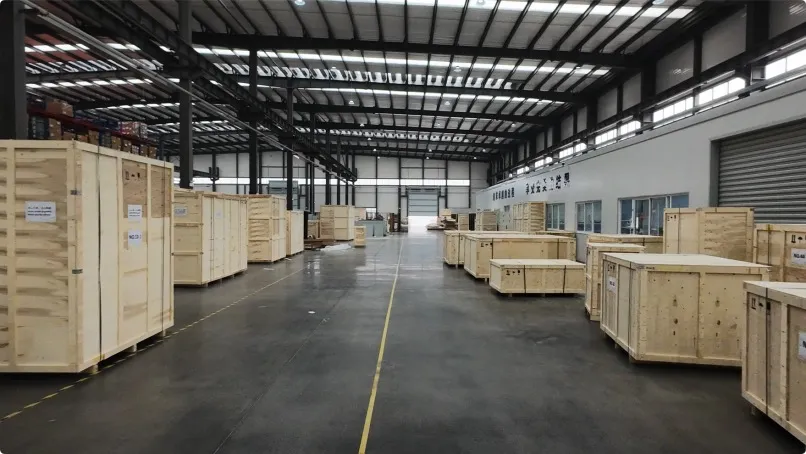

Packaging & Logistics

Precision Protection

Systems are meticulously packaged in heavy-duty wooden crates with anti-vibration reinforcement, certified to withstand extreme transit conditions for 99.9% damage-free delivery globally.

Certifications & Advantages

Global Exhibition & Customers

Frequently Asked Questions

What is the production cycle of this production line?

The production line adopts a highly automated design. The production cycle can reach ≤ 2 minutes per module, supporting 7x24-hour continuous operation for large-scale production.

Does the production line support different battery specifications?

Yes. The line uses a modular design and can be flexibly adjusted to support the production of prismatic battery modules of various specifications and models.

How is welding precision and consistency ensured?

We use high-precision laser welding technology (precision up to ±0.1mm) paired with an intelligent detection system to monitor quality in real-time.

What is the level of automation on this line?

The production line has an automation rate of over 95%, covering feeding, sorting, stacking, welding, encapsulation, and detection, significantly reducing manual intervention.

How do you ensure each module meets quality standards?

The line is equipped with voltage detectors, internal resistance testers, and insulation withstand voltage testers to ensure all electrical and safety standards are met.

Is technical support available for troubleshooting?

We provide 24-hour quick-response service and a professional after-sales team to ensure stable operation and quick technical assistance.
