100% After-Sales Guarantee | 100% Free Technical Support | Fast Delivery

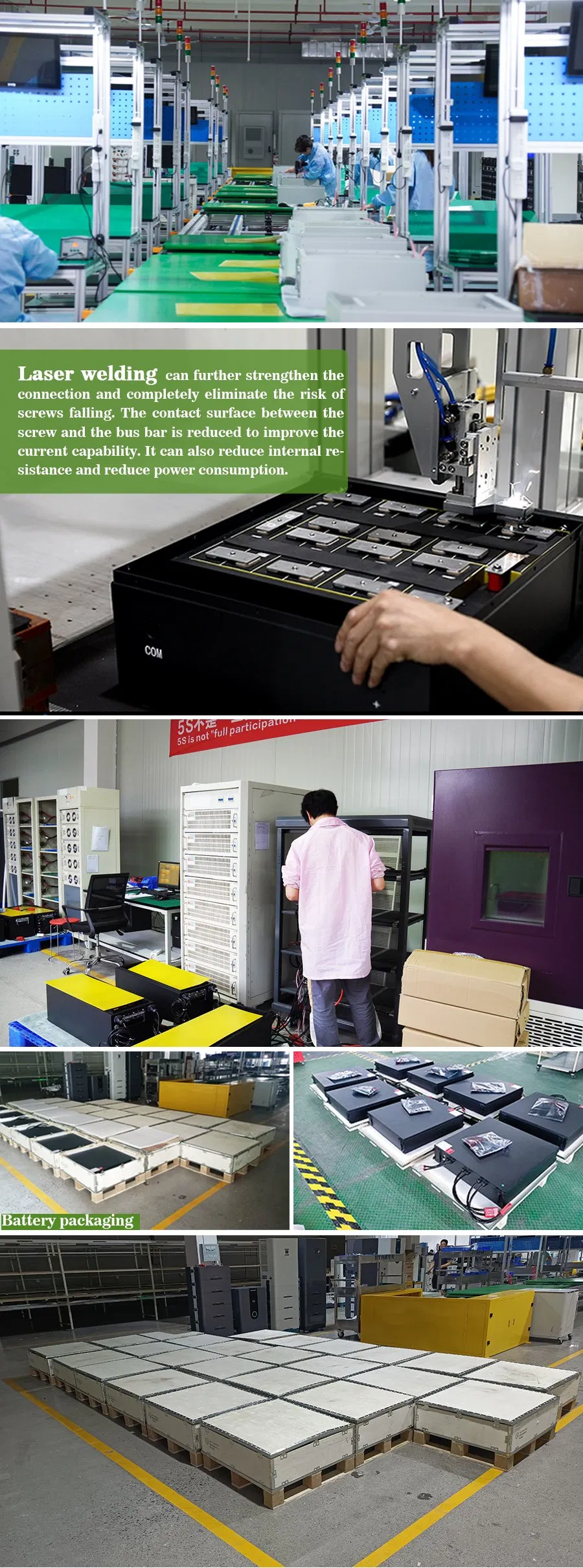

From the battery cell to the battery pack, every production link is controlled in strict accordance with the ISO9001 standard to ensure the safety and quality of the battery.
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Cell Type - Chemistry | Prismatic- LiFePO4 |
| Rated Capacity | 50Ah |
| Rated Voltage | 76.8V |
| Energy | 3.84 kWh |
| Resistance | 30mΩ |
| Self Discharge | <4% per month |

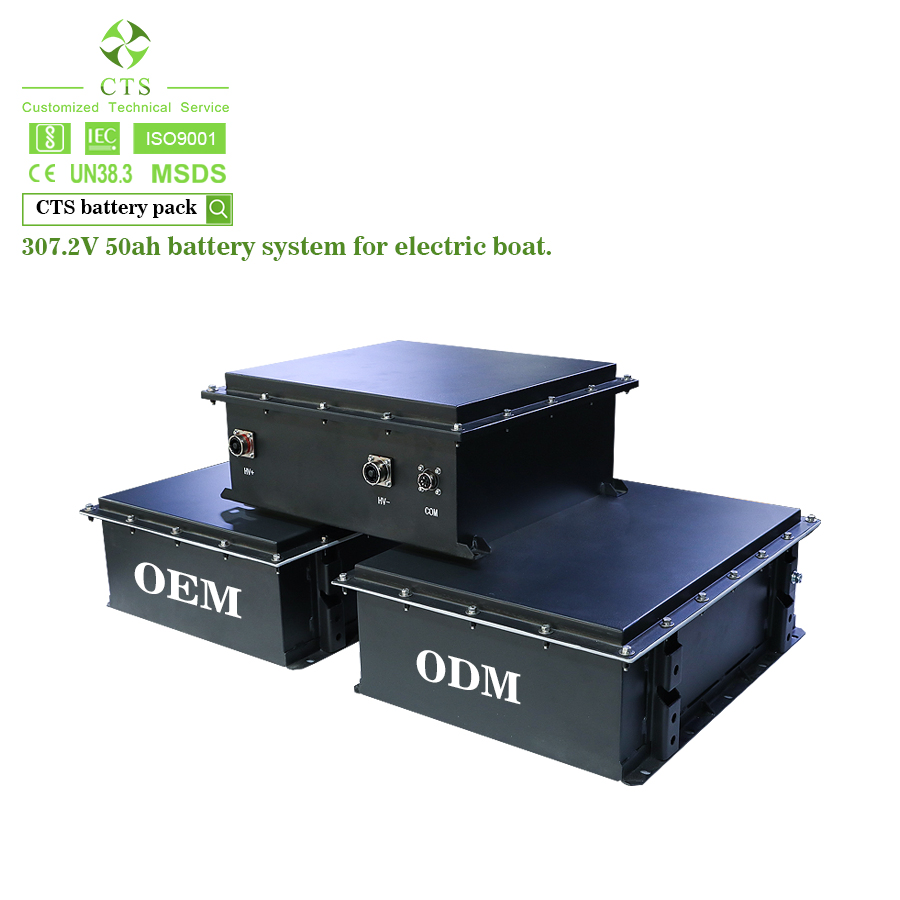

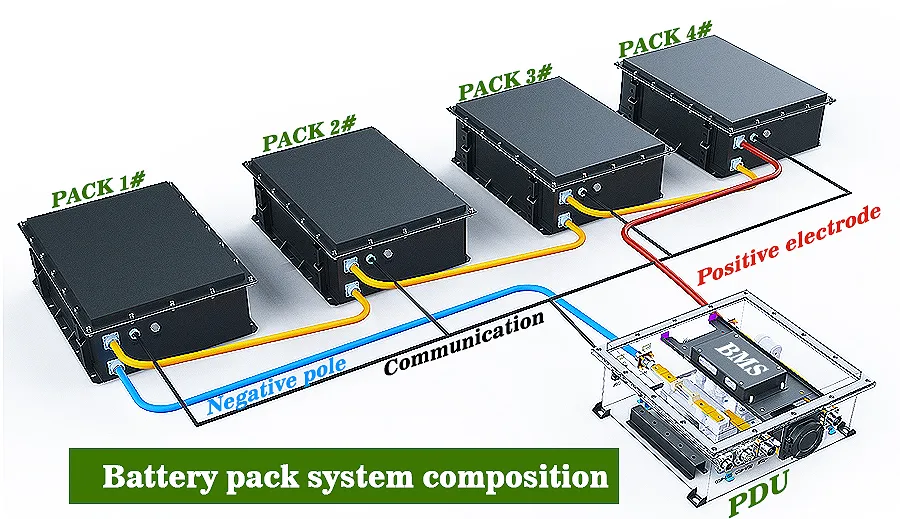

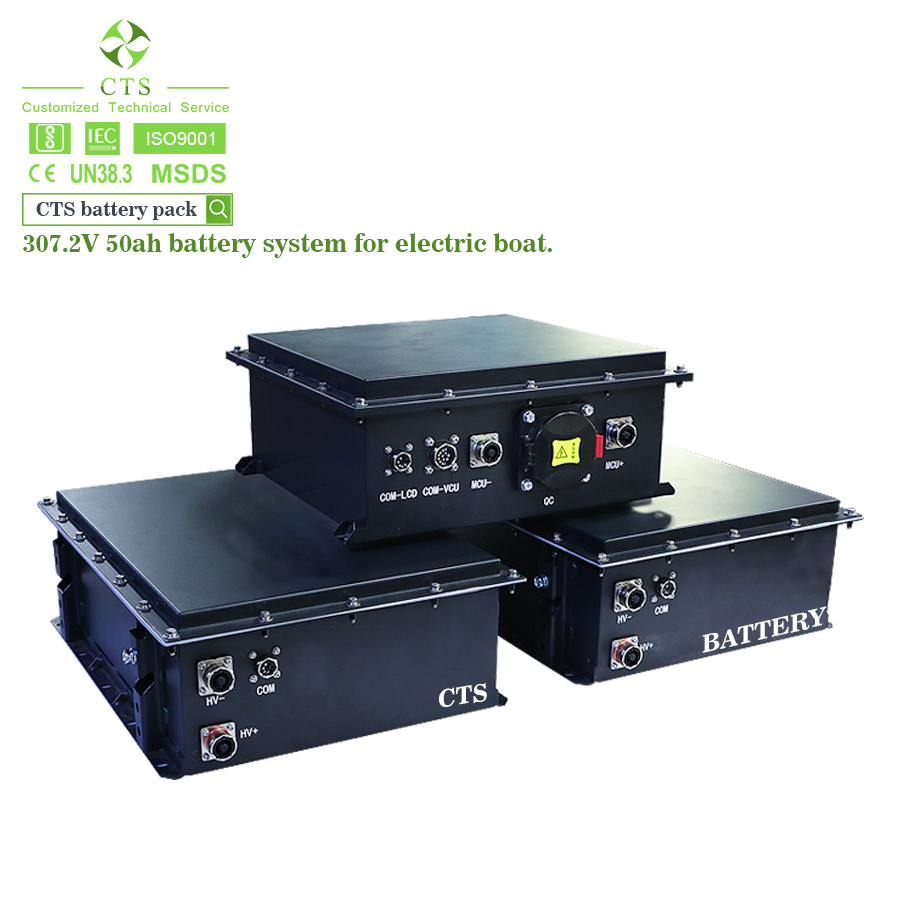

| Modules in Series | 4S1P to 307.2V 50Ah battery pack |
| MECHANICAL SPECIFICATIONS | |

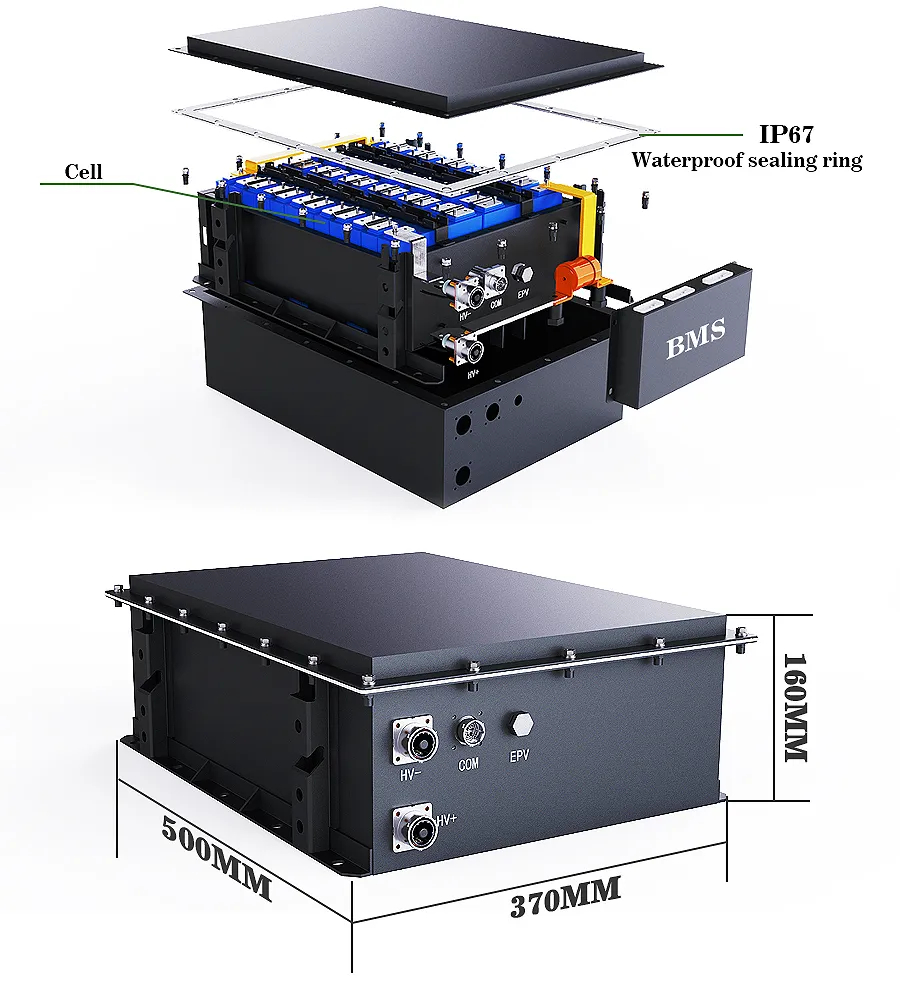

| Dimensions (L x W x H) | 500*370*160 |
| Weight | 32Kg / module |
| Enclosure Protection | IP67 |
| DISCHARGE/CHARGE SPECIFICATIONS | |
| Discharge Cut-off Voltage | 60V |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 100A for 30 seconds |
| Recommended Charge Current | 25A |
| Max Charging Current | 50A |
| TEMPERATURE SPECIFICATIONS | |
| Charge Temperature Range | 0~45ºC |
| Discharge Temperature Range | -20~60ºC |
| Storage Temperature & Humidity | -20~35ºC, 45~75%RH |

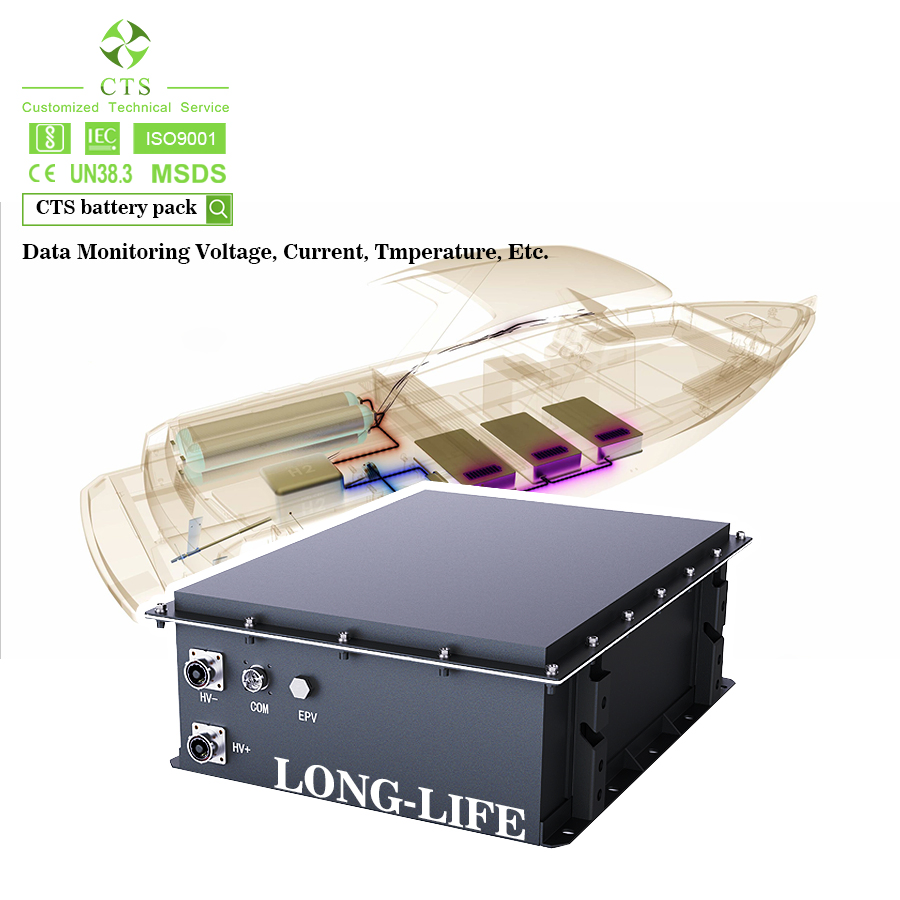

According to the size requirements of the ship, we can design and customize the matched lithium battery system. We provide one-stop battery service, including OBC, charging piles, etc.

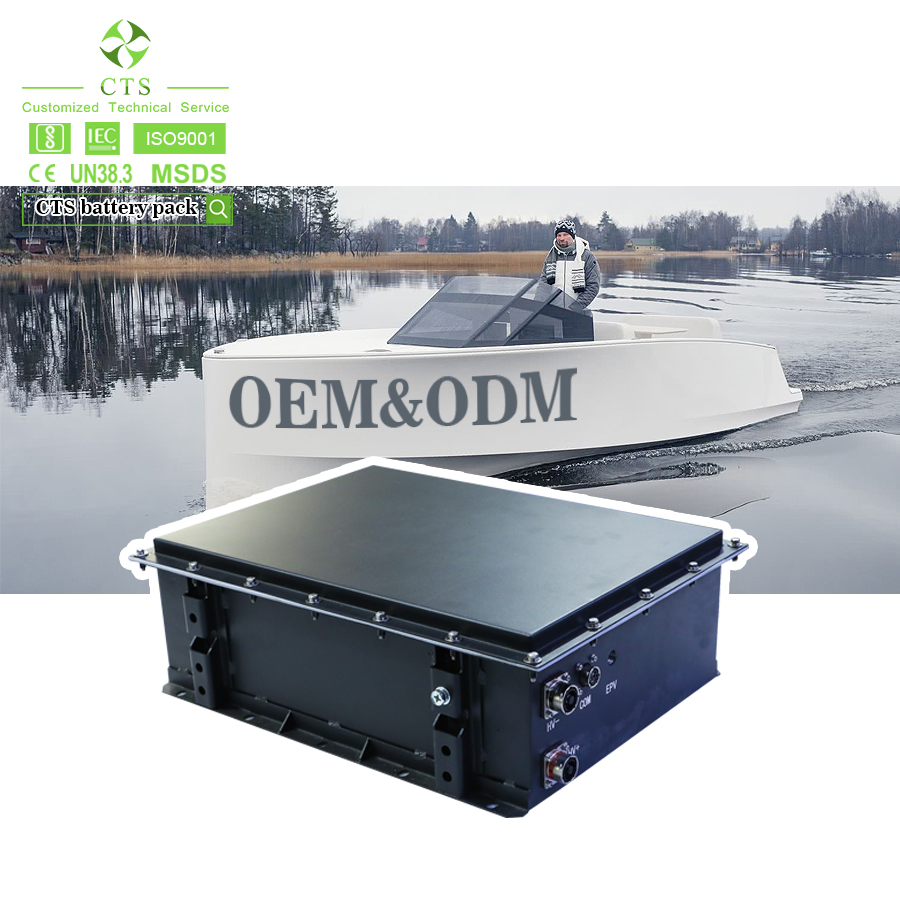

Our lithium batteries have a wider range of application and can meet 90% of yacht, tour boat, and speedboat products in the market.

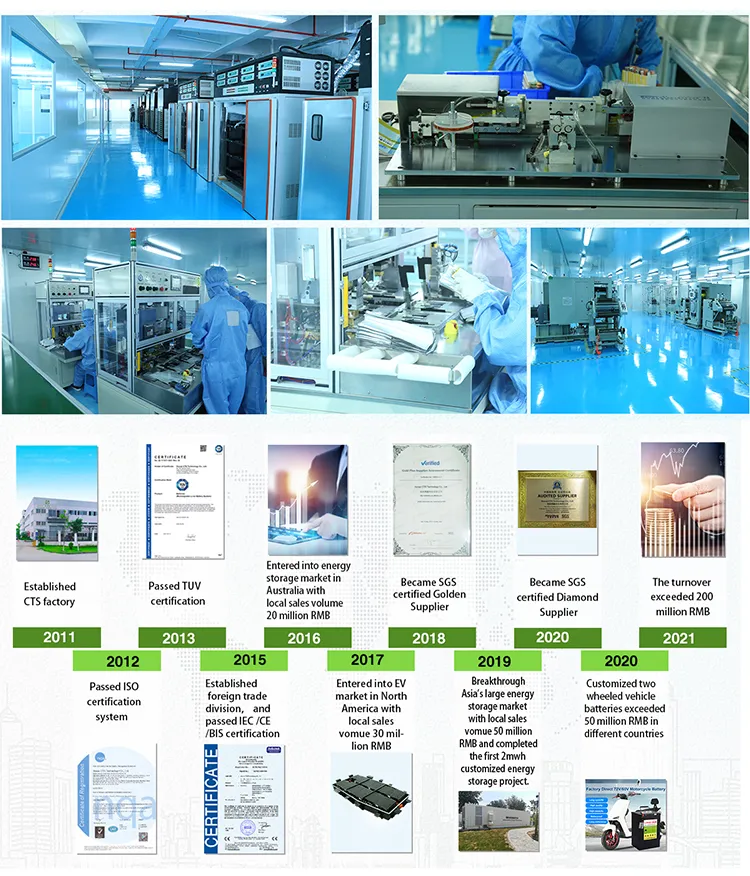

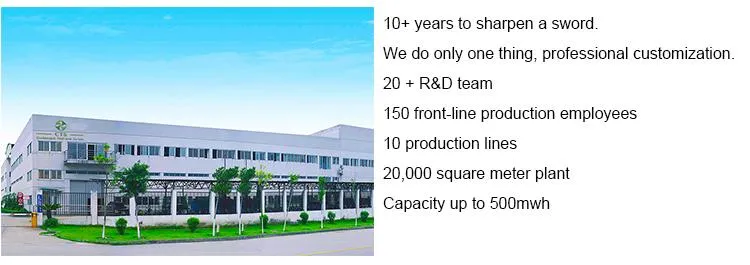

Dedicated to one-stop customization of lithium battery products since 2011, specializing in electric vehicle batteries, large energy storage systems, smart home storage, and high-end electric motorcycle batteries.
We offer more than 30 types of cells and can create OEM battery packs from 12V-800V, 10-200Ah for applications including E-bikes, UPS, telecommunication stations, golf carts, forklifts, and more.

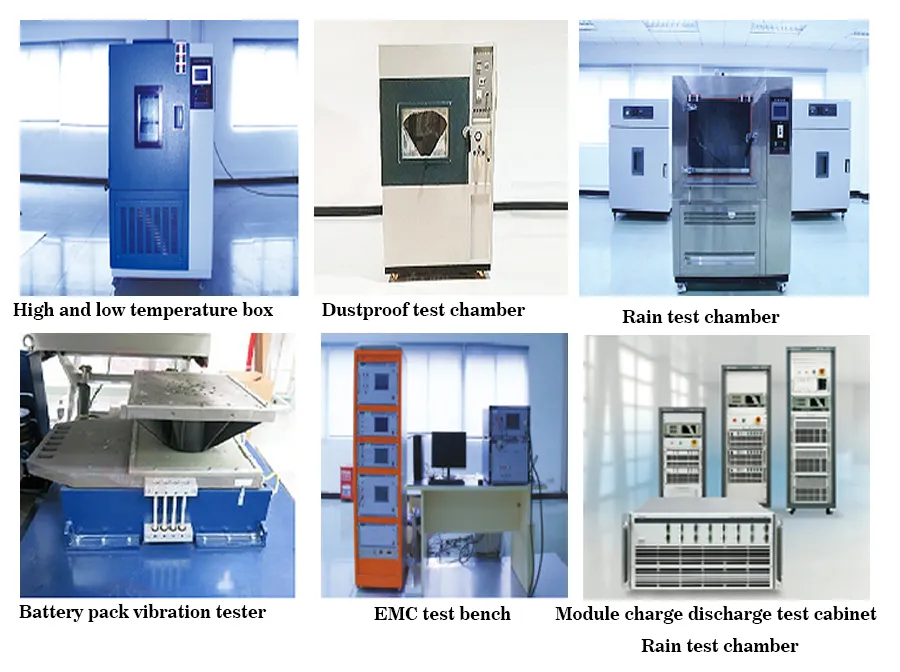

Quality is ensured through advanced automated equipment and adherence to I S O 9 0 0 1, I S O 1 4 0 0 1, and O H S A S 1 8 0 0 1 certifications.
