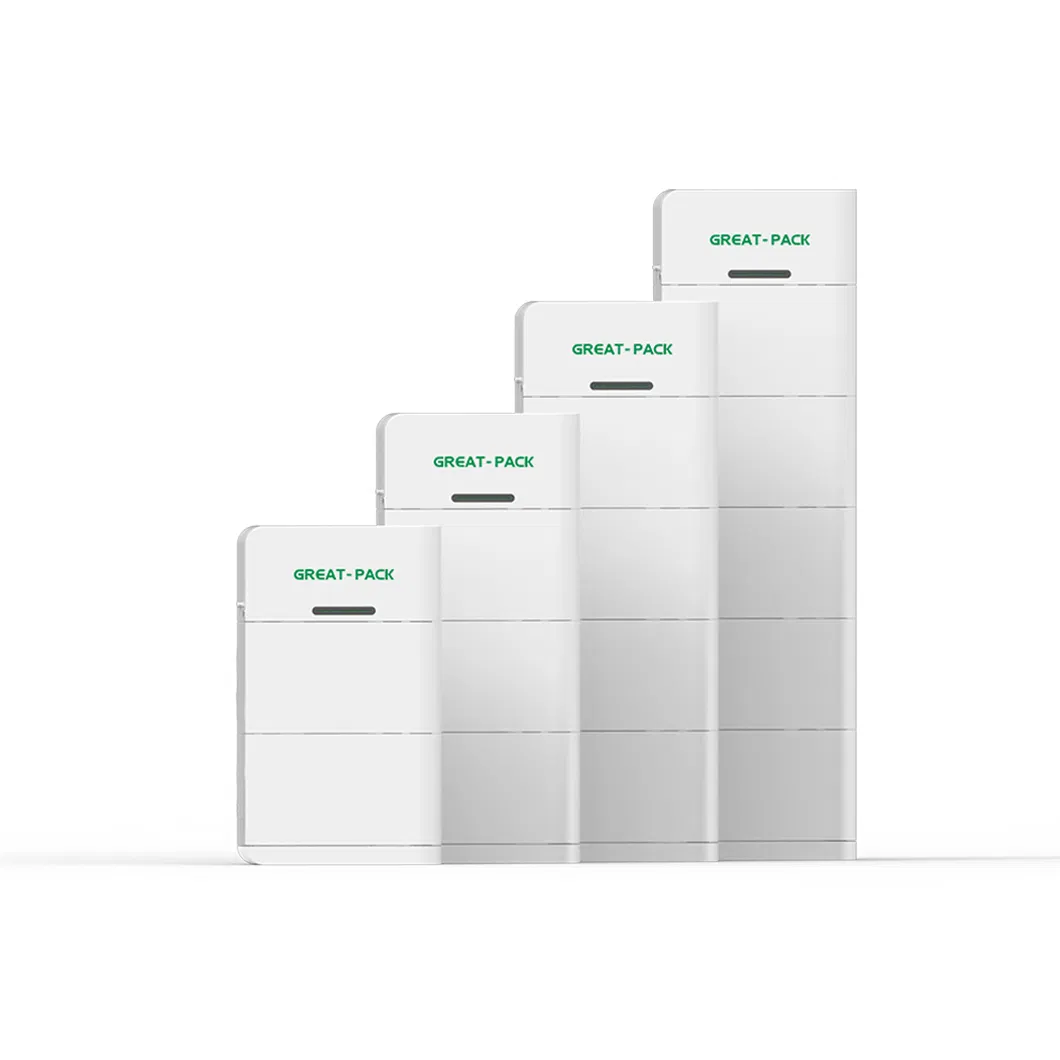

High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack

i

Basic Information

Model NO.

GP-HV20K

Rechargeable

Yes

Cells

LFP 3.2V 50ah Prismatic

Warranty

10 Years

Certification

CE/RoHS/Un38.3/MSDS

Application

Home Energy Storage, Solar & Wind System

OEM/ODM

Acceptable

HS Code

8507600090

Capacity

2000 Piece/Days

P

Product Description

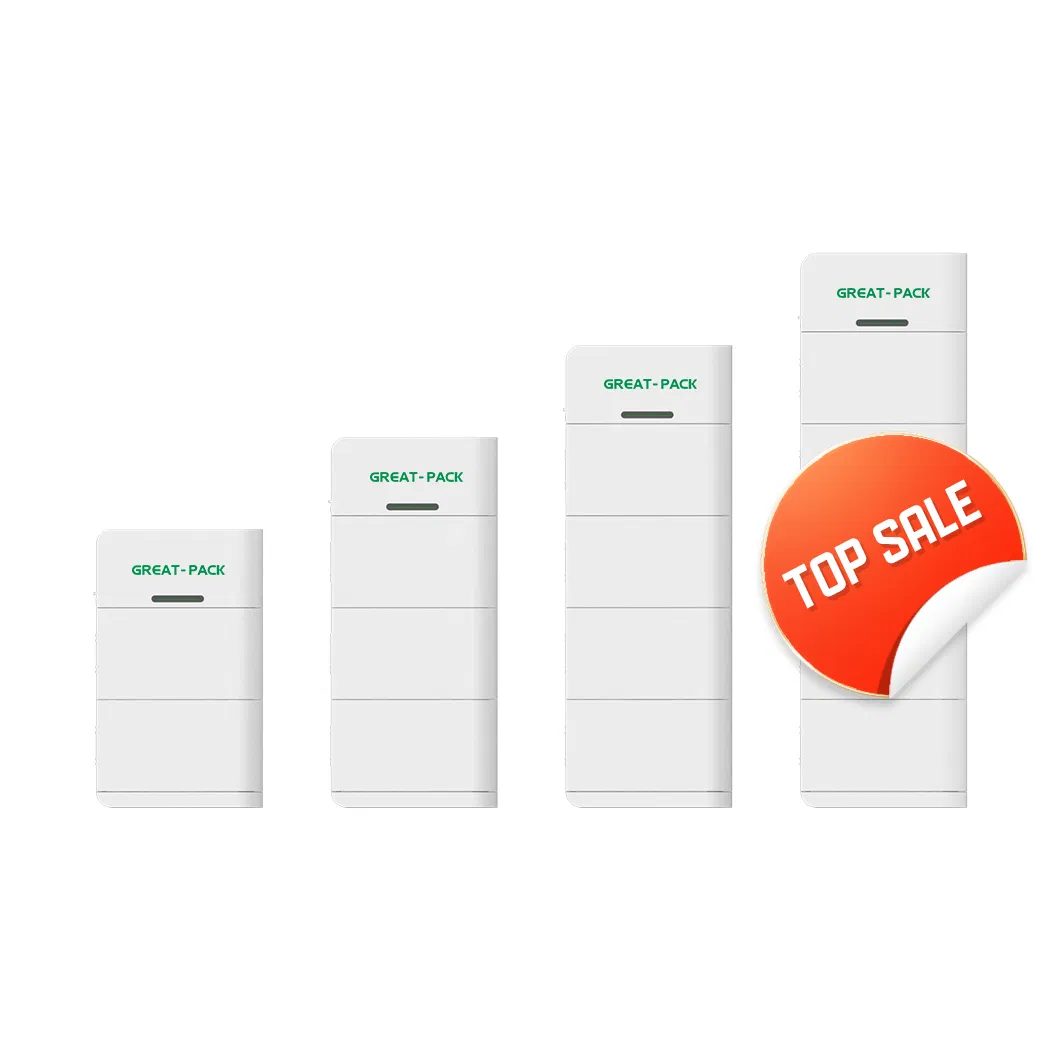

High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack

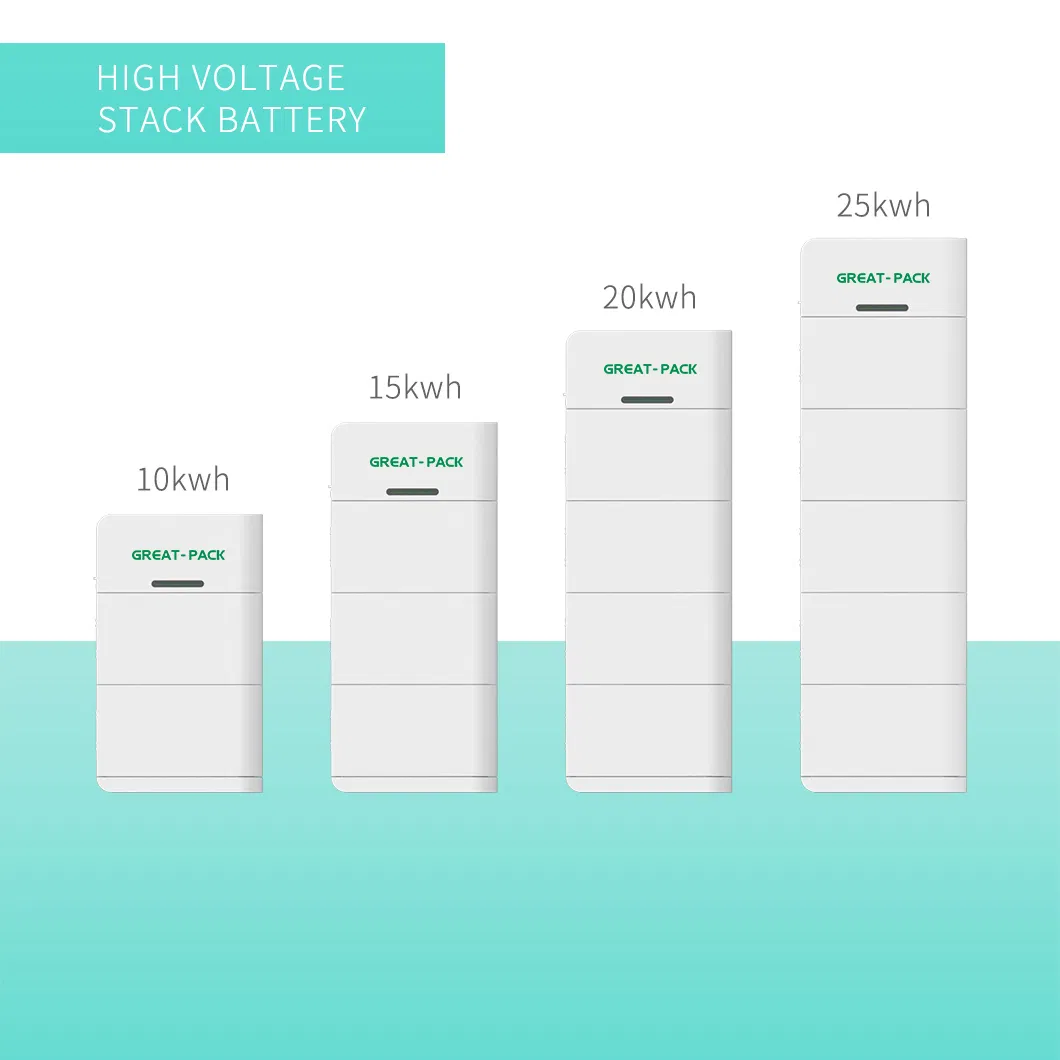

Model	GP-HV10K	GP-HV15K	GP-HV20K	GP-HV25K
Battery Module	102.4V 50Ah, 5KWh, 49kg, 630185345mm
Number of Modules	2	3	4	5
Nominal Voltage	204.8V	307.2V	409.6V	512V
Energy	10.24KWh	15.36KWh	20.48KWh	25.60KWh
Max Charge Current	50A
Max Discharge Current	50A
IP Class	IP65
Dimensions (W/D/H)	630185955mm	6301851300mm	6301851650mm	6301852000mm
Battery Cell Tech	Cobalt Free Lithium Iron Phosphate (LFP)

D

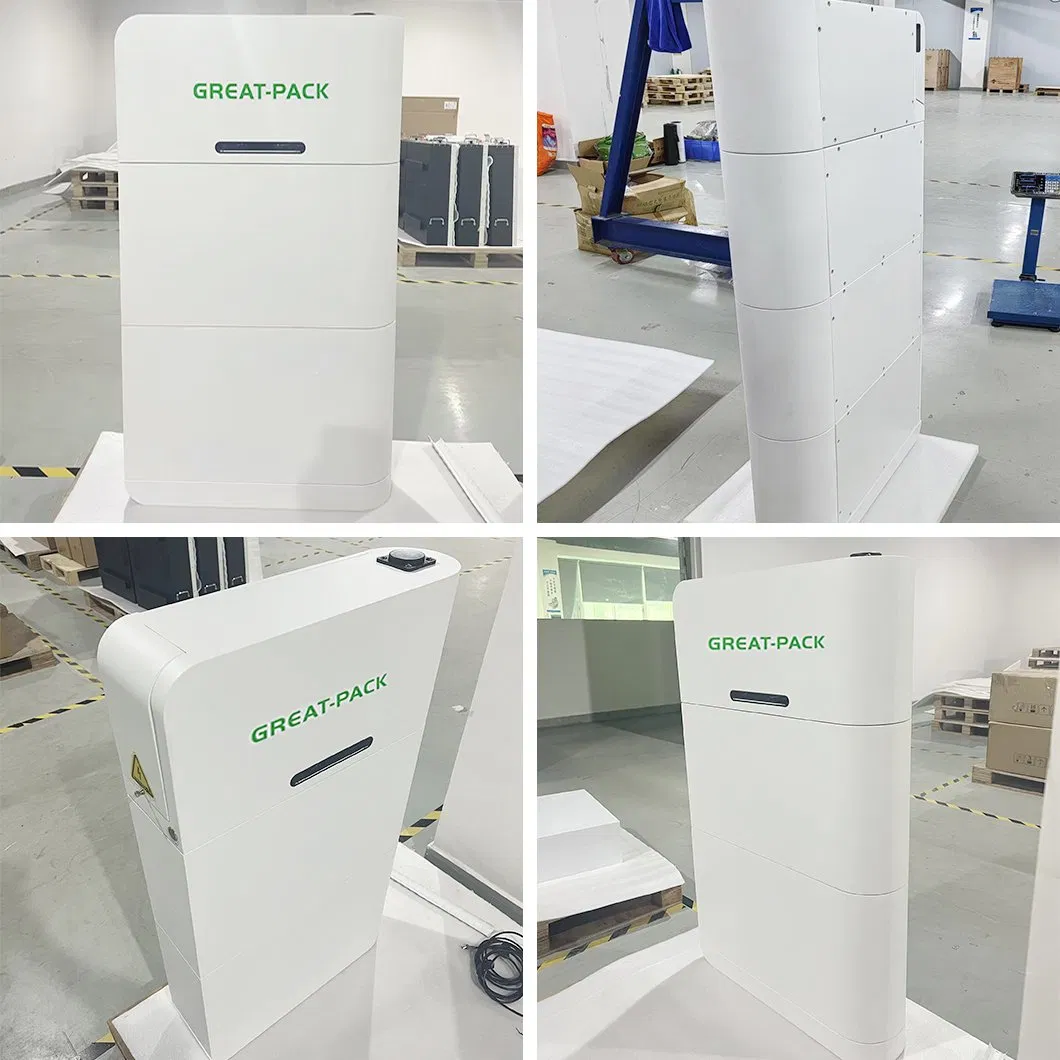

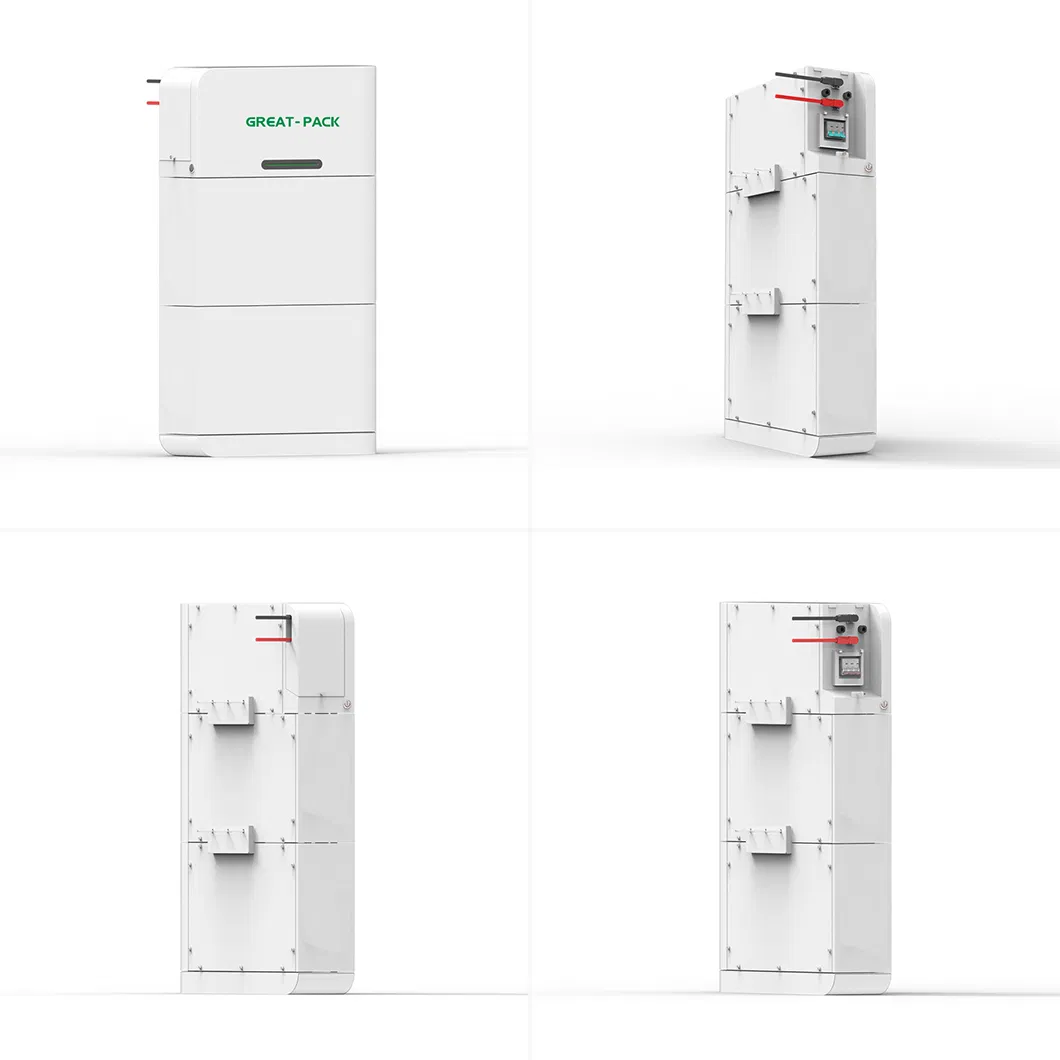

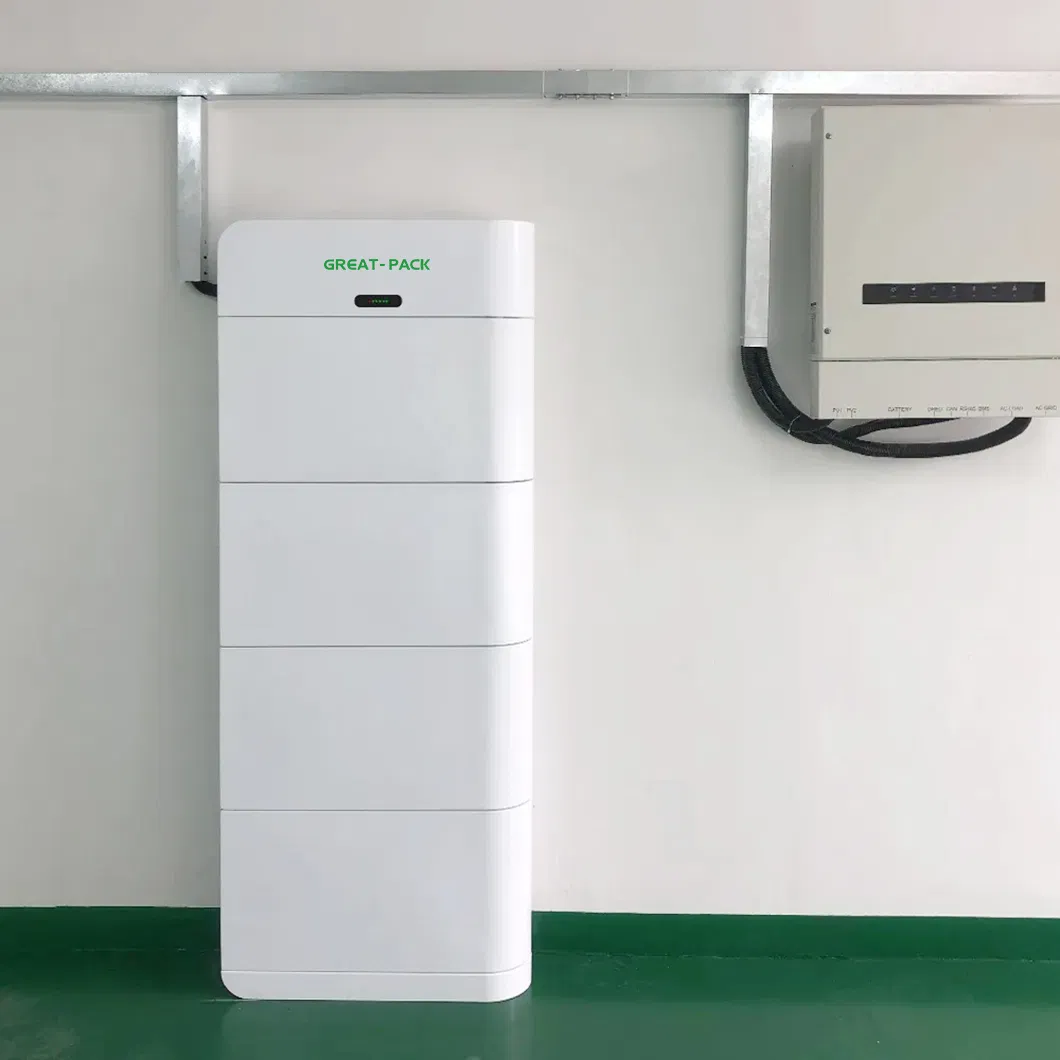

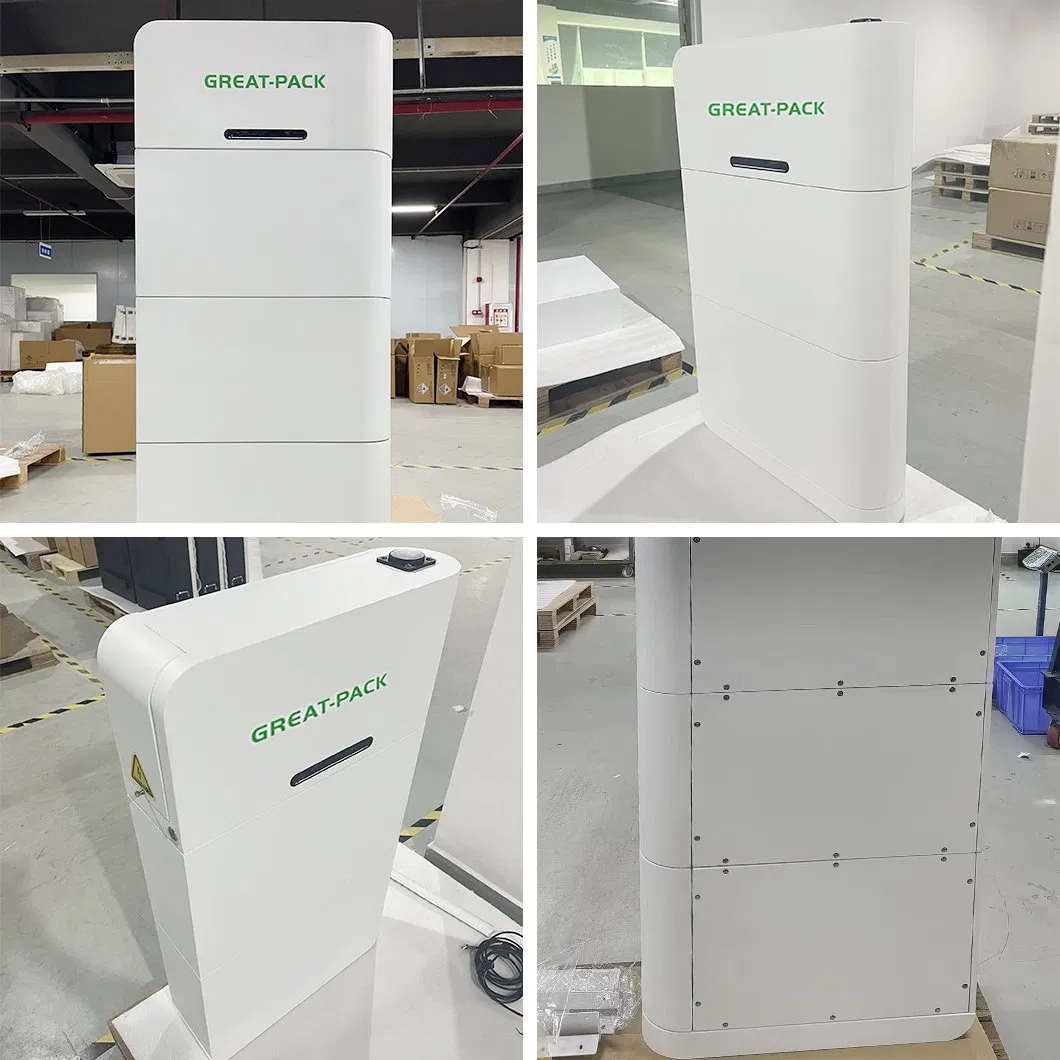

Detailed Photos

S

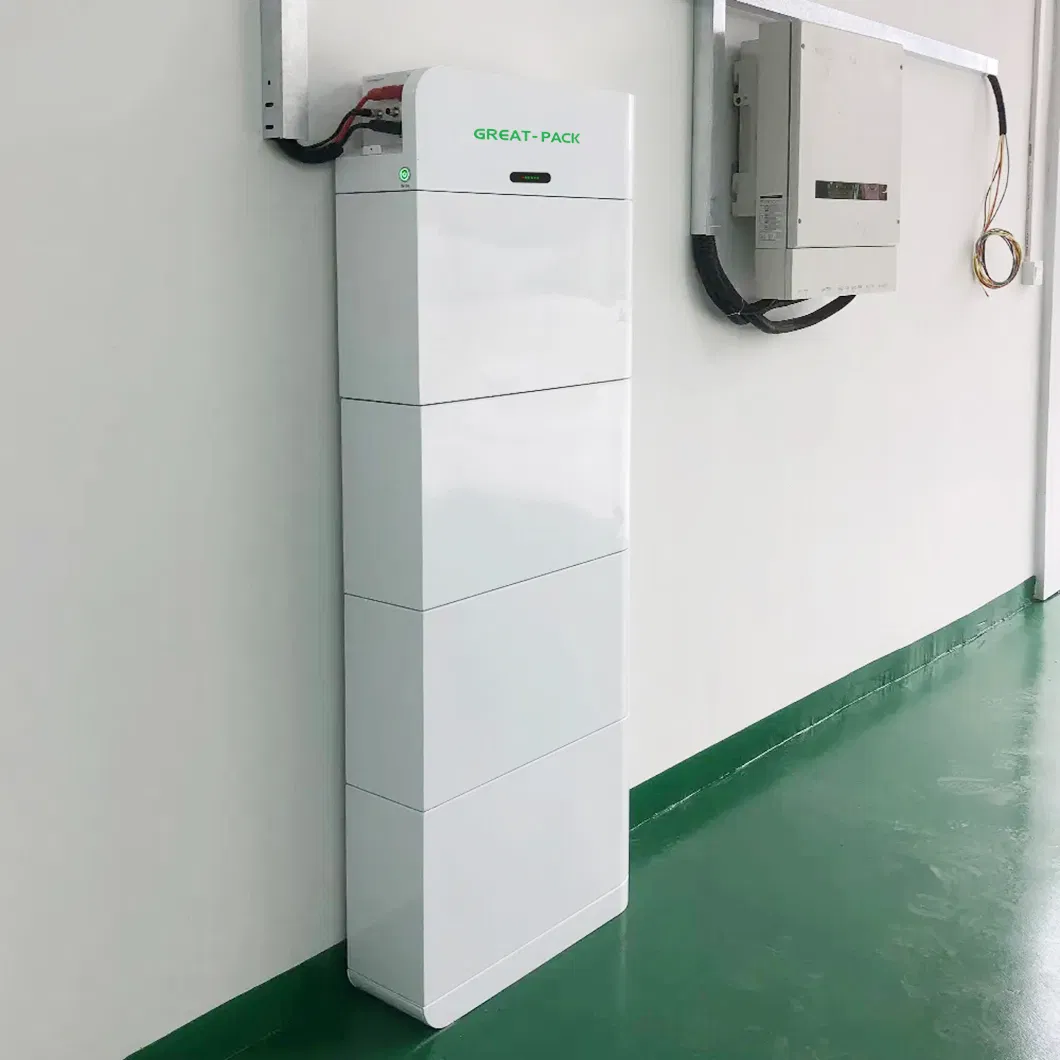

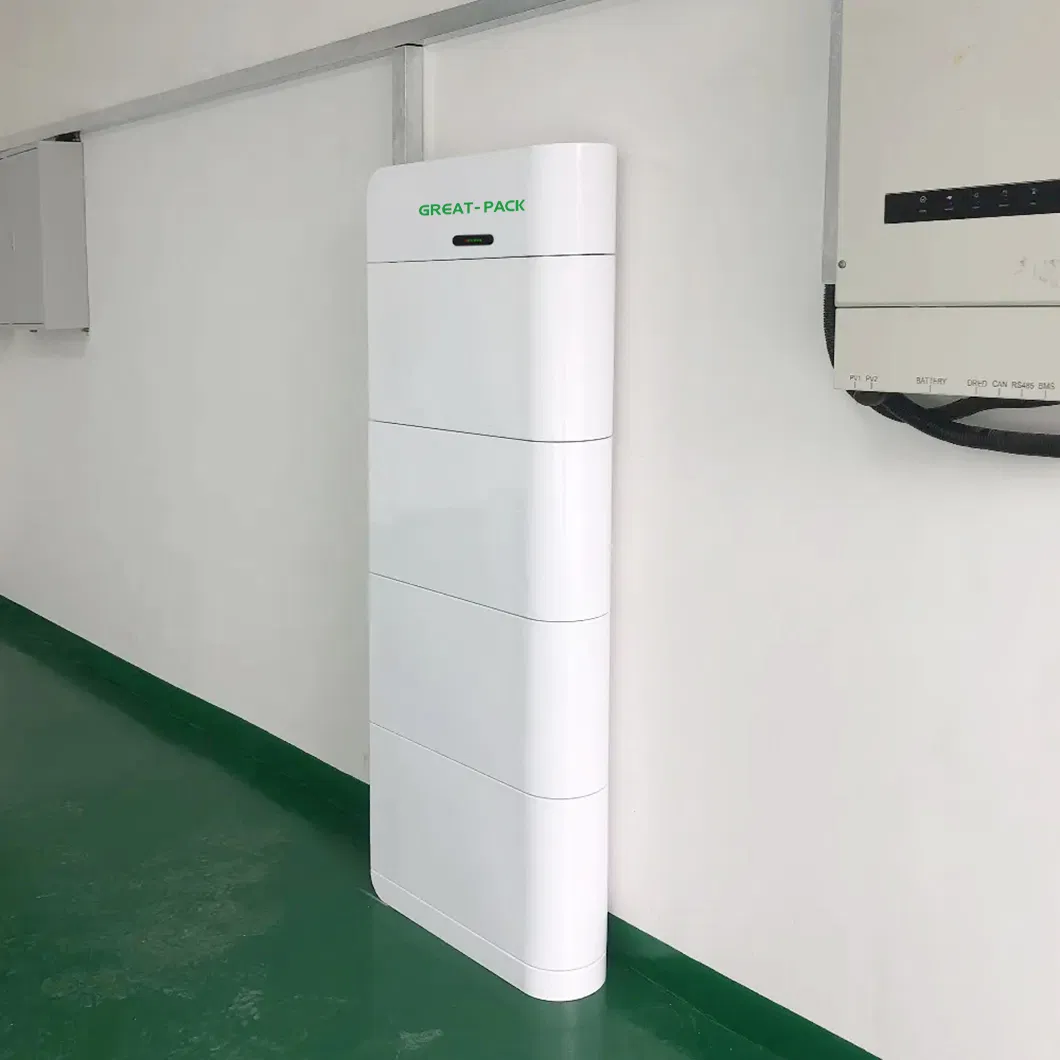

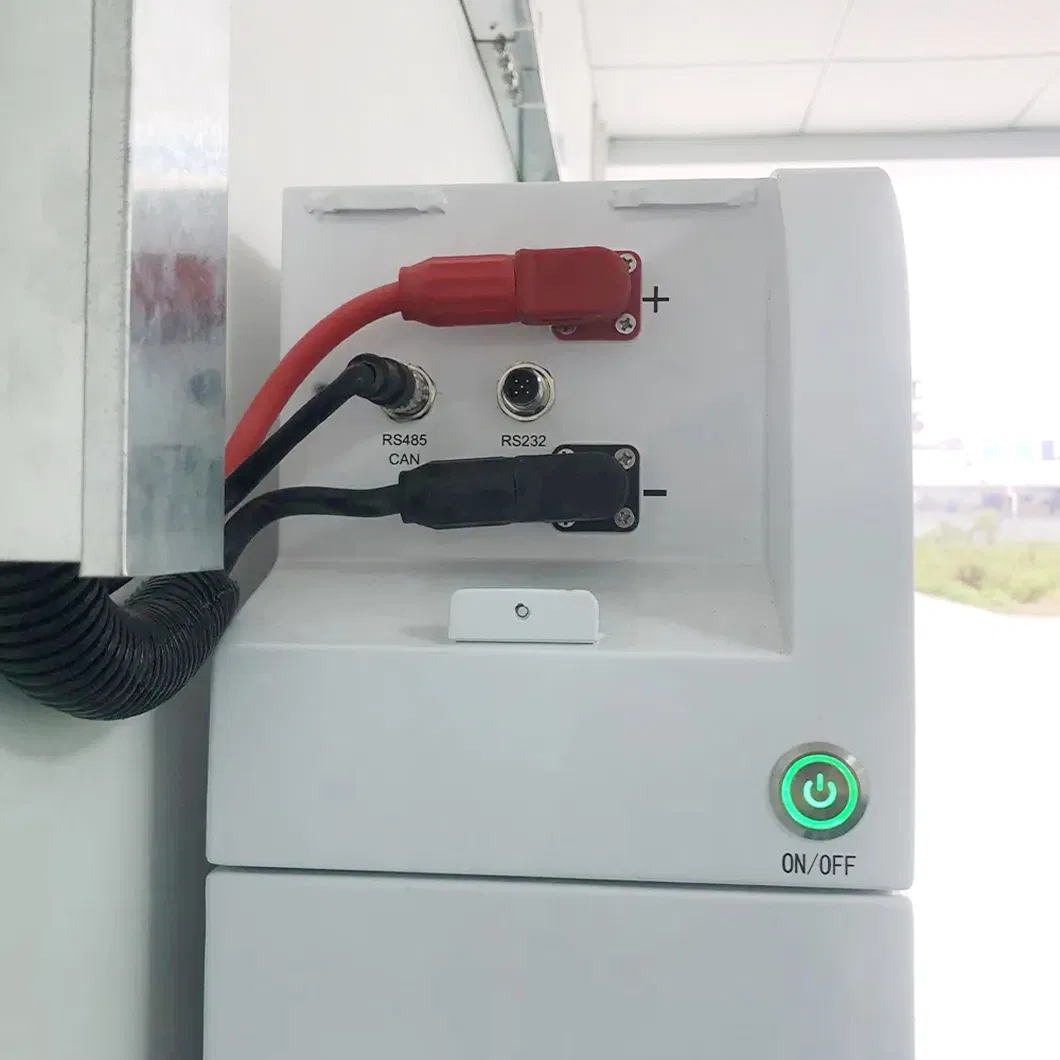

Our Projects

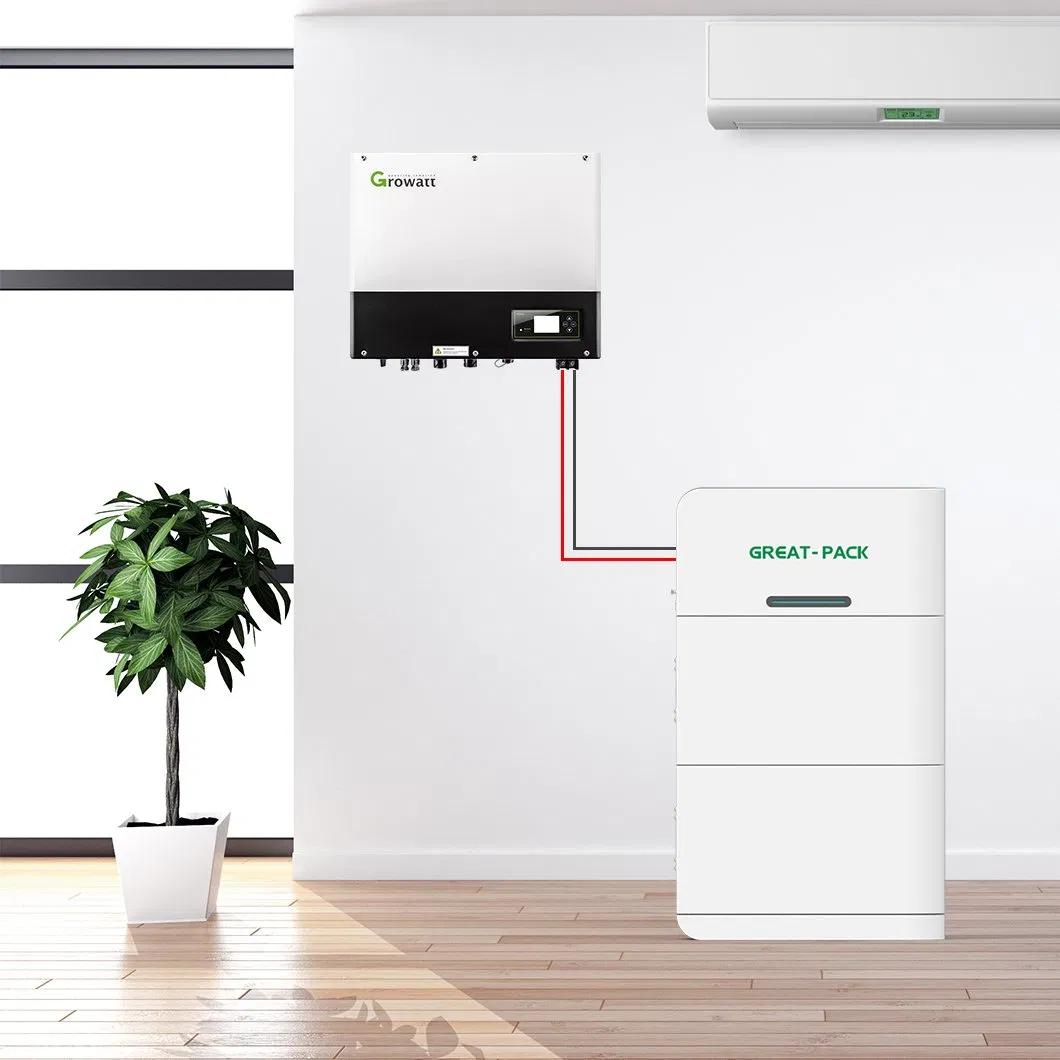

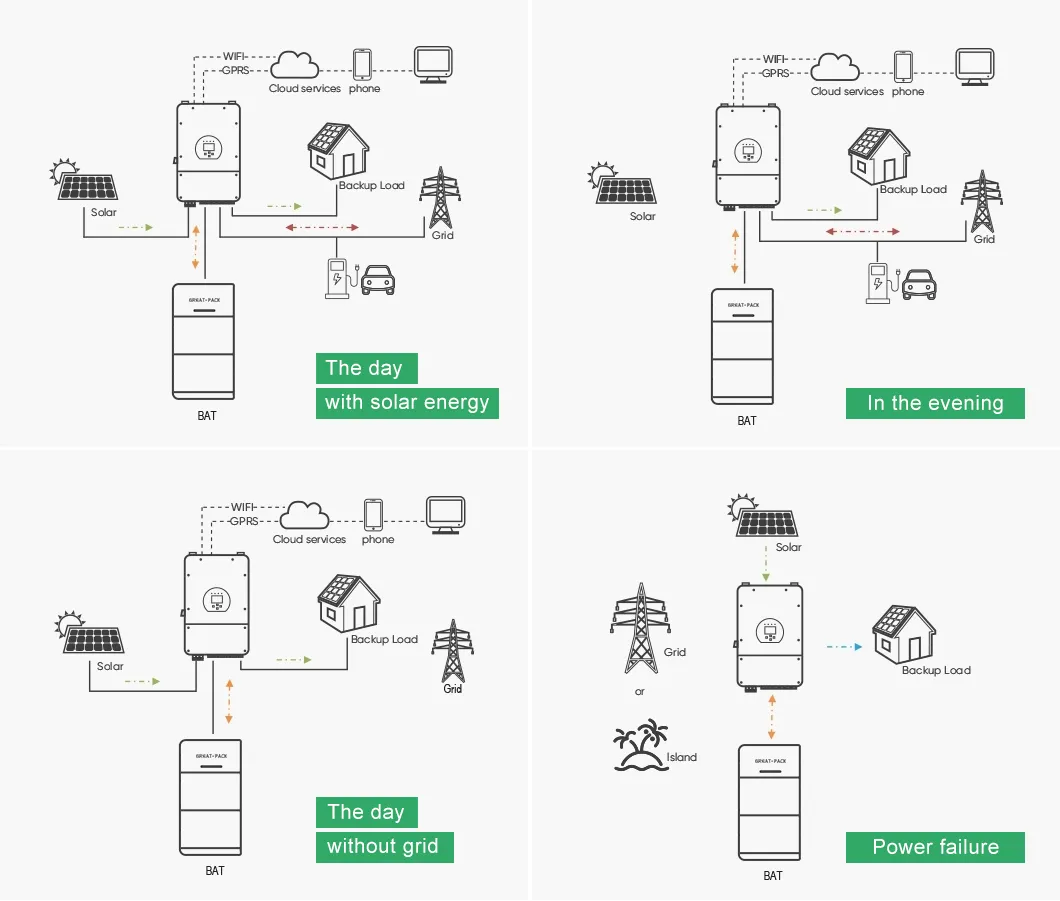

Our battery is widely used in solar systems, wind systems, UPS systems and telecom systems, especially in photovoltaic off-grid and hybrid systems. Compatible with many inverters: Growatt SPH, Goodwe ET, Deye SUN, Sermatec SMT, Megarevo, Solis, SMA, Sunways, and more.

R

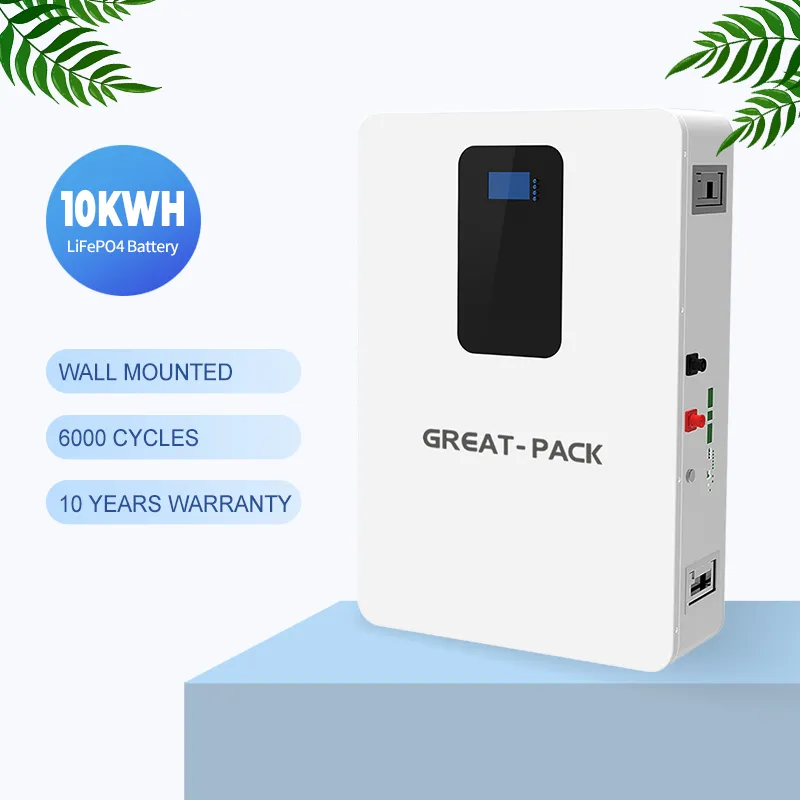

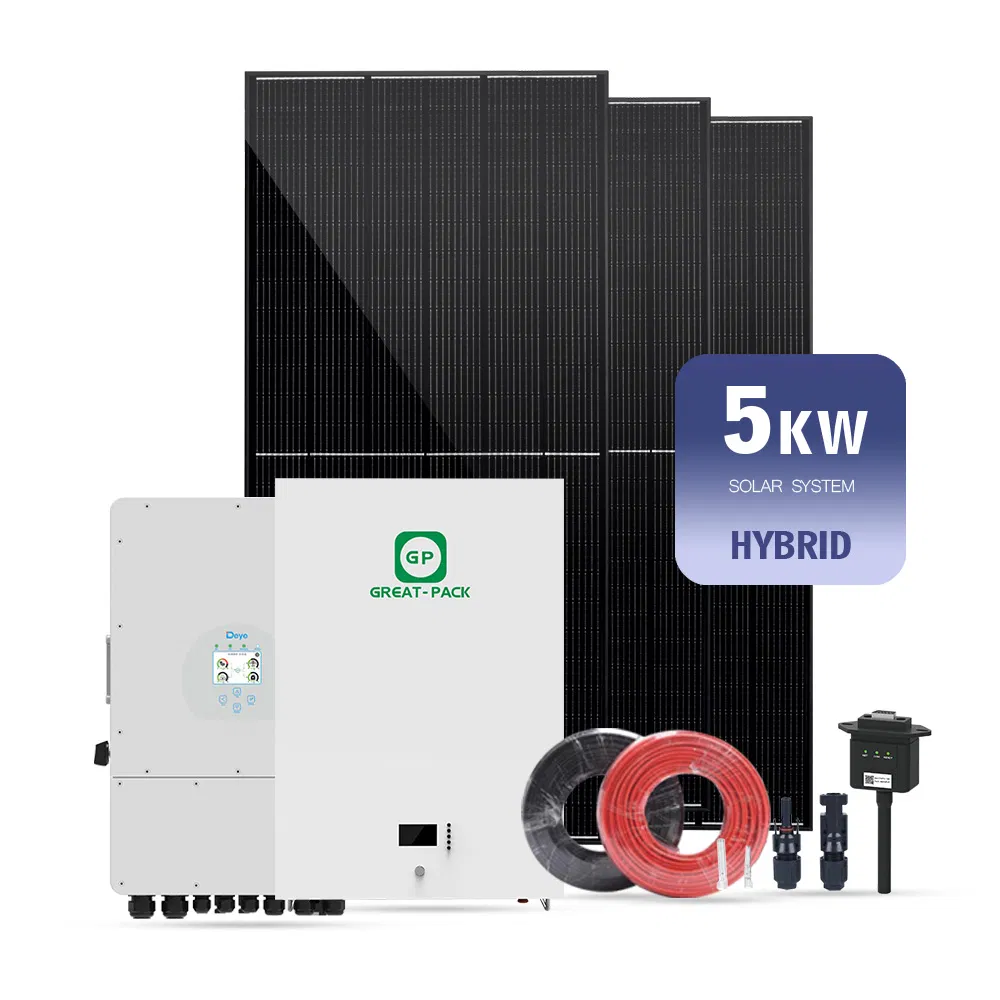

Recommend Products

C

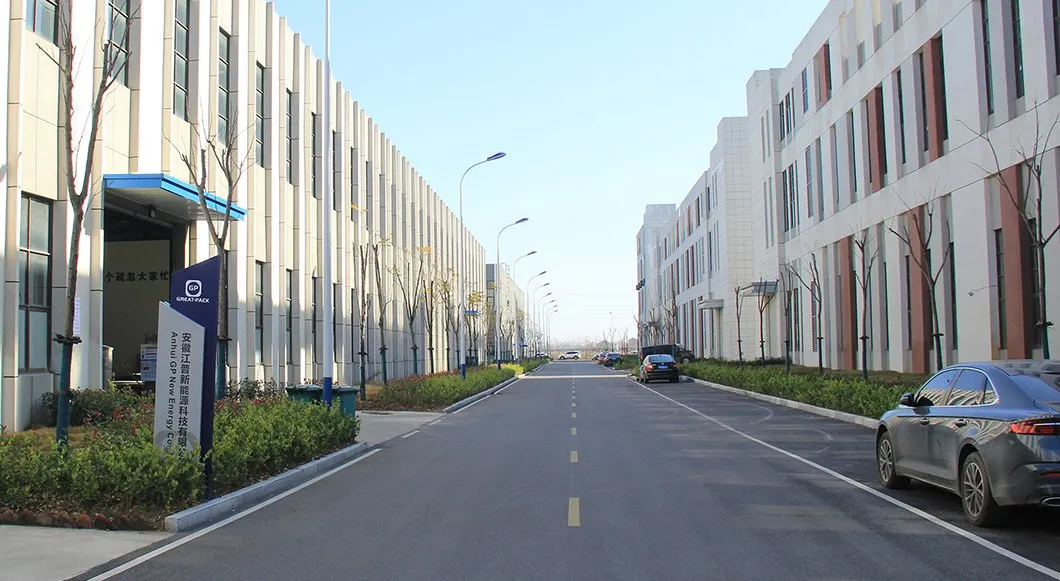

Professional Manufacturer

We focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, and solar energy batteries. We are a leading supplier committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to modern daily lives. Our team has over 8 years of experience in the lithium battery field, supplying One-Stop Power Solutions to save time & capital.

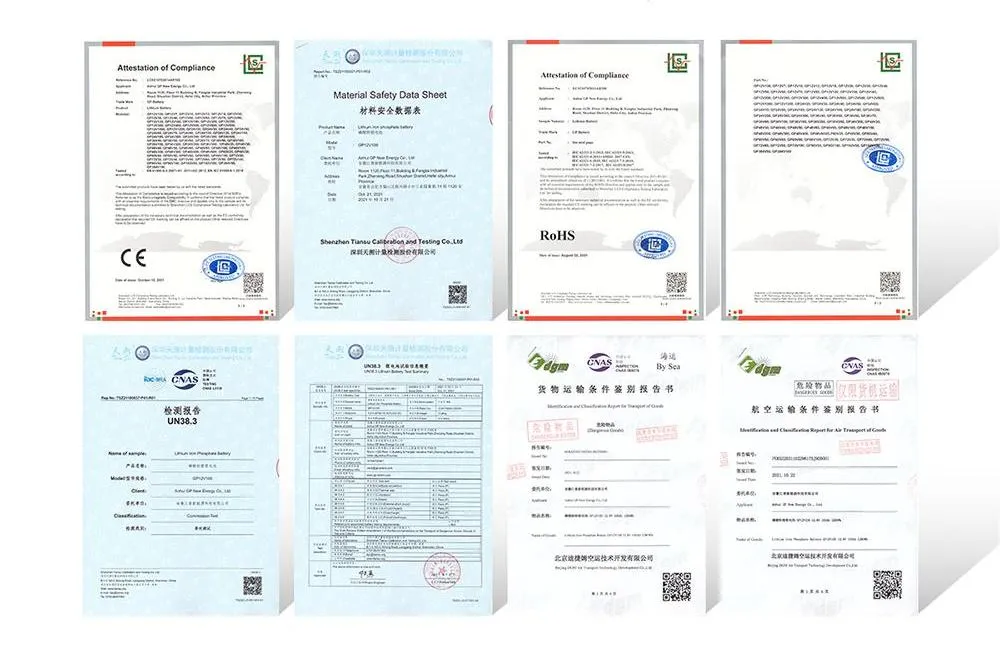

Quality is life. We are committed to supplying high-quality batteries and the best service to clients worldwide. Our batteries have passed CE, UN38.3, RoHS, and MSDS certificates.

F

Frequently Asked Questions

Can the product be shipped to my area?

We export to most countries and regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm specific logistics after you provide your region.

What is the standard lead time for orders?

Typically, the lead time is around 10 working days for requirements up to 200kw.

What are the available payment methods?

We accept 100% TT, or 30% TT in advance with the remaining 70% TT once the goods are ready for shipment.

What kind of warranty do you provide for the battery?

We provide a 10-year battery warranty. If the BMS is damaged, we provide a replacement BMS. If a cell fails, we provide a new battery pack.

Is this battery compatible with my existing inverter?

Our high-voltage systems are compatible with major brands like Growatt, Goodwe, Deye, Solis, Victron, and SMA. Please contact us to verify your specific model.

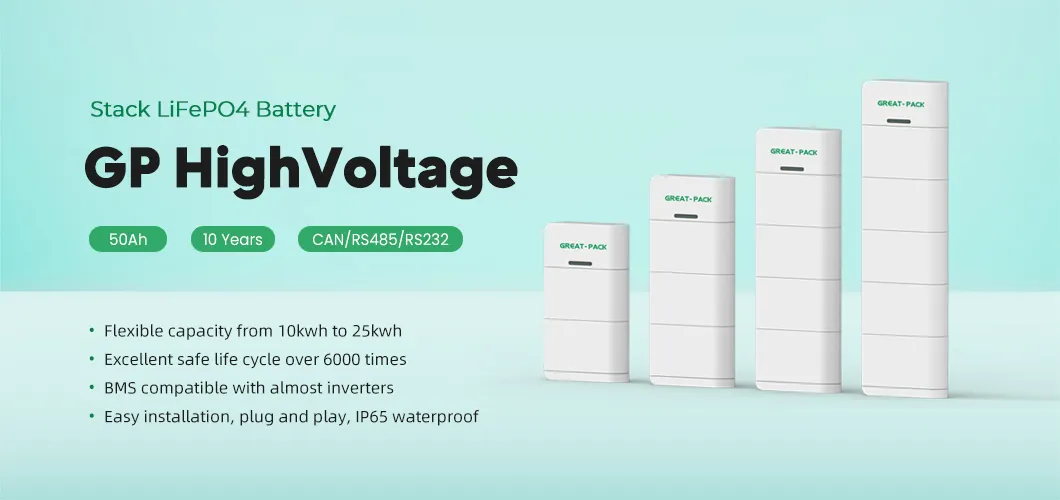

What is the advantage of the modular stacked design?

The modular design allows for easy installation and expansion. You can start with 10kWh and easily add more modules to reach 25kWh or more as your energy needs grow.
