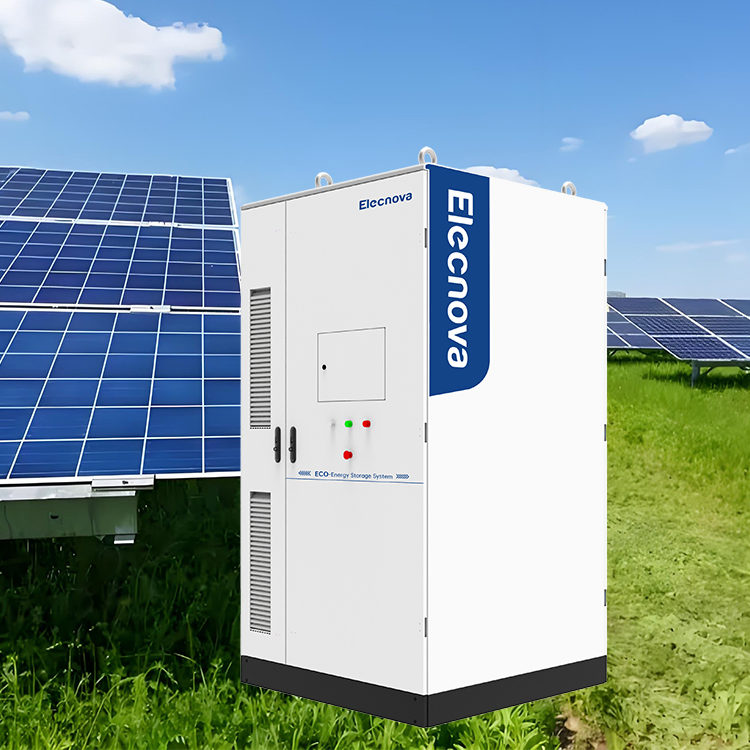

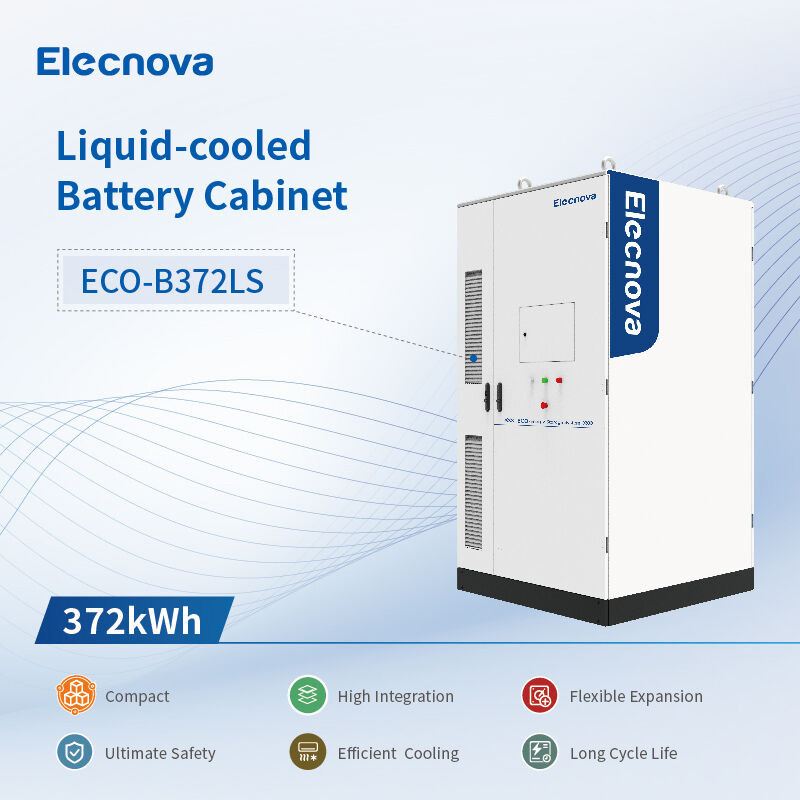

High Integration IP55 Solar Power Storage Battery with CE Certification

Customization: Available
Cell Type: LFP280ah
Configuration: 1p416s

Product Description

Basic Info.
Model NO.
ECO-B372LS
Rated Energy
372kwh
DC Voltage Range
1165~1498VDC
Dod
95%(25±2℃)
Pack Ingress Rating
IP65
Rated Charge/Discharge
0.5c
Operating Temp
-25℃~55℃
Fire Safety
Aerosol
Ingress Rating
IP55
Cooling
Liquid Cooling
Altitude
≤2,000m
Weight
3,660kg
Product Introduction

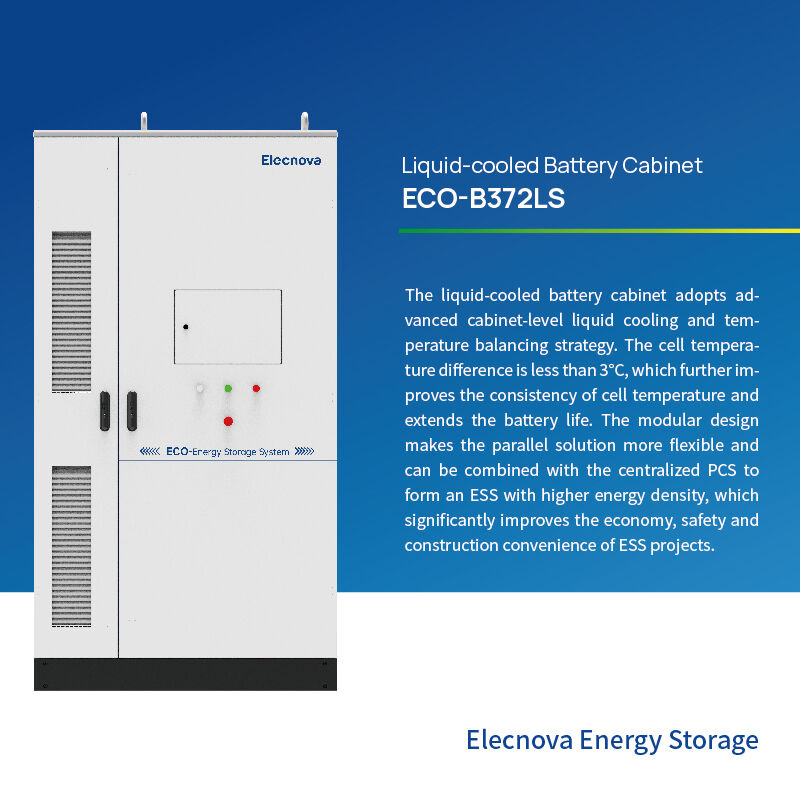

Solar Power Storage Battery
The liquid-cooled battery cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with the centralized PCS to form an ESS with higher energy density.

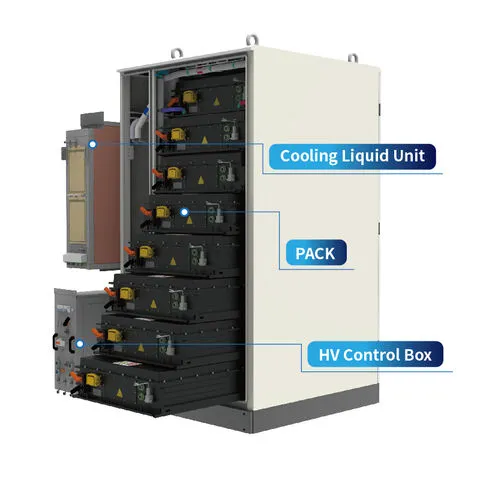

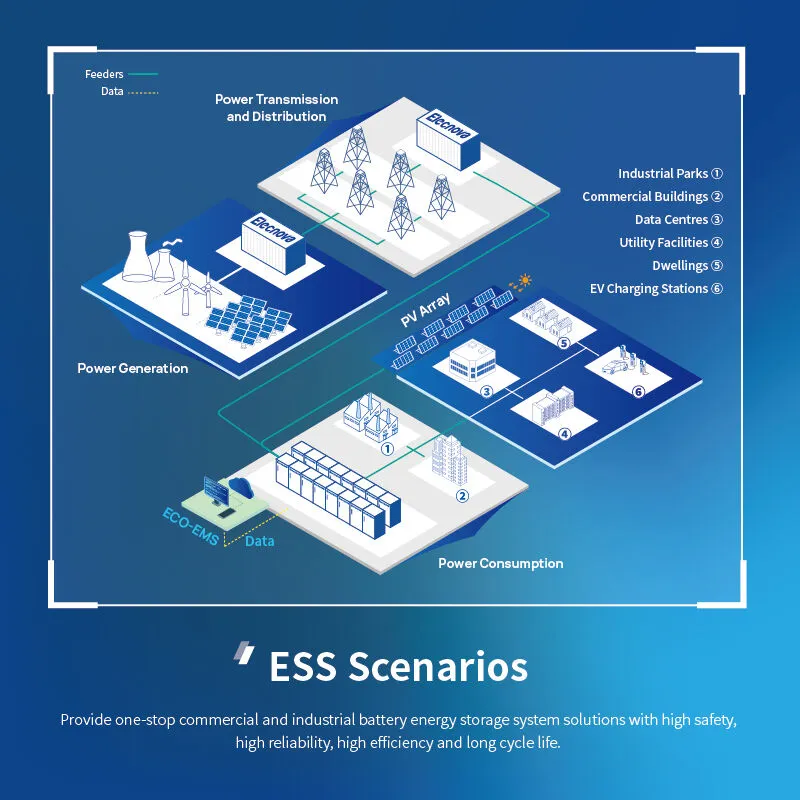

Battery Integration Internal Structure
Product Advantages
  • High voltage access and high power density
  • Ultra-long life and ultra-low loss
  • Multi-energy complementation
  • High protection level and easy maintenance

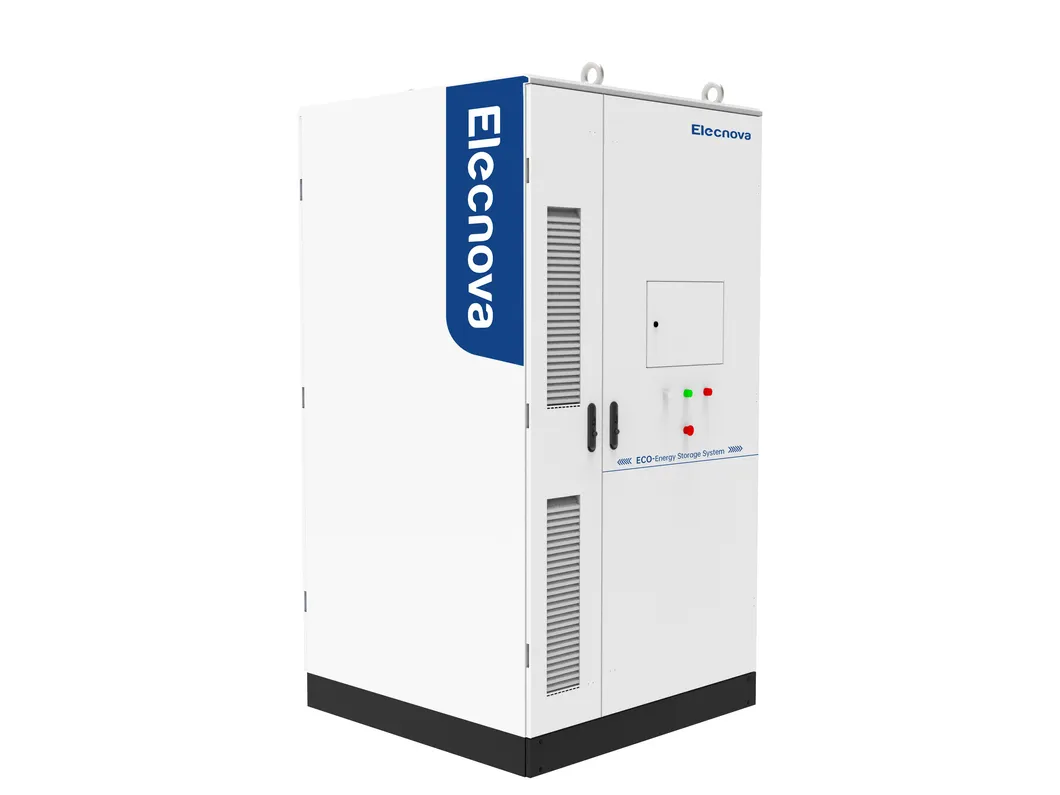

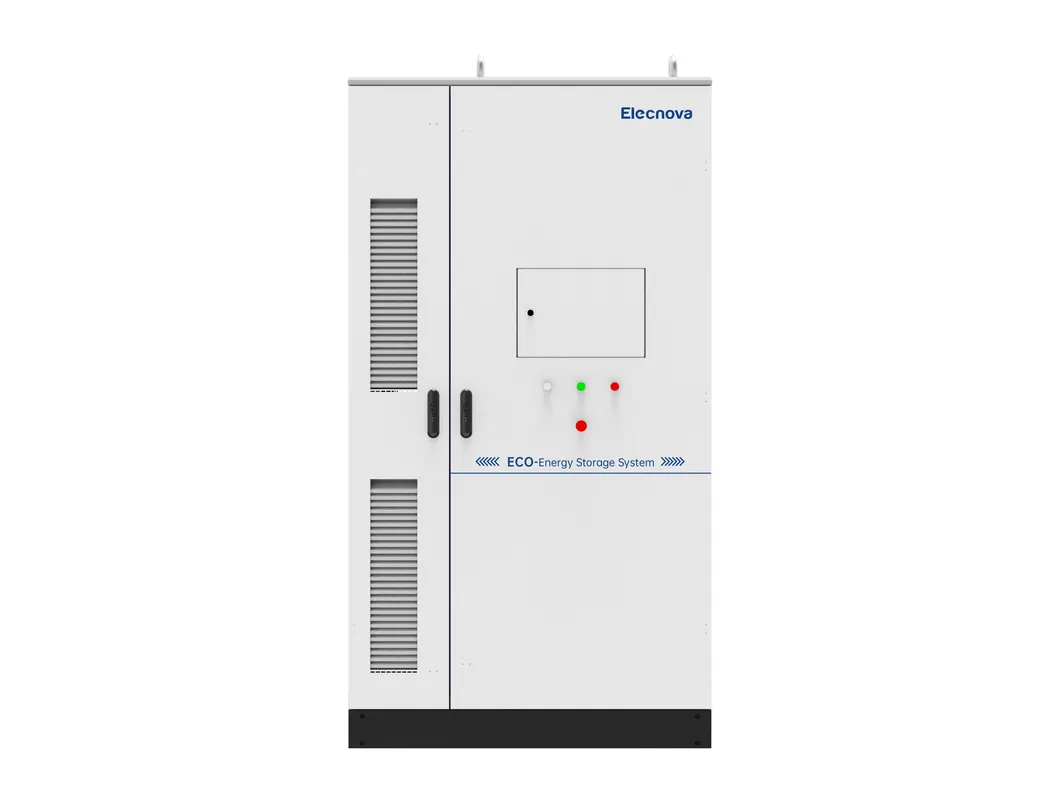

Expansion Features Safety Features
Technical Specification
Item Specification
Cell typeLFP280Ah
DoD95%(25±2ºC)
Configuration1P416S
Rated Energy372kWh
Rated Voltage1331.2Vdc
DC Voltage Range1165~1498Vdc
PACK Ingress RatingIP65
Rated Charge/Discharge Rate0.5C
Operating Temperature-25ºC~55ºC
Cycle Life≥8000 times
Fire SafetyAerosol
Ingress RatingIP55
CoolingLiquid cooling
Dimensions (W*D*H)1,300*1,300*2,400 (mm)
ComplianceUN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A
Main Product Gallery

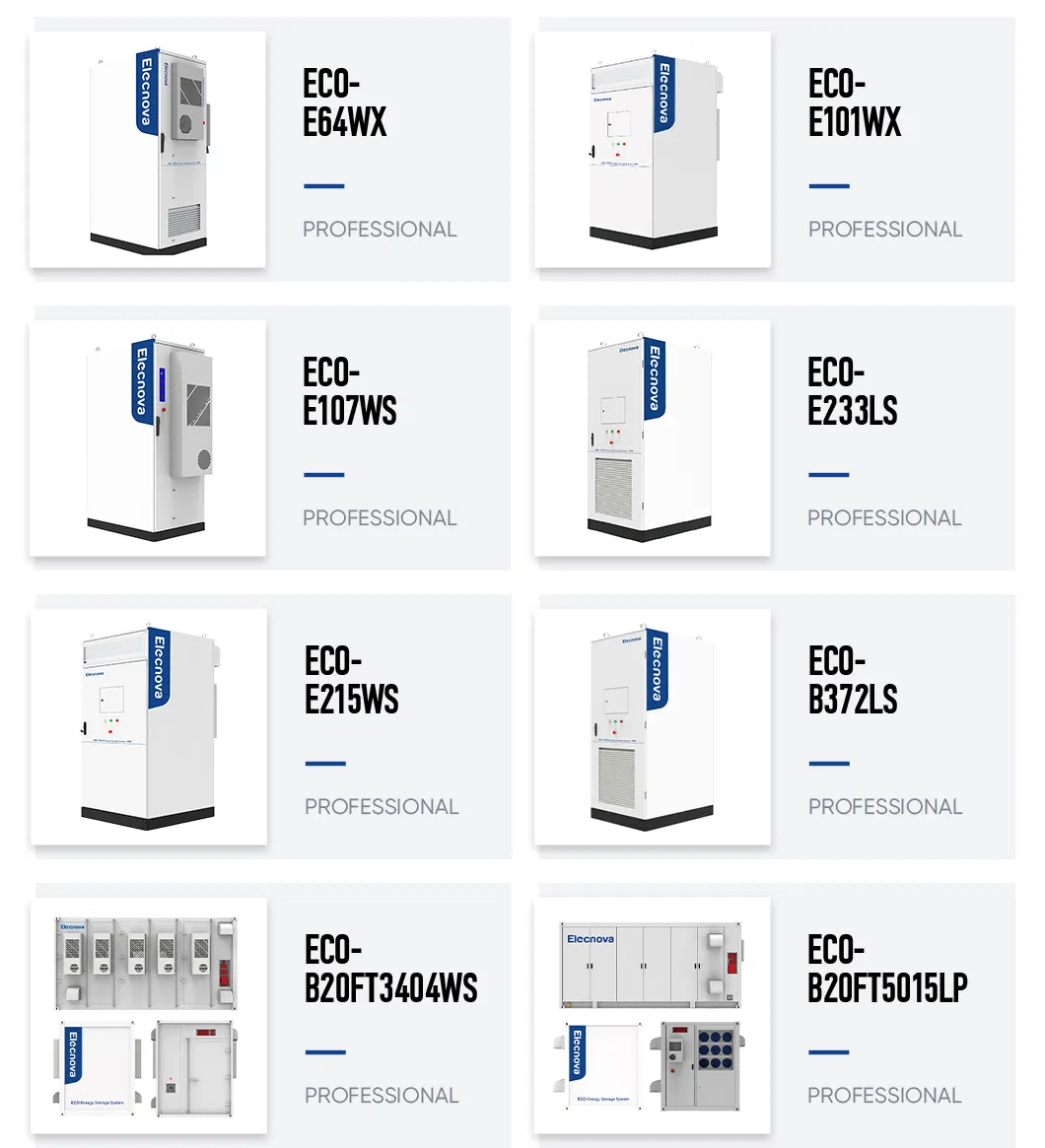

Main Product Line
Company Profile

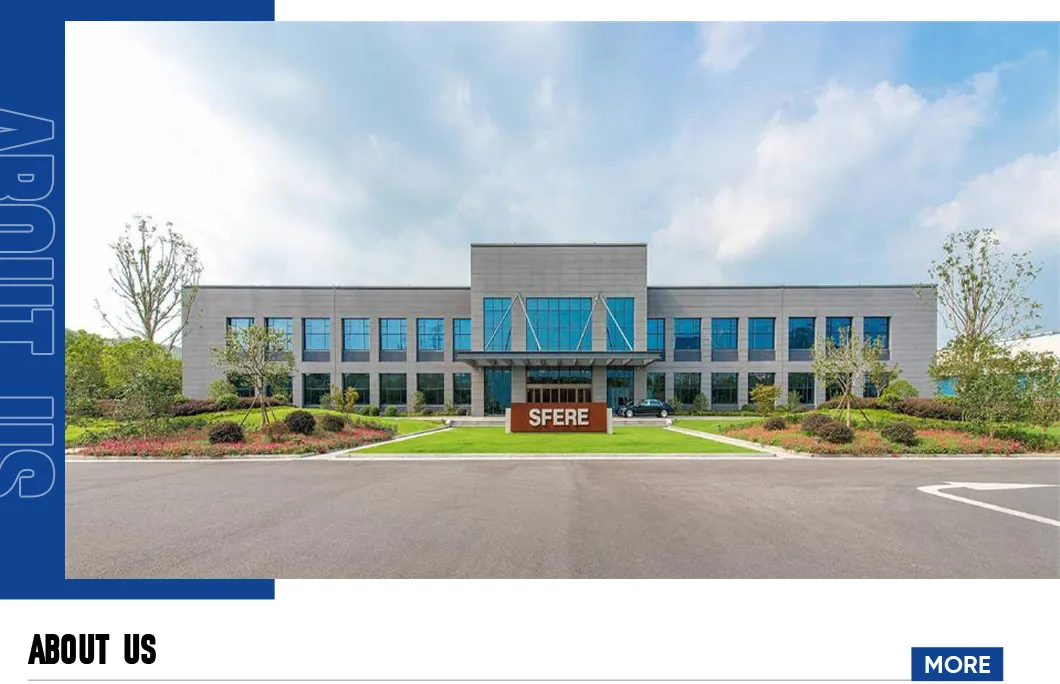

Company Facility
Our company integrates R&D, manufacturing, sales and service, and has a complete product ecosystem from smart terminal components, smart equipment to the Internet of Things platform. We provide reliable data services for energy saving, consumption reduction, energy safety and refined energy management.

We mainly offer three series of products: power monitoring systems, power quality mitigation products, and electrical component products and energy storage systems. We have obtained 122 invention and utility model patents and 42 software copyrights.

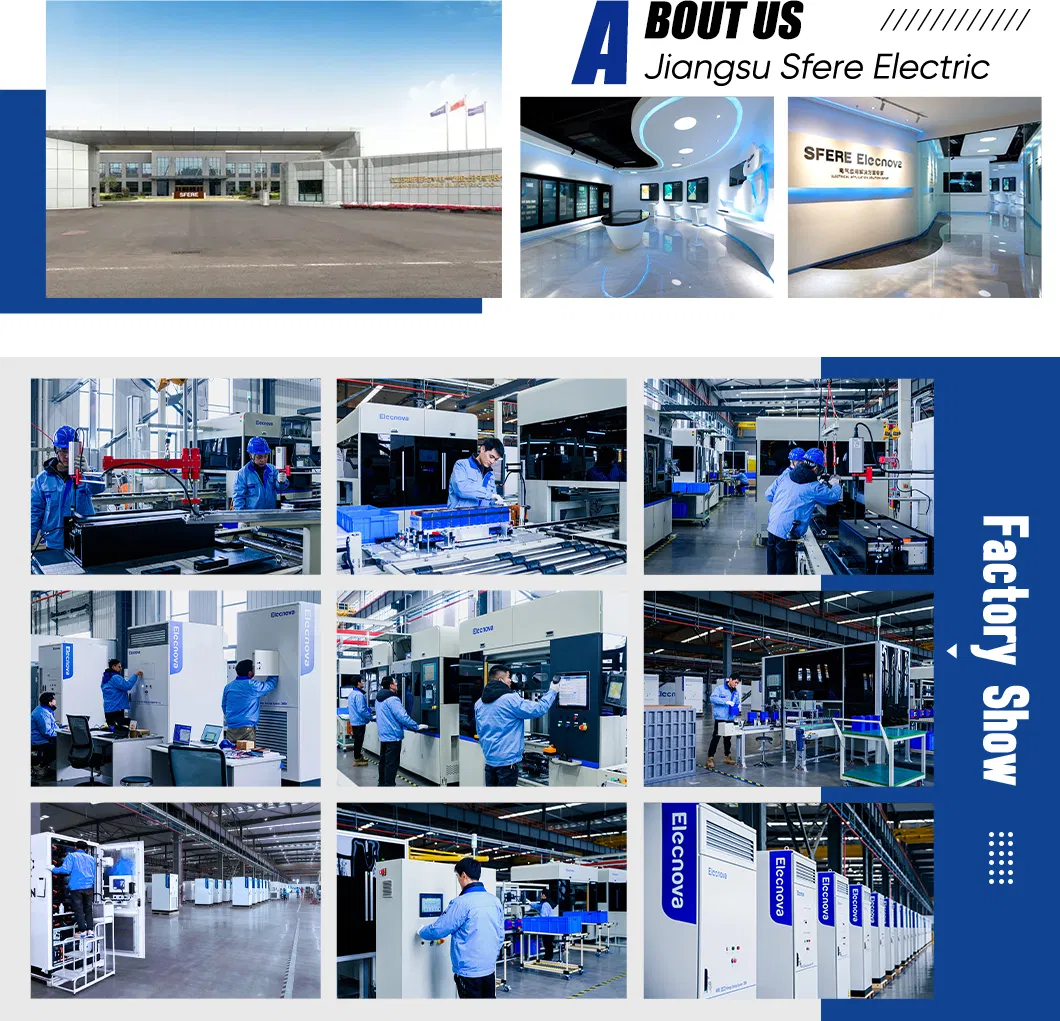

Workshop
Quality Certificates
Certificates
Global Exhibition
Exhibition Presence
Packaging & Shipping
Logistics
Frequently Asked Questions
Q: Are you a trading company or manufacturer? A: We are a manufacturer with a manufacturing center located in China, employing 600+ staff across 3 R&D centers and 1 CNAS lab.
Q: Can you supply OEM & ODM services? A: Yes, we welcome long-term strategic business partners for OEM & ODM projects.
Q: Can you ship battery products by sea or air? A: Our products have UN38.3 certification, making them available for international sea shipment.
Q: How long is the warranty period? A: We provide warranty options for 3, 5, or 10 years based on different price structures and conditions.
Q: How do you provide after-sales service? A: We have overseas affiliates and business partners worldwide to provide on-site maintenance.
Q: Can I request a sample? A: Yes, please leave your contact details and our manager will contact you shortly.
