2294 48V Lithium Ion Battery Deep Cycle Rechargeable LiFePO4 Battery 48V 100ah 200ah 300ah 280ah 314ah Solar Storage Li Ion Battery

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Info

Model NO.
48V 100Ah
Voltage
48V
Type
Lithium-Ion Battery Pack
Connection Mode
Series and Parallel
Rechargeable
Chargeable
Discharge Rate
Ultrahigh Discharge Rate
Size
Medium
Rated Capacity
>1000mAh
Electrolyte
Li-ion
Transport Package
Carton/Wooden Box
Production Capacity
20000pieces/Month

Product Description

Battery Overview
Energy Battery Charging Voltage Standard Charge Current Max Charge Standard Discharge Current Max Continuous Discharge Dimension (L×W×H) Weight
15 KWH 51.2V 300Ah 58V 50A 100A 50A 120A 840*600*258mm 120Kg
Energy Storage Series
Energy Battery Charging Voltage Discharging Voltage Max Charge Max Continuous Discharge Dimension (L×W×H) Weight
2.5 KWH24V 180Ah29.2V20V100A100A610*440*215mm26.5kg
5.0 KWH24V 200Ah29.2V20V100A100A610*440*215mm52.5kg
7.5 KWH24V 300Ah29.2V20V100A100A610*440*215mm68kg
2.4 KWH48V 50Ah54V44V50A50A510*480*180mm32kg
5 KWH48V 100Ah54V44V120A120A650*480*190mm53kg
7 KWH48V 150Ah54V44V120A120A650*480*190mm65g
10 KWH48V 300Ah54V44V120A120A680*485*180mm97Kg
24V/48V Series Technical Specifications
Energy Battery Charging Voltage Standard Charge Current Max Charge Standard Discharge Peak Discharge (1S) Dimension (L×W×H) Weight
5KWH48V/51.2V 100Ah54V/58V20V/50A120A50A300A650*480*190mm53/58.5Kg
7KWH48V/51.2V 150Ah54V/58V20V/50A120A50A300A650*480*190mm65/73.3Kg
10KWH48V/51.2V 200Ah54V/58V20V/50A120A50A300A650*480*190mm85/96Kg

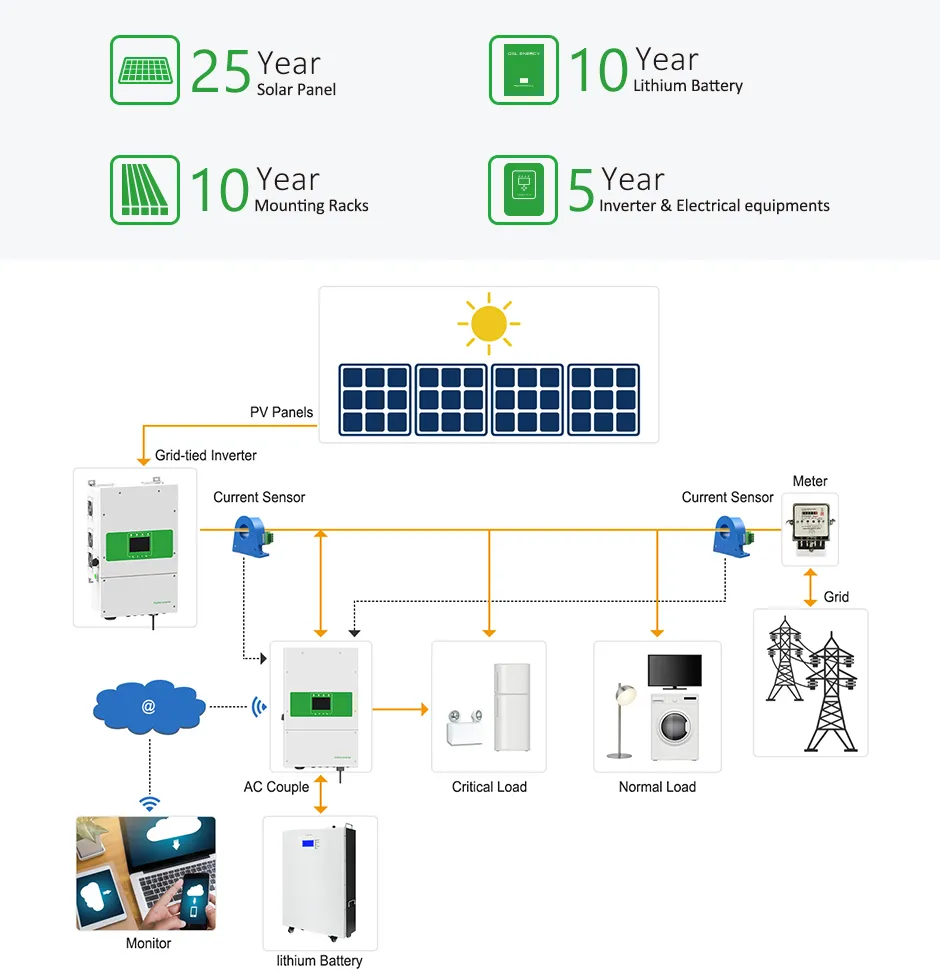

Battery Structure
📷

Detailed Photos

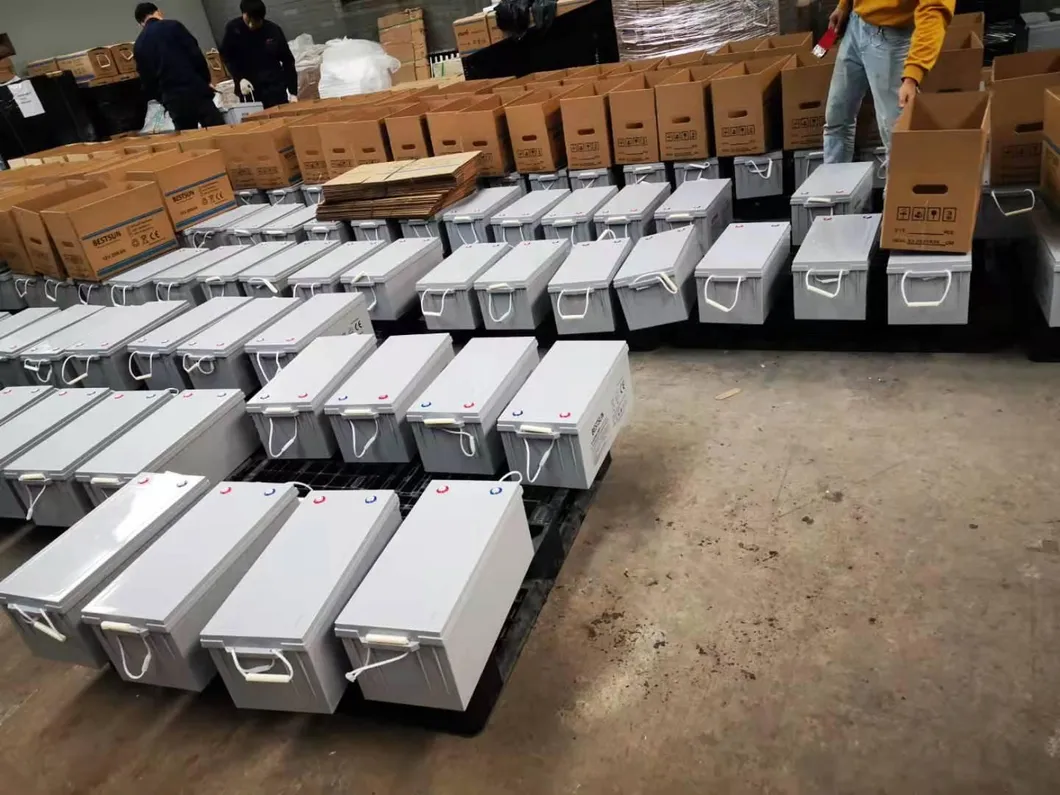

We also have lead-acid and gel battery production capabilities.

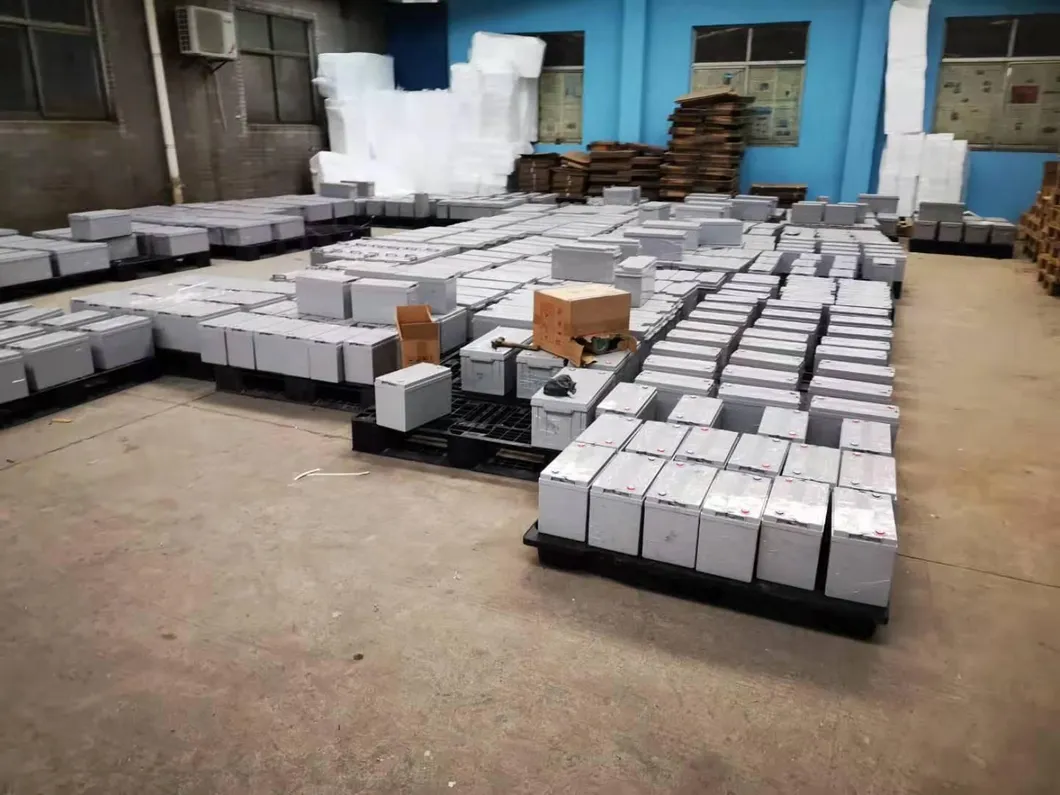

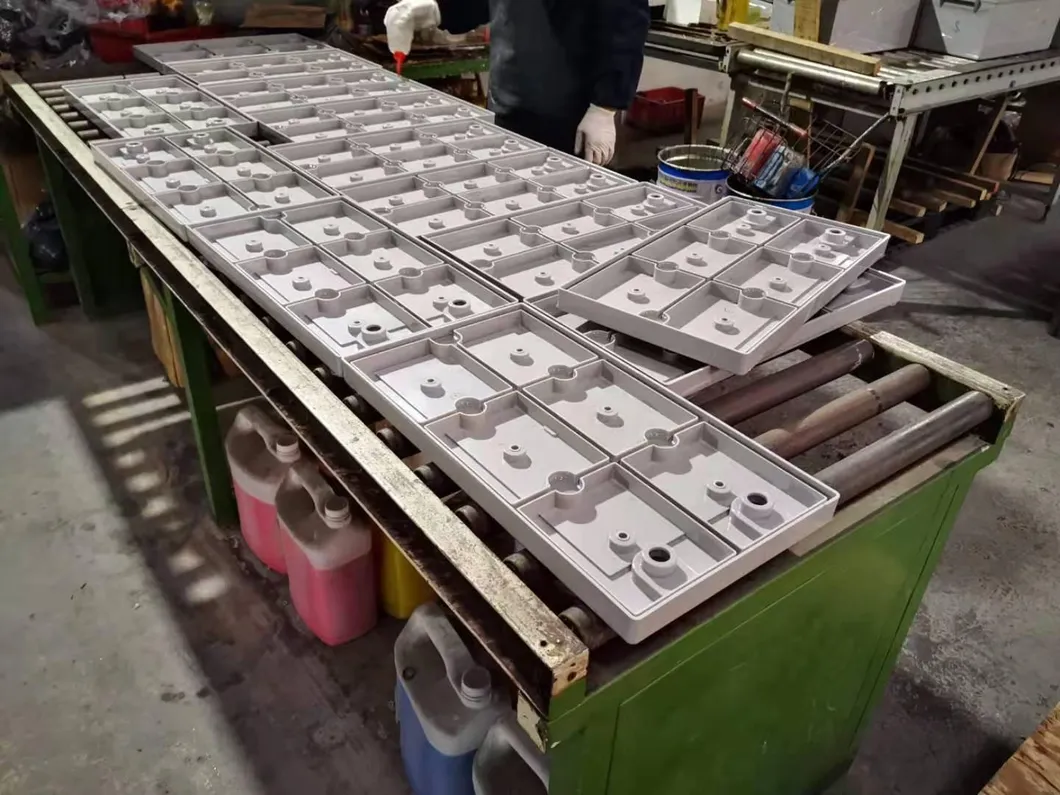

Product Detail 1 Product Detail 2 Product Detail 3

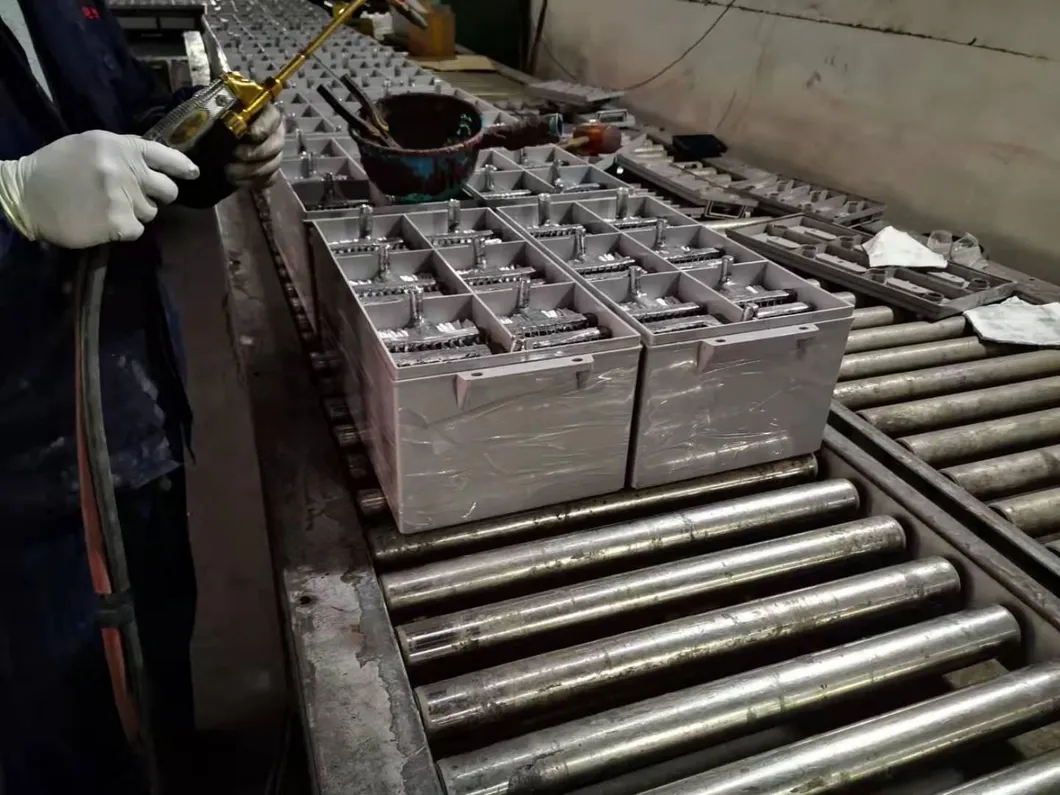

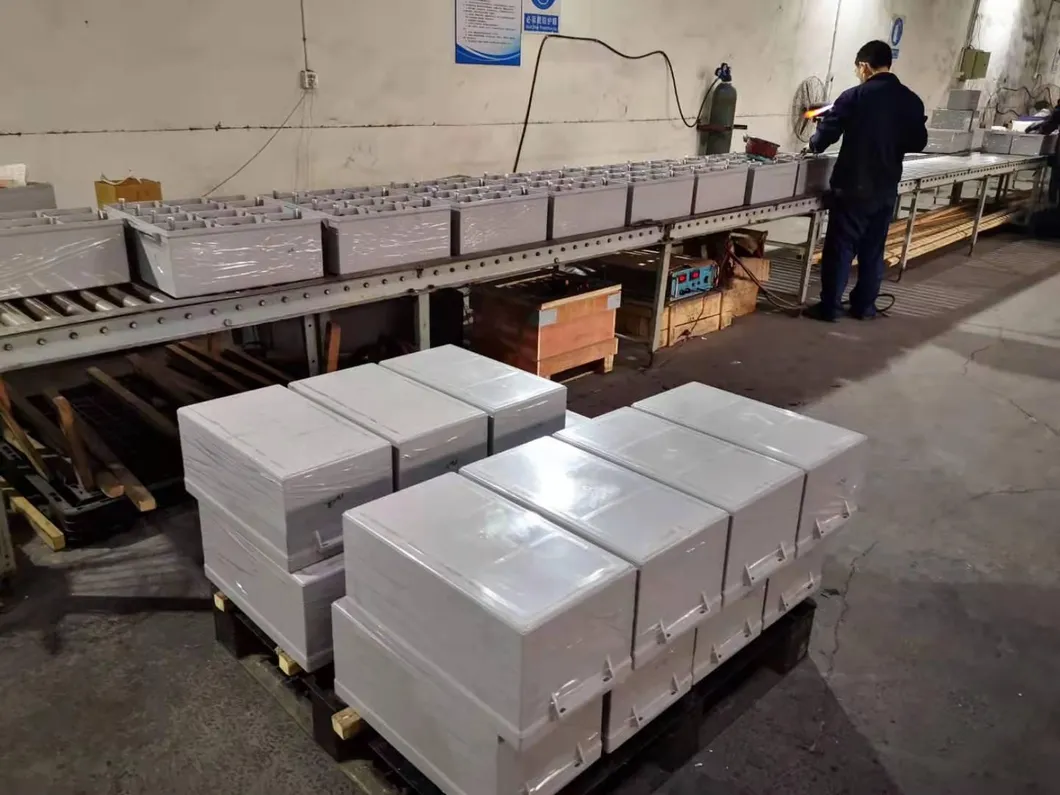

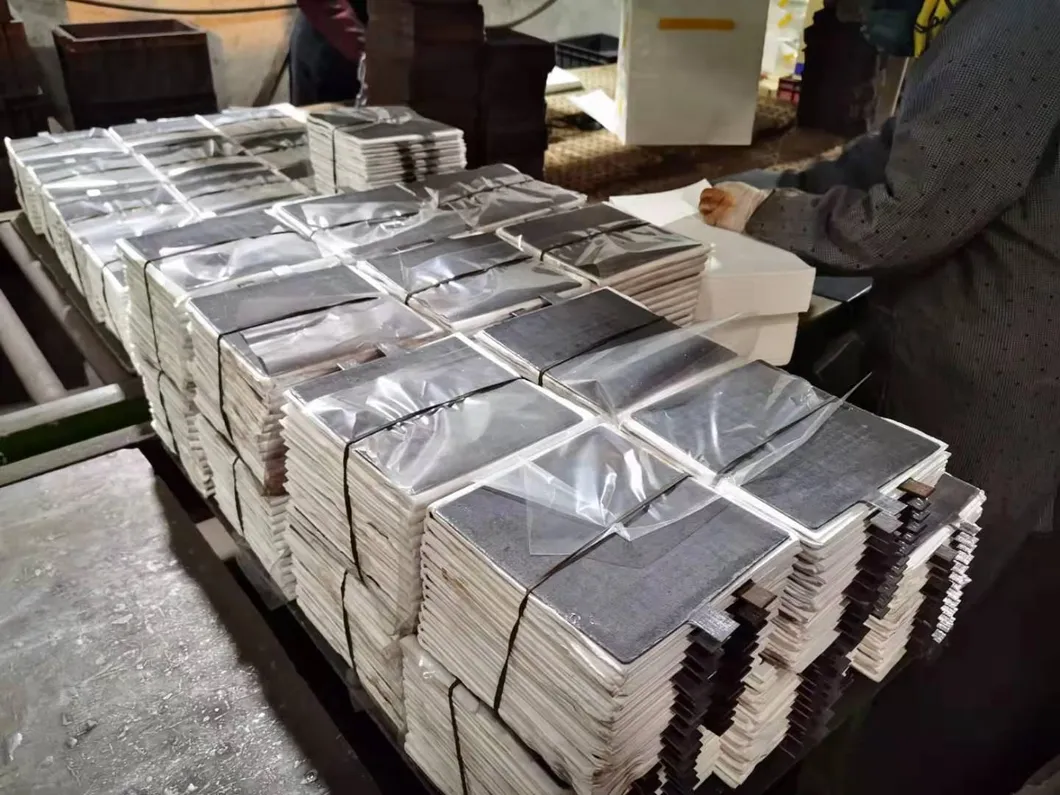

Product Detail 4 Product Detail 5 Product Detail 6
?

Frequently Asked Questions

What is the lifespan of this LiFePO4 battery?
These Lithium-Ion batteries typically offer a deep cycle life of over 4,000 to 6,000 cycles at 80% Depth of Discharge (DOD), significantly outlasting traditional lead-acid batteries.
Can these batteries be connected in parallel or series?
Yes, the 48V 100Ah series and others are designed to support both series and parallel connections to meet various voltage and capacity requirements for solar storage.
What is the main application for the 48V 100Ah battery pack?
It is primarily used for solar energy storage systems, off-grid power solutions, home energy backups, and telecommunication base stations.
Does the battery include a Management System (BMS)?
Yes, every battery pack is equipped with a high-quality integrated Battery Management System (BMS) that protects against overcharge, over-discharge, over-current, and short circuits.
What are the advantages of Li-ion over lead-acid batteries?
Li-ion batteries provide higher energy density, lighter weight, faster charging capabilities, and a much longer cycle life compared to standard lead-acid or gel batteries.
What kind of packaging is used for international transport?
To ensure safety during transit, batteries are packed in standardized, heavy-duty cartons or reinforced wooden boxes depending on the weight and quantity.
