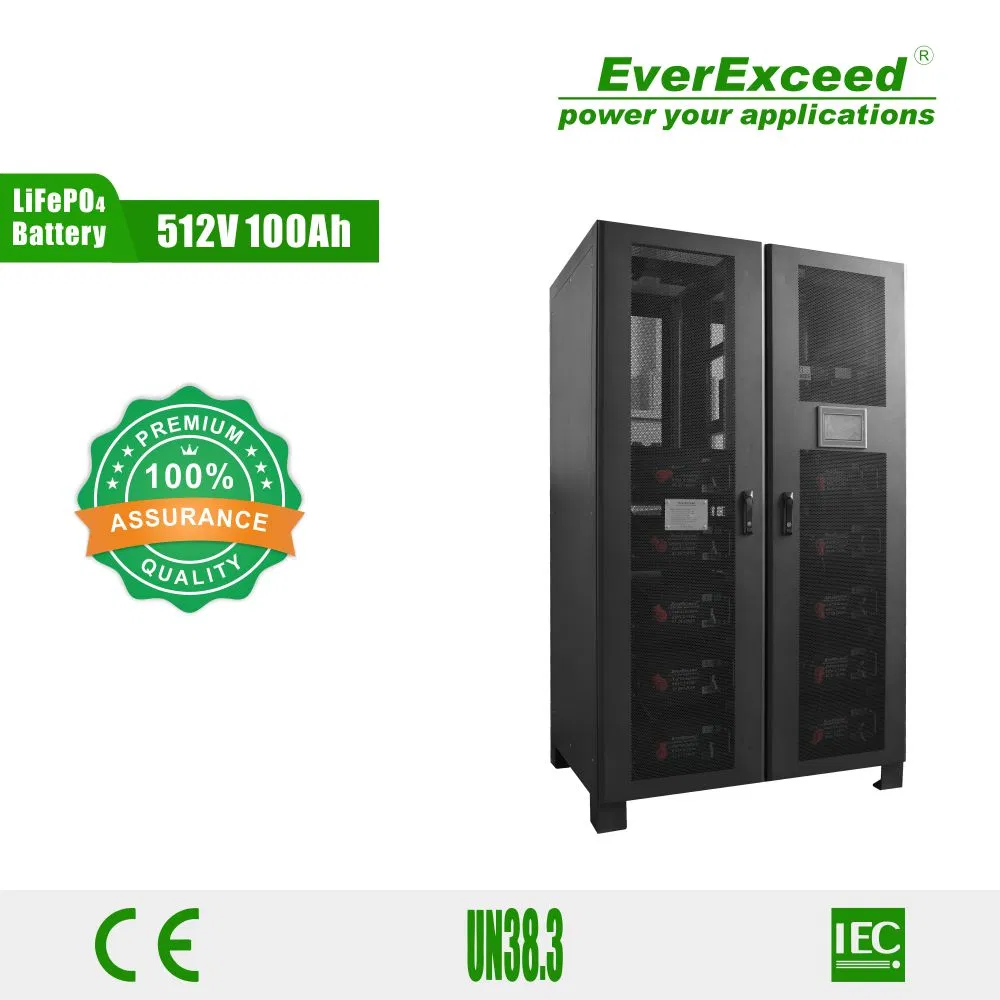

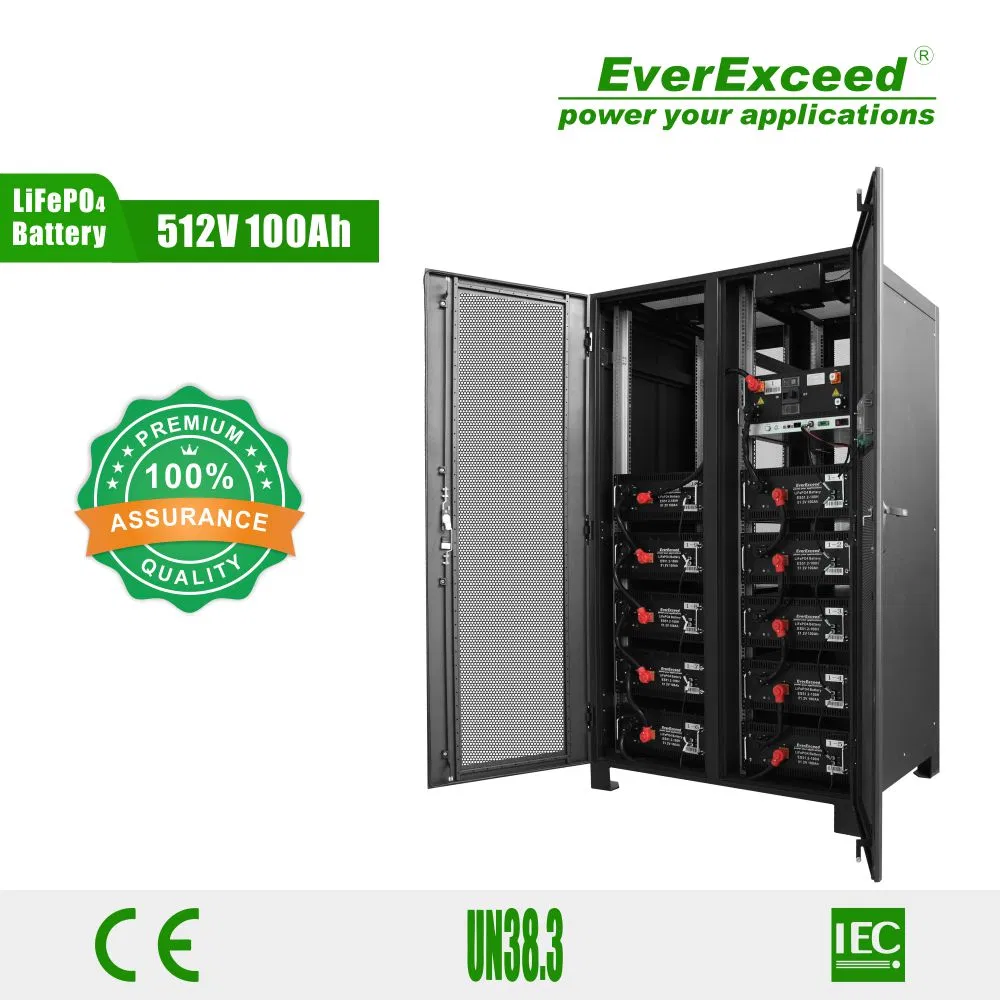

UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
1 / 5
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power
UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power

UL Certified High Voltage UPS Lithium Battery System, 512V 25.6kwh / 51.2kwh for Critical Backup Power

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

Basic Specifications

Model NO.
ES512-100NH
Type
LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage
512V
Capacity
100Ah
Energy
51.2kWh
Usage
High Voltage UPS System
Certificates
ISO / CE / UN38.3 / IEC
Dimensions
1200*830*2000mm
Gross Weight
600.00kg

Product Introduction

UL Certified High Voltage UPS Lithium Battery System, 512V 100Ah / 51.2kWh for Critical Backup Power

The ES512-100NH LiFePO4 battery is a new environment-friendly backup power module specially designed for UPS power systems. Featuring an advanced lifespan, extra compact size, very light weight, and strong environmental tolerance, it is the ideal solution for both indoor and harsh outdoor environments where UPS systems are deployed.

Key Features

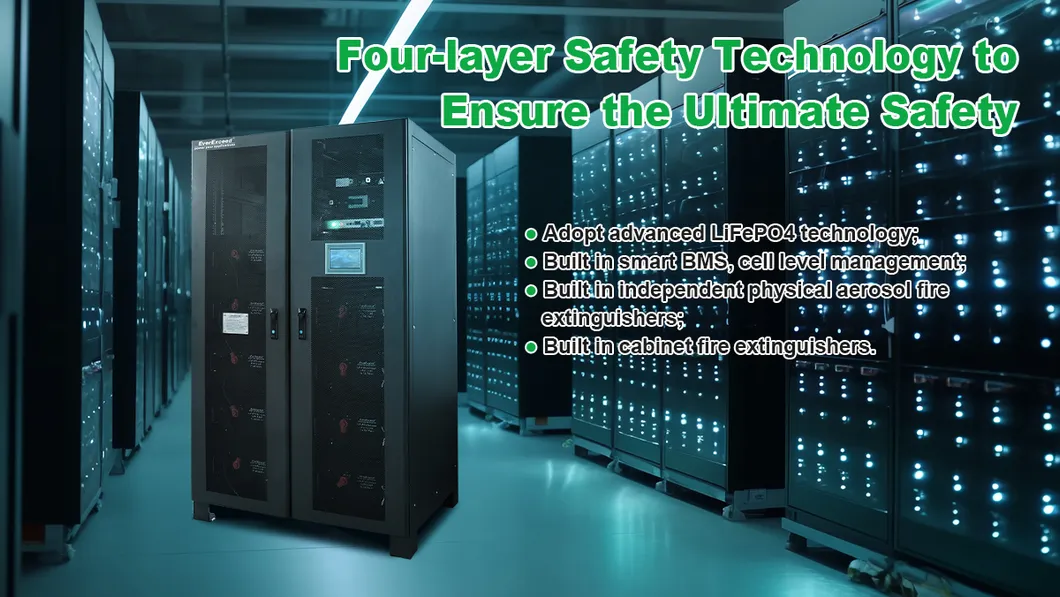

1Ultimate Safety: Four-layer safety protection with LiFePO4 cells, smart BMS, and dual built-in fire extinguishers.
2High Performance: Delivers ultra-fast 8C discharge and long backup time with Grade A cells.
3Compatibility: Wide UPS compatibility for various industrial and commercial applications.

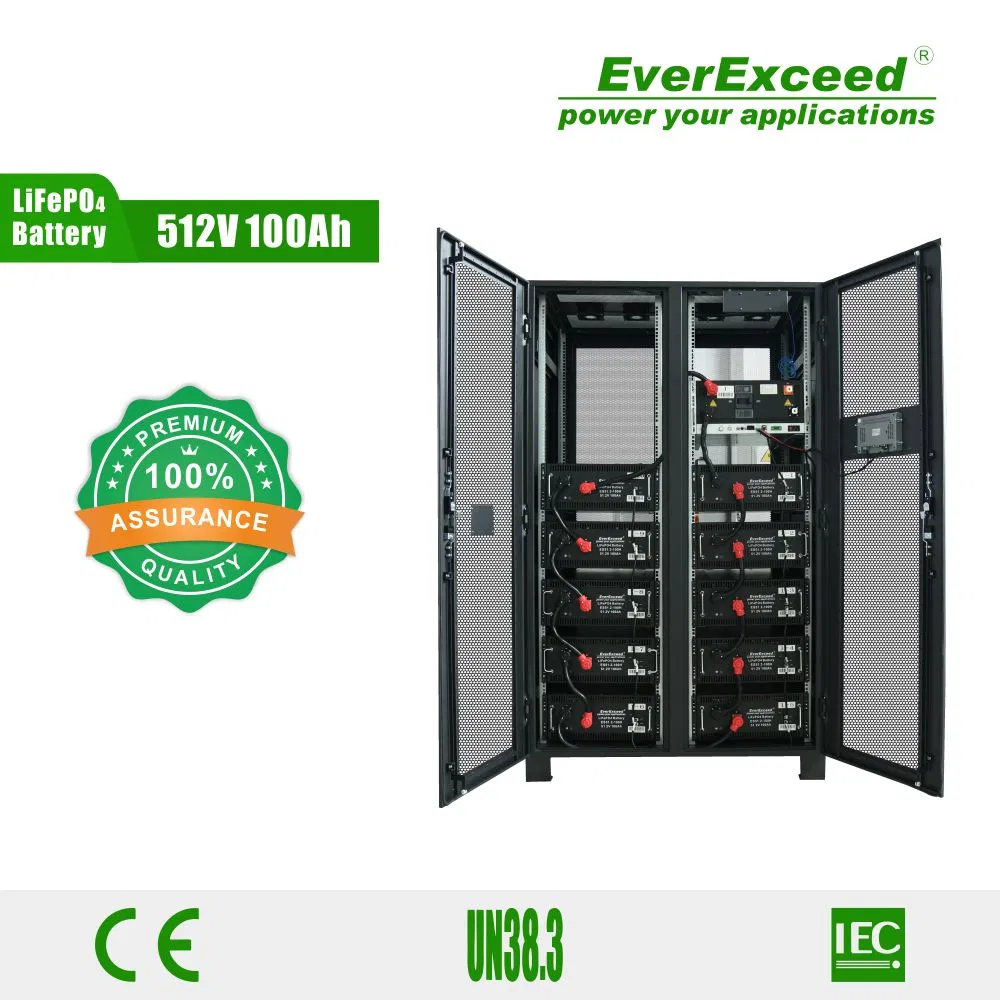

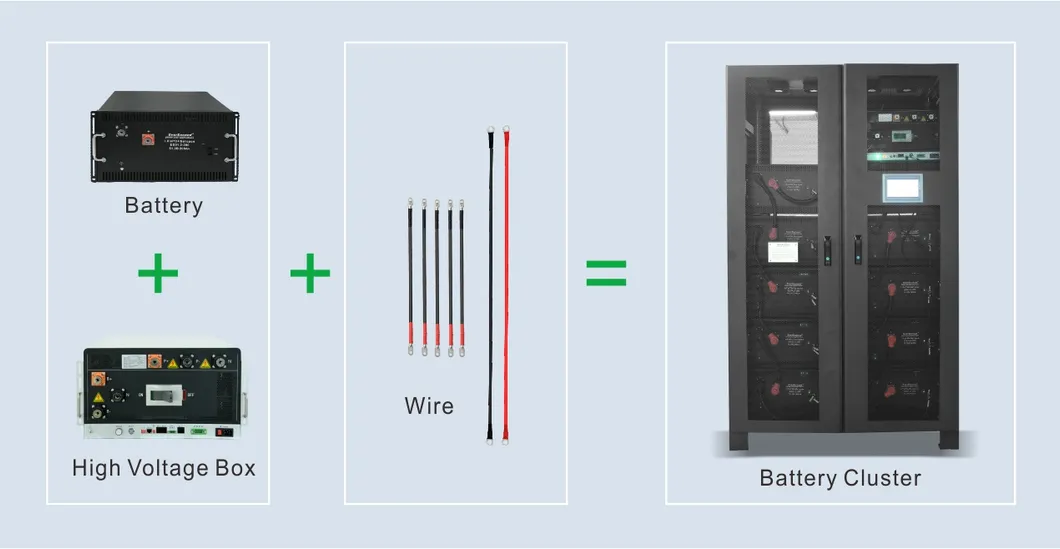

High Voltage UPS Lithium Battery System Battery System Internal View

Technical Parameters

Parameter ES512-100NH ES512-100H
Nominal Voltage512V(±256V)512V
Capacity100Ah100Ah
Energy51.2kWh51.2kWh
Max Discharging Current400A600A (10min)
Charging Temperature0-45ºC0-45ºC
Discharge Temperature-20-60ºC-20-60ºC
Cycle Life≥3000 Cycles @ 100% DOD @ 25°C
CommunicationRS485, CAN, TCP/ IP
Design Life15+ years @ 25°C

Applications

✔ CATV / UPS / Energy storage system / Emergency lighting / Medical equipment

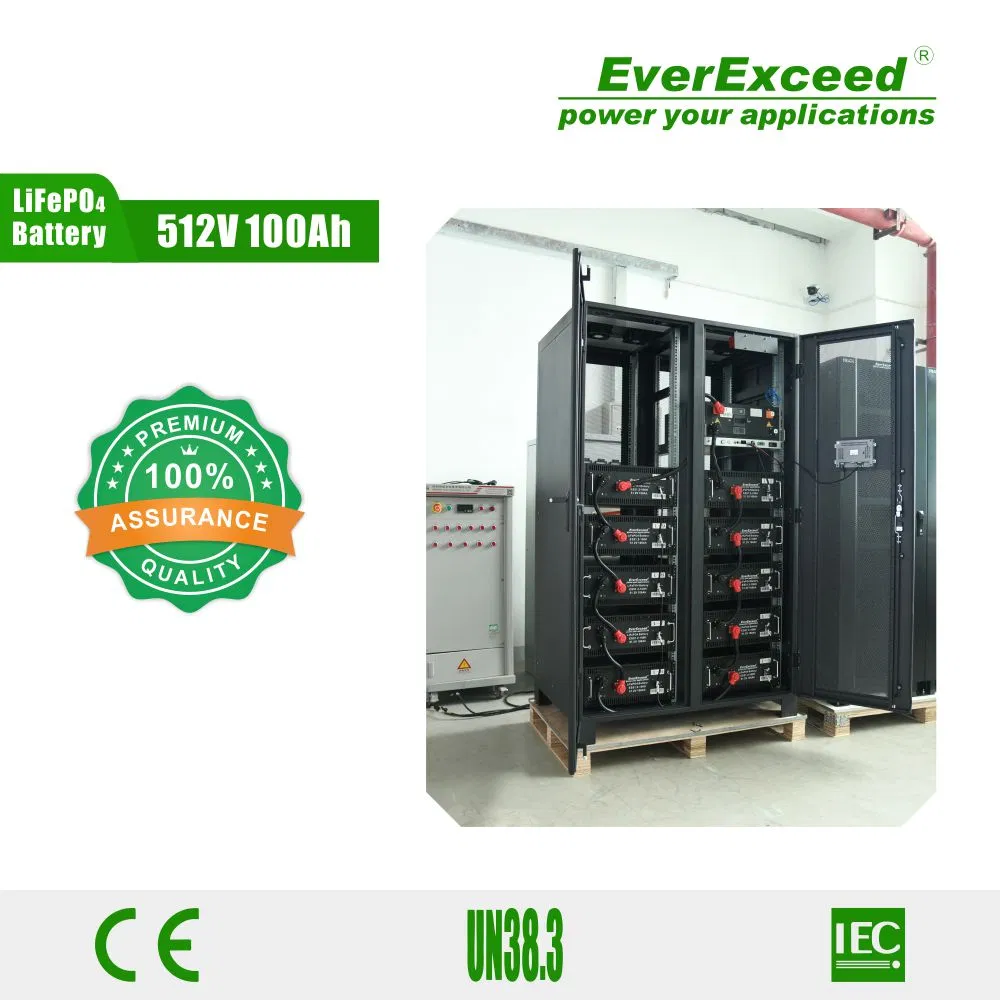

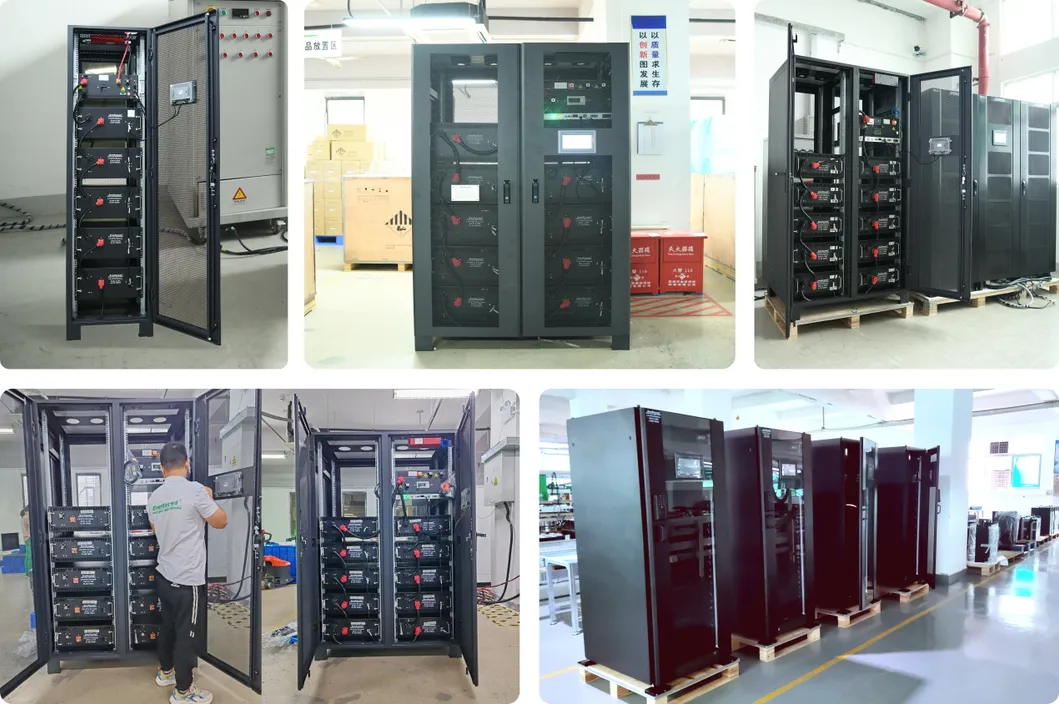

Application Scenarios System Installation

Why Choose Our Solutions

Quality
Highly reliable quality guaranteed by Varta production equipment and European raw materials.
Service
24/7 pre-sales and after-sales support (RMA), OEM/ODM available.
Warranty
Standard 2 years, up to 5+ years upon request.
Experience
30+ years of professional battery manufacturing experience.
Capacity
3,500,000KVAh per year production capability.

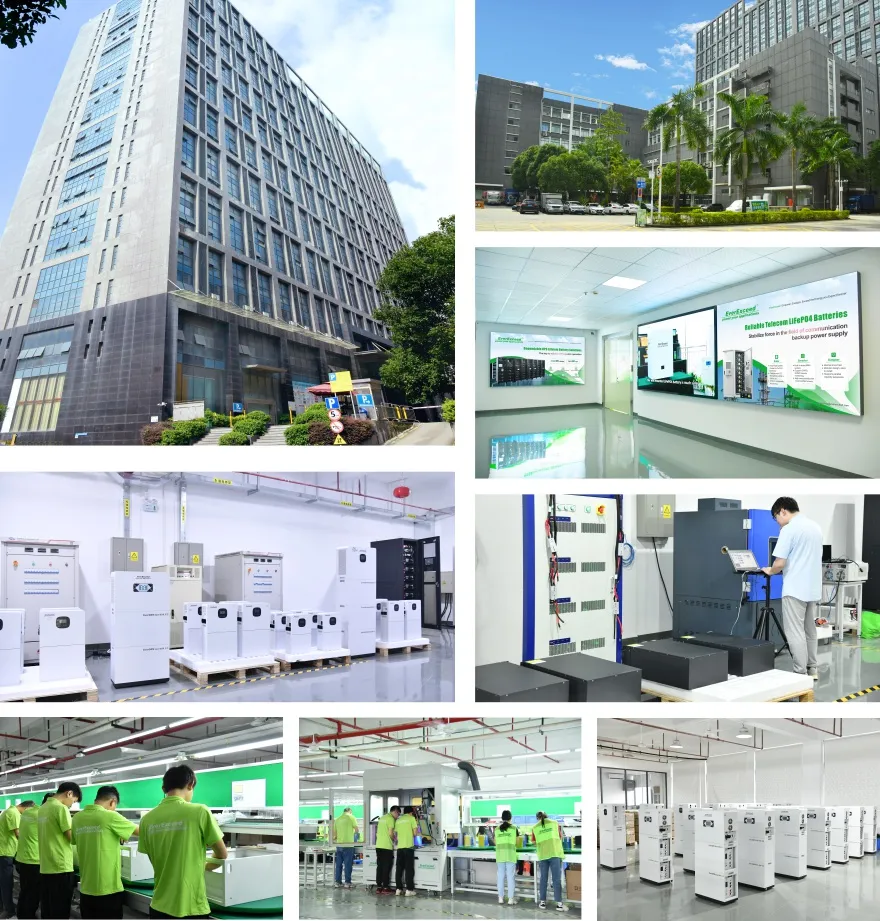

Manufacturing Center Global Presence

Frequently Asked Questions

Q1: What is the difference in charging time? Faster charging times are beneficial if you need backup power to be restored quickly. Our UPS lithium batteries are designed to fully meet these rapid recovery needs.
Q2: How do the lifespan and cycle life compare to traditional batteries? With over 3000 cycles at 100% DOD, these batteries significantly reduce long-term maintenance and replacement costs compared to lead-acid alternatives.
Q3: Are there specific safety considerations for high voltage systems? Our systems incorporate multiple safety mechanisms, including smart BMS and built-in fire extinguishers, to prevent overcharging, short circuits, and thermal events.
Q4: How do I ensure compatibility with my existing UPS? The system supports wide voltage ranges and standard communication protocols like RS485, CAN, and TCP/IP to ensure seamless integration with most industrial UPS units.
Q5: What are the physical space requirements? These lithium solutions are much more compact and lightweight than traditional batteries, allowing for more power in a smaller footprint (1200*830*2000mm).
Q6: What type of technical support is available? We provide comprehensive 24/7 technical support and maintenance services throughout the entire lifespan of the UPS system.
