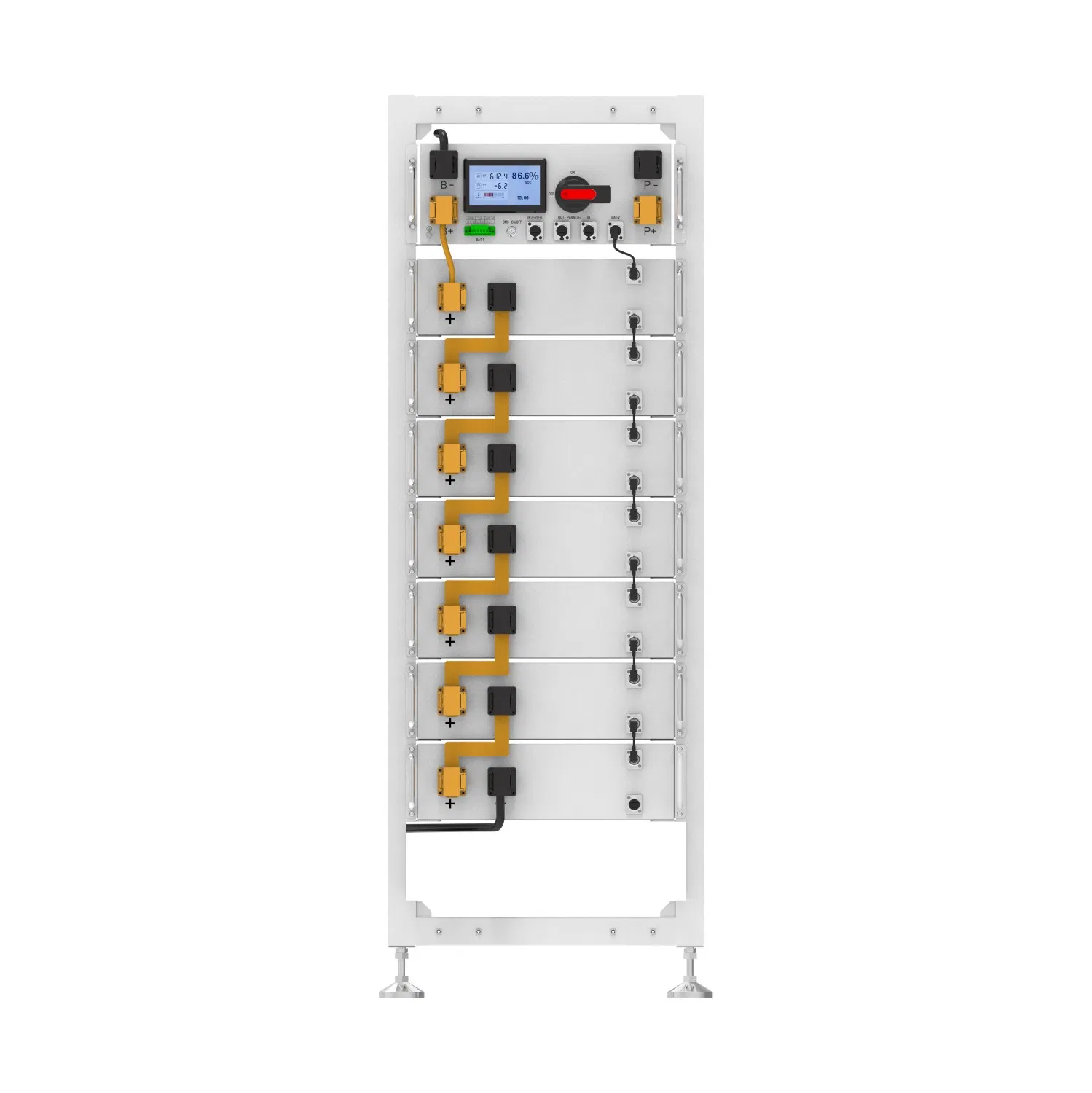

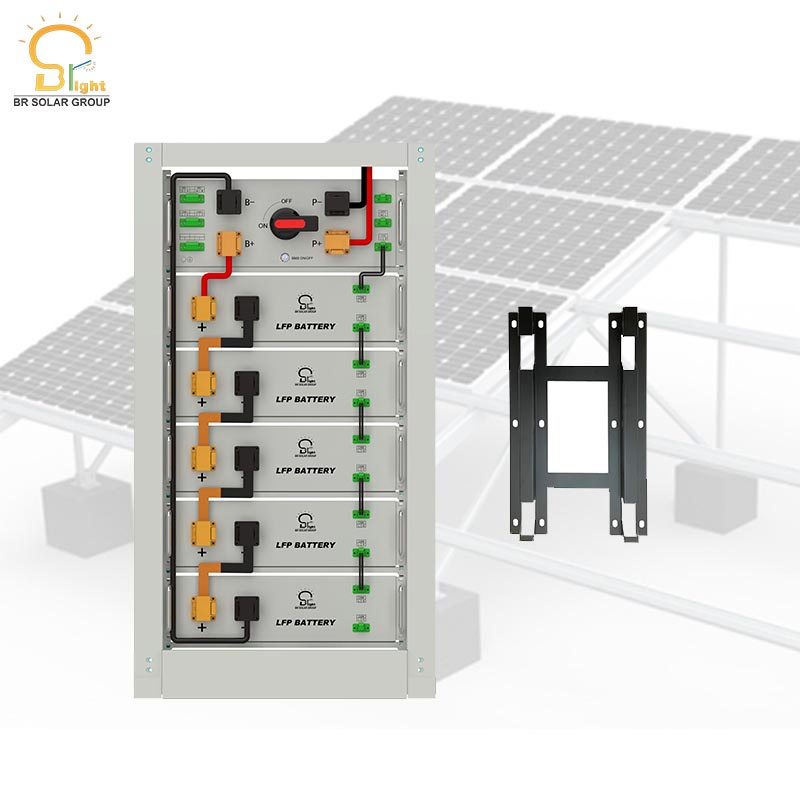

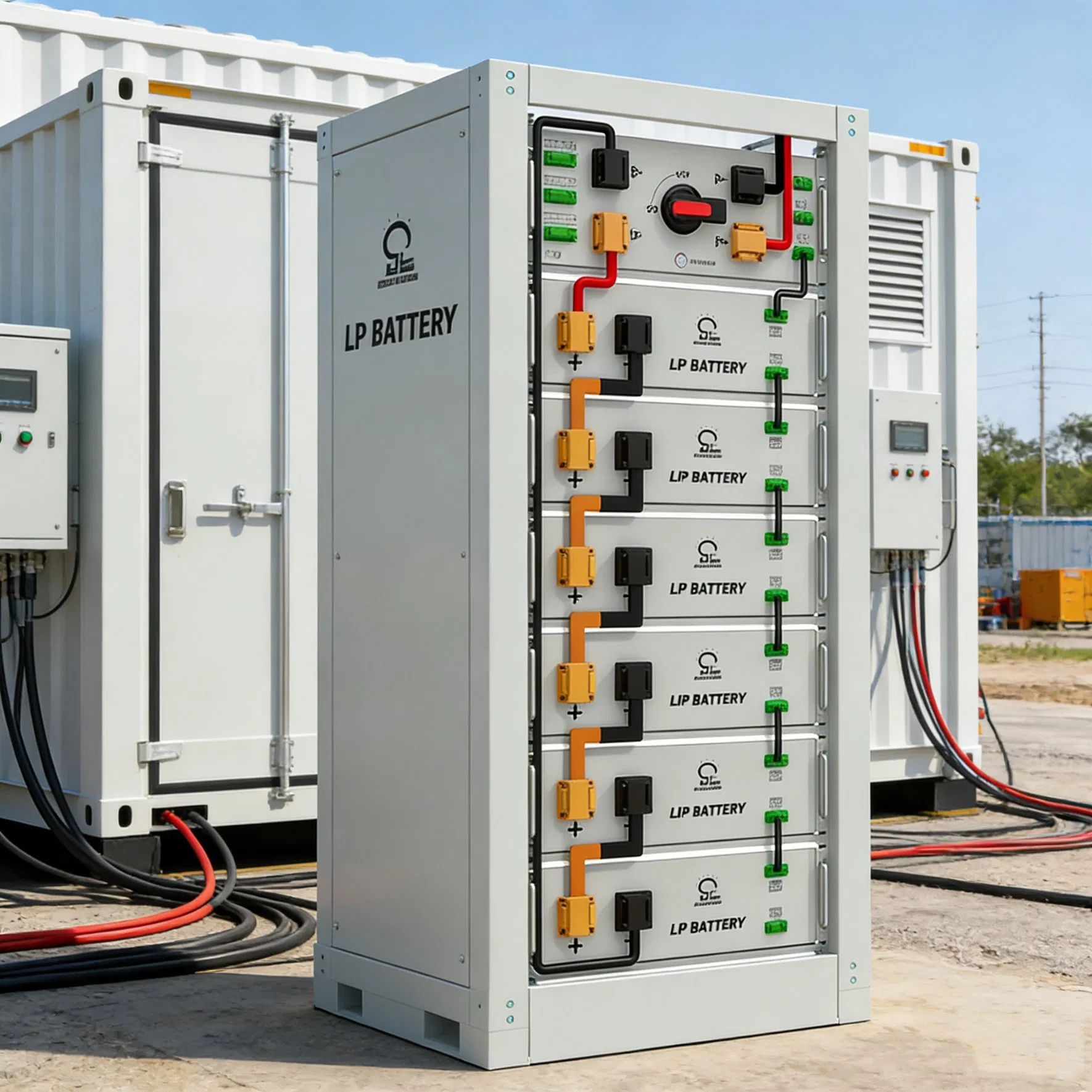

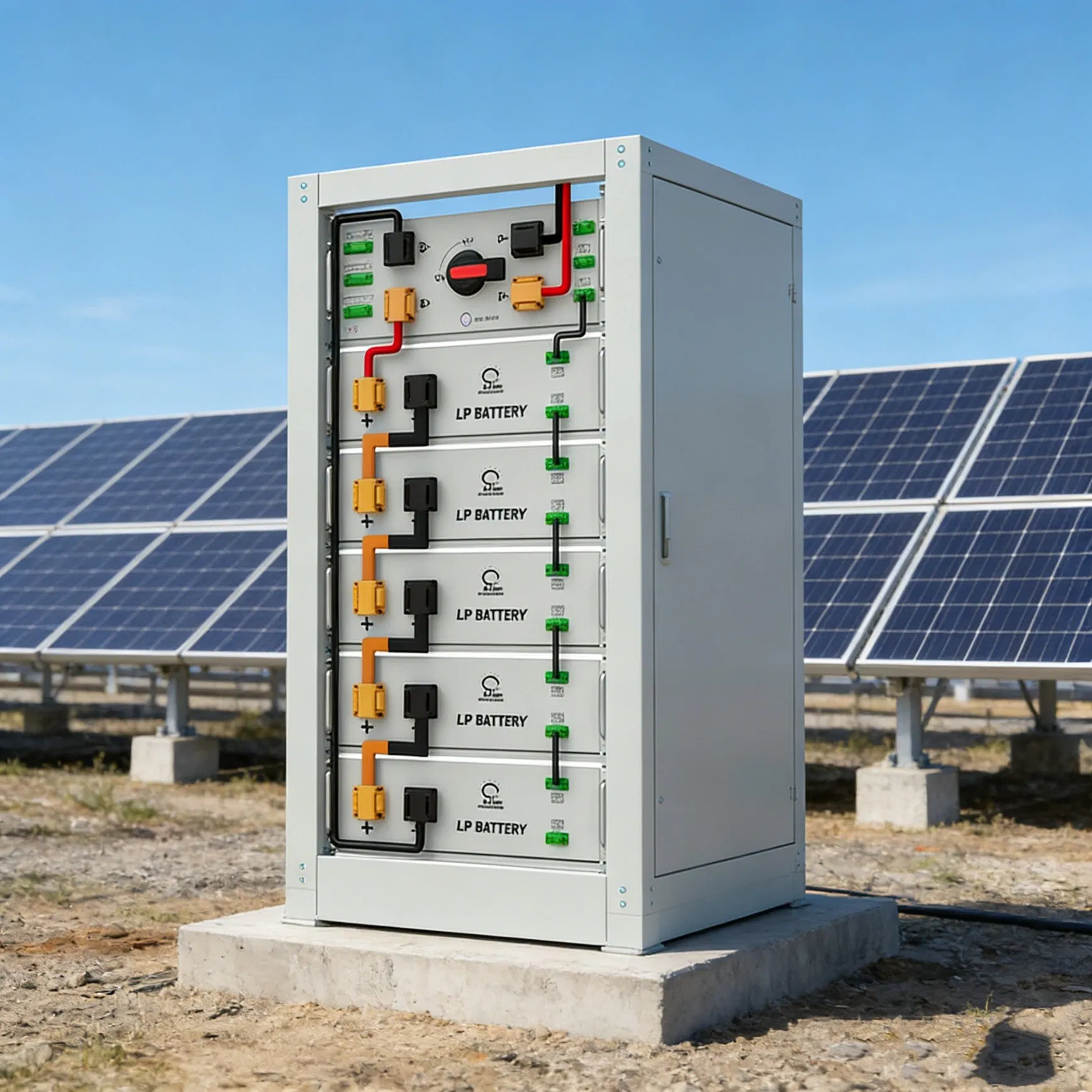

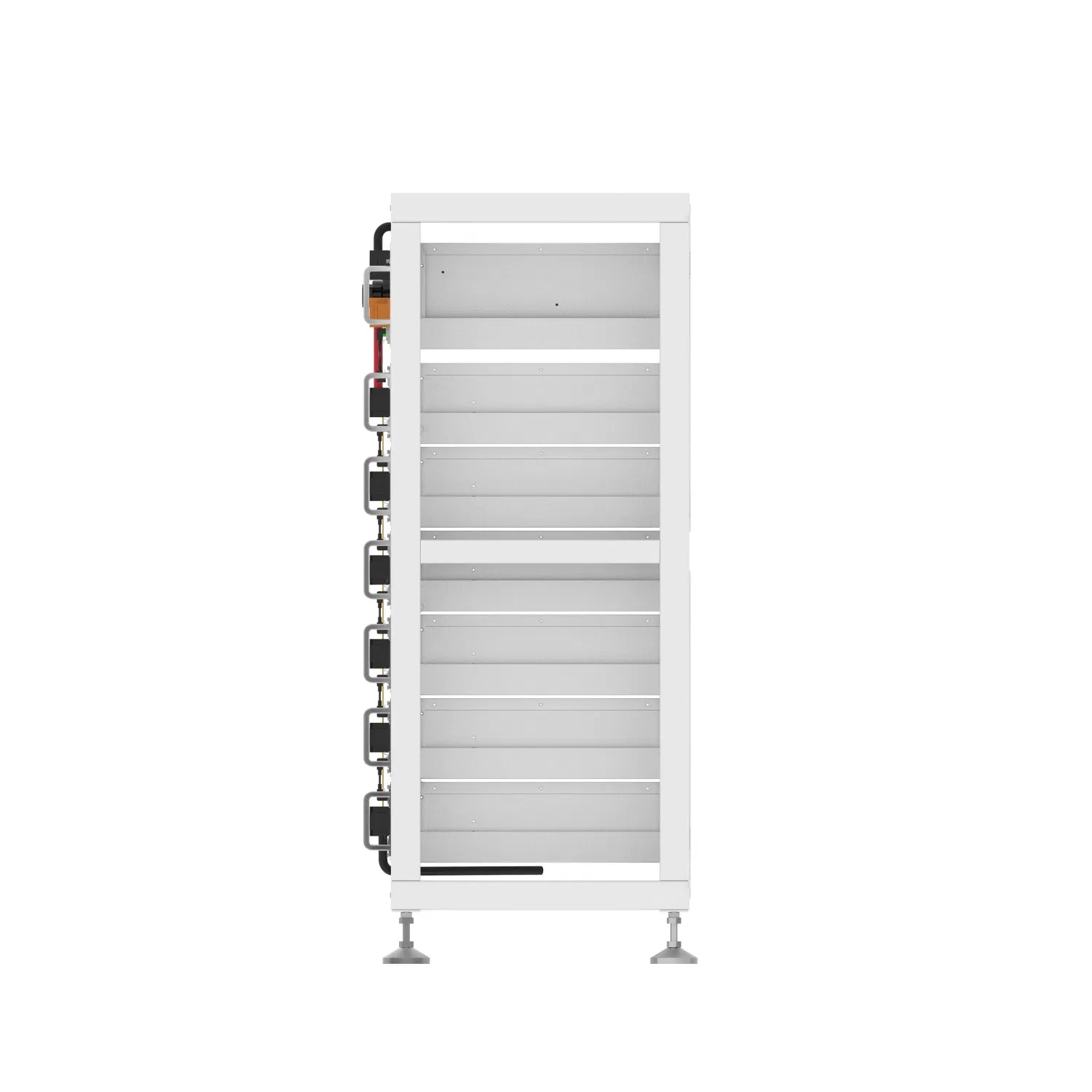

High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
1 / 5
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery
High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery

High Voltage 20kwh-120kwh with LiFePO4 Rack Solar Lithium Ion LiFePO4 System Hv Batterie Pack 153.6V-614.4V Solar Storage Battery

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

Basic Specifications

Rechargeable
Yes
Size
Medium
Grid Connection
Off Grid, Hybrid Grid
System Type
Stackable, Rack-Mounted
Voltage
240V
Cycle Life
>6000 Cycles
Capacity
106ah
Specification
BR-LFP-51.2/100
Origin
China
Production Capacity
10000 pieces/Year

Packaging & Delivery

Package Size
80.00cm * 50.00cm * 30.00cm
Gross Weight
9.100kg

Product Description

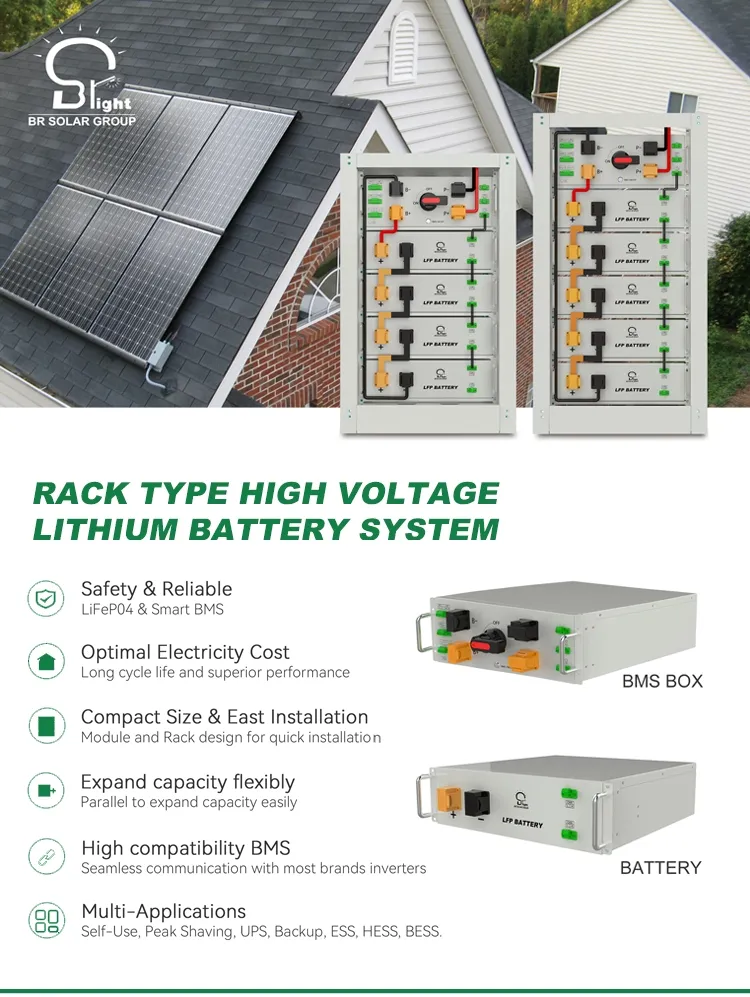

High Voltage System Overview
MODEL BRLF-HV15K15SN BRLF-HV20K15SN BRLF-HV25K15SN BRLF-HV30K15SN BRLF-HV35K15SN BRLF-HV40K15SN
Model No 144V106AH 192V 106AH 240V106AH 288V106AH 336V106AH 384V106AH
Nominal Voltage 144V 192V 240V 288V 336V 384V
Nominal Capacity 106AH
Module Dim. (mm) 440*442*133*3 440*442*133*4 440*442*133*5 440*442*133*6 440*442*133*7 440*442*133*8
Rack Dim. (mm) 600*550*608 600*550*760 600*550*912 600*550*1064 600*550*1216 600*550*1368
Weight (kg) 165KG 210KG 258KG 305KG 352KG 406KG
Capacity (KWH) 15.26KWH 20.35KWH 25.44KWH 30.52KWH 35.61KWh 40.7KWH
Discharge Cut-off (V) 126 168 210 252 294 336
Charge Cut-off (V) 160 213 266 320 373 426
Comm. Interface RS485 / RS232 / CAN
Working Temp. -10ºC~50ºC (Charge) / -15ºC~50ºC (Discharge)
Design Life 15 Years+
Cycle Life >6000 times (0.5C/0.5C-80% DOD)
Certifications CE / IEC / UL / UN38.3 / MSDS / ROHS
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Product Detail 5
Product Detail 6
Product Detail 7
Product Detail 8
Product Detail 9

Frequently Asked Questions

What is the expected cycle life of this battery system?
The system offers a long cycle life of over 6000 cycles at 0.5C charge/discharge rates and 80% Depth of Discharge (DOD).
Can this system be used for both off-grid and hybrid applications?
Yes, the system is designed to support both Off-Grid and Hybrid Grid connections, providing flexibility for various solar storage needs.
What communication protocols are supported?
The battery system supports multiple communication interfaces, including RS485, RS232, and CAN protocols for seamless integration with inverters.
Is the system expandable for larger energy requirements?
Yes, the system features a series function that supports connecting up to 16 units in series to scale up the voltage and capacity.
What are the operating temperature limits?
The system operates efficiently between -10ºC to 50ºC during charging and -15ºC to 50ºC during discharging.
What safety certifications does this product hold?
The product is fully certified with CE, IEC, UL, UN38.3, MSDS, and ROHS standards, ensuring high safety and quality.
