Basic Information
DC Voltage Range
1165~1498VDC
Rated Charge/Discharge
0.5c
Operating Temperature
-25℃~55℃
Cooling System
Liquid Cooling

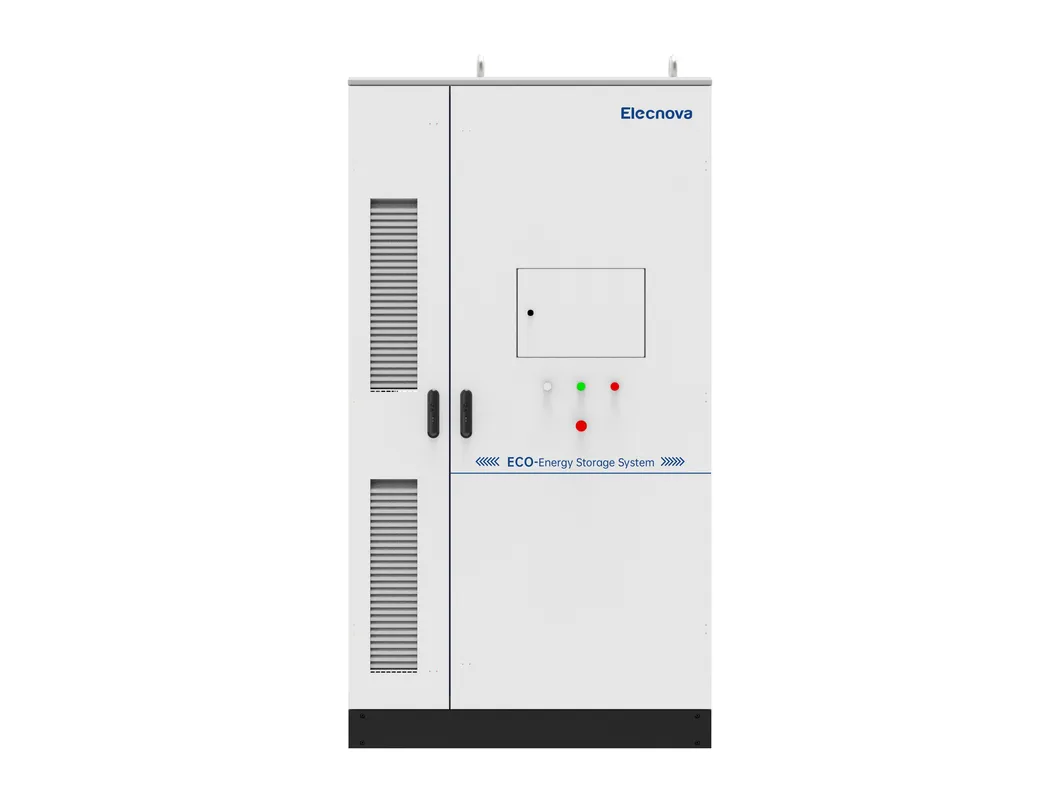

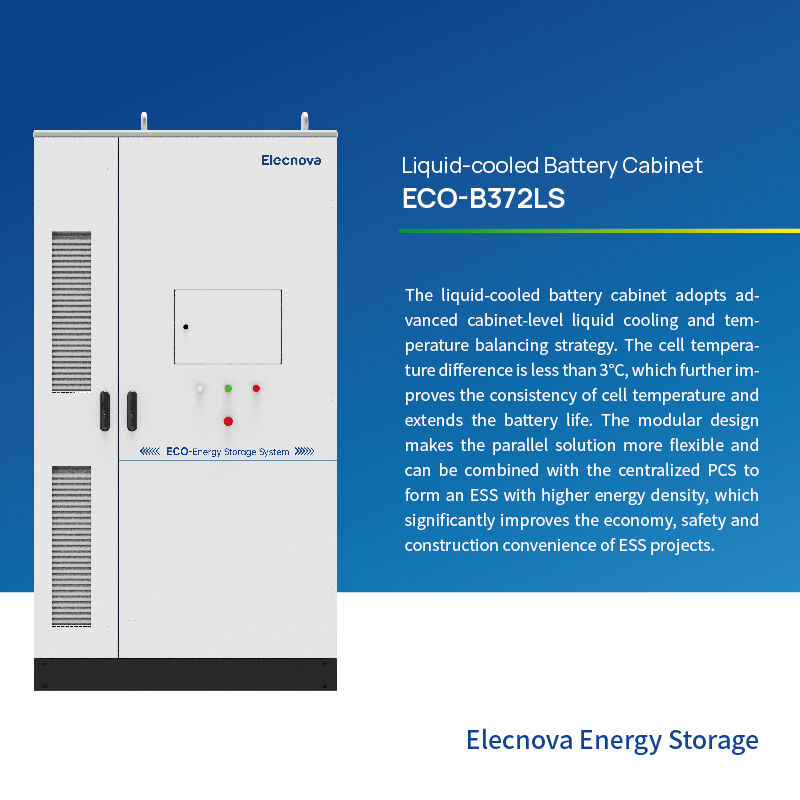

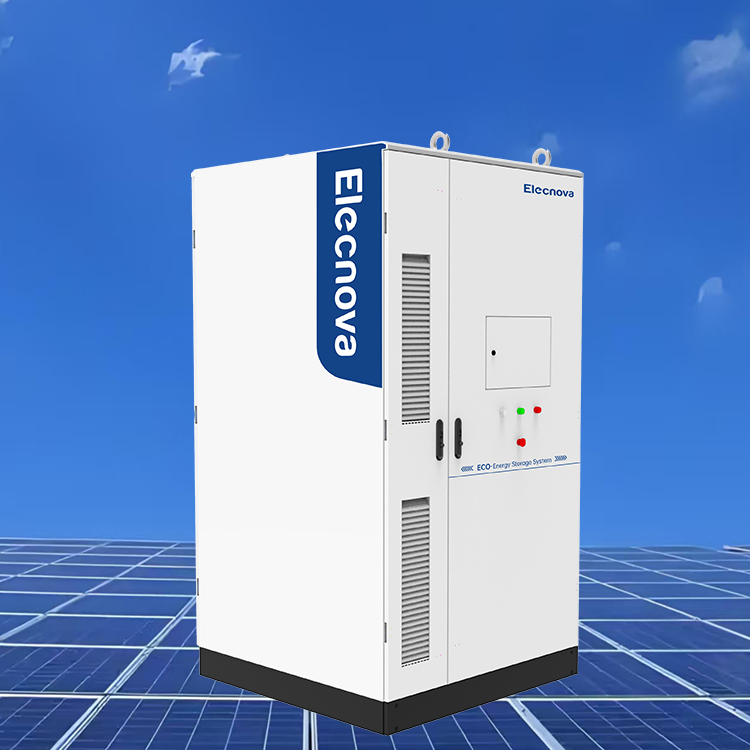

Product Introduction

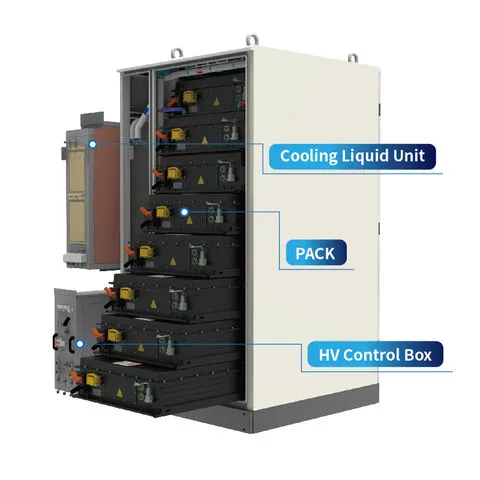

The liquid-cooled battery cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with the centralized PCS to form an ESS with higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Product Advantages
High voltage access and high power density
Ultra-long life and ultra-low loss
Multi-energy complementation high voltage platform
High protection level (IP65/IP55)
Ultimate Safety with Aerosol Fire Suppression
Flexible Expansion and High Integration
Technical Specifications
| Item |
Specification |
| Cell type | LFP280Ah |
| DoD | 95%(25±2ºC) |
| Configuration | 1P416S |
| Rated Energy | 372kWh |
| Rated Voltage | 1331.2Vdc |
| Cycle Life | ≥8000 times |
| Cooling | Liquid cooling |
| Dimensions (W*D*H) | 1,300*1,300*2,400 (mm) |
| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A |

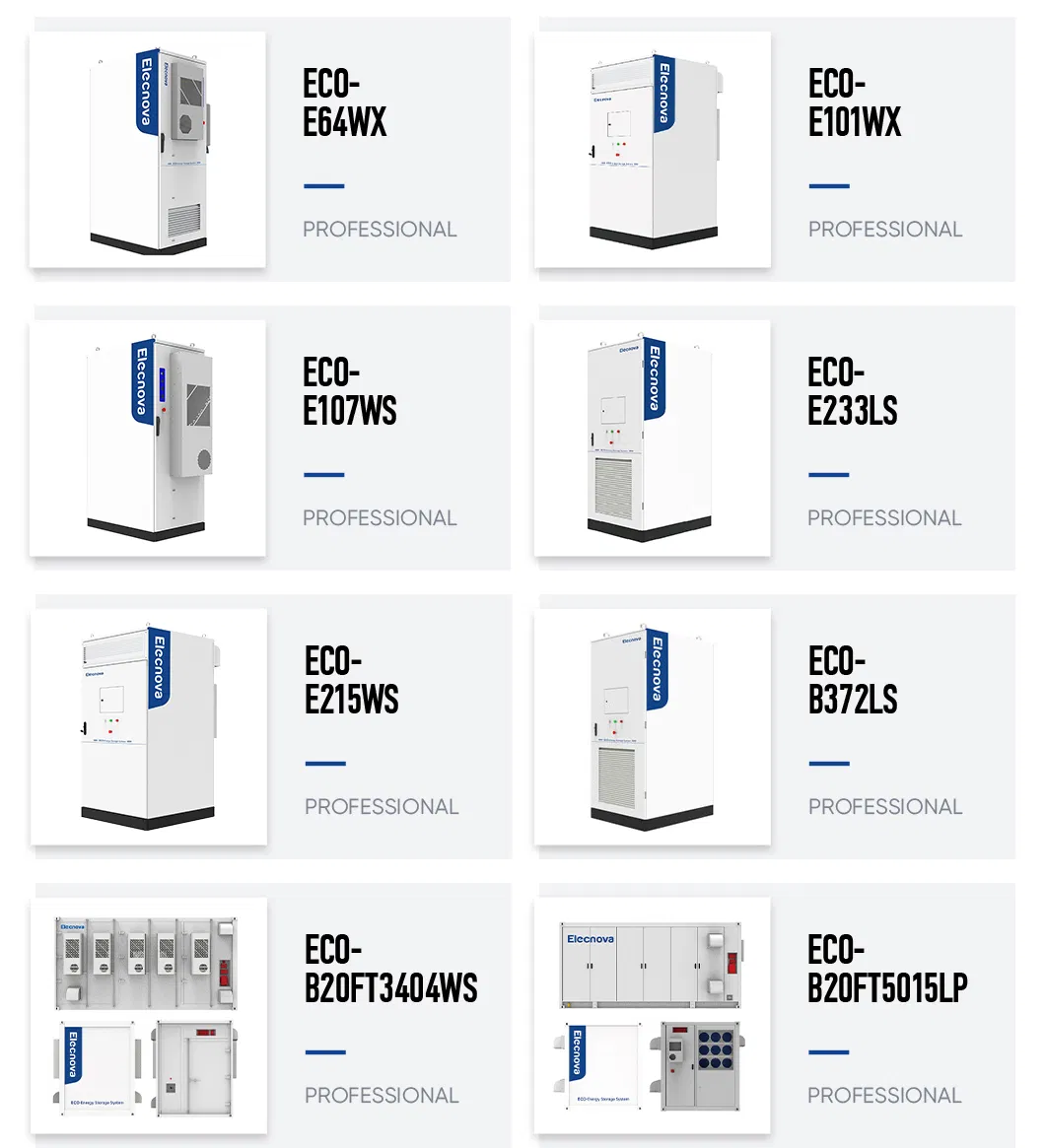

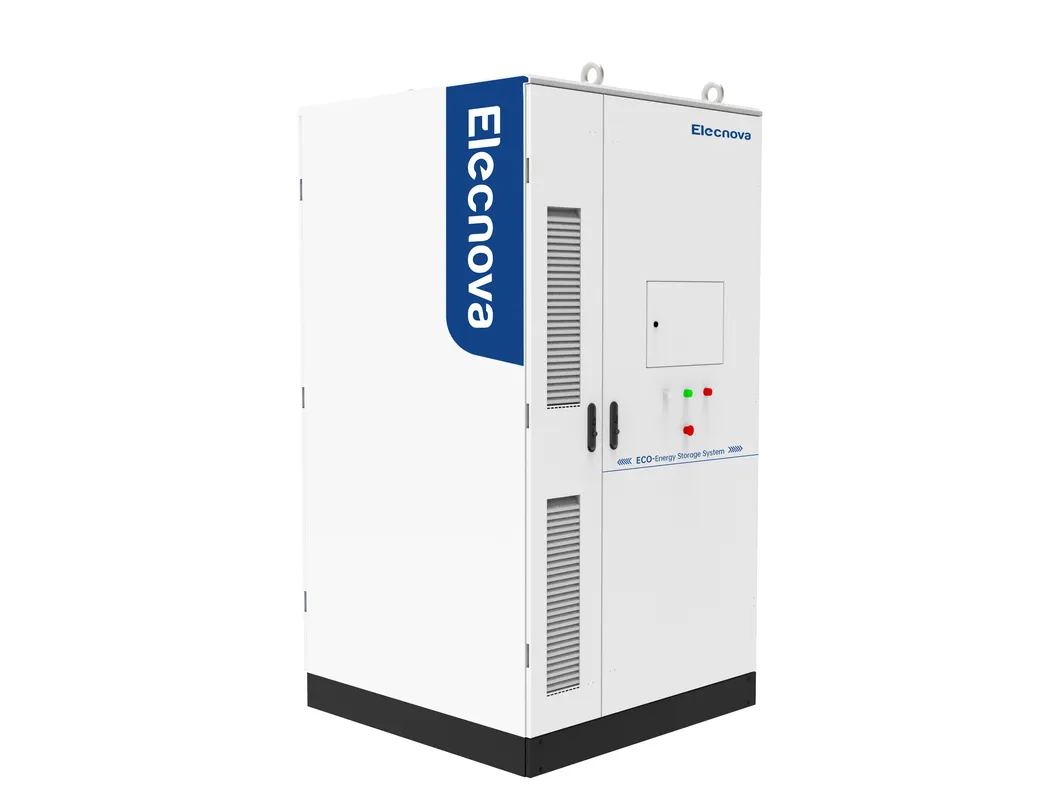

Main Product Showcase

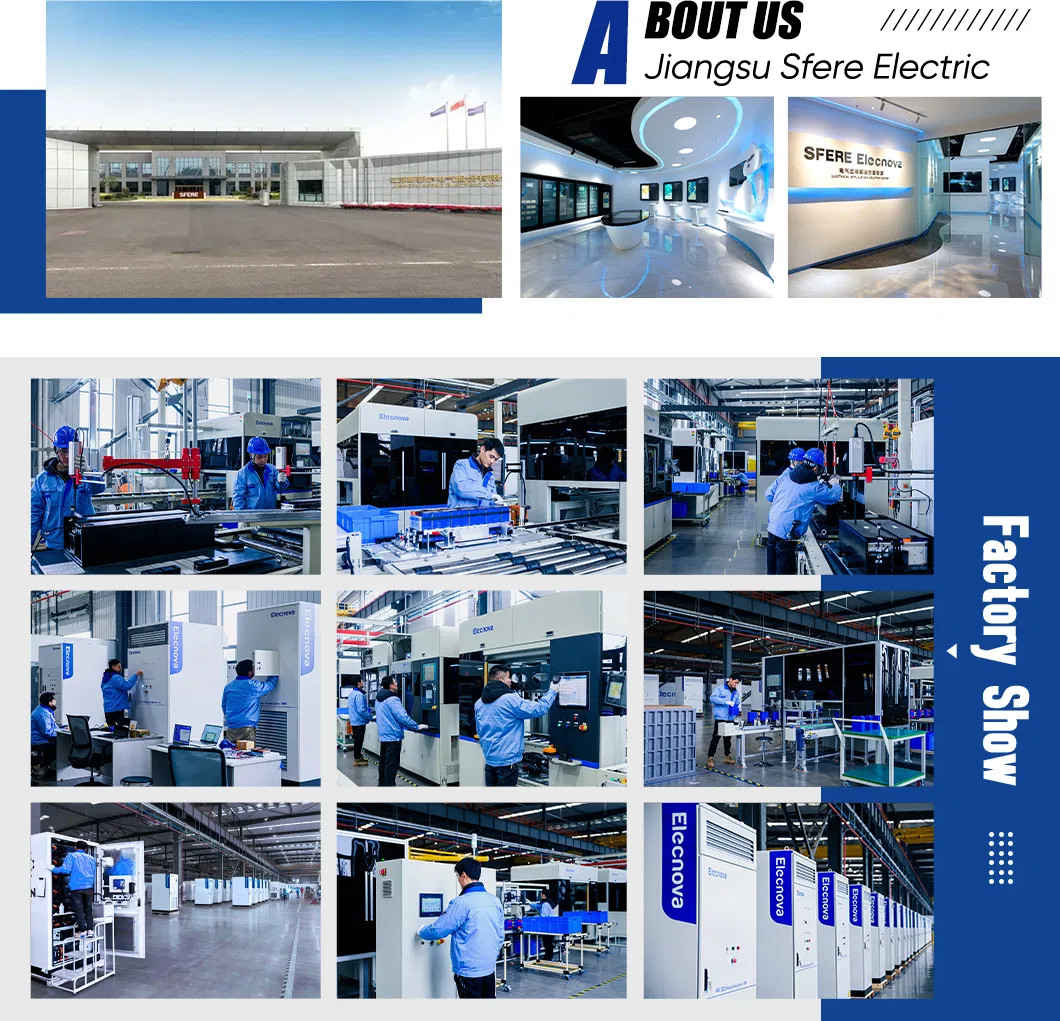

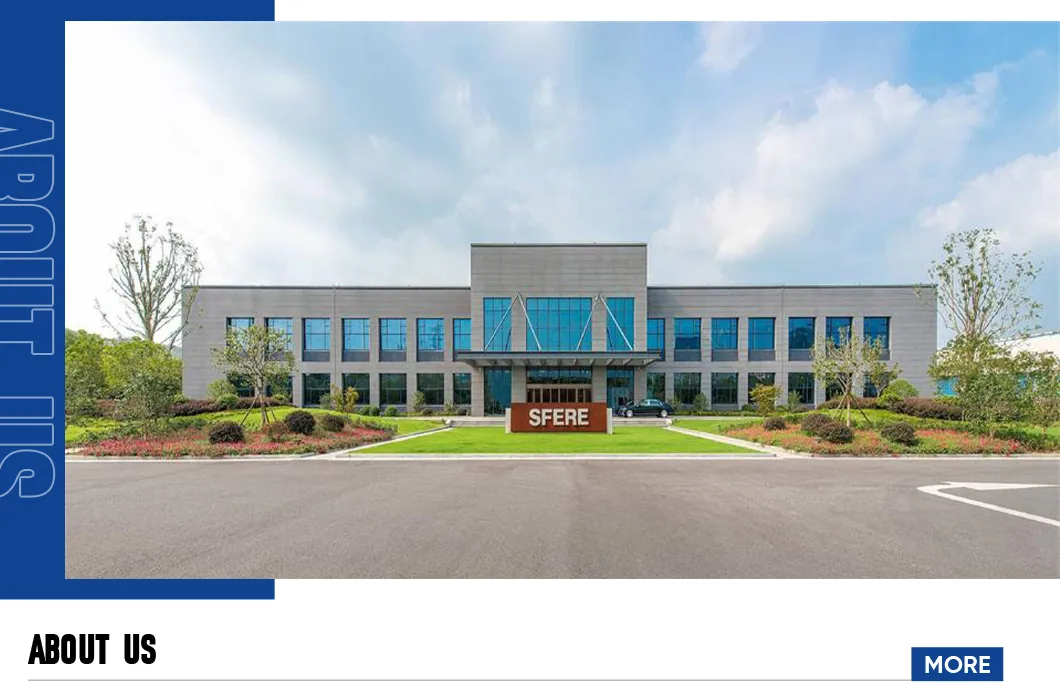

Company Profile
The manufacturer integrates R&D, manufacturing, sales and service, maintaining a complete product ecosystem from smart terminal components to Internet of Things platforms. The electrical application solutions empower users with intelligent digital energy management, providing reliable data services for energy saving, safety, and refined management.
With over a decade of experience, the company has secured numerous patents and software copyrights. The core focus remains on system integration of PACK, PCS, and BME to meet diversified energy requirements across power generation, grid, and user-side scenarios.

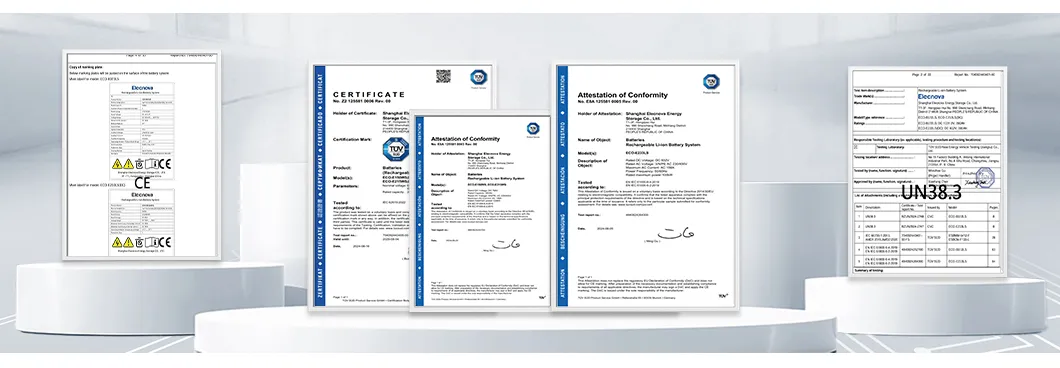

Certificates & Quality Assurance
Global Exhibition
Packaging & Shipping
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized manufacturer with multiple R&D centers and a CNAS certified laboratory, supported by over 600 employees.
Can you provide OEM & ODM services?
Yes, we welcome long-term strategic partners for both OEM and ODM projects to meet specific market requirements.
How are the battery products shipped internationally?
Our products hold UN38.3 certification, ensuring they meet safety standards for international sea and air shipment.
What is the standard warranty period?
We offer flexible warranty options of 3, 5, or 10 years depending on the project requirements and conditions.
How is after-sales support managed?
We maintain a global network of affiliates and business partners to provide on-site maintenance and technical support worldwide.
Is it possible to request a sample?
Yes, please provide your requirements and our management team will coordinate the sample process with you.
