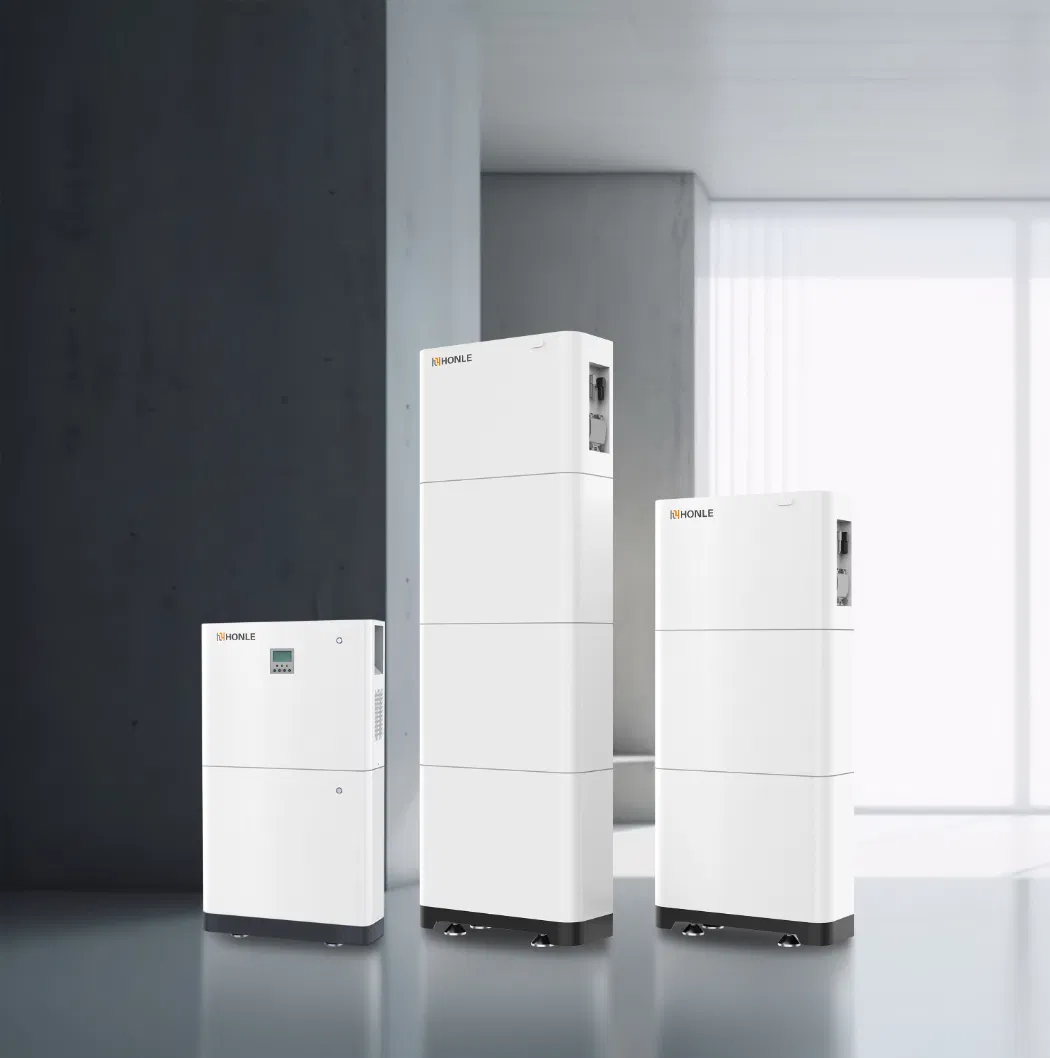

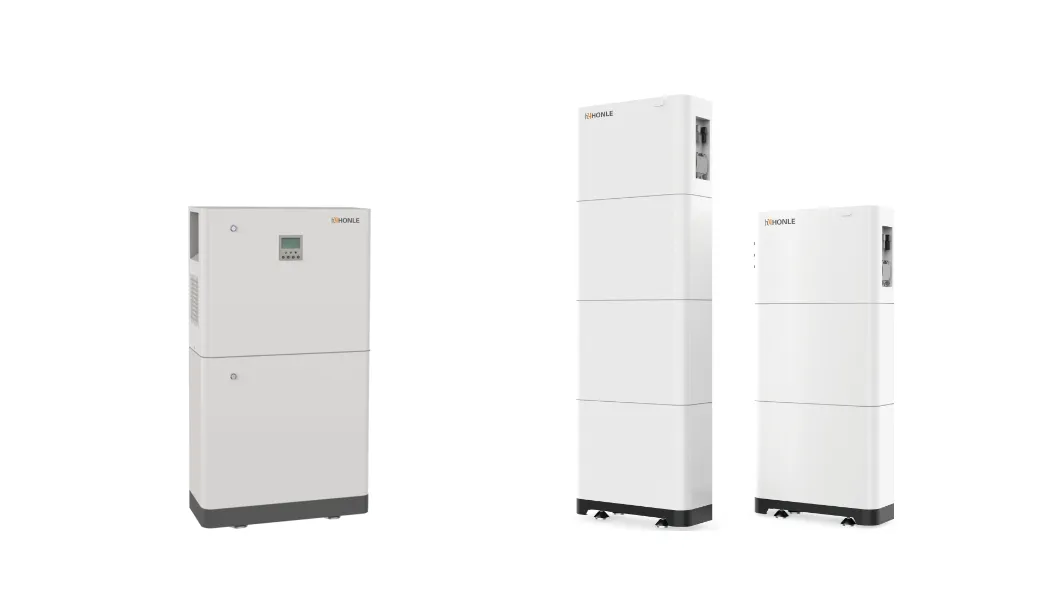

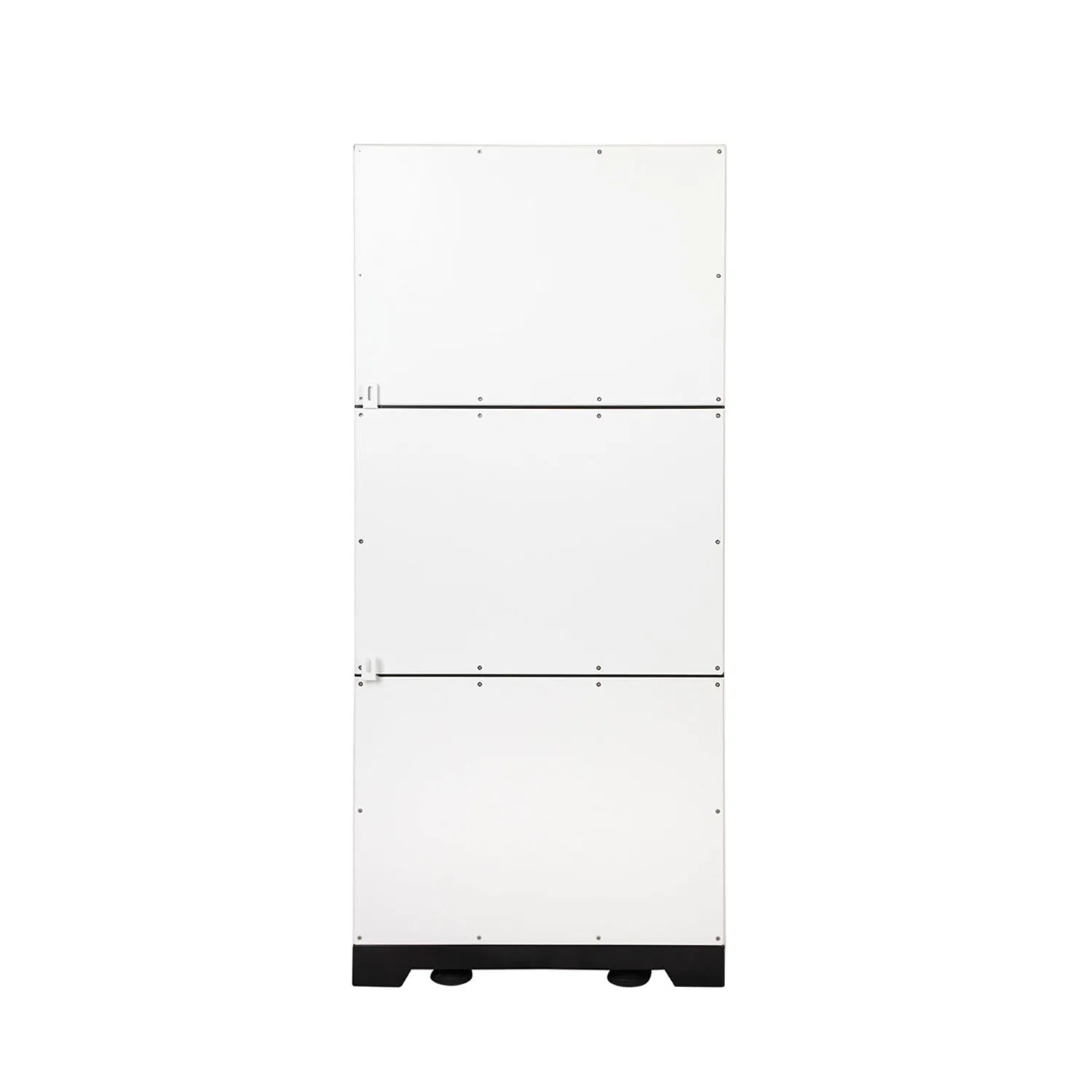

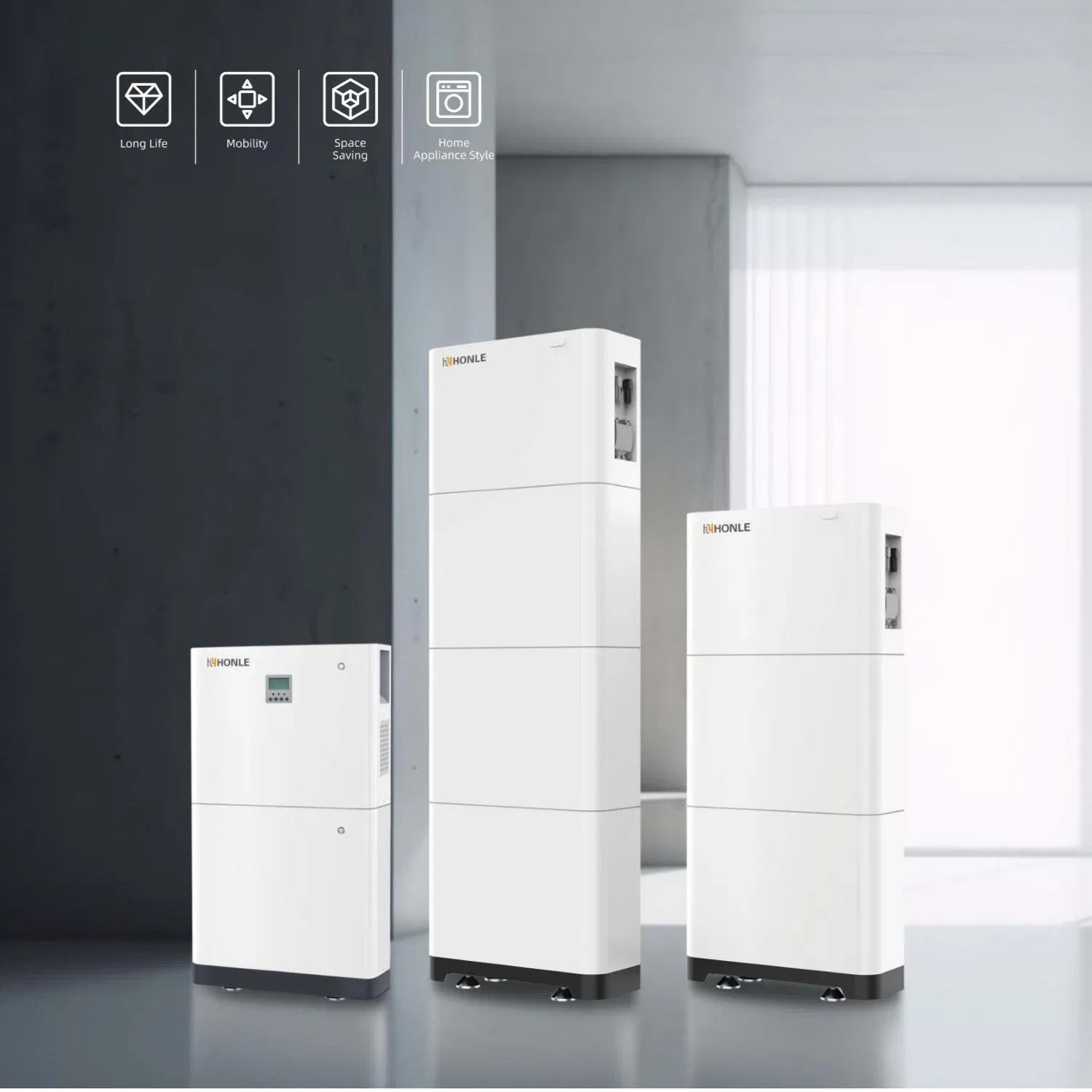

Stacked Energy Storage High Voltage (Residential)
Designed with an integrated household appliance aesthetic, stacked energy storage systems feature a sleek size and easy installation. The modular stack design allows for flexible matching of energy storage units and on-demand expansion. With an integrated inverter, these systems offer excellent portability and mobility for homeowners.
| Model | HVHL-P10.2 | HVHL-P15.3 | HVHL-P20.4 |
|---|---|---|---|
| Module Number | 2 | 3 | 4 |
| Rated Capacity | 10.24kwh | 15.36kwh | 20.48kwh |
| Rated Voltage | 204.8V | 307.2V | 409.6V |
| Voltage Range | 160-233.6V | 240-350.4V | 320-467.2V |
| Size (mm) | 530*190*1186 | 530*190*1569 | 530*190*1952 |
| Weight | 106kg | 150kg | 195kg |
| Protection | IP54 | ||
| Working Temp | Charge: -20°C-55°C / Discharge: 0°C-55°C | ||
The group is a globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in the electric and new energy industry, we have established a strong international presence across multiple regions including the Middle East, CIS, and Africa.
Our state-of-the-art production facility boasts an annual capacity of 30,000 square meters. Our solutions find wide applications in traditional household energy storage, power walls, and commercial energy storage systems.
Production Line
Equipped with the latest technology and machinery, our production line integrates high-level testing devices. Our skilled team ensures that every product meets strict international quality standards.

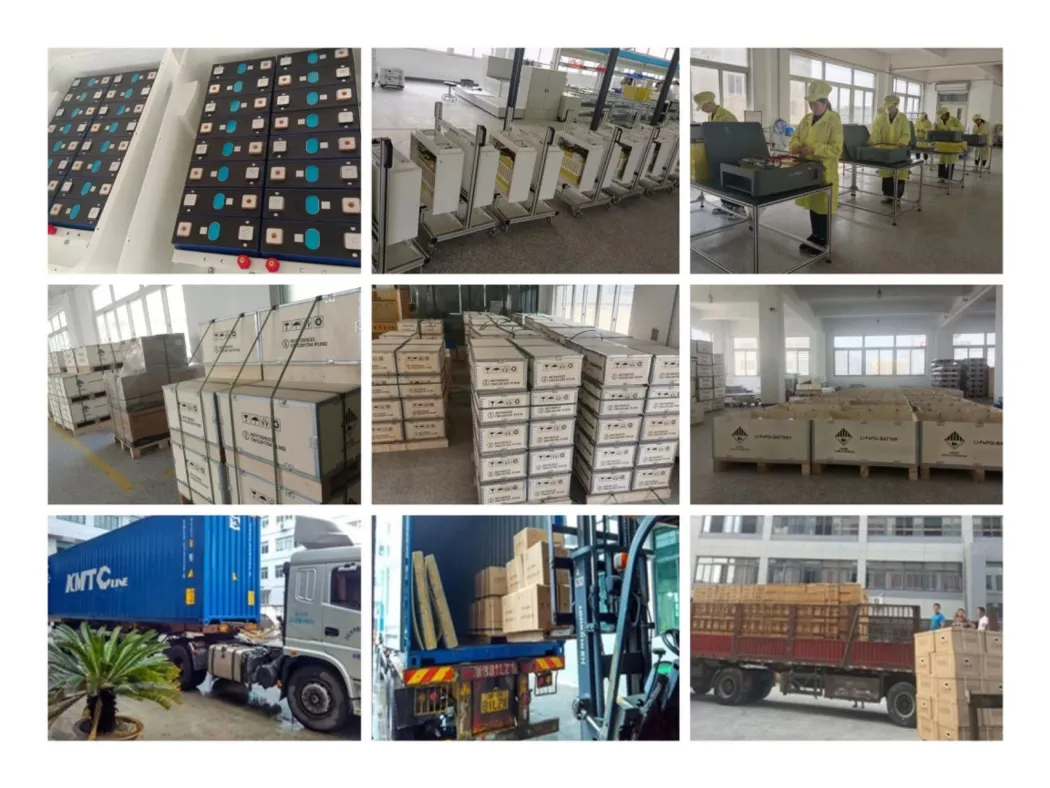

Standard Packing List:
