| Cycle Life | 6000 Cycles |
| Application | High Voltage Rack Mount LiFePO4 Battery Pack |
| Rated Capacity | 314ah |
| Protection Degree | IP20 |
| Rated Voltage | 51.2V |
| Rated Charge/Discharge | 0.5c |
| Dimension (W/D/H) | 376*885*238.5 (±5) mm |
| Quick Customization | Yes |
| Modular Plug Design | Yes |
| Specification | 241kwh |

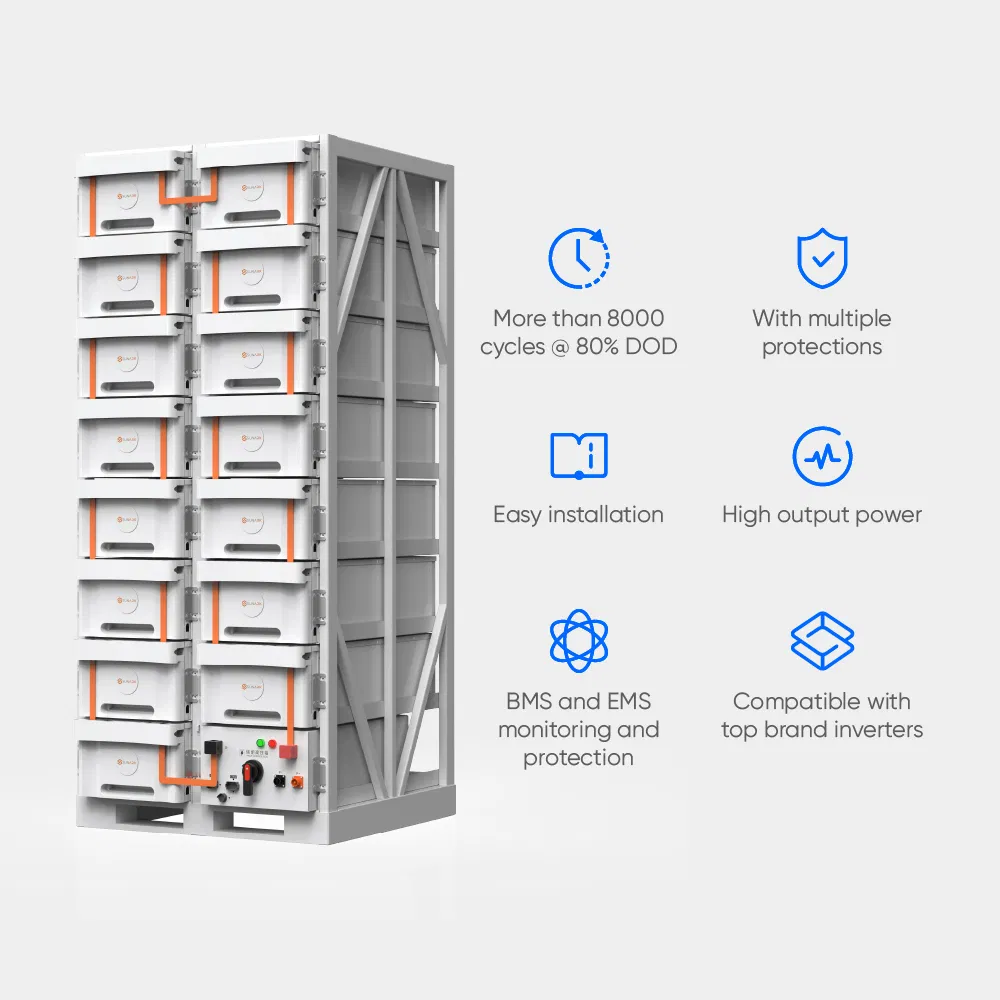

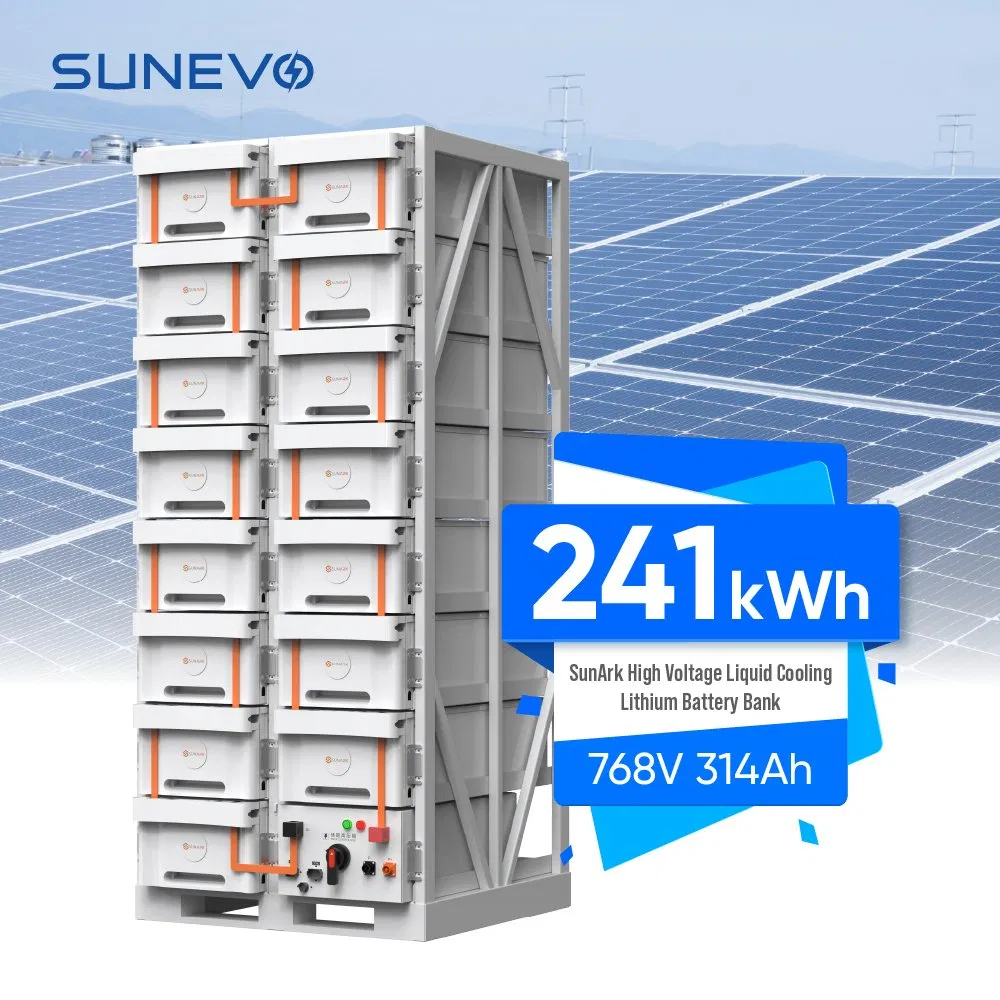

768V 314AH 241KWH High Voltage Lithium Ion LiFePO4 Battery Cabinet
This system is designed for commercial energy storage, offering high efficiency and modular scalability.
Quick installation, rack mounted cabinet designed module is comfortable for installation and maintenance.
Cathode material made from LiFePO4 with long cycle life. Low self-discharge, no memory effect, and excellent shallow discharge performance.
Features protection for over-discharge, over-charge, over-current, and temperature extremes. Automatically balances cell current and voltage.
| Module | HV 51.2V 314AH (0.5C) |
| Capacity (kWh) | 16.0768 |
| Nominal Voltage | 51.2V |
| Voltage Range | 44.8~56.8V |
| Depth of Discharge | 90% |
| Design Life | 15+ years (25°C) |
| Communication | CANBUS / Modbus RTU / TCP/IP |
| Weight | 110kg ± 3kg |
Realize remote monitoring and control, allowing users to grasp equipment status anytime. Optimize charging strategies and extend battery life for industrial power needs.

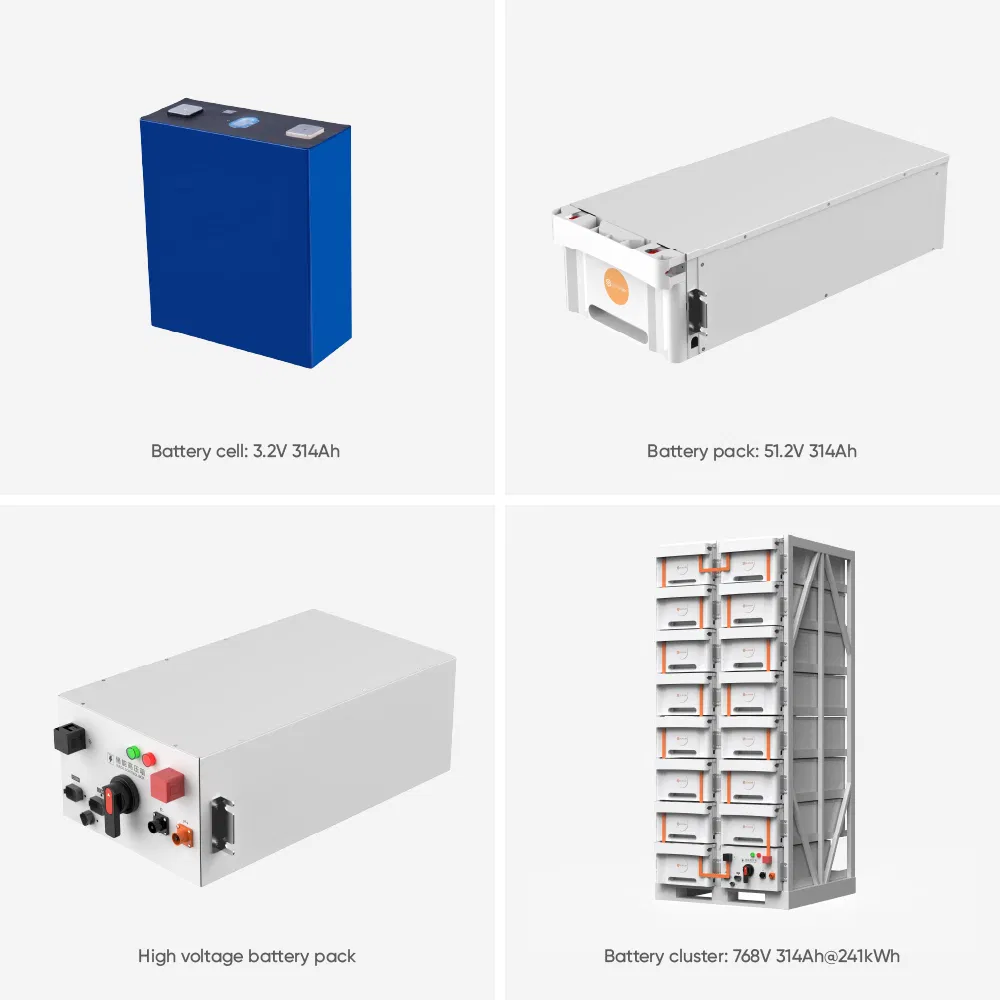

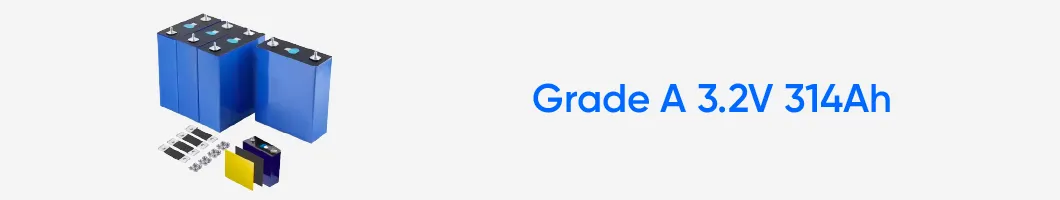

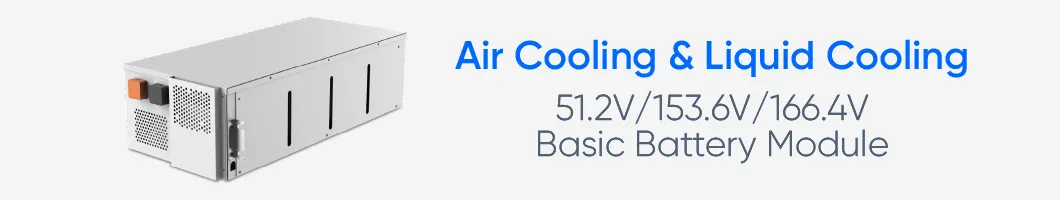

The 3.2V 314Ah lithium battery offers stable voltage and minimal fluctuation. By connecting cells in series, we achieve basic modules (51.2V, 153.6V, etc.) to meet diverse project requirements.
Our products are backed by MSDS, UN38.3, CE, UL, IEC62619, and ISO certifications.
| Item Quantity | 1-10 PCS | 10-50 PCS | 50-100 PCS | 100+ PCS |
|---|---|---|---|---|
| Standard Lead Time | 20-25 days | 25-35 days | 35-50 days | 50+ days |

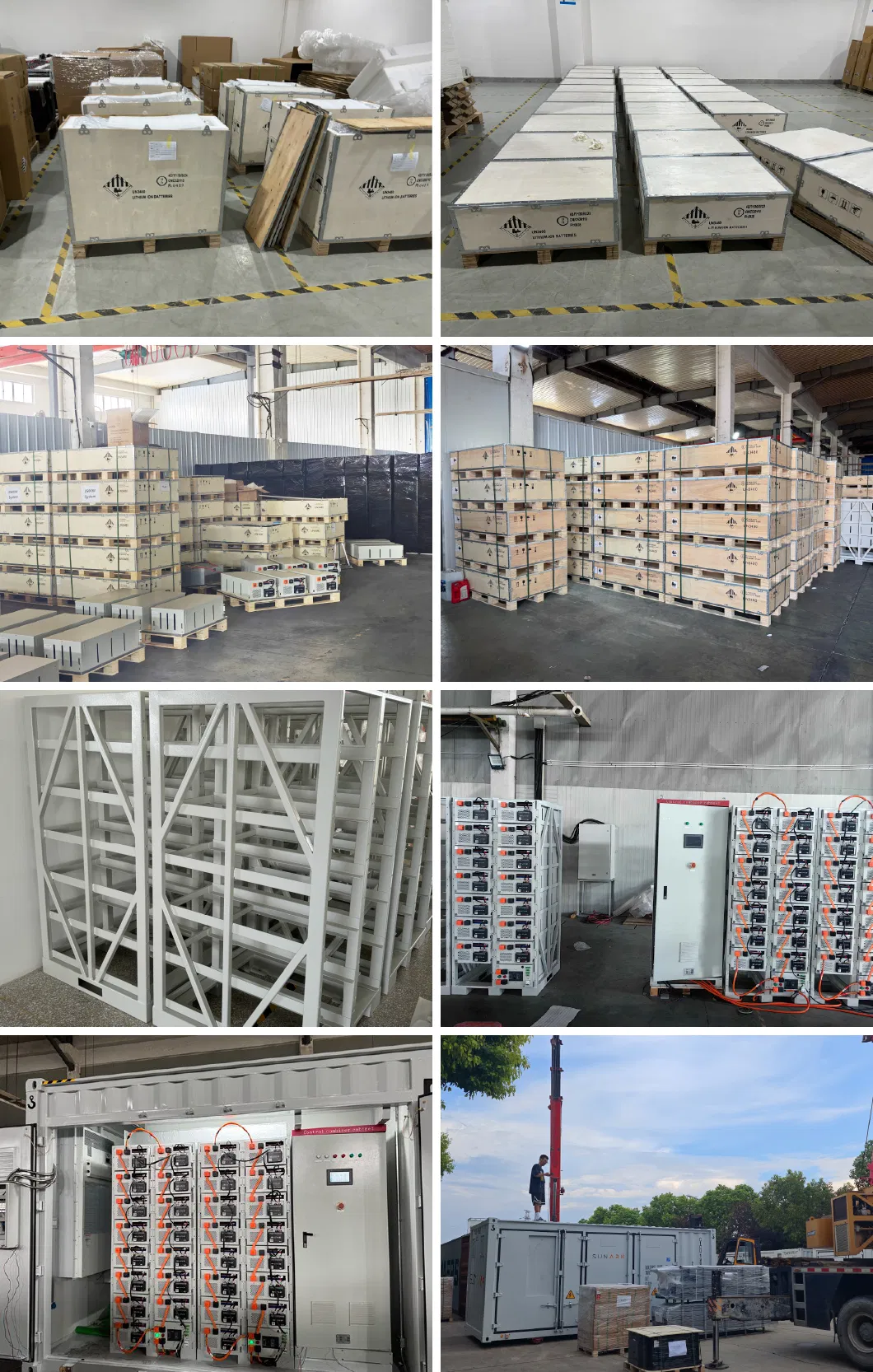

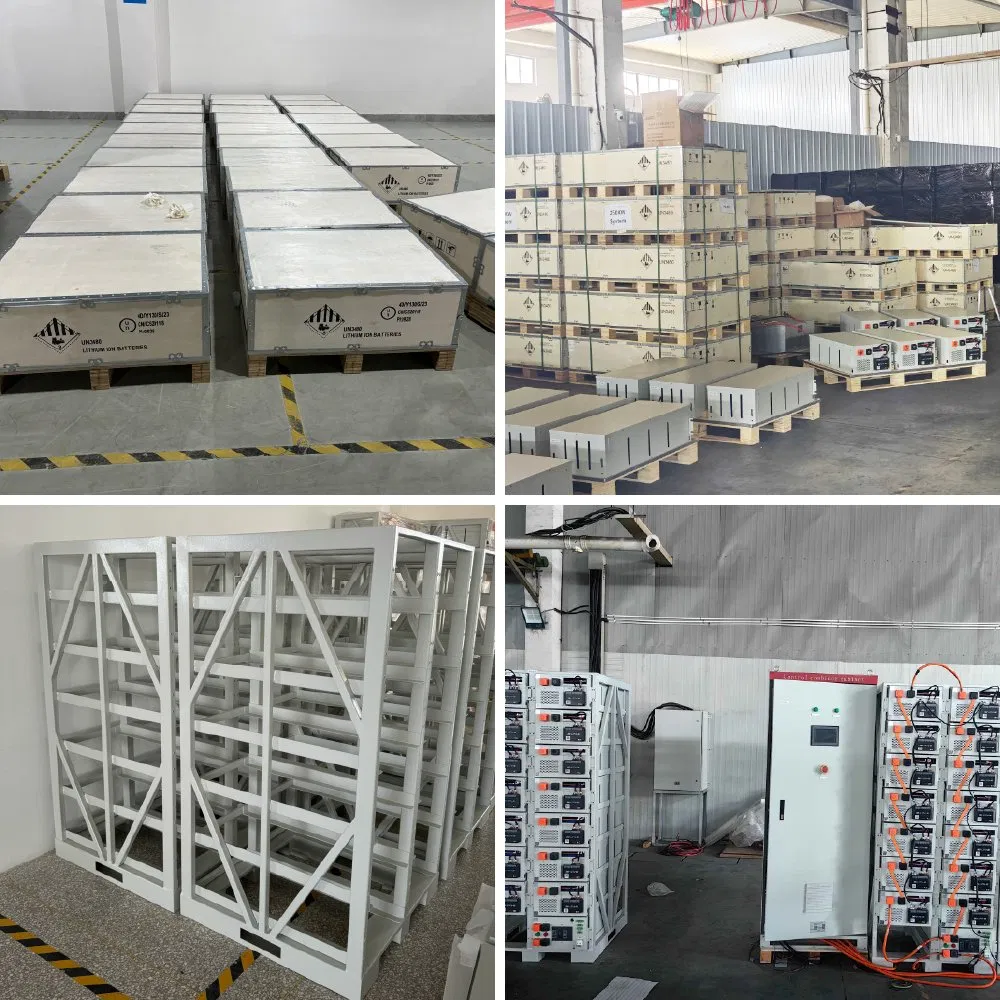

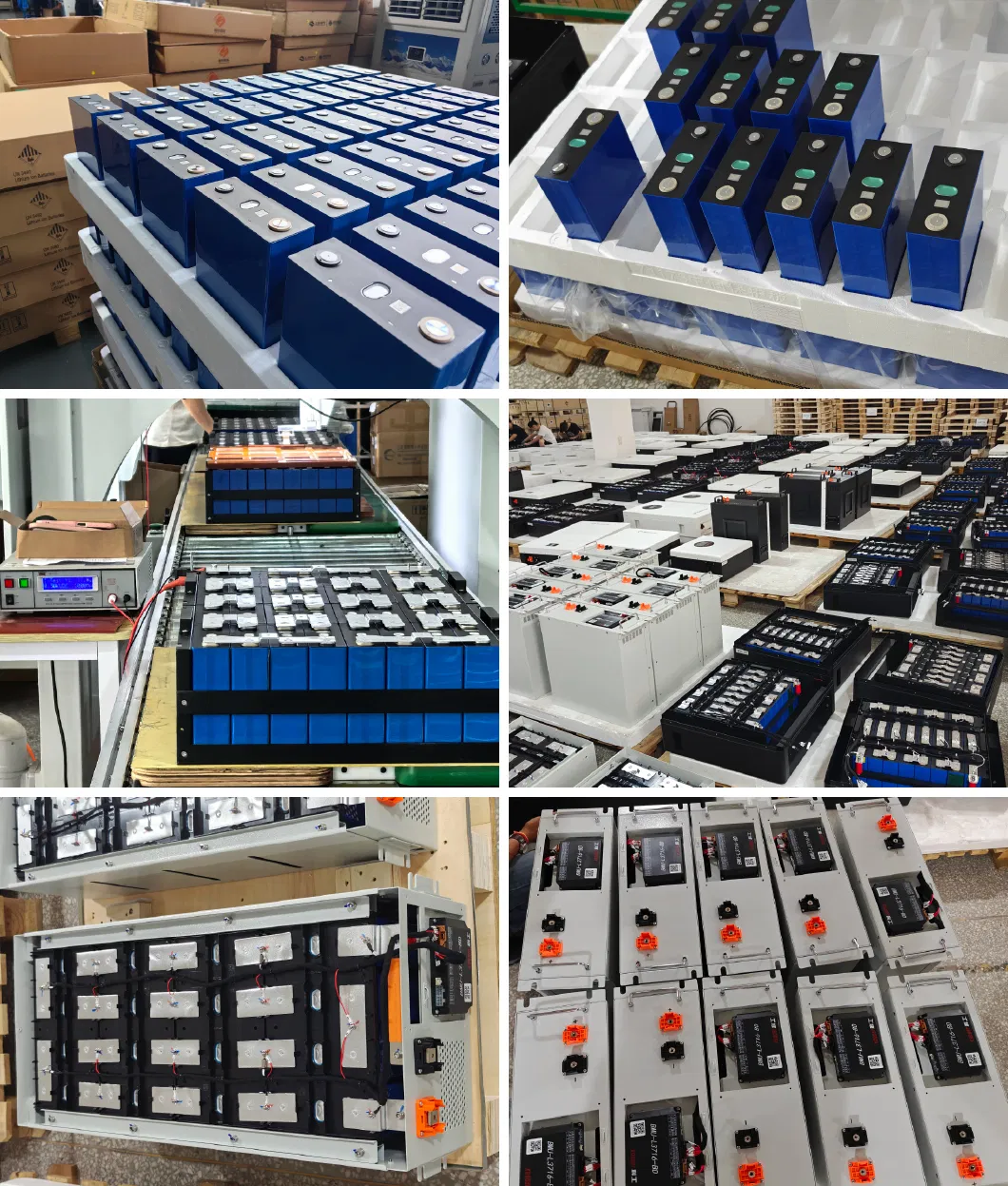

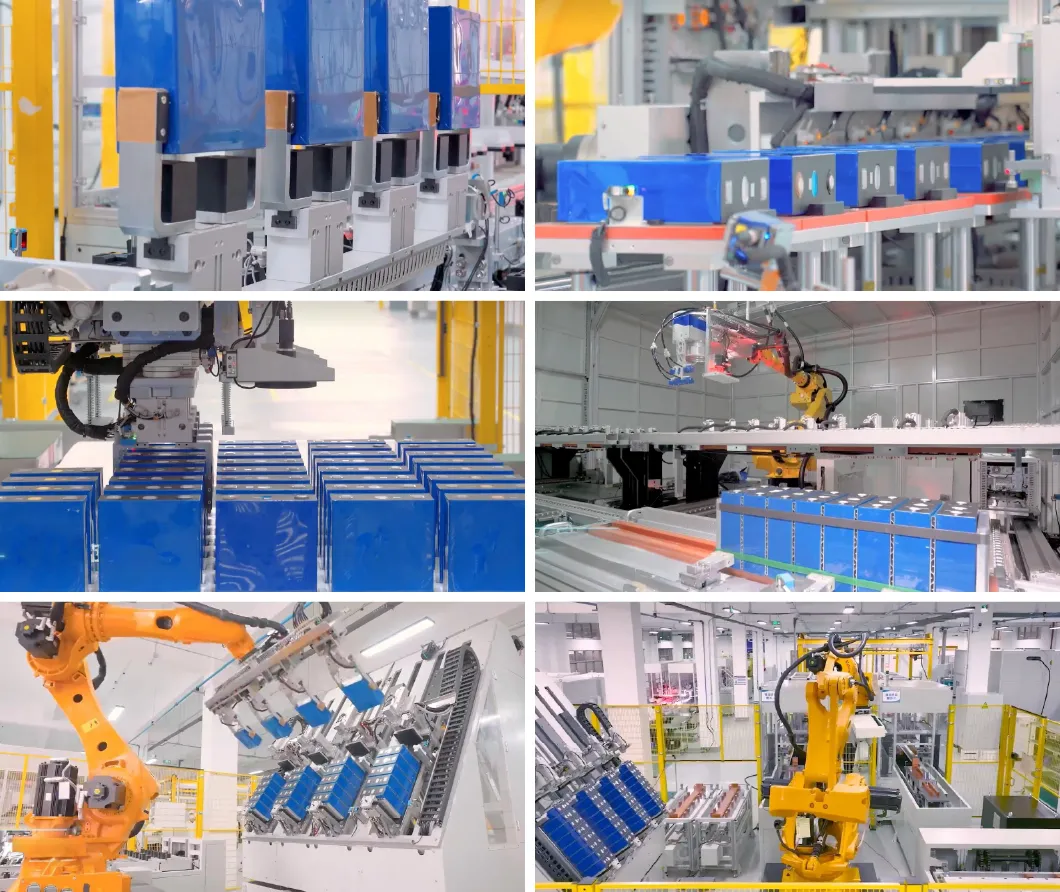

Our factory features automated production lines operating 24 hours a day, specializing in high-voltage lithium batteries and commercial energy storage systems ranging from 100KW to 10MWh.
A: We are an original battery and solar module factory with professional production facilities.
A: Yes, we welcome LOGO customization, stickers, and OEM/ODM orders.
A: Yes, you can connect these batteries in parallel to expand capacity as needed.
A: We provide a 10-year warranty. We offer repair or replacement services during this period for any quality-related issues.
A: All our battery cells are Grade A, 100% new, and feature real capacity as specified.
A: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3, and other necessary international certifications.
