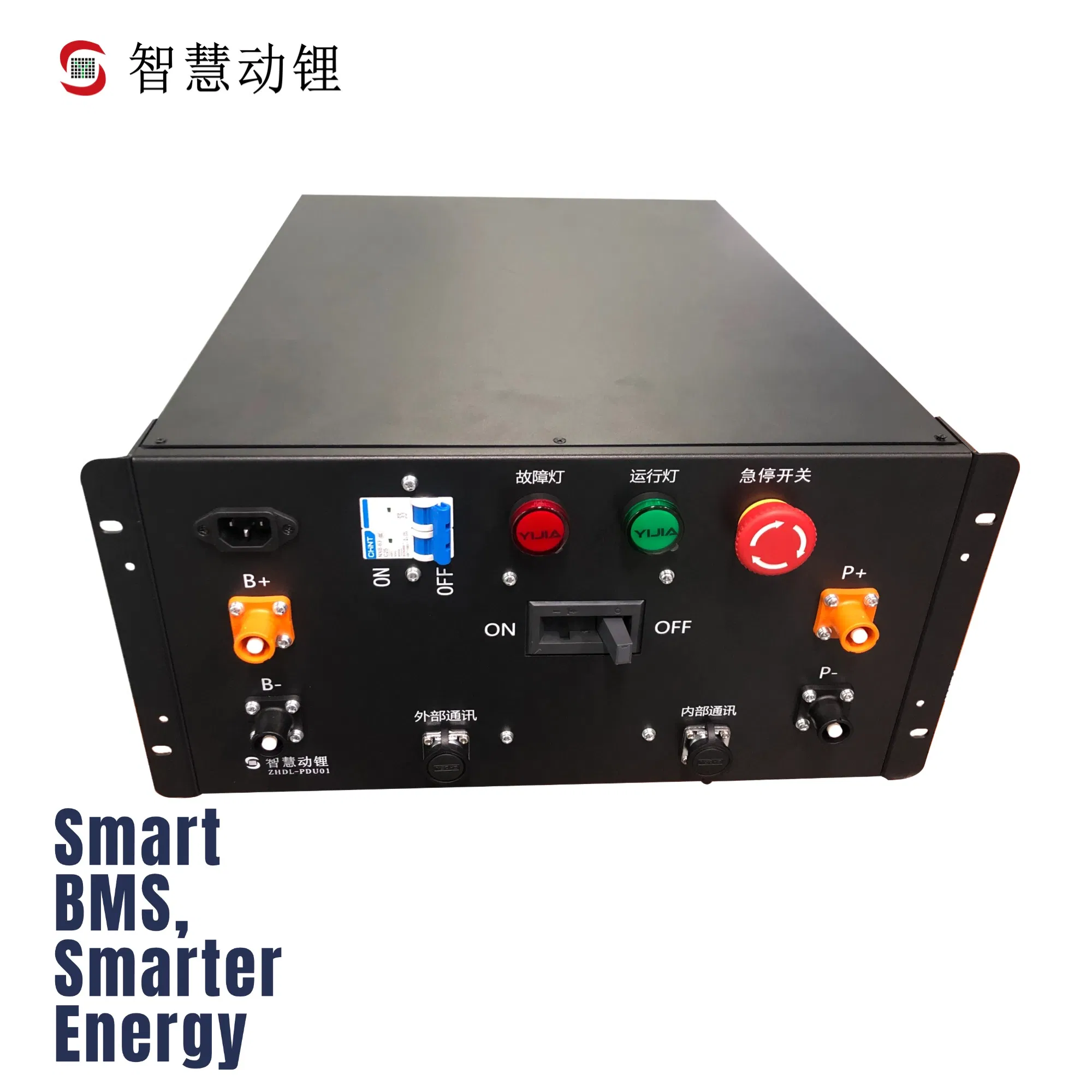

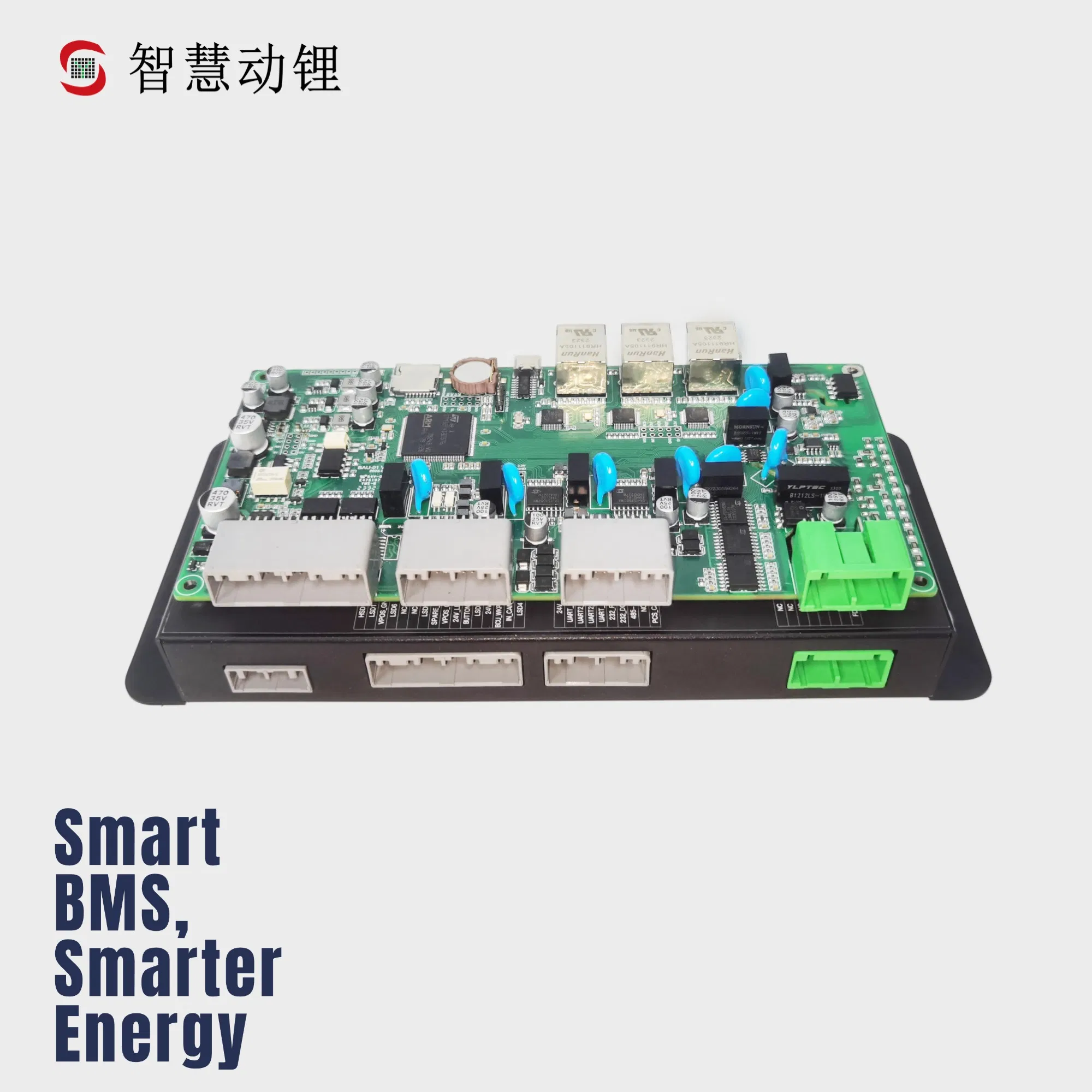

Smart BMS High Voltage Battery Management System with Insulation Detection

Customization: Available
Insulation Detection: Support
Emergency Stop Detection: Support

Product Description

Basic Information

Model NO.
GYCH-MCA-01
Transport Package
Carton Packaging
Specification
Customized
Trademark
OEM
Origin
China

Product Description

Our cutting-edge high voltage energy storage solutions are tailored for both industrial and commercial applications, ensuring robust energy storage capabilities. Revolutionary 3+1 level BMS architecture: This system features an integrated flexible networking mode that supports both single cluster independent use and multiple cluster battery parallel use. It offers real-time online monitoring of total system voltage, current, insulation resistance, relay bonding, and cell safety status. Enhanced with intelligent balancing, fault diagnosis, and multi-level alarm protection, it ensures comprehensive safety.

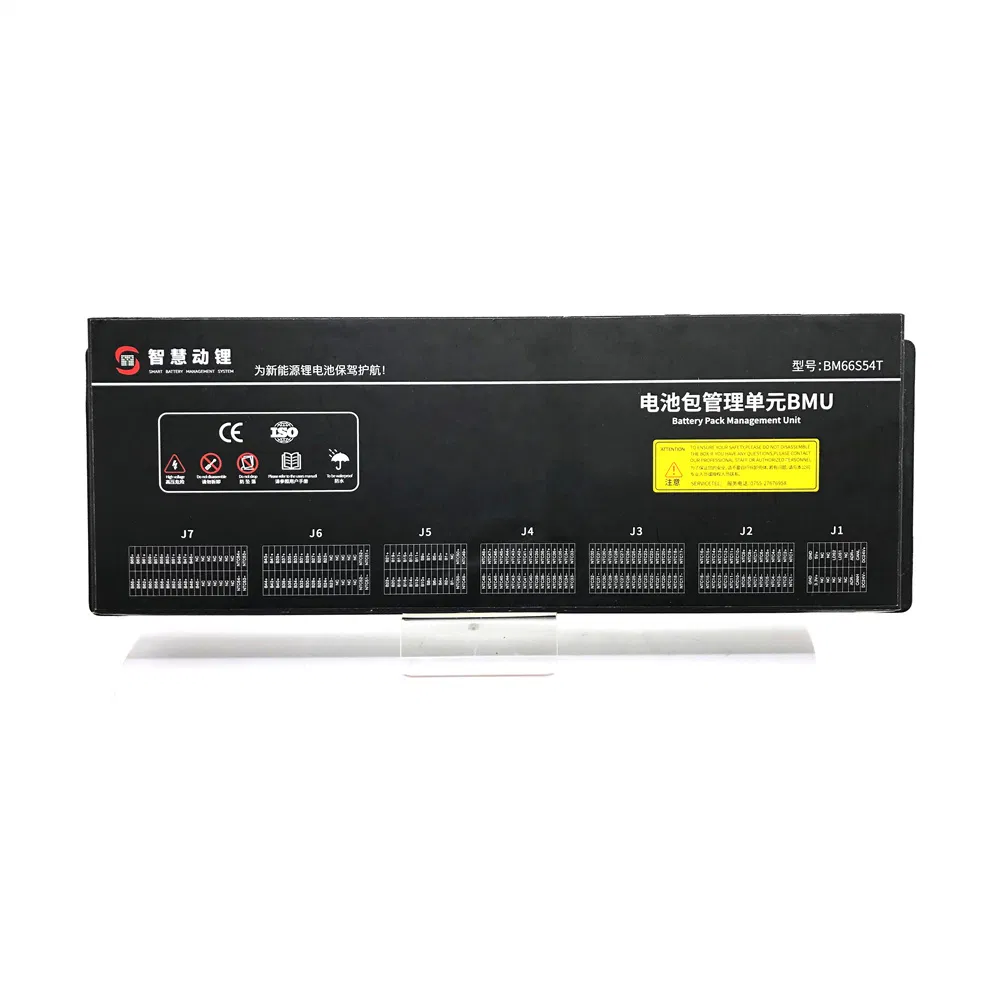

High Voltage BMS 1

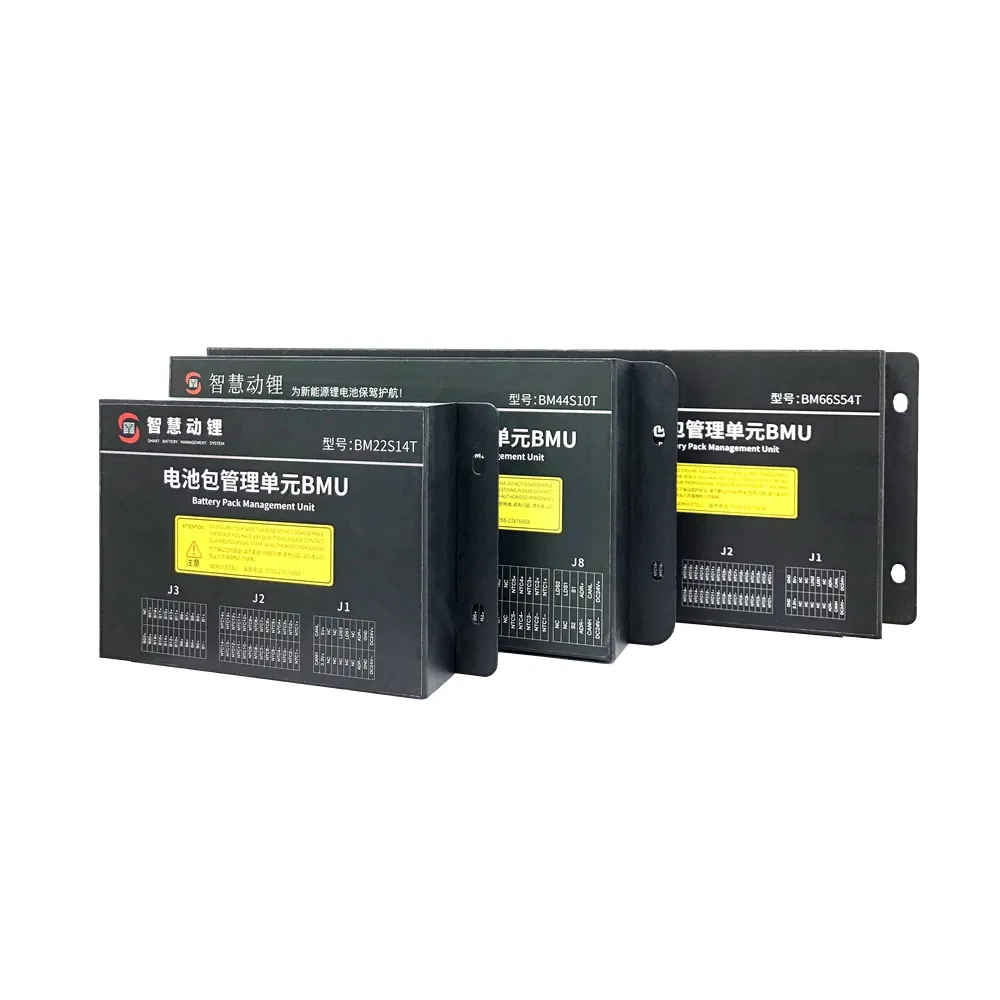

High Voltage BMS 2

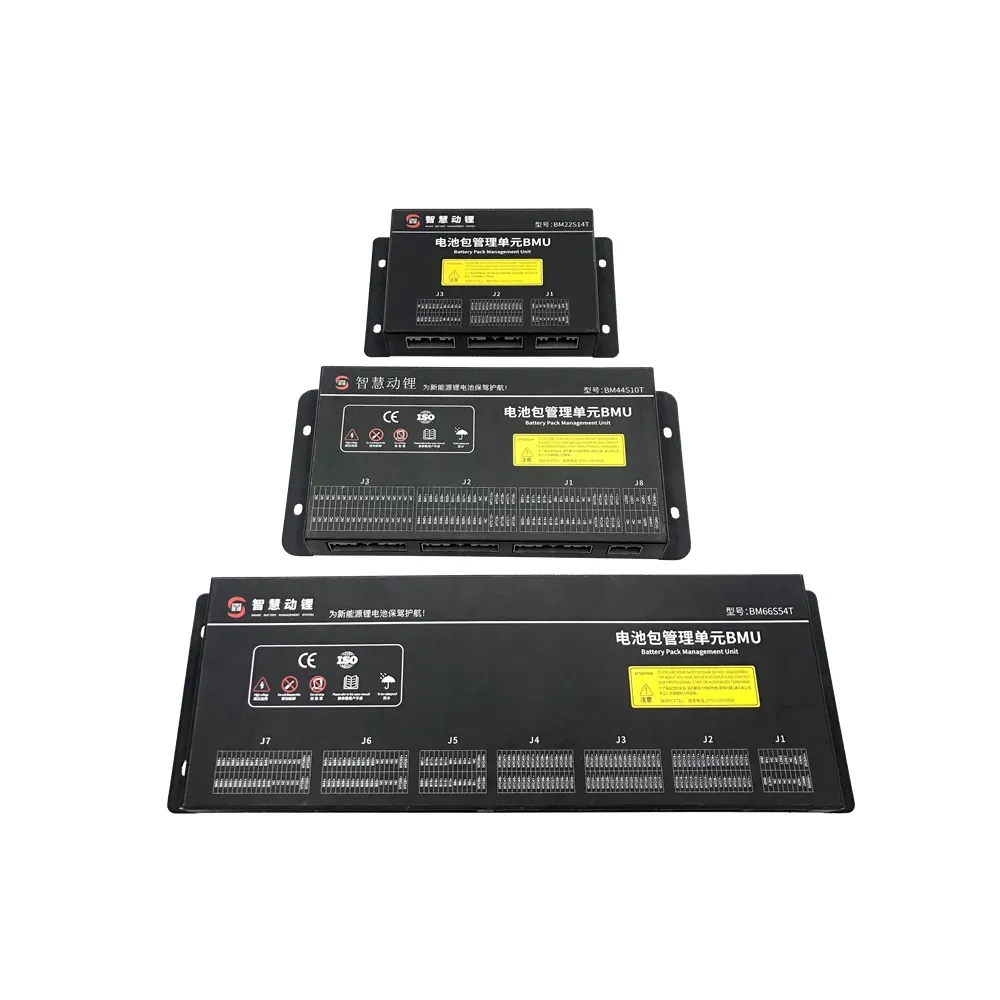

High Voltage BMS 3
Compliant with DC 1500V design standards, our system supports remote platform intelligent operation and maintenance. This effectively extends the battery life, augments system stability and security, and reduces operational and maintenance costs.

Technical Parameters

BMU Specifications
Operation VoltageDC12V-36V
Operation Current≤ 35mA(12V)/≤ 20mA(24V)
Voltage Acquisition16S~22S, 23S~44S, 45S~66S
AccuracyVoltage ±4mV, Temp ±1ºC
BalancePassive Balance (100mA)
Size170*100*31.2mm / 360*120*31.2mm

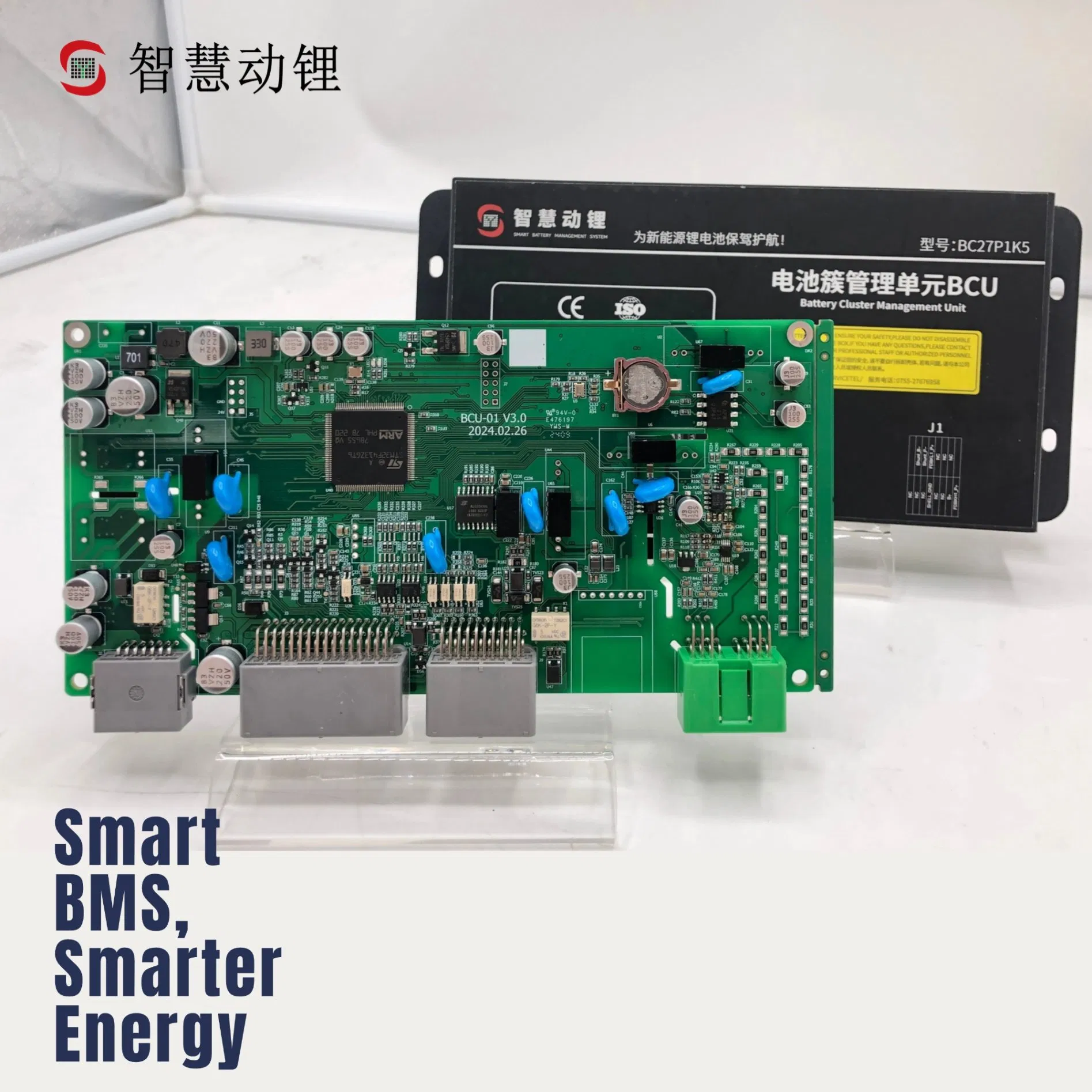

Parameters BCU BAU
CAN / RS4853 / 23 / 5
Ethernet13
Contactor Control6 low-side / 2 high-side3 high-side / 5 low-side
Insulation DetectionSupport InputSupport
Size245*115*29.7mm245*106.5*29.7mm

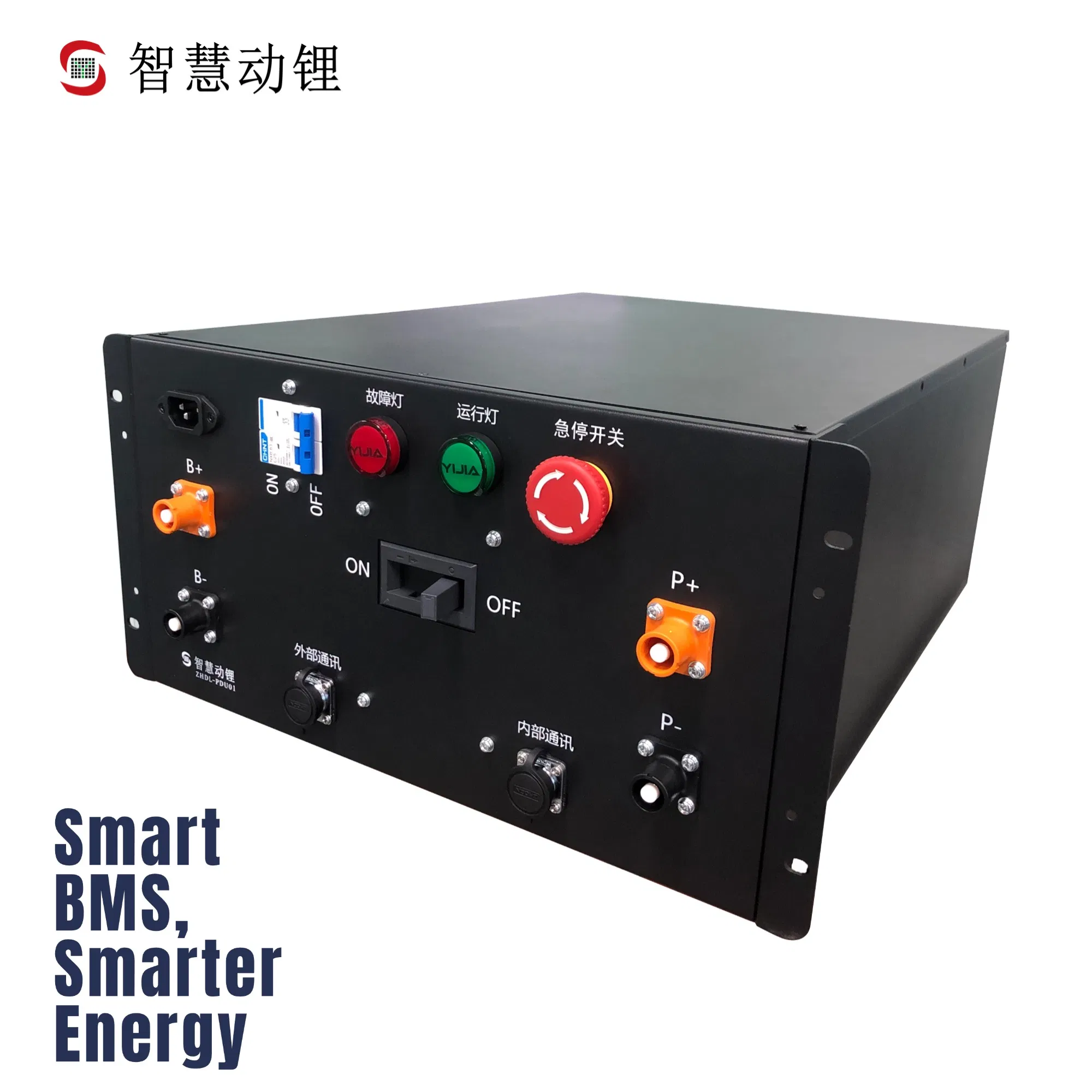

HV Box Parameters
Model No.ZHDL-PDU01ZHDL-PDU02
Rated VoltageDC1000VDC1500V
Rated Current150A, 250A300A, 400A
IP LevelIP43 (Not Waterproof)

Product Advantages

  • High-speed 32-bit MCU and vehicle-level AFE for unparalleled efficiency.
  • 3+1 level architecture with modular design for flexible configuration.
  • Strong scalability: supports 4G/CAN/RS485/Ethernet communication.
  • Advanced SOC learning algorithm for automatic correction and precision.
  • Cloud BMS visual big data analysis and comprehensive lifecycle recording.
  • OTA updates, remote maintenance, and AI-driven fault warnings.
  • Supports high voltage up to 1500V, compatible with air and liquid cooling.

Application Scenarios

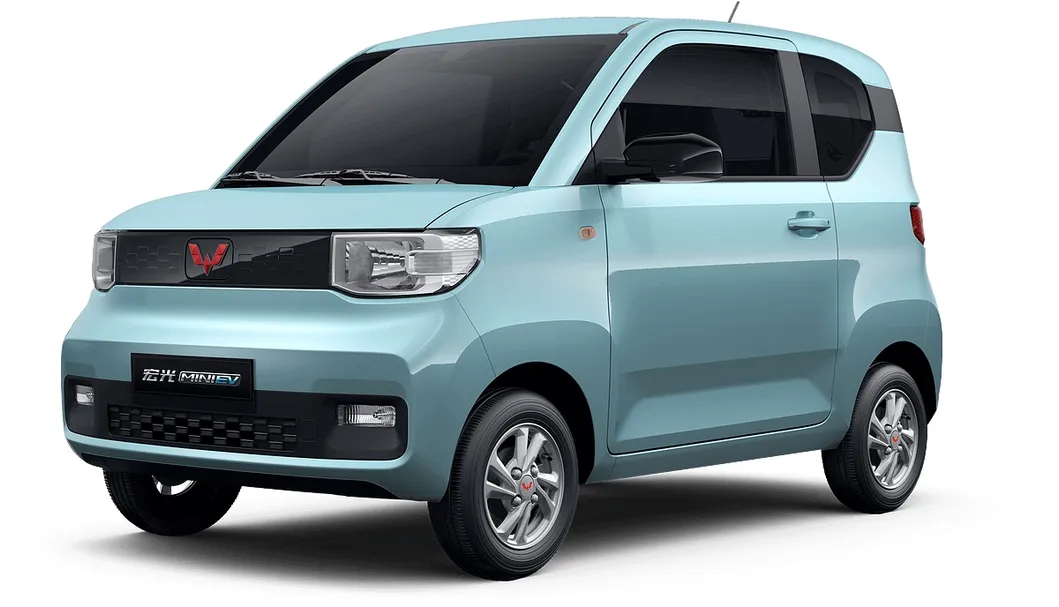

Scenario 1

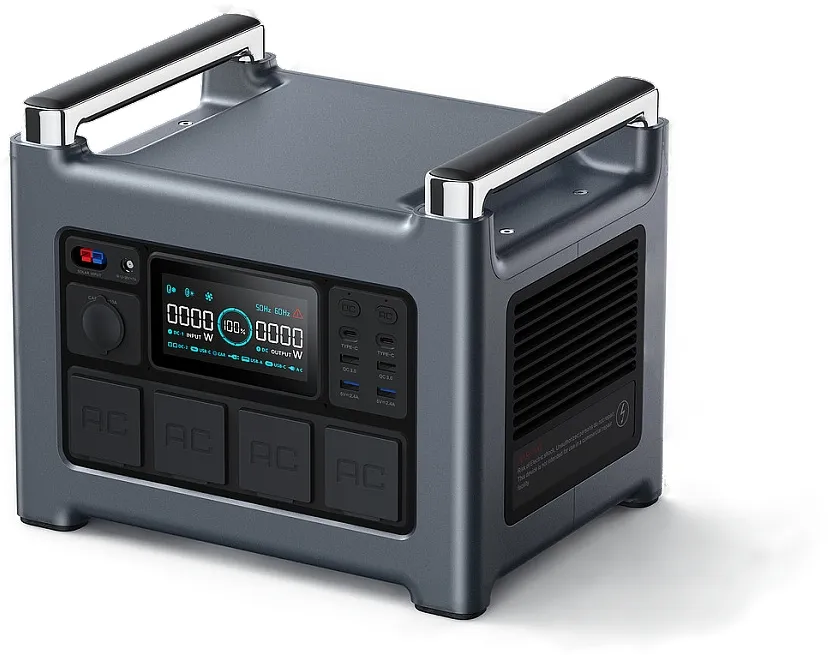

Scenario 2
Scenario 3

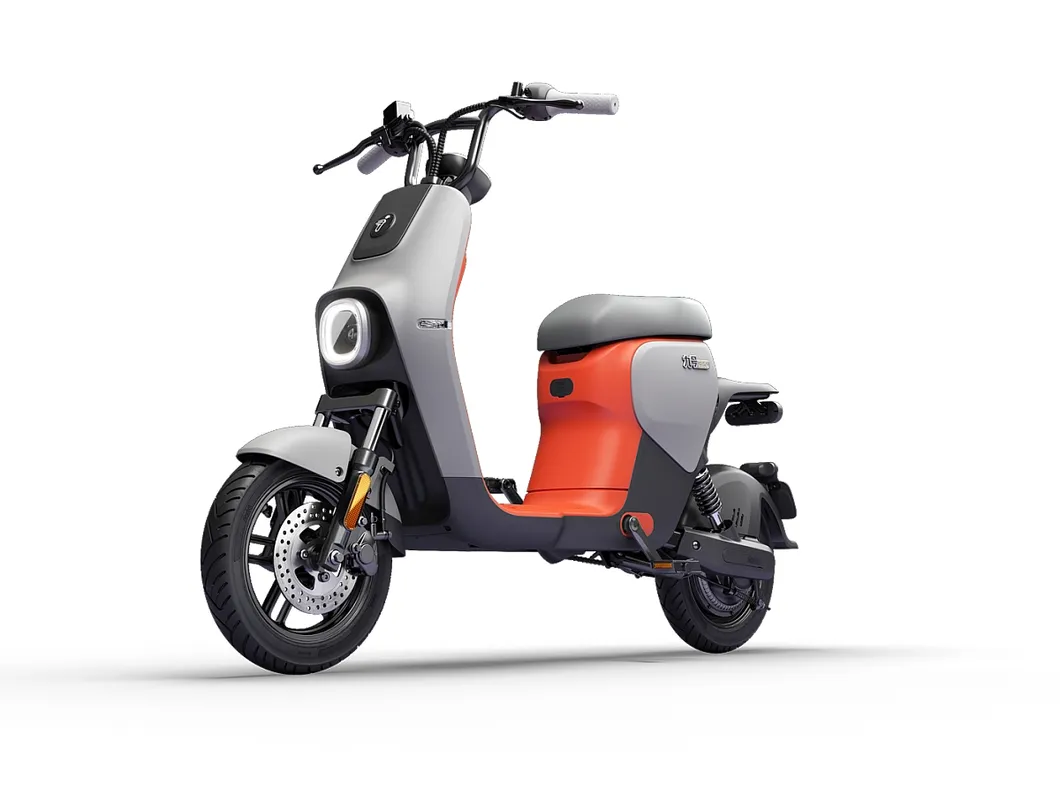

Scenario 4

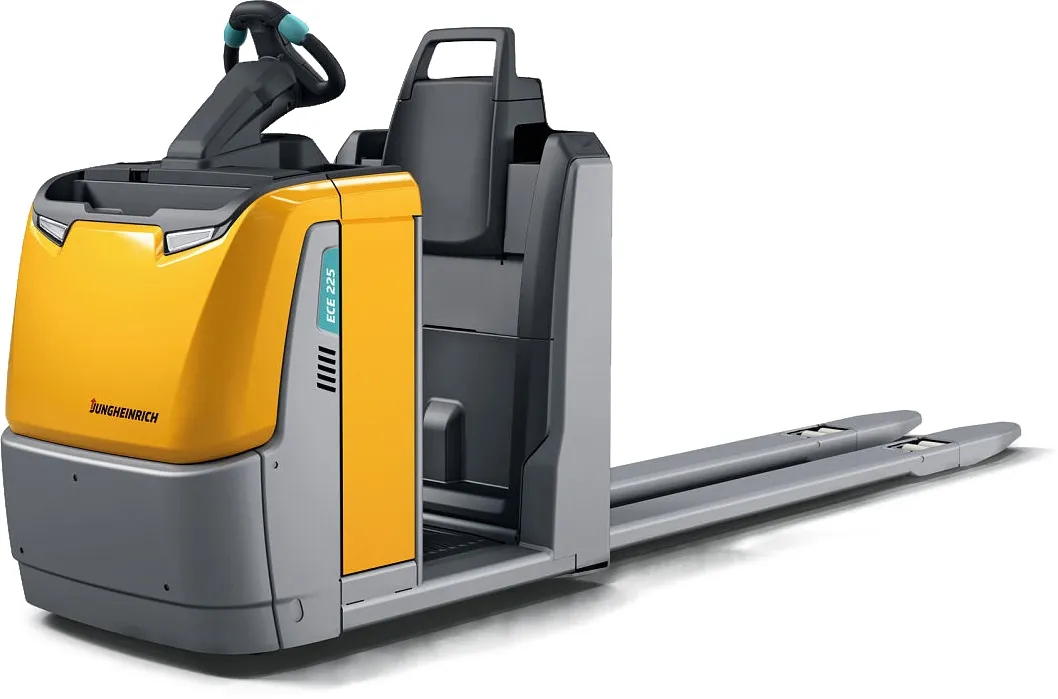

Scenario 5

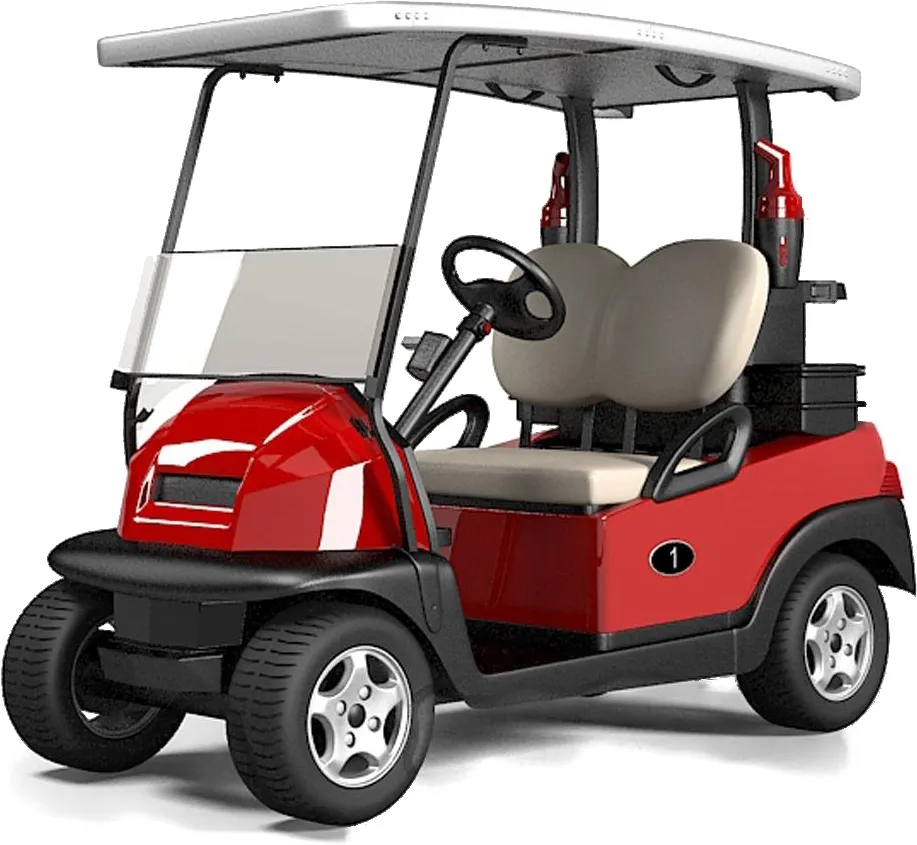

Scenario 6
Main Products Lineup

Professional Profile

Founded in 2011, we are a pioneering high-tech enterprise that excels in the research, development, production, and sales of cutting-edge lithium battery management systems (BMS). As a national-level enterprise, we pride ourselves on our refined and innovative technological prowess, steadfastly dedicated to delivering secure, smart, and highly efficient lithium battery management solutions to a global clientele.
Our robust R&D team has propelled us to secure over 50 prestigious national patents. We stand among the pioneers in achieving digital and platform-based management of lithium battery safety. Our advanced cloud platform proficiently oversees millions of battery packs, ensuring comprehensive battery health monitoring and intelligent management services.
R&D Center

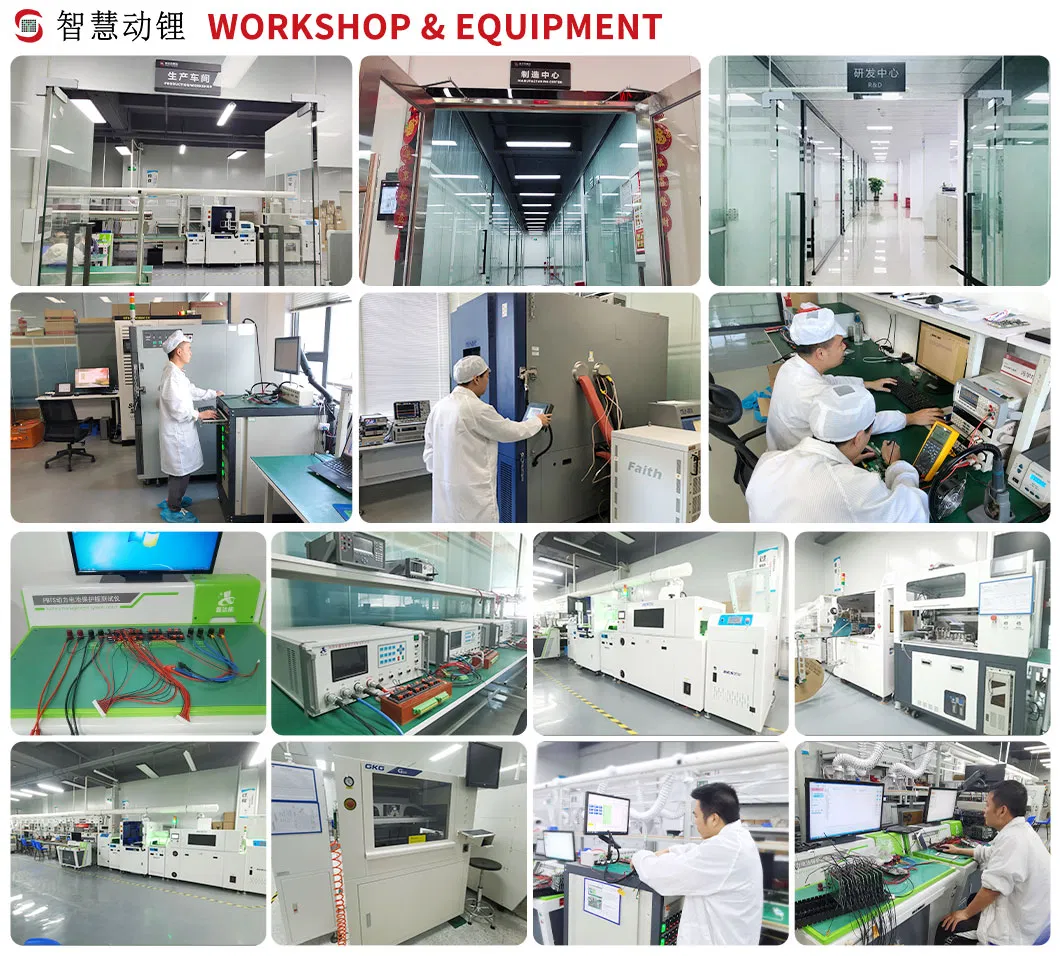

Factory Overview

Certifications & Shipping

Certifications
Packaging & Shipping

Frequently Asked Questions

How do I choose the right BMS board?
It depends on your cell & battery pack parameters and your application scenarios. Please contact technical support before buying.
What is your factory production capability?
Our factory can produce 50,000pcs per month, and capacity can be increased to 100,000pcs within 3 months based on order quantity.
What is your delivery time?
Standard products are delivered in 7-15 days. For OEM, ODM, or bulk orders, please confirm timing with our team.
Do you provide OEM/ODM service?
Yes, we have a strong R&D team and professional equipment. OEM/ODM projects are warmly welcomed.
What are your shipping terms?
We offer shipping by air, Express (DHL, FEDEX, UPS), or by sea, depending on your specific requirements.
What are your payment terms?
We prefer T/T; however, L/C is also acceptable. Please reach out for more detailed information.
