Safety-Prioritized Multi-Level Protection Liquid-Cooled C&I Battery Backup System for Grid Tied Power Management

Customization:	Available
Container Size:	650028002896mm
Weight:	44t

Send Inquiry

Product Description

Overview - Basic Info

Model NO.

JSKJ-ESS-DC5000-A

Nominal Voltage

1331.2V

Warranty

5 Years

Nominal Capacity

3768ah

Cycle Life

8000

Cell Type

Lfpbattery

Cell Configuration

12p416s

Rated Energy

Expandable to 100mwh+

Charge/Discharge Rate

0.5p

Operating Voltage

1164.8-1497.6V

Cooling Method

Liquid + Air Dual Management

Fire Detection

Temp, Co, Smoke Sensors

Waterproof Design

IP54 (Outdoor Durability)

Application Scenarios

Inland, Plateau, Coastal

HS Code

8507600090

Production Capacity

500pieces/Year

Packaging & Delivery

Package Size

650.00cm * 280.00cm * 289.60cm

Package Gross Weight

44000.000kg

Product Description

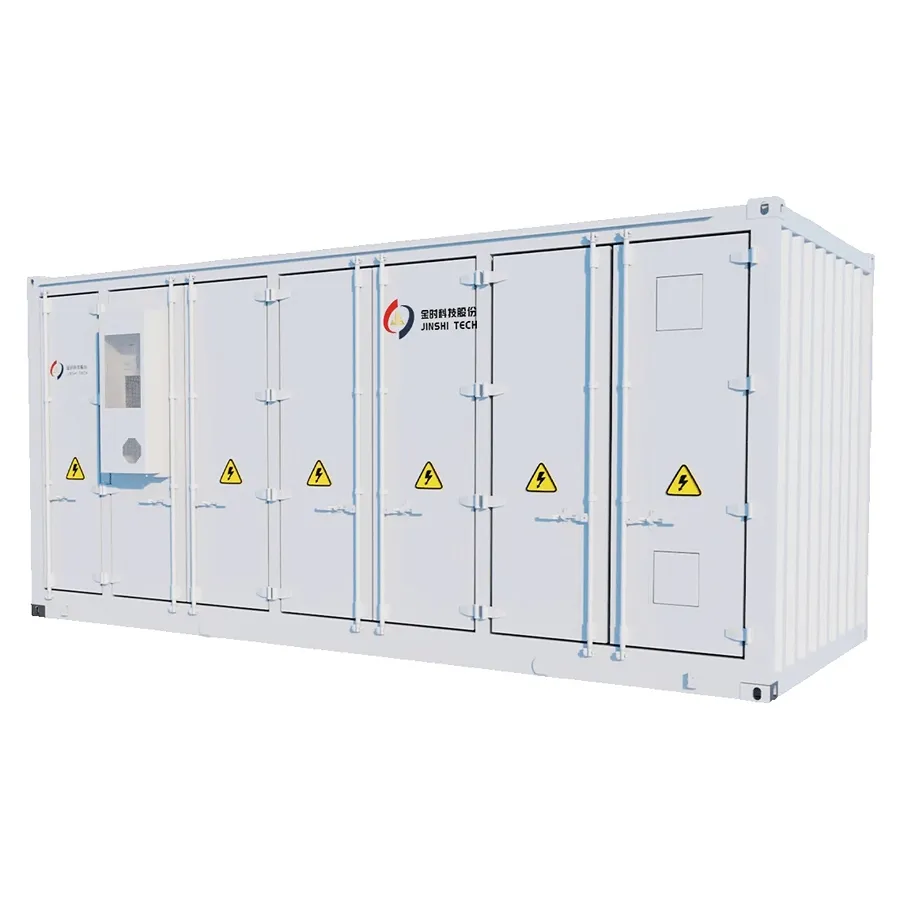

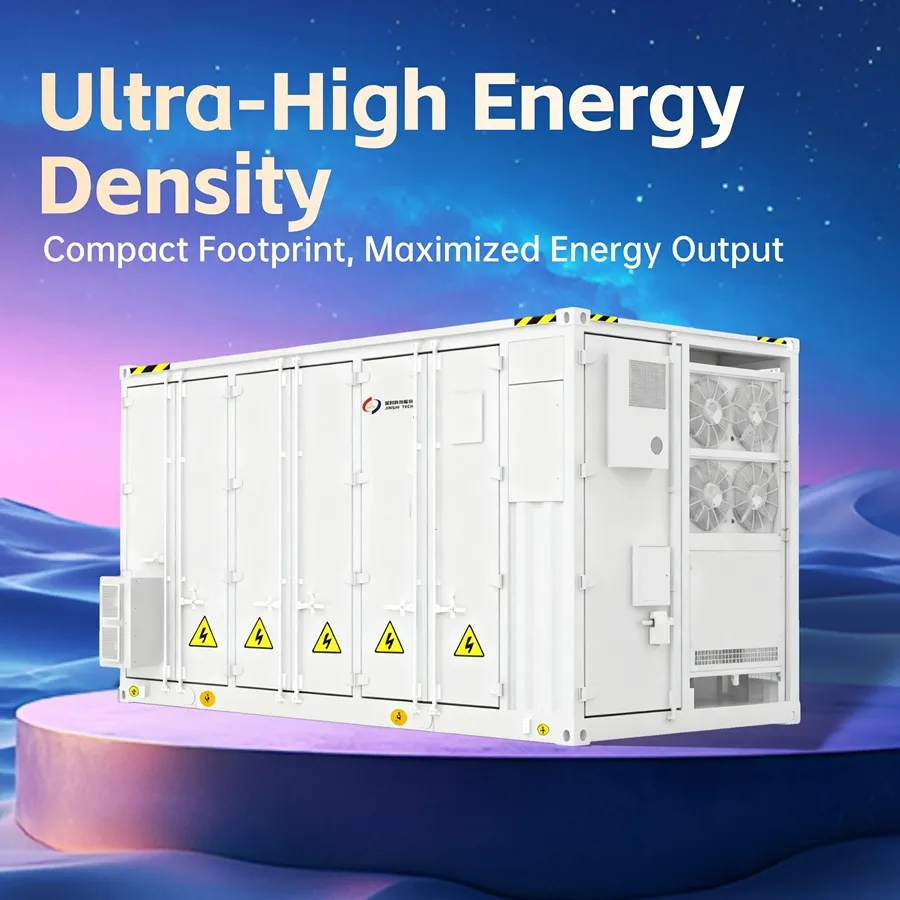

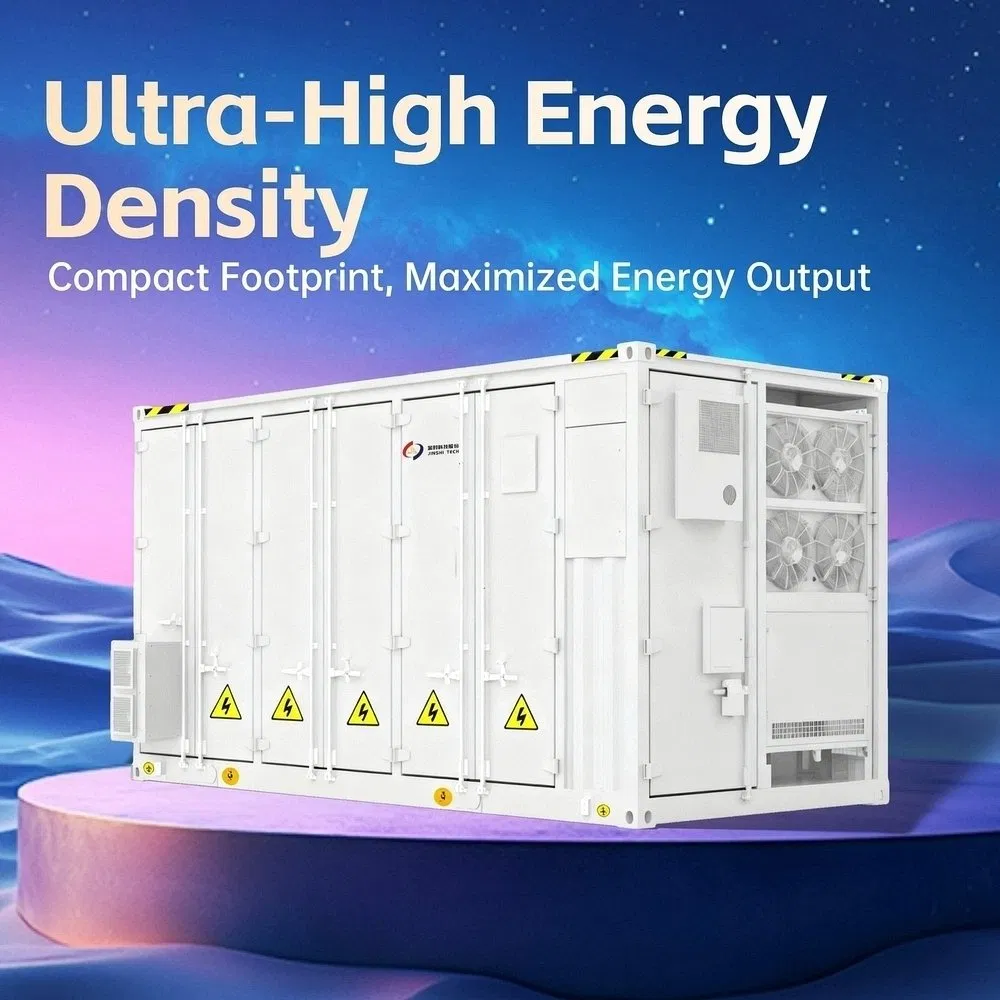

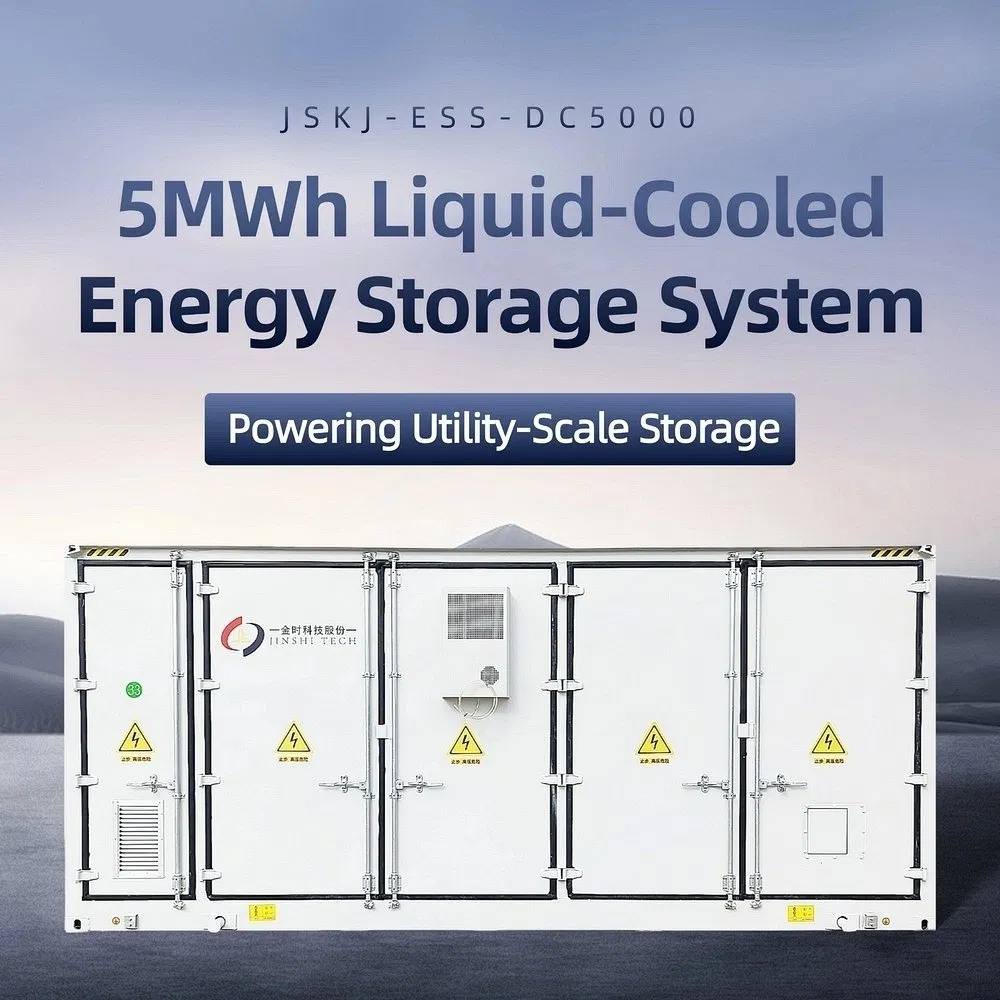

5MWH BATTERY STORAGE CONTAINER

The 5MWh liquid-cooled system enhances energy density by 30% and extends battery life by 50% via AI-driven thermal management. Ideal for grid-side peak shaving, frequency regulation, and industrial energy arbitrage.

PRODUCT FEATURES

24/7 BMS Monitoring

High-Frequency Regulation Compatibility

Supports NOVEC 1230, Liquid Nitrogen

Three-Level Fusing Protection

Targeted Explosion Discharge Design

Multi-Cabinet Parallel Scalability

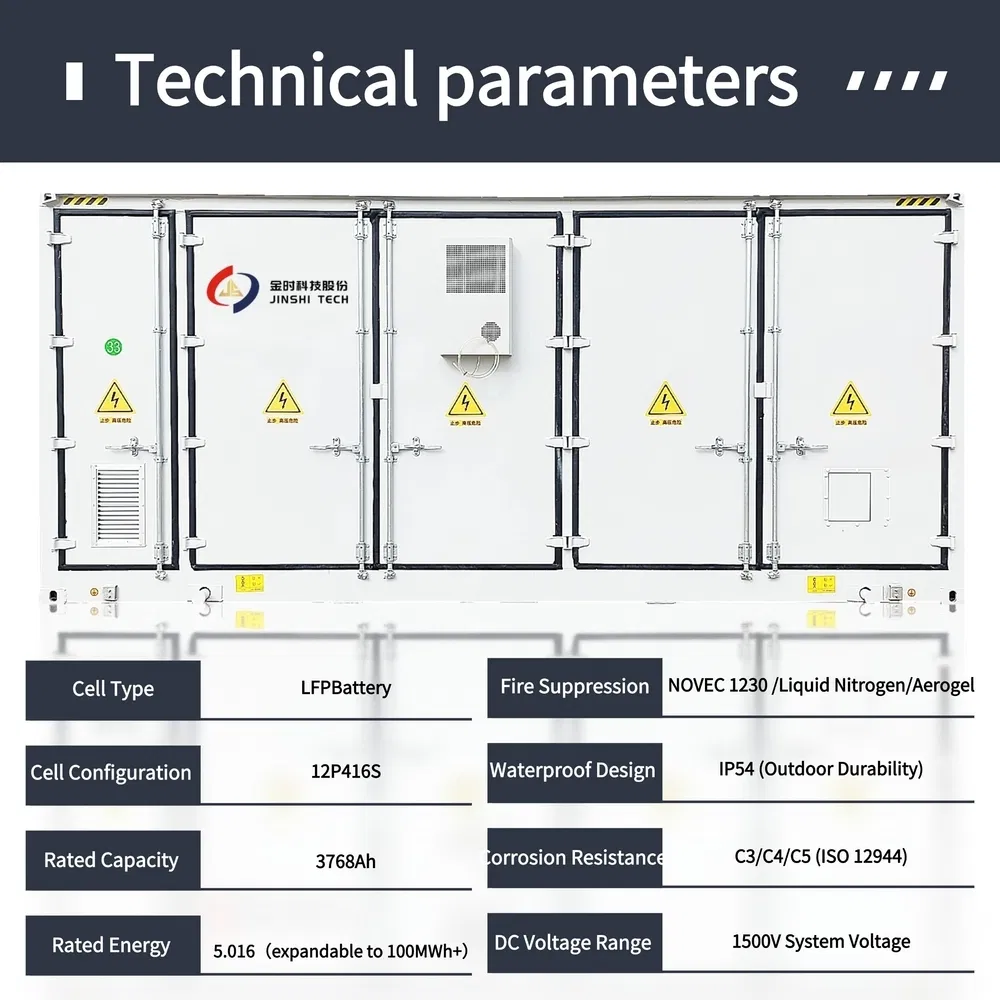

Technical Parameters

SPECIFICATIONS DATA SHEET
Cell Type	LFP Battery
Cell Configuration	12P416S
Rated Capacity	3768Ah
Rated Energy	Expandable To 100MWh+
Rated Voltage	1331.2V
Charge/Discharge Rate	0.5P
Operating Voltage Range	1164.8-1497.6V
Standard Current	1884A/1884A
Cooling Method	Liquid + Air Cooling Dual Management
Fire Detection	Temp, CO, Smoke Sensors
Corrosion Resistance	C3/C4/C5 (ISO 12944)
System Architecture	Triple Fire Protection + Triple BMS
Waterproof Design	IP54 (Outdoor Durability)
DC Voltage Range	1500V System Voltage

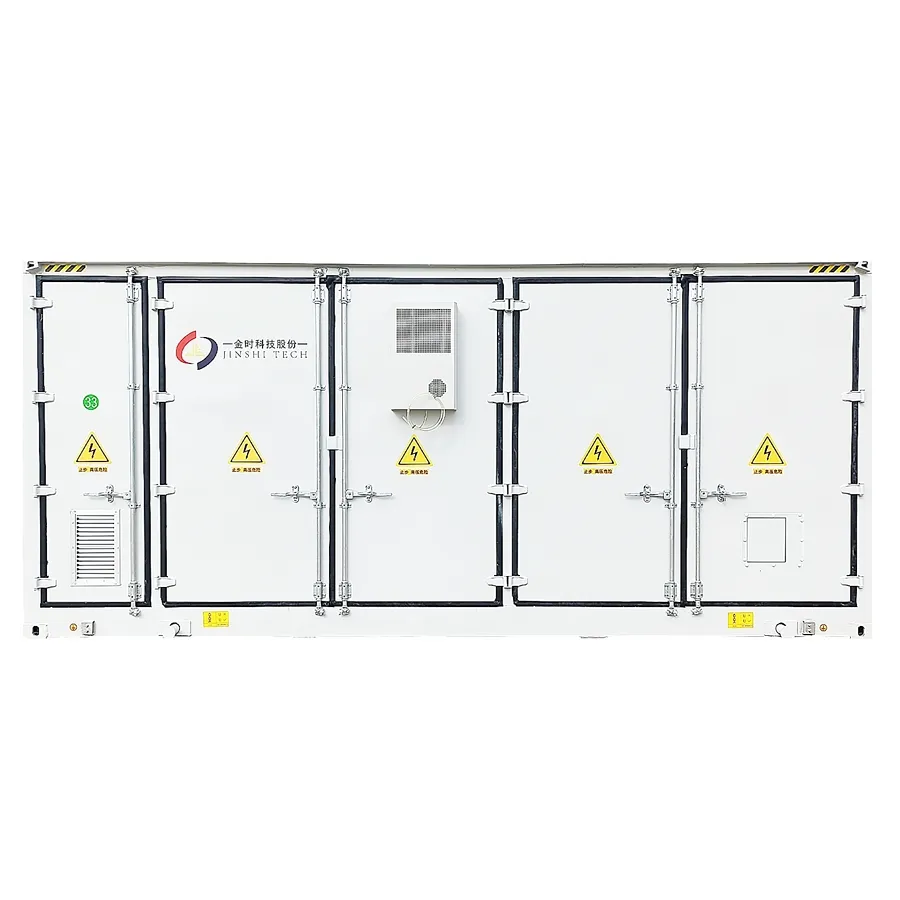

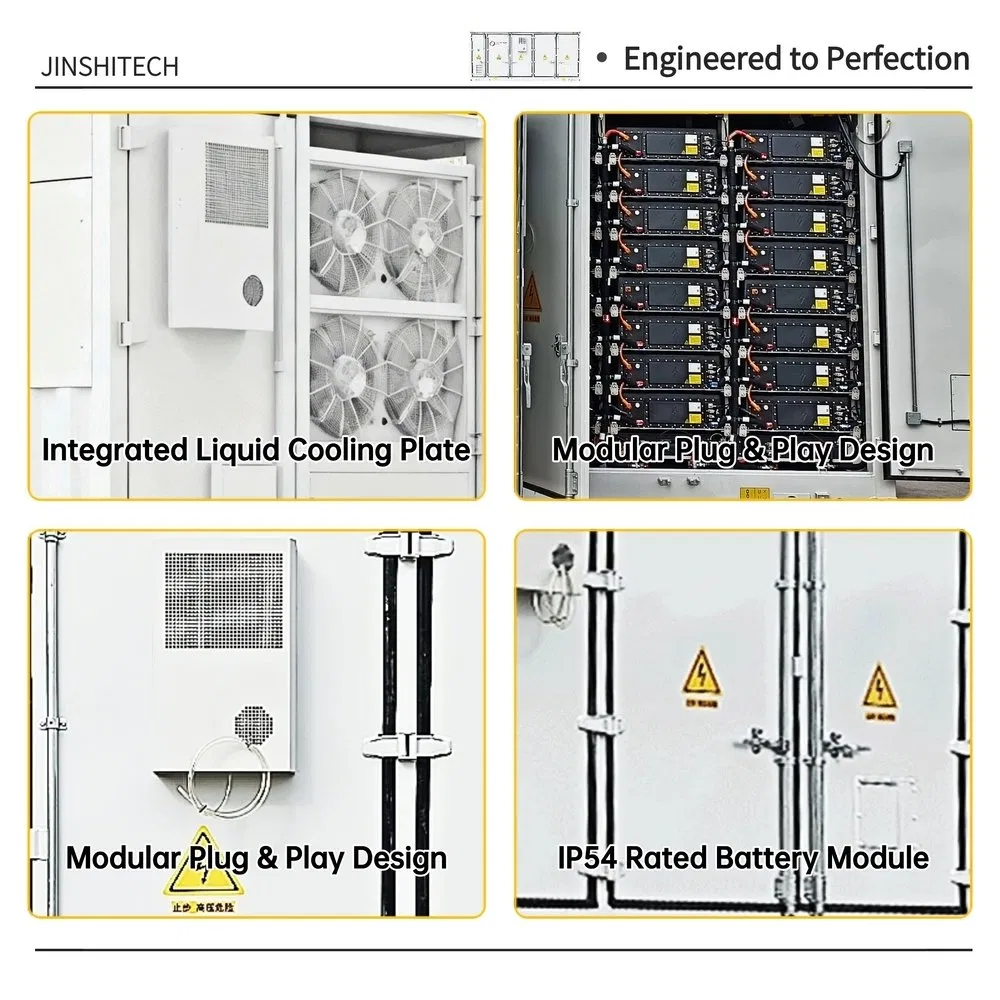

Detailed Photos & Features

TRIPLE-LAYER FIRE PROTECTION: Three-level fusing system with targeted explosion discharge design; supports NOVEC 1230, perfluorohexanone, and liquid nitrogen fire suppression agents.

COMPREHENSIVE MONITORING: 24/7 BMS with real-time temperature, CO, and smoke sensors; triple BMS redundancy ensures fail-safe operation.

ROBUST ENVIRONMENTAL PROTECTION: IP54 waterproof rating; C3/C4/C5 corrosion resistance suitable for inland, plateau, and coastal applications.

PLUG-AND-PLAY INTEGRATION: Containerized design with standardized interfaces for quick deployment.

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? A: We are a manufacturer integrating industry and trade, specializing in high-capacity energy storage solutions.

Q2: Can I customize the logo and appearance of the battery container? A: Yes, we support on-demand customization, including LOGO branding, color schemes, and physical dimension adjustments.

Q3: What payment methods do you accept for international orders? A: We support T/T, Western Union, PayPal, and cash payments. Specific terms can be negotiated during the contract stage.

Q4: How is the 5MWh container typically transported? A: Due to the size and weight, we usually arrange sea freight or specialized land transportation based on the destination and cargo conditions.

Q5: How can I receive a technical quotation for my project? A: Please provide your specific project requirements and site conditions. Our engineering team will design a customized solution and provide a detailed price breakdown.

Q6: What is the estimated lifespan of the battery system? A: The system is designed for a cycle life of 8000 cycles, and battery life is further extended by up to 50% through our AI-driven liquid cooling thermal management.
