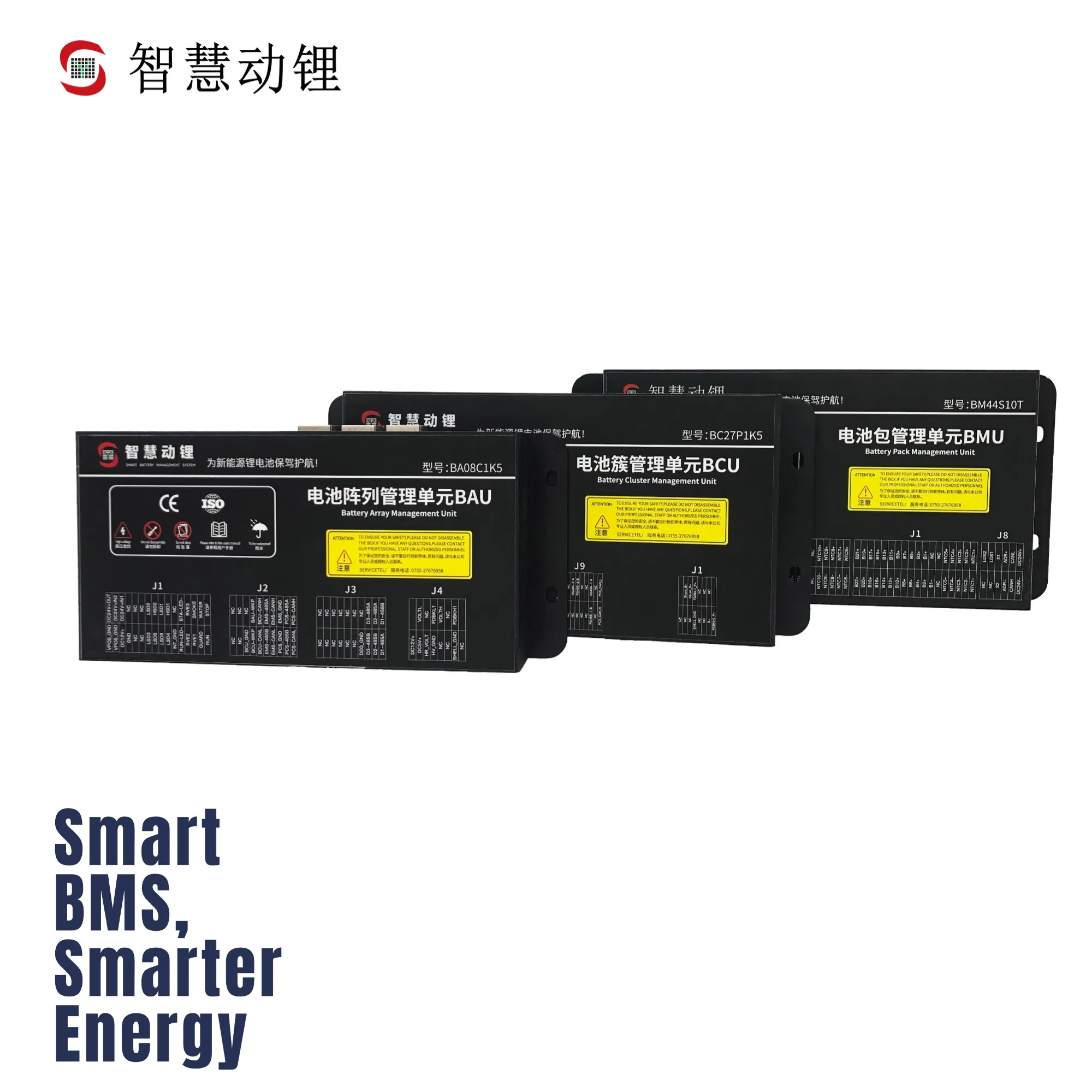

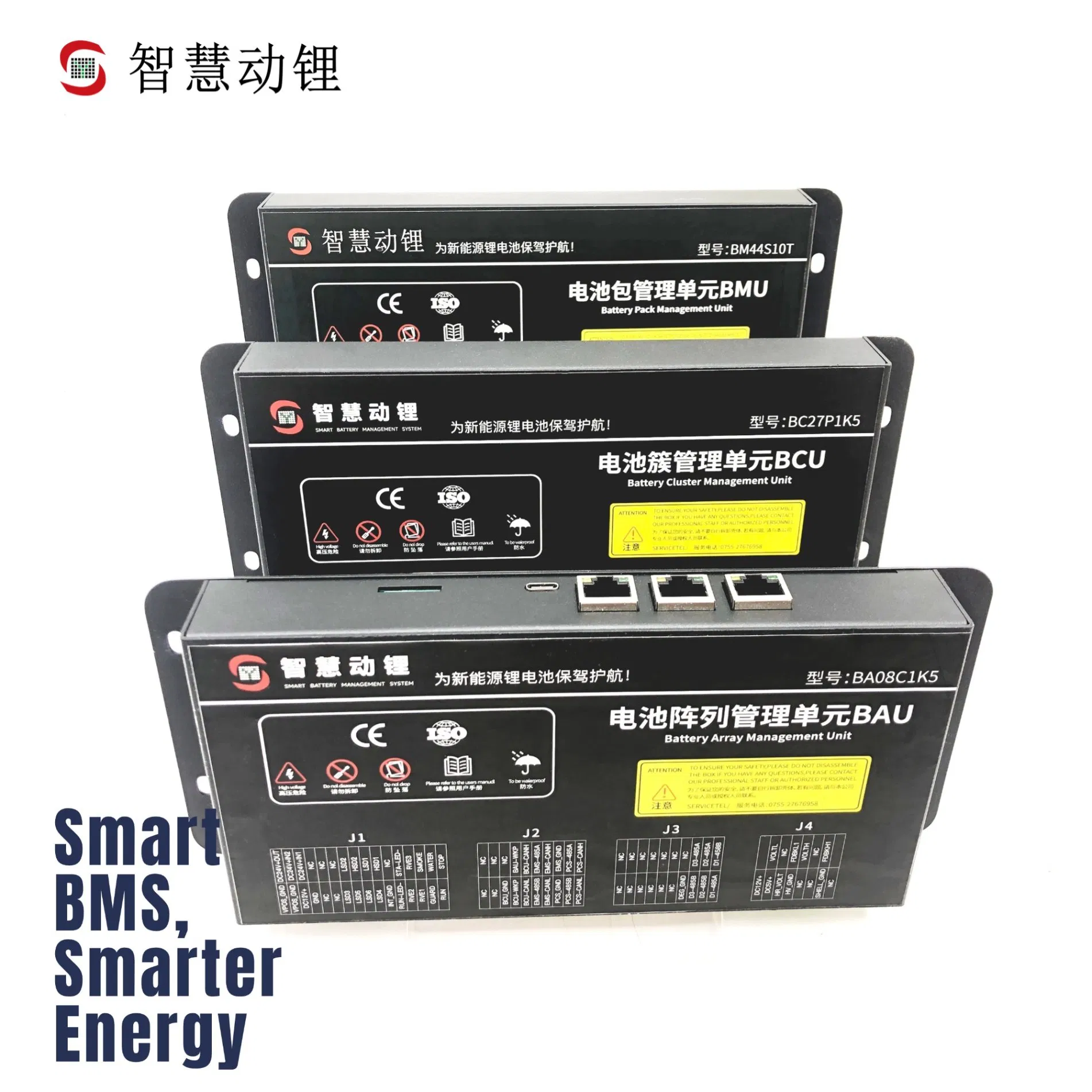

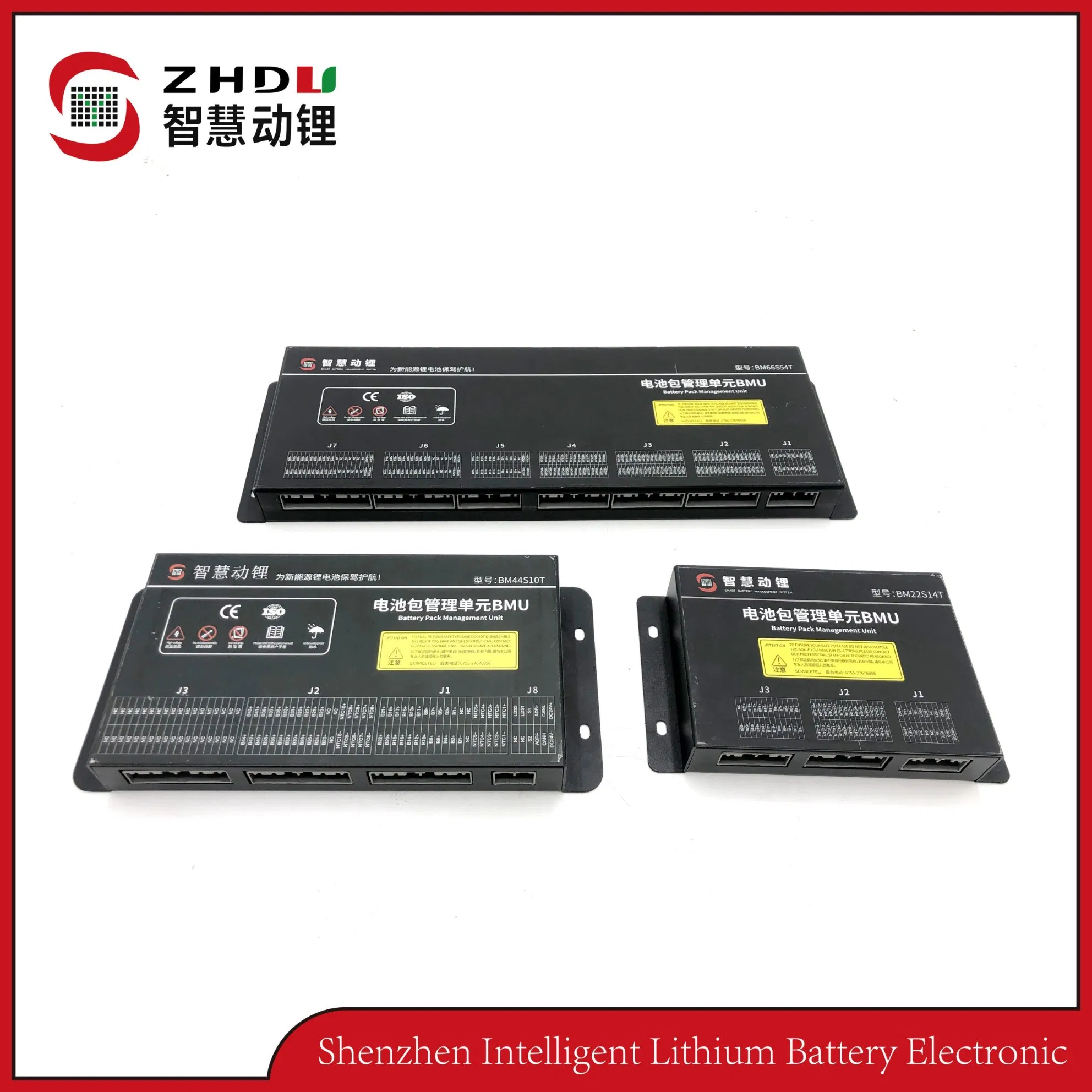

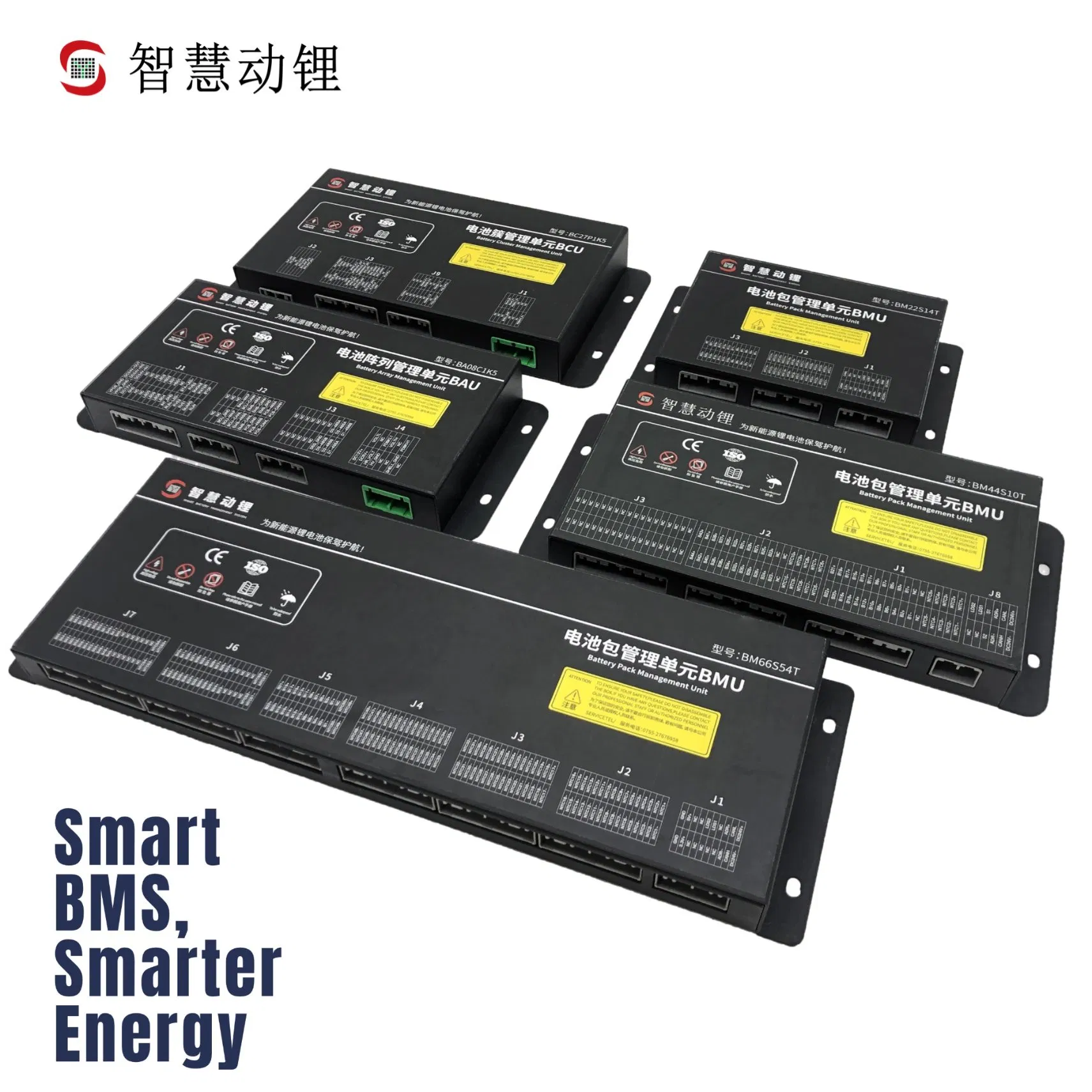

Advanced Zhdli Smart Battery Management System for High Voltage Storage

1 / 5

Advanced Zhdli Smart Battery Management System for High Voltage Storage

Customization:	Available
Insulation Detection:	Support
Emergency Stop Detection:	Support

Send Inquiry

Product Description

Basic Information

Model NO.: GYCH-MCA-01

Transport Package: Carton Packaging

Specification: Customized

Trademark: OEM

Origin: China

★

Product Description

Discover our revolutionary solution for high-voltage energy storage—ideal for both industrial and commercial applications. Our advanced technology is designed to seamlessly integrate into your energy infrastructure, powering your future with efficiency and reliability. Experience the robust safety and performance of our innovative 3+1 level BMS architecture, crafted for superior protection and efficiency.

Harness the power of integrated flexible networking that accommodates both single and multiple cluster configurations. Our system offers real-time monitoring of total voltage, current, and insulation resistance while seamlessly managing relay bonding. With cell safety state monitoring, intelligent balancing, and sophisticated fault diagnosis, this system is equipped with multi-level alarms and protection. Benefit from precise SOX computations, extensive data collection, AI-driven security warnings, and comprehensive trend analysis.

⚙

Technical Specifications

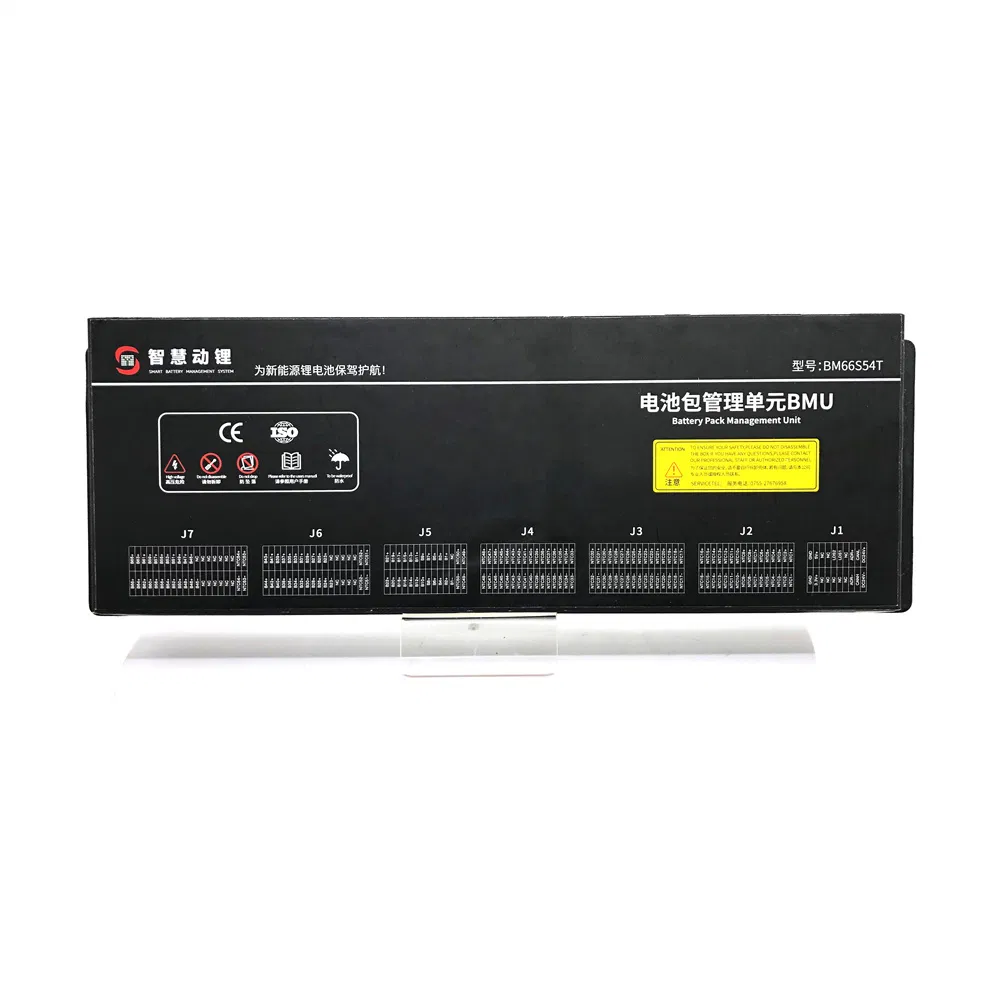

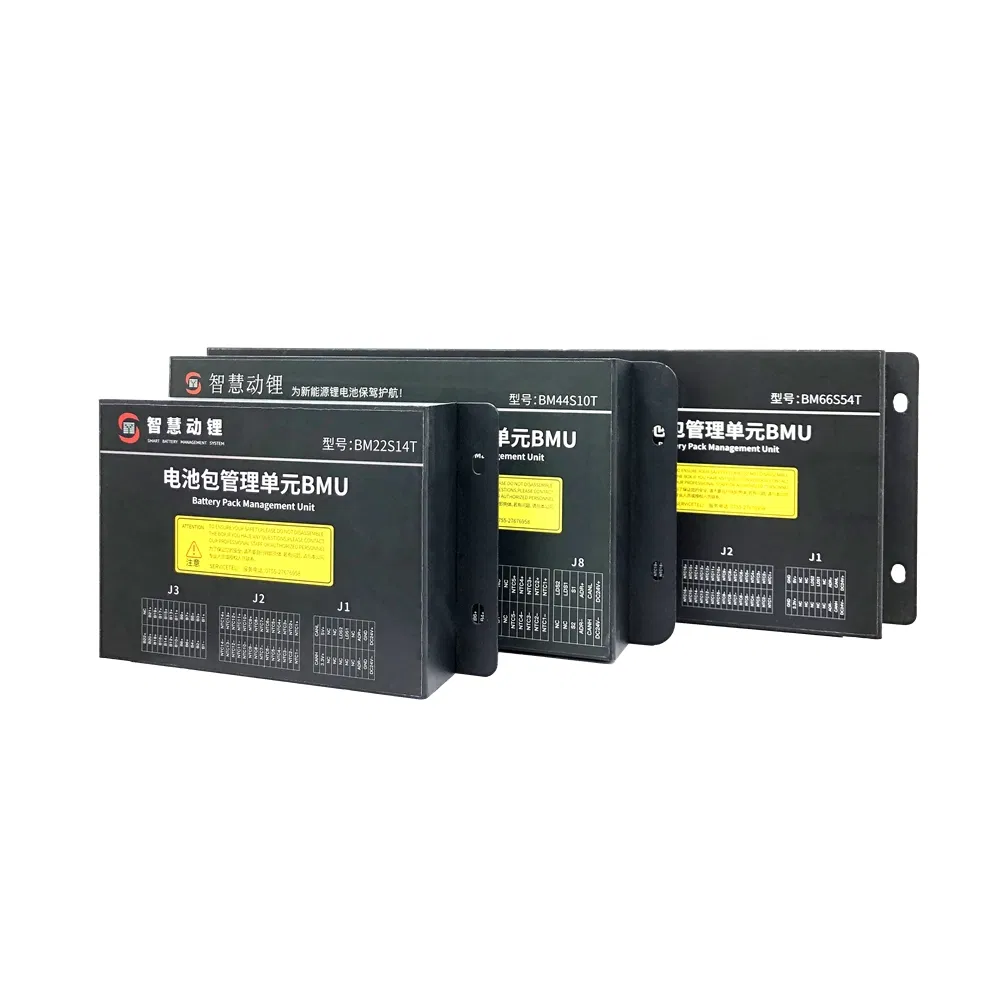

BMU Parameters
Operation Voltage	DC12V-36V
Operation Current	≤ 35mA(12V)/≤ 20mA(24V)
Voltage Accuracy	±4mV
Temperature Accuracy	±1ºC
Balance	Supports Passive Balance (100mA)
Size	17010031.2mm / 36012031.2mm

Product Parameters	BCU	BAU
Operation Voltage	DC12V-36V	DC12V~36V
CAN / RS485	3 / 2	3 / 5
Ethernet	1	3
Insulation Detection	Support	Support
Size	24511529.7mm	245106.529.7mm

HV Box & HMI Display
Rated Voltage	DC1000V / DC1500V	HMI: 7.0 inch IPS
Rated Current	150A - 400A	Resolution: 1024*600
IP Level	IP43	IP65 (Front)

✔

Product Advantages

Equipped with premium, high-speed 32-bit MCU and vehicle-grade AFE for unparalleled efficiency.
3+1 level architecture with modular design for flexible configuration.
Supports insulation and adhesion detection, ensuring safe operation at all times.
Rich communication interfaces: 4G/CAN/RS485/Ethernet for versatile integration.
Precise SOC learning algorithms with automatic correction for better user experience.
Cloud-based BMS management for visual big data analysis and lifecycle recording.
Supports OTA remote operation, online diagnosis, and AI fault warnings.
Capable of supporting up to 1500V high voltage systems.

☷

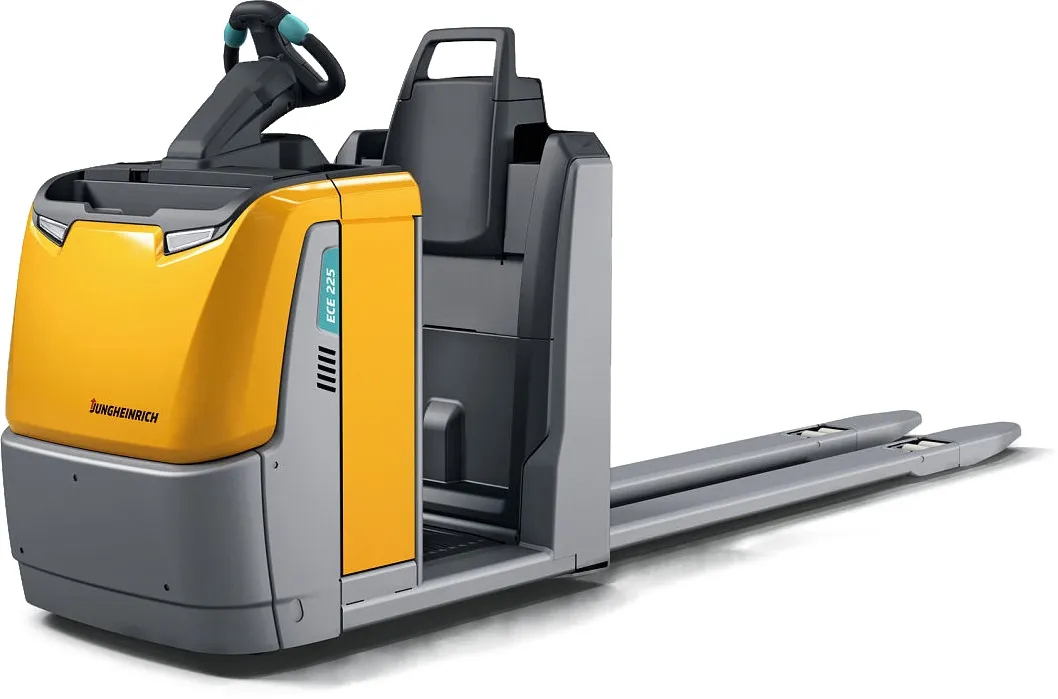

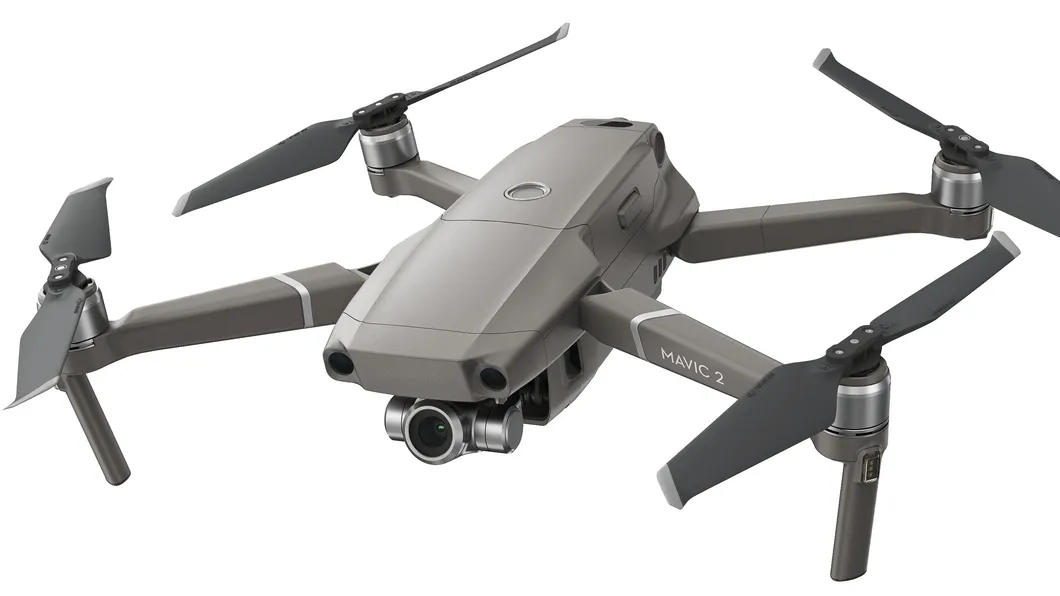

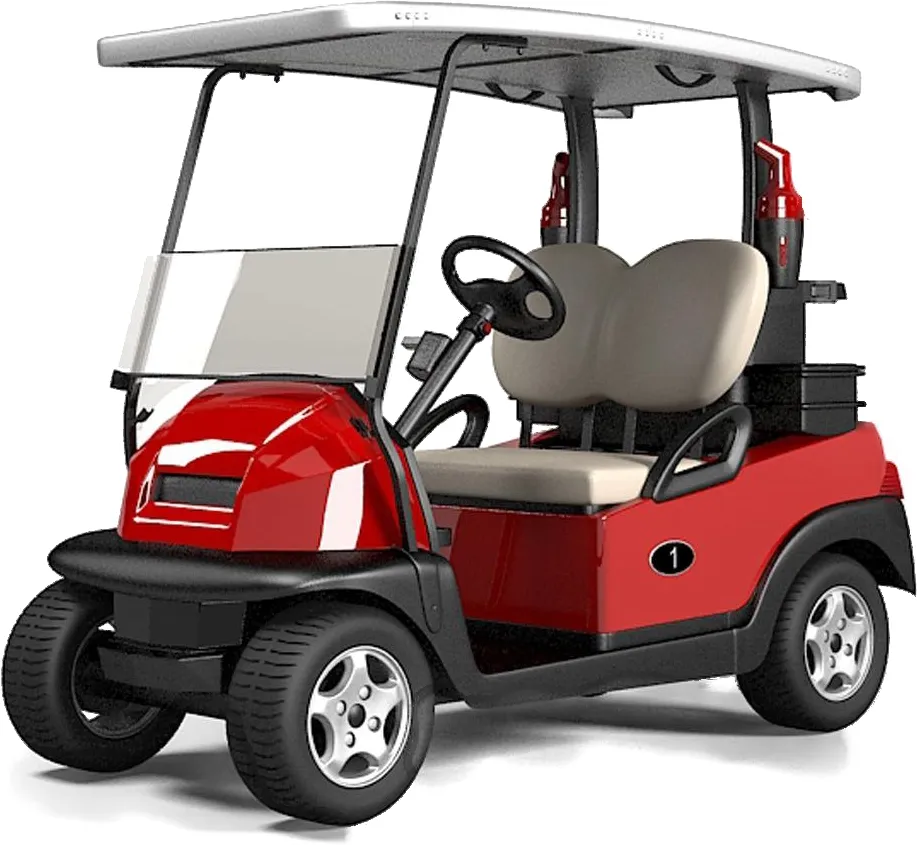

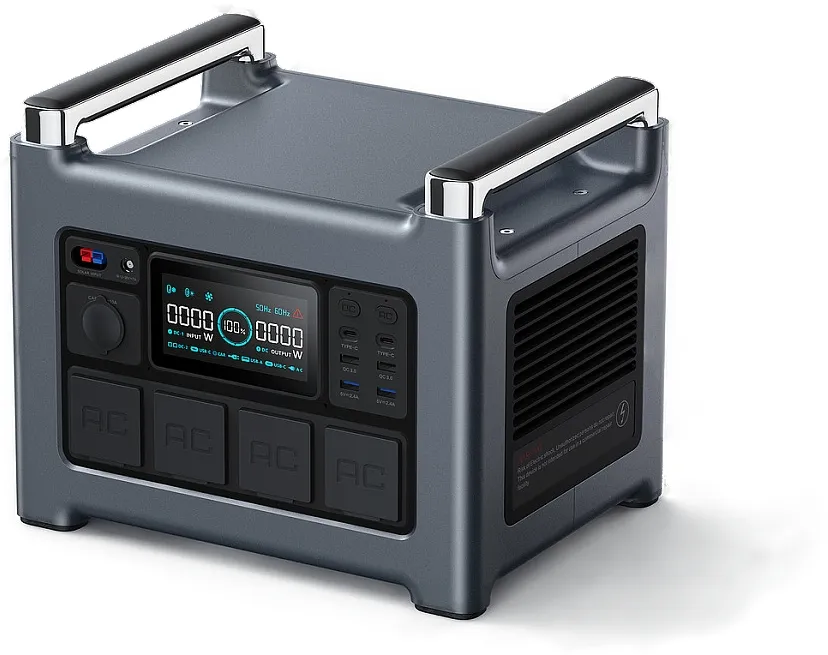

Application Scenarios

❐

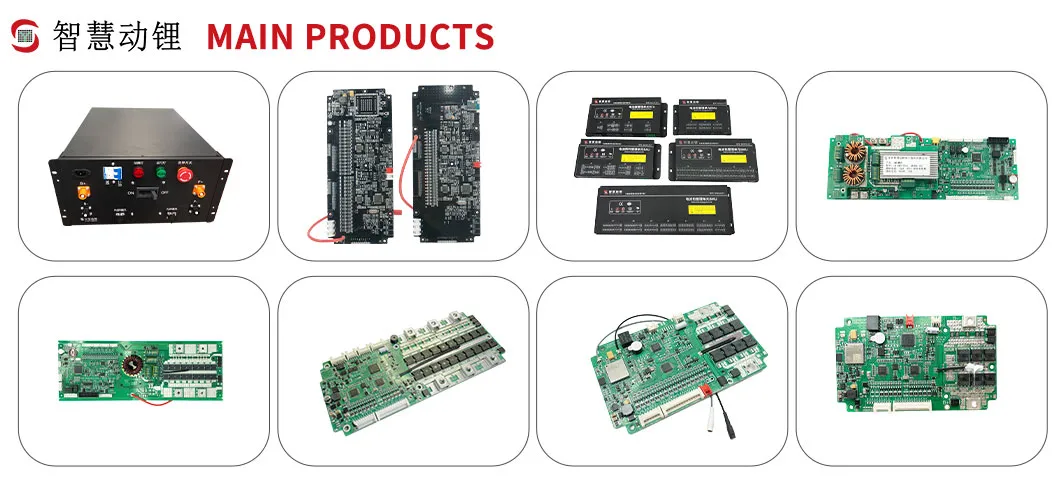

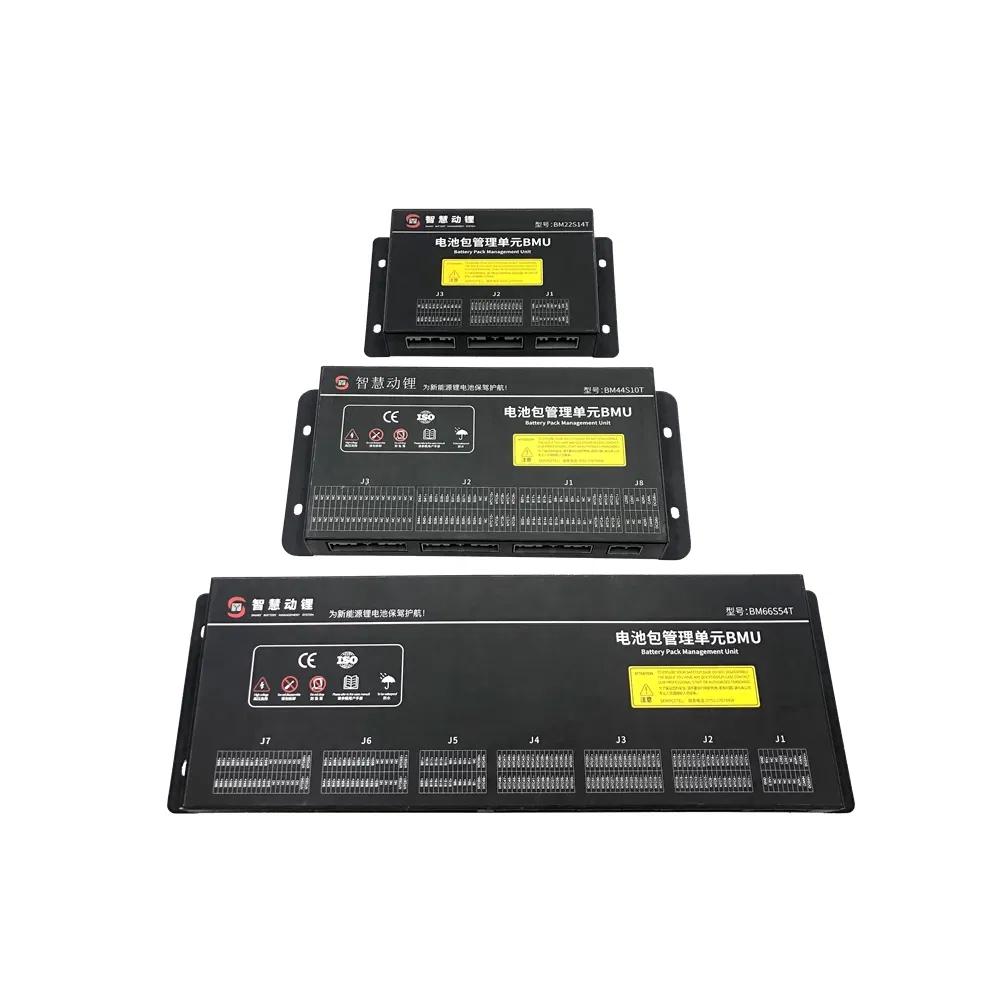

Main Products Range

🏢

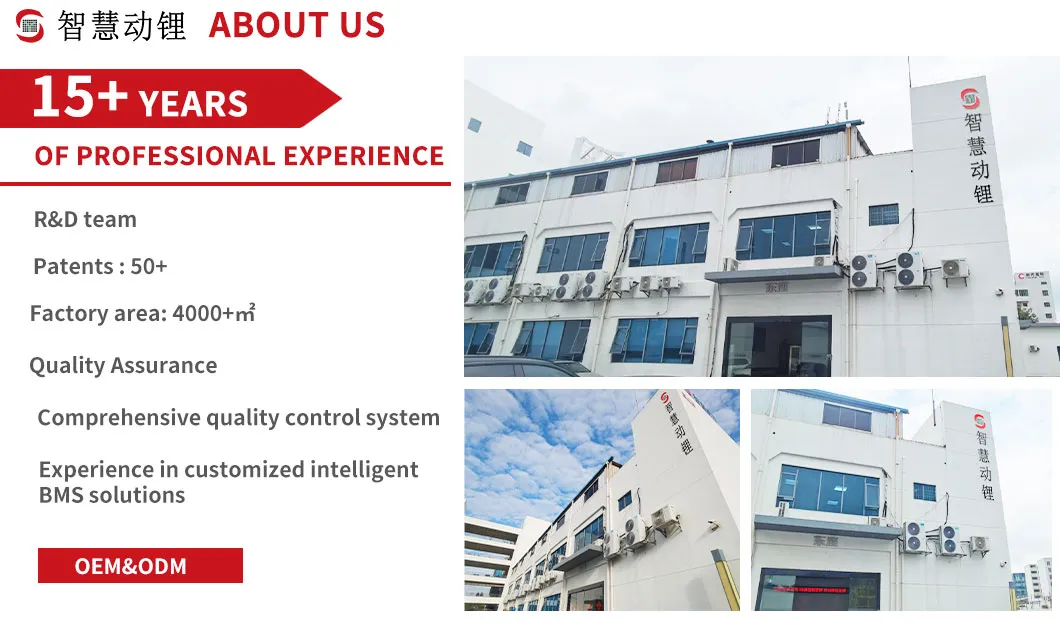

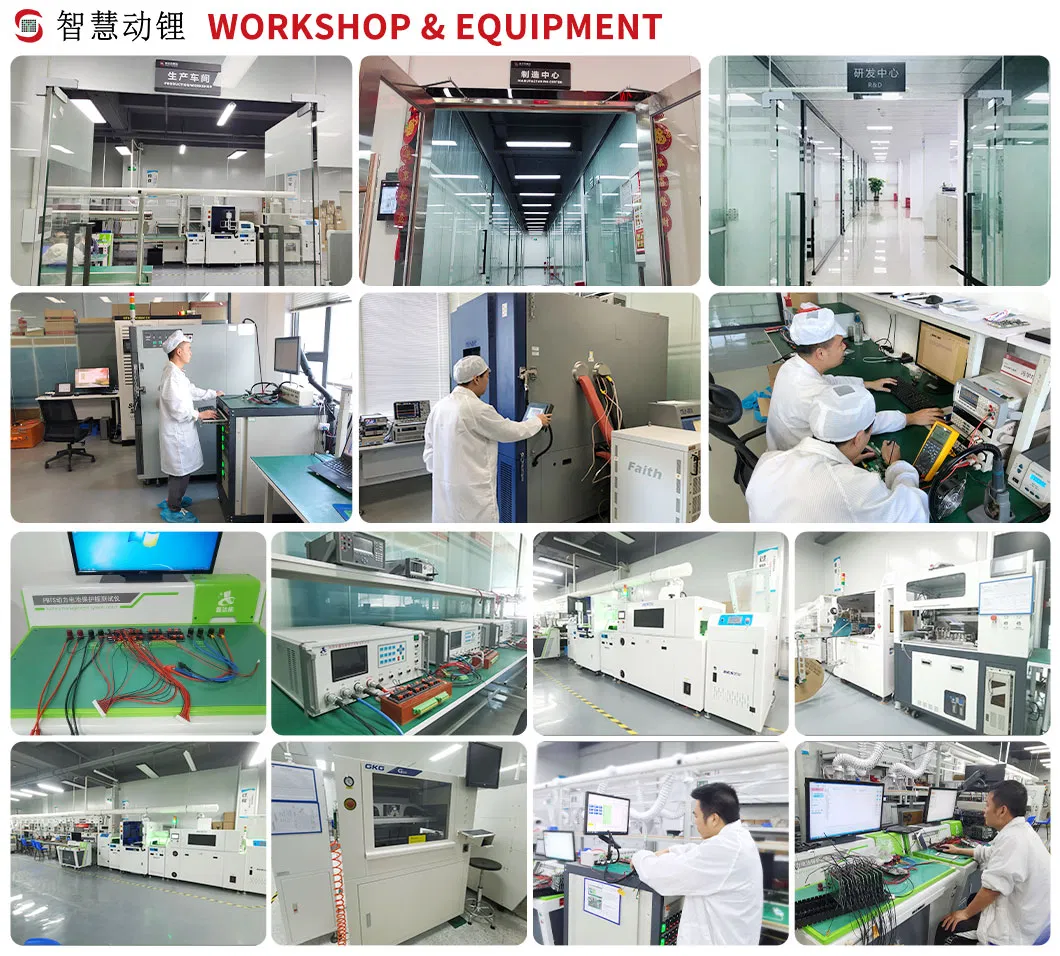

Company Profile

Established in 2011, this leading high-tech enterprise is at the forefront of lithium battery management systems (BMS). Celebrated as a national-level 'Little Giant' for refined and innovative technologies, the mission is to deliver cutting-edge, safe, and efficient lithium battery management solutions worldwide.

The robust R&D team has secured over 50 national patents, pioneering digital and platform-based management of lithium battery safety. The cornerstone of the offerings is the BMS protection board, extensively employed in applications including electric vehicles, forklifts, drones, and large-scale industrial energy storage settings.

📜

Certifications & Exhibitions

📦

Packaging & Shipping

Frequently Asked Questions

Q1: How do I choose the right BMS board? A1: It depends on your cell & battery pack parameters and your application scenarios. Please consult technical support before purchasing.

Q2: What is your factory production capability? A2: Our factory can produce 50,000pcs per month, and capacity can be increased to 100,000pcs within 3 months based on order volume.

Q3: What is the standard delivery time? A3: Standard products are delivered in 7-15 days. For OEM/ODM or large bulk orders, please confirm the schedule with our team.

Q4: Do you provide OEM/ODM services? A4: Yes, we have a strong R&D team and professional equipment. OEM and ODM projects are warmly welcomed.

Q5: What are your shipping terms? A5: We support shipping by air, express (DHL, FEDEX, UPS), or by sea depending on your specific requirements.

Q6: What are the available payment terms? A6: We prefer T/T, though L/C is also acceptable. Please reach out for more detailed payment information.
