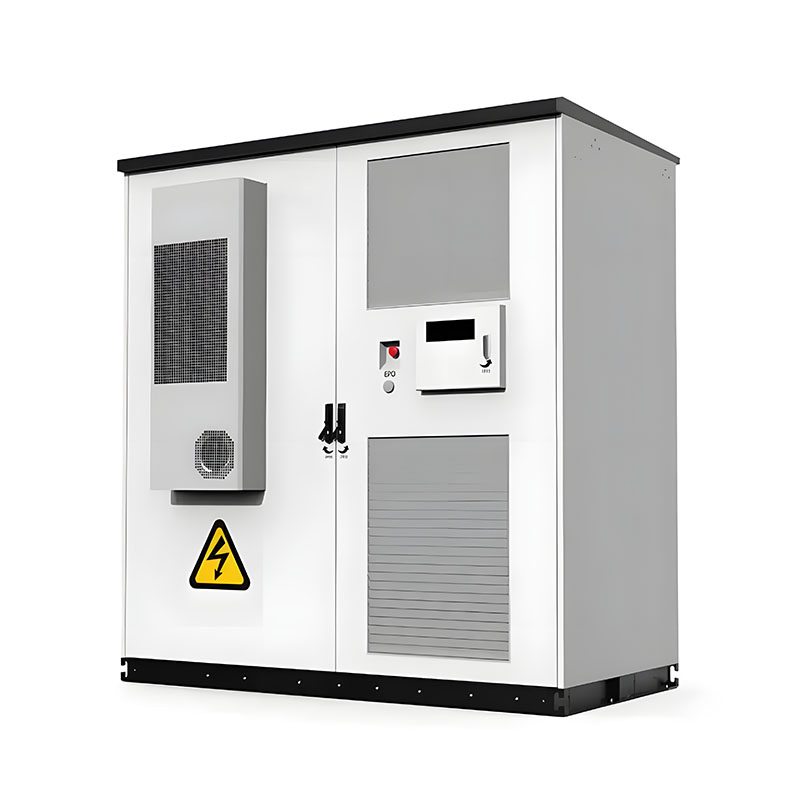

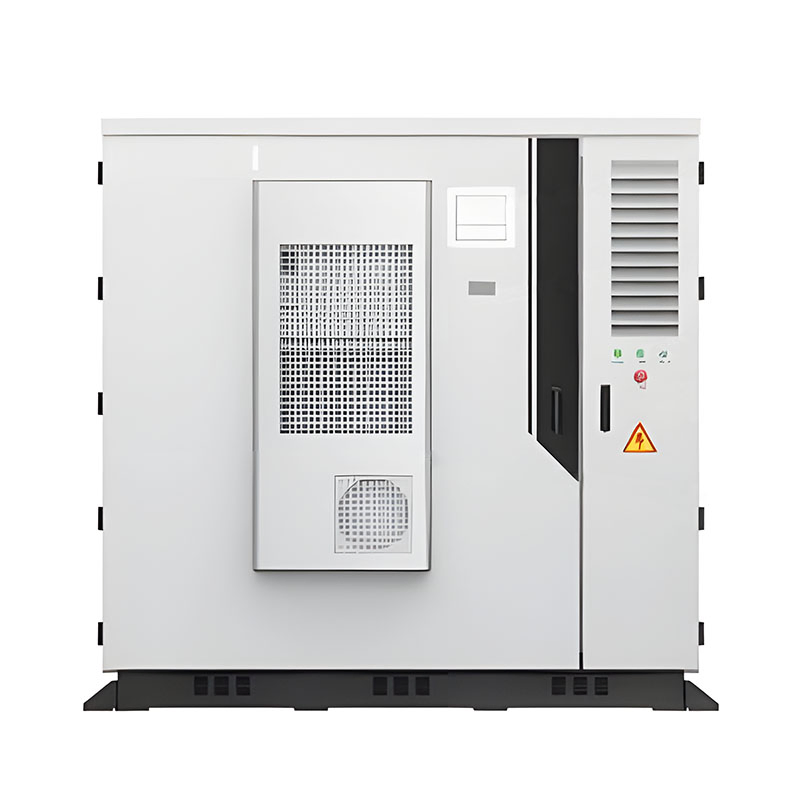

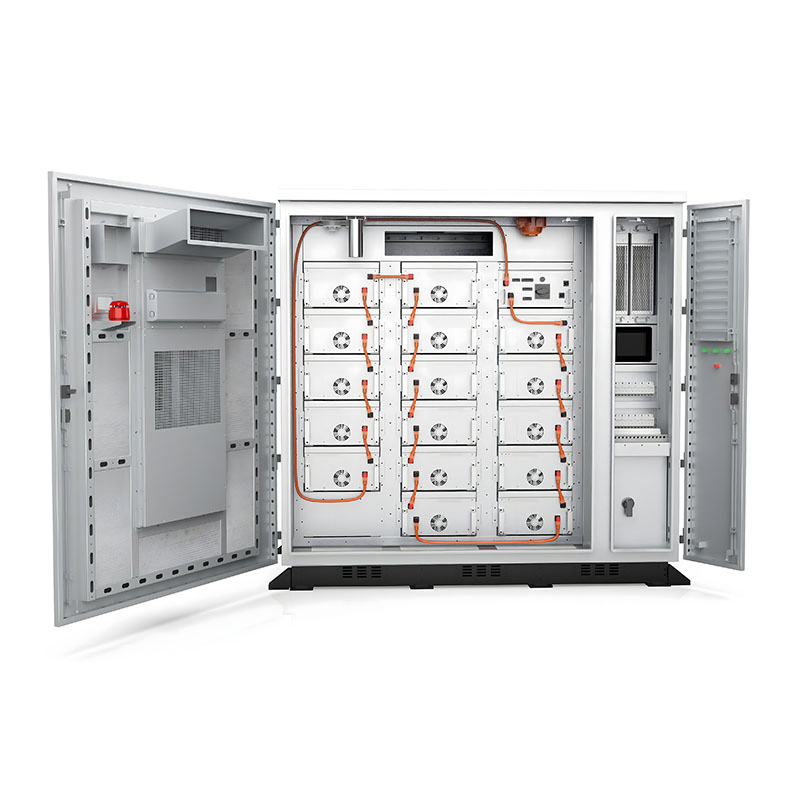

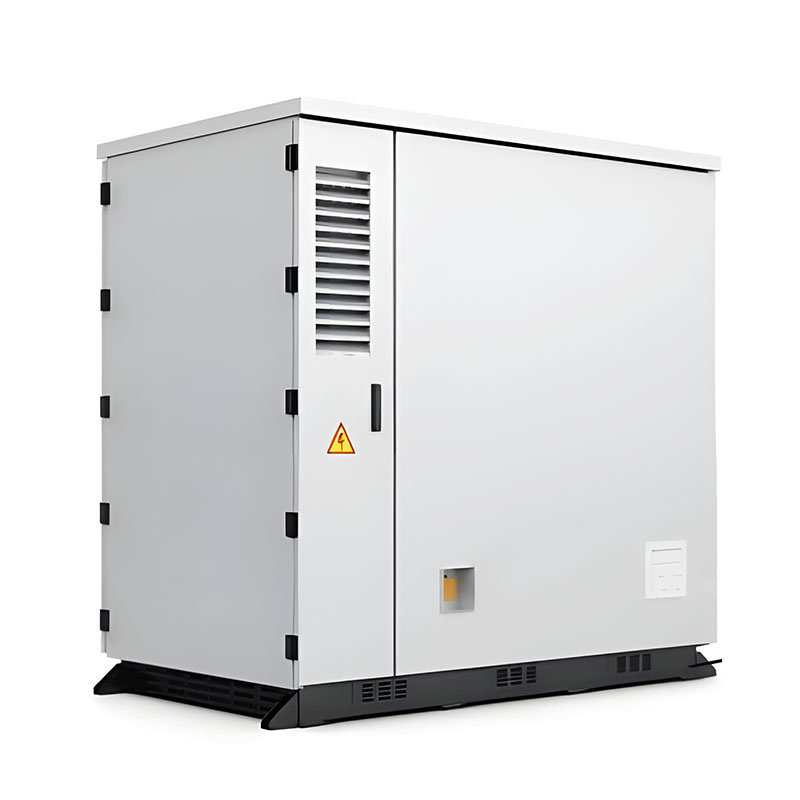

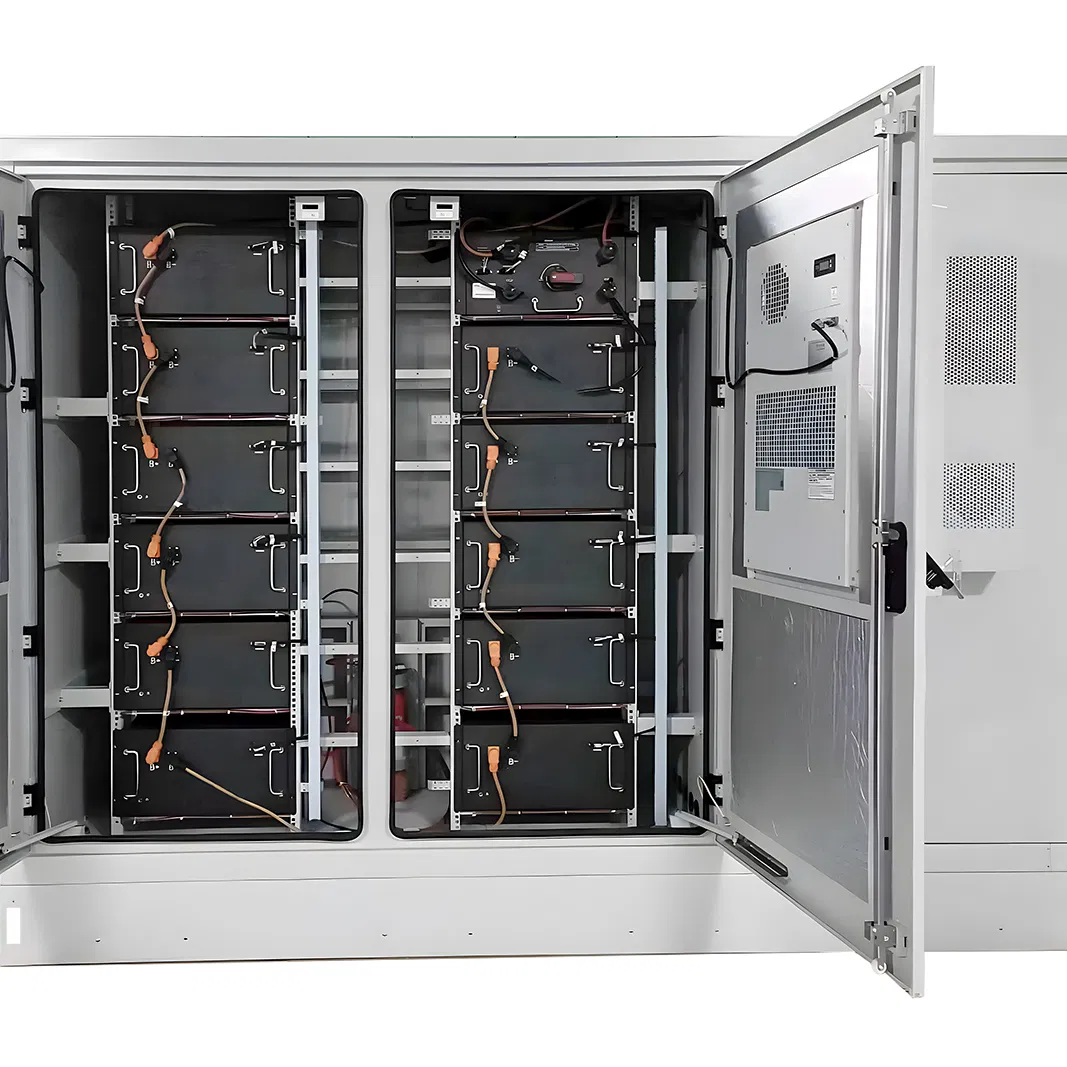

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

1 / 5

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

LiFePO4 Solar Battery Energy Storage System 50kwh 100kwh 215kwh 500kwh 1mwh Bess All in One Container BMS Battery Management System

Customization:	Available
Container Size:	120023501050mm
Weight:	2600kg

Send Inquiry

Product Description

📊

Basic Information

Model NO.

50KW/100KWH

Nominal Voltage

627~806V

Warranty

25 year

Nominal Capacity

380V

Cycle Life

>8000

Working Temp.

-35~55℃

Shift Time

<100ms

Protection

IP55

Altitude

≤2000m

Specification

1200*2350*1050mm

Origin

Guangdong

🔋

Product Description

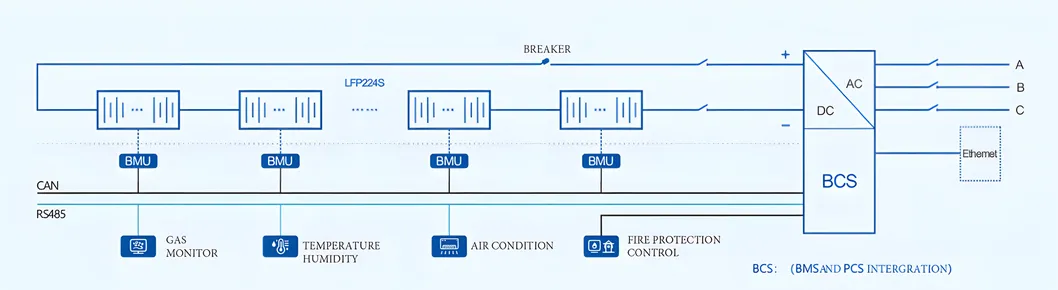

BESS System Overview

📝

Product Parameters

TYPE	50KW/100KWH		100KW/200KWH
CELL	LFP 100Ah		LFP 280Ah
BATTERY SYSTEM	102.4kWh/2P160S		200kWh/1P224S
VOLTAGE RANGE	448~584V		627~806V
TEMP. SENSORS	80		140
OUTPUT POWER	58kW	86kW	58kW	100kW
MAX POWER	62.5kW	103kW	625kW	120kW
THD	<3%
DC COMPONENT	<0.5%lpn
OUTPUT VOLTAGE	380V
POWER FACTOR	-1~1
FREQUENCY	50Hz
MAX EFFICIENCY	≥91%	≥89%	≥91%	≥89%
RATE	≤0.5C	≤0.5C	≤0.25C	≤0.5C
DEPTH OF DISCHARGE	100%DOD
COMMUNICATION	CAN/RS485
COOLING	AIR CONDITION
SIZE(WHD)	140022001050mm		120023501050mm
WEIGHT	1500kg		2600kg

🏗️

Project Case

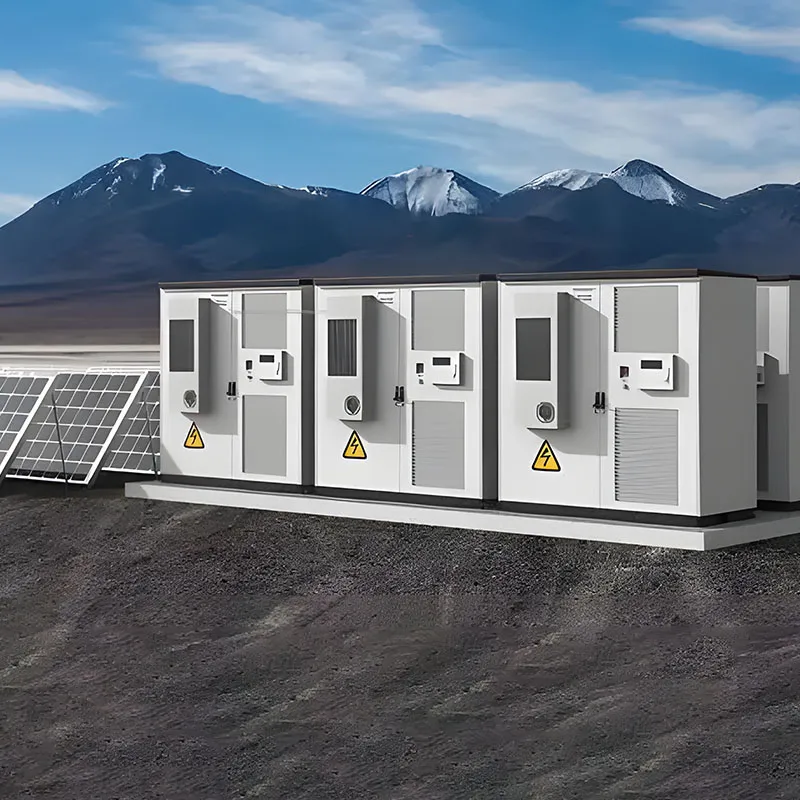

Project Case 1

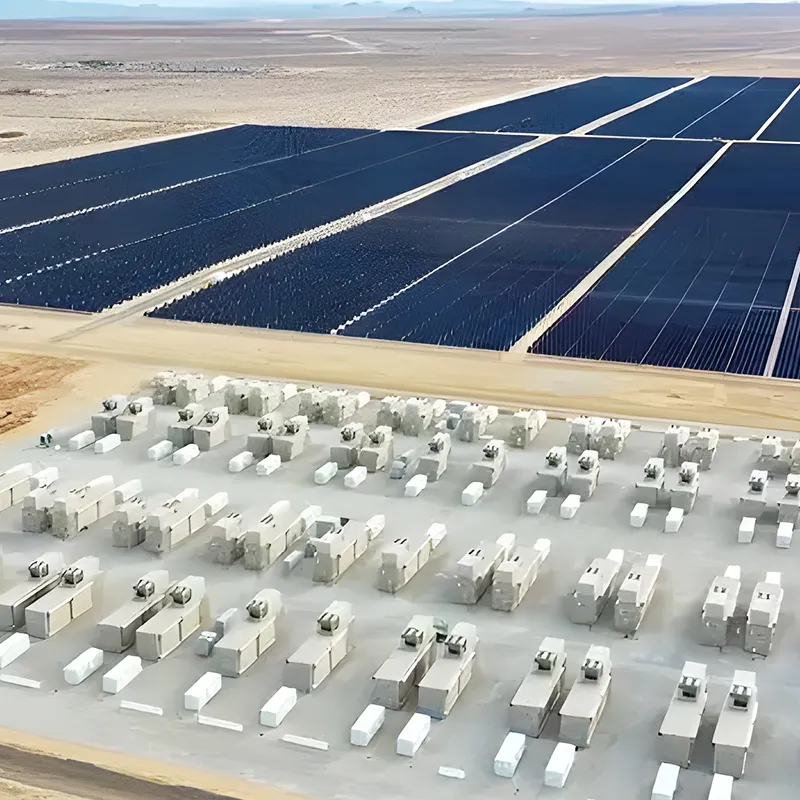

Project Case 2

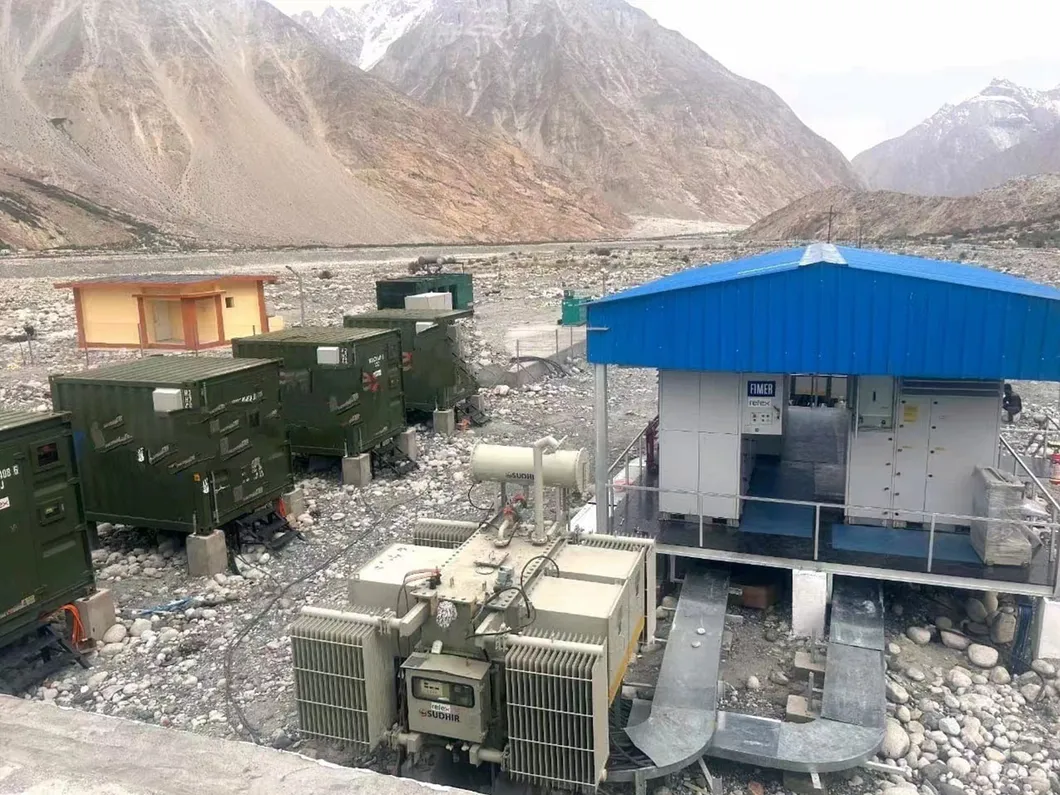

Project Case 3

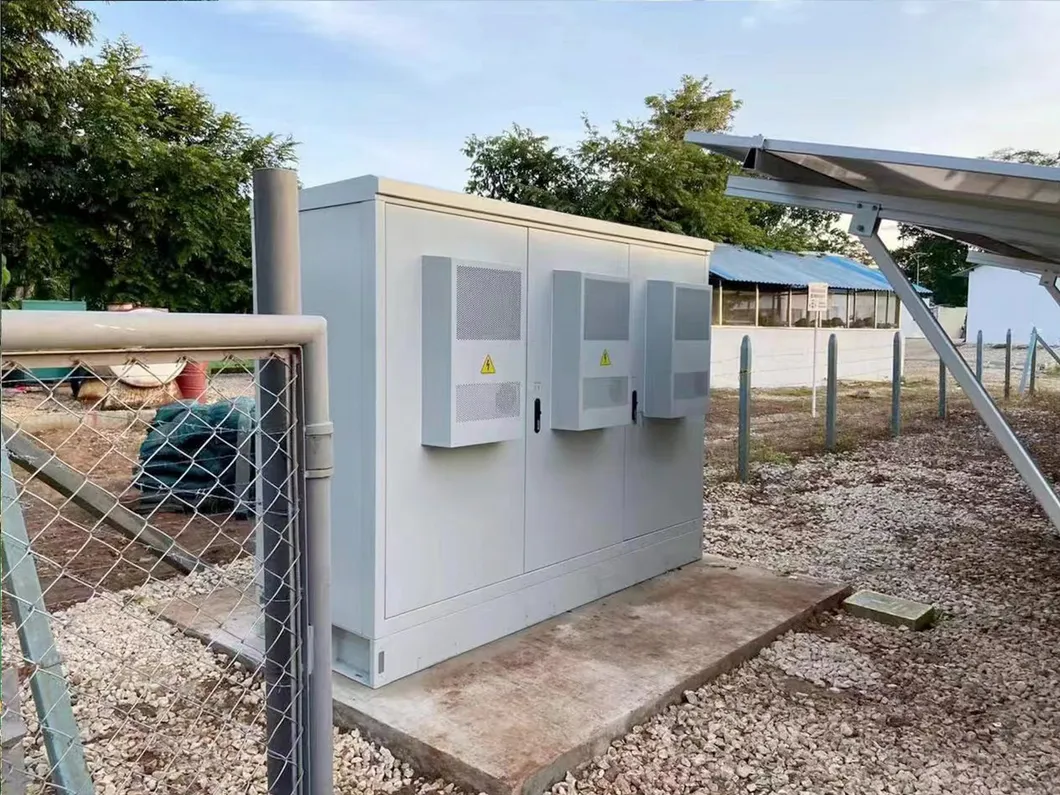

Project Case 4

📦

Packaging & Shipping

Packaging 1

Shipping 1

📜

Certifications

Certifications Display

⭐

Our Advantages

Advantages Chart

👍

Recommend by Seller

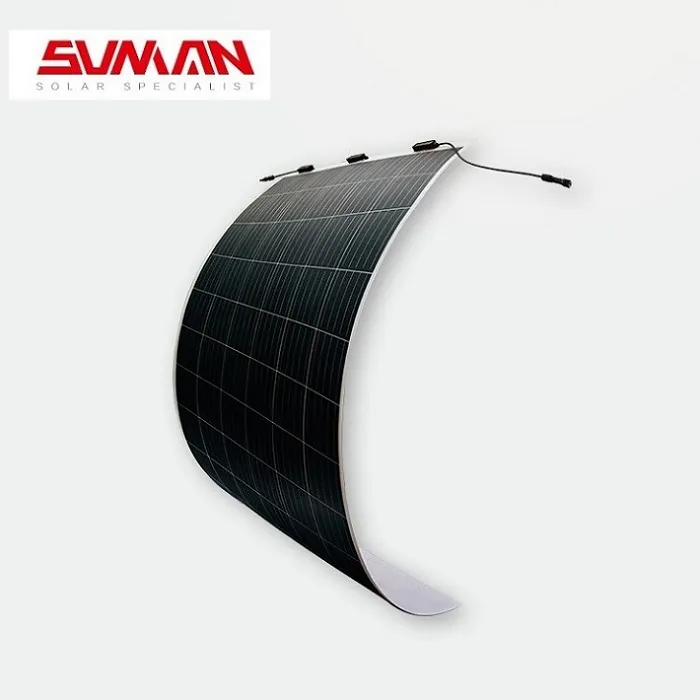

Solar Product 1

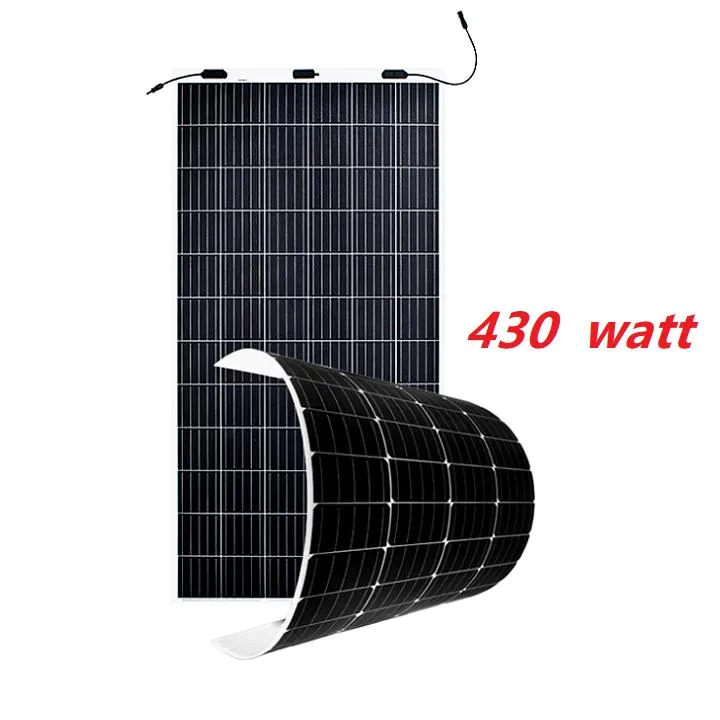

Solar Product 2

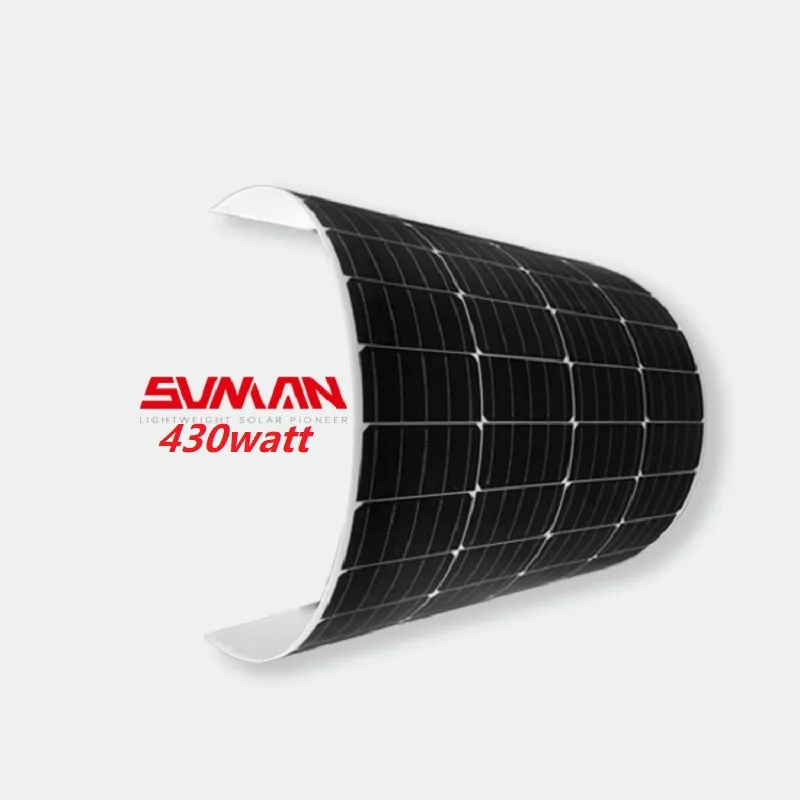

Solar Product 3

🏢

Company Profile

Company Facility 1

Company Facility 2

❓

Frequently Asked Questions

What is the expected cycle life of this energy storage system?

The system features a high-performance LiFePO4 battery with a cycle life of over 8,000 cycles, ensuring long-term reliability.

What kind of warranty is provided?

We offer a comprehensive 25-year warranty, reflecting our confidence in the product's durability and performance.

What is the protection rating for outdoor installation?

The system is rated at IP55, providing excellent protection against dust and water, making it suitable for various environmental conditions.

What are the operating temperature ranges?

The system is designed to operate efficiently in temperatures ranging from -35℃ to 55℃.

How fast can the system shift during a power transition?

The shift time is less than 100ms, ensuring a quick and stable transition for your energy needs.

What communication protocols does the system support?

The system supports standard industrial communication protocols including CAN and RS485 for seamless integration.
