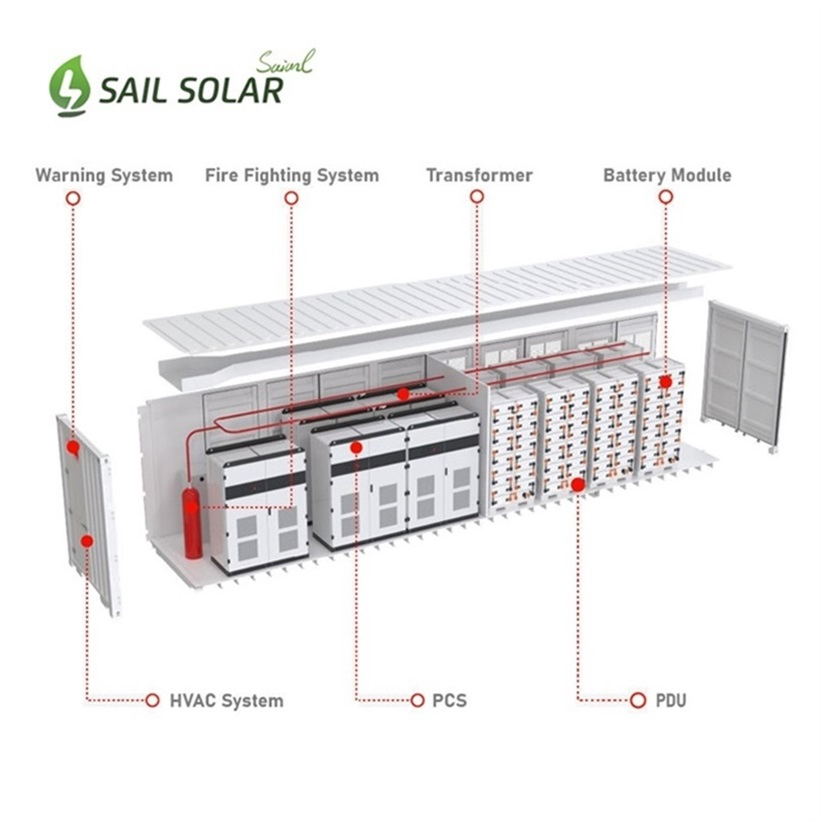

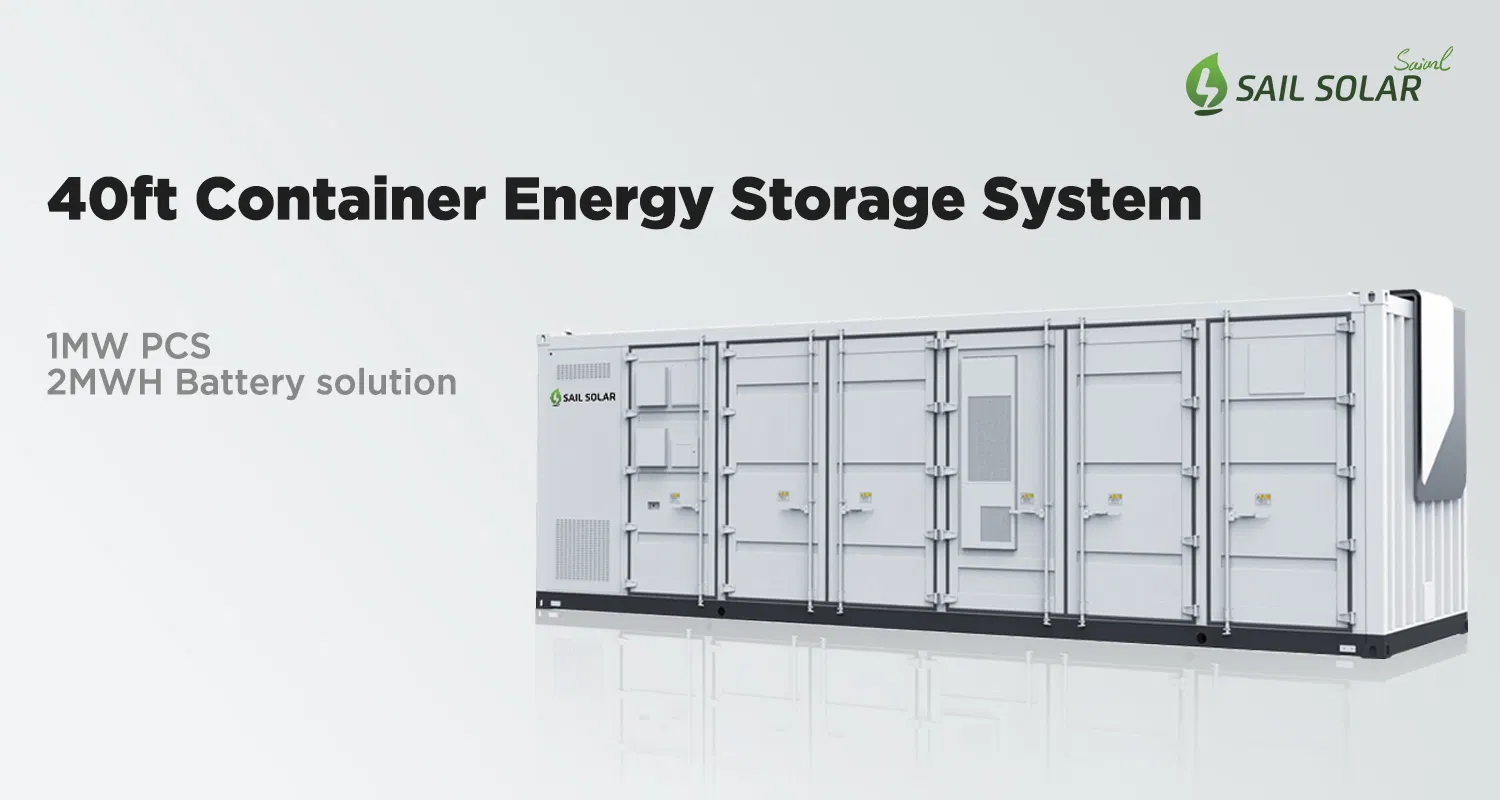

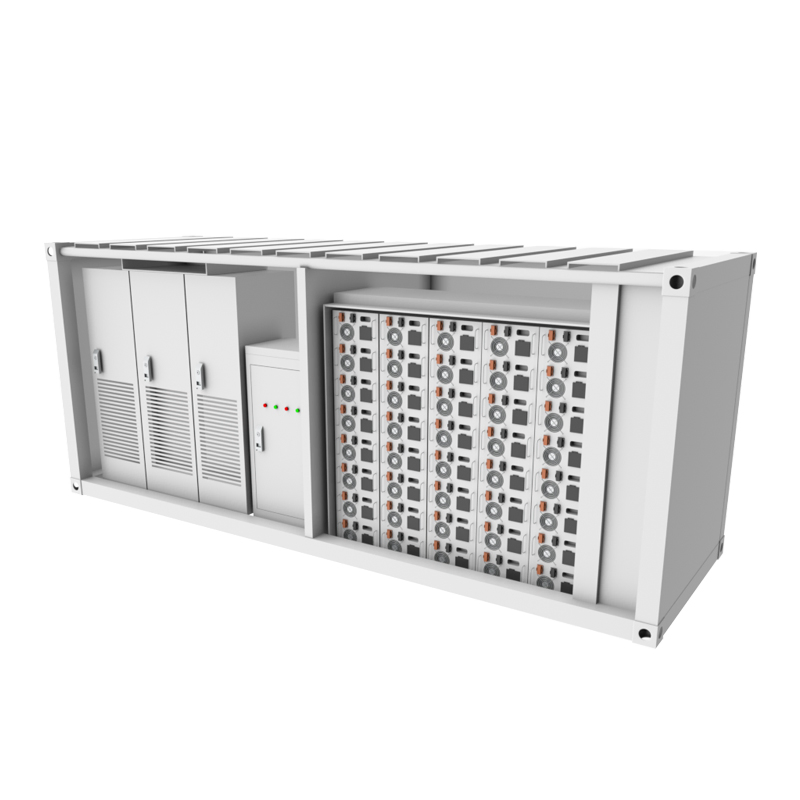

| 40ft Container ESS Specifications | |
|---|---|
| Model number | BESS-P2000 |
| Battery cluster (kwh) | 2007kWh |
| PCS | 500kW *2 (Megarevo, Atess, Sinexcel, etc) |
| Battery management system | Three-tier architecture (BMU, BAU, BCU), High voltage box 200a |
| Convergence and control cabinet | 1kva ups, 500w 24v power supply, 630A DC molded case circuit breaker |
| Protection level | IP54 |
| Cooling method | Air cooling (refrigeration, ventilation, heating) |
| Fire protection system | Integrated |
| Communication | RS485, CAN |
Note: This system is a 100% customized solution; the above list is for reference only.

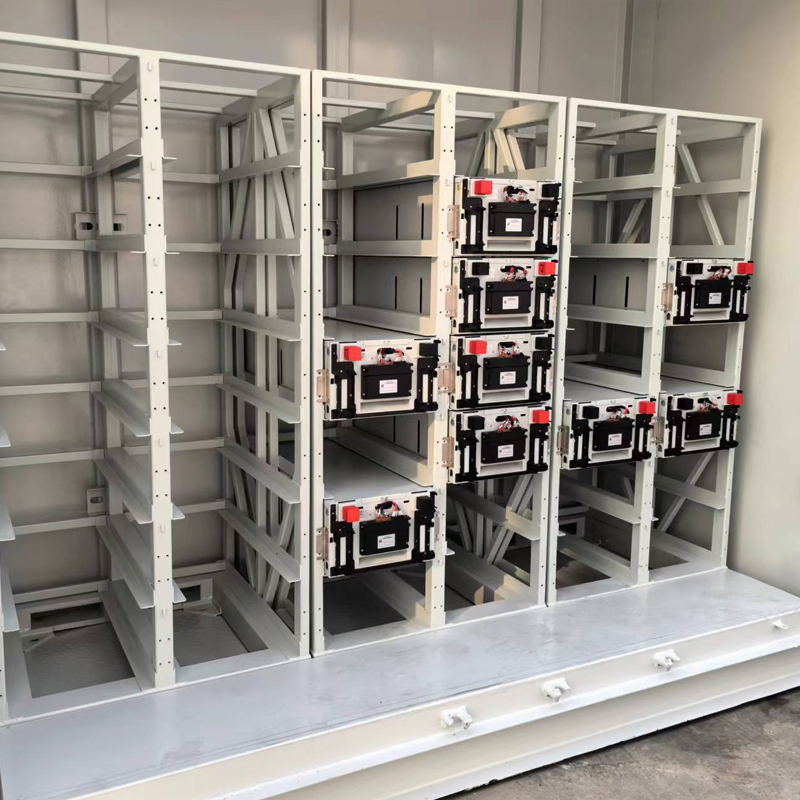

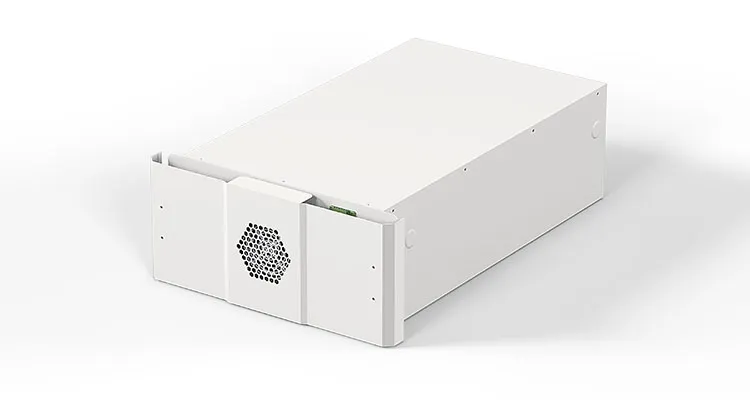

Lithium Battery Module

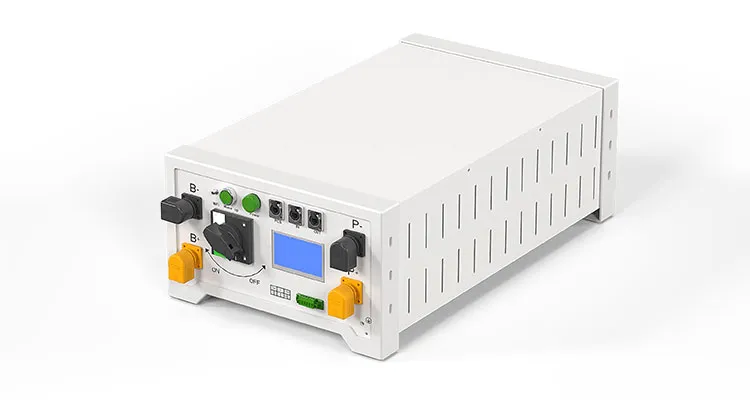

BPU Box Features

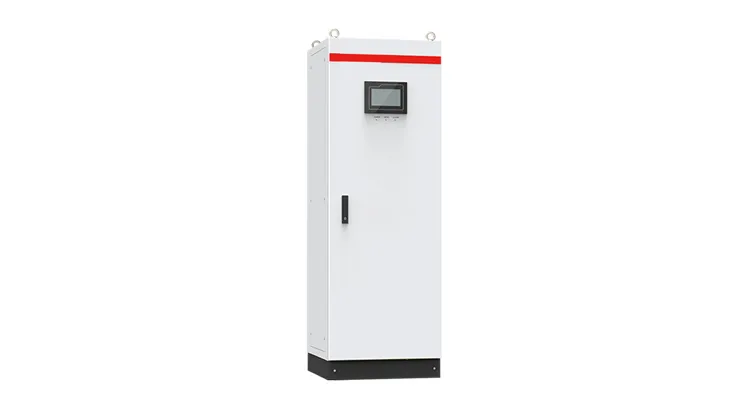

DC Combiner Cabinet
Connects battery clusters in parallel and outputs current to the PCS. Monitors output voltage, current, and insulation status while communicating with the BMS.

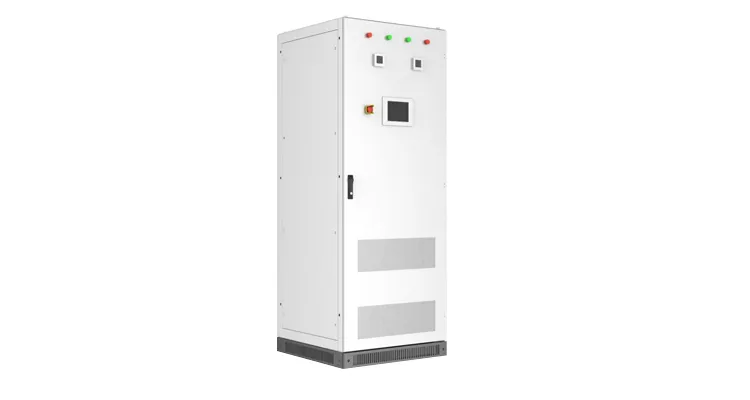

EMS (Energy Management System)
Central control unit coordinating all components to optimize performance, safety, and economic efficiency through real-time data analysis.

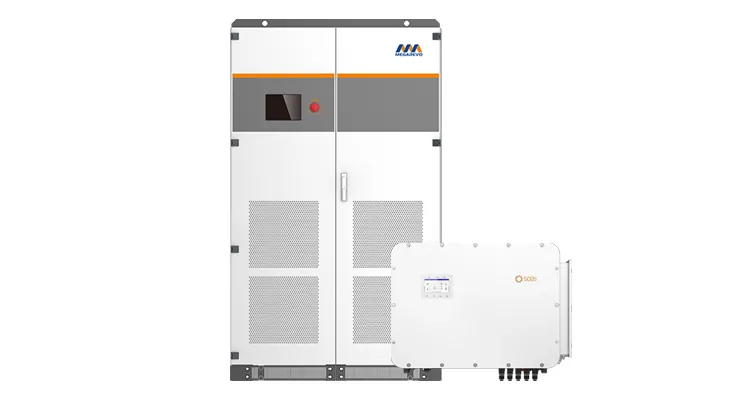

Power Conversion System (PCS): Megarevo PCS, 500KW power. Other brands are optional based on requirements.

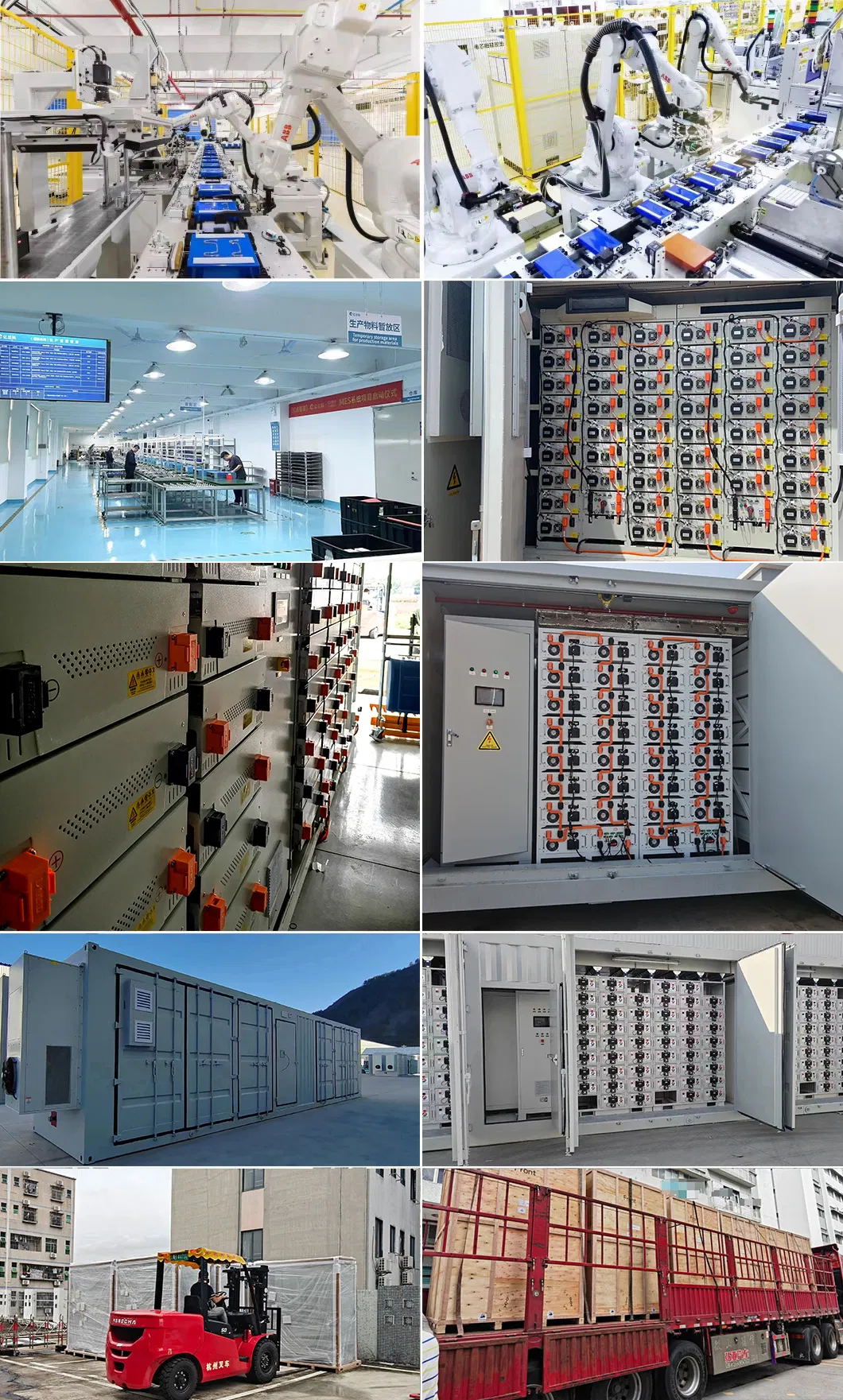

The facility utilizes an industry-leading intelligent manufacturing system, employing technologies such as AI, image recognition, machine learning, and 5G to ensure world-class production automation and efficiency.
Our systems have successfully passed testing and received certifications including IEC62619, IEC/EN60730, UL1973, and CE-EMC.
Participating in more than 20 exhibitions worldwide each year, spanning Asia, Europe, and the Americas.
We provide comprehensive energy storage systems for industry and commerce, with both Air-cooling and Liquid-cooling types available as options.
