3.6V Disposable Cylindrical Non-Rechargeable Primary Lithium Battery Er14505 AA Industrial Battery

1 / 5

3.6V Disposable Cylindrical Non-Rechargeable Primary Lithium Battery Er14505 AA Industrial Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦 Basic Information

Model NO.

ER14505 / ER14505M

Size

Type

Primary Lithium Battery

Recycling

Recyclable

Certification

CE, RoHS, SGS, ISO9001, UN38.3

Capacity

20,000 PCS/Day

HS Code

806500000

Transport

Carton / Non-restricted

📝 Product Description

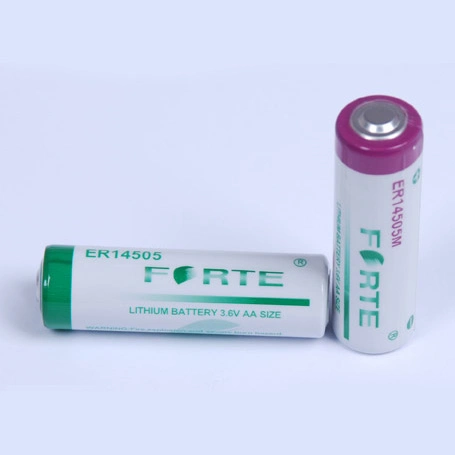

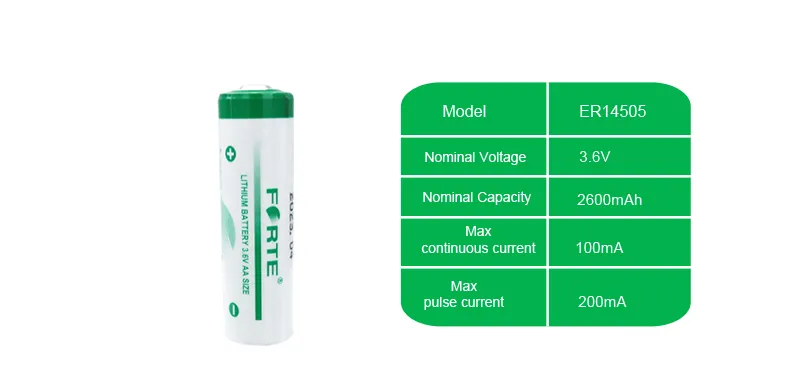

ER14505 (AA)

Nominal capacity: 2400mAh

Nominal voltage: 3.6V

Max. Constant: 100mA

Max. Pulse: 200mA

Weight: 19g

Temp Range: -55~+85°C

ER14505M (AA)

Nominal capacity: 2000mAh

Nominal voltage: 3.6V

Max. Constant: 400mA

Max. Pulse: 800mA

Weight: 19g

Temp Range: -55~+85°C

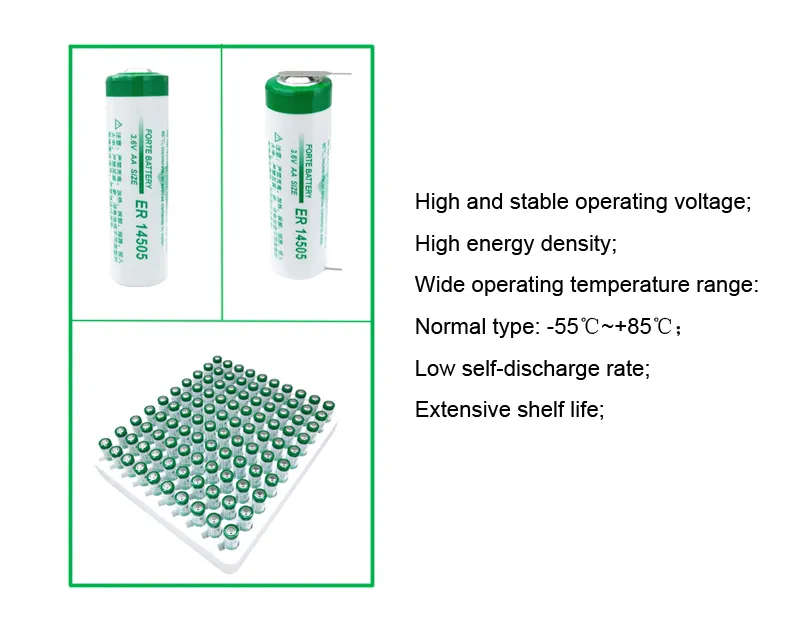

⭐ Key Characteristics

⚡
High and stable operating voltage
📈
Superior voltage response during pulsing
🔋
Low self-discharge rate (less than 1% after 1 year of storage at 20°C)
🛡️
Non-flammable inorganic electrolyte
✈️
Non-restricted transport compliance

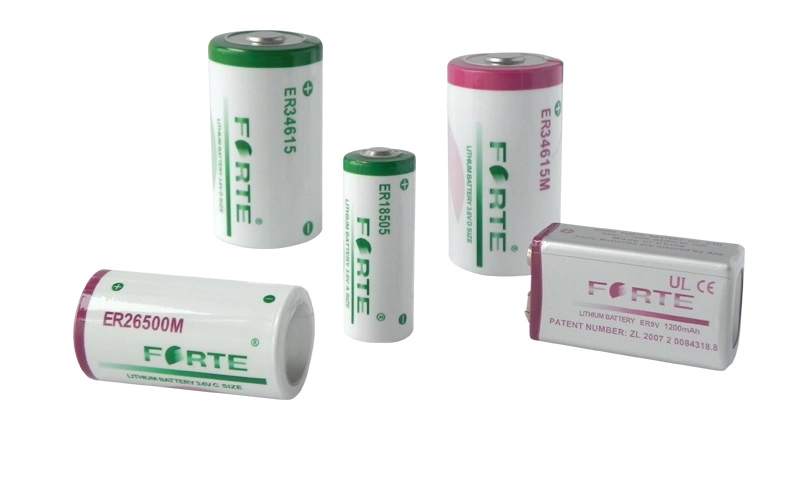

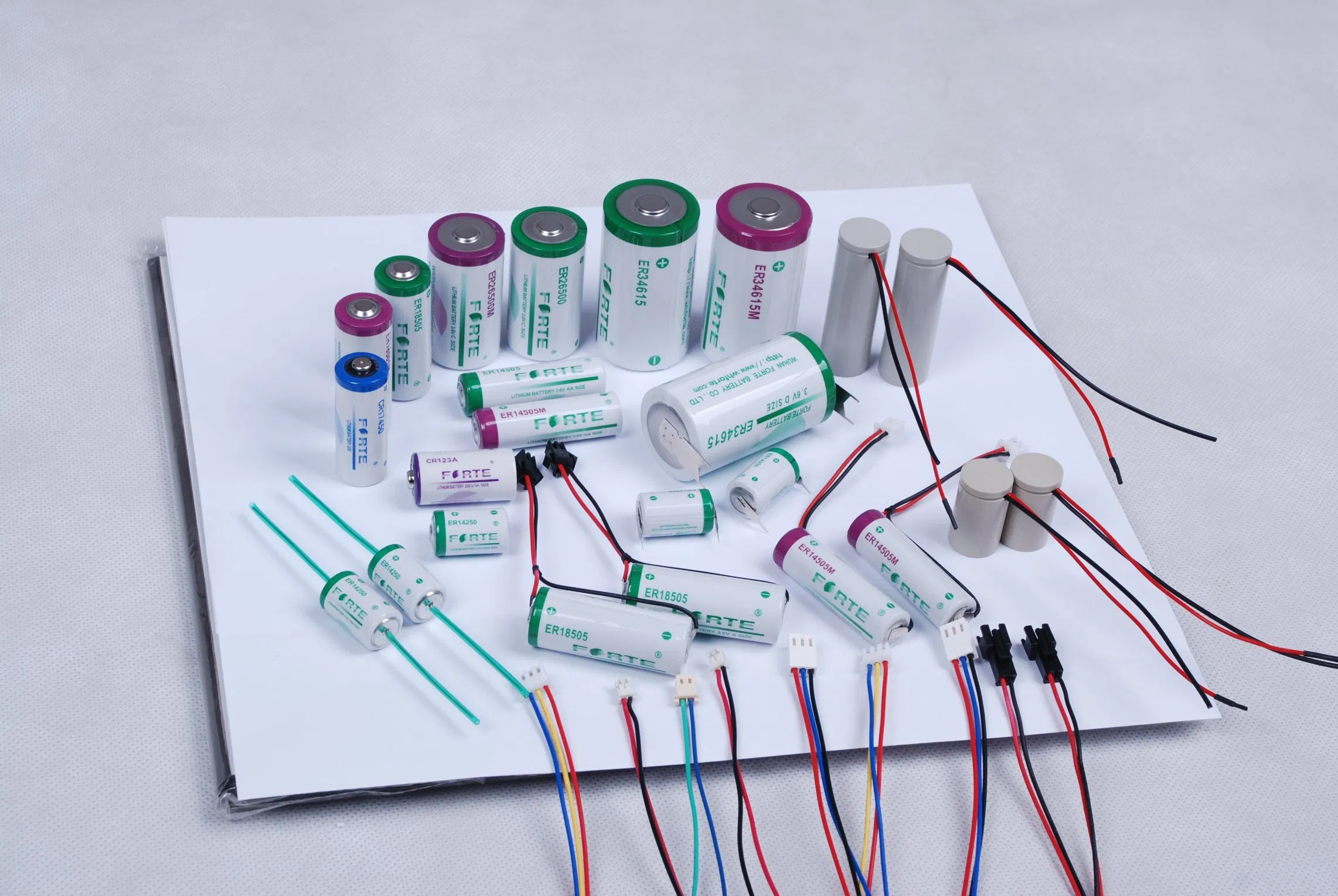

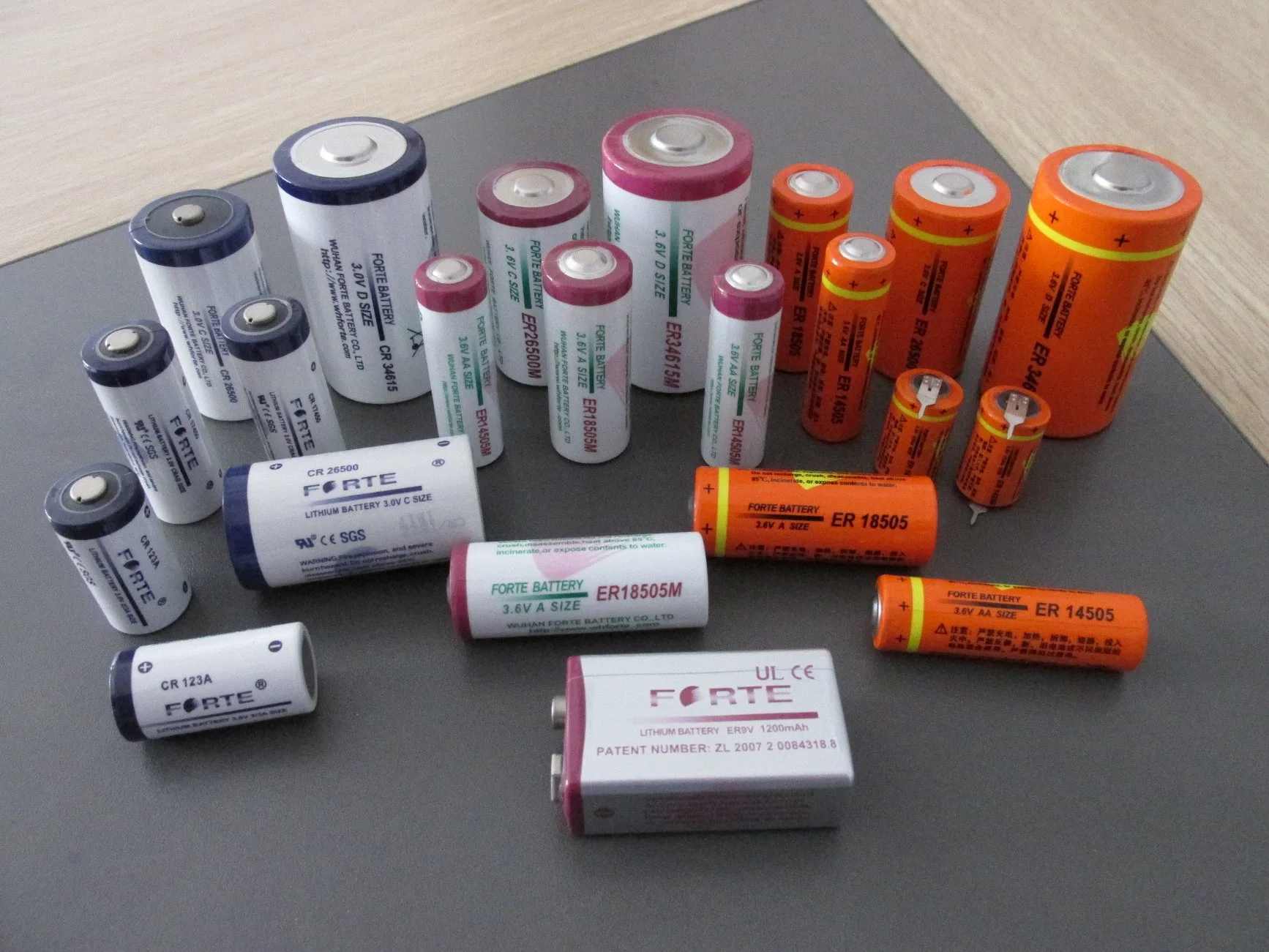

🖼️ Product Showcase

📊 Comparison Specifications

Model	Cell Size Ref	Nominal Voltage (V)	Nominal Capacity (mAh)	Max Constant Current (mA)	Max Pulse Current (mA)	Dimension (mm)
ER14250	1/2AA	3.6	1200	25	50	Φ14.5*25.0
ER14335	2/3AA	3.6	1650	75	150	Φ14.5*33.5
ER14505	AA	3.6	2500	100	200	Φ14.5*50.5
ER17335	2/3A	3.6	2200	100	200	Φ17*33.5
ER17505	A	3.6	3500	100	200	Φ17.5*50.5
ER18505	A	3.6	4000	130	200	Φ18.5*50.5
ER26500	C	3.6	8500	200	400	Φ26.2*50
ER34615	D	3.6	19000	230	400	Φ34.2*61.5
ER261020	CC	3.6	17000	200	400	Φ26.2*100
ER341245	DD	3.6	35000	400	600	Φ34.2*125
ER9V	-	10.8	1200	25	50	Φ261748.8

❓ Frequently Asked Questions

What is the difference between ER14505 and ER14505M?

ER14505 is a high-capacity type suitable for low-current discharge, while ER14505M is a power-type battery designed for higher constant and pulse current applications.

Are these batteries rechargeable?

No, these are primary lithium-thionyl chloride (Li-SOCl2) batteries and are non-rechargeable.

What is the shelf life of the ER14505 battery?

Due to its very low self-discharge rate (less than 1% per year at 20°C), it has a long shelf life, often exceeding 10 years under proper storage conditions.

Can these batteries operate in extreme temperatures?

Yes, they are designed for industrial use with a wide operating temperature range from -55 Celsius degree to +85 Celsius degree.

Are there any transport restrictions for these batteries?

These batteries are classified as non-restricted for transport, making them easier to ship internationally.

What certifications do these batteries hold?

Our batteries are certified with CE, RoHS, SGS, ISO9001, and UN38.3, ensuring safety and quality standards.
