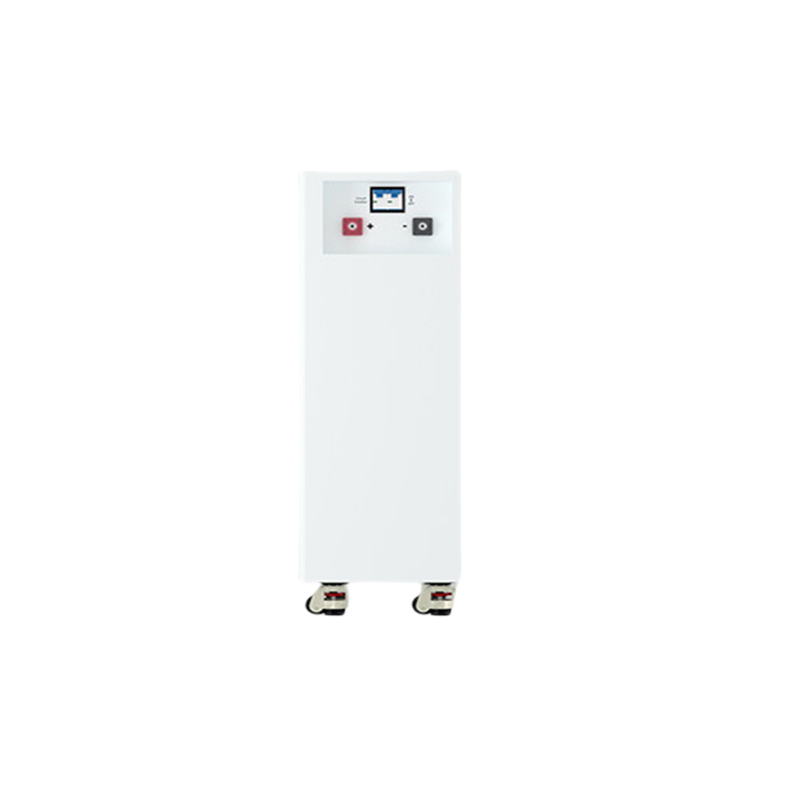

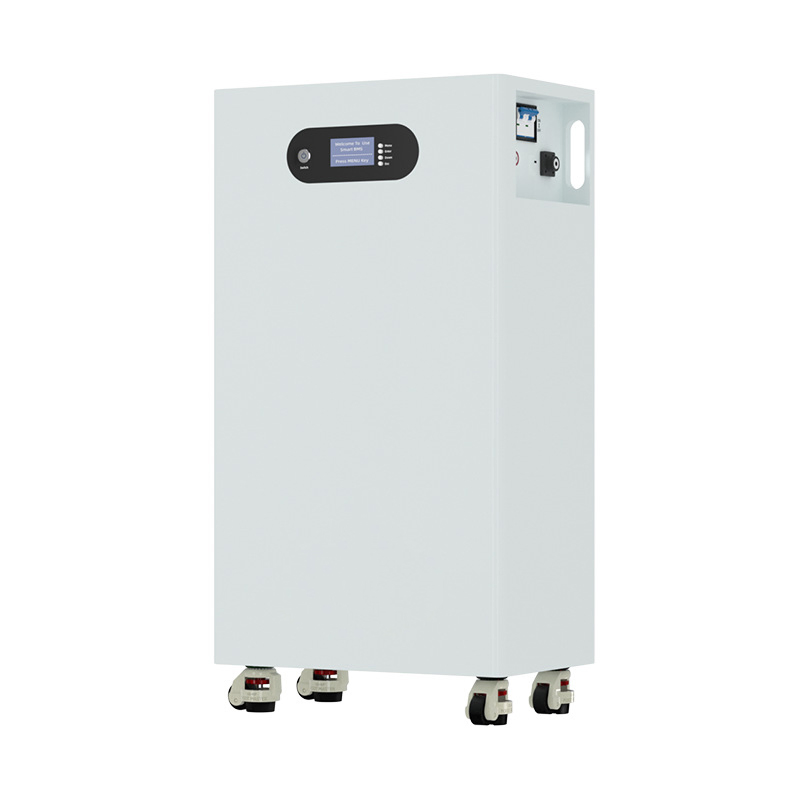

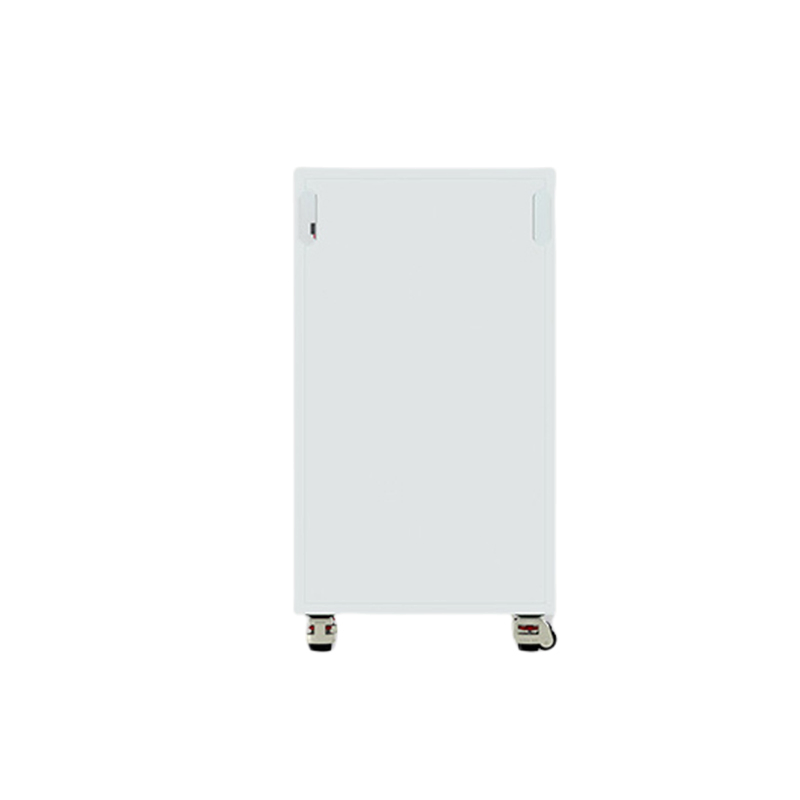

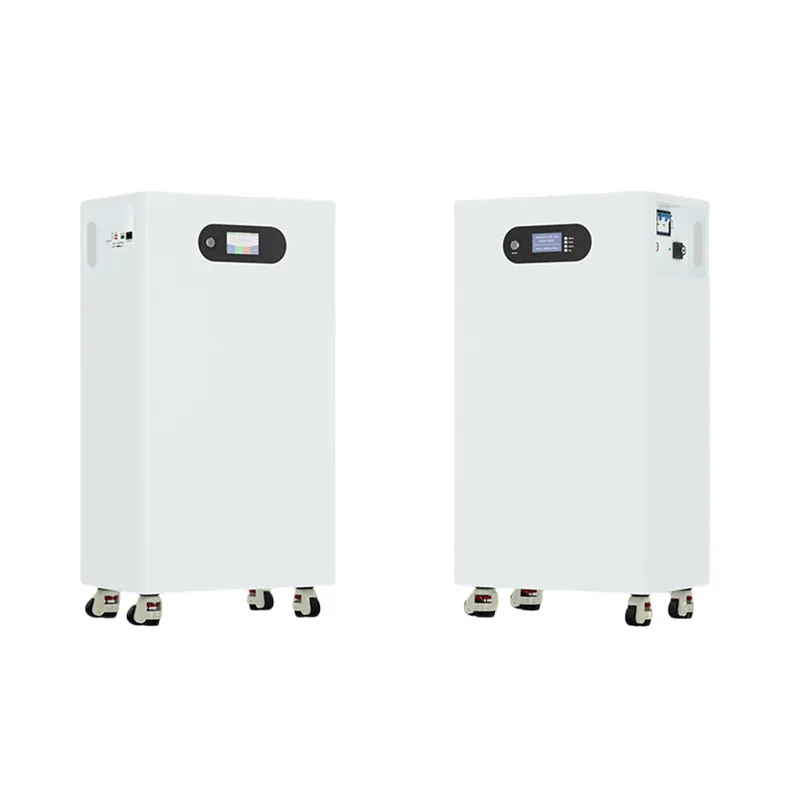

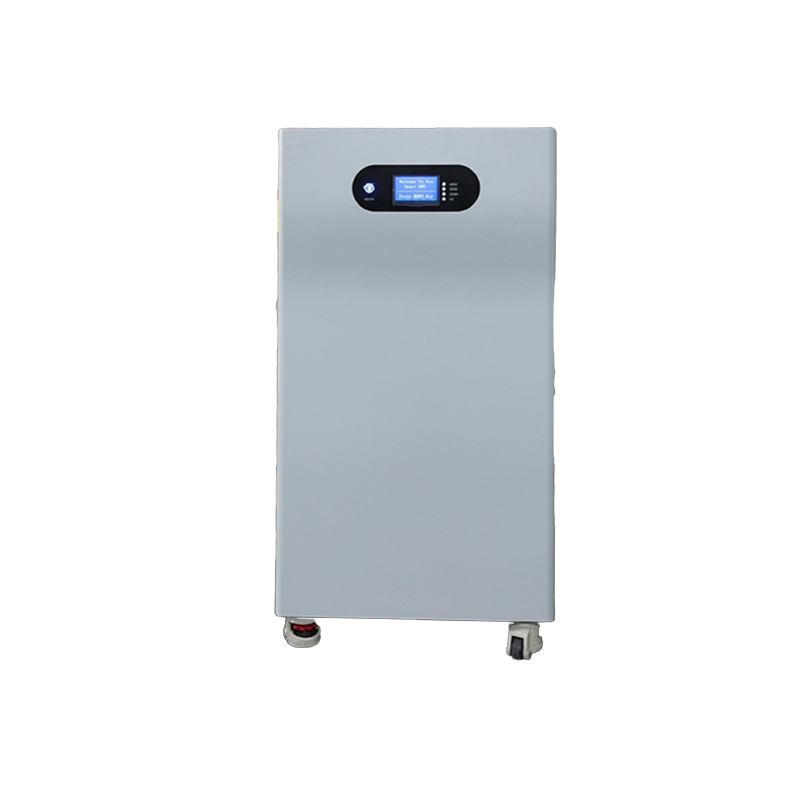

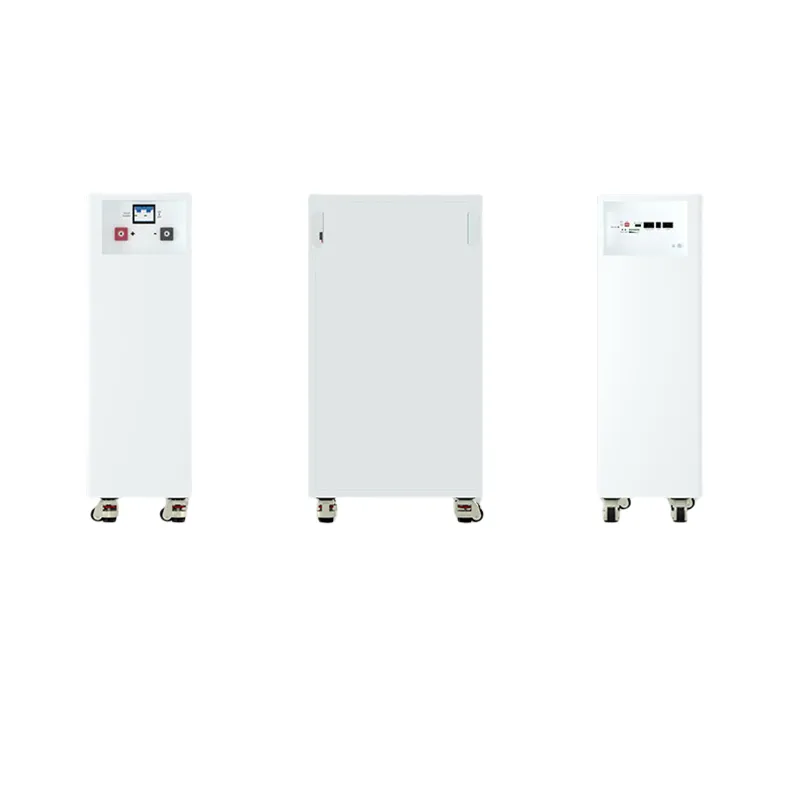

Vertical Energy Storage Battery 15kWh Lithium Iron Phosphate (LiFePO4)
This 15kwh home storage energy system is available in 280Ah and 300Ah options at 51.2V. Featuring a built-in 5.5KW inverter, it is designed for safety, reliability, and ease of installation. With advanced hardware and software protection, this unit offers a long service life and seamless capacity expansion, making it ideal for off-grid and hybrid solar applications.
| Model | Nominal Voltage | Nominal Capacity | Method | Cell Type | Cycle Life | Charge Voltage | Current (Charge/Dis) | Weight | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| 51.2V280Ah | 51.2V | 280Ah | 16S1P | A Grade Prismatic | 6000+ | 40V-58.4V | 100A / 200A | 120kg | 5 Years |
| 51.2V300Ah | 51.2V | 300Ah | 16S1P | A Grade Prismatic | 6000+ | 40V-58.4V | 100A / 200A | 121kg | 5 Years |
| 51.2V314Ah | 51.2V | 314Ah | 16S1P | A Grade Prismatic | 6000+ | 40V-58.4V | 100A / 200A | 122kg | 5 Years |
| 51.2V560Ah | 51.2V | 560Ah | 16S2P | A Grade Prismatic | 6000+ | 40V-58.4V | 100A / 200A | 247kg | 5 Years |

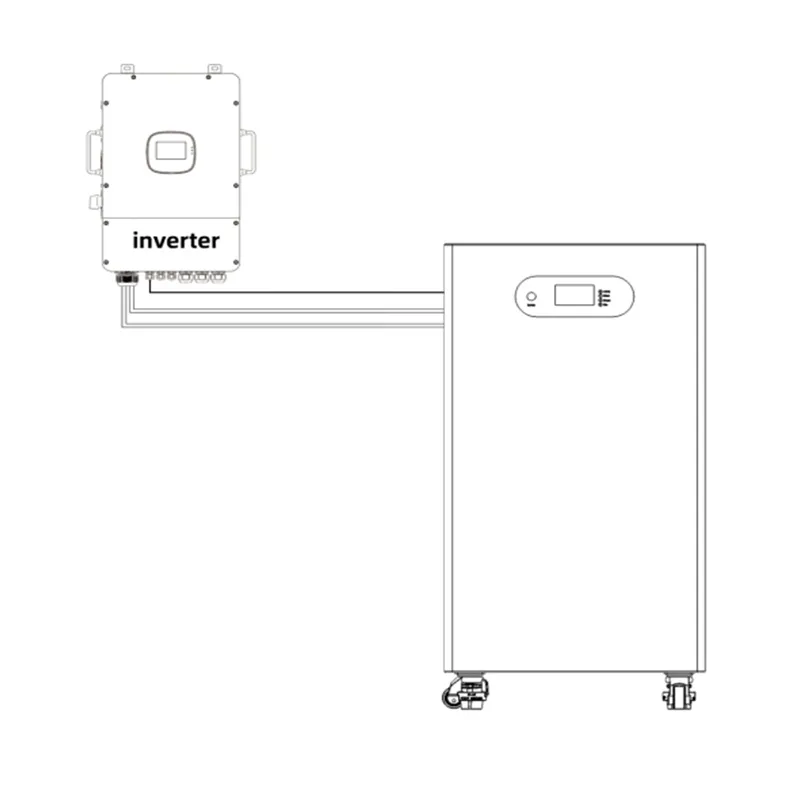

* Adapted to major hybrid and off-grid inverter brands globally. Please ensure correct polarity during installation.

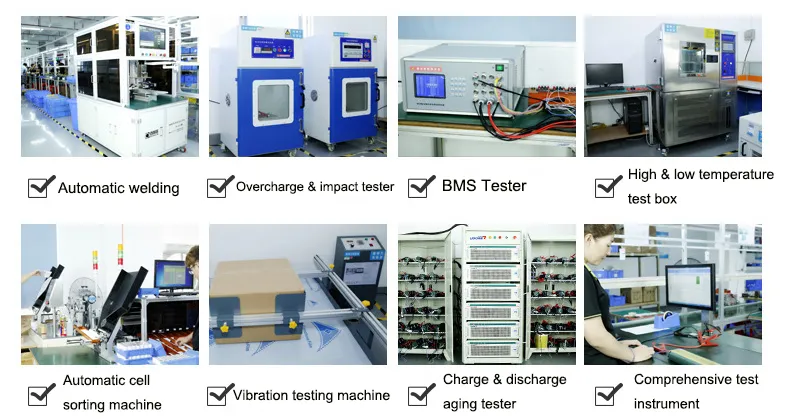

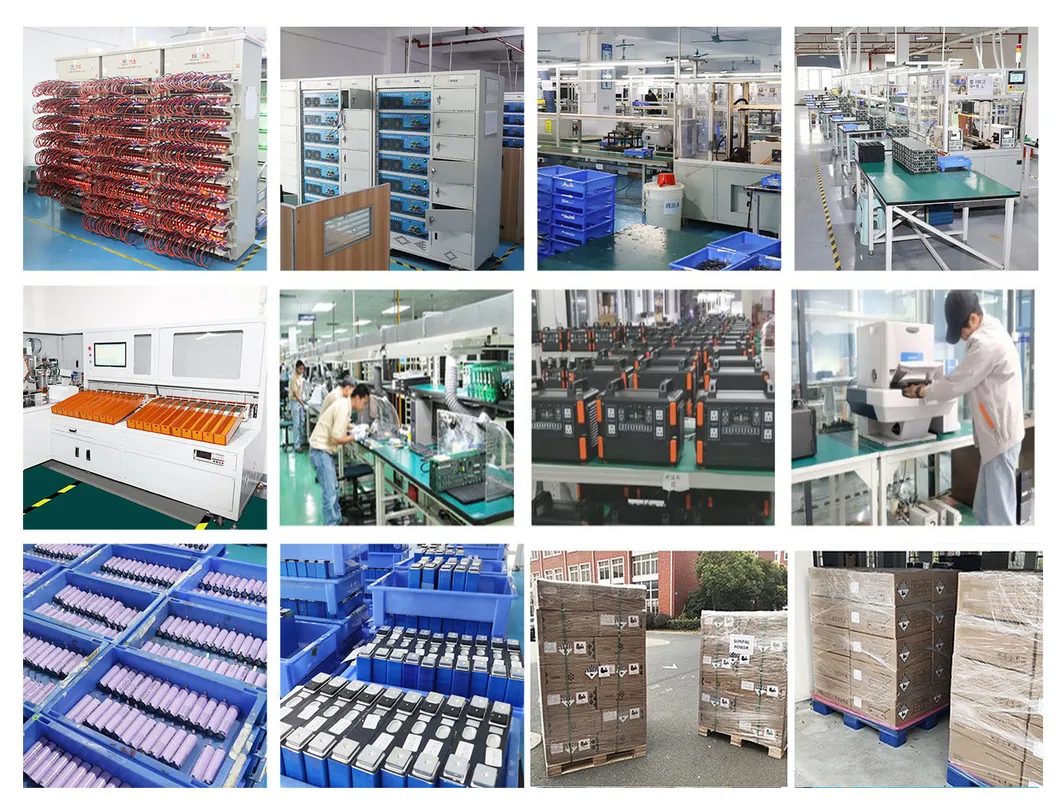

Since 2011, the facility has focused on one-stop customization for lithium battery products, including electric vehicle batteries, large energy storage systems, and smart home solutions. Utilizing over 30 types of high-quality cells, OEM packs are produced ranging from 12V to 800V. Advanced automated equipment from Korea and Germany ensures consistent quality, backed by ISO 9001, ISO 14001, and OHSAS 18001 certifications.
