Nominal Voltage: 220V
Warranty: No
Nominal Capacity: No
Send Inquiry

Product Description

Basic Information

Model NO.
A4
Max. Input Power
4.5 Kw
Start-up Input Voltage
100 V
Max. Input Voltage
550 V
MPPT Max. Input Current
16/16 a
Rated Grid Frequency
50/60 Hz
Origin
China
HS Code
8504401400

Product Description

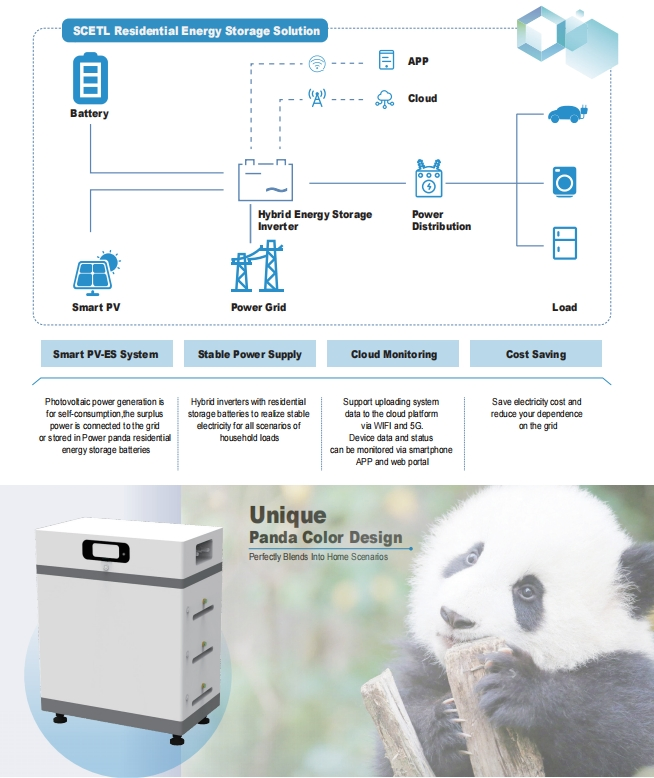

Residential energy storage adopts standardized and modular design. Multiple energy storage modules can be operated in parallel to achieve flexible expansion and meet the differentiated needs of various users. It helps users build a flexible, economical, safe and reliable household power grid system and realize the optimal power supply. Realizing a green, low carbon, and economical power supply.
Solar Energy Storage Battery Overview

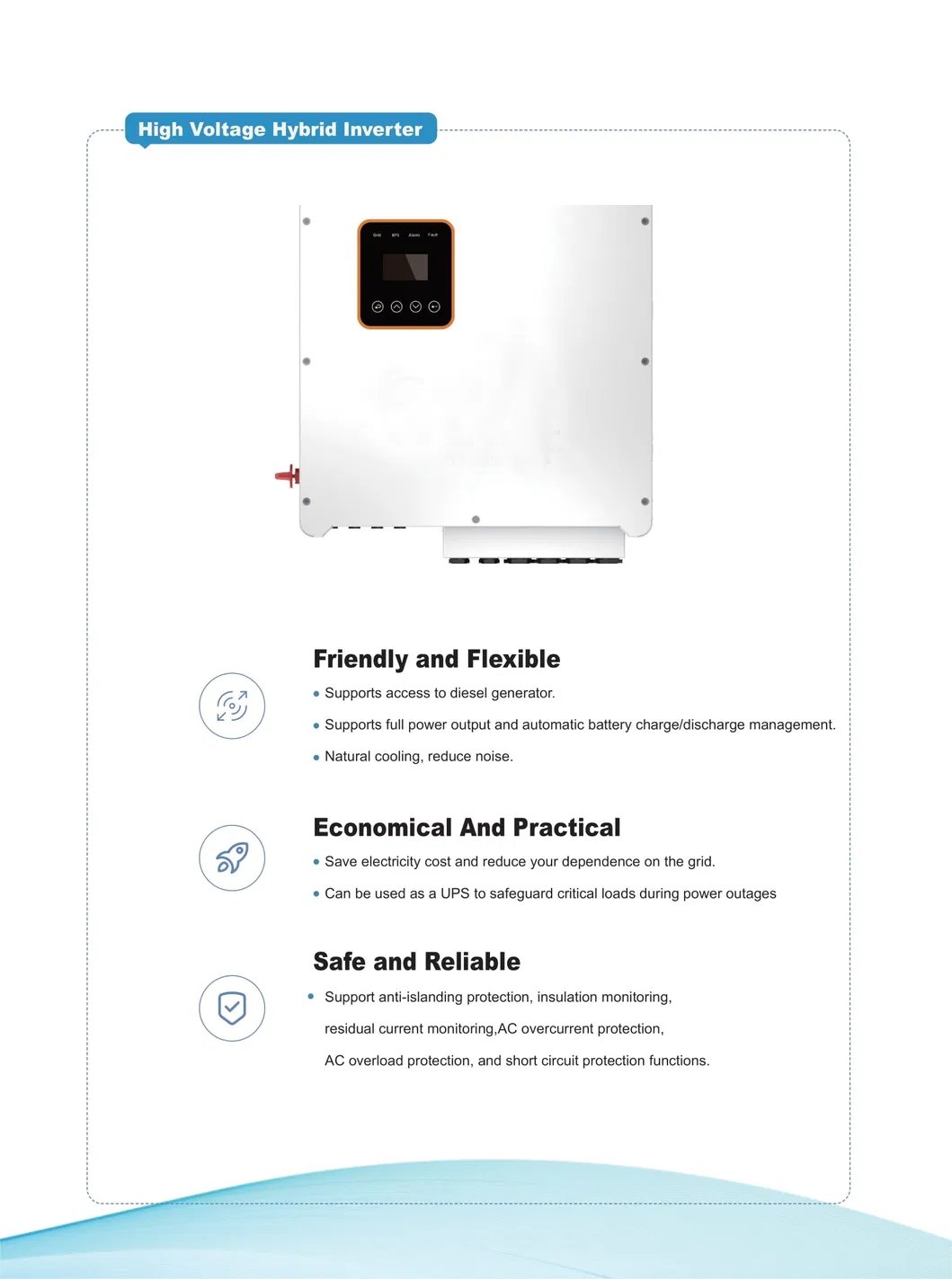

Stacked Battery Design

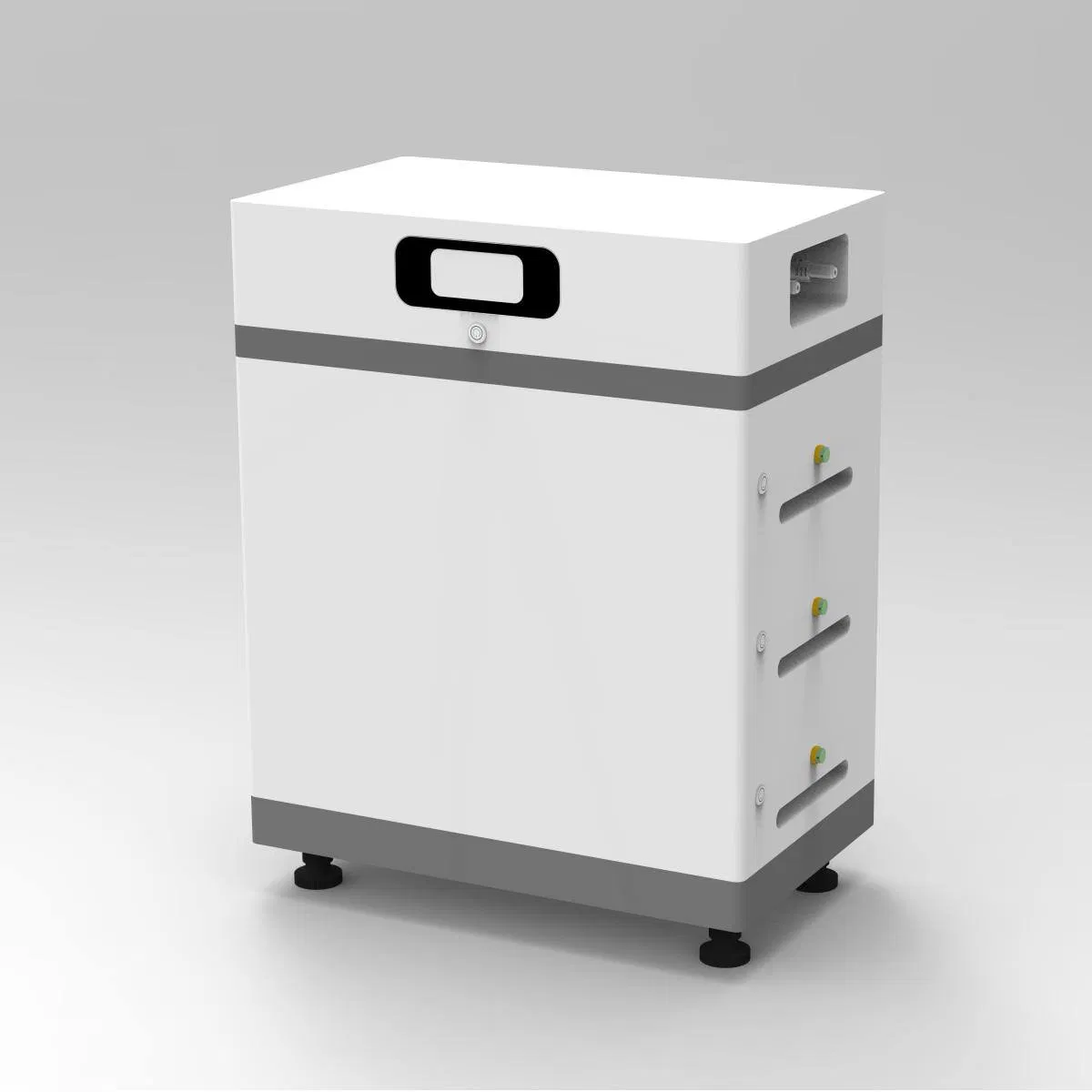

Solar System Battery Unit
High Voltage Battery System

Technical Specifications

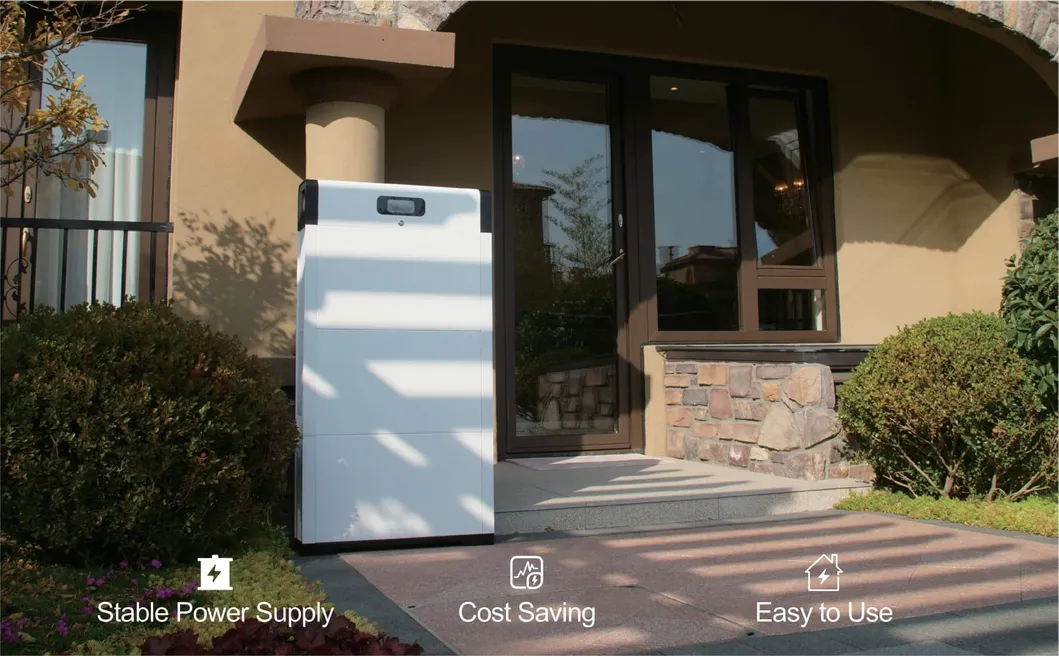

Detailed Battery View
Internal Components
Battery Parameters
Version Ordinary Version (L10) Enhanced Version (L10)
Rated Capacity 10.24 kWh 10.24 kWh
Rated Voltage 51.2 V 51.2 V
Discharge Depth (DOD) 90% 90%
Life Span 5000 times @ 25°C 5000 times @ 25°C
Cell Material Lithium Iron Phosphate Lithium Iron Phosphate
Battery Warranty 3 Years 5 Years
Inverter Parameters
Rated Power 5000W 5000W
Rated Voltage 230VAC 230VAC
Max PV Input Power 5500W 5500W
MPPT Voltage Range 120-450Vdc 120-450Vdc
Switching Time ≤20ms ≤20ms
Inverter Warranty 1 Year 2 Years
Installation Diagram
System Connection

Frequently Asked Questions

What is the rated capacity of the battery system?
The system provides a rated capacity of 10.24 kWh, suitable for residential energy storage needs.
How many cycles can the battery handle?
The battery uses Lithium Iron Phosphate cells and is rated for 5000 cycles at 0.5C discharge rate at 25°C.
Is the system expandable?
Yes, it features a standardized modular design that allows multiple modules to be operated in parallel for flexible capacity expansion.
What is the maximum PV input for the inverter?
The integrated inverter supports a maximum PV input power of 5500W with an MPPT operating voltage range of 120-450Vdc.
What are the warranty periods for the components?
The battery comes with a 3 to 5-year warranty depending on the version, and the inverter includes a 1 to 2-year warranty.
What communication modes are supported?
The system supports RS485, RS232, and CAN communication protocols for seamless integration and monitoring.
