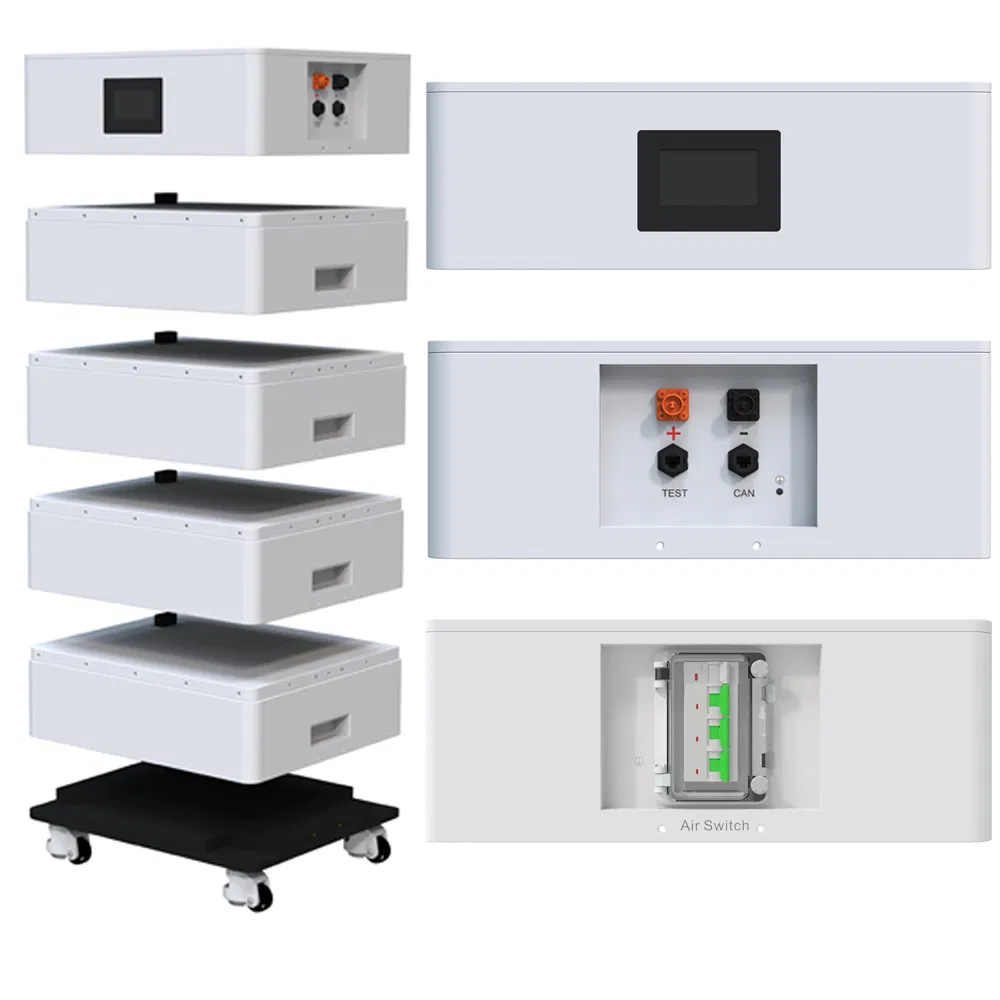

Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
1 / 5
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack

Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack

Customization: Available
Type: Li-ion Battery
Cathode Material: LFP
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ELT512100HV
Rechargeable
Yes
Voltage
153.6V~512V
Nominal Energy
15kwh - 50kwh
Display
LCD Screen
Certification
CE/RoHS/Un38.3/MSDS
Communication
Can/RS485
Warranty
5 Years
IP Standard
IP65
Package Size
60.00cm * 52.00cm * 132.00cm
★

Product Overview

The High Voltage Energy Storage Battery System is designed by an Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years of experience in the Energy Storage System (ESS) industry. The system includes high voltage stackable battery packs, suitable for home solar storage and power systems. The products meet international standards with excellent performance and safety compliance, fully qualified for high-end markets.

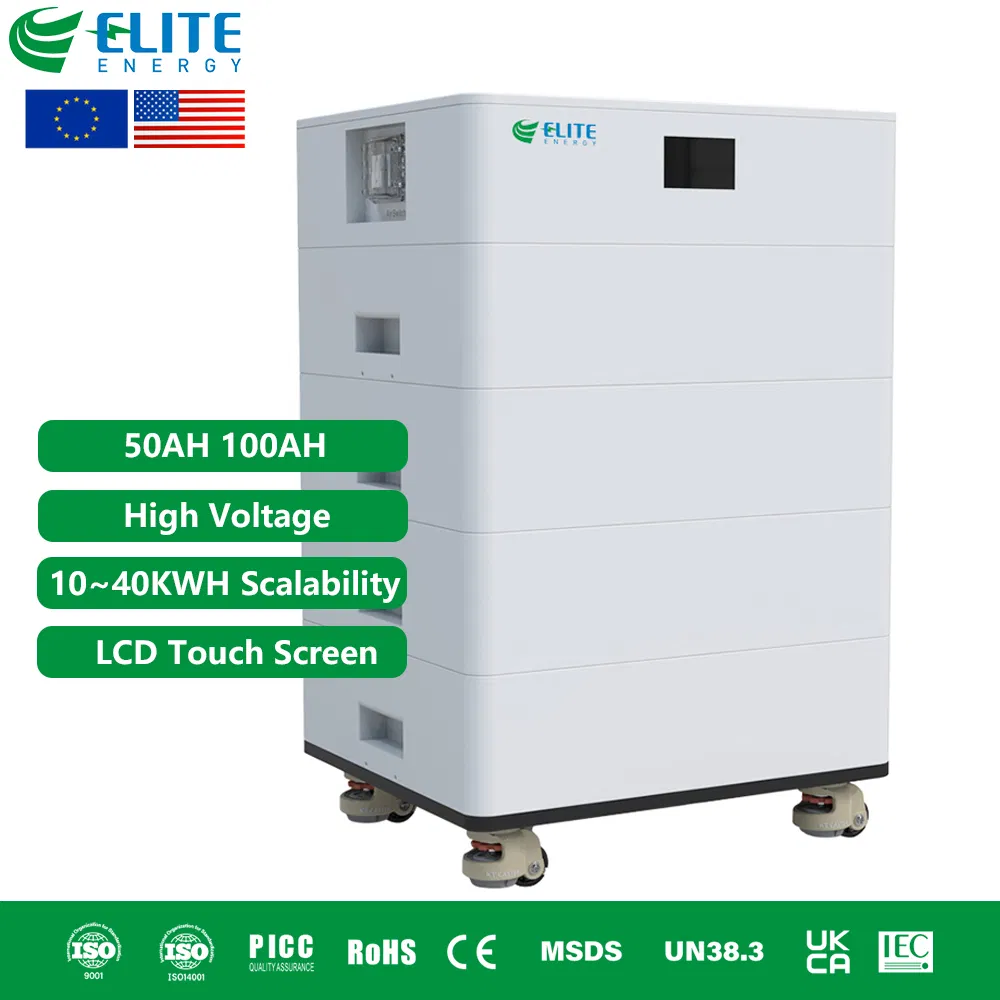

15Kwh - 50Kwh High Voltage Energy Storage Battery System
  • ✔ Adopts green, safe and reliable LiFePO4 battery cells.
  • ✔ Flexible Investment to meet different energy requirements.
  • ✔ Highest energy efficiency for residential and commercial use.
  • ✔ Wide compatibility with market main inverter brands.
  • ✔ Long-term reliability with a five-year warranty.

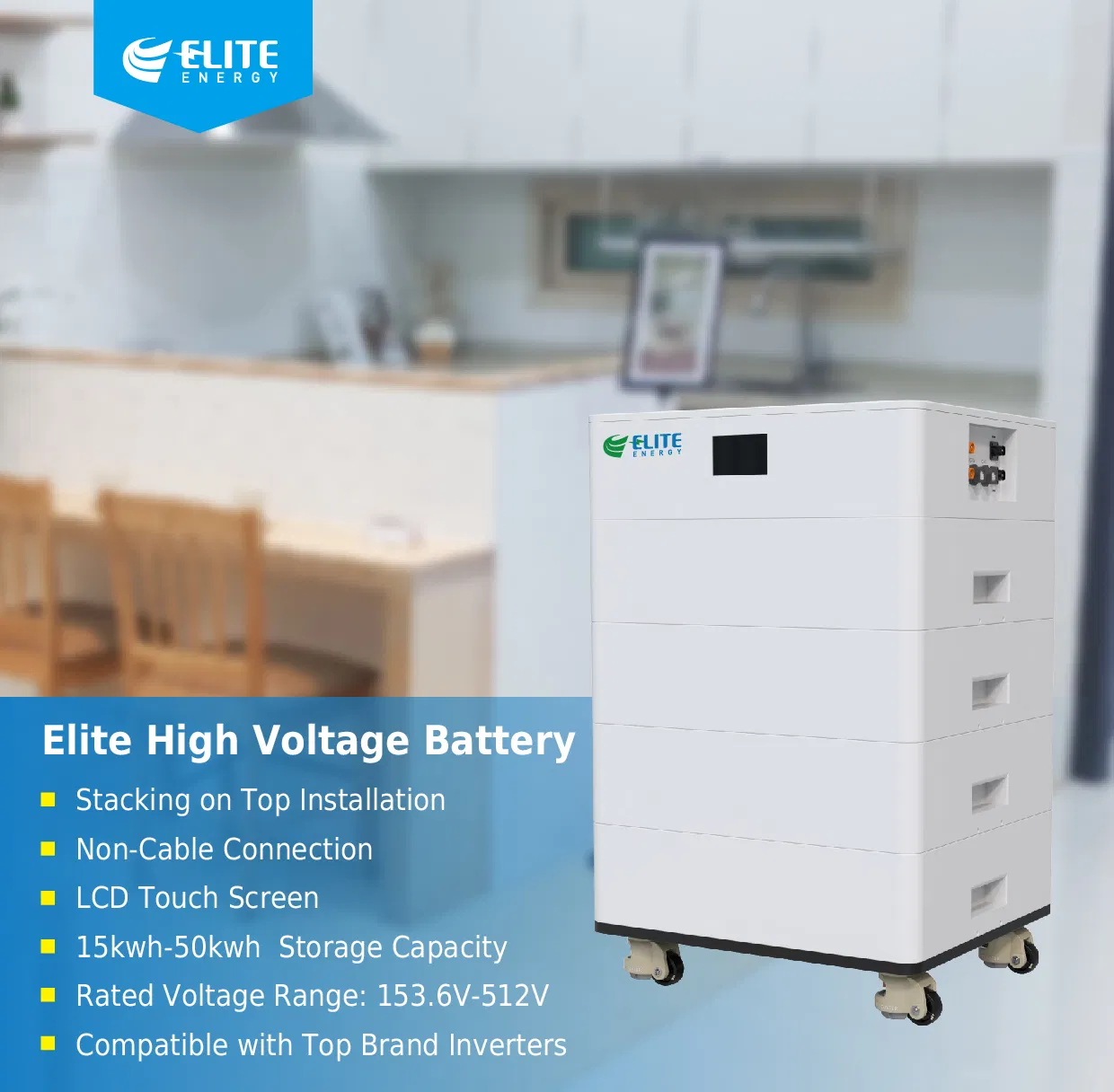

High Voltage Energy Storage Battery System
Separator
⚙

Technical Parameters

Typical Model ELT15K100H ELT20K100H ELT25K100H ELT30K100H ELT40K100H
Number of battery Modules 3 4 5 6 8
System Parameters
Battery Type LiFePO4
Nominal Energy 15.36kWh 20.48kWh 25.6kWh 30.72kWh 40.96kWh
Nominal Voltage 153.6V 204.8V 256V 307.2V 409.6V
Max. Continuous Current 100A
Depth of Discharge 100%
General Parameters
Dimensions (W*H*D) mm 550*470*712 550*470*885 550*470*1058 550*470*1231 550*470*1577
Weight (kg) 177 227 277 327 427
Operating Temp Charge: 0~55ºC / Discharge: -20~65ºC
Feature Bar

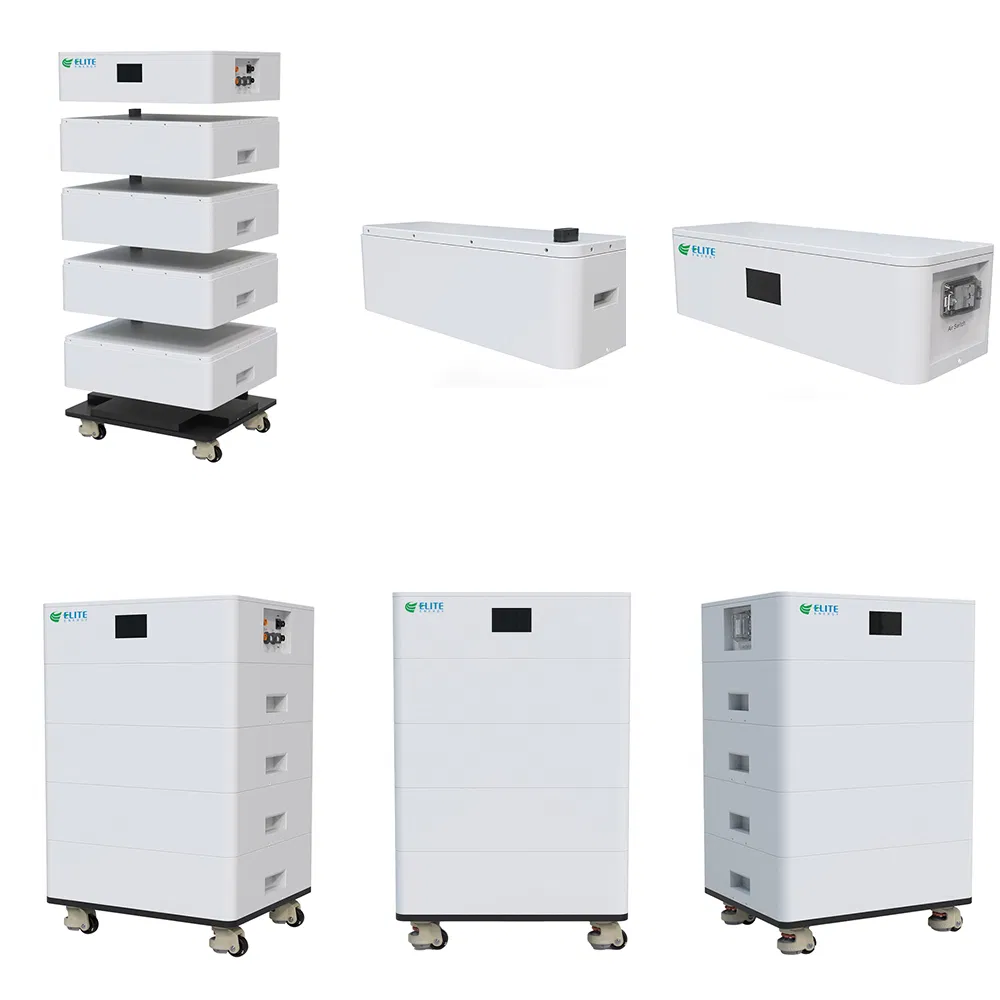

Product Detail 1

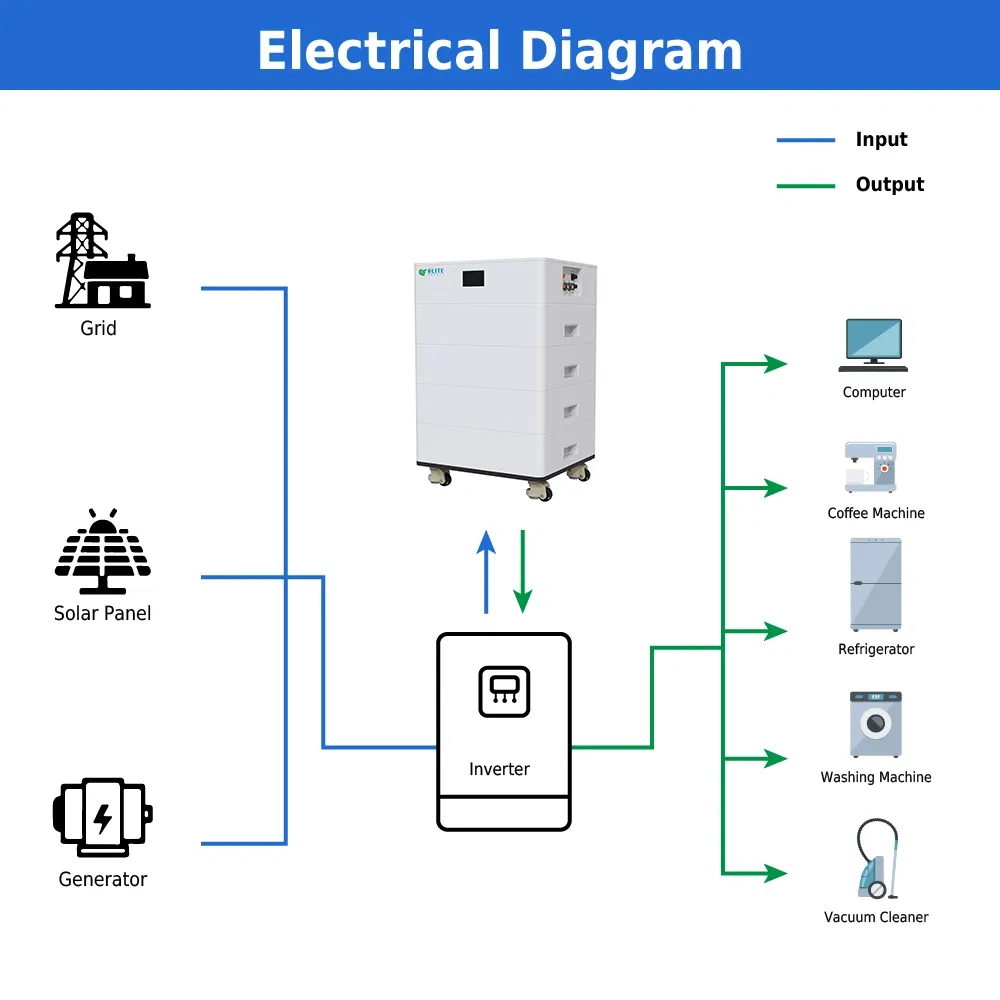

Product Detail 2
Product Detail 3

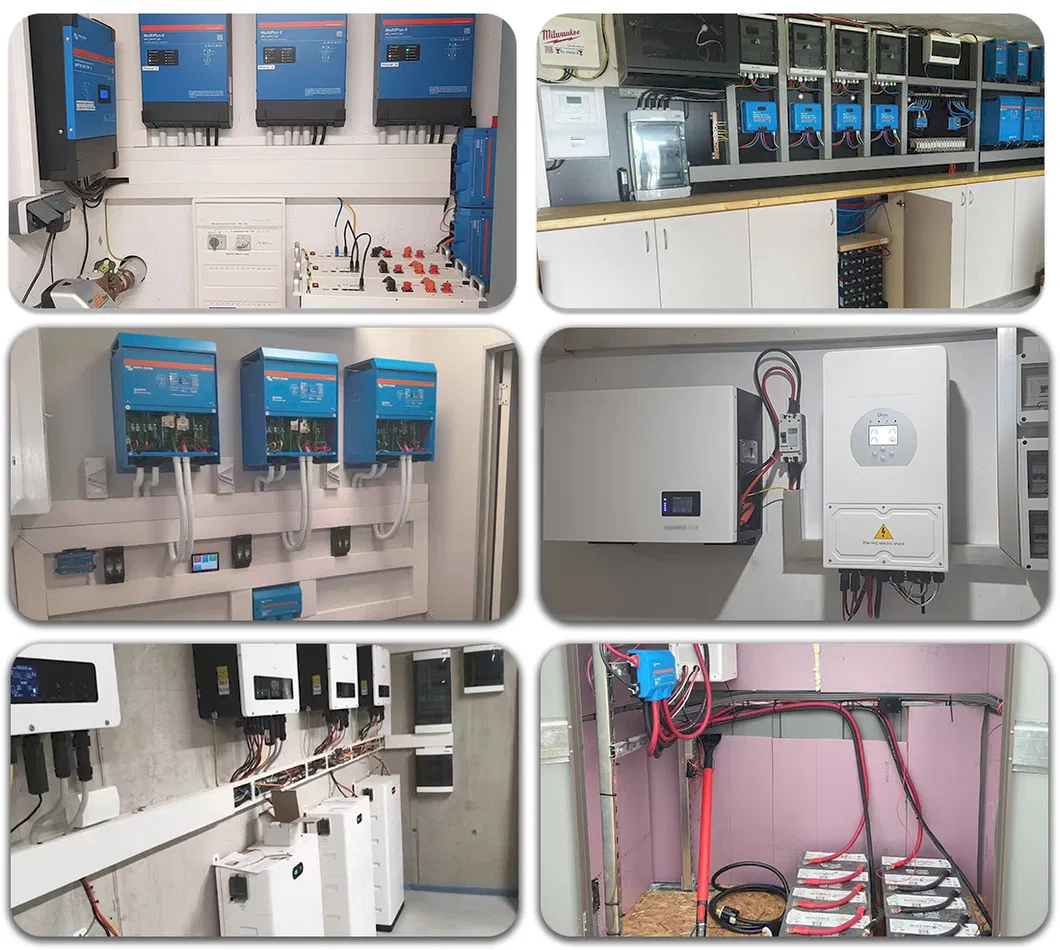

Application

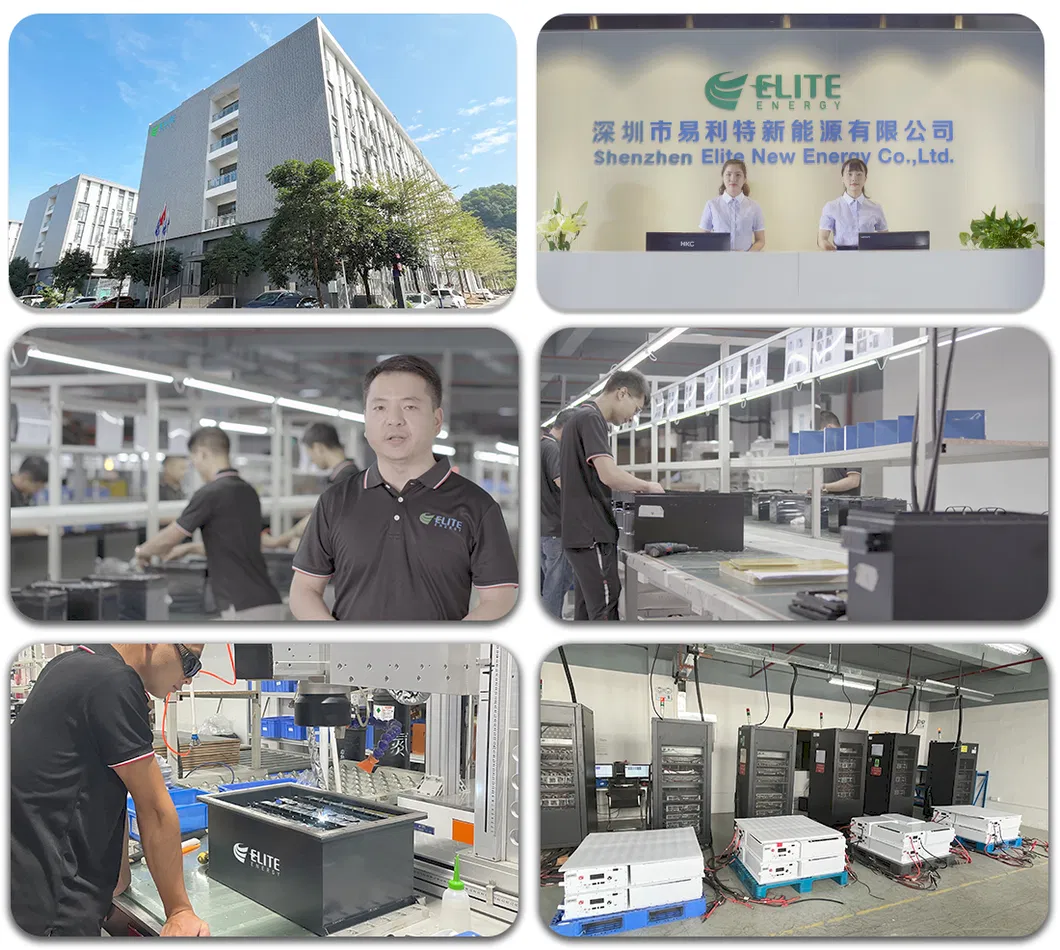

Factory View
?

Frequently Asked Questions

Q1. Do you have a Minimum Order Quantity (MOQ) limit?
No, there is no MOQ limit. 1 piece sample order or small quantity orders are available.
Q2. What is the typical lead time for orders?
Standard samples take 3-5 days, while bulk orders typically take 3-4 weeks. Customized products also require 3-4 weeks.
Q3. How are the goods shipped and what is the shipping time?
We ship via Air (6-12 days) for urgent small orders, or by Sea (25-50 days) for bulk orders. Air to airport options (3-5 days) are also available for heavy packages.
Q4. Does the BMS have low-temperature charging protection?
Yes. The BMS includes a low-temperature protection cut-off function (0ºC ± 4ºC for charging and -20ºC ± 4ºC for discharging) to prevent damage.
Q5. How long do these LiFePO4 batteries last?
Our LiFePO4 batteries provide 4000+ cycles, which is 8 to 10 times longer than standard lead-acid batteries.
Q6. Are these batteries safe for indoor use?
Yes. The stable Lithium Iron Phosphate chemical structure is resistant to burning or exploding. The built-in BMS protects against overcharge, deep discharge, overheating, and short circuits.
