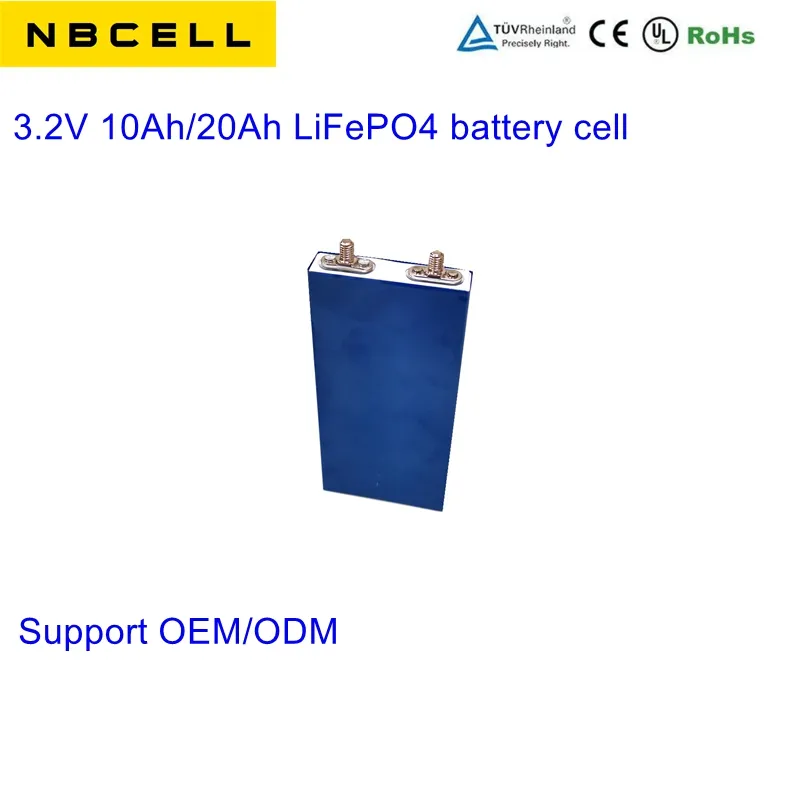

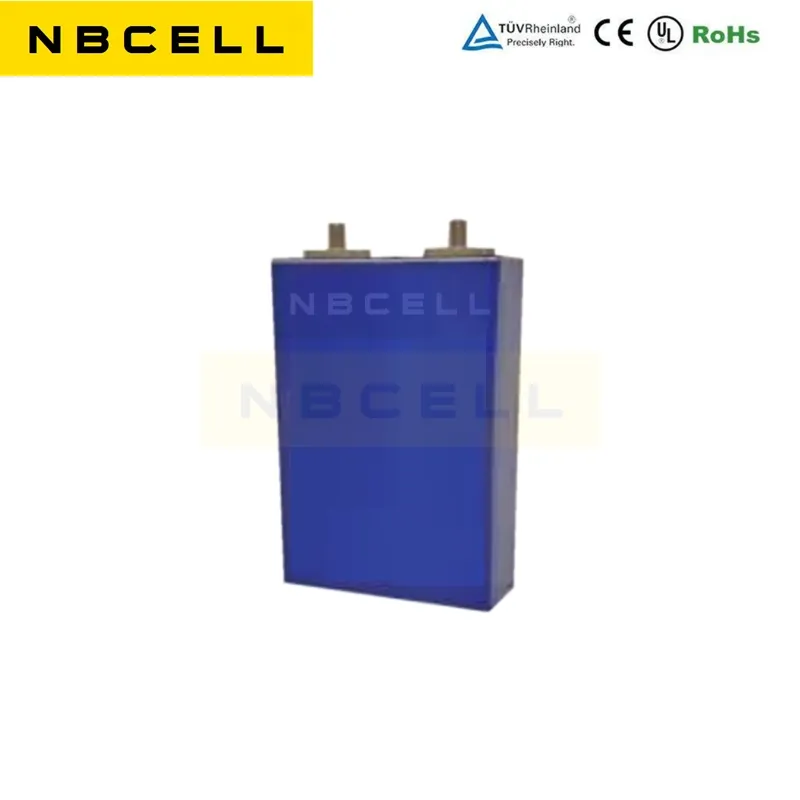

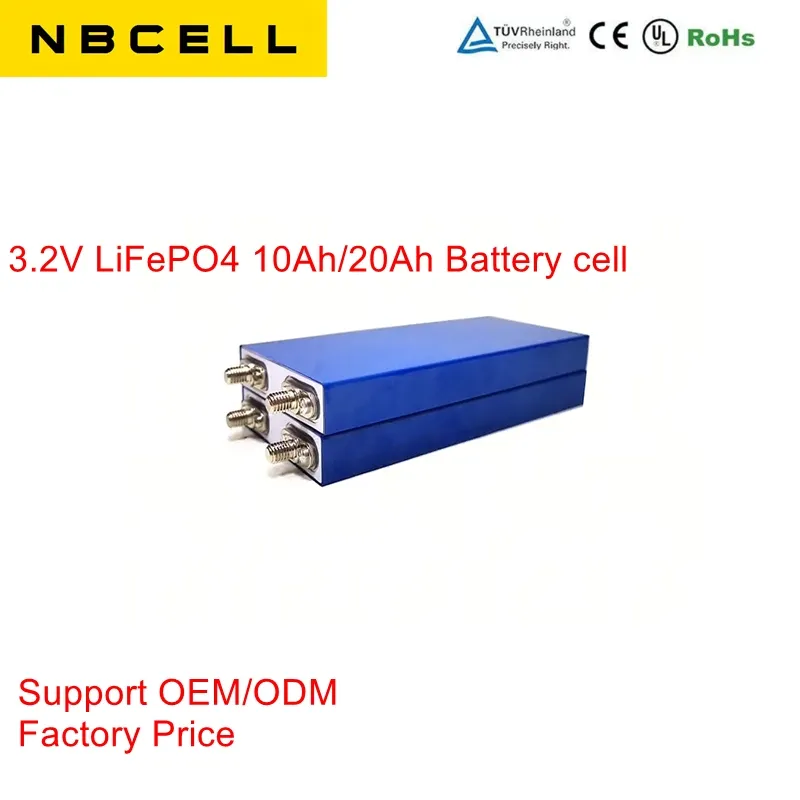

High Discharge rate and Support Fast charge 3.2v 10Ah/20Ah/30Ah Lithium LFP Prismatic Battery Cell

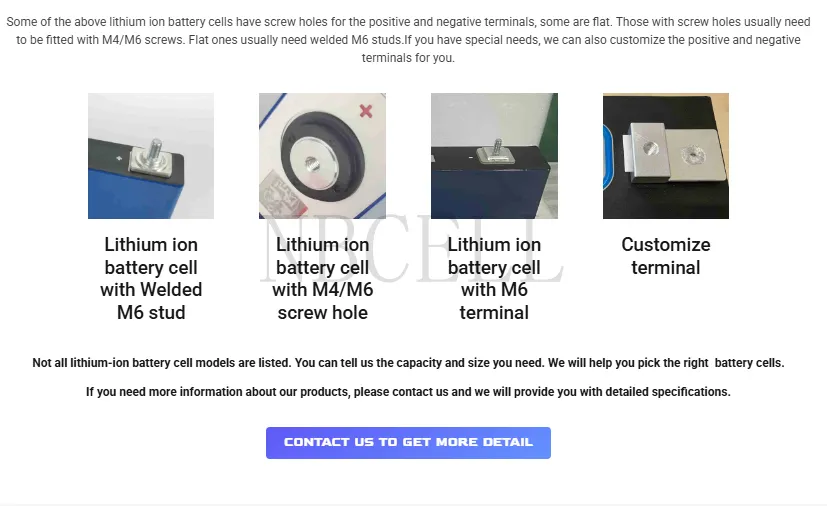

The LFP 3.2V 10Ah/20Ah/30Ah is a prismatic lithium iron phosphate (LiFePO4, or LFP) battery cell known for its high safety and long lifespan. It is perfectly suitable for electric vehicles, electric bicycles, or low-speed electric vehicles, providing reliable power. The battery cell is compact, making it easy to assemble into battery packs. The positive and negative terminals can also be welded with studs according to customer requirements. This cell balances safety, lifespan, and performance, making it particularly suitable for users with high demands for durability and safety.
| Battery Model: LFP10AH/LFP20AH/LFP30AH | ACR: ≤0.3mΩ |
| Rated Voltage: 3.2V | Volume Energy Density: 364Wh/L |

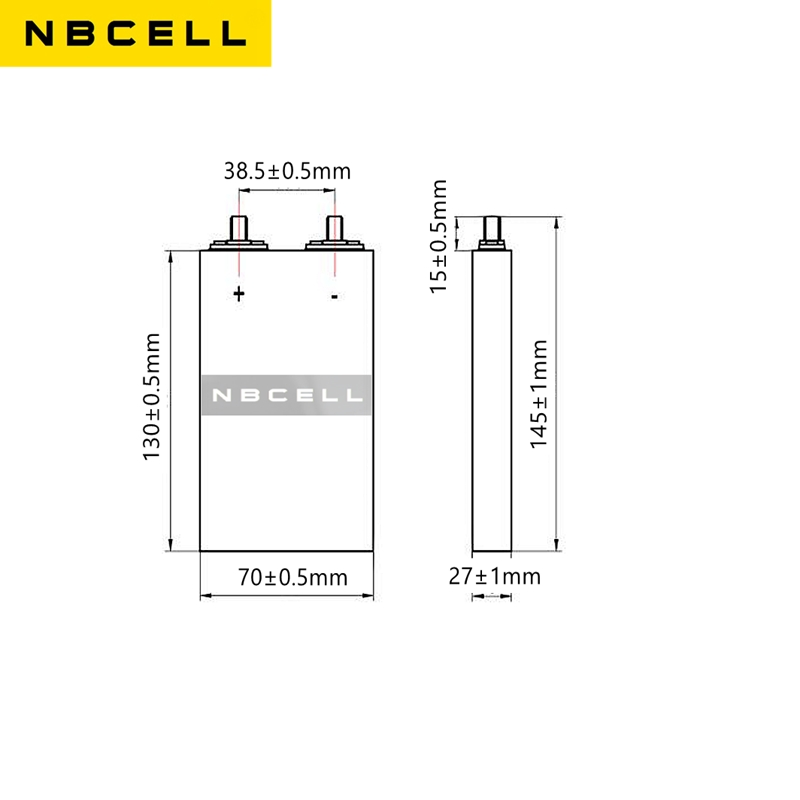

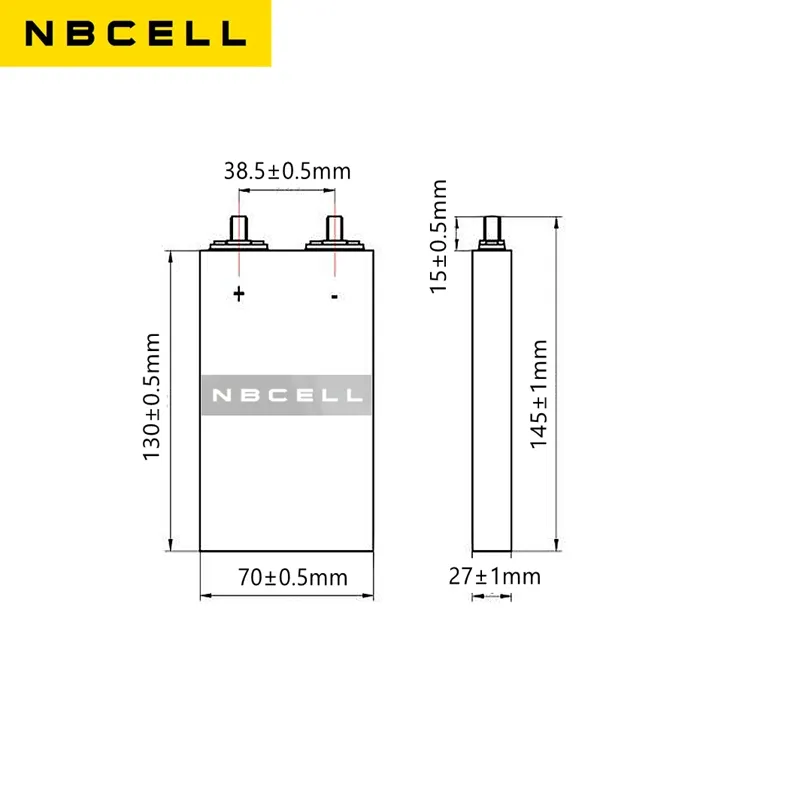

| Rated Capacity: 10Ah/20Ah/30Ah | Dimension: 65.0±1mm* 150±1mm* 15±1mm |
| Rated Energy: 32Wh/64Wh/96Wh | Charging Temperature: -20℃ to 55℃ |
| Mass Energy Density: 110Wh/kg | Discharge Temperature: -30℃ to 55℃ |
| Weight: <276g | Storage Temperature: -40℃ to 60℃ |
| STD Discharge Current: 10A/1C | Fast Charging Time: ≤30min (30%-80% SOC) |
| Max. Continuous Charge: 40A/4C | Voltage Range: 2.0 - 3.65V |
With over 10 years of dedicated expertise in battery shipping and cross-border export, we deliver reliable, compliant logistics solutions worldwide. We excel in international express delivery for battery samples, as well as sea and air freight for bulk orders, with extensive proficiency in DDP, DDU, CIF, and FOB trade terms. Our team provides tailored, professional battery logistics plans backed by a full set of valid battery transport certifications.

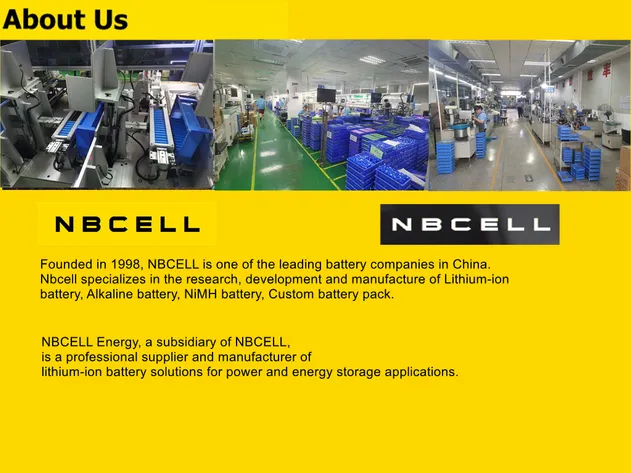

As a professional supplier and manufacturer of lithium-ion battery solutions for power and energy storage applications, we offer high-quality battery cells and the ability to customize lithium-ion battery modules and PACKs.

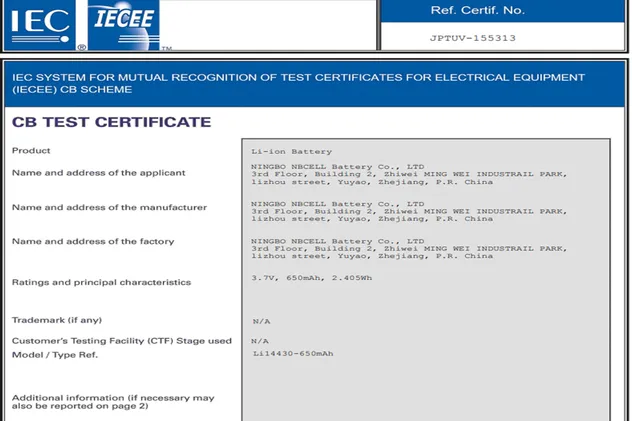

Adhering to ISO9001 and ISO14001 quality management systems, our products meet export certifications such as UL, CE, and UN38.3. We use brand-new Grade A cells, strictly tested for quality. Our facilities include automated production lines, 6KW laser welding machines, and advanced DCIR and EOL testing equipment.
