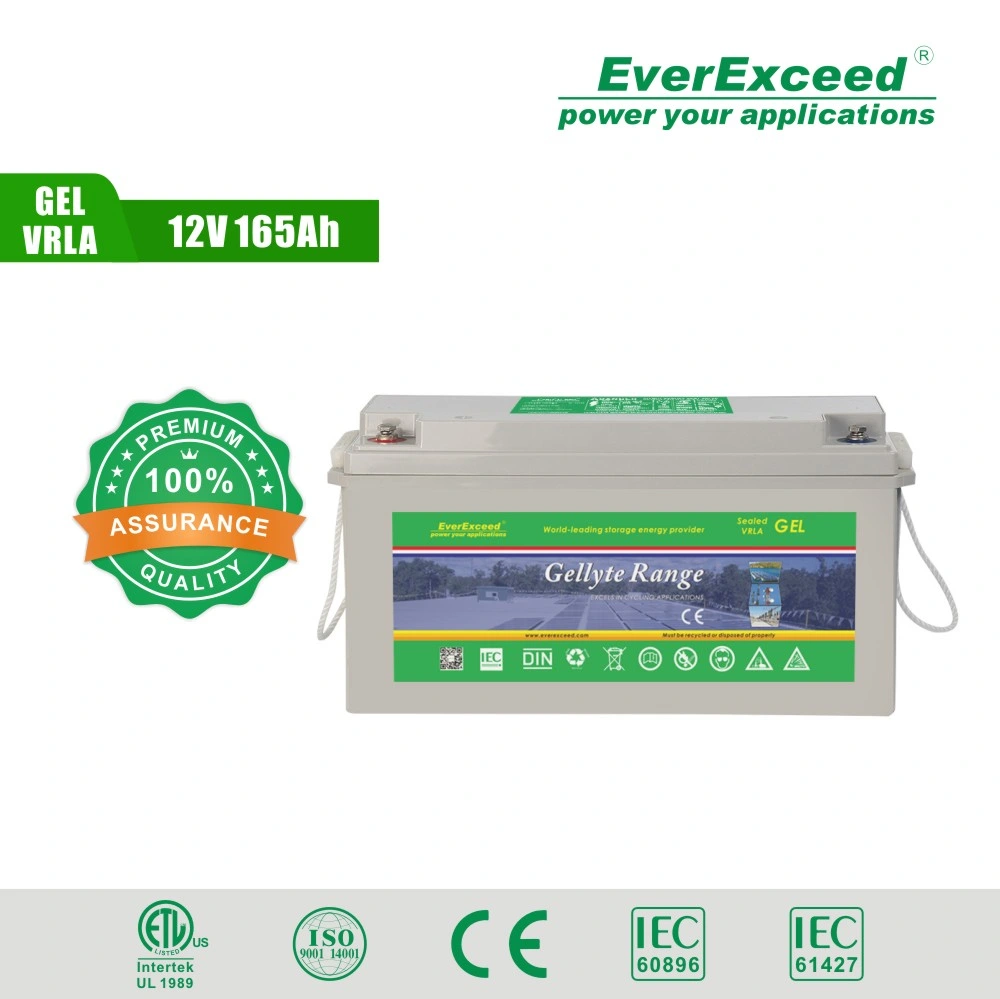

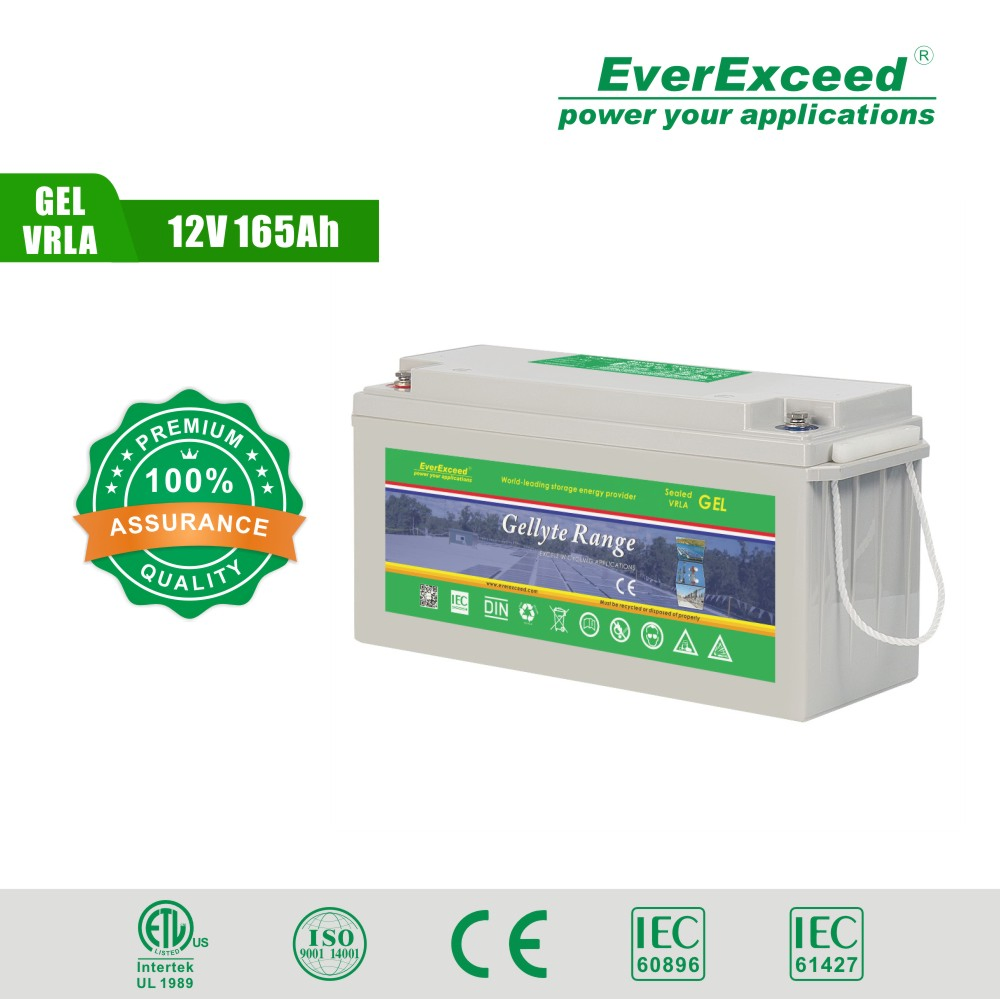

Everexceed 12V 160ah VRLA/Gel Deep Cycle Lead-Acid Rechargeable Storage Battery for Solar Energy/Emergency Lighting System/Backup Solar Power Battery

Customization: Available
Type: Lead-Acid Batteries
Usage: Electric Power, Lighting

Product Description

i

Basic Specifications

Model NO.
GL-12150
Nominal Voltage
12V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Acid
Installation
Packaged
Rechargeable
Chargeable
Certificates
ISO / CE/ Dekra/IEC
Design Life
12 Years
Battery Capacity
165ah
Battery Size
480X170X240mm
HS Code
85072000

Product Introduction

VRLA/Gel Deep Cycle Storage Battery
The extremely powerful and reliable Gellyte Range VRLA batteries perfectly fulfill the requirements for many different applications. These batteries are popular in telecommunications, home medical equipment (HME), and mobility, industrial and utility applications where frequent deep cycles are required and minimum maintenance is desirable. The development team combines the market's demand with design optimization, precision component selection and state of the art manufacturing process to produce the most cost effective battery solution.
Technical Layout

Technical Features

Unique charging performance Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance.
Gellyte technology Sulfuric acid thixotropic gel, gel powder from Europe's leading supplier to ensure the unique performance.
High safety Very low gassing due to internal gas recombination. Flame-arresting one-way pressure relief vent for safe & long life.
Superior cycle performance Valve regulated lead acid battery (VRLA), specially designed for deep cycle applications.
Temperature Resilience Operate consistently even at high temperatures from -40°C to +70°C.
Long service life Thick positive plate design for maximum service float life; 12 years design life @20°C.
Product Performance
📊

Technical Data

Model Voltage (V) C20 (Ah) C100 (Ah) Weight (kg) Length (mm) Width (mm) Height (mm)
GL-126012606619350167178
GL-121001210011028.9332174220
GL-121501215016539.8340173285
GL-122001220022055530210220
GL-122501225027568.5520269225
GL-123001230033077520269225

Main Applications

  • Solar and Wind energy system
  • Mobile communication system
  • Emergency lighting system
  • Radio and Broadcasting station
  • Cathodic protection system
  • Power plant and Power transformer system
🚢

Shipping & Logistics

Payment Terms
T/T, L/C, Cash, Western Union etc.
Delivery Time
Normally 4 weeks ex factory
Packing
Carton box then pallet / wooden box
Transportation
By sea/air/train/truck
?

Frequently Asked Questions

Can I have a sample order?
Yes, we welcome sample order to test and check quality.
What is the typical lead time?
Samples need 5-10 days, while mass production typically takes 3-5 weeks depending on quantity.
Do you have any MOQ limits?
MOQ depends on the part number. Sample orders of 1-10pcs are available.
How are the goods shipped?
We usually ship via DHL, UPS, FedEx, or TNT (3-5 days). Airline and sea shipping are also optional.
Can I print my logo on the product?
Yes, please inform us formally before production and confirm the design based on our sample.
What is the design life of these batteries?
These batteries are engineered for a long service life of up to 12 years under ideal float conditions.
