This series features Sealed Free Maintenance VRLA GEL batteries with a long-designed life of 12-15 years. It is an ideal partner for solar markets and high-temperature environments. These batteries are recognized for reliability and high quality, utilizing advanced patented AGM technology. Complying with international standards like IEC60896-21/22, BS6290-4, and Eurobat Guide, they offer 1200 cycles at 50% DOD.
| Parameter Item | Specifications | |
|---|---|---|
| Nominal Voltage | 12V (6 cells) | 12V |
| Design Floating Life | @ 25ºC | 15 Years |
| Nominal Capacity | 10 hour rate | 150Ah |
| Internal Resistance | Fully Charged @ 25ºC | ≤3.5mΩ |
| Max. Discharge Current | @ 25ºC | 900A (5s) |
| Self-Discharge | Per Month @ 25ºC | 3% |
| Dimensions | L * W * H (mm) | 484 * 171 * 241 |

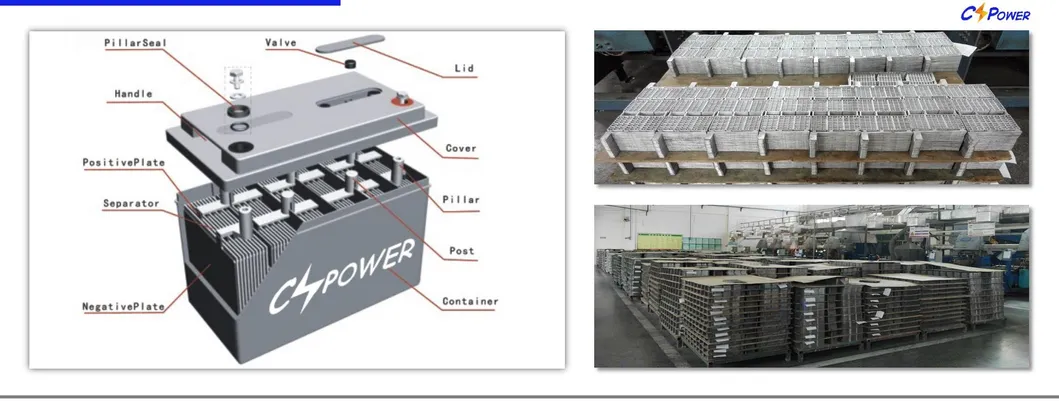

| Component | Positive Plate | Negative Plate | Container | Separator | Electrolyte |
|---|---|---|---|---|---|
| Features | High Sn low Ca grid | Balanced Pb-Ca grid | Fire resistance ABS | Advanced PVC/AGM | Silicon Gel |

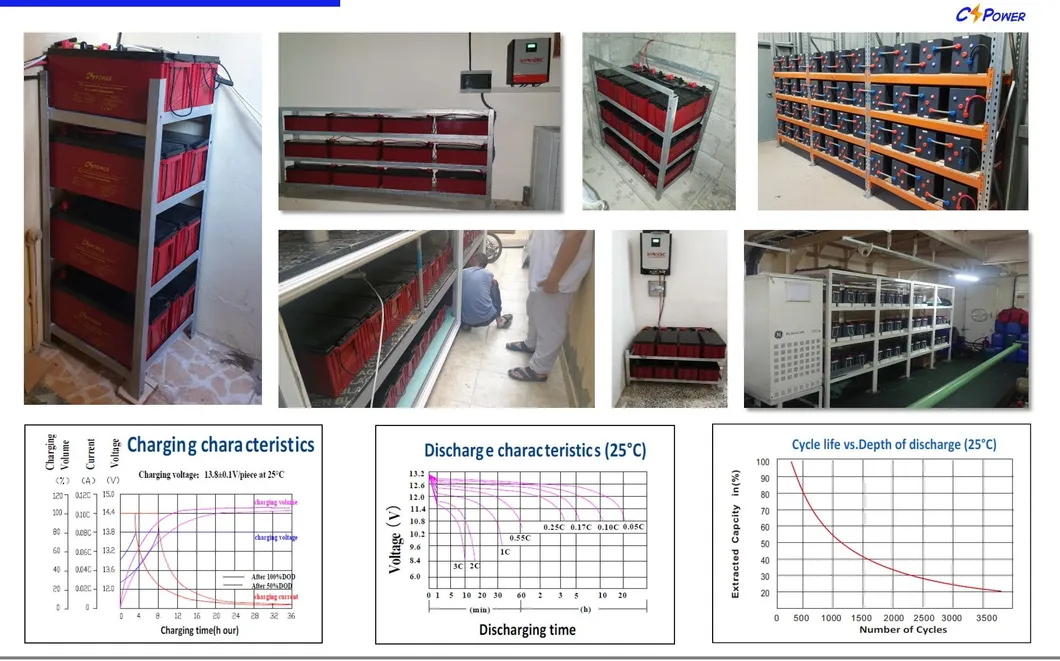

Suitable for wide-ranging uses including: Communication equipment, Solar and Wind power systems, UPS systems, Emergency lighting, Medical equipment, and Electric vehicles.
Standard compliance: IEC 60896-21/22, IEC 61427, ISO9001/14001/18001, CE, UL, and BS6290 part 4.
| Model | Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Total Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| CG12-33 | 12 | 33 | 196 | 130 | 167 | 10.0 |
| CG12-50 | 12 | 50 | 229 | 138 | 212 | 15.8 |
| CG12-65 | 12 | 65 | 350 | 167 | 178 | 20.5 |

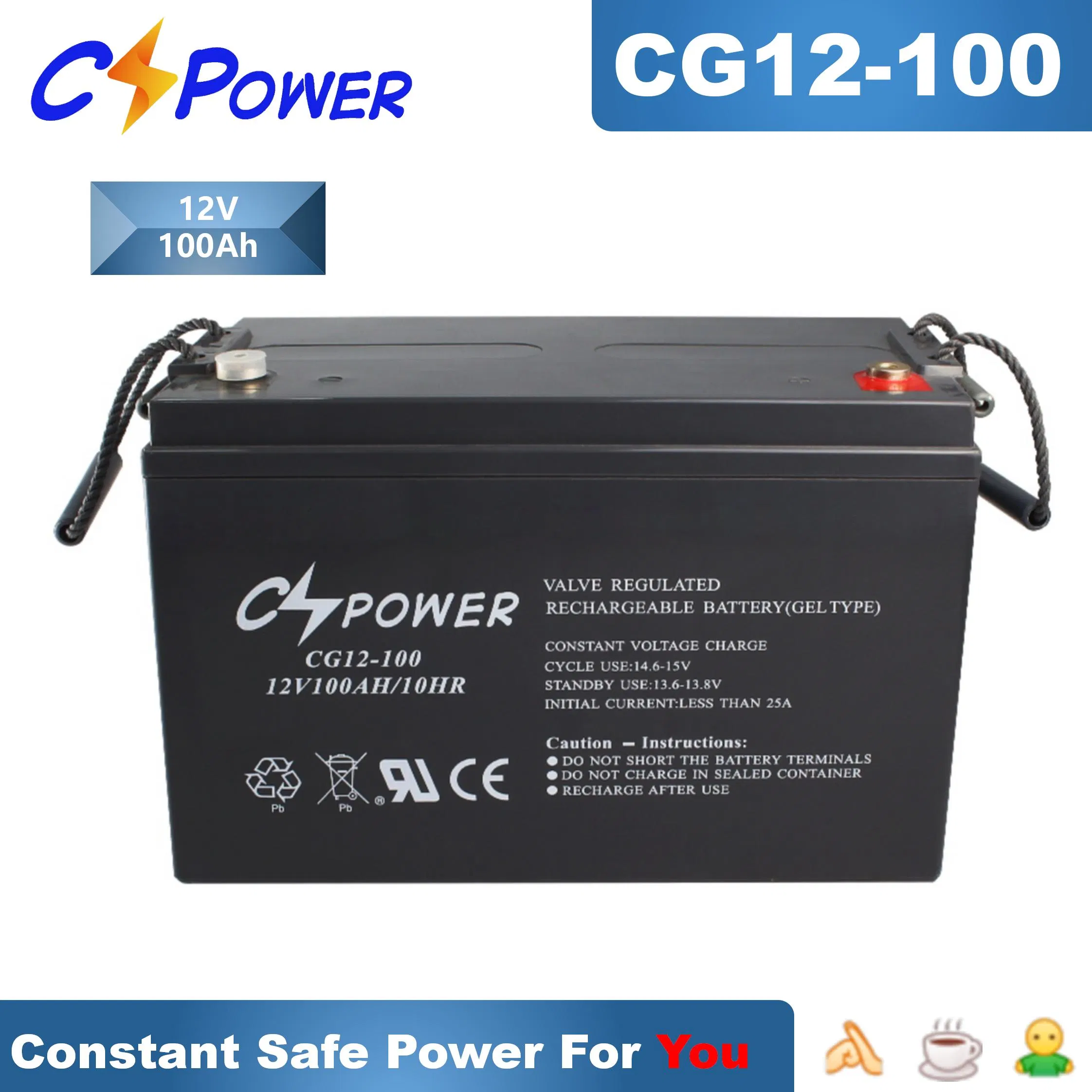

| CG12-100A | 12 | 100 | 331 | 174 | 219 | 29.0 |
| CG12-150A | 12 | 150 | 484 | 171 | 241 | 43.5 |
| CG12-200A | 12 | 200 | 522 | 240 | 224 | 58.2 |

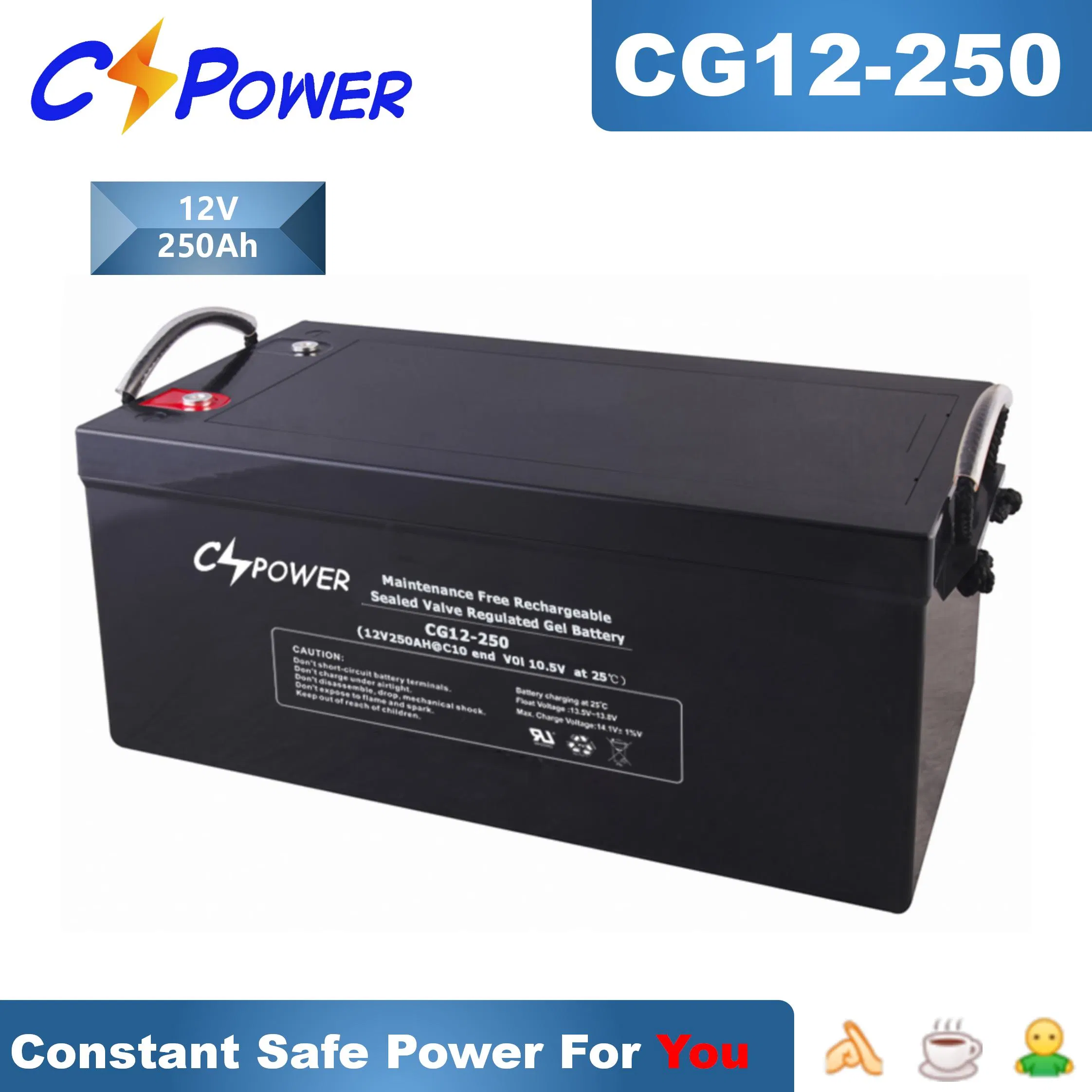

| CG12-250 | 12 | 250 | 520 | 268 | 225 | 70.0 |
