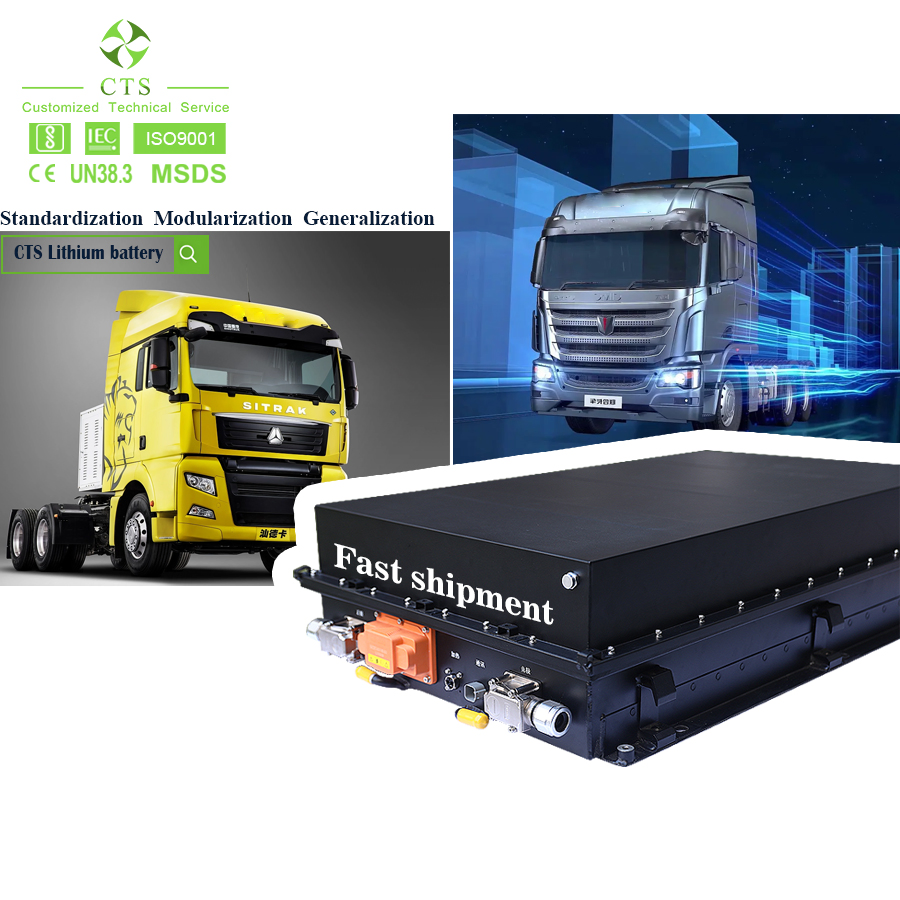

Electric Vehicle Battery Industrial vehicle Lithium Battery 600V 120kWh EV Lifepo4 Battery Pack
● Standard EV Battery Module

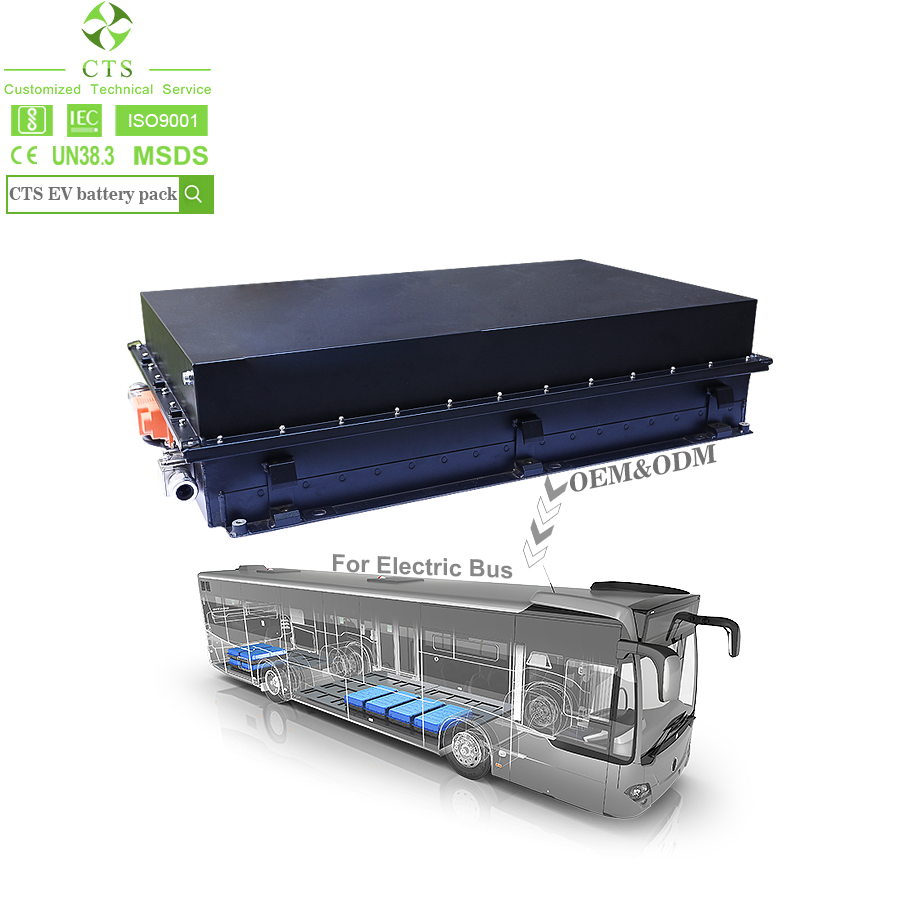

● For Electric Bus and Heavy Truck

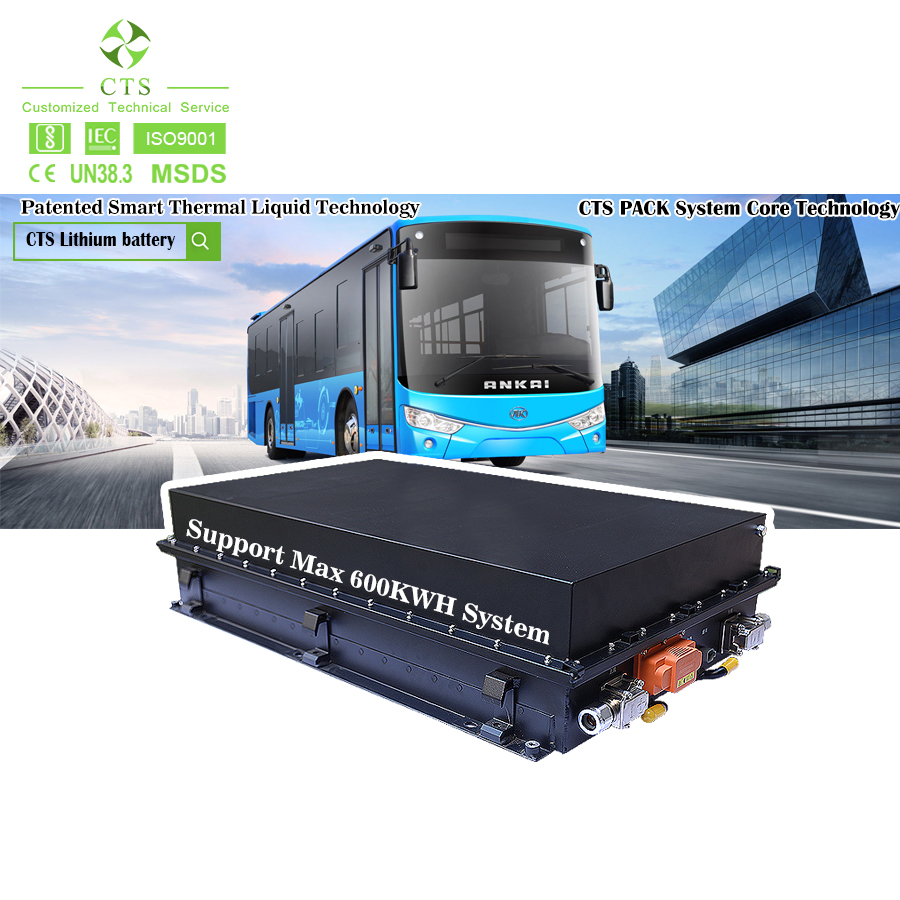

● Support Max 600KWH System
| Specification | C1 | C2 | C3 | C4 |
|---|---|---|---|---|
| Battery Cell | 3.2V 206Ah | 3.2V 230Ah | 3.2V 280Ah | 3.2V 304Ah |
| Array | 1P48S | 1P48S | 1P36S | 1P36S |
| Energy | 31.64kWh | 35.32kWh | 32.25kWh | 35.02Wh |
| Charge/Discharge | 1C | 1C | 1C | 1C |

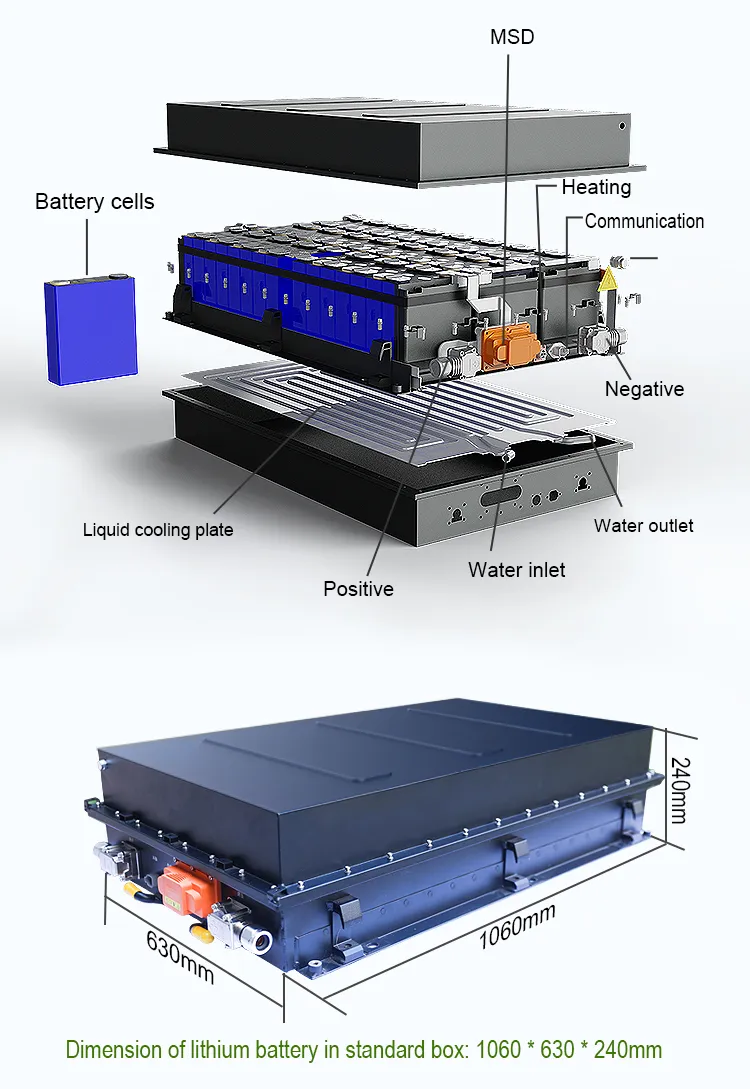

| Dimensions | 1060*630*240mm | |||
| Cooling | Liquid cooling | |||
| Specification | H1 | H2 | H3 | H4 |
|---|---|---|---|---|
| Battery Cell | 3.2V 230Ah | 3.2V 304Ah | 3.2V 230Ah | 3.2V 304Ah |
| Battery Module | 307.2V 230Ah | 230.4V 304Ah | 268.8V 230Ah | 201.6V 304Ah |
| Energy | 70.65kWh | 70.04kWh | 61.82kWh | 81.28kWh |
| Working Temp | -35 ºC - 65 ºC | |||

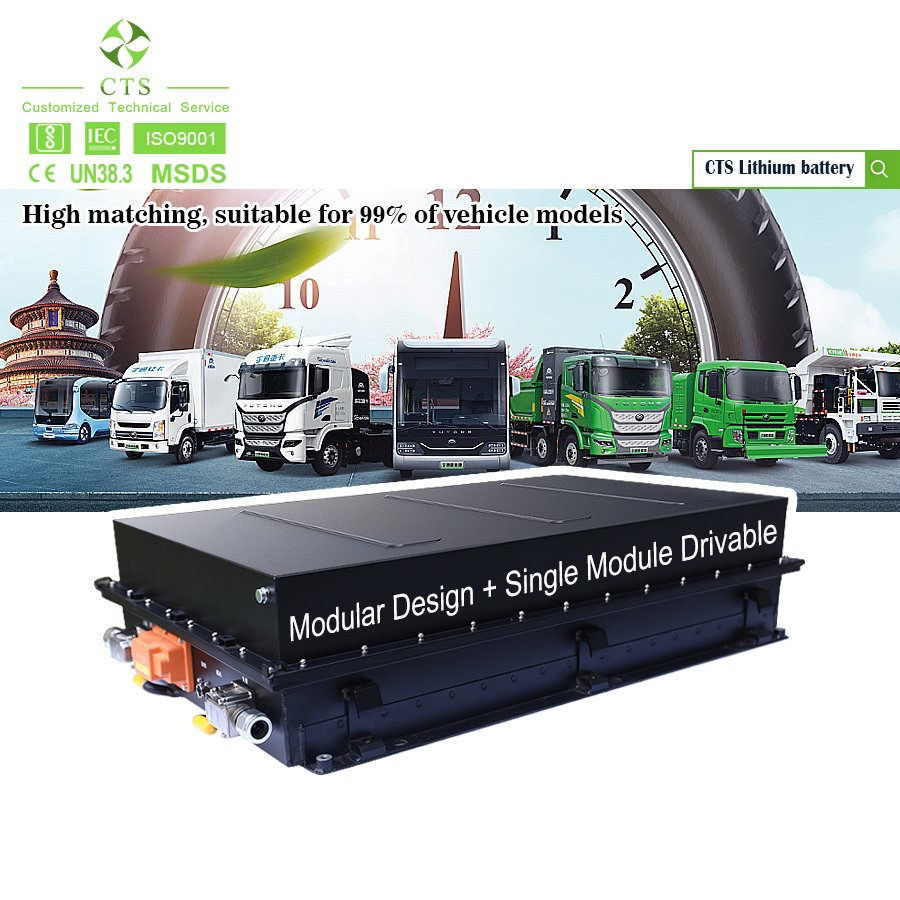

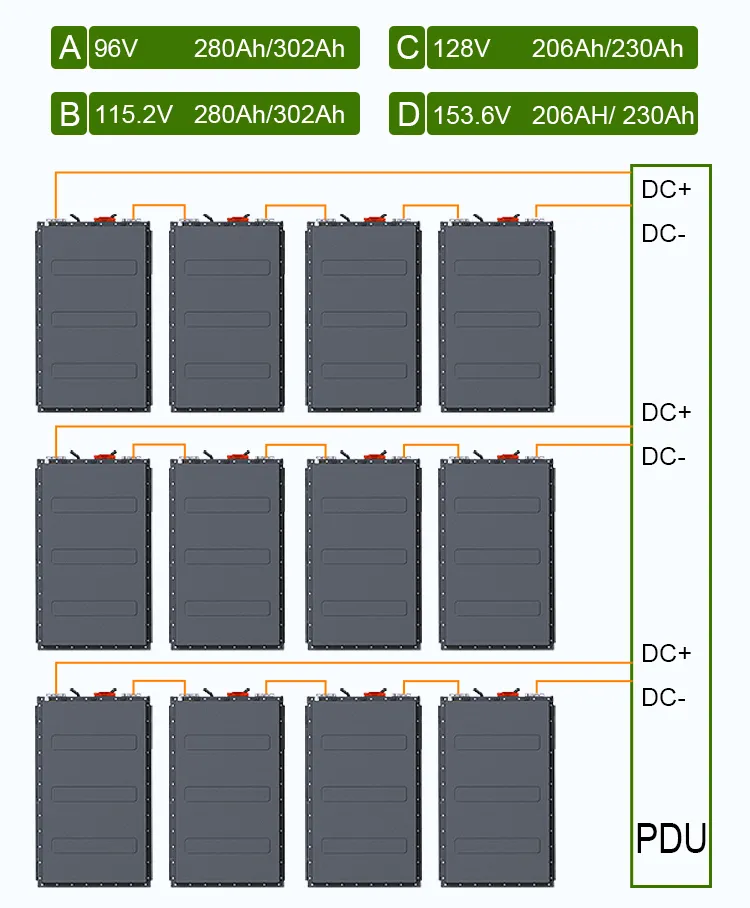

Support the max connection of 12 modules (4S3P) in one system. Modules can be connected freely up to 656V and 600KWH.

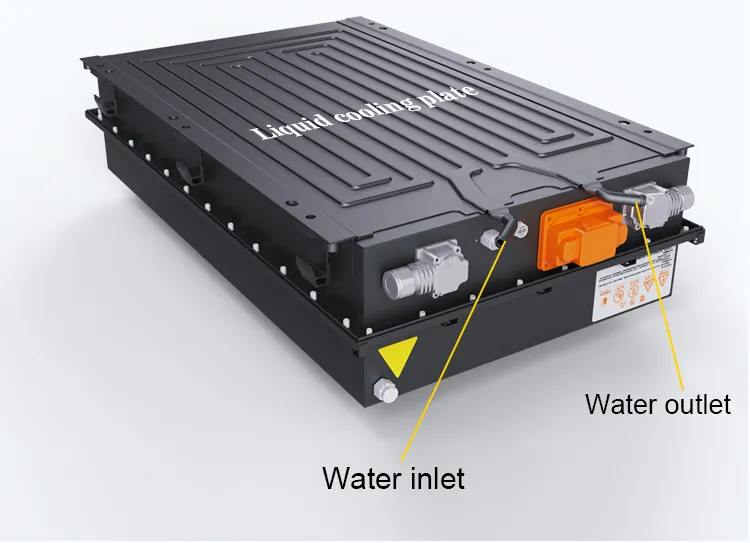

Redesigned liquid cooling system for improved thermal consistency and significantly longer battery life.

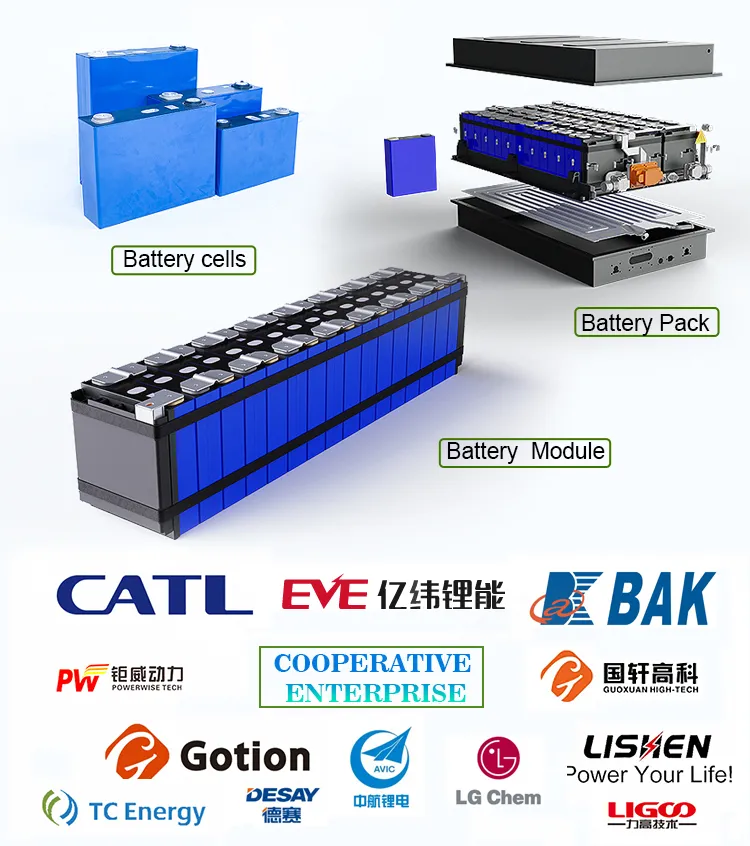

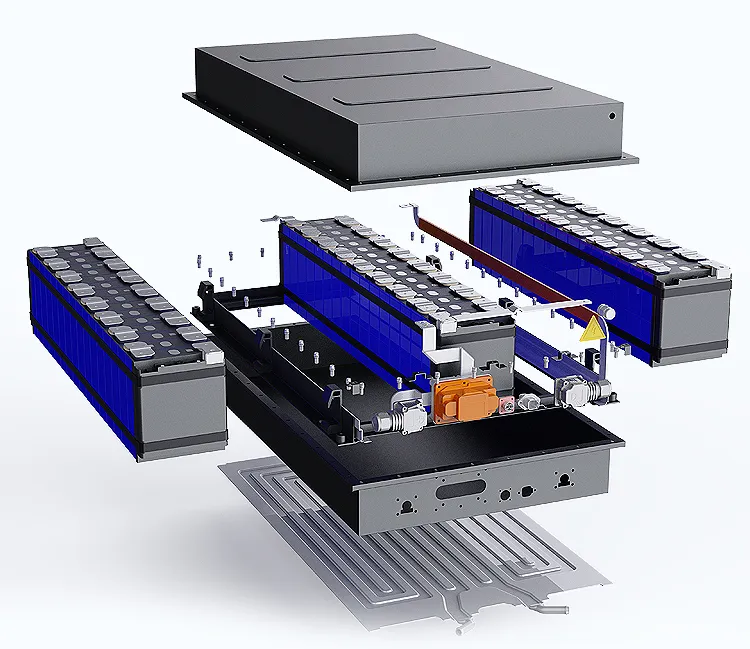

Reliable LiFePO4 cells with a multi-tiered safety system. Real-time dynamic SOC calibration considering vehicle operation conditions and high accuracy measurement of cells.

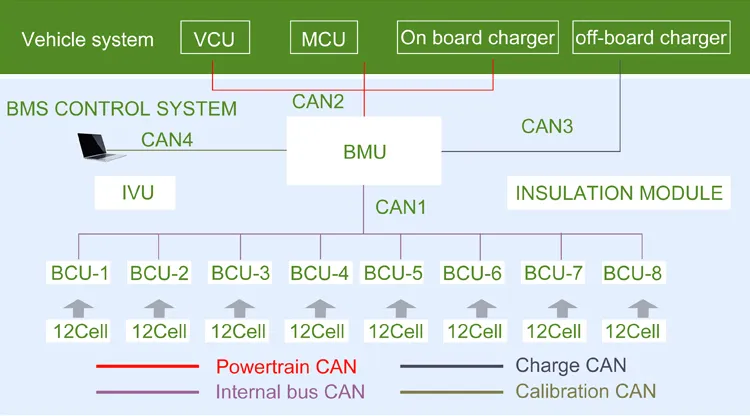

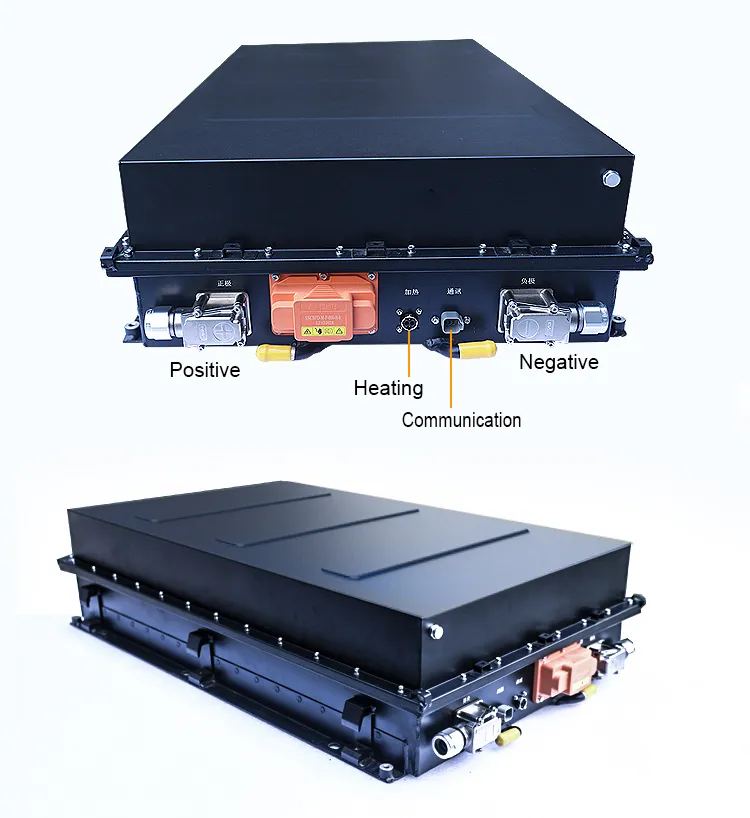

Comprehensive monitoring: Insulation, water leakage, cell voltage, temperature ranges, and communication faults. Standard box supports double-gun charging and motor driving output.

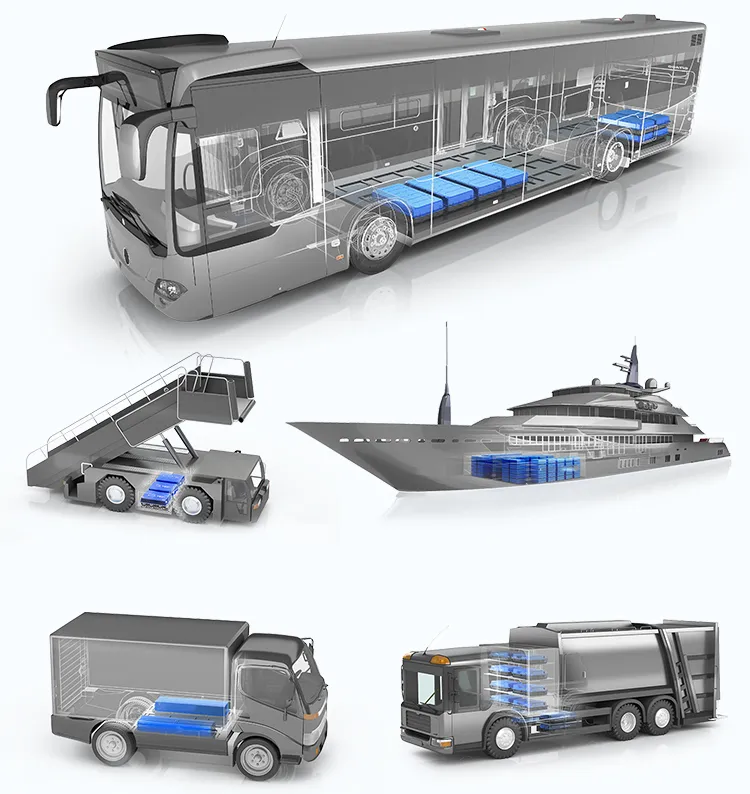

Our standard modules are widely used in public buses and industrial vehicles, such as mining trucks, tunnel vehicles, large capacity AGVs, and skyline cranes.
Established in 2011, we specialize in the R&D, production, and sales of lithium battery cells and packs. We focus on one-stop customized lithium battery products for electric vehicles, trucks, boats, and energy storage systems.
With a dedicated thirty-person R&D team, we prioritize high energy density cells and strict quality control. Following IATF 16949 management systems, every battery undergoes rigorous testing before delivery. Our products hold MSDS, UN38.3, CE, and IEC 62619 certifications, serving markets across America, Australia, Europe, and Asia.
