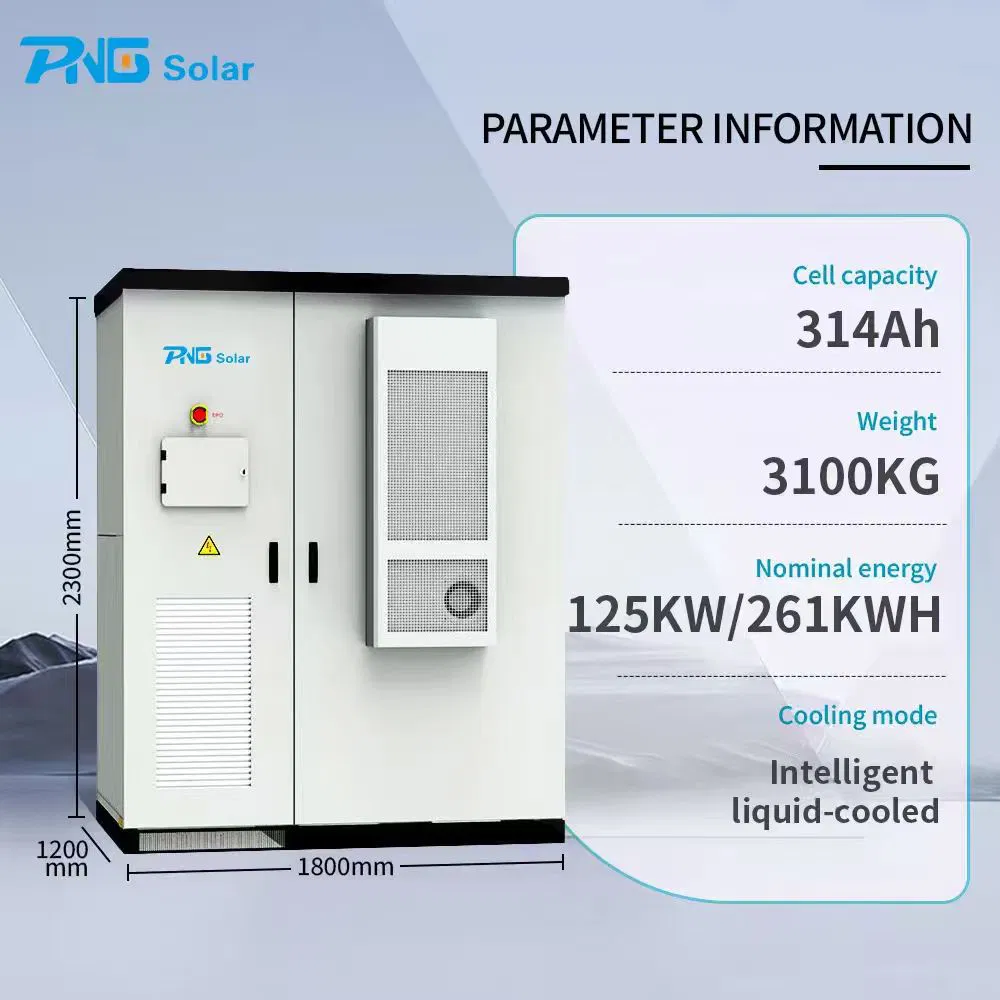

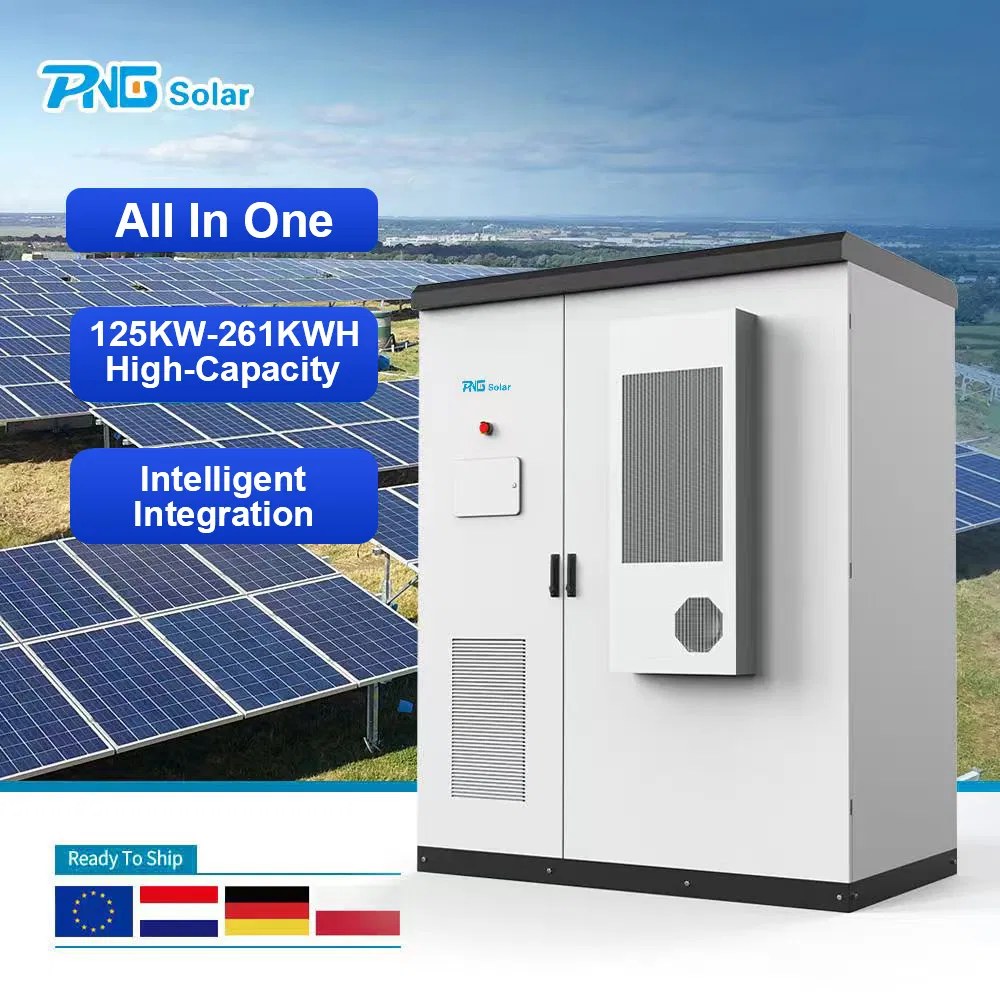

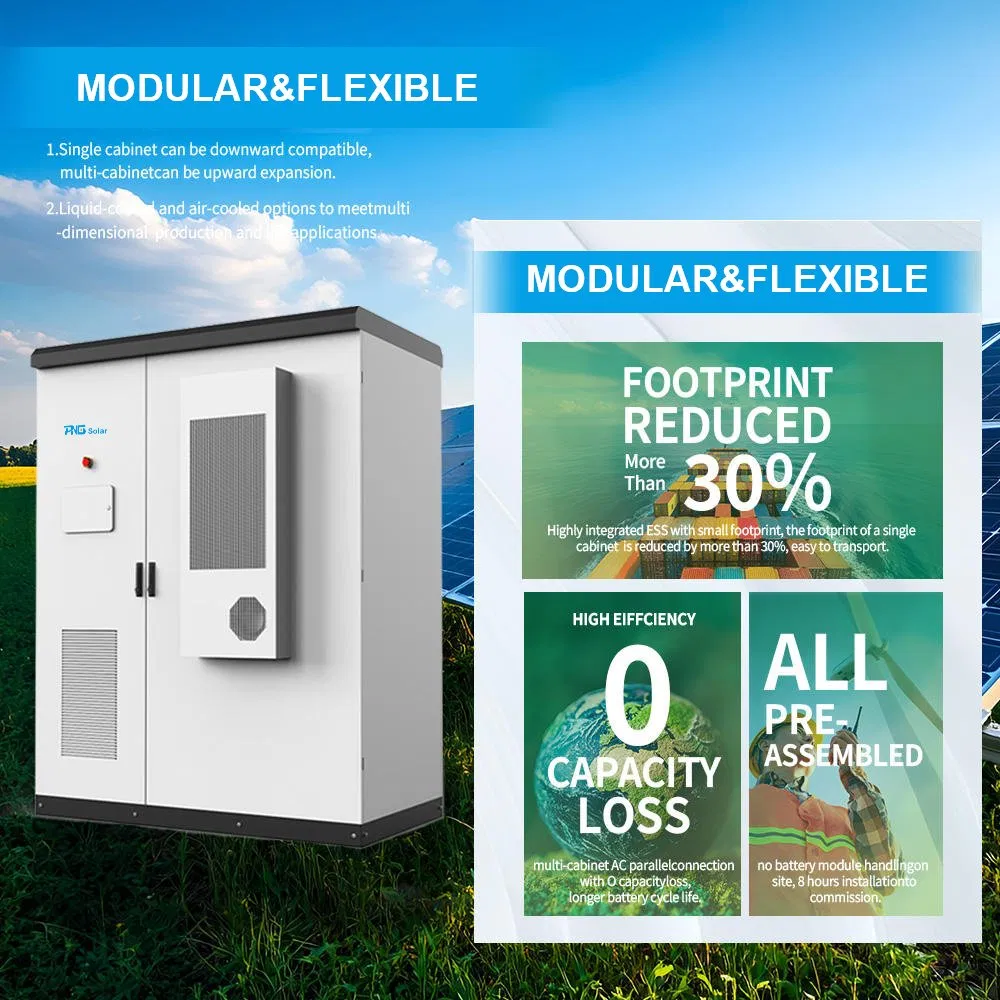

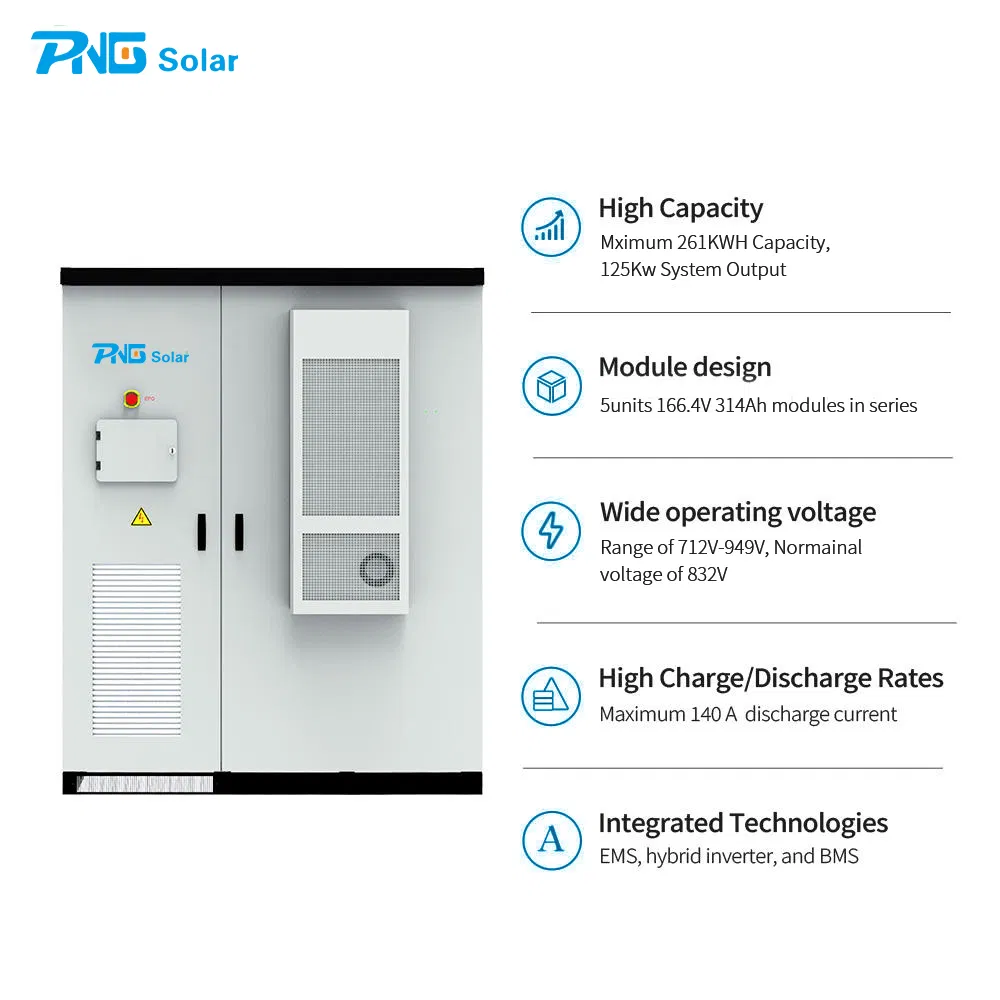

Customized Smart Ess Bess All-in-One 125kw 241kwh Industrial Commercial Lithium Battery Energy Storage System Container Cabinet

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

📊

Basic Information

Model NO.PNG125KW-261KWH
Energy Capacity100kWh-500kWh
Power Configuration100kW-250kW
Cycle Life8000 Cycles (80%DOD)
Cooling MethodFull Liquid Cooling (Temperature Difference ≤3℃)
CabinetOutdoor
Battery Cell3.2V 314ah, New a+ Grade Prismatic
Inverter/PCS125kw
Warranty8000cycles, 5years
Design Life10years
Transport PackageWooden Pallet and Carton Box
OriginChina
🏢

Company Profile

Established in 2016, we are a professional and leading manufacturer of quality solar modules and energy solutions. Our business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key services for domestic and overseas markets.
With 3 production lines and an annual capacity of 1.2GW, we ensure efficient production lead times. In 2022, our sales volume reached USD 1.5 billion, ranking us among the top producers and exporters in the region. We cooperate with world-famous brands to supply quality materials, maintaining high standards for every project.
Energy Storage System
Manufacturing
Facility
🔋

Product Description

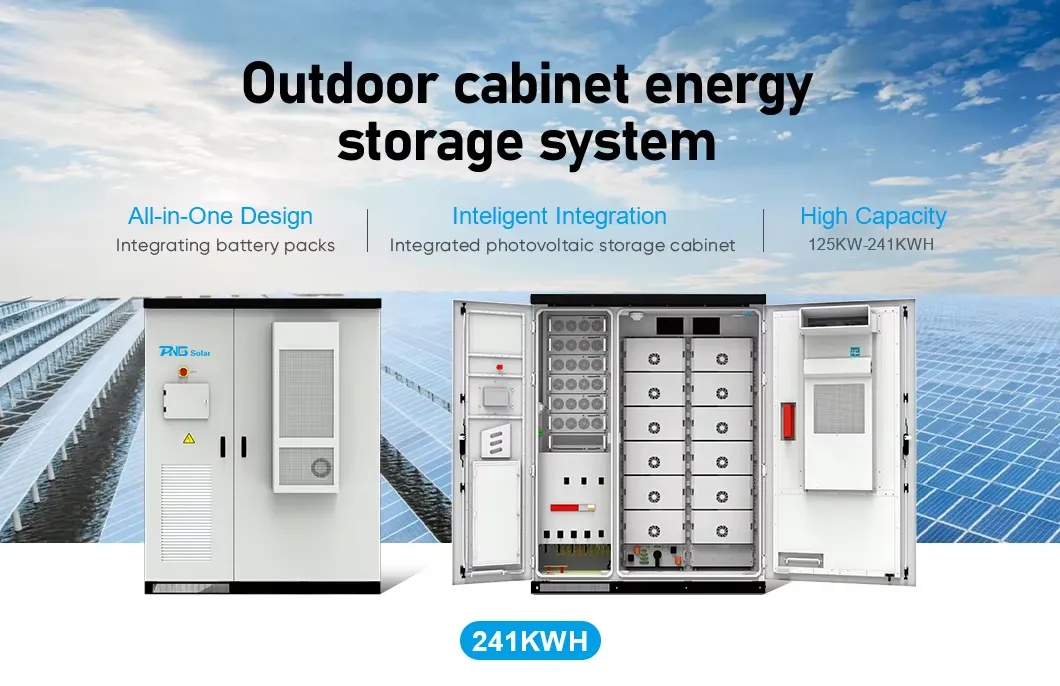

System Detail 1

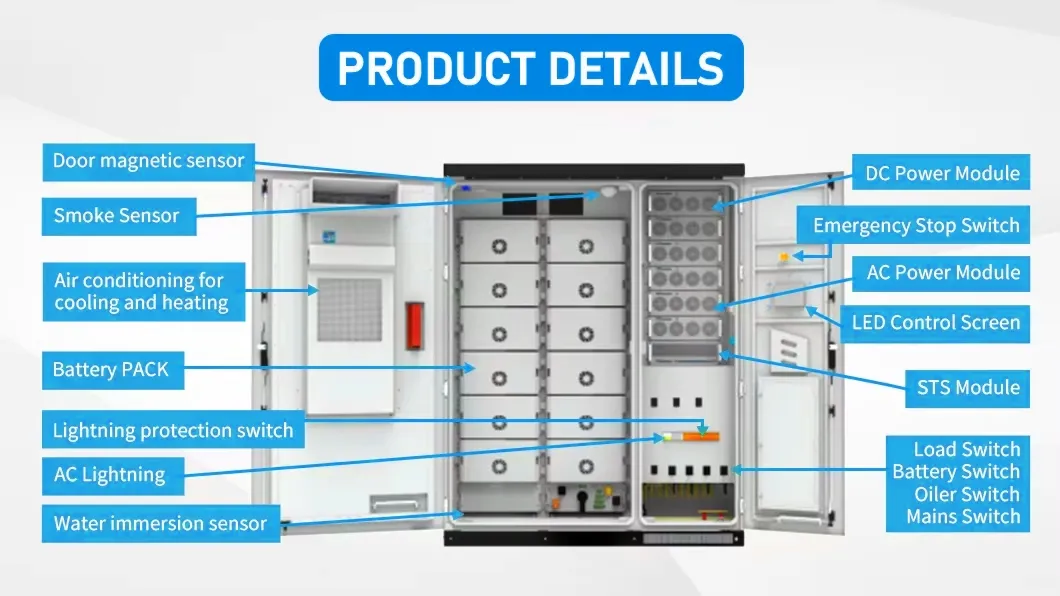

System Detail 2
High-Voltage Box Specifications
Dimension483*648*222.5mm
Weight25kgs
Rated Current250A
Rated Voltage1000V
Voltage Sampling Range0~1500V
All-in-One LFP Cabinet Specifications
Nominal Energy241.152KWH
Nominal Voltage768V
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Cycle Life> 8000 cycles (@25ºC, 0.5P/0.5P)
Cell Specification3.2V 314Ah
Fire ExtinguishingAerosol fire extinguishing
Rated Output Power125KW
IP RatingIP 54
Cooling MethodLiquid cooling
Dimension (W*D*H)1000*1330*2350mm
ComplianceIEC62619, IEC/EN61000, UN38.3, MSDS

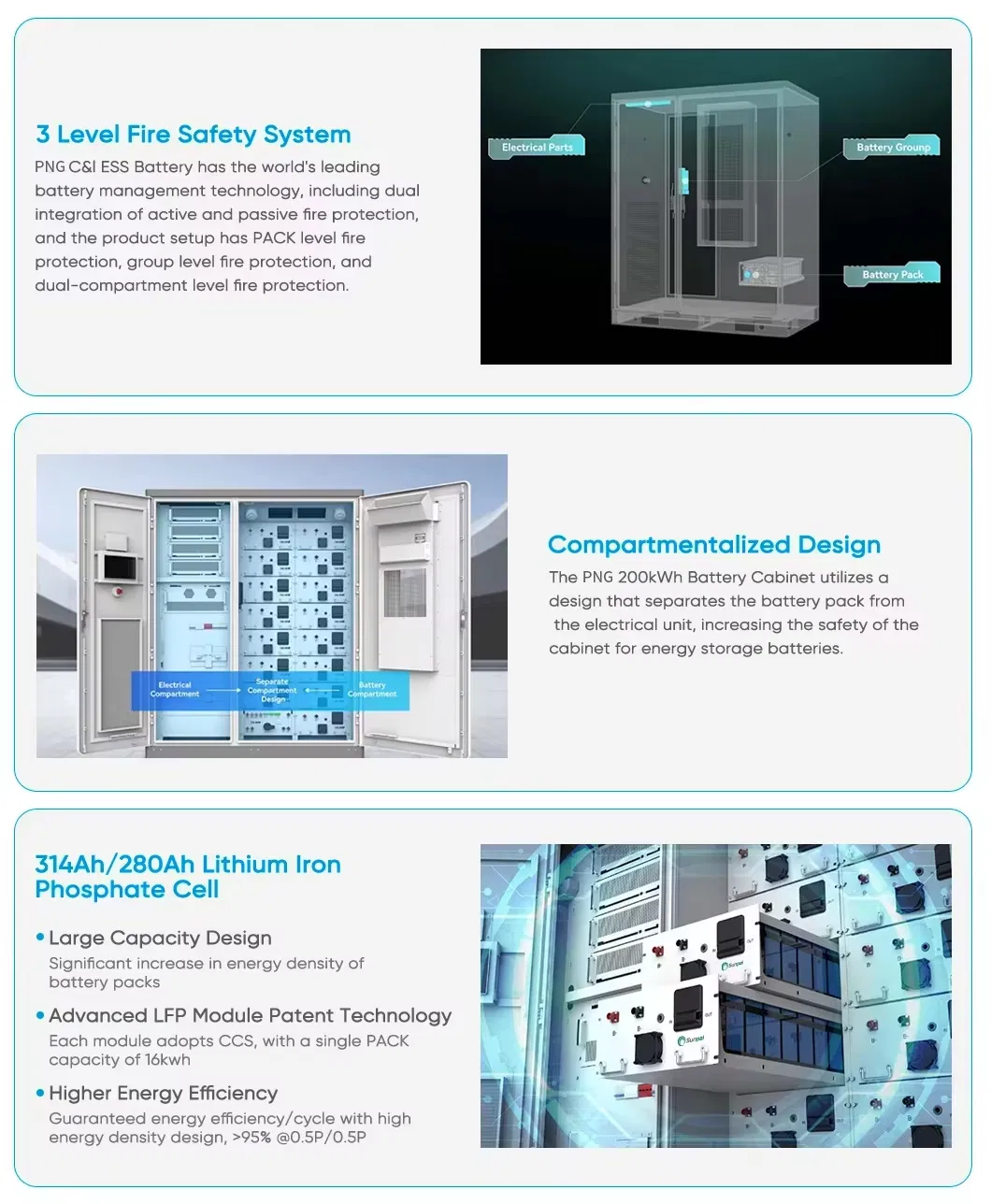

Specification Sheet 1

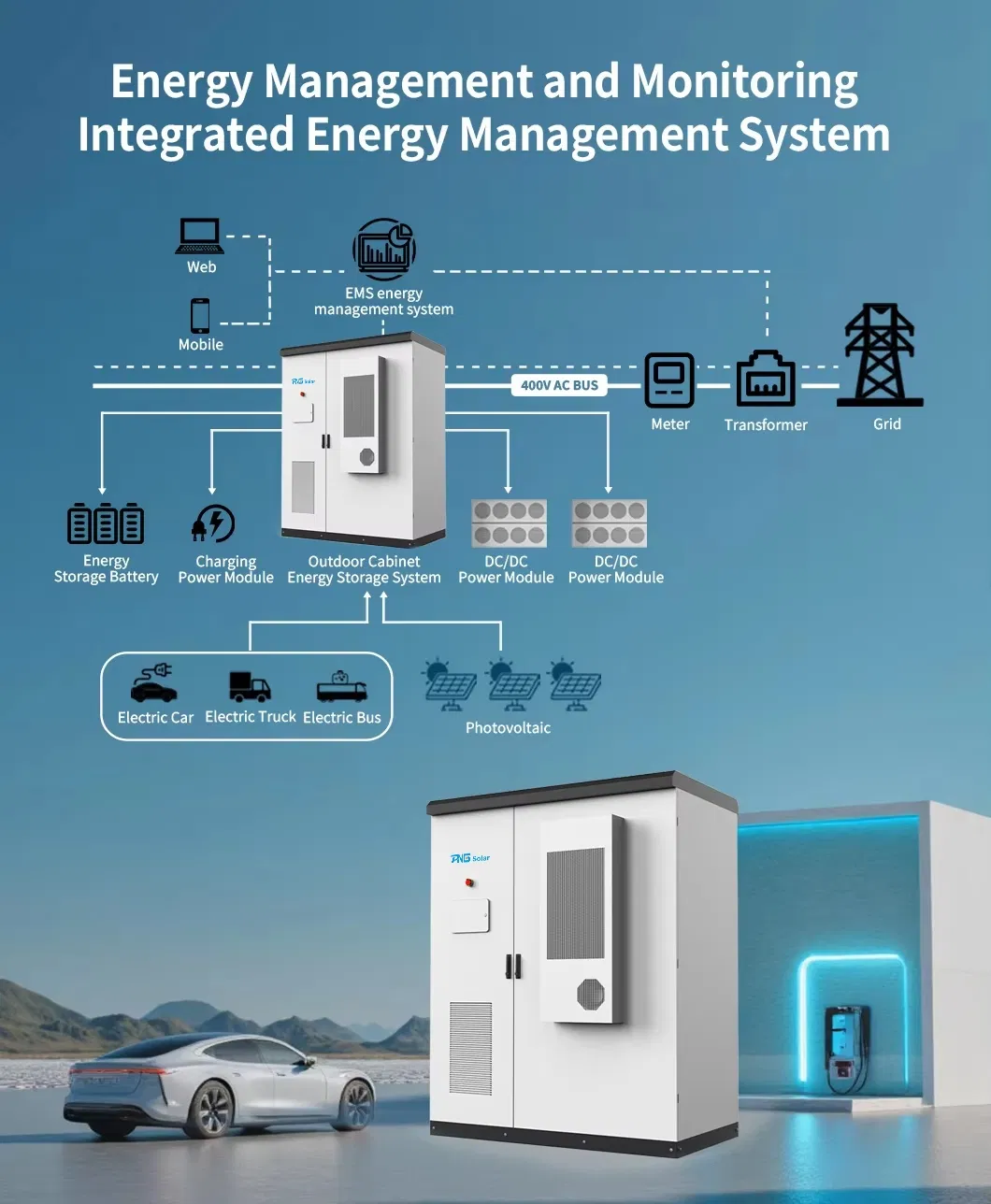

Specification Sheet 2
Internal Structure
📦

Packaging & Delivery

Package Size1000.00cm * 1330.00cm * 2350.00cm
Package Gross Weight2500.000kg

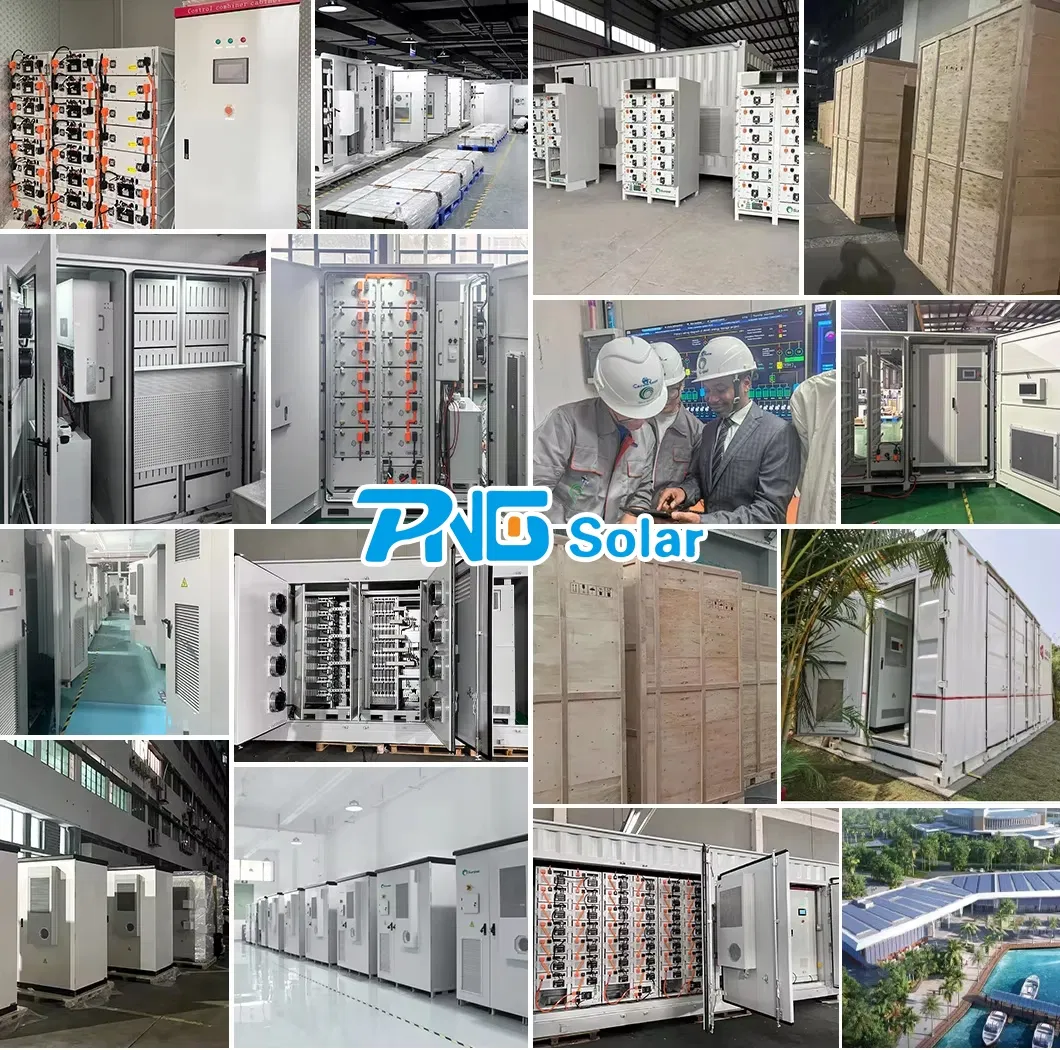

Packaging

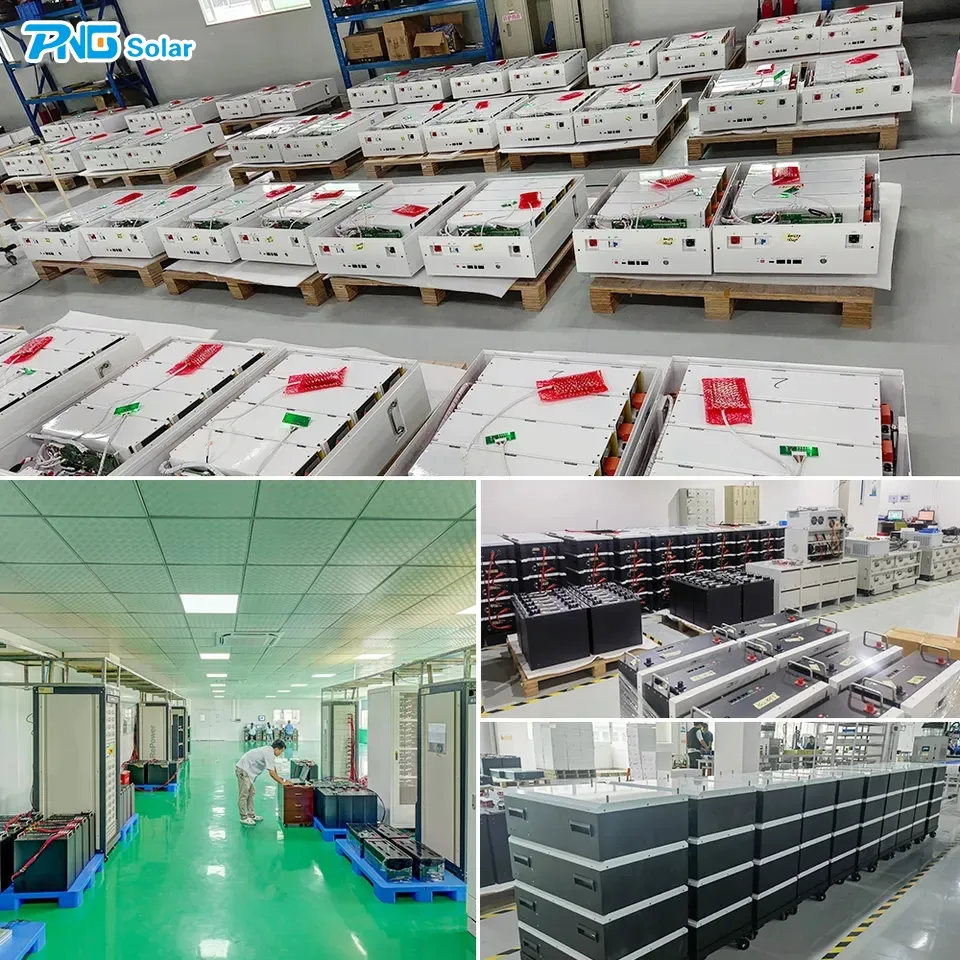

Shipping

Successful Projects & Certifications

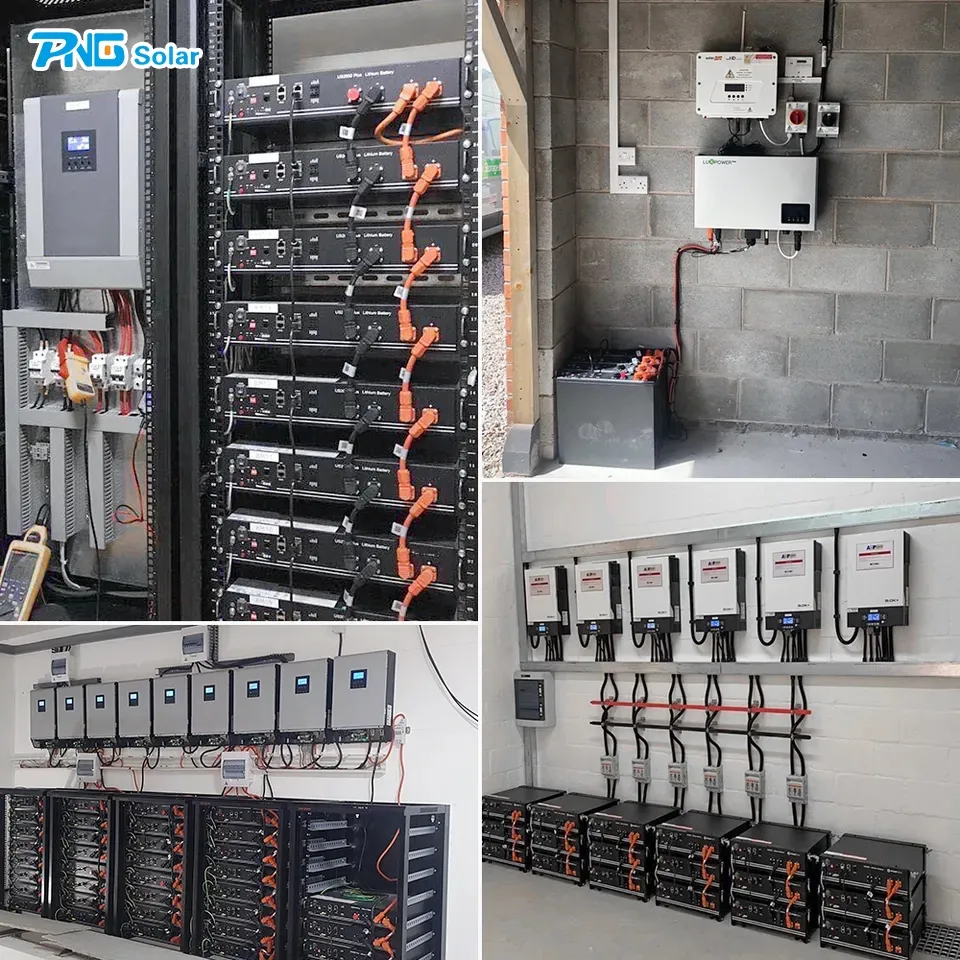

Project 1

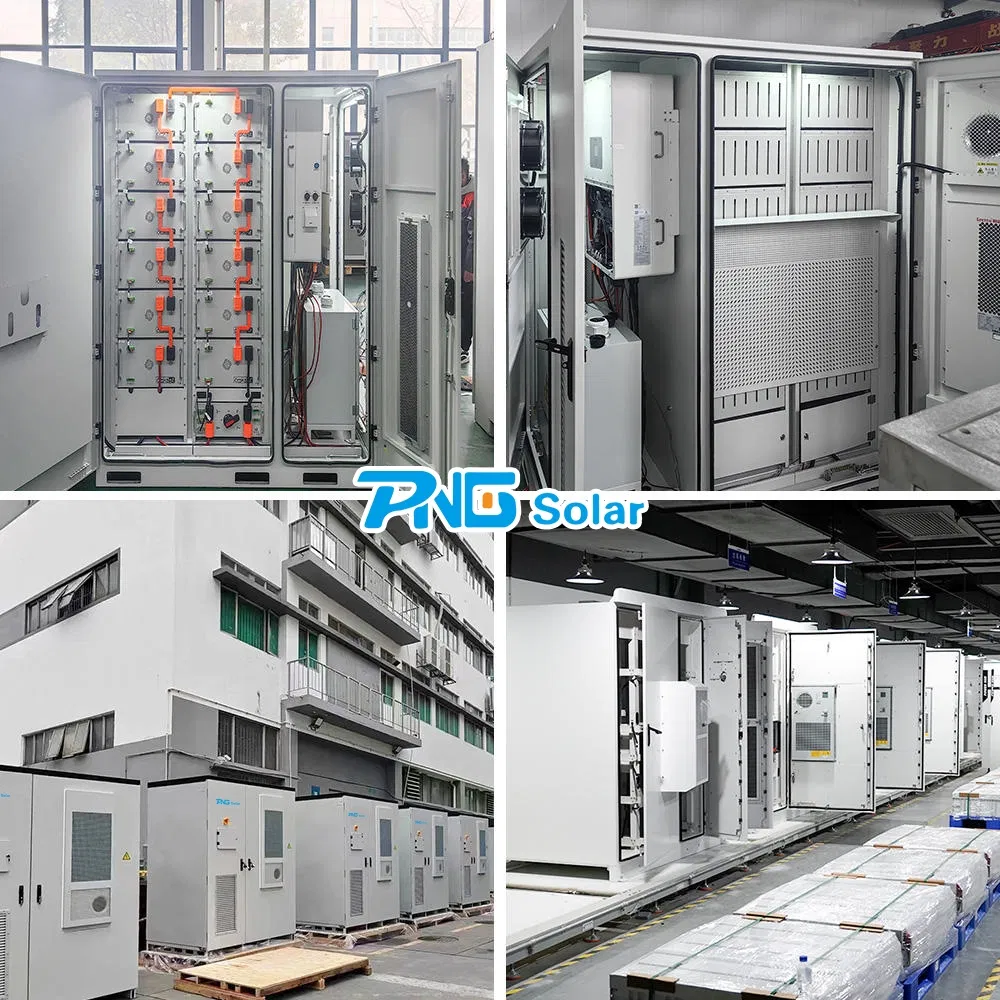

Project 2

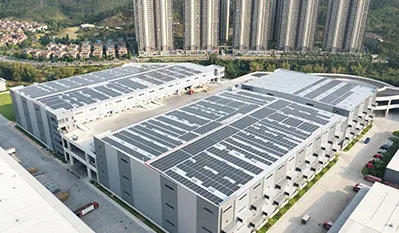

Project 3

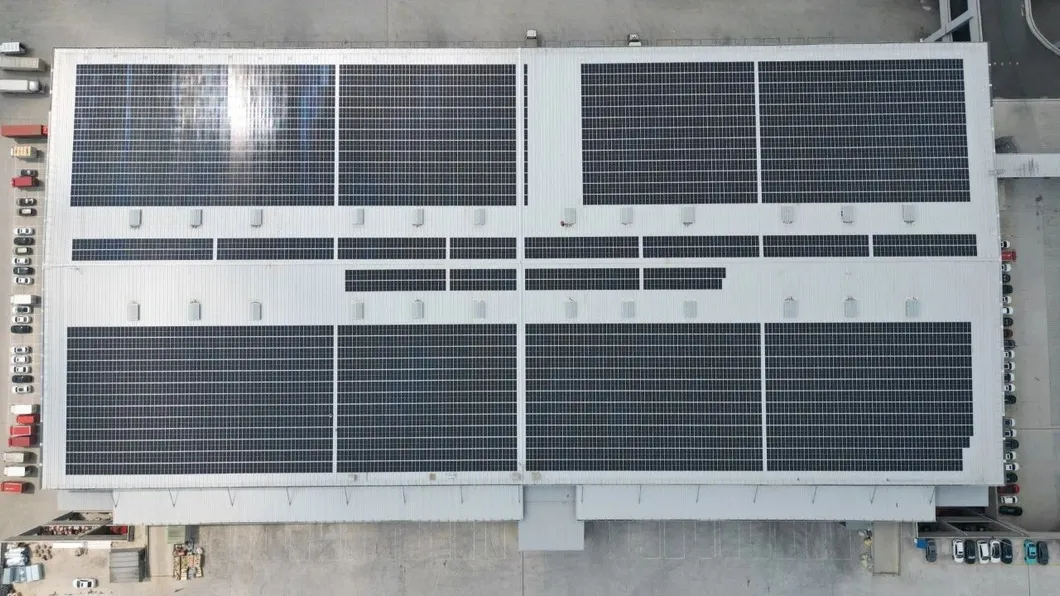

Project 4
Certificates

Frequently Asked Questions

What is the expected cycle life of this energy storage system?
The system provides more than 8000 cycles at 25ºC with 0.5P/0.5P charge and discharge rates, ensuring a long-term reliable service life of over 10 years.
How does the liquid cooling system benefit the battery?
The full liquid cooling method maintains a temperature difference of ≤3℃ throughout the cabinet. This superior thermal management prevents overheating and significantly extends the battery's lifespan and safety.
Is the cabinet suitable for outdoor installation?

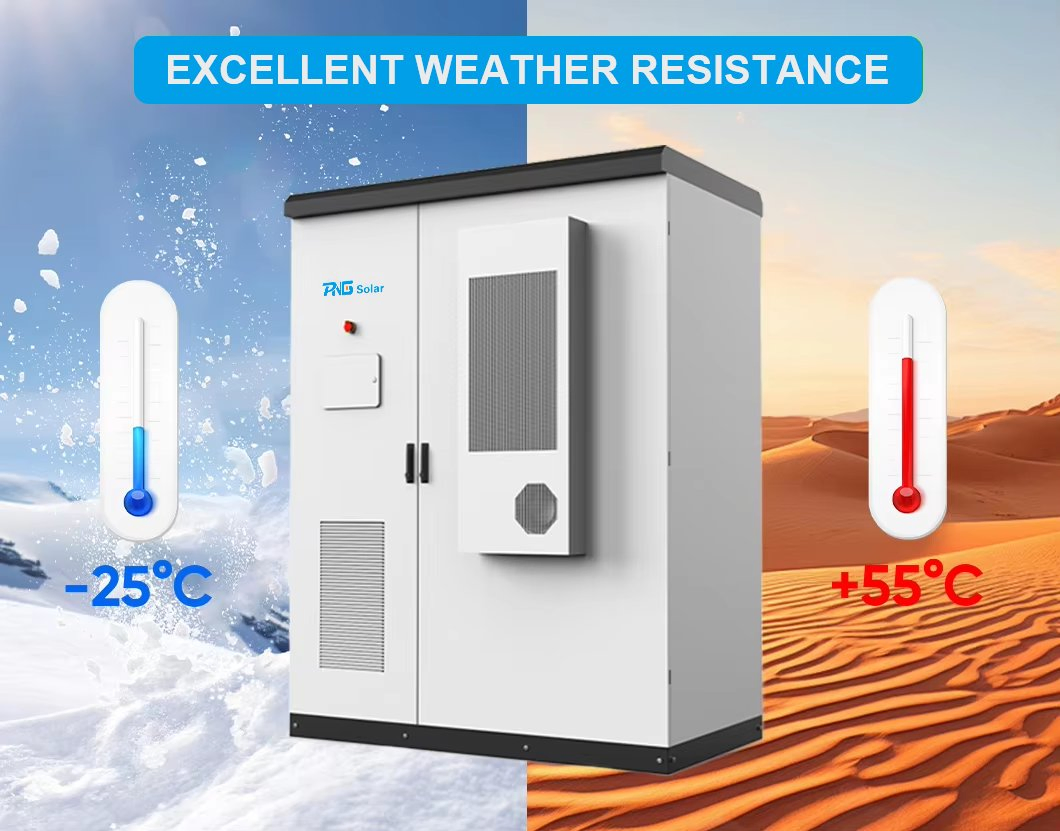

Yes, the cabinet is designed for outdoor use with an IP54 rating, protecting the internal components from dust and water splashes in various environments.
What safety features are integrated for fire protection?
The system includes an integrated aerosol fire extinguishing system, providing automatic and effective fire suppression specifically designed for lithium-ion battery environments.
What types of products and systems can you provide?
We offer a complete range of solar products, including Solar Panels, Gel and Lithium batteries, Inverters, and fully integrated on-grid, off-grid, and hybrid solar energy systems.
What certifications does the system hold?
Our systems are fully compliant with international standards, including IEC62619 for safety, IEC/EN61000 for electromagnetic compatibility, UN38.3 for transport safety, and MSDS.
