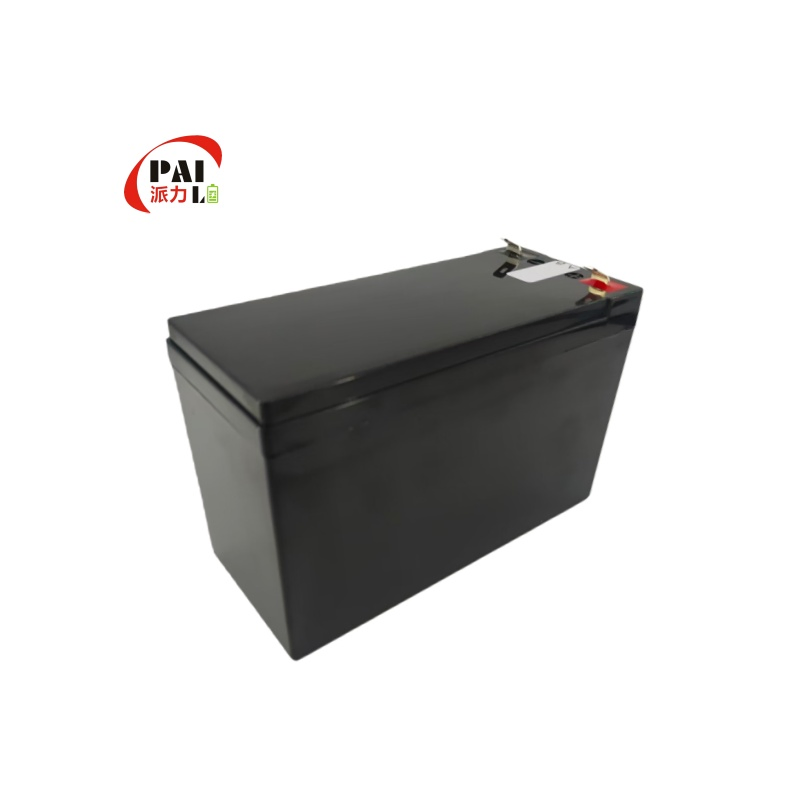

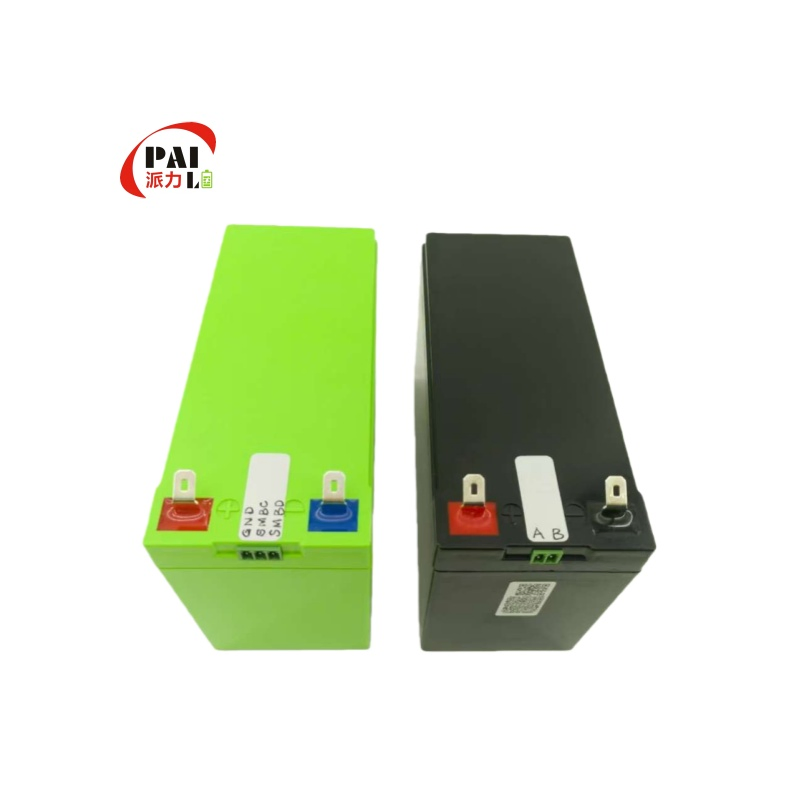

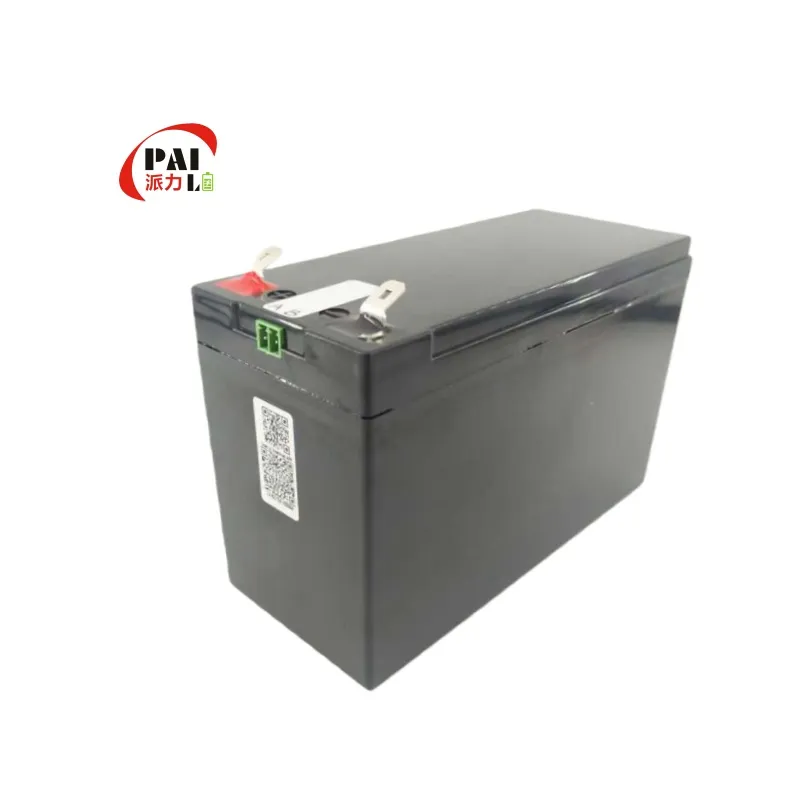

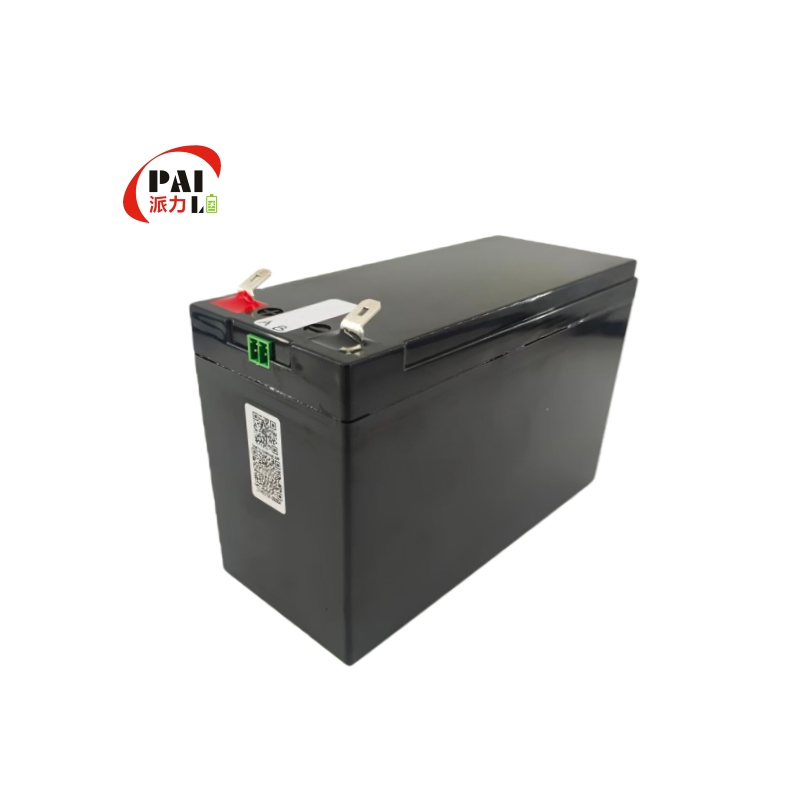

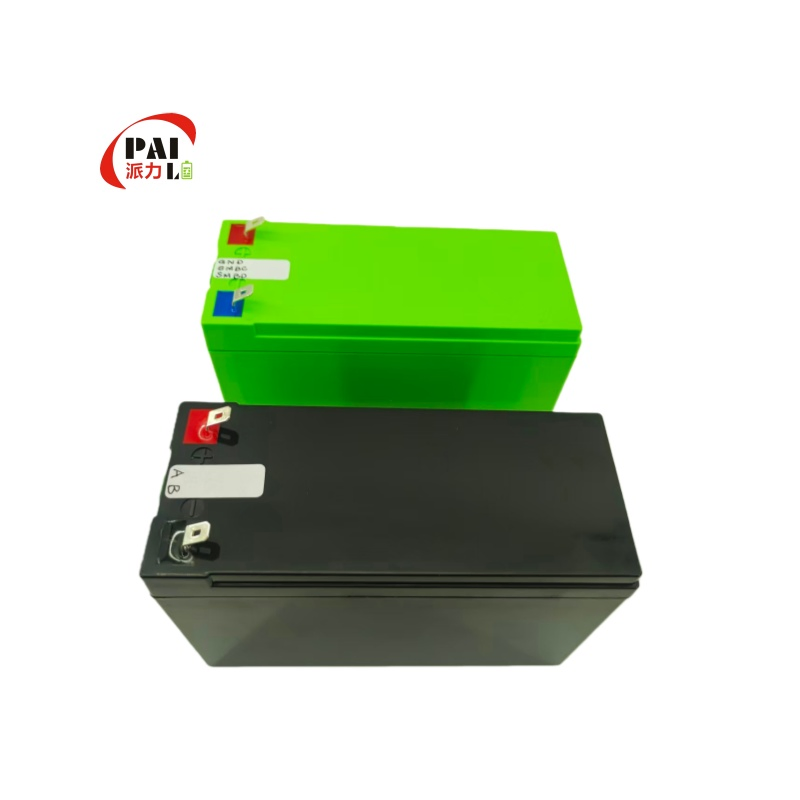

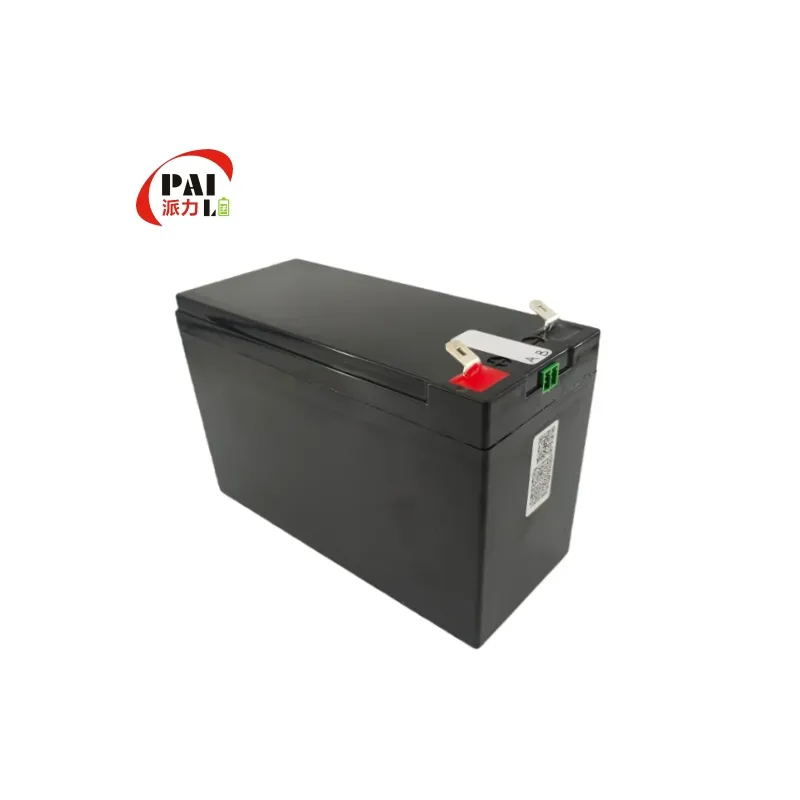

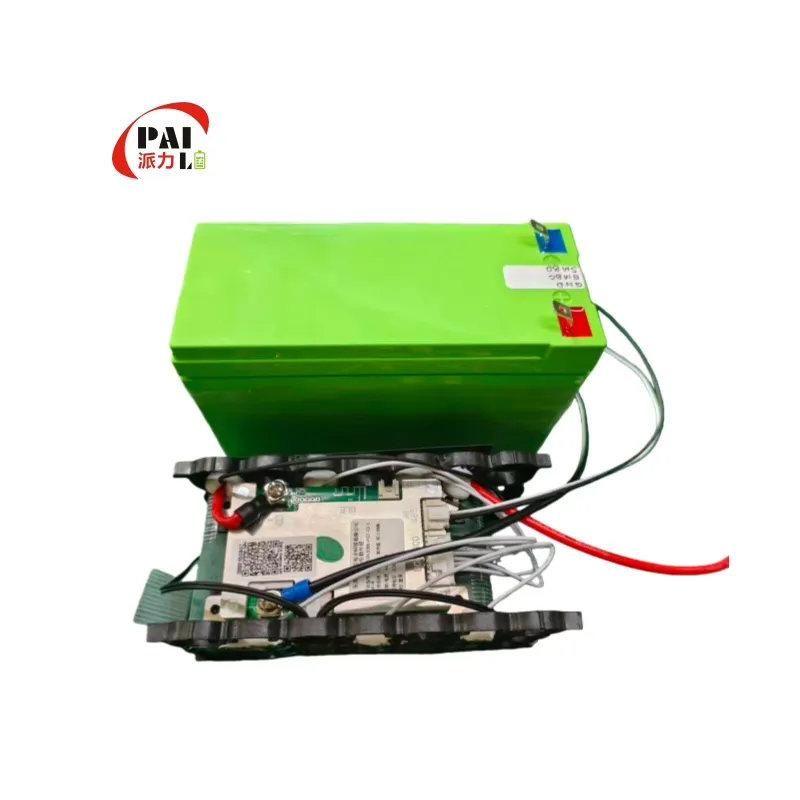

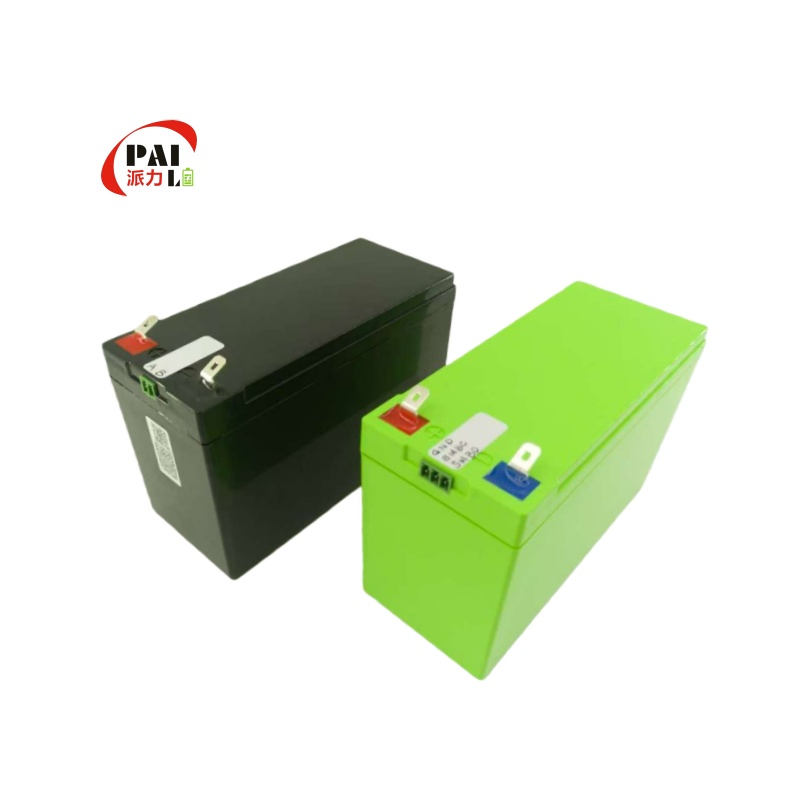

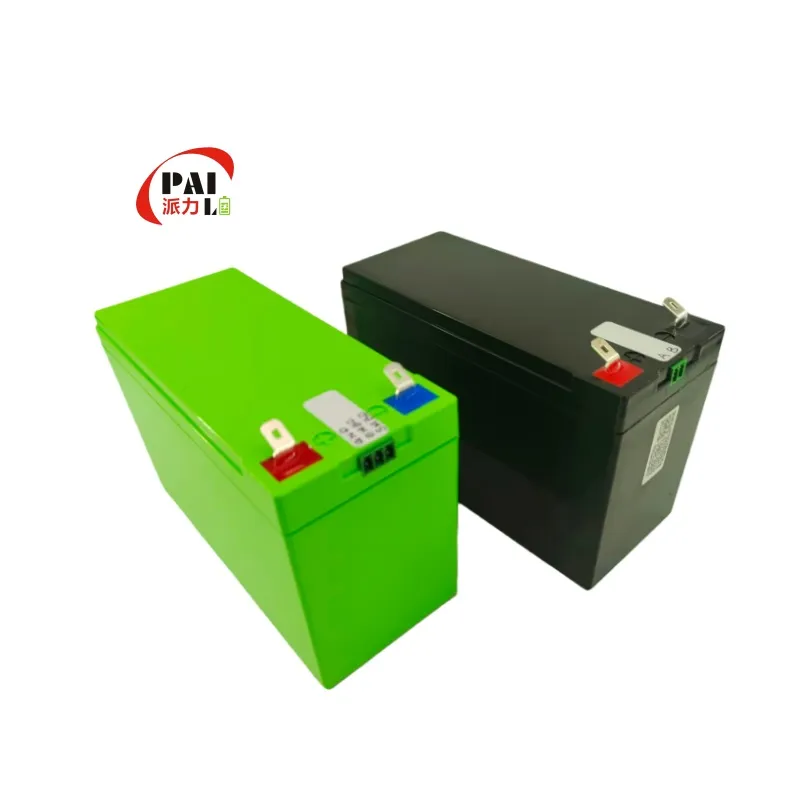

Customized 18650 lithium battery packs with RS485/Smbus communication are suitable for backup power supply in industrial control equipment.
| Model | 18650-6S2P |
| Nominal voltage | 21.6V |
| Nominal capacity | 7Ah |
| Max charge current | 0.5C |
| Charging method | Constant current 1C to 25.2V, then charge with constant voltage 25.2V till current < 0.01C |
| Max discharge current | 3C |
| Discharge cut-off voltage | 16.5V (PCM detection) |
| Operating environment | Charging: 0°C ~ 45°C; Discharging: -20°C ~ 60°C |
| Storage environment | -40°C ~ 85°C; 65±20%RH |
| Lifespan | >800 times (80% Prime Capacity) |
1. New Battery Maintenance: Visual inspection before installation. Batteries are usually half-charged from the factory; no special activation is needed.
2. Fast Charging: Not recommended for non-fast-charge series as it may cause irreversible electrode changes and capacity loss.
3. Storage: Store at 50%-70% charge in temperatures below 25ºC for long-term storage.
4. Daily Use: Avoid overcharging and overdischarging. In summer, avoid direct sun exposure and ensure heat dissipation before charging.
