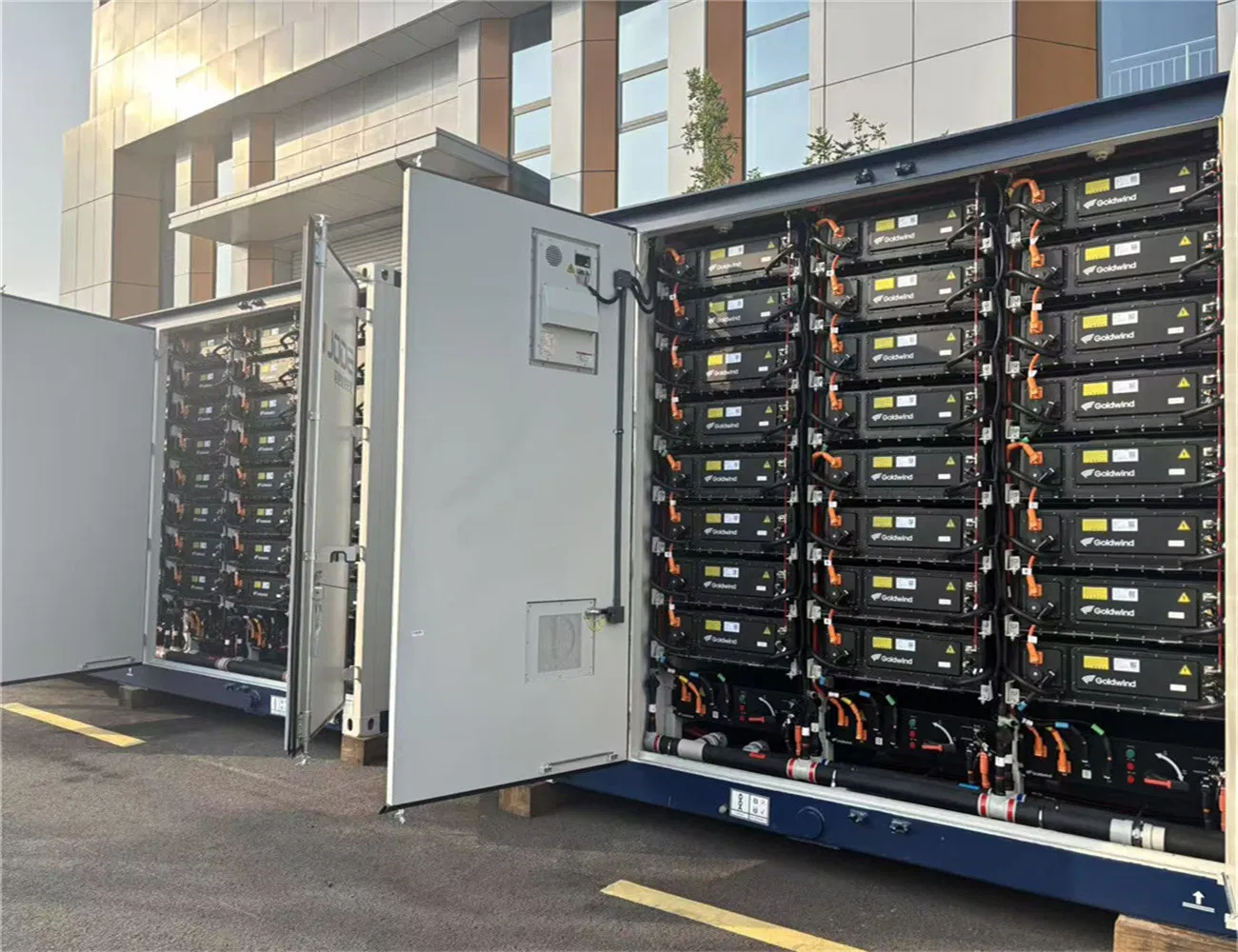

5015kwh Battery Management Power Bank System with Liquid Cooling System and High Voltage Box by Jingye New Energy

1 / 5

5015kwh Battery Management Power Bank System with Liquid Cooling System and High Voltage Box by Jingye New Energy

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

Basic Information

Nominal Voltage1331.2V

Nominal Capacity5015kWh

Warranty3 Years

Cycle Life10 Years

Rated Power5MWh

Cooling TypeLiquid Cooling

Packaging & Delivery

Package Size24.8m * 29.0m * 60.6m

Gross Weight43,000 kg

Product Overview

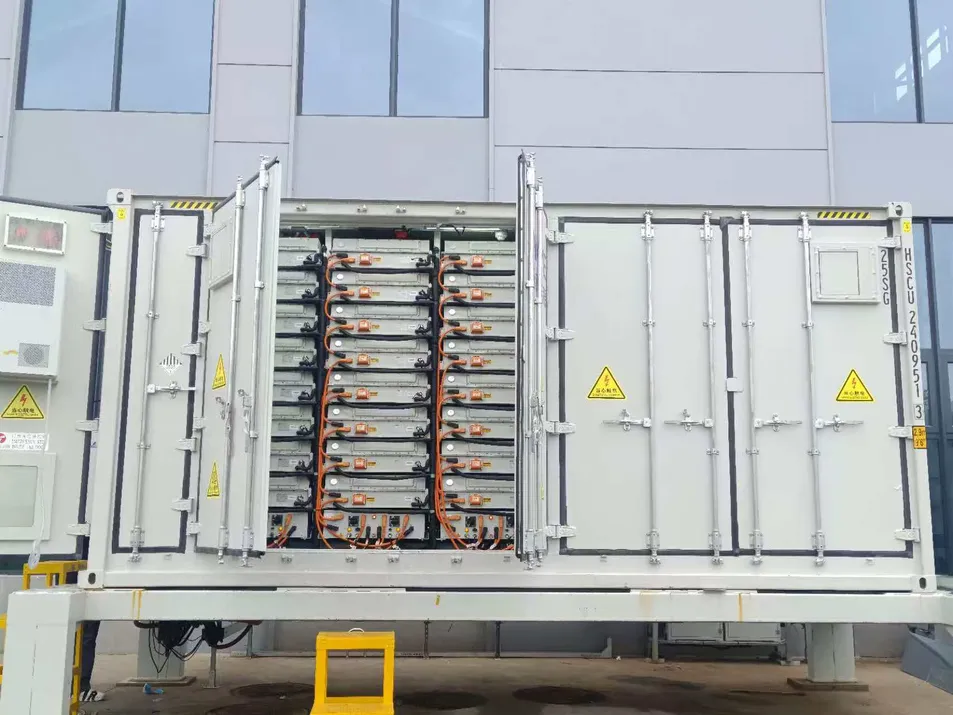

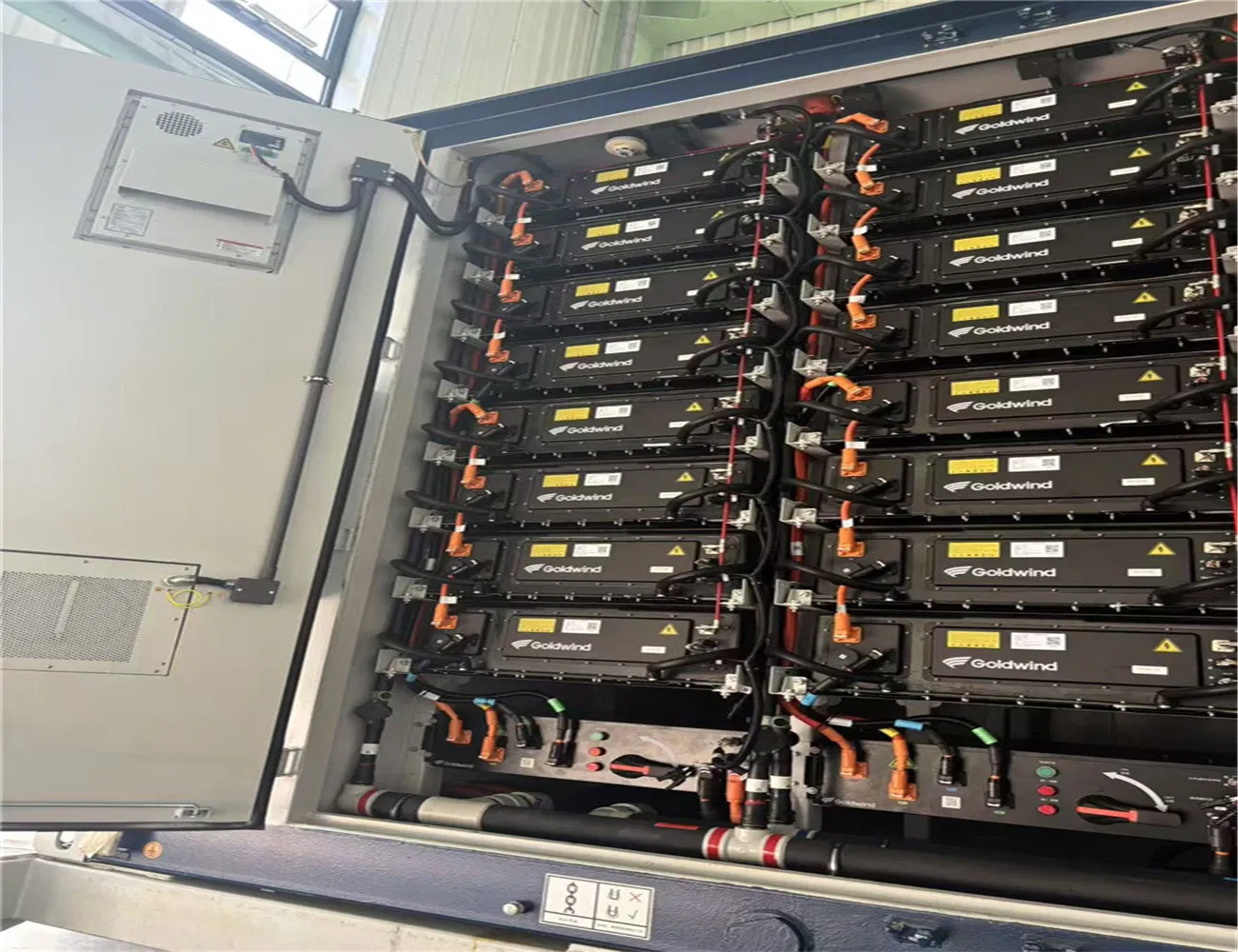

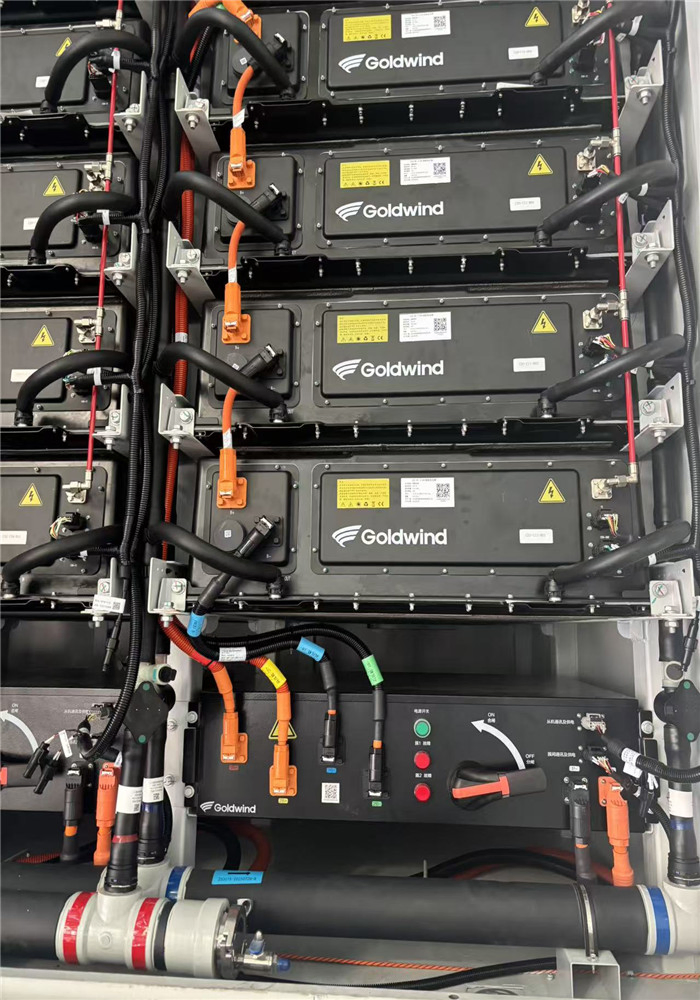

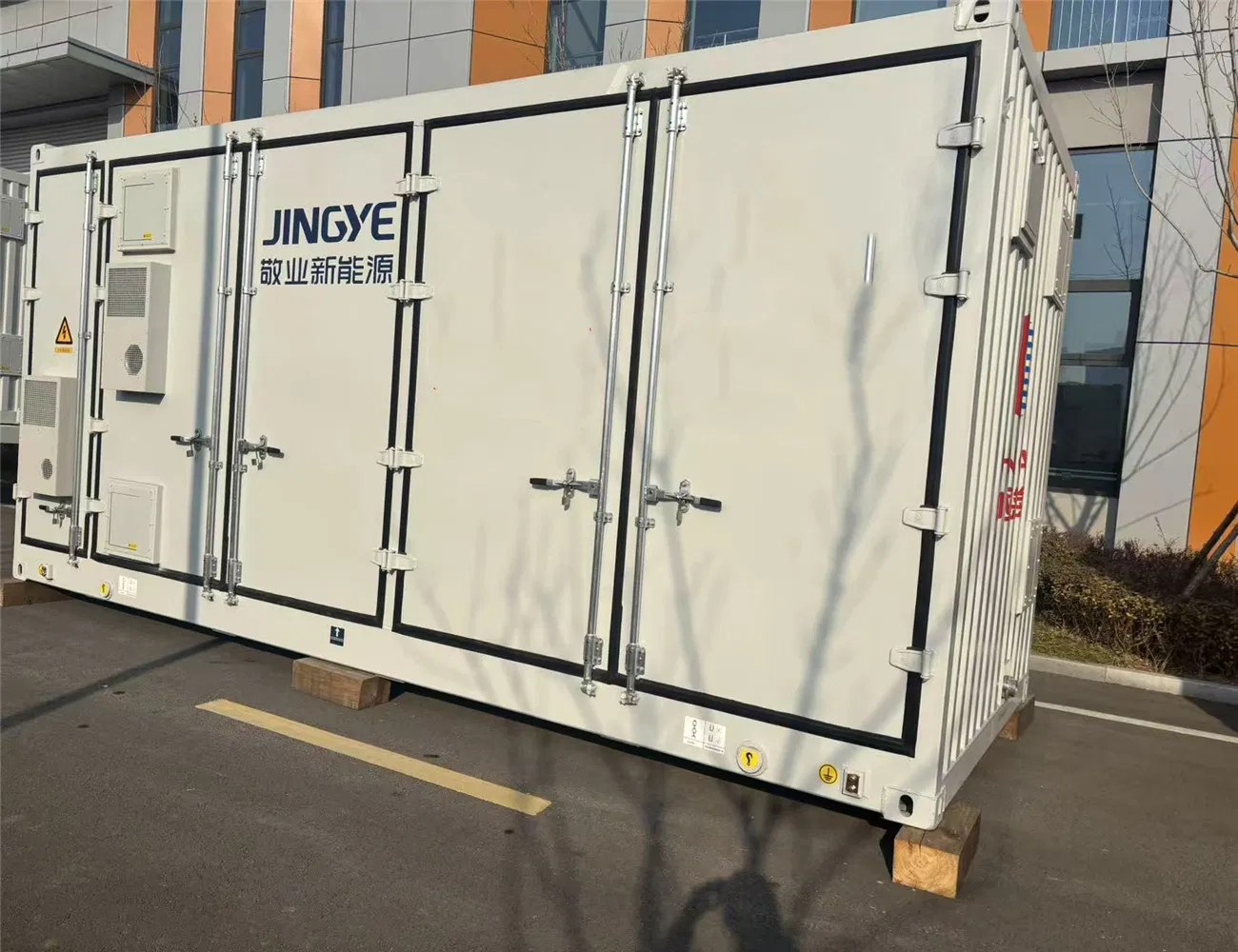

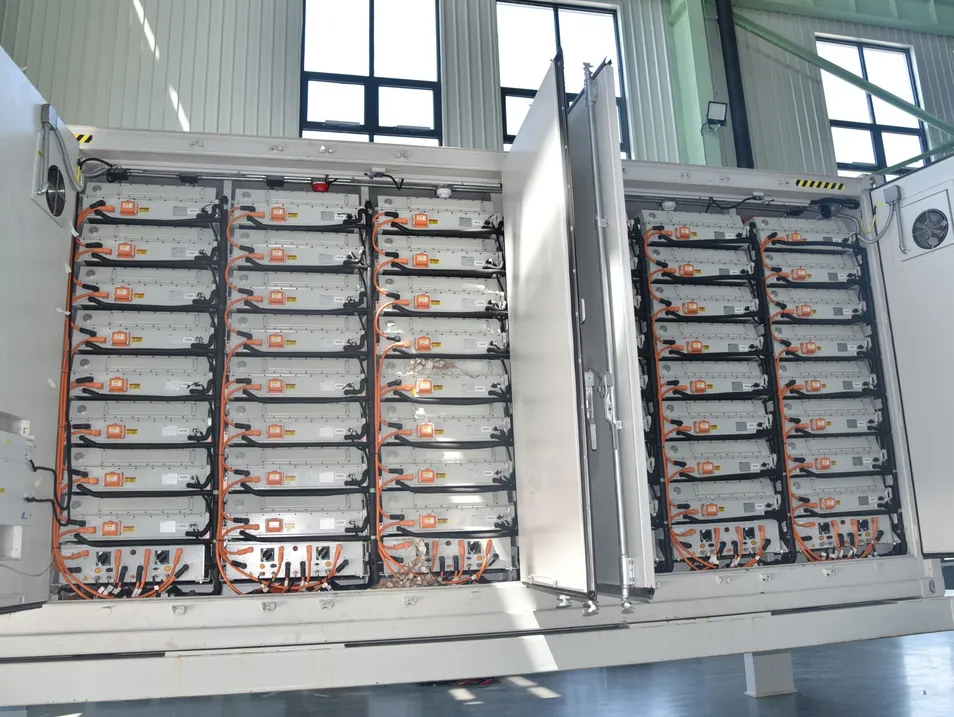

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah lithium iron phosphate energy storage cells. It integrates 104S long PACKs, battery cluster units, management systems, and thermal control within a standard 20-foot container. This highly modular design ensures safety and efficiency for various transportation and site requirements.

Key Features

Advanced Battery Tech: Utilizes high-efficiency, long-life large-capacity LFP batteries.

Intelligent Management: Equipped with smart BMS to ensure operational safety.

Thermal Control: Industrial-grade cooling ensures a 3℃ temperature difference inside the PACK.

Triple-Level Fire Safety: Configured with automatic fire extinguishing for PACK, cluster, and compartment.

Technical Specifications

Item	Specification Details
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Charging/Discharge Power	≤ 2.5MW
Altitude	≤ 4000m
IP Rating	IP54
Dimensions	L6058 x W2438 x H2896mm
Coolant	50% ethylene glycol aqueous solution

Workshop & Production

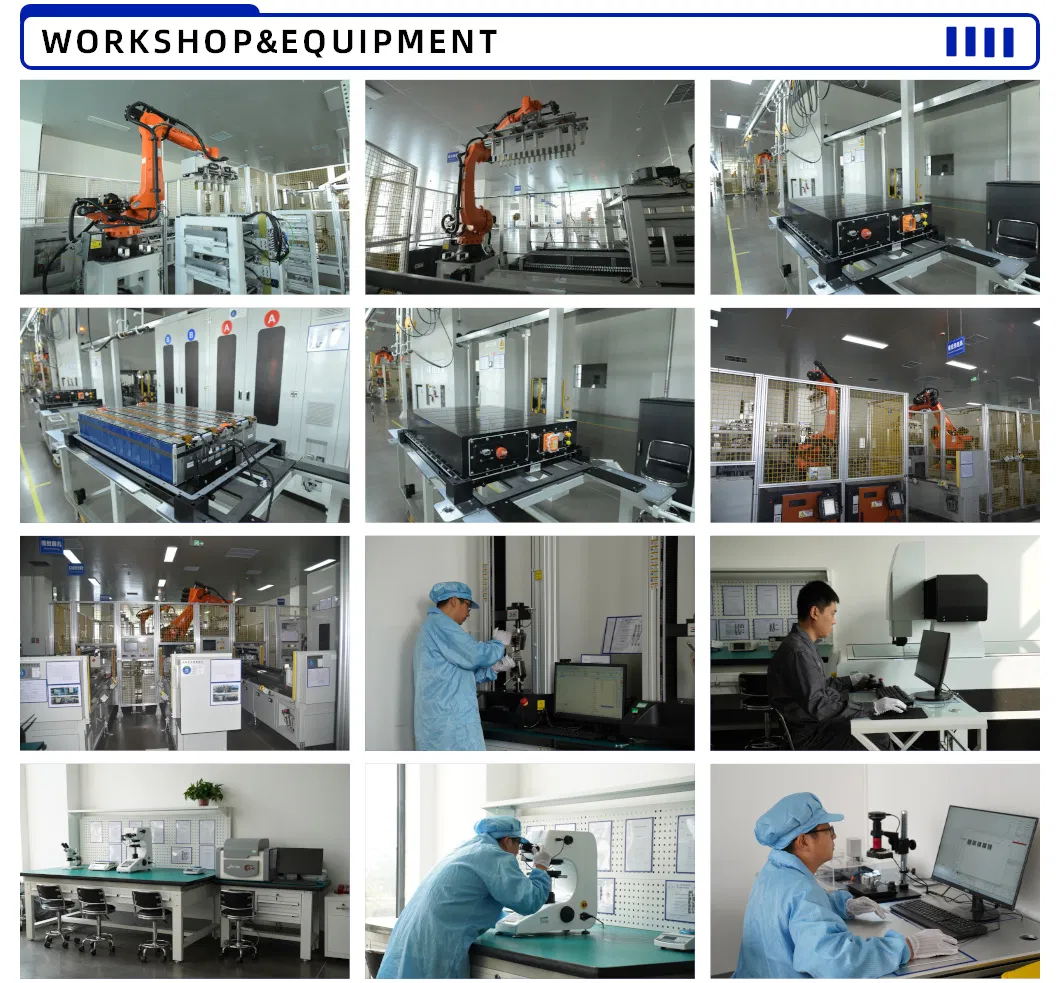

The facility features an advanced automated production line with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These solutions are widely applied in smart grids, renewable energy storage, and industrial fields.

Certifications & Global Presence

Frequently Asked Questions

What are the main products available?

We specialize in 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Do you support customization services?

Yes, we offer flexible customization services for products across various diverse process types and energy requirements.

How is production and delivery timeline ensured?

Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and on-time delivery.

How can I obtain a detailed quotation?

You can contact the staff online directly through the website interface; they will promptly provide a detailed quotation for your project.

Are you a manufacturer or a trading company?

We are a formal source factory with standardized production processes, allowing us to offer both competitive prices and high-quality product standards.

What is the cooling technology used?

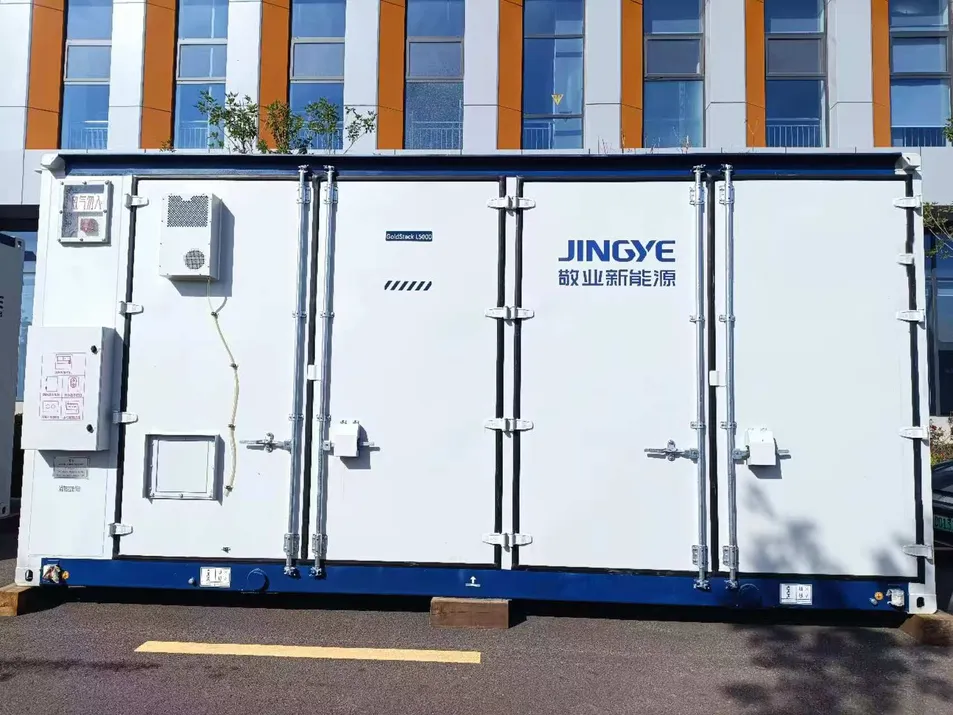

The system utilizes an advanced liquid cooling thermal management system, ensuring high-precision environment control and temperature uniformity.
