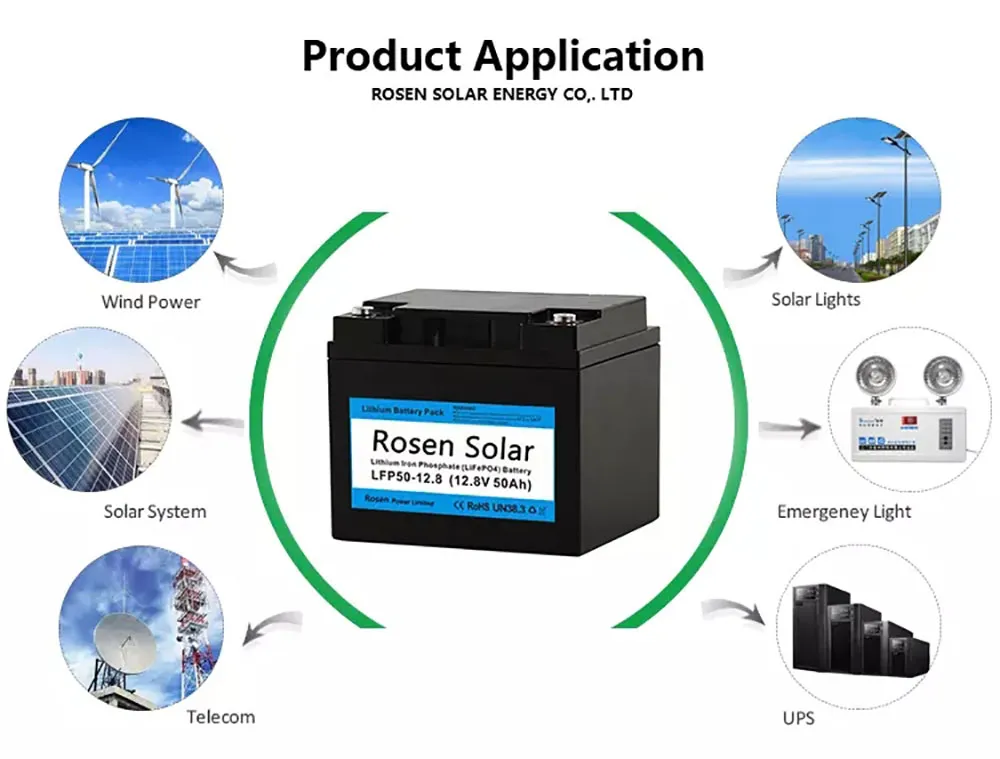

A professional manufacturer engaging in research, development, production, marketing and service of lithium ion battery cell, battery pack and battery management system. Lithium LiFePO4 is the major product. Standard battery pack from 12V-92V, 5AH-800AH, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station, E-scooter, E-tools, unmanned airplane, golf cart, fork lift, cleaning car, electric wheelchair, etc.
| Function Parameter | |
|---|---|
| Nominal Battery Energy | 640Wh |
| Nominal Capacity | 50Ah |
| Nominal Voltage | 12.8V |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >2000 cycles @ 1C 100% DOD |
| Self Discharge | <3% per Month |
| Charge Data | |
| Limited Charge Voltage | 14.6±0.1V |
| Floating Charge Voltage | 13.8±0.2V |
| Standard Charge Current | 25A |
| Max. Charge Current | 50A |
| Discharge Data | |
| Continuous Current | 25A |
| Max Discharge Current | 50A |
| Pulse Discharge Current | 100A (2s) |
| Discharge Cut-off Voltage | 8.0V |
| Working Condition | |
| Charge Temperature | 0ºC to 45ºC |
| Discharge Temperature | -20ºC to 60ºC |
| Mechanical Data | |

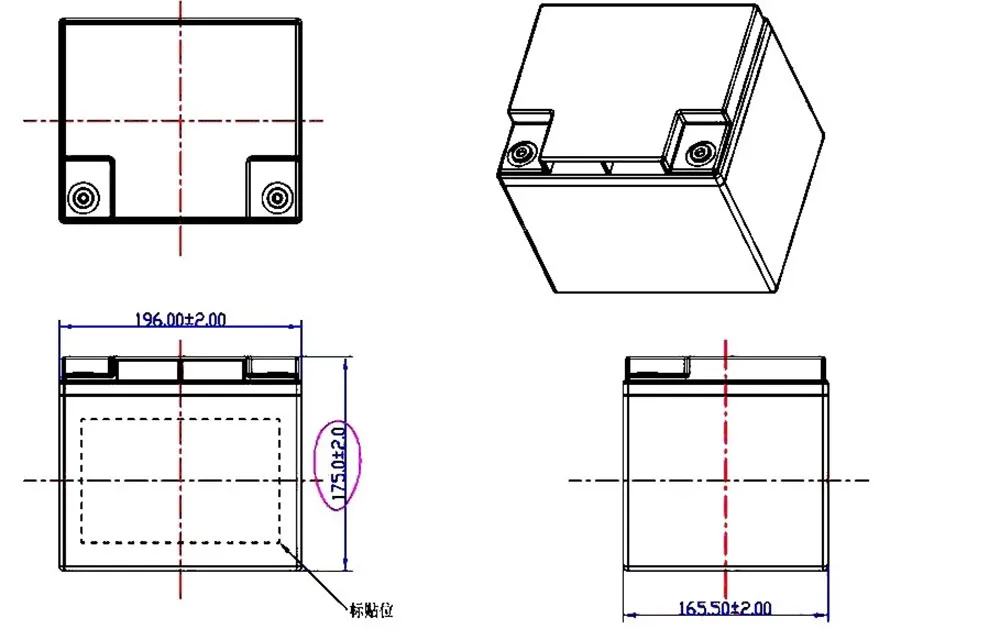

| Dimensions | 196*165*174mm |
| Weight | 7.00kgs (15.43lbs) |
| Terminal | M6 |

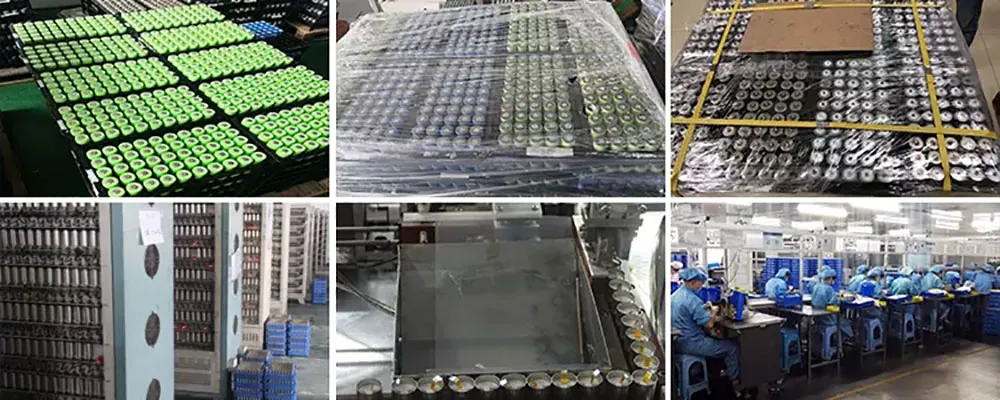

Our battery factory maintains a 2 million battery annual production capacity, specializing in valve regulated lead acid batteries, Gel batteries, deep cycle batteries, and high-performance Lithium Batteries. Our products are exported to more than 100 countries and certified by CE and RoHS standards.
