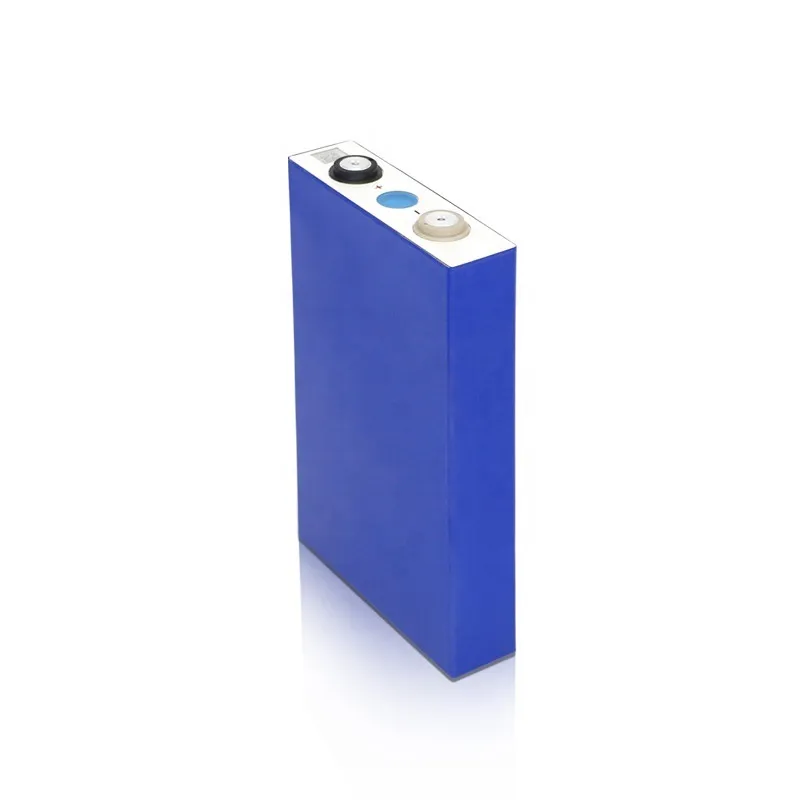

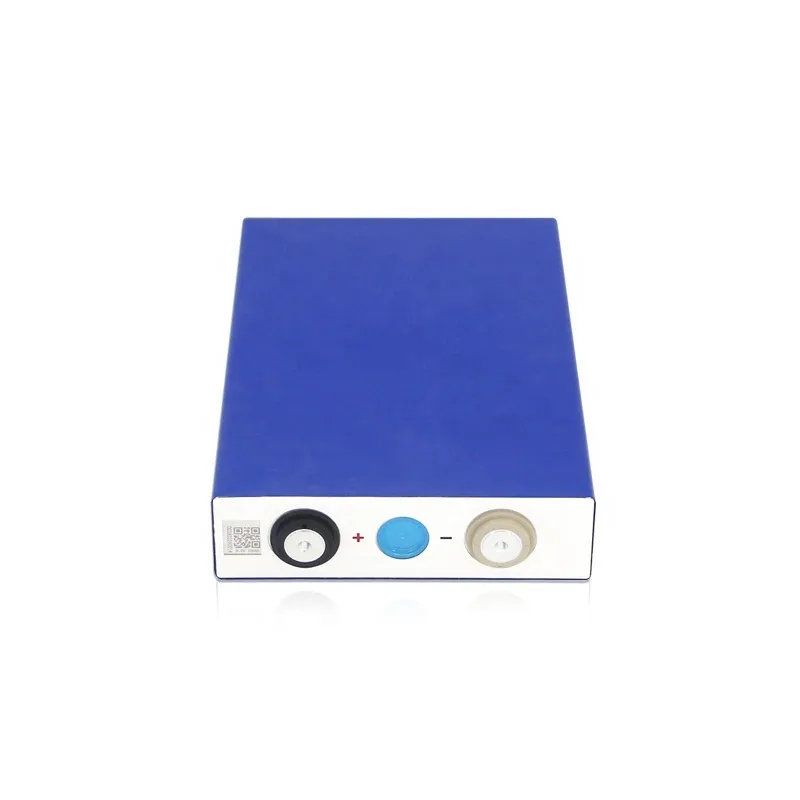

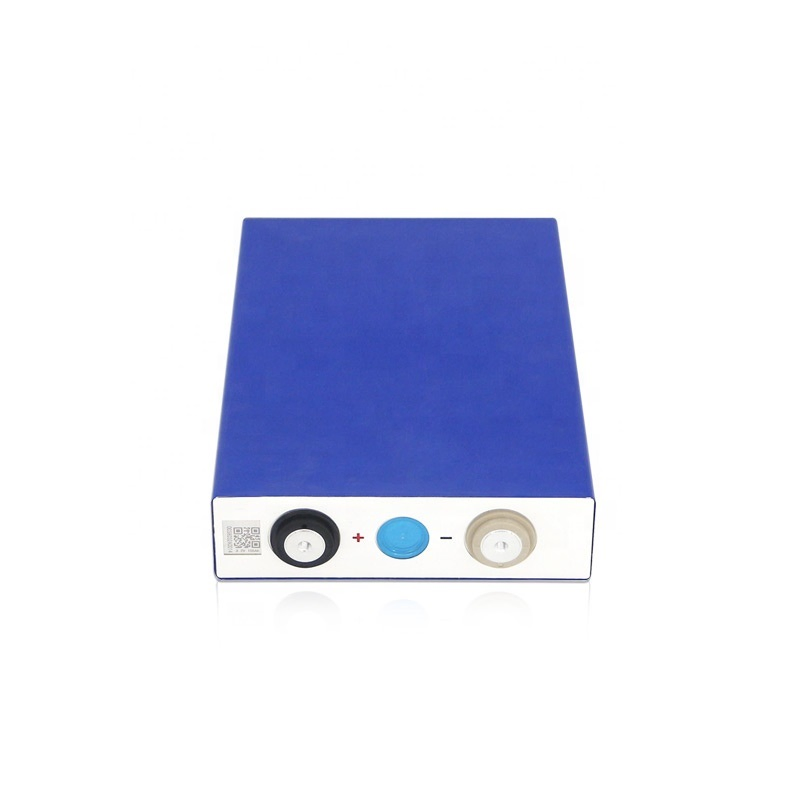

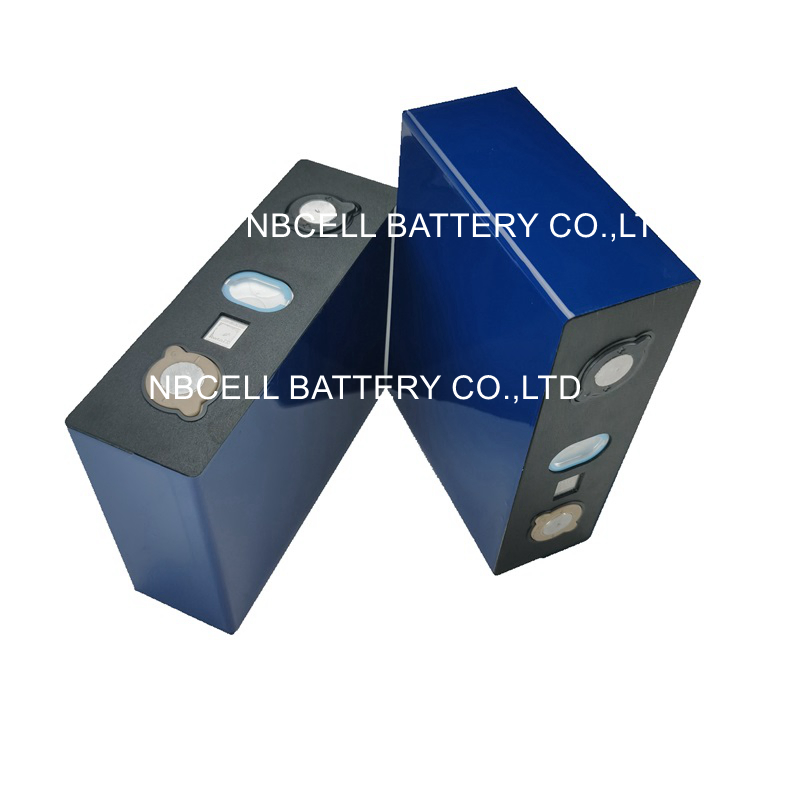

3.2V Lf100L LiFePO4 100ah Lithium Battery Cell

1 / 5

3.2V Lf100L LiFePO4 100ah Lithium Battery Cell

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

100ah

Nominal Voltage

3.2V

Rechargeable

Yes

Electrolyte

Li-ion

Discharge Rate

High Discharge Rate

Cycle Life (80%Dod)

4000

Shape

Square Battery

Weight

2kgs

Usage

RV/Solar System/Electric Vehicle

Warranty

18 Months

Charging Temp

0~45°C

Discharging Temp

-20~55°C

Shell Material

Aluminum or Plastic

Specification

130.3*36.7*200.5mm

Product Overview

3.2V Lf100L LiFePO4 100ah lithium Battery Cell
Title	High quality Lithium Ion LiFePO4 100ah Cell
Capacity	100Ah
Manufacturing	20000 SQM facility with over 1000 professional workers
Service Features	• OEM/ODM services with professional team • Own molding workshop • Low MOQ for different customer needs • Fast sample production • Dedicated transportation partners for easy delivery

Cell type	LFP (Lithium Iron Phosphate)
Nominal Voltage	3.2V
Nominal Capacity	100Ah
End of charge Voltage	3.65V
Internal Resistance	0.1-0.5mΩ
End of discharge Voltage	2.5V
Charge Method	CC/CV

Visual Display

Grade A Quality Assurance

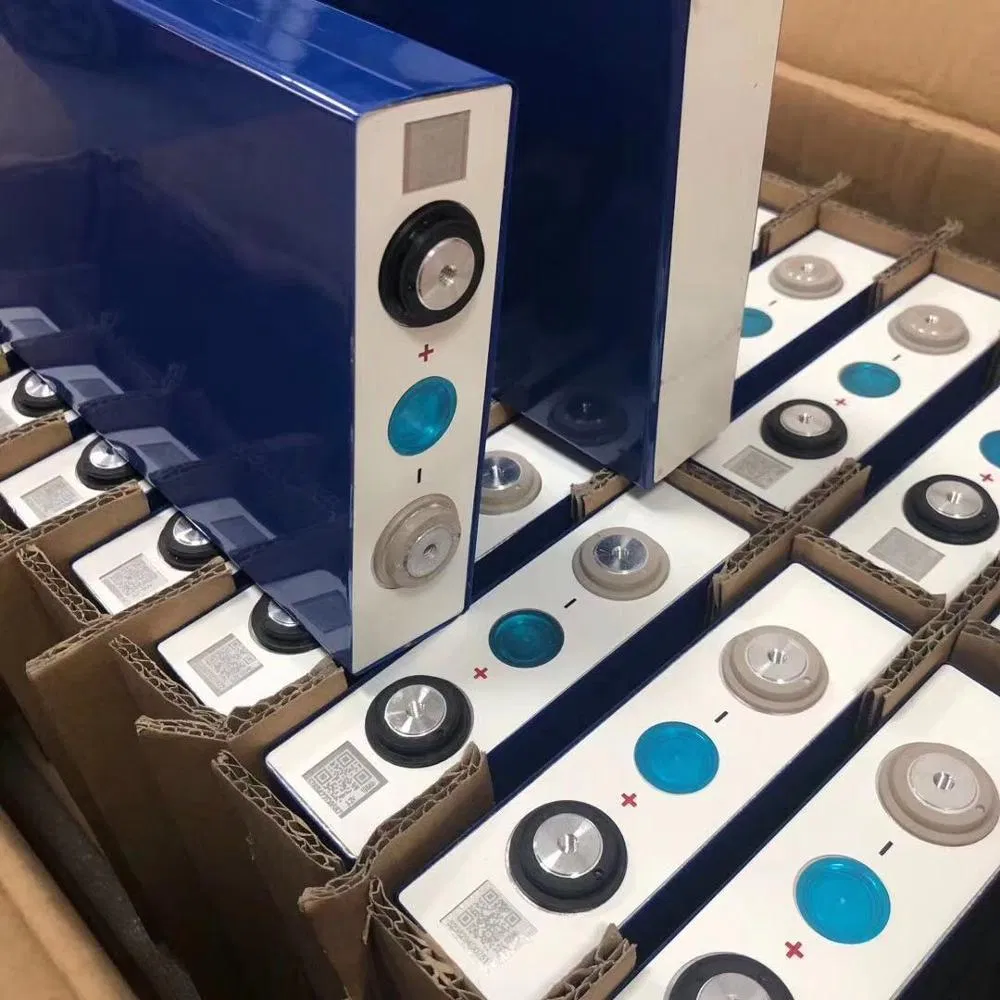

Our cells are Grade A including original certificate and test report. All cells are balanced, and each cell has complete data!

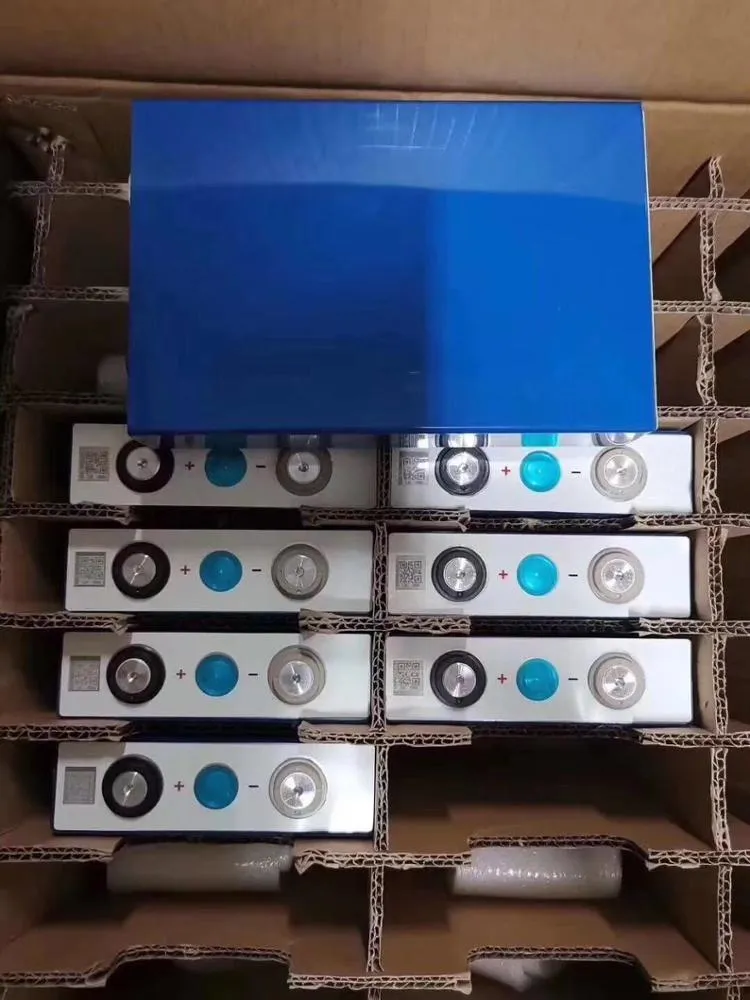

Packing list: Brand new cell, protective cover, screw, busbars.

Available upon request: Test report, Certificate, data of each cell (internal resistance, voltage, capacity).

Production Year: 2024 (Includes Screws and BusBars)

PLEASE NOTE: We do not provide Grade B or old cheap Lifepo4 battery cells. B-grade or old batteries result in short life cycles and are susceptible to damage. For international shipping, quality stability is essential. We highly recommend new A-grade batteries for strict quality requirements.

Frequently Asked Questions

Q1: What is the expected cycle life of these LiFePO4 cells?

These cells offer a high cycle life of approximately 4000 cycles at 80% Depth of Discharge (DoD), ensuring long-term reliability for your energy storage needs.

Q2: Are these batteries genuine Grade A cells?

Yes, we only provide brand new Grade A cells. Each cell comes with its original certificate, test report, and complete data including internal resistance and capacity.

Q3: What accessories are included in the package?

Each packing list includes the brand new battery cell, a protective cover, necessary screws, and busbars for connection.

Q4: What are the main applications for the 100Ah 3.2V cells?

These cells are ideal for RVs, Solar Energy Storage Systems, Electric Vehicles (EVs), and other high-discharge requirement applications.

Q5: What is the warranty period for this product?

We provide an 18-month warranty on these battery cells, reflecting our confidence in their quality and performance.

Q6: What is the operating temperature range?

The charging temperature range is 0~45°C, and the discharging temperature range is -20~55°C, making them suitable for various environmental conditions.
