100kw/215kwh Lithium Battery Solar Storage System - Smart Energy Management

1 / 5

100kw/215kwh Lithium Battery Solar Storage System - Smart Energy Management

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview

Commercial ESS

System Configuration

Product Description

Technical Support

Factory

Ref. Projects

🔹 Basic Specifications

Model NO.

WV-100KW-215KWh-0.5C

Cycle Life

6000 Times

Nominal Capacity

100kw/200kwh+

Application

Commercial and Industrial

AC Output

380V/400V/415V

Battery Type

LiFePO4/Lithium

Battery Capacity

100-600kwh

Support

UPS/Black Start/Dg

Cooling

Smart Air Cooling

PV Inputs

10 Mppts

Solar Panel

A Grade 550W-565W Modules

Mounting

Rooftop or Ground

Certificate

CE Un38.3 IEC En50549

Parallel

Yes, up to 3 Units

HS Code

8501723000

Origin

China

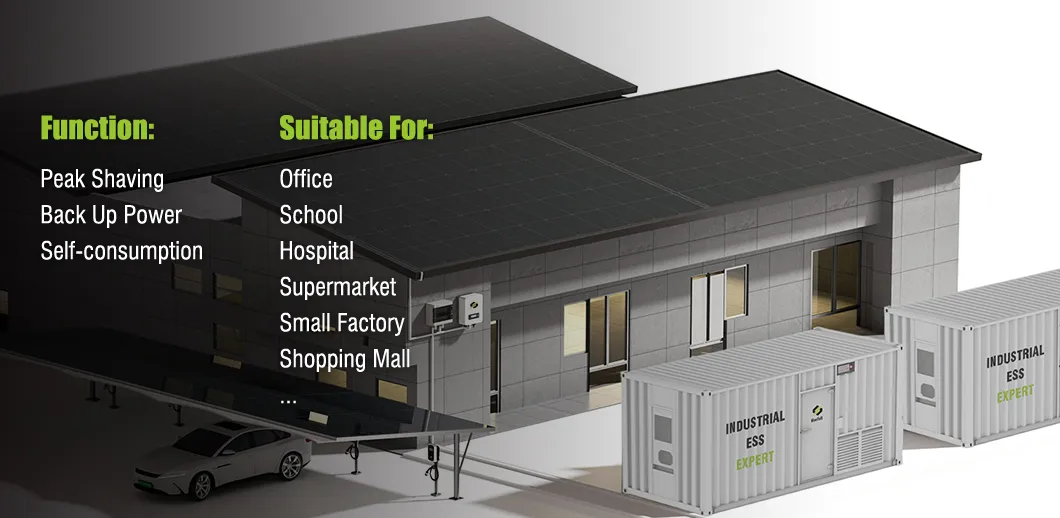

⚡ Commercial ESS Overview

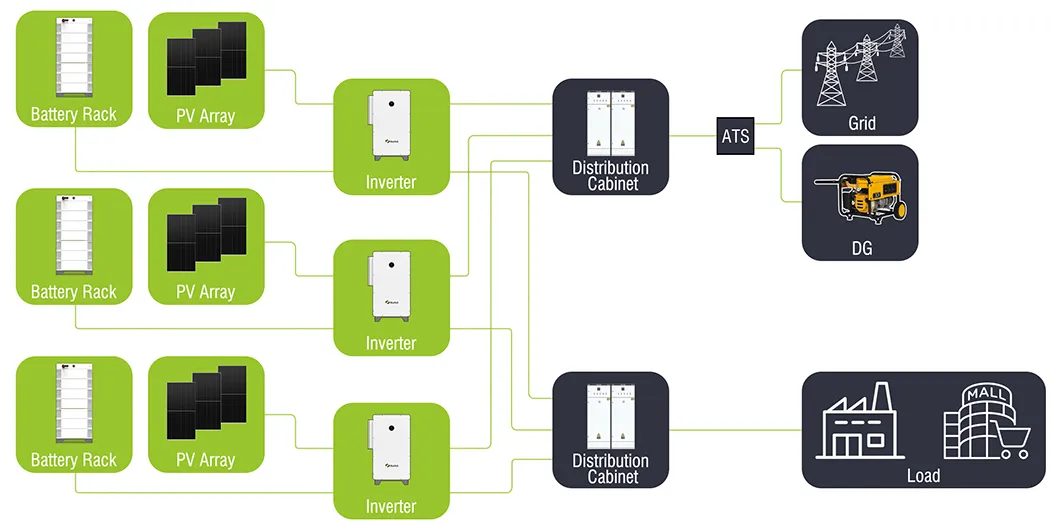

⚙️ System Configuration

Equipment	Model	WV-100KW-200.7KWh	WV-200KW-401KWh	WV-300KW-602KWh

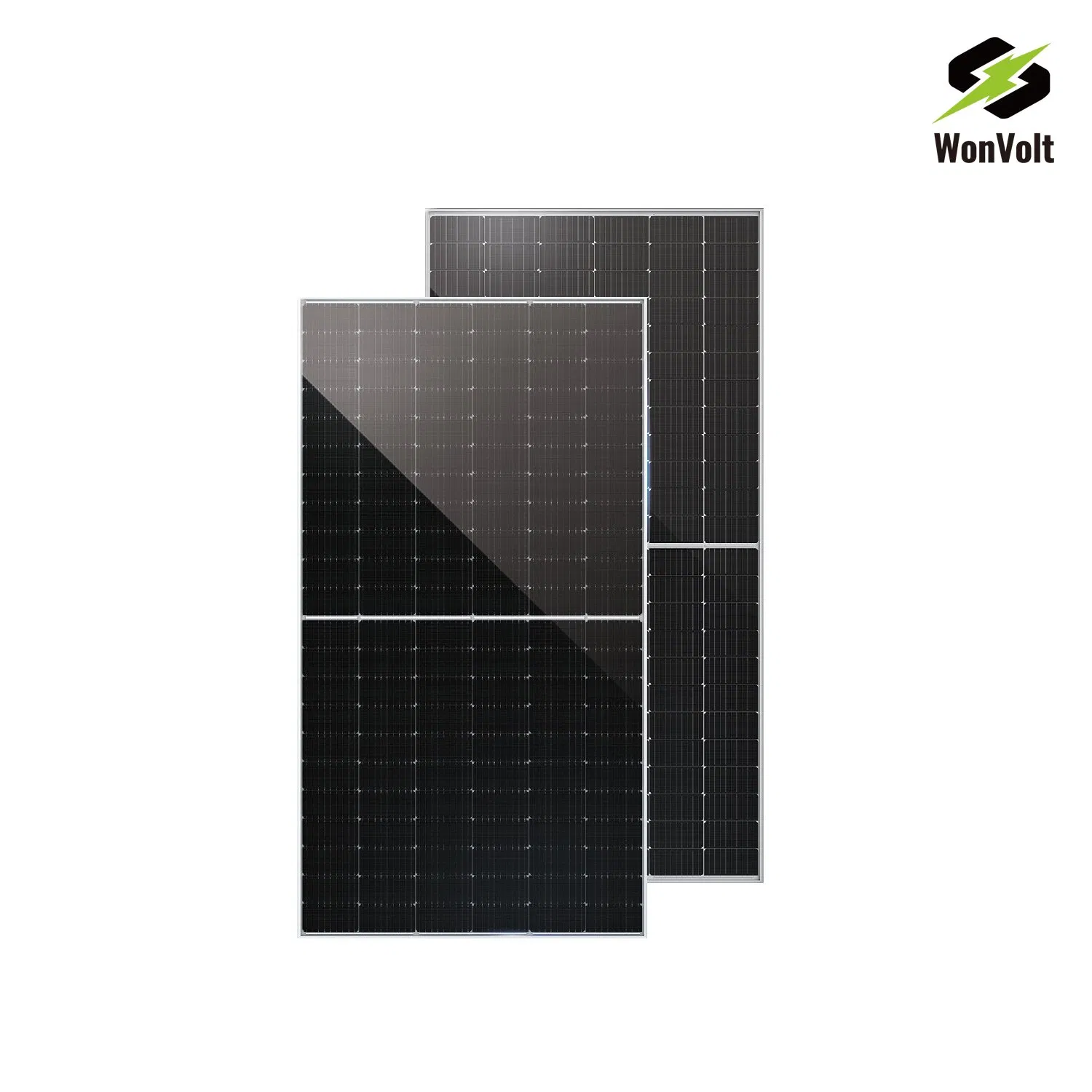

PV Module	WV-72KUN-565	187	374	561

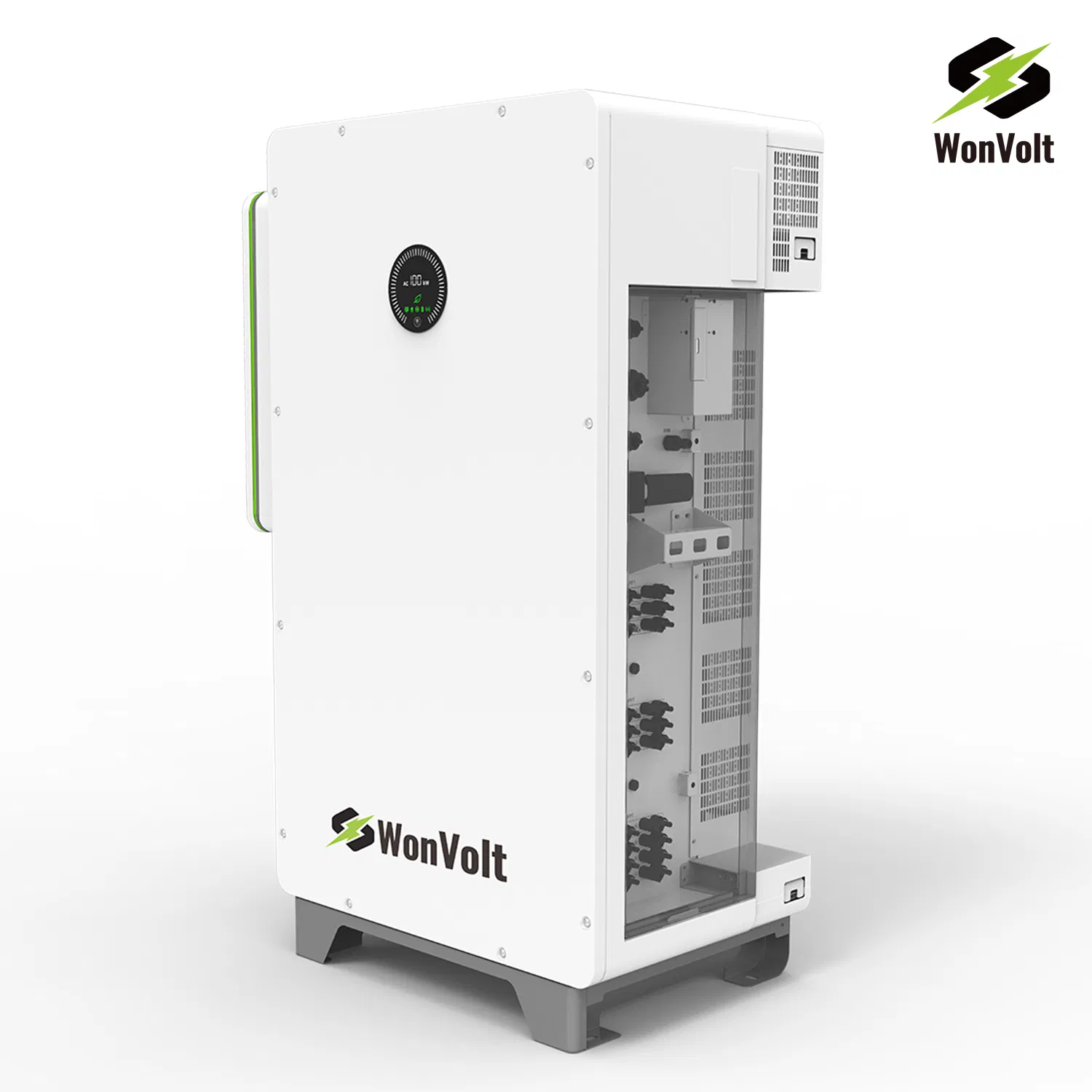

Inverter	WIT-100K-HU	1	2	3

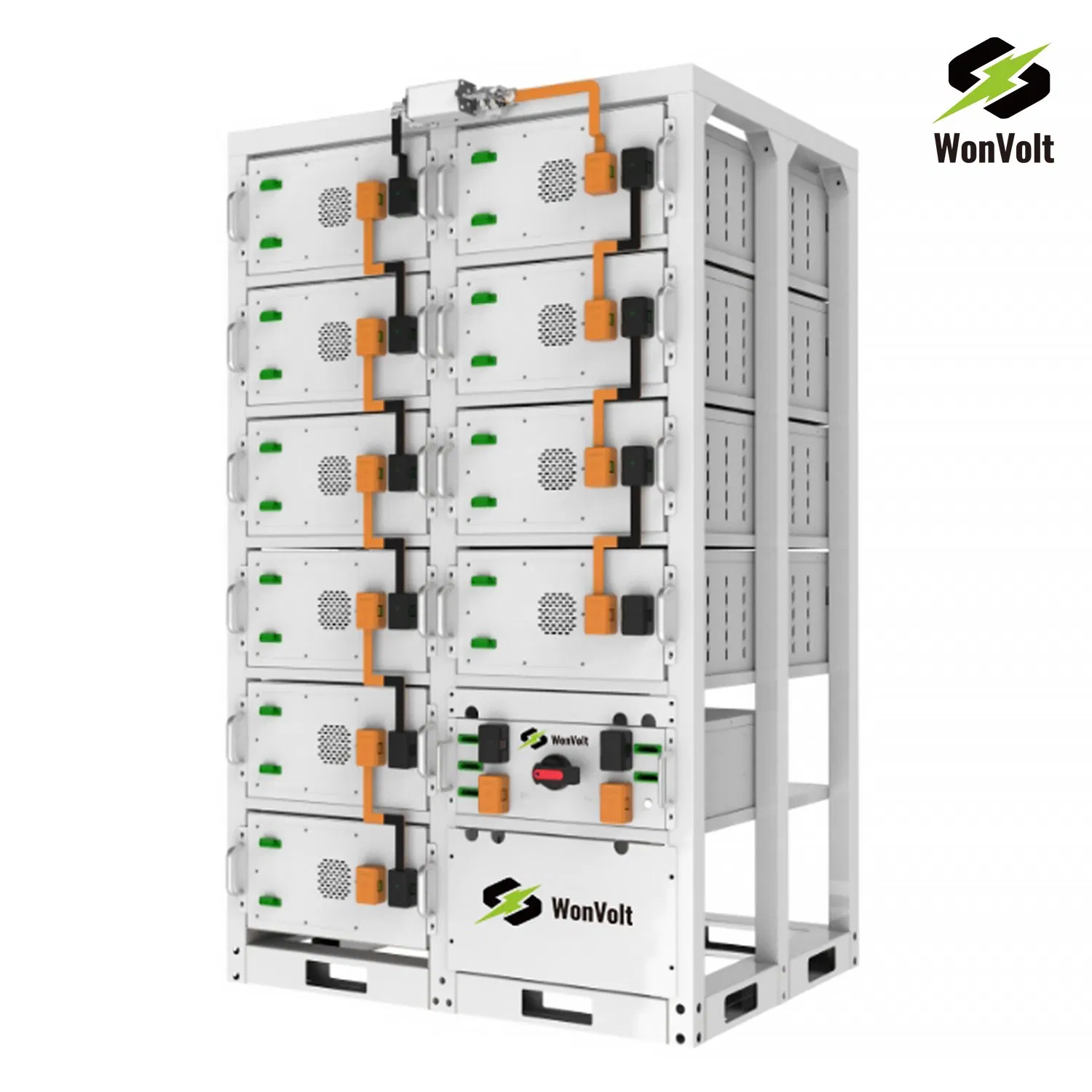

Battery	WV51280H	14	28	42
Control Box	Standard	1	2	3
Connector	MC4	40	80	120

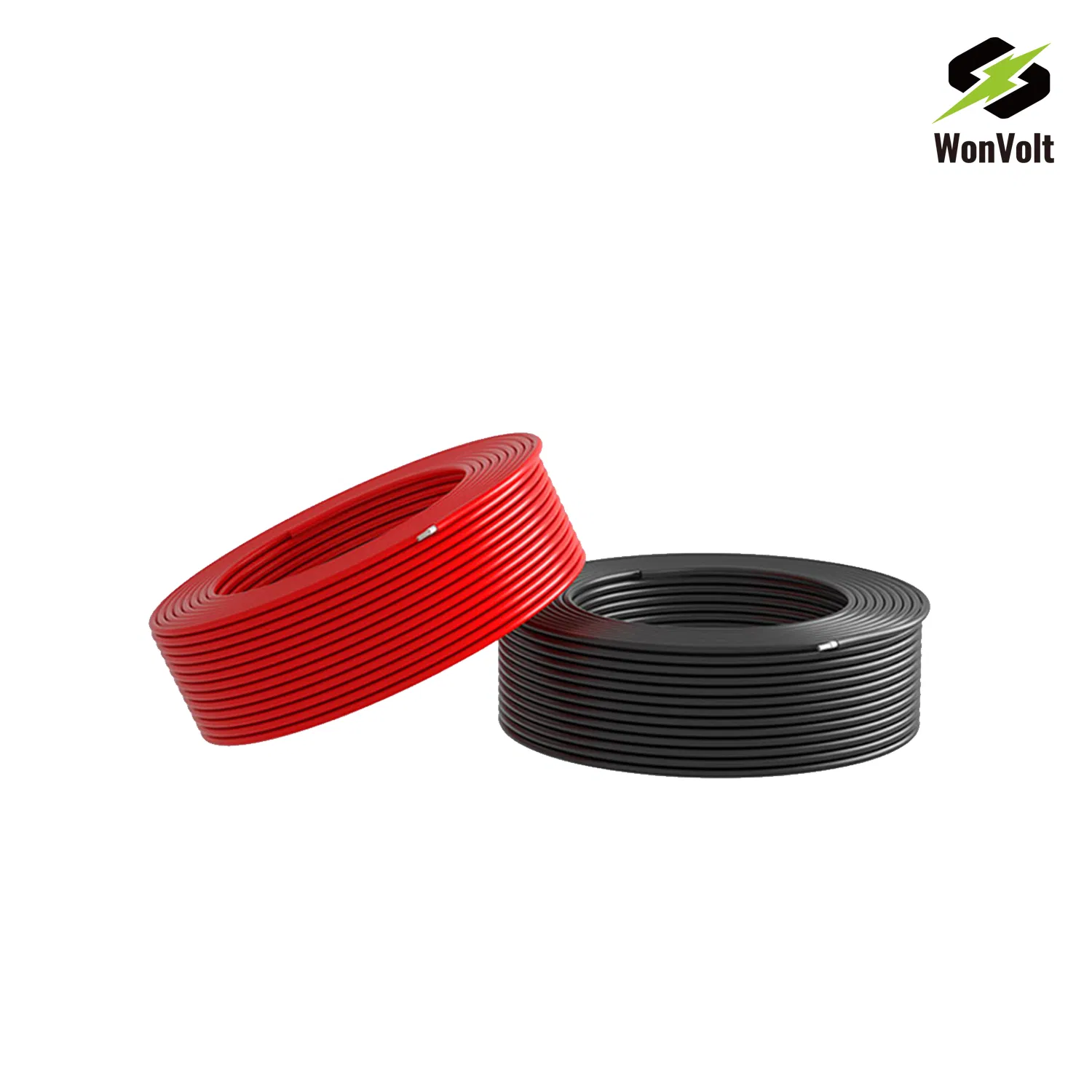

PV Cable	PV1-F 4mm2	1100	2200	3300
ATS (Optional)	ATS300KW	1	1	1
Monitoring	WIFI / SEM-X	1	1	1

📝 Detailed Description

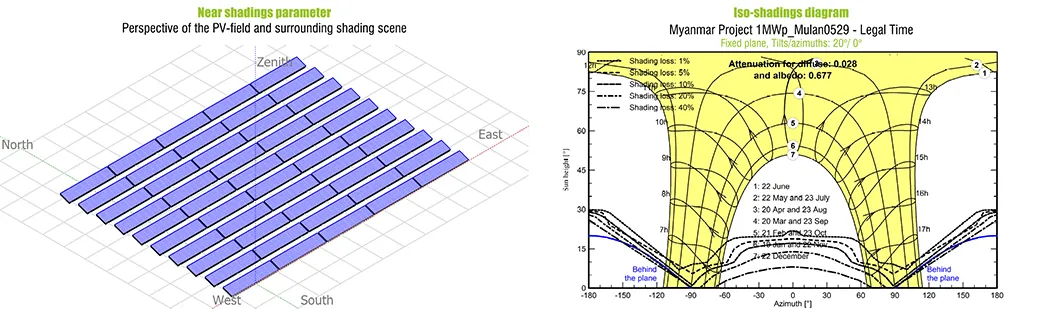

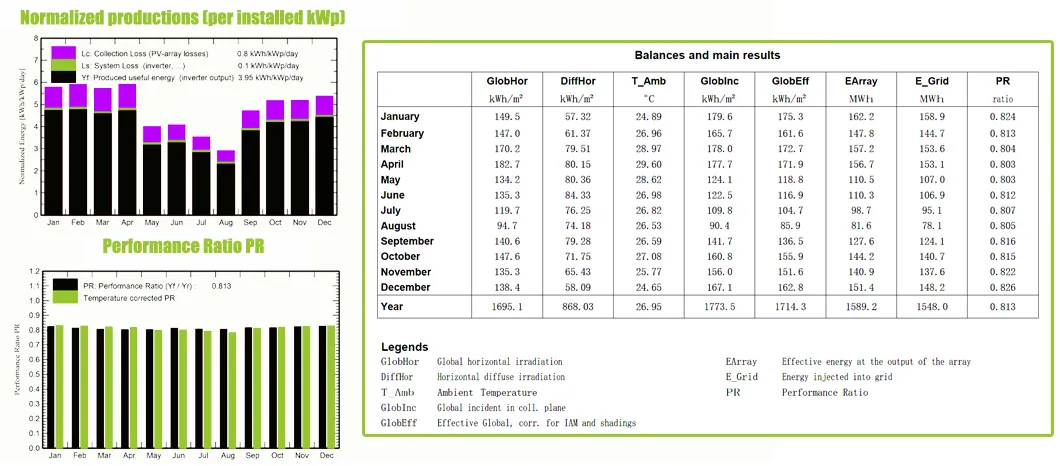

🛠️ Technical Support & Services

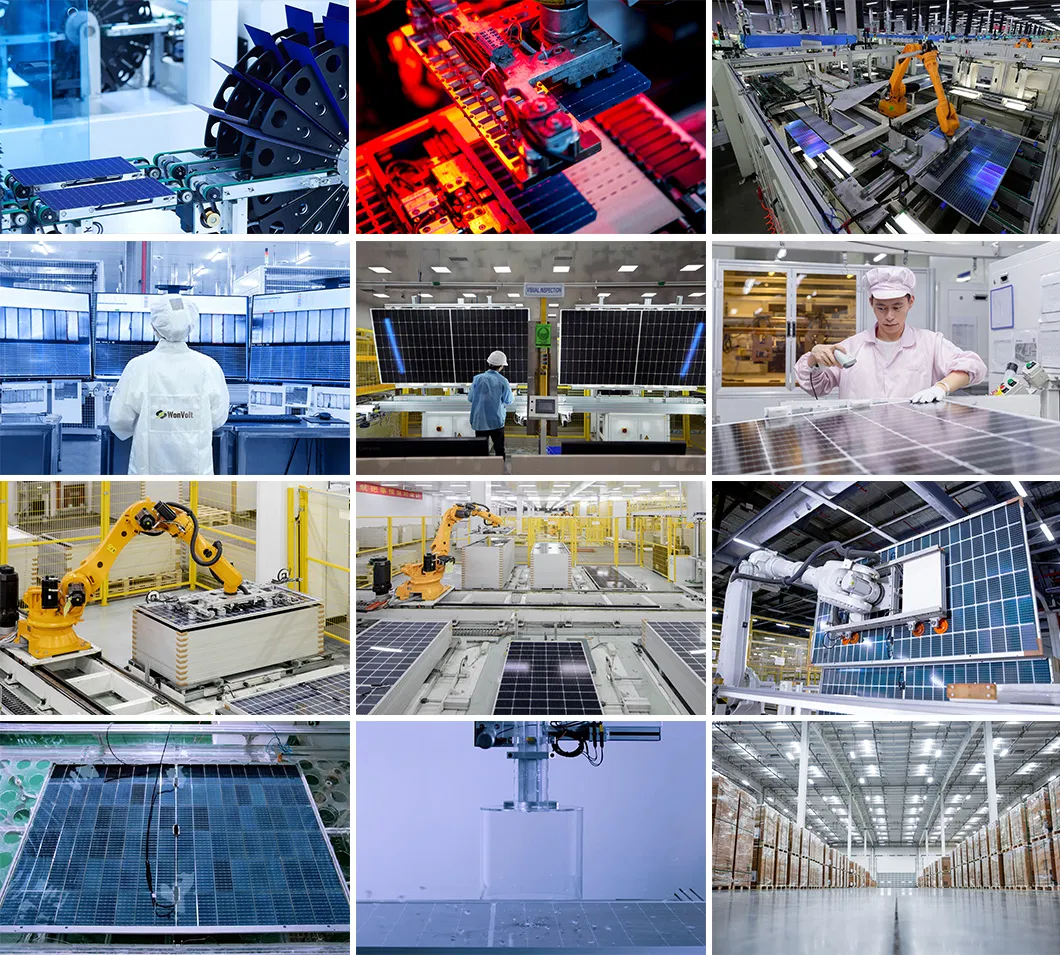

🏭 Manufacturing Excellence

🏢 Reference Projects

❓ Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-quality LiFePO4 cells with a cycle life of up to 6000 times, ensuring long-term reliability for commercial and industrial use.

Can the Energy Storage System (ESS) be expanded in the future?

Yes, the system supports parallel connection of up to 3 units, allowing you to scale your energy capacity as your requirements grow.

What kind of applications is this system suitable for?

It is specifically designed for Commercial and Industrial (C&I) applications, including factories, large offices, and utility-scale storage needs.

Does the system support backup power during a grid outage?

Yes, the system supports UPS functionality, Black Start, and integration with Diesel Generators (Dg) to ensure continuous power supply.

What cooling method is used for the battery cabinet?

The system features Smart Air Cooling to maintain optimal operating temperatures for the battery modules, enhancing safety and performance.

Is remote monitoring available?

Absolutely. The system includes remote monitoring capabilities via WIFI or SEM-X, allowing you to track energy production and consumption in real-time.
