Product Description

📦 Basic Information

Model NO.

ELT5000H

Rechargeable

Yes

Voltage

48V/51.2V

Capacity

100ah to 800ah

Energy

5kwh - 50kwh

Certification

CE/RoHS/Un38.3/MSDS

Cycle Life

6000 Times

Warranty

5 Years

Display Screen

Yes

Installation

Stackable / Wall / Rack

📝 Product Description

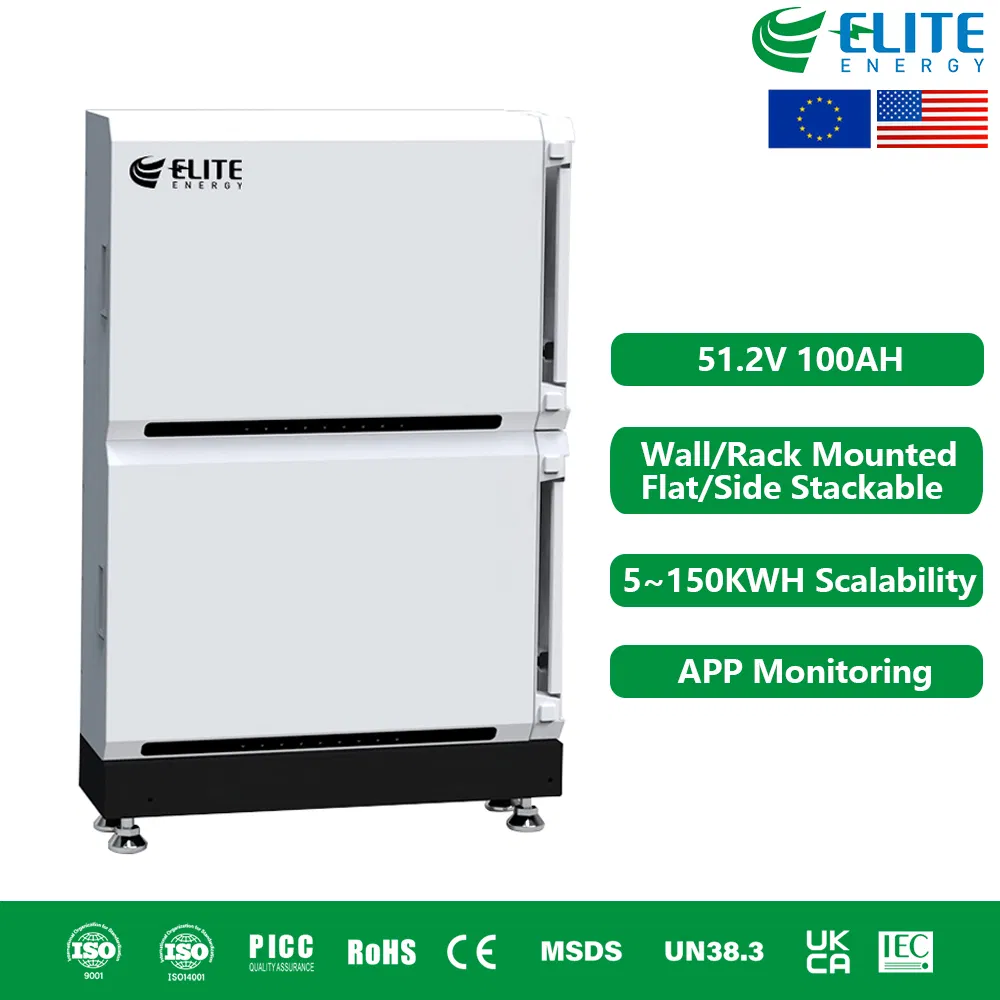

This Original Lithium Ion LiFePO4 Battery Pack is designed for Energy Storage Systems (ESS) and Motivation Power Systems. With over 15 years of manufacturing experience, these products include high voltage and 48V 100Ah stackable low voltage packs, PowerWall solutions, and all-in-one home solar systems.

⚡

Superior Performance: Performs 6000+ cycles with excellent high temperature and safety performance.

🔄

Flexible Scalability: Support max. 30pcs in parallel to increase capacity up to 150kWh.

📱

Smart Monitoring: Built-in Bluetooth function allows real-time state monitoring via mobile App.

🛠️

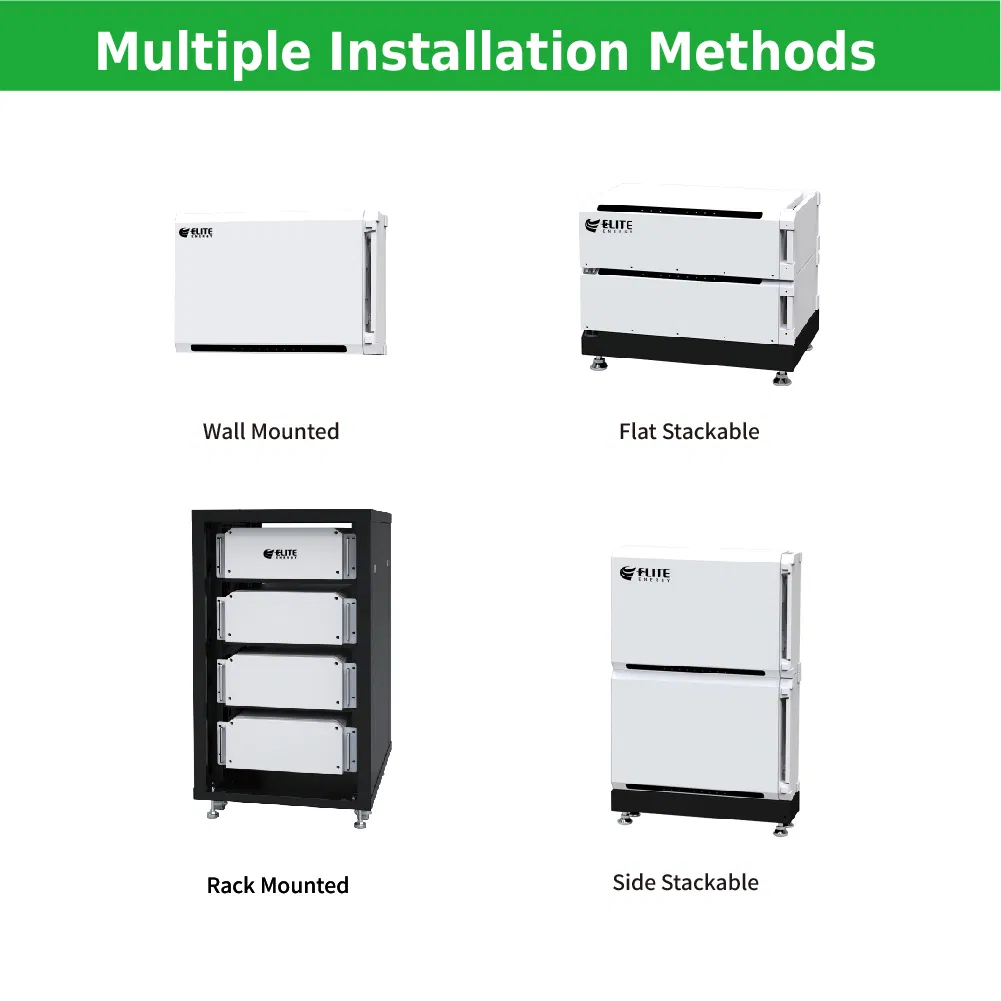

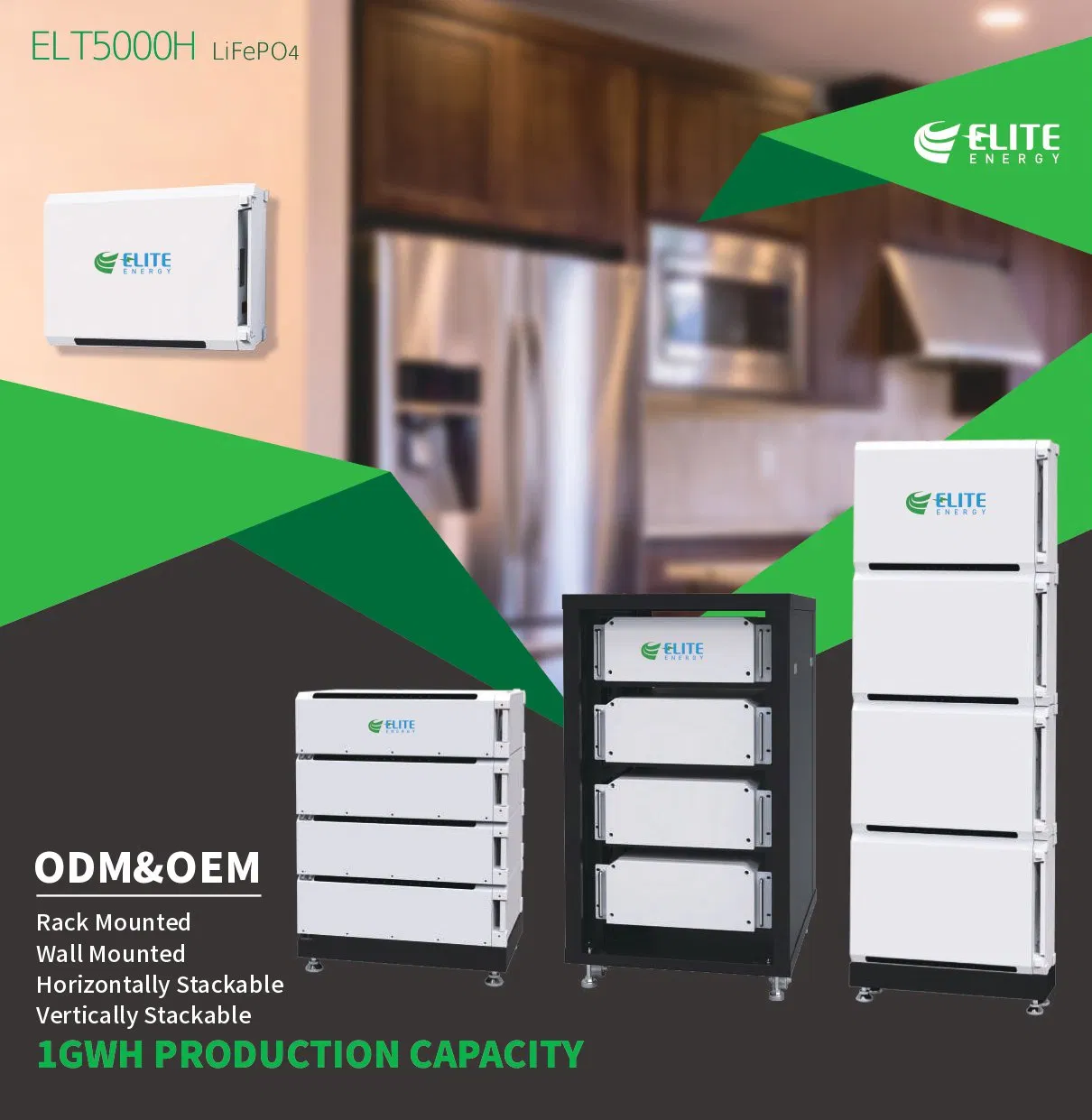

Multiple Mounting: Flexible connection with 4 installation ways: Side stackable, Flat stackable, Rack mounted, or Wall mounted.

📊 Technical Specifications

Parameter	Specification Details
Typical Model	ELT5000H
Battery Type	LiFePO4 Battery Cell
Nominal Energy	5120Wh
Nominal Voltage	51.2V
Operating Voltage	40V - 58.4V
Max. Charging/Discharging Current	100A (Continuous) / 150A (Peak 5s)
Communication Interface	CAN / RS485 / Bluetooth 5.0
Dimensions (WHD)	592400176mm
Weight	47kg / 103.62lbs
Operating Temperature	Charge: 0~55ºC / Discharge: -20~65ºC

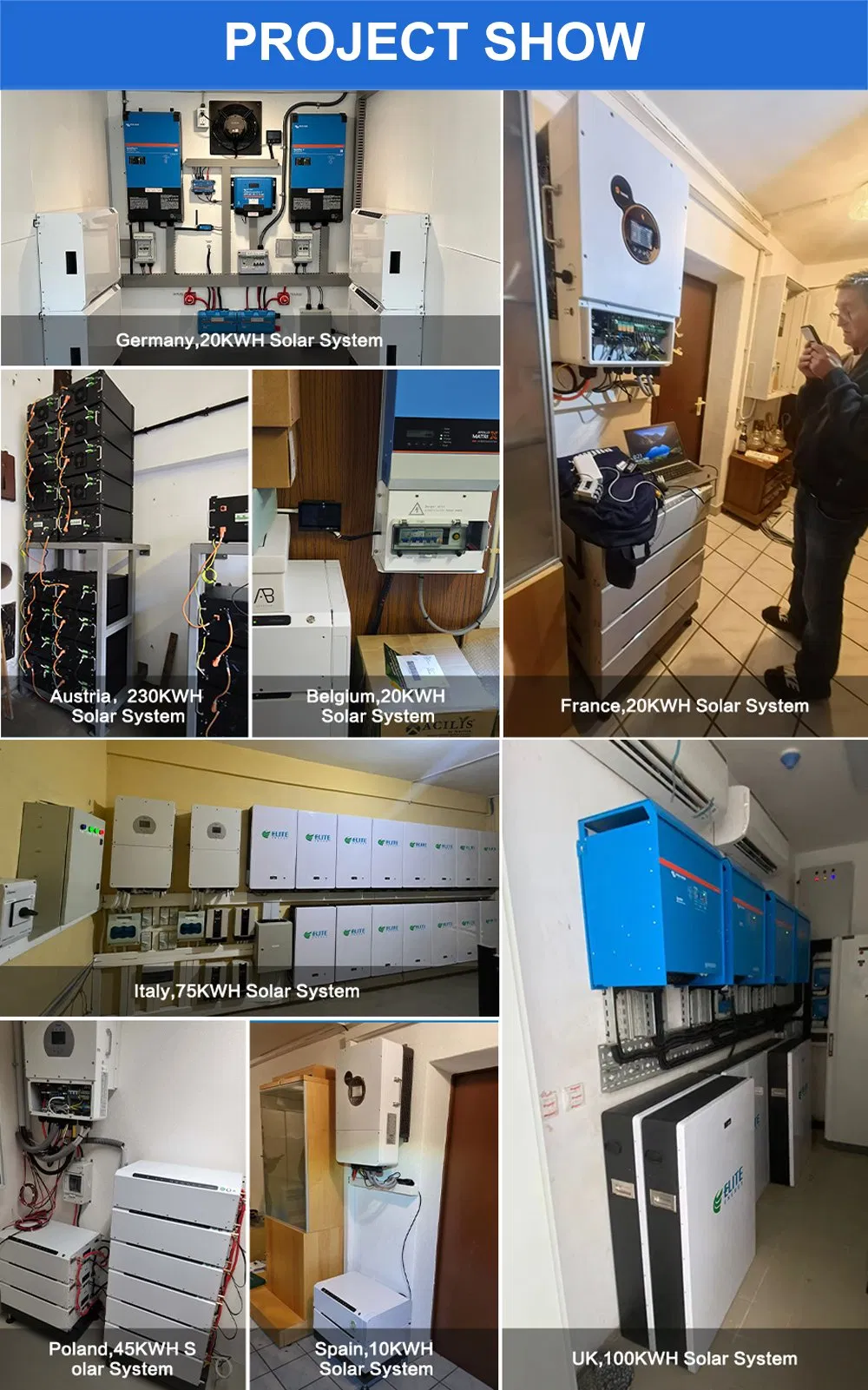

📷 Product Showcase

❓ Frequently Asked Questions

Q1: Do you have a Minimum Order Quantity (MOQ)?

No, there is no strict MOQ limit. 1-piece sample orders or small quantities are available for testing.

Q2: What is the typical lead time for orders?

Standard samples take 3-5 days. Bulk orders typically require 3-4 weeks. Customized products follow a 3-4 week schedule for both samples and bulk production.

Q3: Does the BMS include low-temperature protection?

Yes, the Smart BMS features low-temperature charging disconnect (0ºC ± 4ºC) and discharge protection (-20ºC ± 4ºC) to prevent battery damage.

Q4: How long do these LiFePO4 batteries last?

These batteries provide over 6000 cycles, which is 8 to 10 times longer than standard lead-acid batteries (typically 300-500 cycles).

Q5: What are the recommended charging methods?

We recommend a dedicated LiFePO4 charger (14.6V for 4-string). Alternatively, you can use photovoltaic solar panels via MPPT or an inverter with built-in AC to DC charging.

Q6: Are the batteries safe for residential use?

Yes. Using automotive-grade cells and stable phosphate chemistry, they are resistant to explosion and fire even under stress. They are CE certified and include BMS protection against overcharge, short circuits, and overheating.
