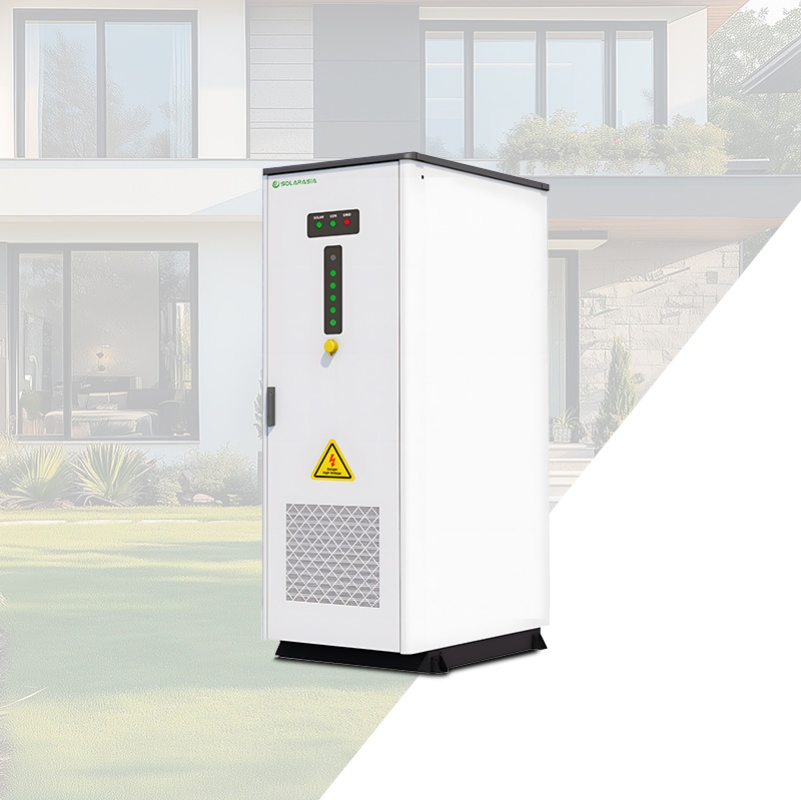

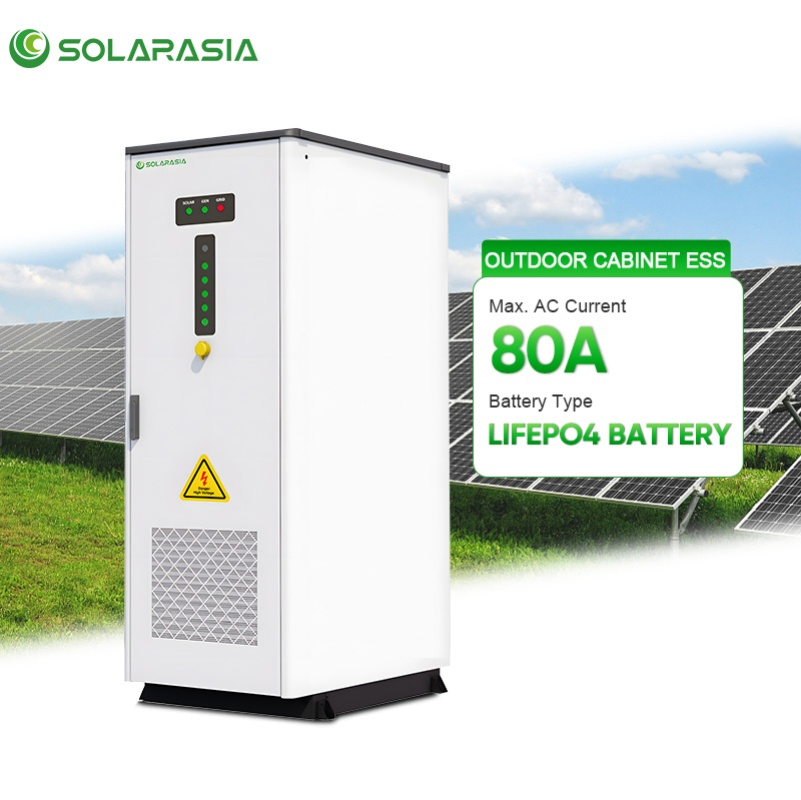

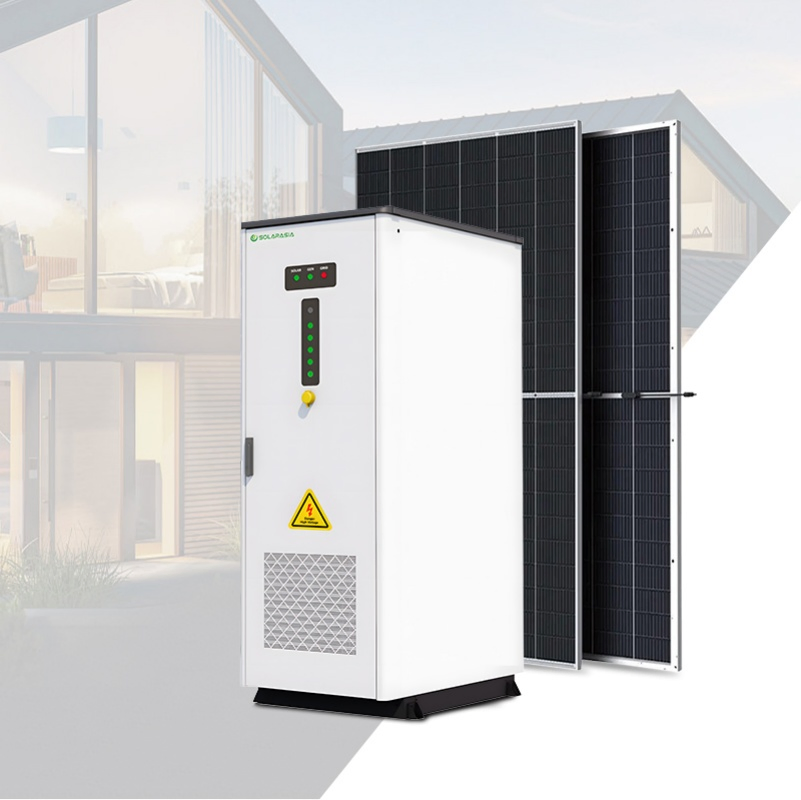

Solar Energy Storage Battery All in One Solar Battery 100kwh 50kw Indoor Lithium Battery System Bess 100kwh Energy Storage Battery Cabinet for Industrial

1 / 5

Solar Energy Storage Battery All in One Solar Battery 100kwh 50kw Indoor Lithium Battery System Bess 100kwh Energy Storage Battery Cabinet for Industrial

Customization:	Available
Nominal Voltage:	320V
Warranty:	5years

Send Inquiry

Product Description

Basic Information

Model NO.

IYP-B100-55H3-75M2-HX1

Nominal Capacity

75kw

Cycle Life

6000

Humidity Range

5%~95%

Cooling Method

Air-Conditioner

Operating Temp

-10℃~50°C

Communication

RS485/WiFi

Rated Power

50kw

Specification

740*1170*2060mm

Package Weight

1200.00kg

Product Description

⚡

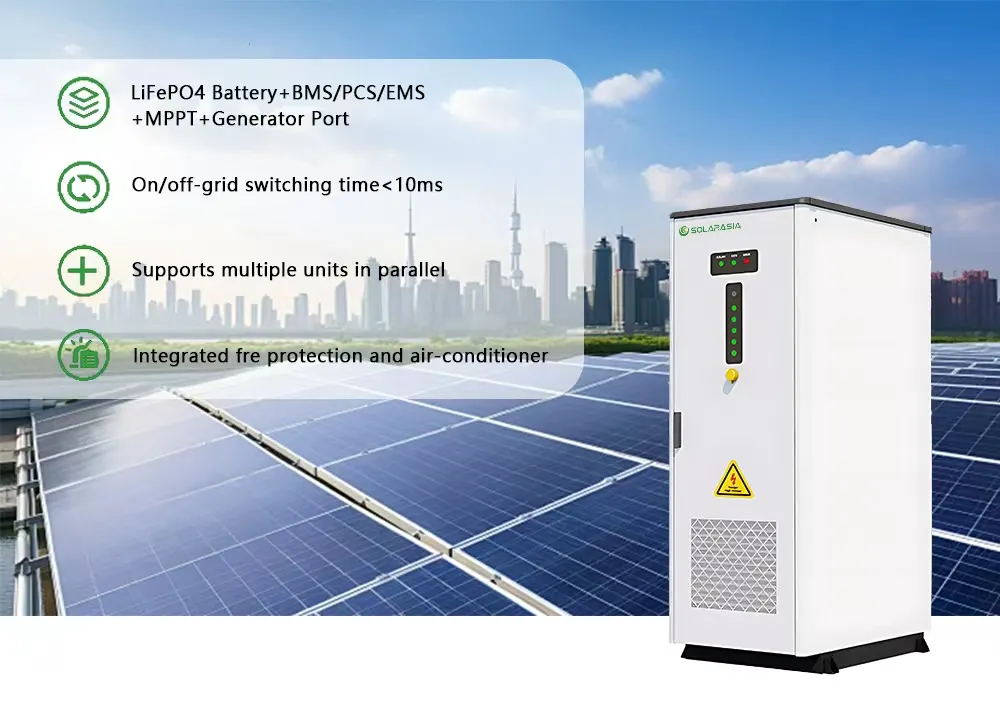

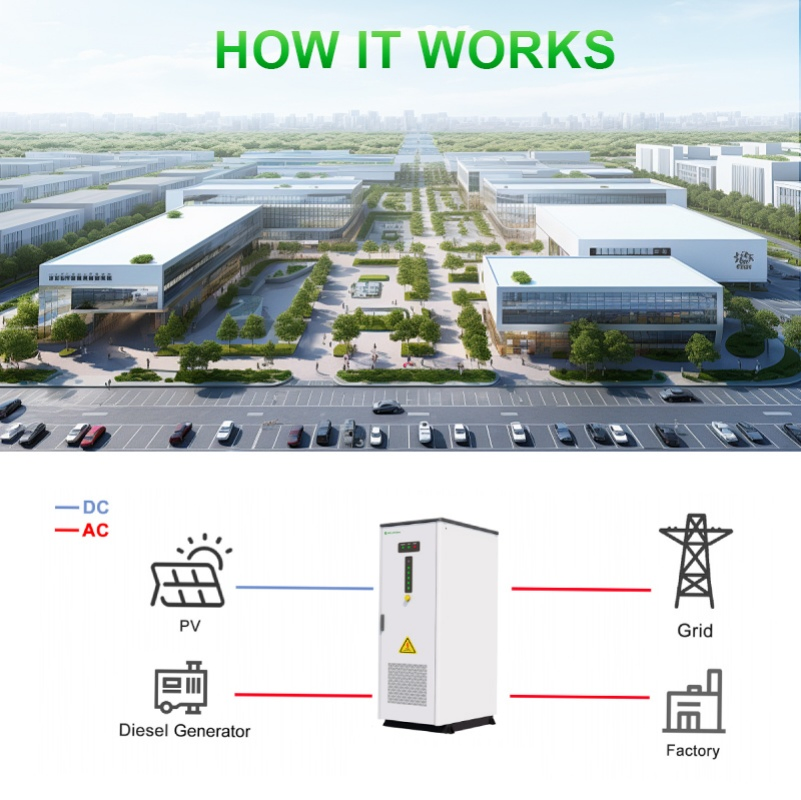

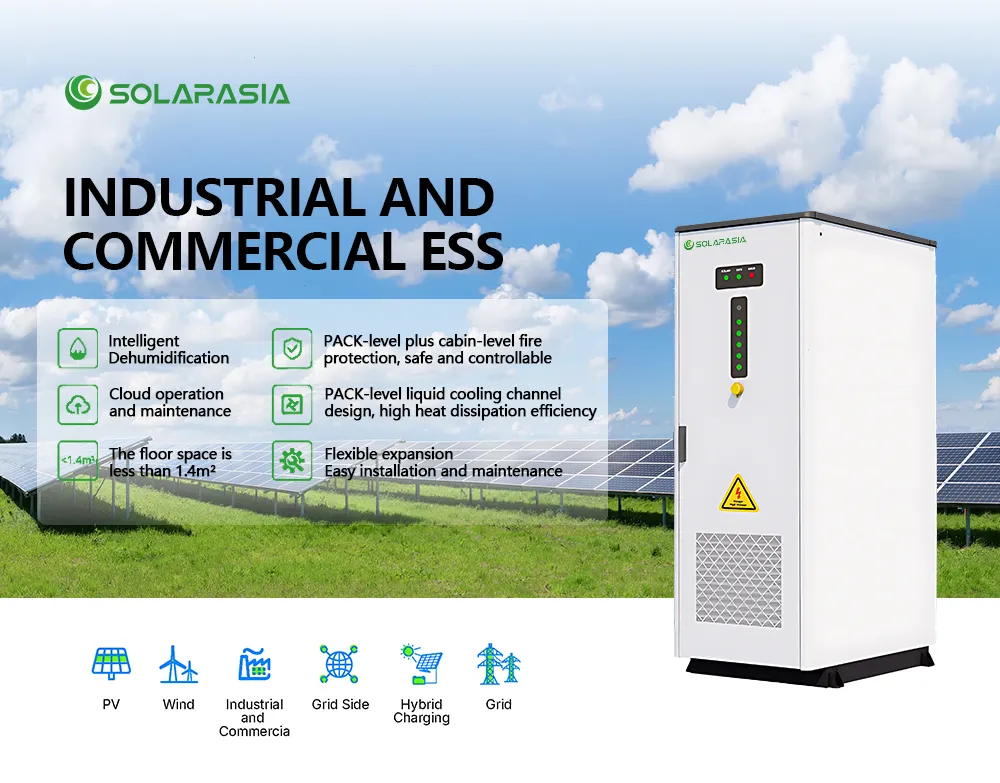

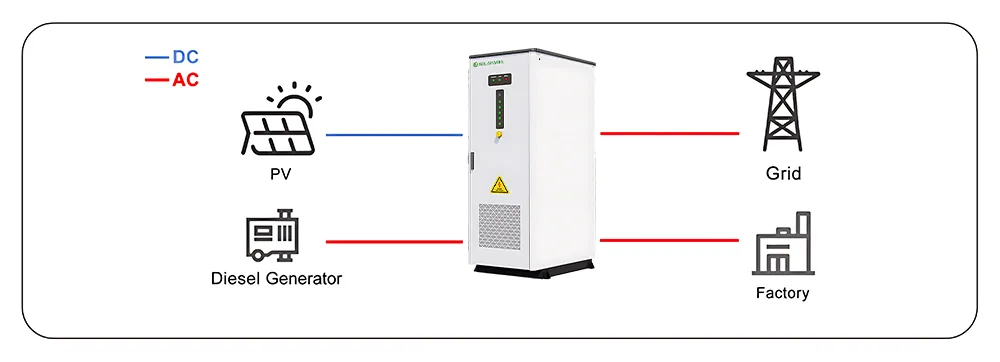

High-Efficiency Energy Storage: This all-in-one lithium battery system is designed for industrial applications, featuring a robust 100kWh capacity and integrated 50kW power conversion.

Technical Specifications (100kwh+55kw)
Battery Parameters
Battery Type	LiFePO4 Battery
Rated Energy	100kWh
PV Input
Max. Power	75kW
Max. PV Voltage	850Vdc
MPPT Channels	2
AC Output (On-grid)
Rated Power	55kW
AC Voltage	400Vac/230Vac
AC Output (Off-grid)
Rated Power	50kW
Switching Time	<10ms
General Parameters
IP Grade	IP54
Fire Protection	Integrated System
Cooling	Air-Conditioner (Battery) / Intelligent (PCS)
Dimensions	740×1170×2060mm

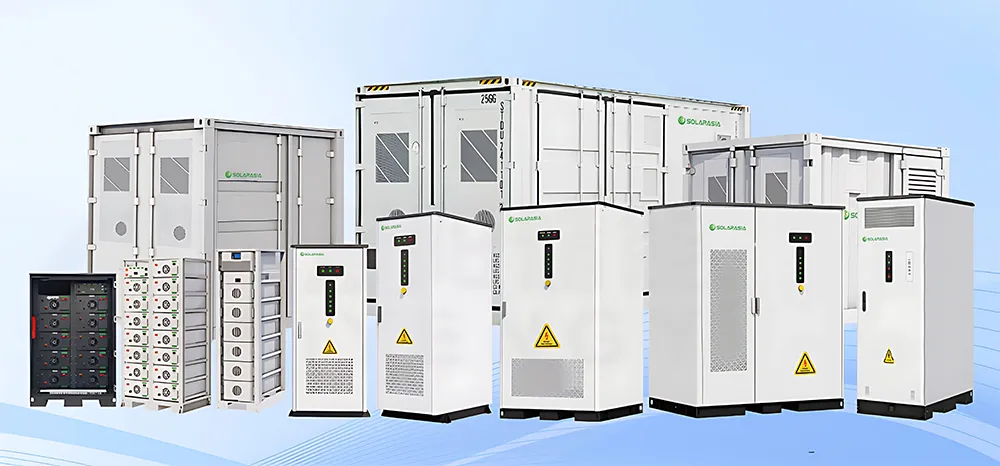

Product Details

Certifications & Quality

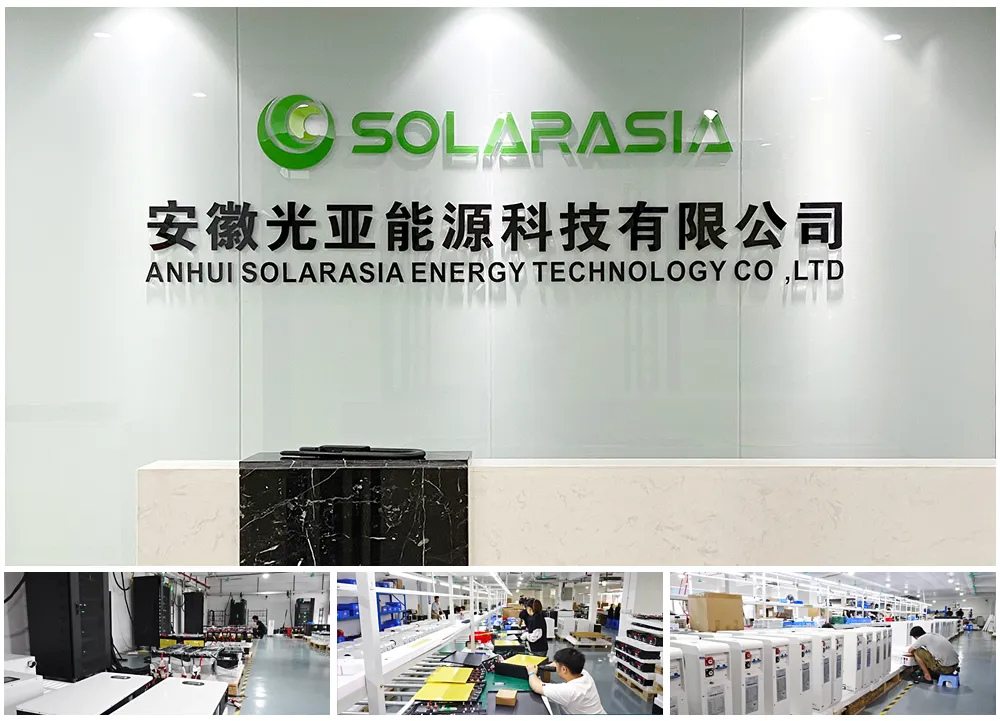

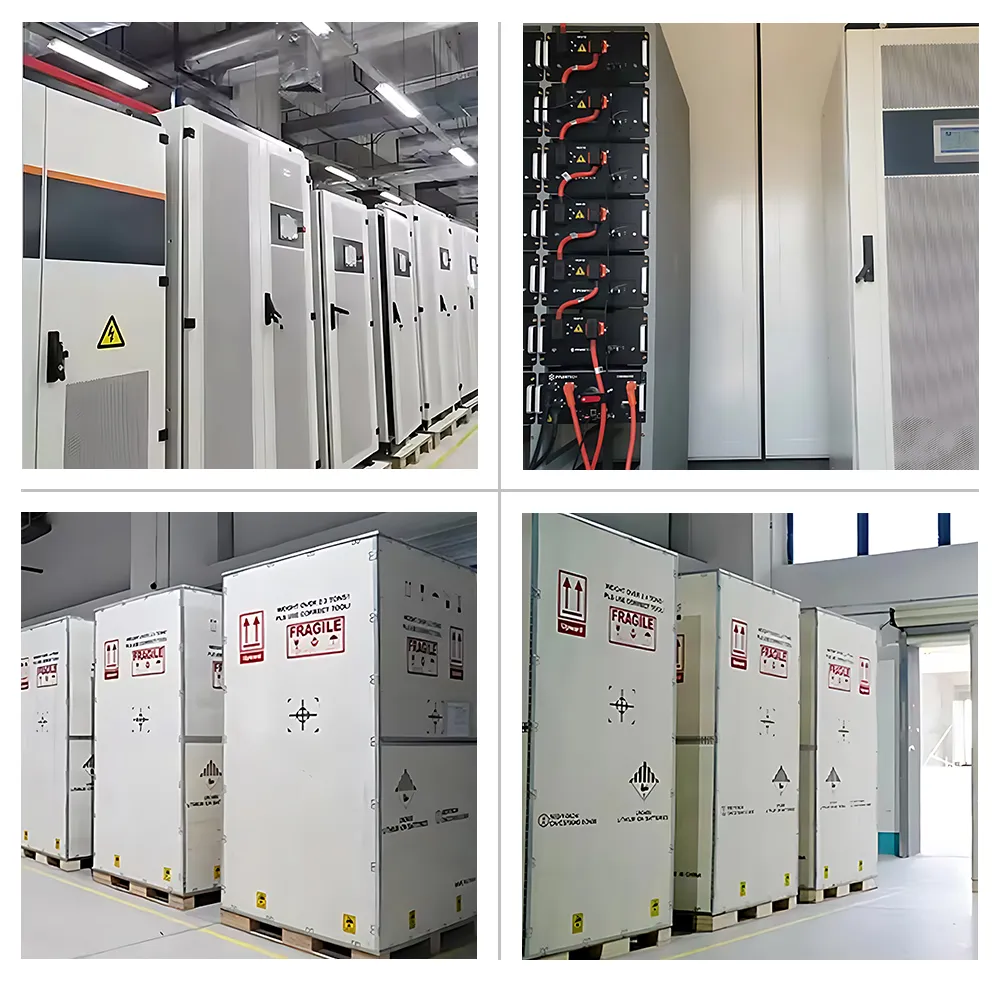

Manufacturing Excellence

Frequently Asked Questions

What is the cycle life of the battery system?

The system features high-quality LiFePO4 cells with a cycle life of up to 6000 cycles, ensuring long-term reliability for industrial use.

How does the system handle temperature regulation?

The battery cabinet is equipped with an integrated industrial-grade air-conditioner to maintain optimal operating temperatures between -10°C and 50°C.

Is the system suitable for outdoor installation?

Yes, the system is designed with an IP54 protection rating, making it resistant to dust and water splashes, suitable for various indoor and sheltered outdoor environments.

What is the switching time for off-grid mode?

The system supports a rapid switching time of less than 10ms, providing seamless power backup for critical loads during grid failures.

Can multiple units be connected in parallel?

Yes, the system supports parallel configuration for up to 3 units to expand total energy capacity and power output.

What safety features are included?

The unit includes an integrated fire protection system, intelligent cooling for the PCS, and comprehensive communication via RS485/WiFi for real-time monitoring.
