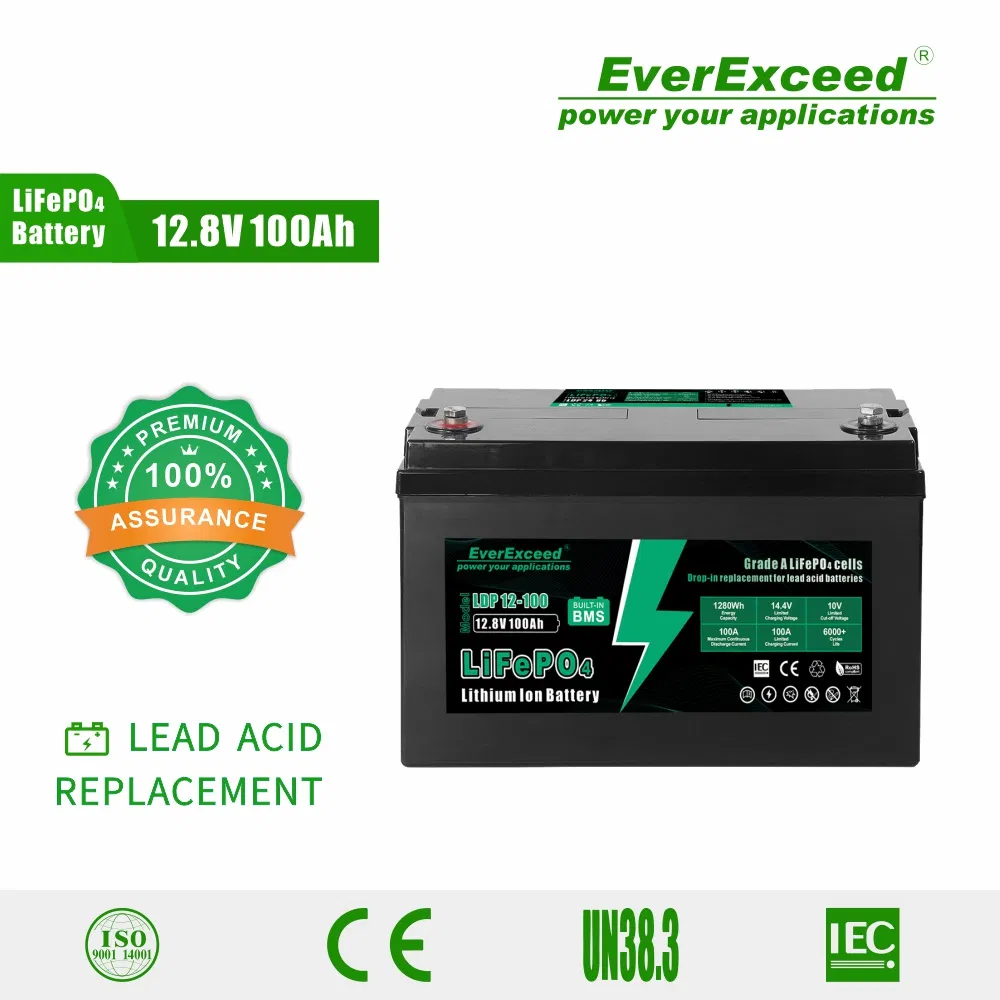

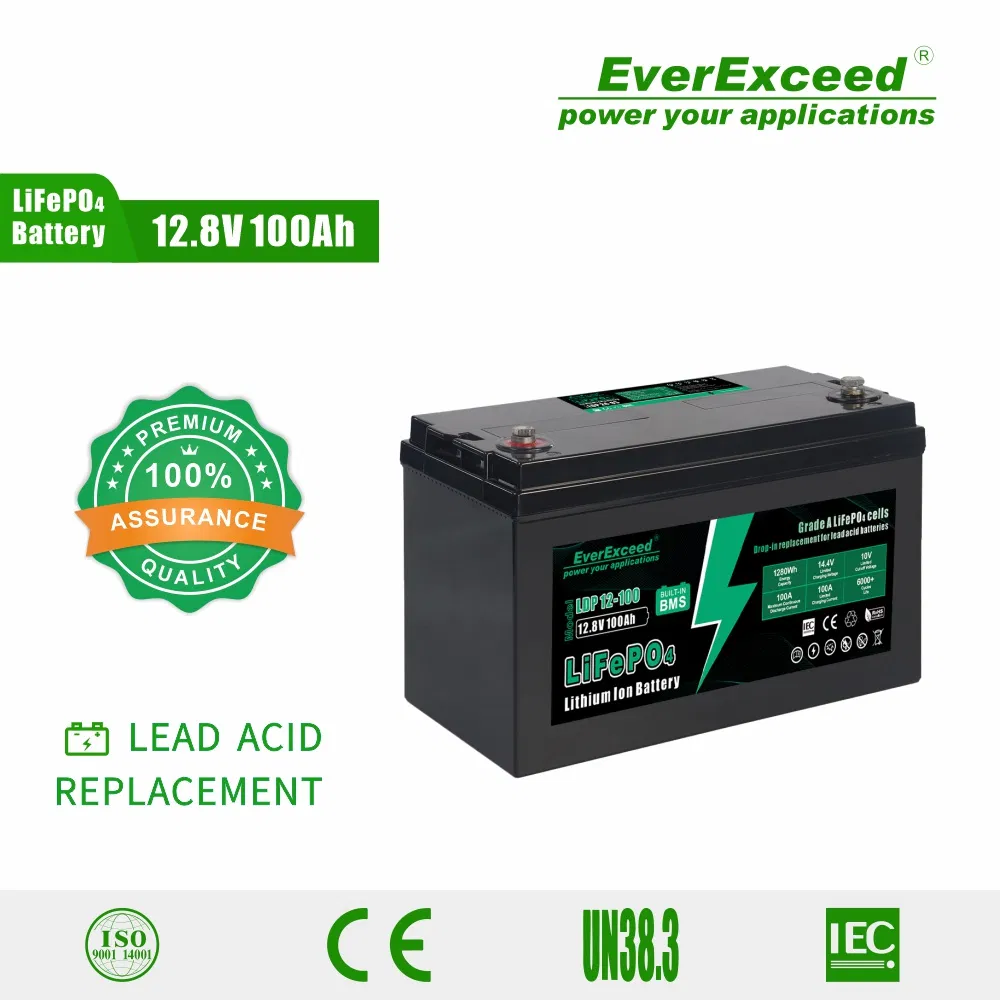

| Model NO. | LDP-12100 |
| Battery Type | LiFePO4 (LDP) |
| Nominal Voltage | 12.8V |
| Certificates | UL / CE / IEC / UN38.3 / RoHS |
| Design Life | 12 - 15 Years |
| Usage | UPS, Lighting, Solar/Telecom, Marine, Golf Cart |
| Protection Rating | IP55 (IP68 Optional) |

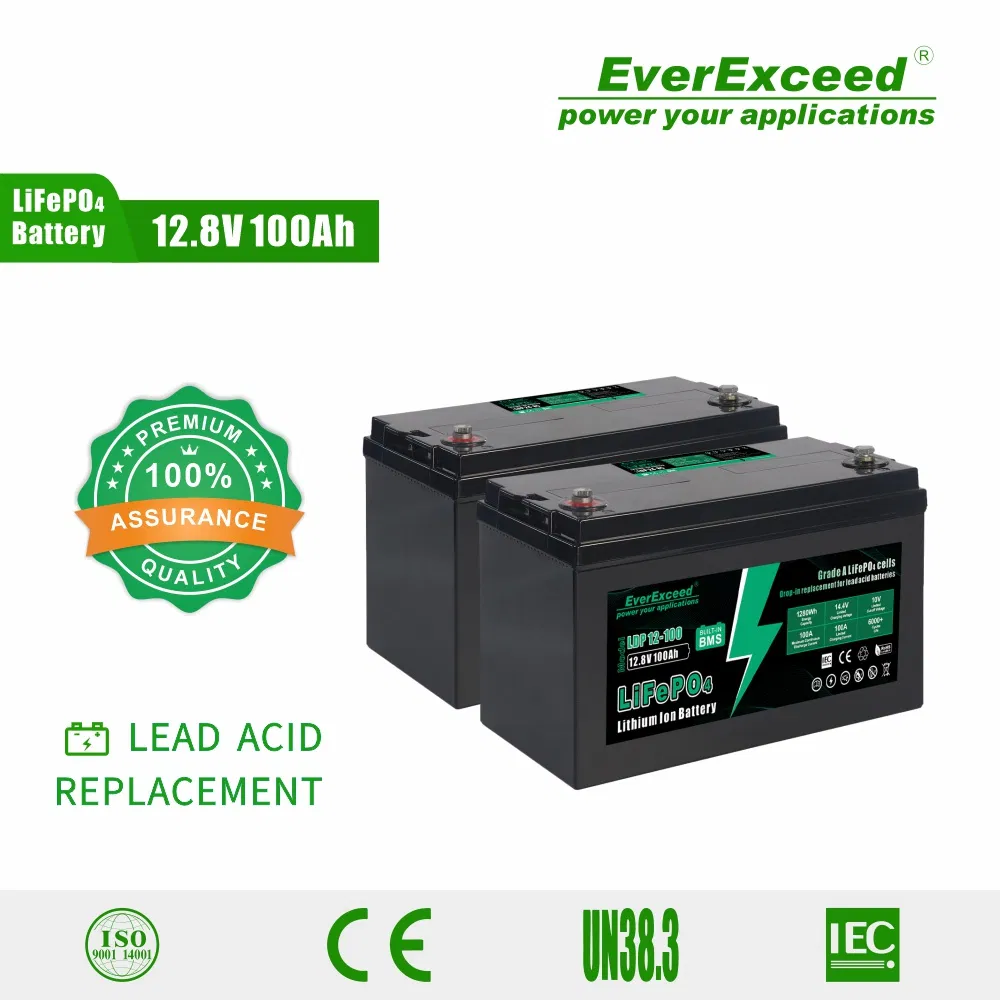

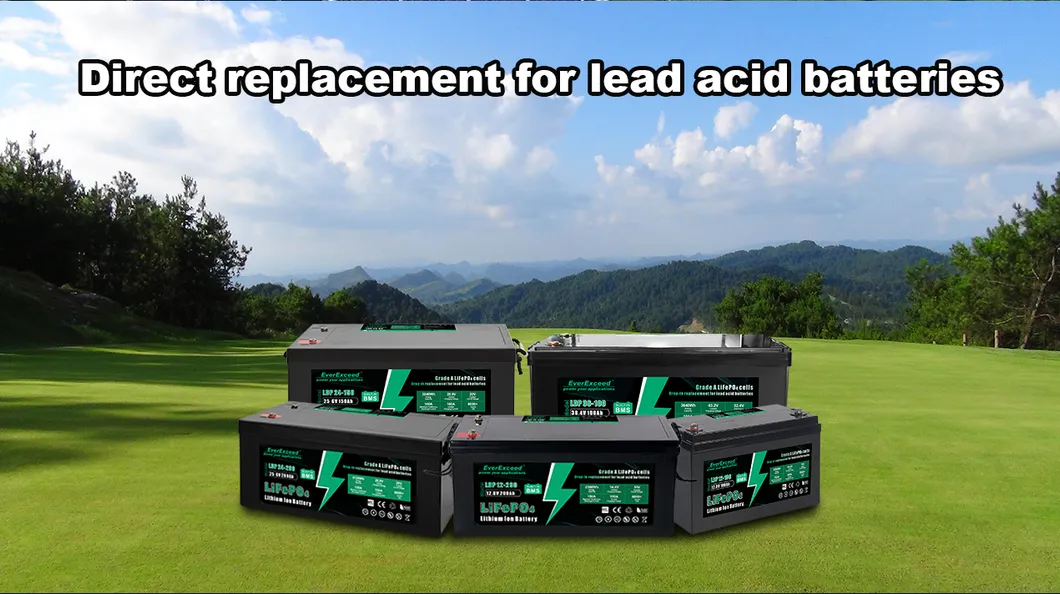

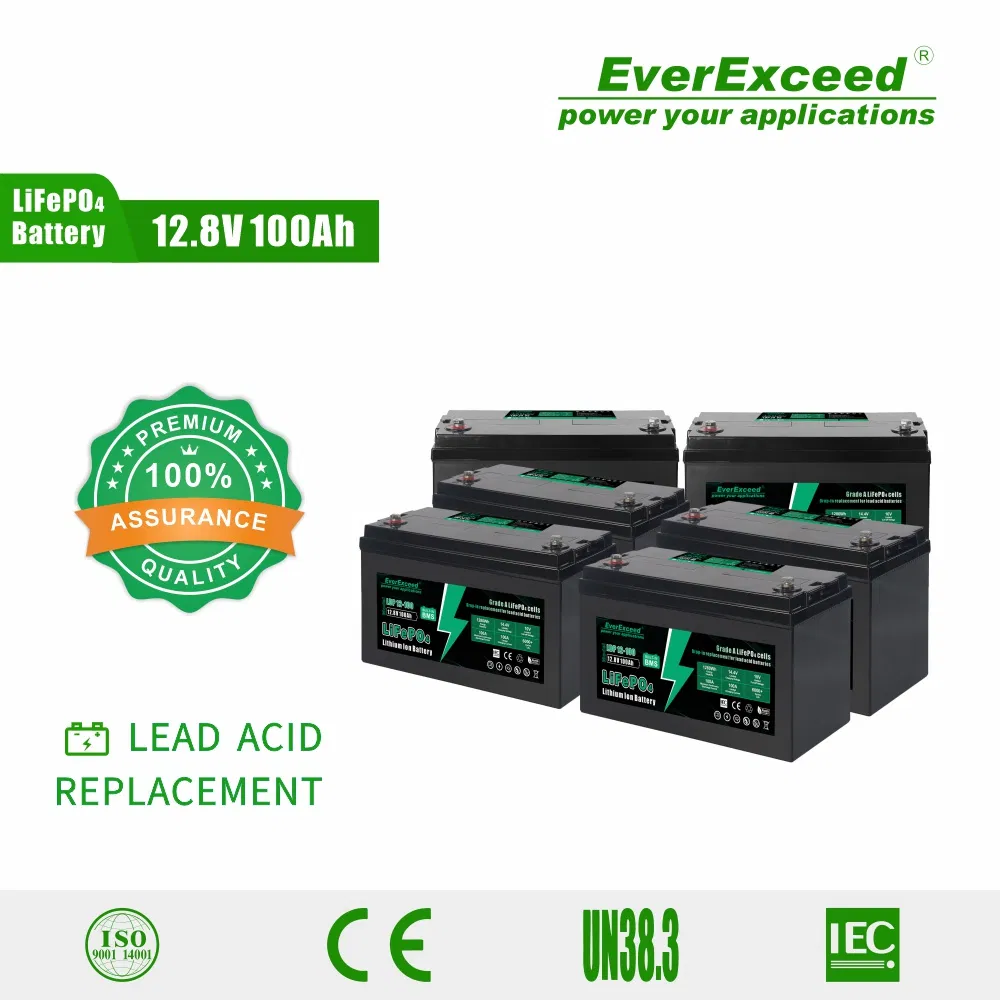

As a factory-direct manufacturer with over 20 years of battery production experience, we deliver lithium battery solutions that combine durability, safety, and performance. Our deep cycle LiFePO4 battery packs are an ideal replacement for lead-acid batteries, offering a long-lasting, maintenance-free energy solution trusted worldwide.

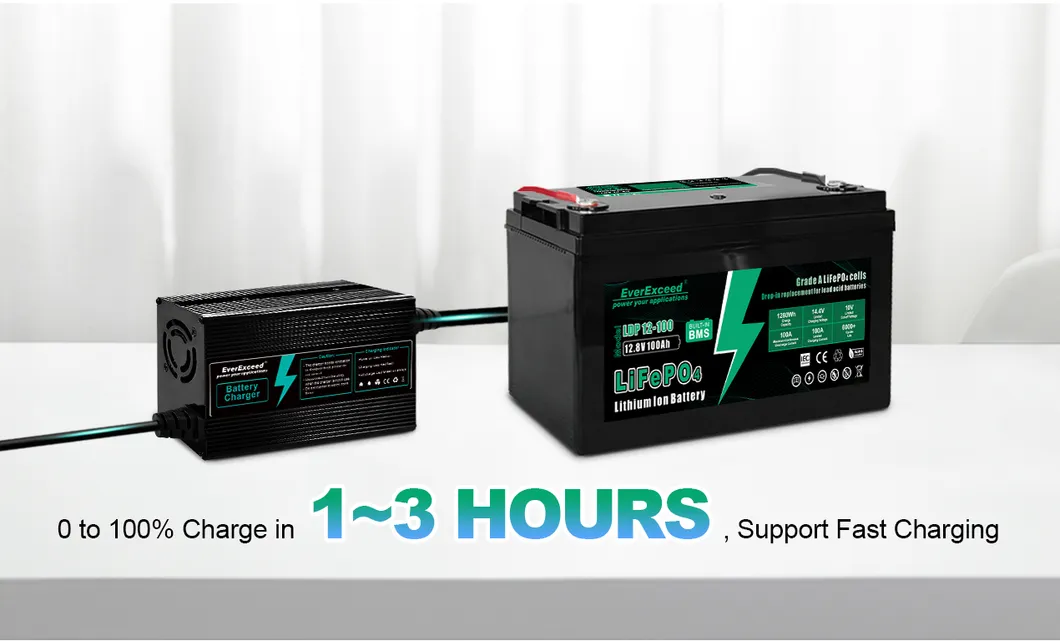

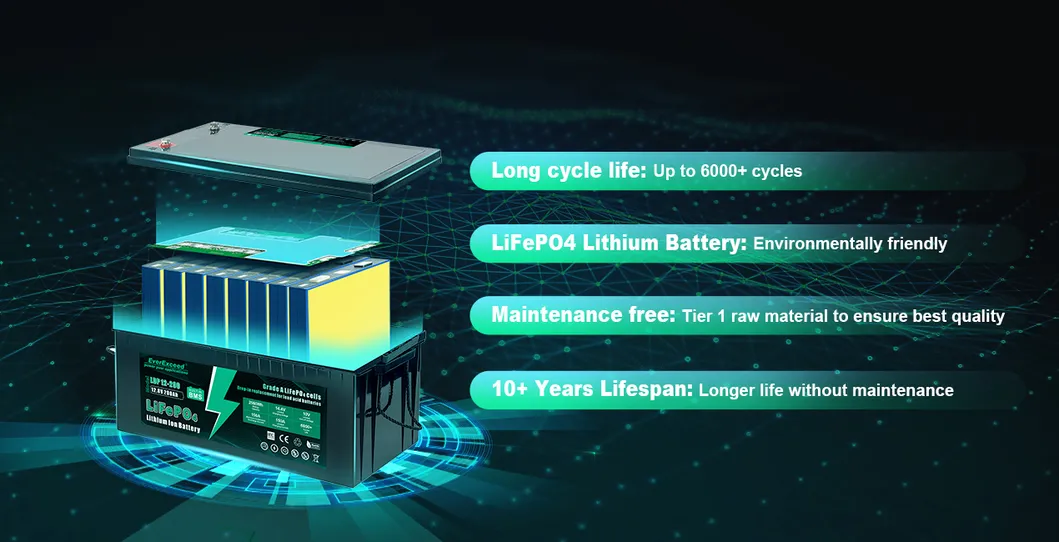

The LDP Series is designed for high energy density, fast charging capability, and superior conversion efficiency. It performs exceptionally well in high-temperature environments and maintains high cycle stability over thousands of charges.
| Basic Specification (12.8V 100Ah) | |
|---|---|
| Energy | 1280Wh |
| Max Series Connections | 4 Units |
| Max Parallel Connections | 4 Units |
| Discharge Specifications | |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A (5 Seconds) |
| Low Voltage Disconnect | 11.2V |
| Charge Specifications | |
| Recommended Charge Current | 50A |
| Recommended Charge Voltage | 14.2V - 14.6V |
| Mechanical & Environment | |
| Dimensions (L x W x H) | 328 x 172 x 220 mm |
| Weight | 11.5 kg |
| Operating Temperature (Discharge) | -20°C to 60°C |
