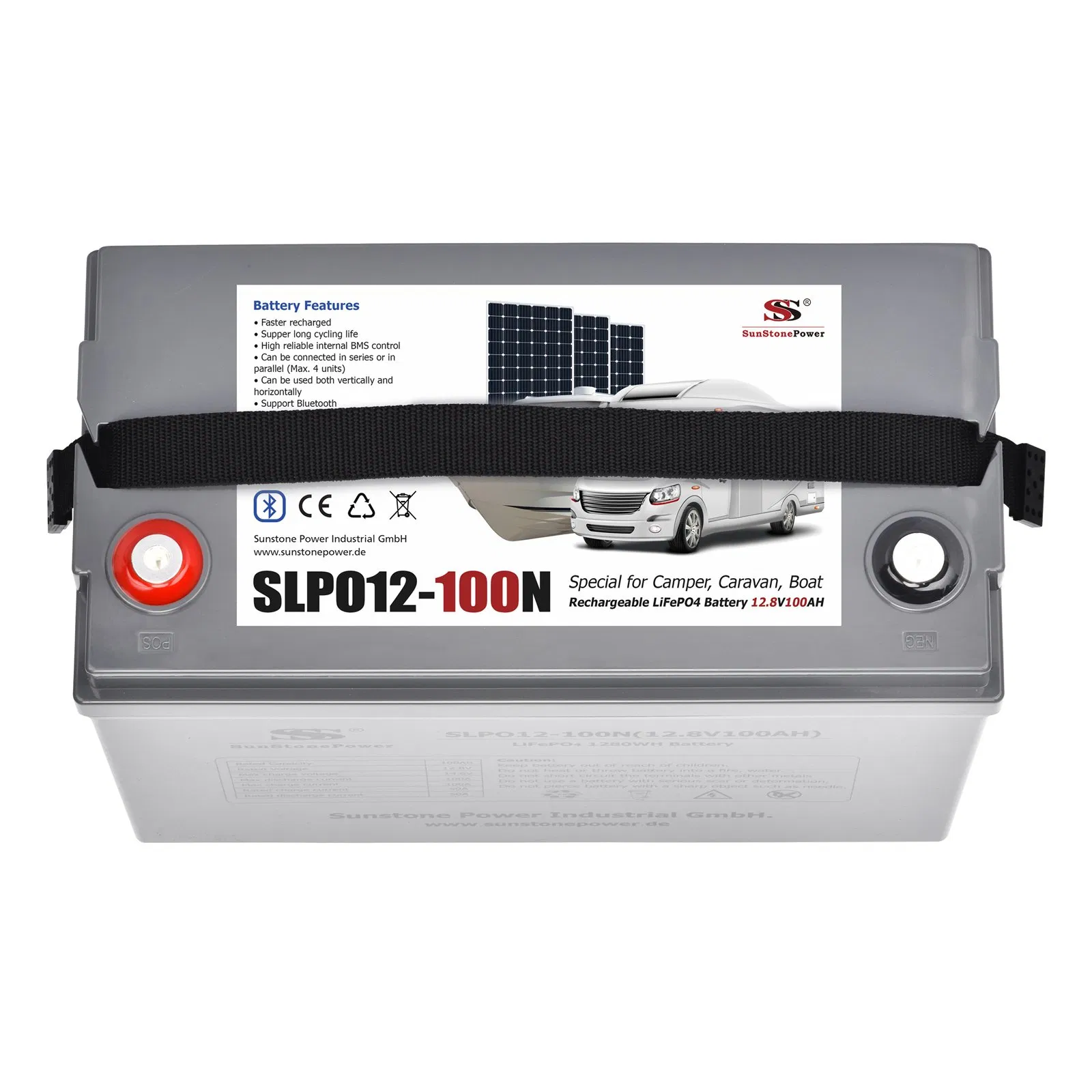

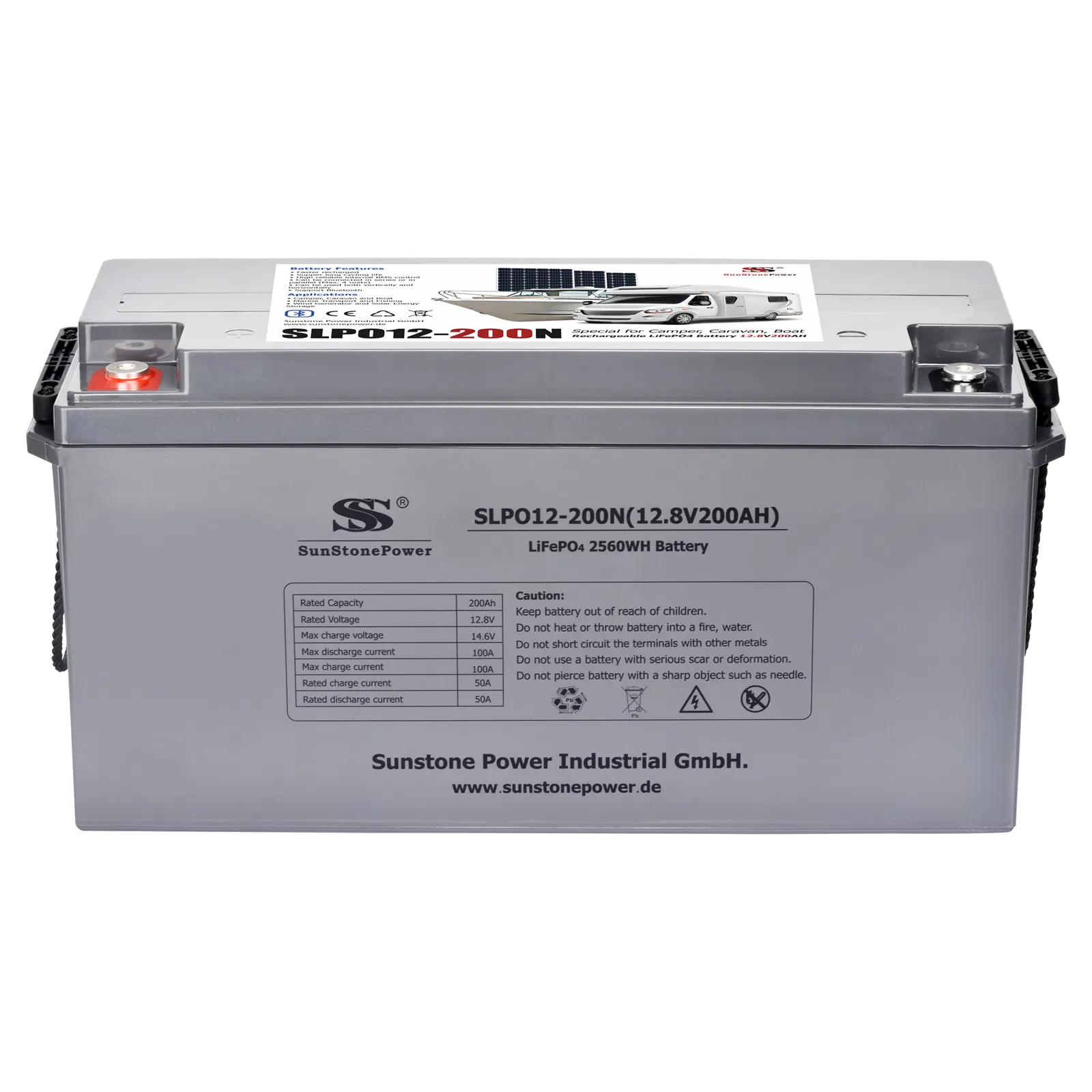

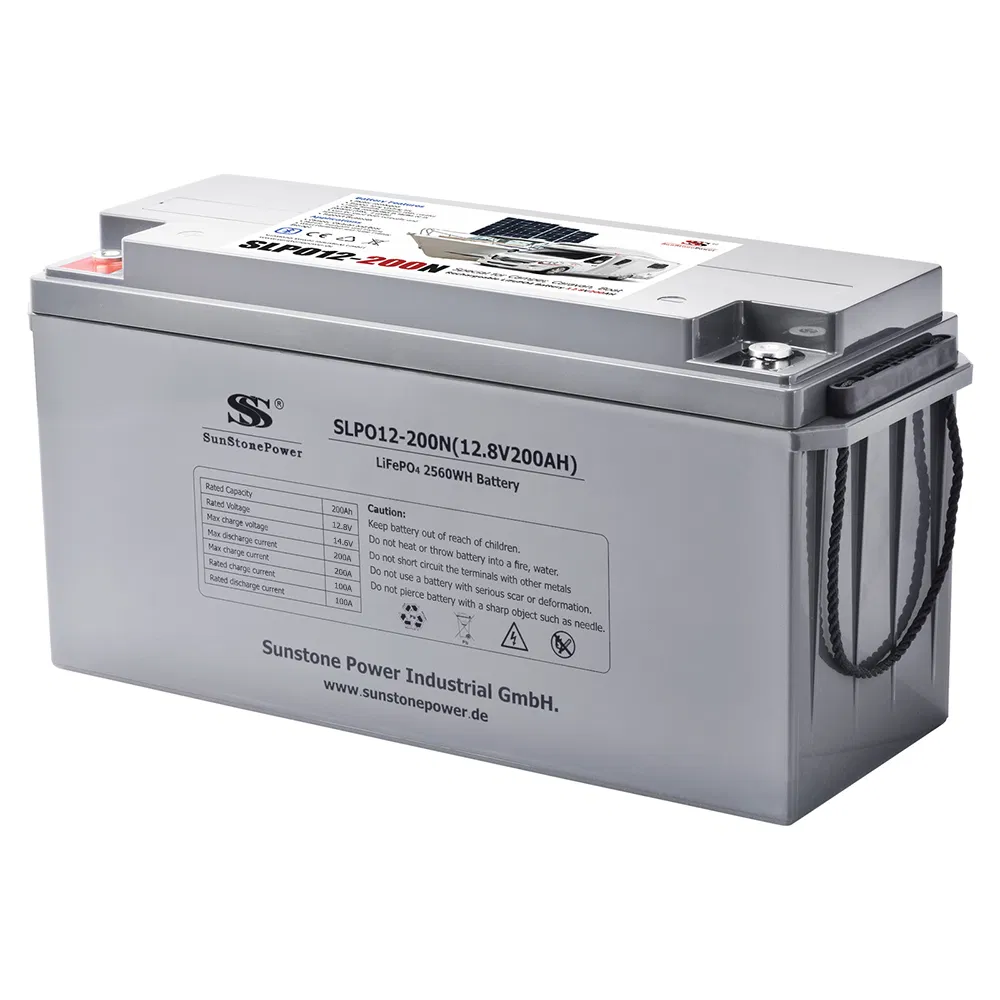

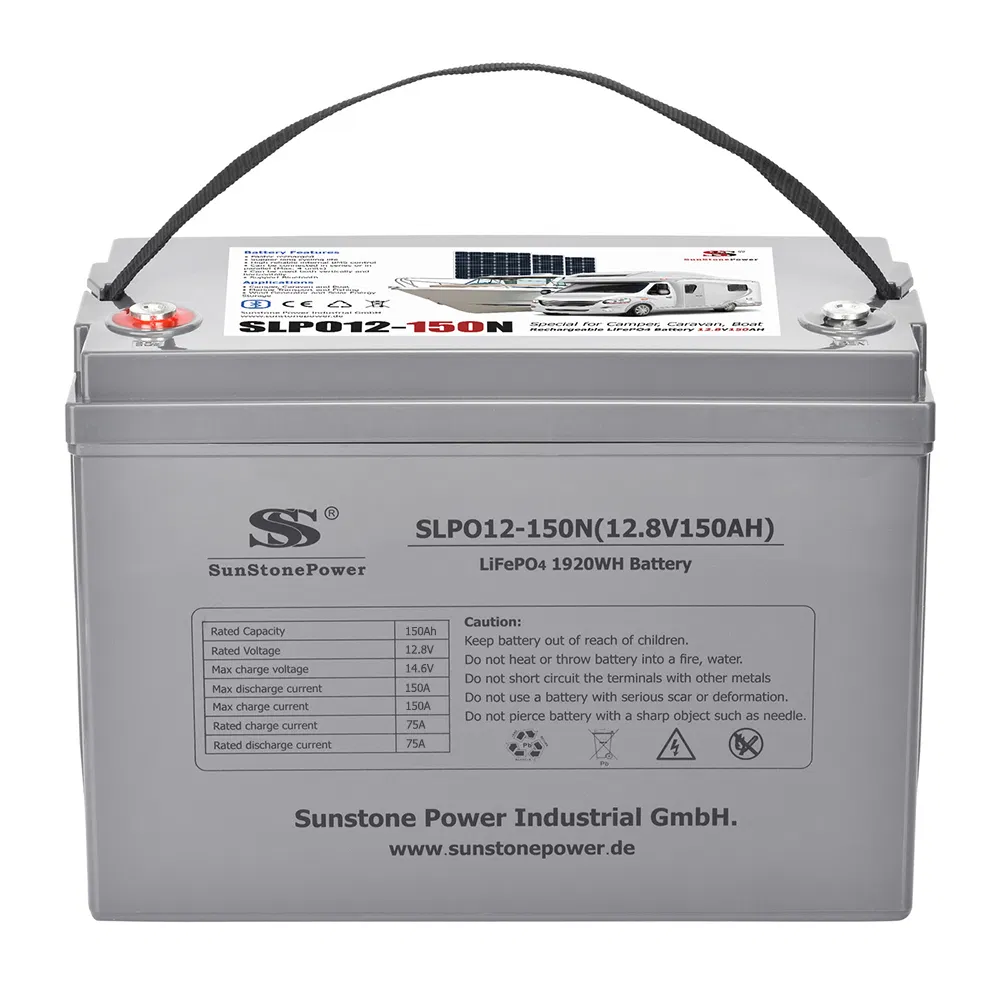

Lithium Battery 12V 2.4kwh Lead Acid Solar Battery Replacement 12V 200ah LiFePO4 Battery for Solar/Inverter/DC Power Supply Sunstone Factory Direct

Customization: Available
Nominal Voltage: 12V
Warranty: 3 Years

Product Description

Basic Info.
Model NO.
SLPO12-200N
Nominal Capacity
200Ah
Cycle Life
Over 6000 Cycle at 80% Dod
Shape
Prismatic Cell
Usage
Energy Storage
Rated Voltage
12V
Dimension
483*170*240mm
Weight
20kg
Communication
RS485, RS232, Can
Design Life
10 Years
BMS
Intelligent Integrated Battery Manager System
Standard
CE, IEC, Un38.3
Product Description

Lithium Battery 12V 2.4KWh Lead Acid Solar Battery Replacement LiFePO4 Battery

The SLPO series is a LiFePO4 (lithium iron phosphate) battery pack designed for backup power applications. Utilizing advanced battery technology, it offers a long cycle life, compact size, lightweight build, and enhanced safety. The system features strong environmental adaptability and includes a Bluetooth function to monitor battery status via a dedicated mobile app.

Lithium Battery Pack
Product Specification
ModelSLPO12-200N ( 12V 200AH Lithium battery )
Capacity (0.5c)200Ah
Related Voltage3.2V
Weight20 kg
Battery MaterialLiFePO4
Cycle Life6000 times @ 80% DOD at 25ºC
Key Features
1. Super Long Cycle LifeOver 6000 cycles at 80% DOD for sustainable use.
2. Fast Charge CapabilitySupports high current charging up to 50A.
3. Low Self-DischargeLess than 1% per month at 25 ºC.
4. Long Design Life10-year design life at 25°C ambient temperature.
5. Eco-Friendly MaterialsNon-polluting, no acids, and no hazardous lead or cadmium.
6. Flexible ConfigurationSupports up to 4 units in series or 4 in parallel.
7. Safety StandardFully compliant with UN38.3 and CE standards.
8. Maintenance-FreeSaves OPEX throughout the battery's entire lifetime.

Intelligent BMS: Built-in system protects against over-charge, over-discharge, over-temperature, and short-circuits. It balances cells and provides SOC-DOD-SOH reporting via remote monitoring.

Product Parameters

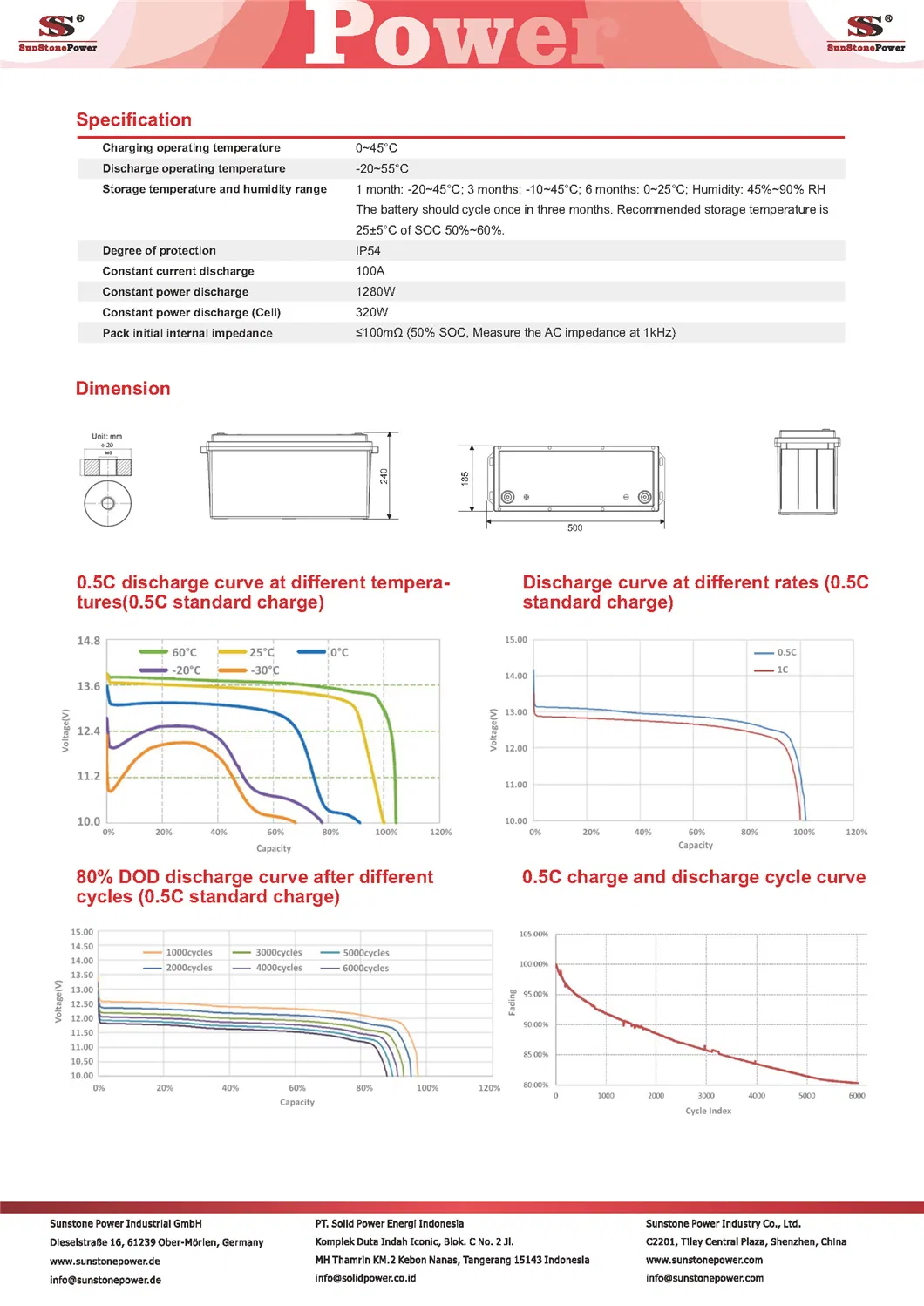

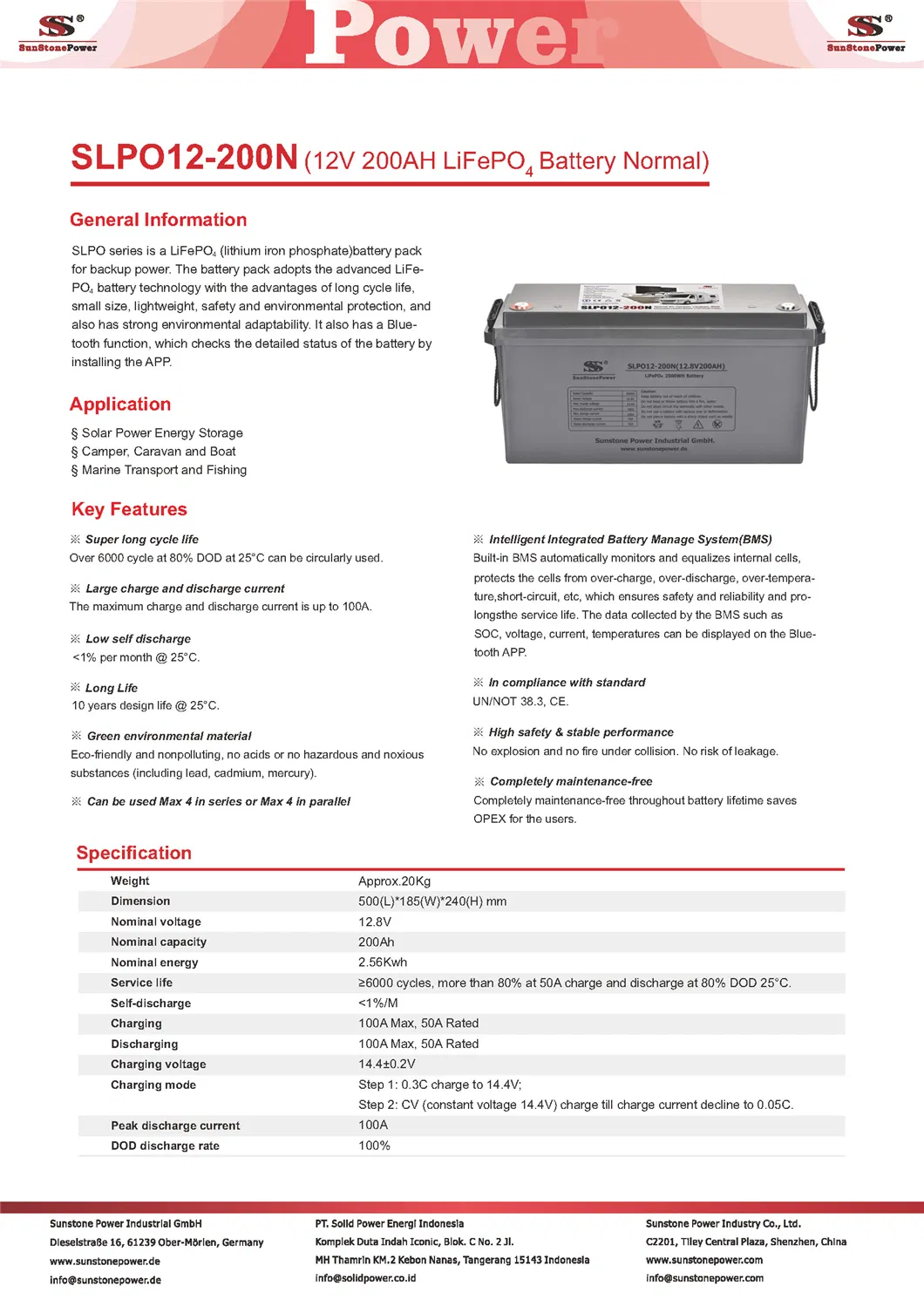

Parameters 1 Parameters 2
Detailed Photos

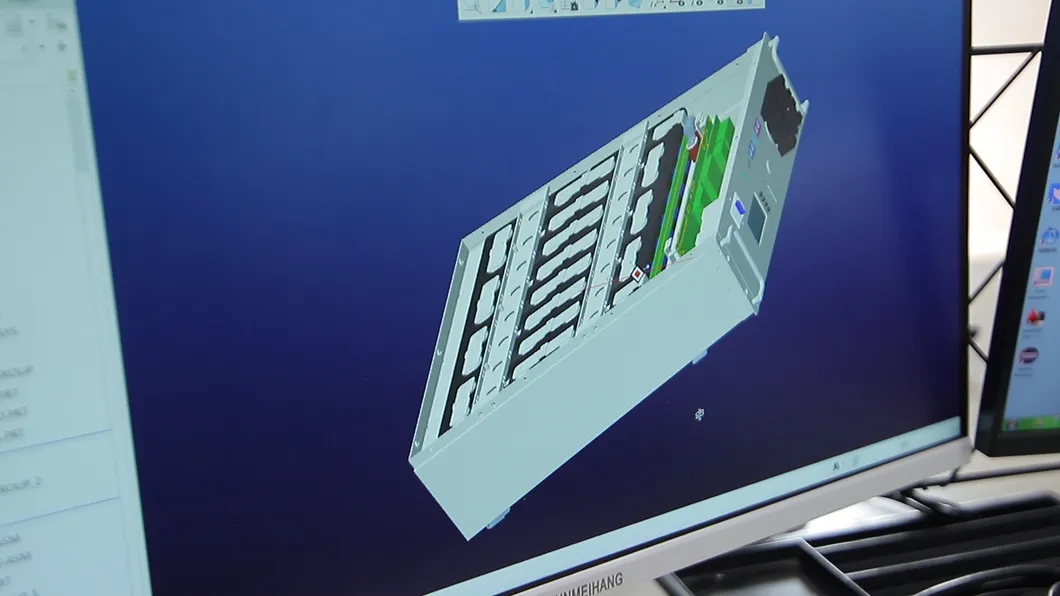

Detail 1

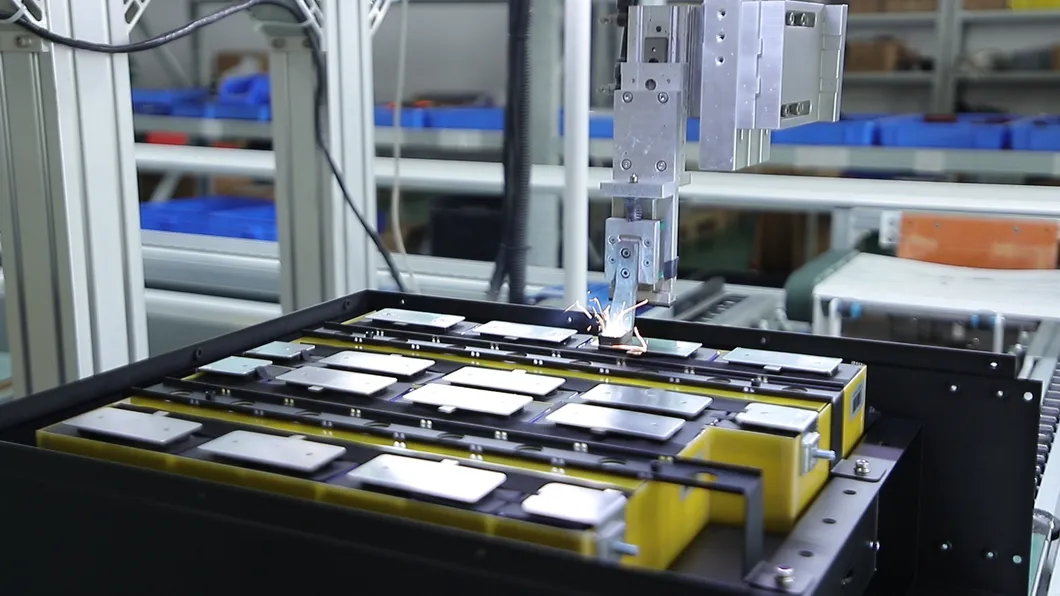

Detail 2

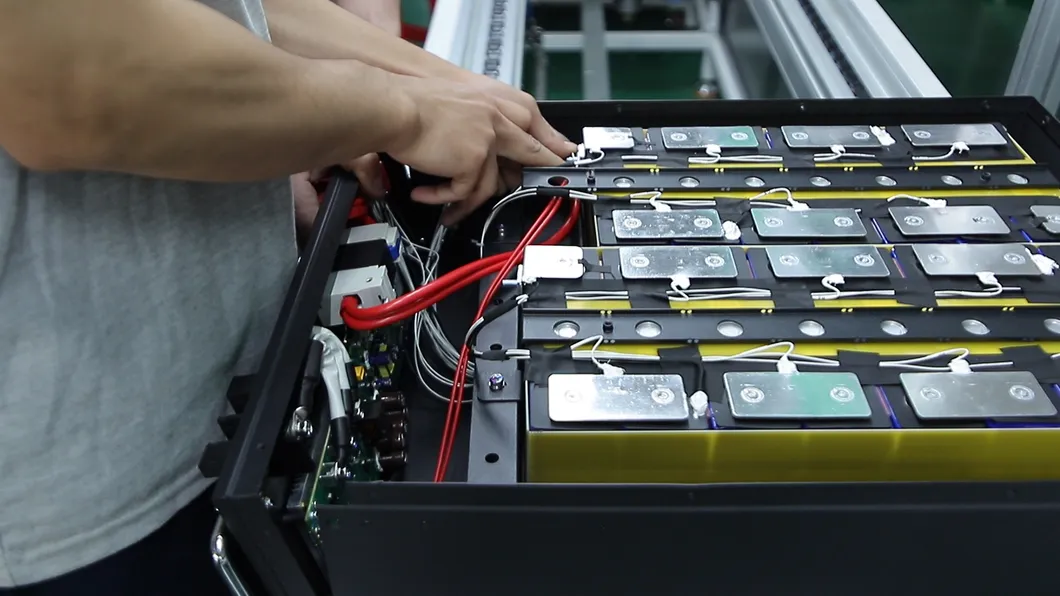

Detail 3

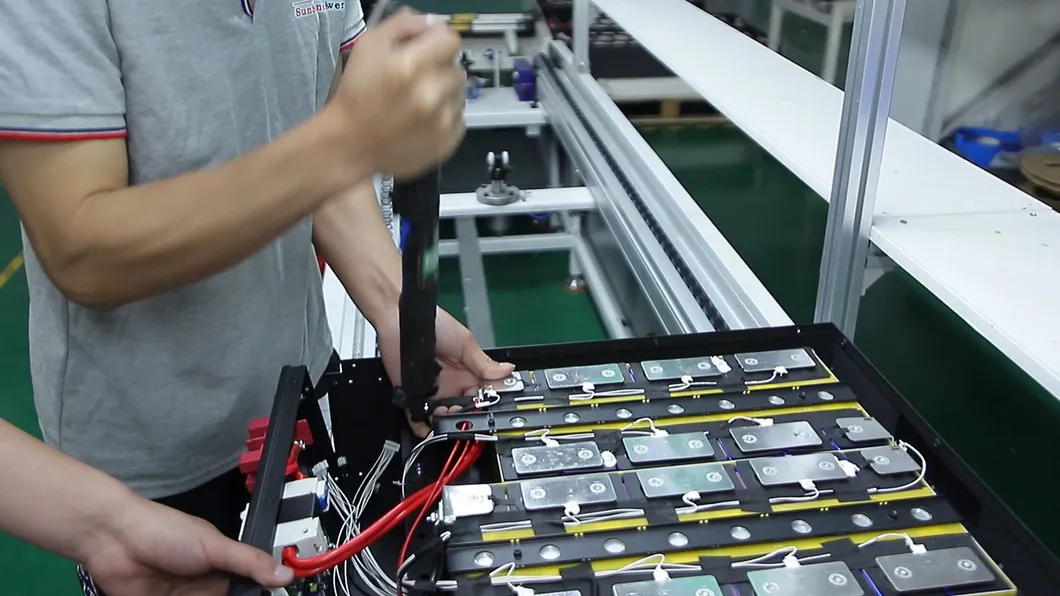

Detail 4

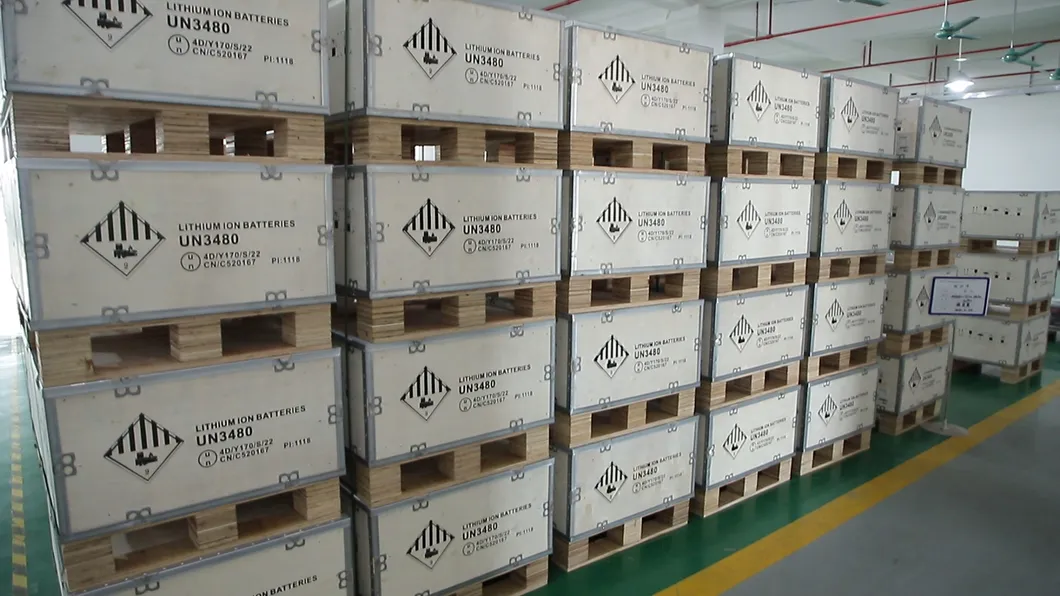

Detail 5

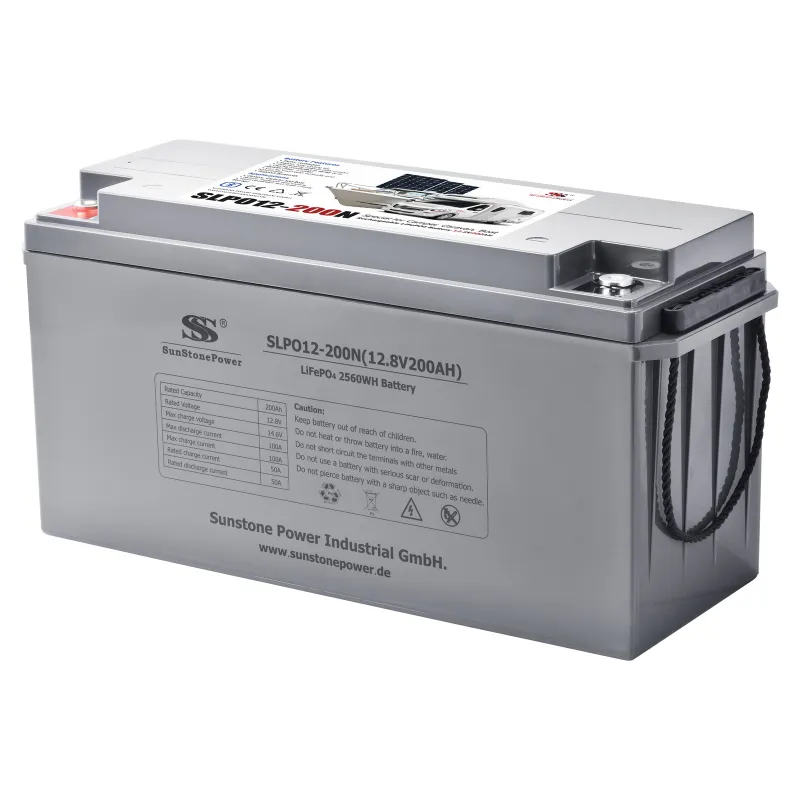

Detail 6
Related Products
VGG12-100

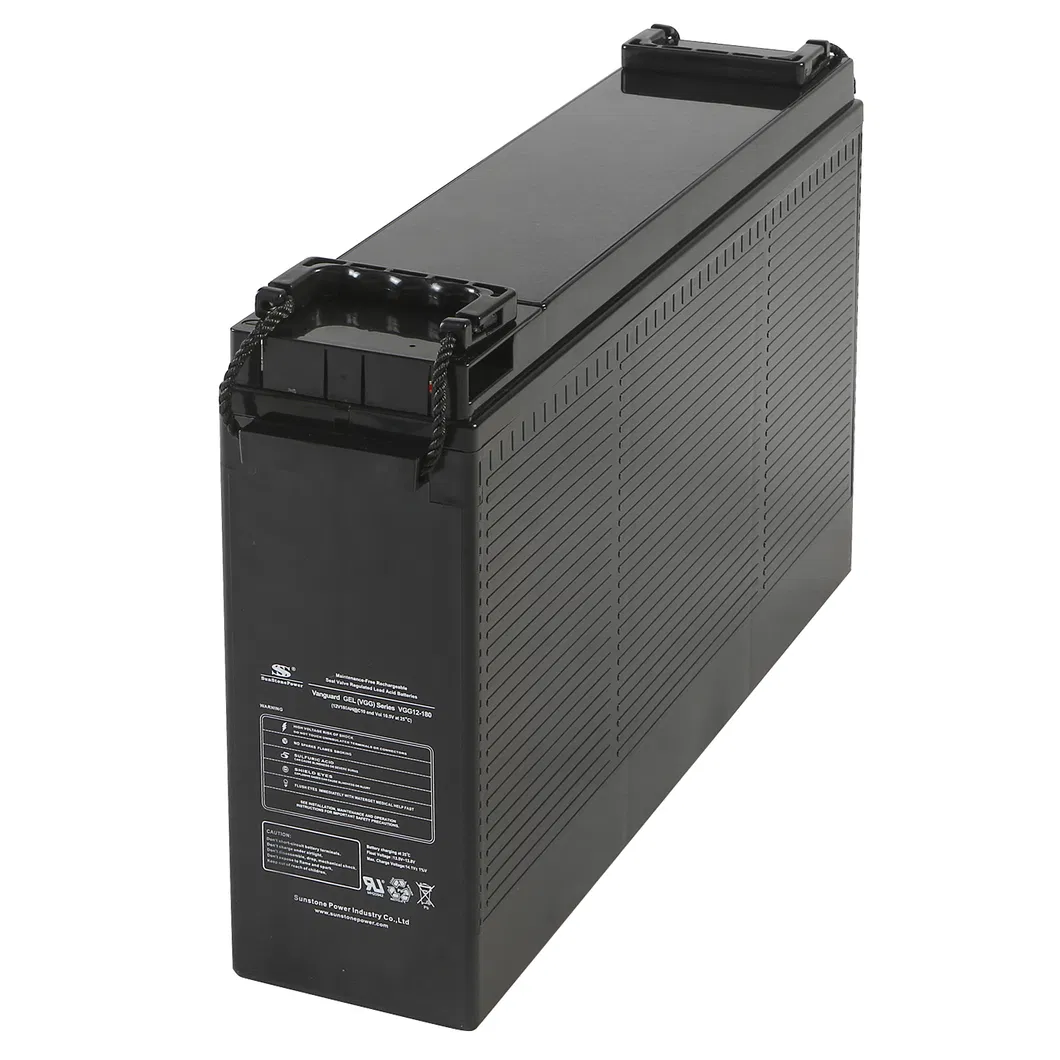

VGG12-100 Front Terminal Battery

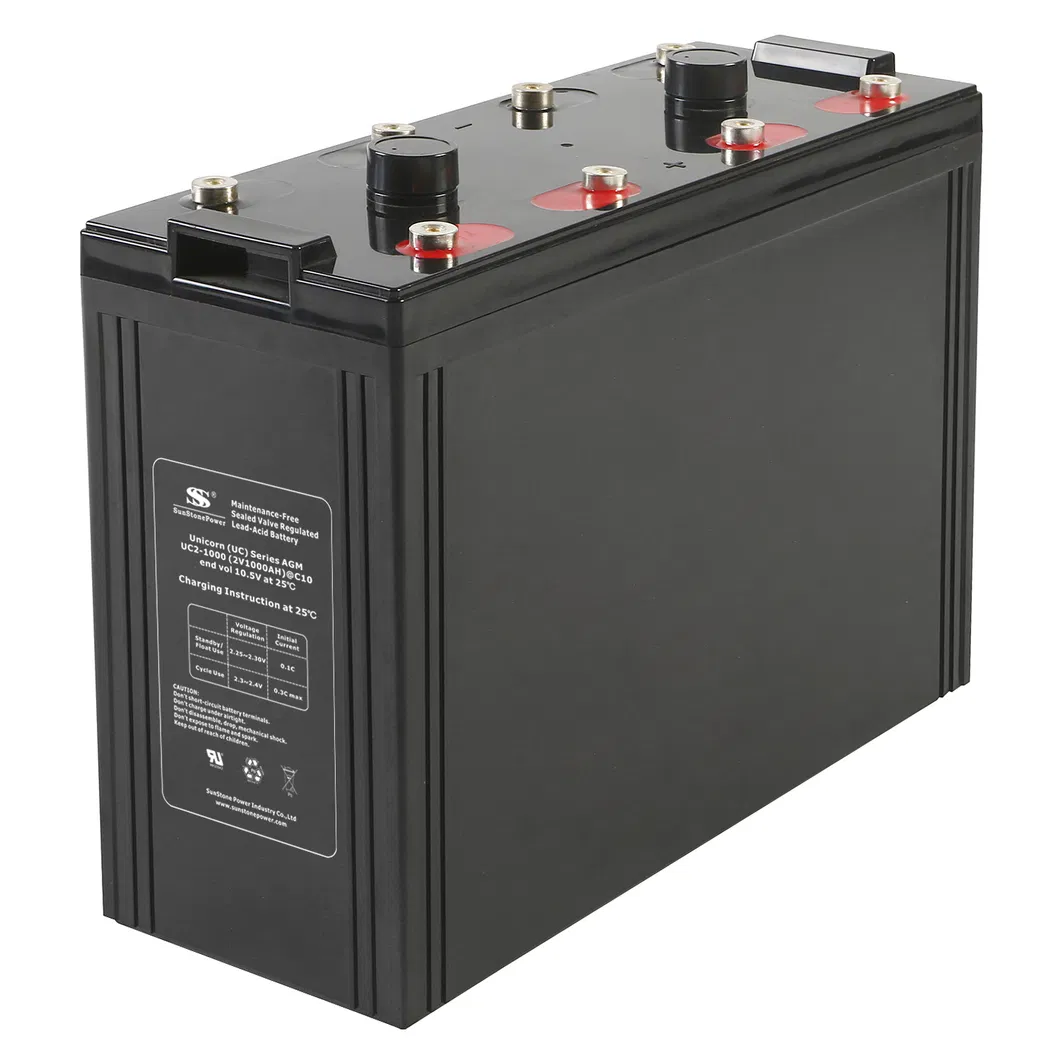

UC2-1000

UC2-1000 2V AGM Battery

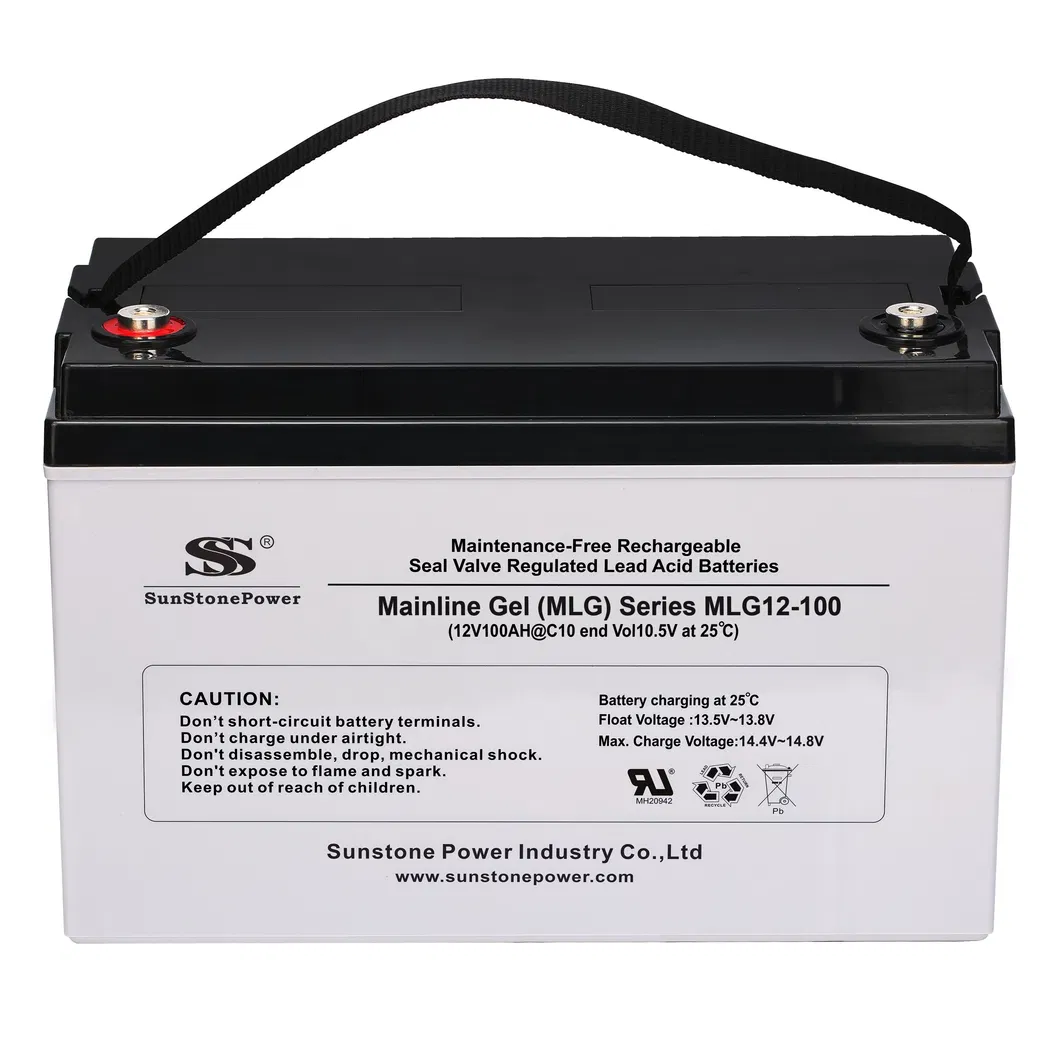

MLG12-100

MLG12-100 GEL Battery

Production Excellence

With over 20 years of manufacturing and exporting experience, our facilities span 70,000 square meters. We maintain strict control over the entire production process, from plate manufacturing to final assembly, ensuring stable quality and cost-efficiency.

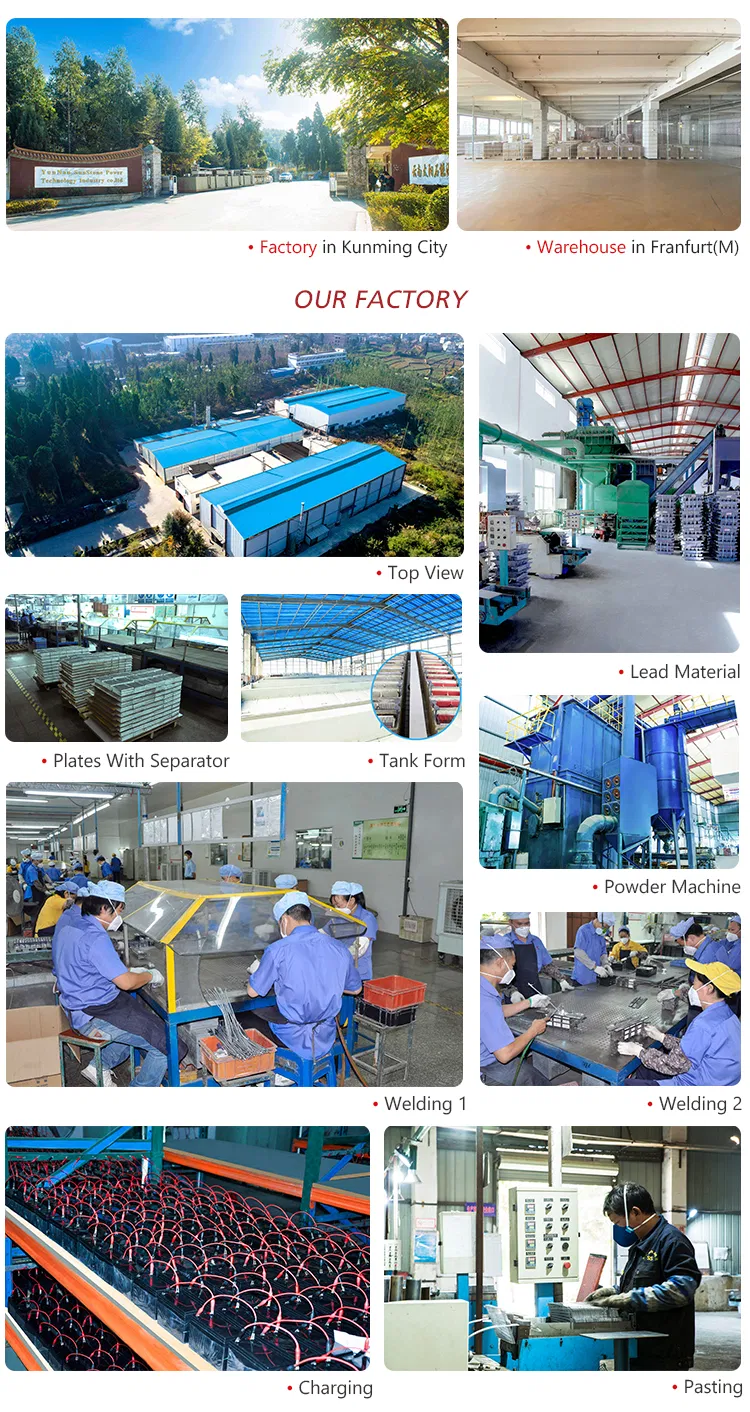

Factory
Workshop
Certifications
Certificates

Approved with ISO9001, ISO14001, CE, IEC, VDS, and UN38.3 standards.

Safety & Maintenance

Daily Maintenance: 1. Regularly check BMS voltage accuracy. 2. Verify temperature data sensors. 3. Monitor current values to avoid overcurrent. 4. Ensure charging equipment reliability. 5. Inspect physical connections for dust or debris.

Cautions: Keep away from children. Do not disassemble. Avoid high-temperature environments. Do not short-circuit or immerse in liquids. Do not mix with different battery types. Stop use if casing ruptures or swelling occurs.
Frequently Asked Questions
What is the lifespan of this LiFePO4 battery?
The SLPO12-200N offers a long cycle life of over 6,000 cycles at 80% Depth of Discharge (DOD) with a design life of up to 10 years at 25°C.
Can I monitor the battery remotely?
Yes, the battery is equipped with a Bluetooth function. You can check the detailed status of the battery, including voltage and health, by downloading the compatible mobile APP.
How many batteries can be connected together?
This model supports a maximum of 4 units in series or a maximum of 4 units in parallel to meet higher voltage or capacity requirements.
Is this battery maintenance-free?
Yes, it is completely maintenance-free throughout its lifetime, which significantly reduces operational expenses (OPEX) for the user.
What safety features does the built-in BMS provide?
The Intelligent Integrated BMS protects cells from over-charging, over-discharging, over-temperature, and short-circuits. It also ensures cell balancing and reliable remote communication.
What are the recommended payment and shipping terms?
Standard payment methods include T/T and Western Union. Shipping options include sea, air, car, or train, typically arranged within 30-35 days after receipt.
