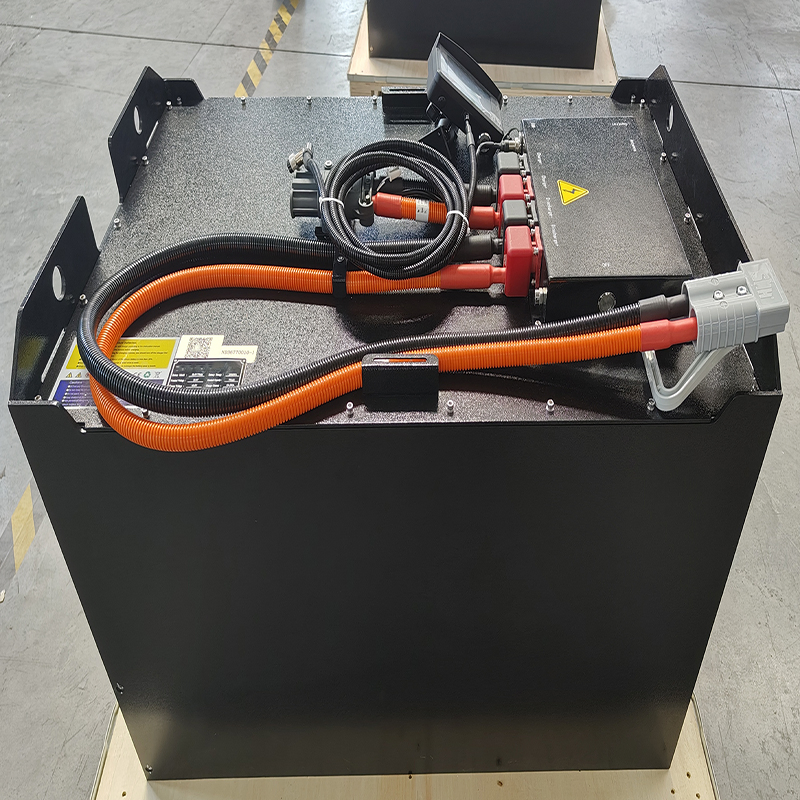

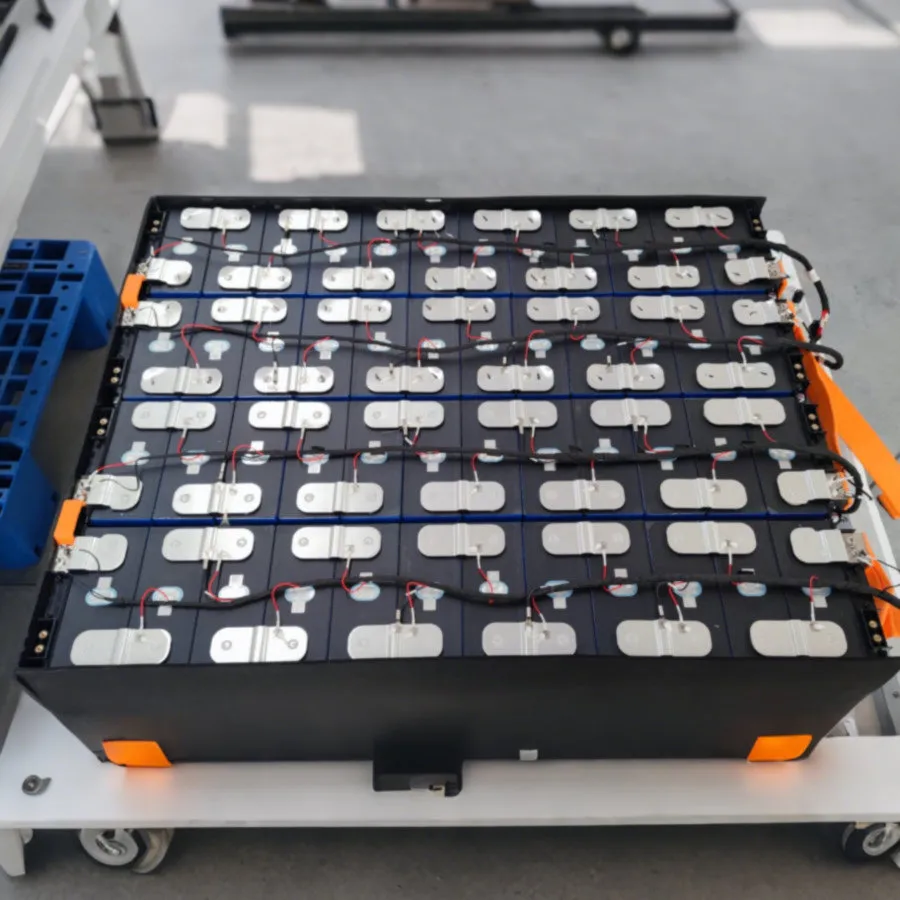

Our power lithium forklift batteries are tailor-made for low-speed power and large-capacity series lithium battery packs. They feature automotive-grade cells, ensuring safety, stability, and reliability. The intelligent BMS (Battery Management System) integrates voltage collection, large current active balancing, and comprehensive protection against overcharge, over-discharge, over-current, and over-temperature.

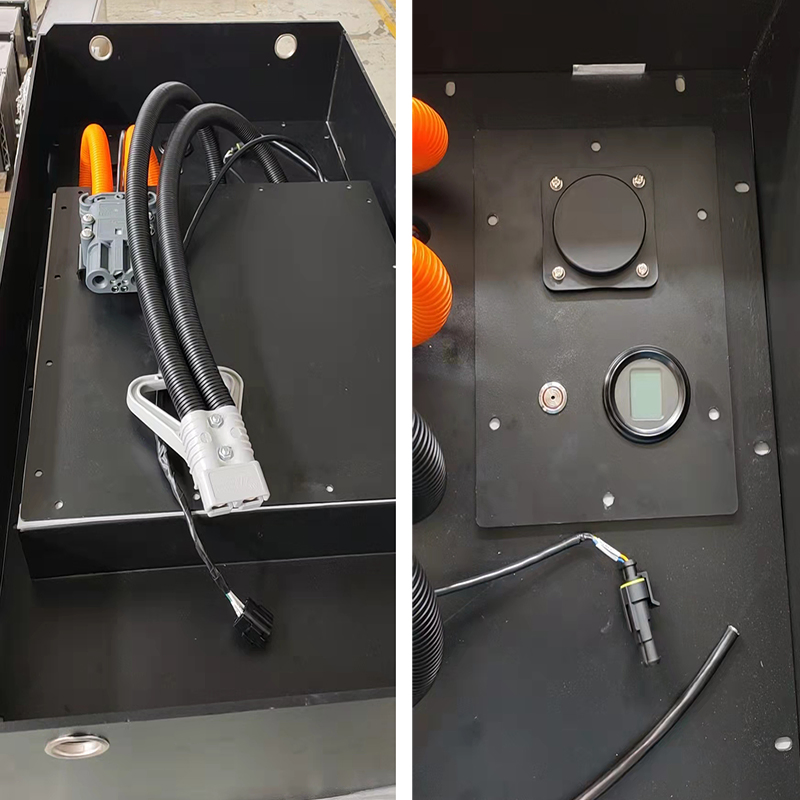

Equipped with a coulomb meter, Bluetooth communication, and optional GPS remote control, the battery management system utilizes autonomous energy transfer active balancing technology to achieve a maximum continuous 2A balancing current, significantly improving battery life and consistency.
| Voltage (V) | Capacity (AH) | Battery Cell | Series/Parallel | Discharge Plug | L(mm) | W(mm) | H(mm) | Weight(KG) |
|---|---|---|---|---|---|---|---|---|
| 25.6V | 210AH | 105AH | 2P8S | REMA80 | 790 | 212 | 462 | 70 |
| 25.6V | 440AH | 110AH | 4P8S | REMA160F | 830 | 327 | 627 | 445 |
| 51.2V | 315AH | 105AH | 3P16S | Anderson SB175 | 956 | 375 | 564 | 521 |
| 51.2V | 440AH | 110AH | 4P16S | Anderson SB175 | 982 | 535 | 590 | 855 |
| 51.2V | 600AH | 100AH | 6P16S | Anderson SB350 | 1140 | 1110 | 580 | 1950 |
| 83.2V | 550AH | 110AH | 5P26S | REMA160 | 1020 | 850 | 630 | 4150 |
| Comparison Item | Lithium-Ion Battery | Lead-Acid Battery |
|---|---|---|
| Charging Speed | 4–5× Faster; High-Current Support | Slow; Not suitable for fast charging |
| Cycle Life | Over 5,000 Cycles | 500–1,500 Cycles |
| Maintenance | Maintenance-Free; No watering | Regular watering & equalization required |
| Eco Impact | No toxic heavy metals | Contains Lead, Mercury, Cadmium |
| Frequency | Maintenance Tasks |
|---|---|
| Daily | Check for deformation, oxidation, or physical damage. Verify secure installation. |
| Weekly | Clean batteries and charger using a dry cloth or compressed air. |
| Monthly | Inspect plugs/sockets for rust or burn marks; check cables for loose connectors. |
| Storage | Store in 20°C–35°C; Charge every 3 months; keep terminals insulated. |
