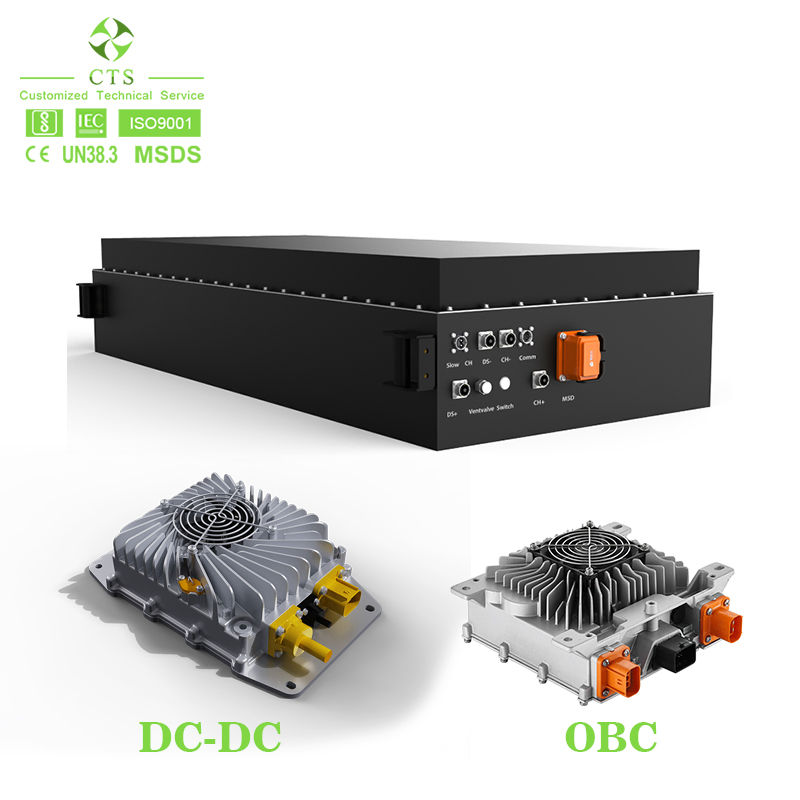

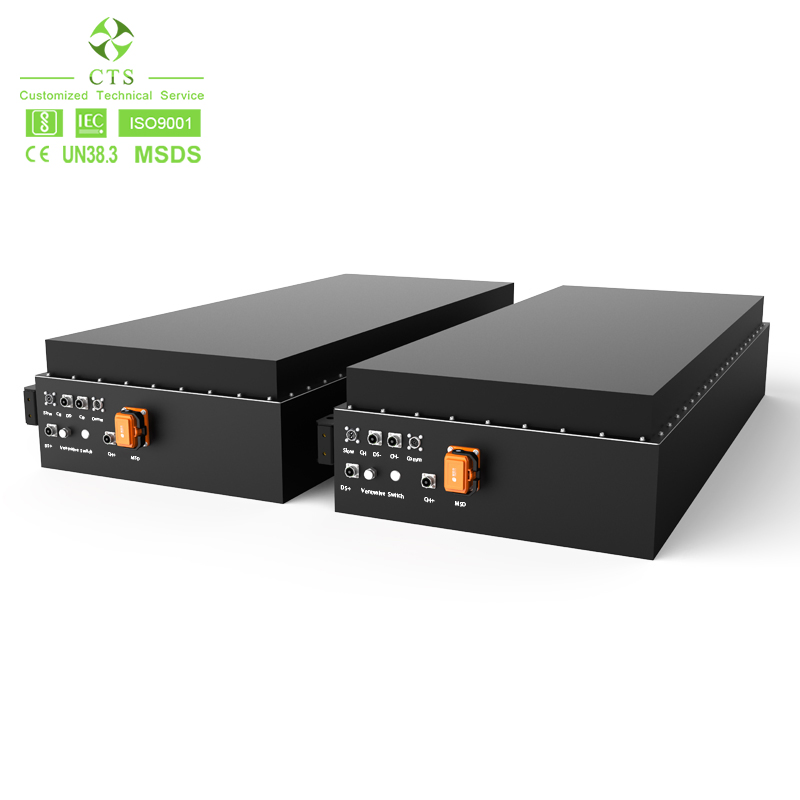

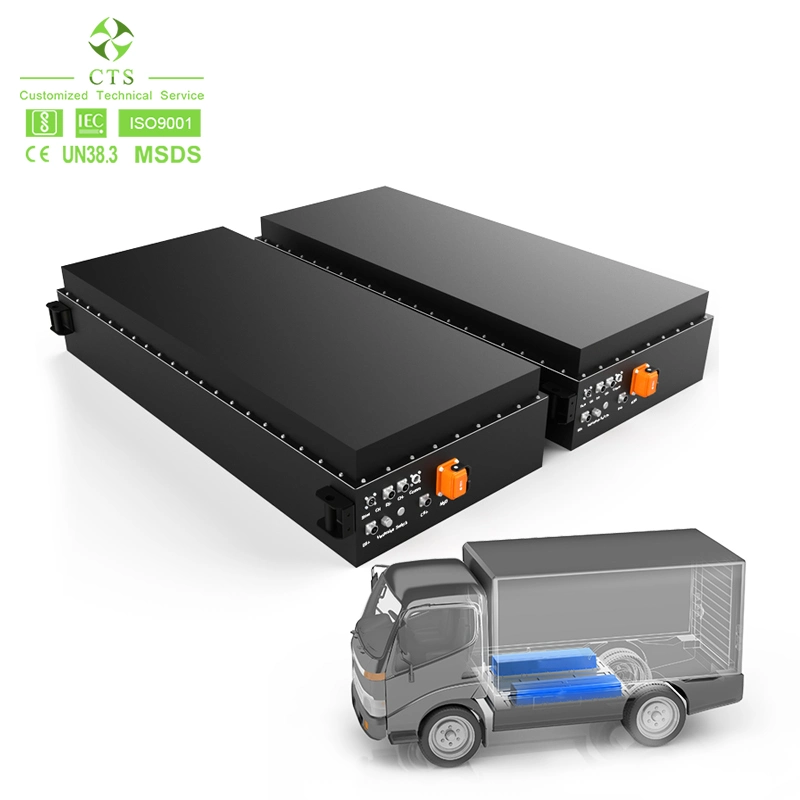

LiFePO4 400V 40kWh EV Battery Pack (Scalable to 30kWh, 60kWh, 300V-614V)
| Technical Parameters of 614.4V 100Ah Battery Pack | |||
|---|---|---|---|
| No. | Items | Technical Requirement | Note |
| 1 | Battery Type | LiFePO4 | |
| 2 | Capacity(Ah) | 100 | @25ºC |
| 3 | Voltage | 614.4V | |
| 4 | Power(kWh) | 61.44kWh | |
| 5 | Weight(kg) | 558.55 | |
| 6 | Working Voltage range | 480V - 700.8V | DC |
| 7 | Continuous discharge current | 80A | @EOL, @25ºC |
| 8 | Peak discharge current | 200A | For 30 seconds |
| 9 | Dimension (L/W/H) | 1780*720*345 mm | |

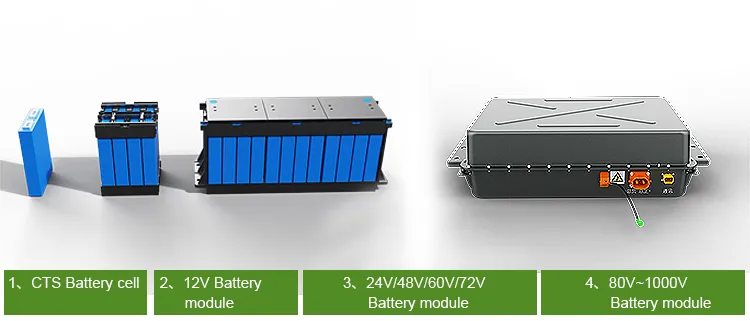

The system optimizes cell design and electrical component selection. Using the lightest steel/aluminum alloys and high-strength plastics, combined with CAE structural simulation, we ensure structural strength while improving energy density. Standardized modules (12V-72V) allow for excellent scalability to meet diverse requirements.

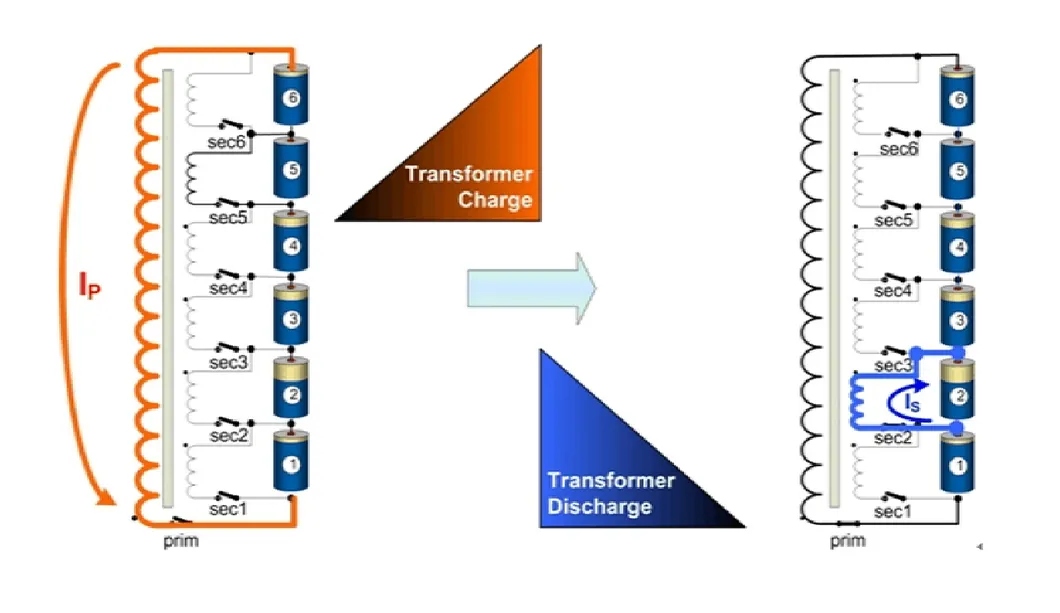

Equipped with an advanced BMS supporting passive balance by default, with an option for active balance. Parameters such as CAN/RS485 protocols, over/under voltage, high current, and temperature protection can be customized on-site.

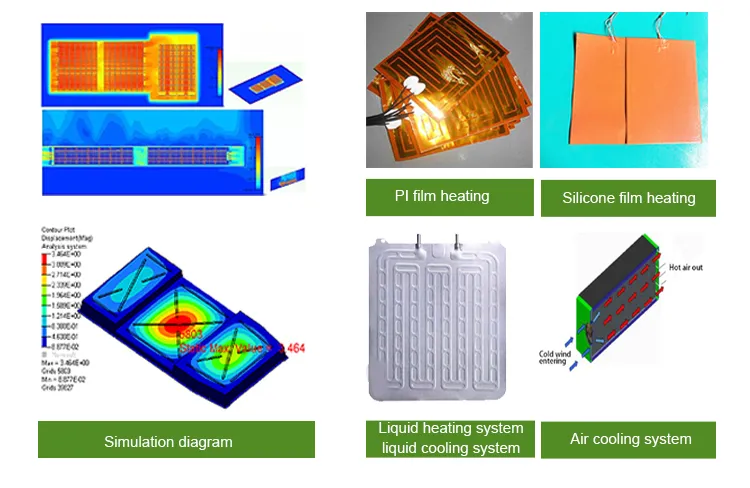

Utilizing CFD (Computational Fluid Dynamics) and CAE simulation, the system incorporates advanced thermal management including air cooling, liquid heating/cooling, and PI film or silica gel film heating to maintain optimal operating temperatures.

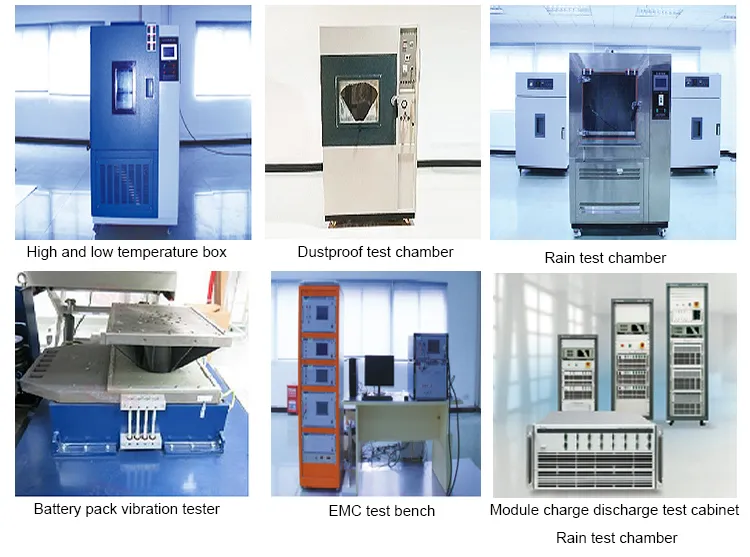

Rigorous DV/PV (design/production verification) testing is conducted, including temperature tests, mechanical tests, external environment simulation, electrical safety, and abuse testing to ensure full compliance with design requirements.

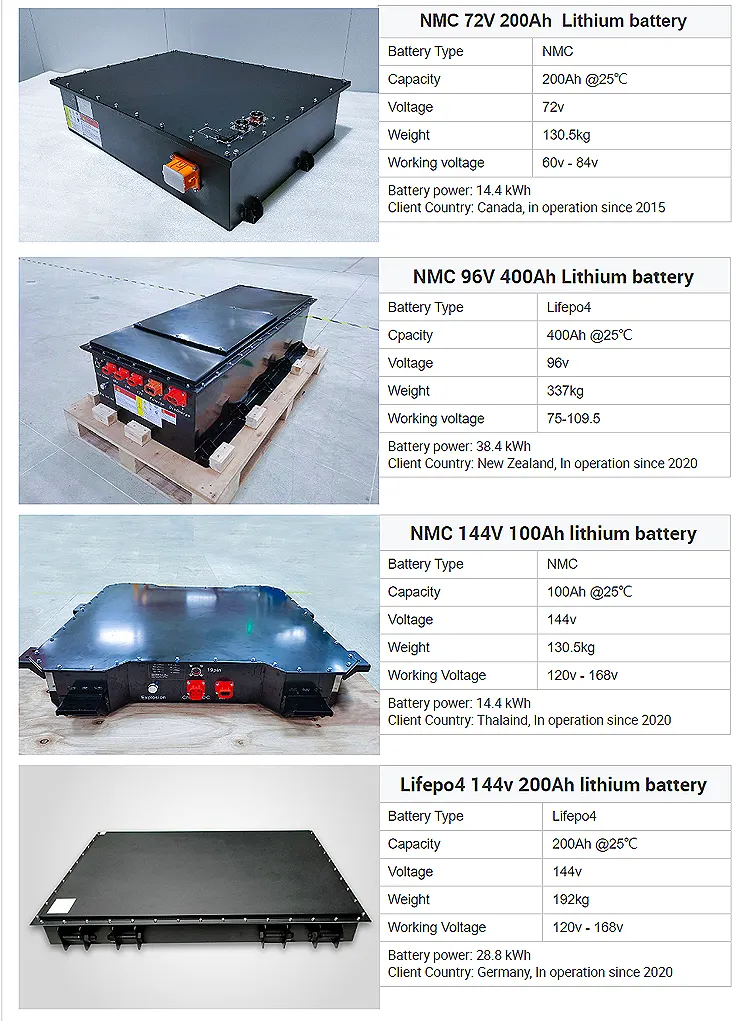

Specializing in one-stop customization of lithium battery products since 2011. With over 30 types of cells, we provide OEM battery packs ranging from 12V-800V and 10Ah-200Ah for electric vehicles, energy storage systems, telecommunication stations, and industrial tools.

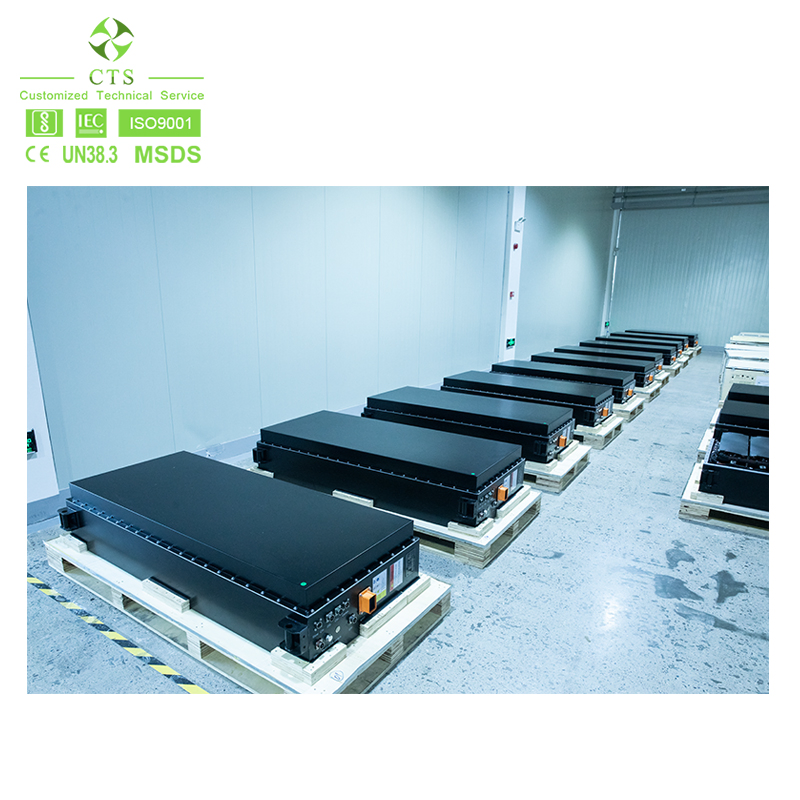

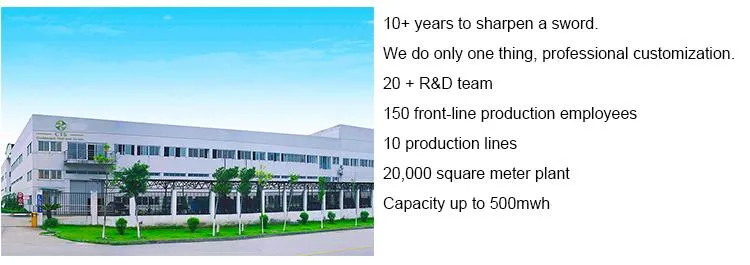

Our facilities utilize advanced automated equipment from Korea and Germany, adhering to ISO 9001, ISO 14001, and OHSAS 18001 certifications to ensure the highest quality standards.
