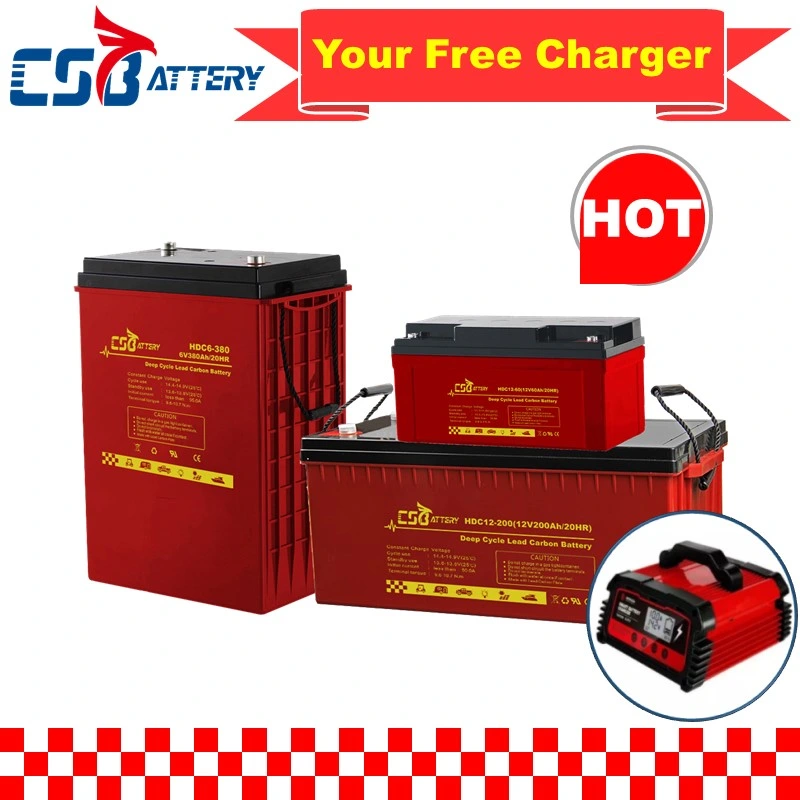

Csbattery 6V420ah Trojan Quality Deep Cycle Lead Carbon Battery for Solar/Inverter/Power-Tool/Electric-Scooter/Bicycle/Vehicle/CSR

Customization: Available
Type: Deep Cycle Lead Carbon Battery
Usage: off Grid Solar, UPS, Golf Car

Product Description

Basic Specifications

Model NO.HTB6-420 Nominal Voltage6V
Discharge Rate0.2c-0.5c ShapeBlock
ElectrolyteDeep Cycle Gel Battery InstallationFixed
RechargeableChargeable Weight30.2kgs/30.7kgs
Warranty3 Years Expected Cycle Life15~20 Years
CertificatesCE, IEC, ISO CasingABS or UL94 Fire Resistance

Advanced Features

🌡️
High-Temp Performance
Patented technology designed for hot areas and solar markets.
♻️
Long Service Life
15-20 years designed life with 1500-1600 cycles at 50% DOD.
Environmentally friendly
Completely Maintenance-Free
Non-Spillable construction design
Wide Operating Temp (-20°C~+60°C)
Explosion Proof
Low Self Discharge
Valve Regulated & High Discharge
No Memory Effect

HTB6-420 Technical Data

Design Floating Life @ 25ºC 20 Years
Nominal Capacity @ 25ºC 420Ah (20 hour rate) Internal Resistance ≤1.5mΩ
Max. Discharge Current 1260A(5s) Self-Discharge 3% per Month
Dimension (L*W*H) 295 * 178 * 404 mm (Total Height 424mm)

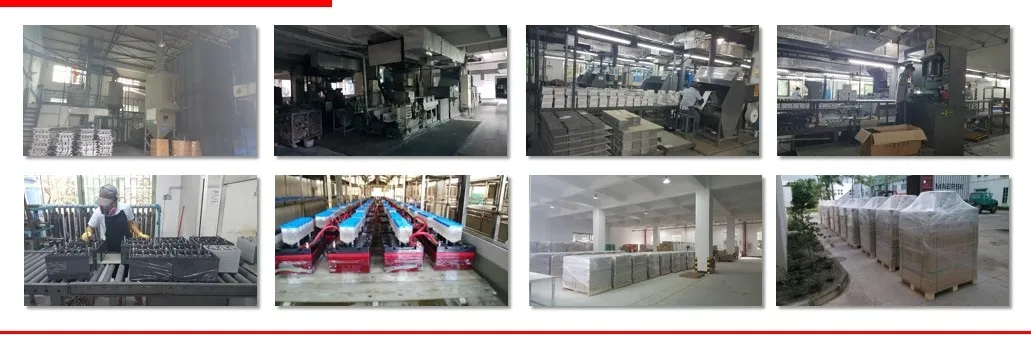

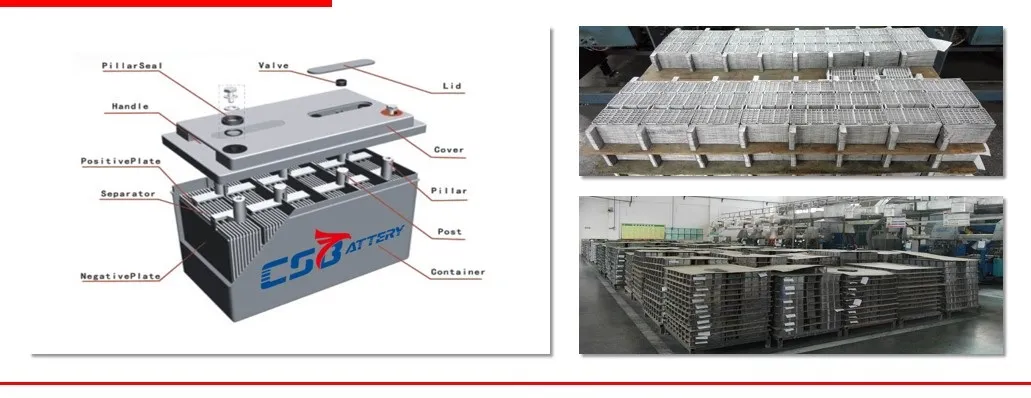

Product Structure & Assembly

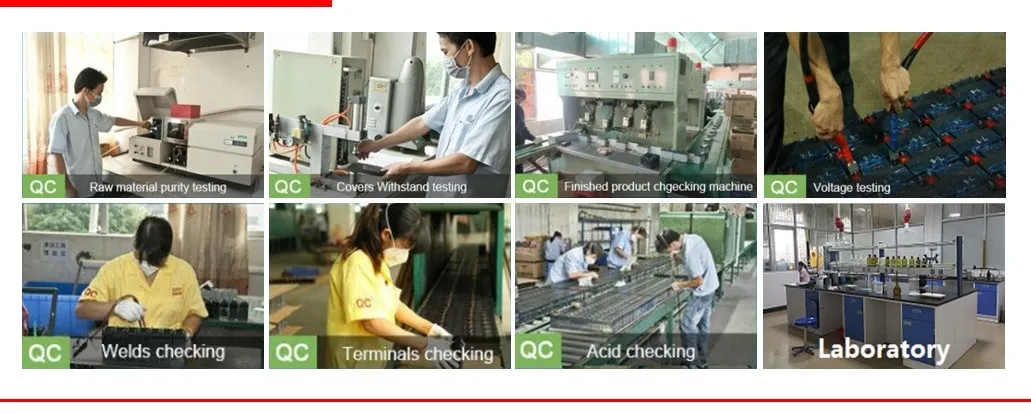

Quality Assurance

Main Applications

Solar and Wind Power Systems
Telecommunication Control Equipment
Uninterruptible Power Supplies (UPS)
Electric Powered Vehicles & Golf Cars
Emergency Lighting & Alarm Systems
Power Station & Generation Plants

Model List (6V/8V)

Model Voltage (V) Capacity (Ah) Dimensions (L*W*H mm) Weight (kg)
HTB6-2006200306*168*22030
HTB6-2506250260*180*26534.5
HTB6-3106310295*178*34646
HTB6-4206420295*178*40456.8
HTB8-1708170260*182*26634.3
HTB8-2008200260*182*29538.3

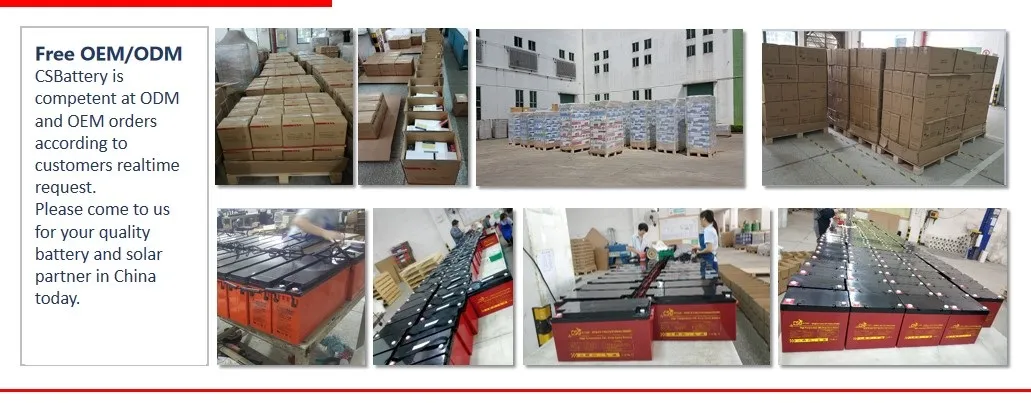

Packaging & Delivery

Frequently Asked Questions

Can the batteries be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We provide MSDS and test reports for safe transport as non-dangerous products.
Is fast charging recommended for these batteries?
Fast charging is not recommended as it can be harmful to the battery's long-term health and cycle life.
Can I perform a partial replacement of my battery bank?
Partial battery replacement of lead acid battery banks is not recommended. It is best to replace the entire set to ensure balanced performance.
What is the typical delivery time?
Usually, it takes about 7 days for stock products, around 20 days for half-container orders, and 30 days for full 20ft container products.
How is the quality controlled during production?
We adopt a strict quality system including Incoming Quality Control (IQC), Production Quality Control (PQC) with multiple inspections, and Outgoing Quality Control (OQC) to ensure zero defects.
Why does the battery have different capacities at different hour rates?
Capacity is dynamic and depends on discharge current. A lower discharge current (like a 20-hr rate) allows the battery to deliver more total Ah than a high discharge current (like a 2-hr rate).
