📋 Basic Information
Nominal Voltage
72/76.8volts
Certification
CE/RoHS/MSDS/Un38.3
Transport Package
White Foam & 5 Layers′ Box
Specification
150mm× 210mm× 280mm
Production Capacity
10000 Pieces Per Week
🚀 Product Features

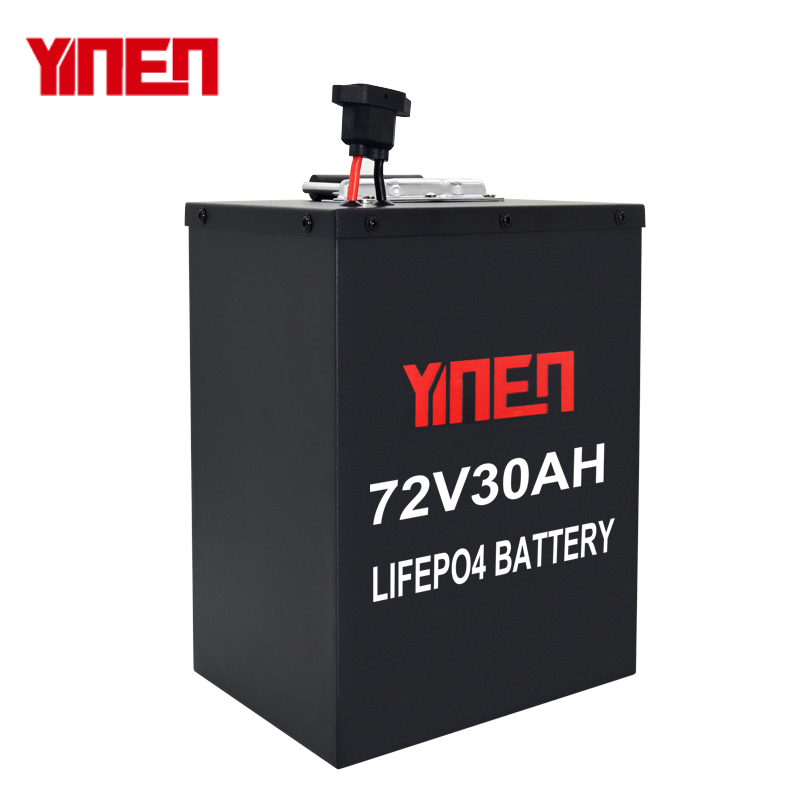

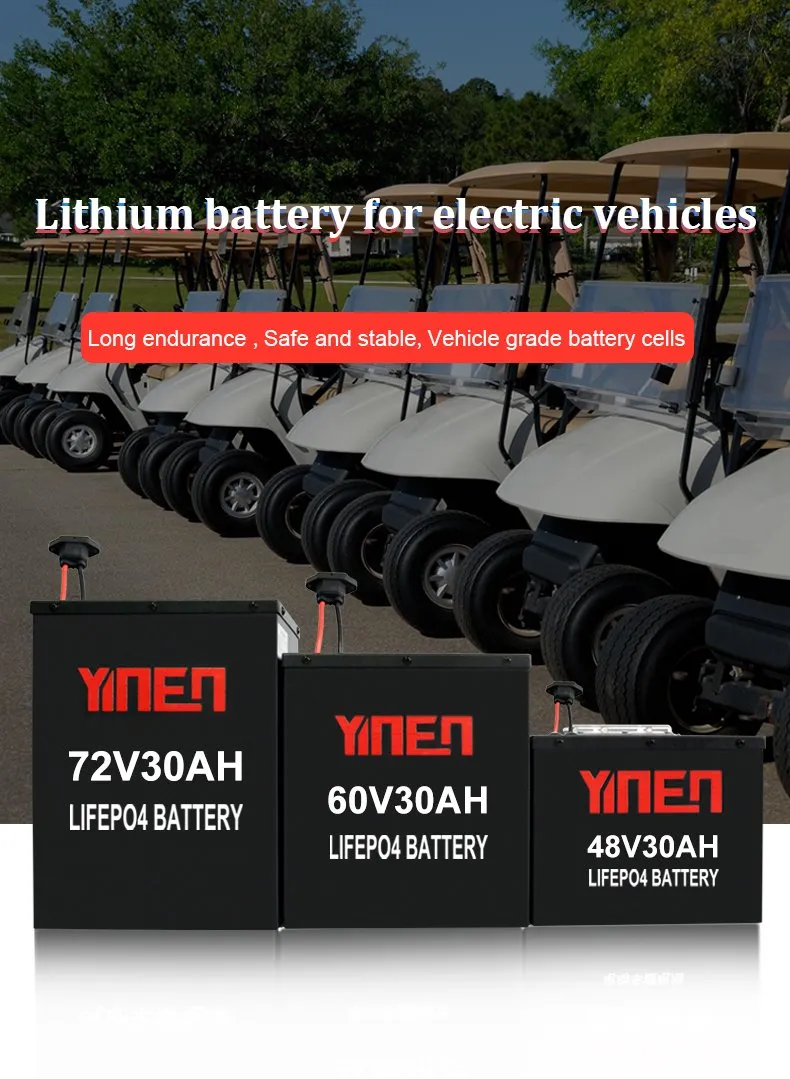

Features of 48V/60V/72V lithium-ion motorcycle battery:
✔
Lighter weight and smaller size. Customizable for easy installation.
✔
Extremely safe: no explosion or fire even under collision.
✔
Strong over-discharge resistance and superior charge retention.
✔
Strong charging acceptance and quick-charging capability.
✔
Optional Bluetooth function with APP monitoring for battery status.
✔
Rigorous Manufacturer Testing for all cells and packs before delivery.
📊 Technical Specifications

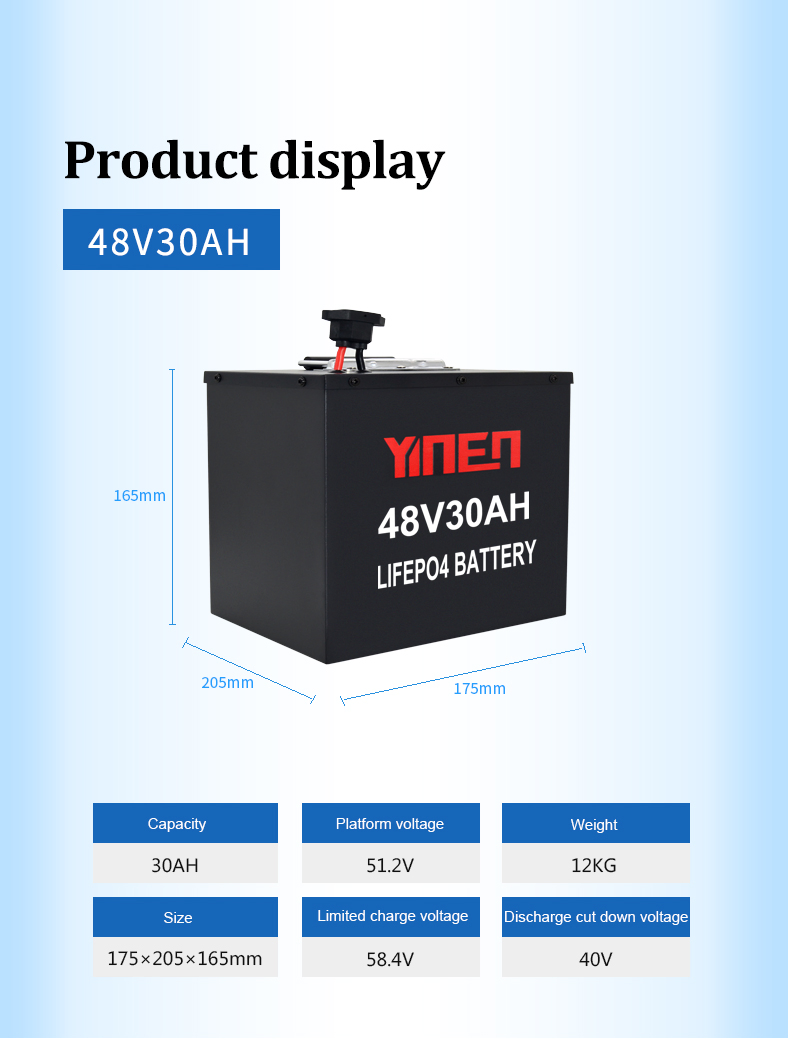

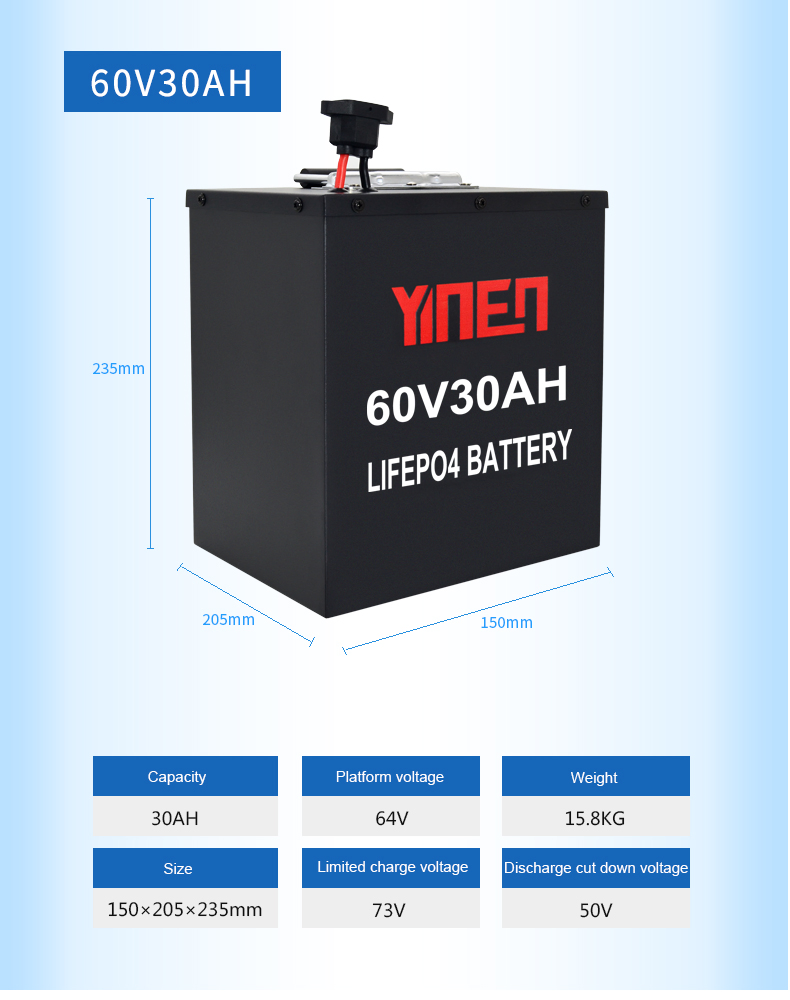

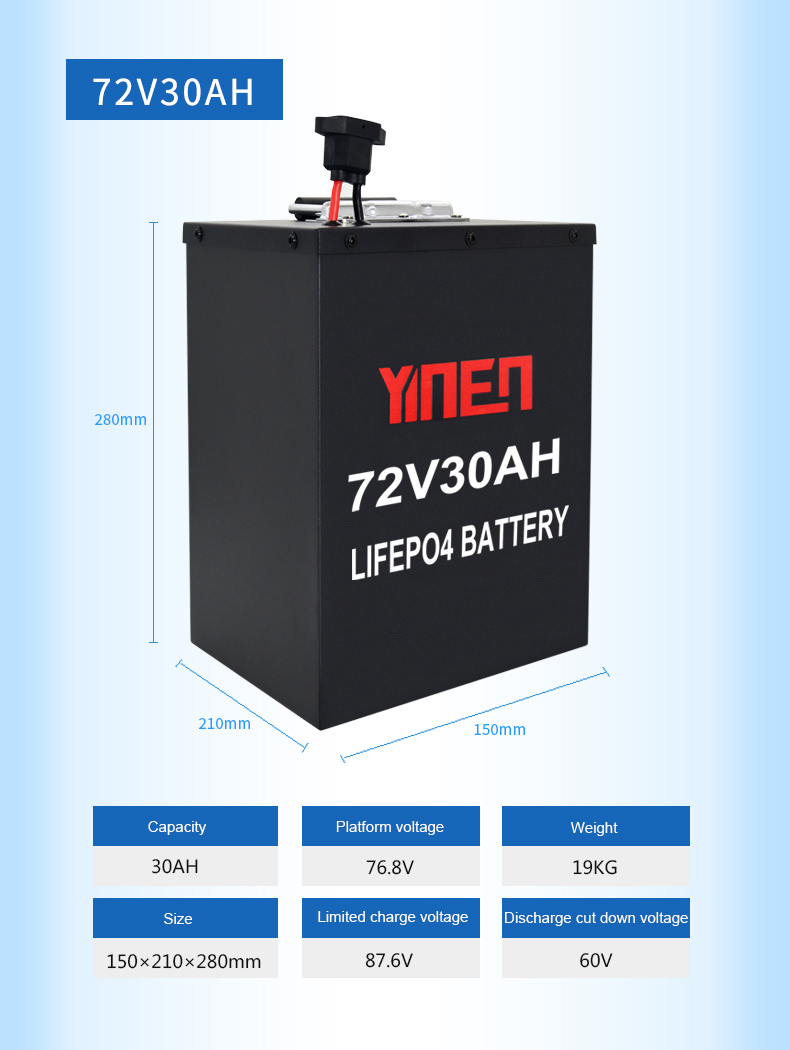

| Item |
48-30 |
60-30 |
72-30 |
72-50 |
| Cell Unit |
Cell type |
LFP20100140-30Ah |
IFP28148115-52AH |
| Size |
20mm*100mm*140mm |
28mm×148mm×115mm |
| Nominal voltage |
3.2V |
3.2V |
| AC Resistance |
0.6-1.5(mΩ) |
0.6-1.5(mΩ) |
| Rate capacity |
30Ah |
52Ah |
| System Info |
Platform voltage |
51.2V |
64V |
76.8V |
76.8V |
| System Size |
175x205x165mm |
150x205x235mm |
150x210x280mm |
250x165x380mm |
| Series Parallel |
16s1p |
20s1p |
24s1p |
24S1P |
| BMS Type |
48V 16S 40A |
60V 20S 40A |
72V 24S 40A |
72V 24S 60A |
| Weight |
12kg |
15.8kg |
19kg |
29kg |
| Max Cont. Discharge |
30A |
50A |
| Instant Discharge |
40A |
60A |
| Limited Charge Voltage |
58.4V |
73V |
87.6V |
73V |
| Cycle life |
≥3000 cycles |
≥3000 cycles |
| Operating Temp |
10-35ºC (Optimal) |
10-35ºC (Optimal) |
🖼️ Product Gallery
❓ Frequently Asked Questions
1. What is the expected cycle life of this LiFePO4 battery?
The battery is designed for long-term durability, offering up to 6000 cycles for the standard model and a minimum of 3000 cycles for the high-capacity systems.
2. Is the battery safe from explosion or fire?
Yes, LiFePO4 chemistry is extremely stable. Our batteries are tested to ensure no explosion or fire occurs even under severe collision conditions.
3. Can I monitor the battery health using my smartphone?
Yes, we offer an optional Bluetooth function. You can use a dedicated APP to monitor real-time battery status and performance.
4. What is the warranty period for this product?
We provide a comprehensive 5-year warranty on our LiFePO4 battery packs, reflecting our confidence in their quality and lifespan.

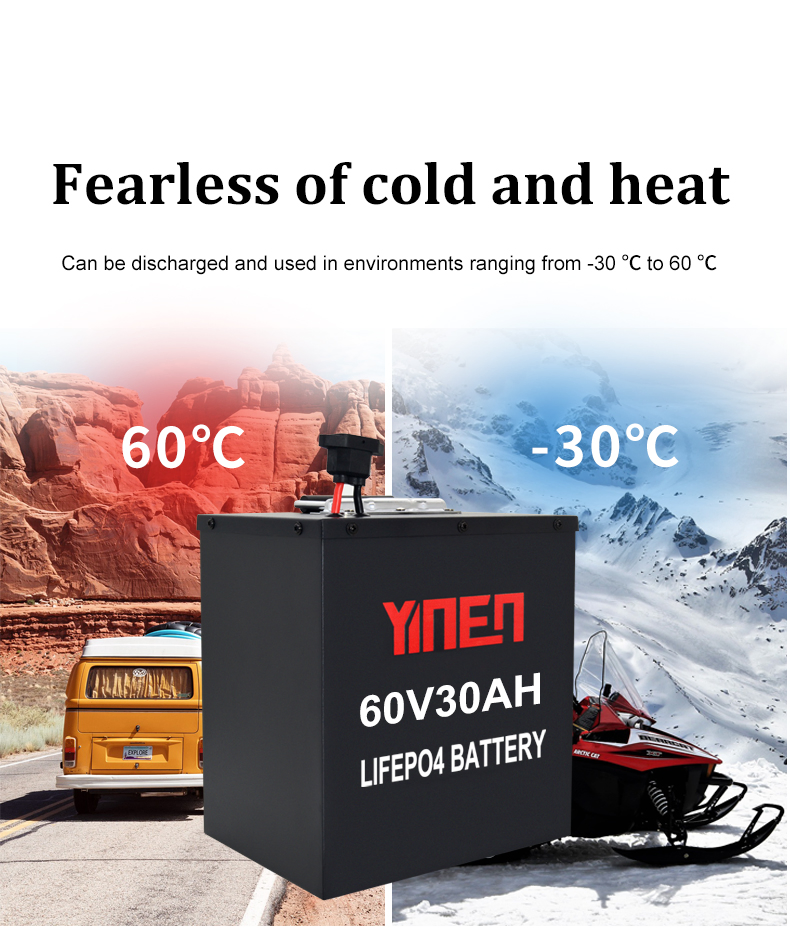

5. Can this battery handle extreme weather conditions?
The battery supports a wide discharge temperature range from -30ºC to +60ºC, making it suitable for various climates and environments.
6. Does the battery support fast charging?
Yes, the system features strong charging acceptance and is designed with quick-charging capabilities to minimize downtime.
