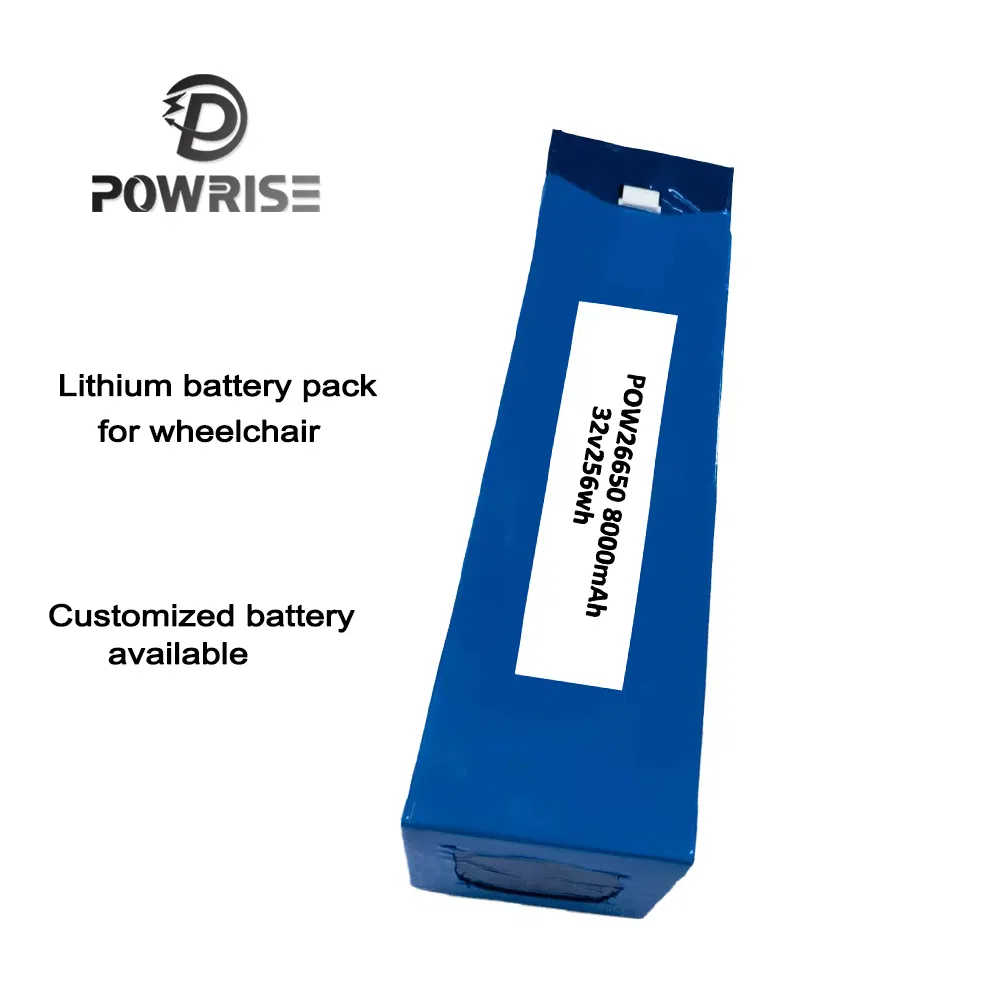

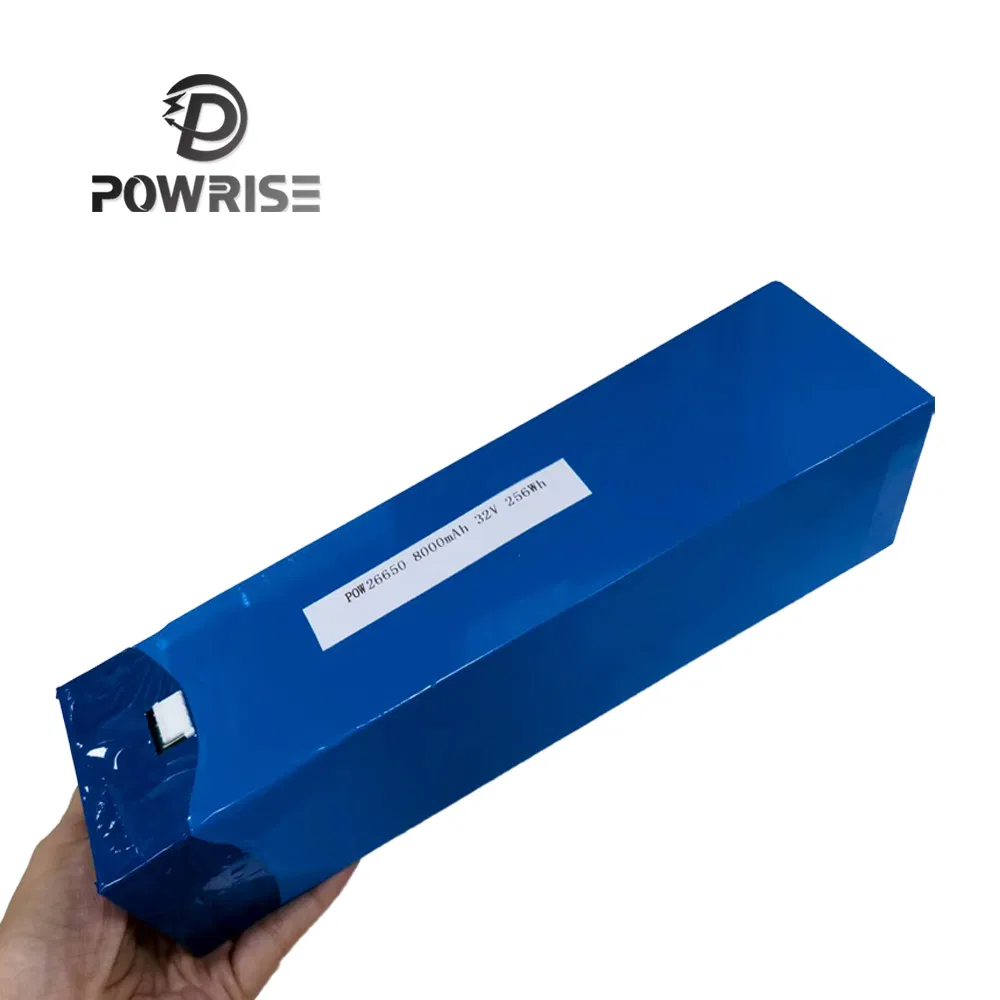

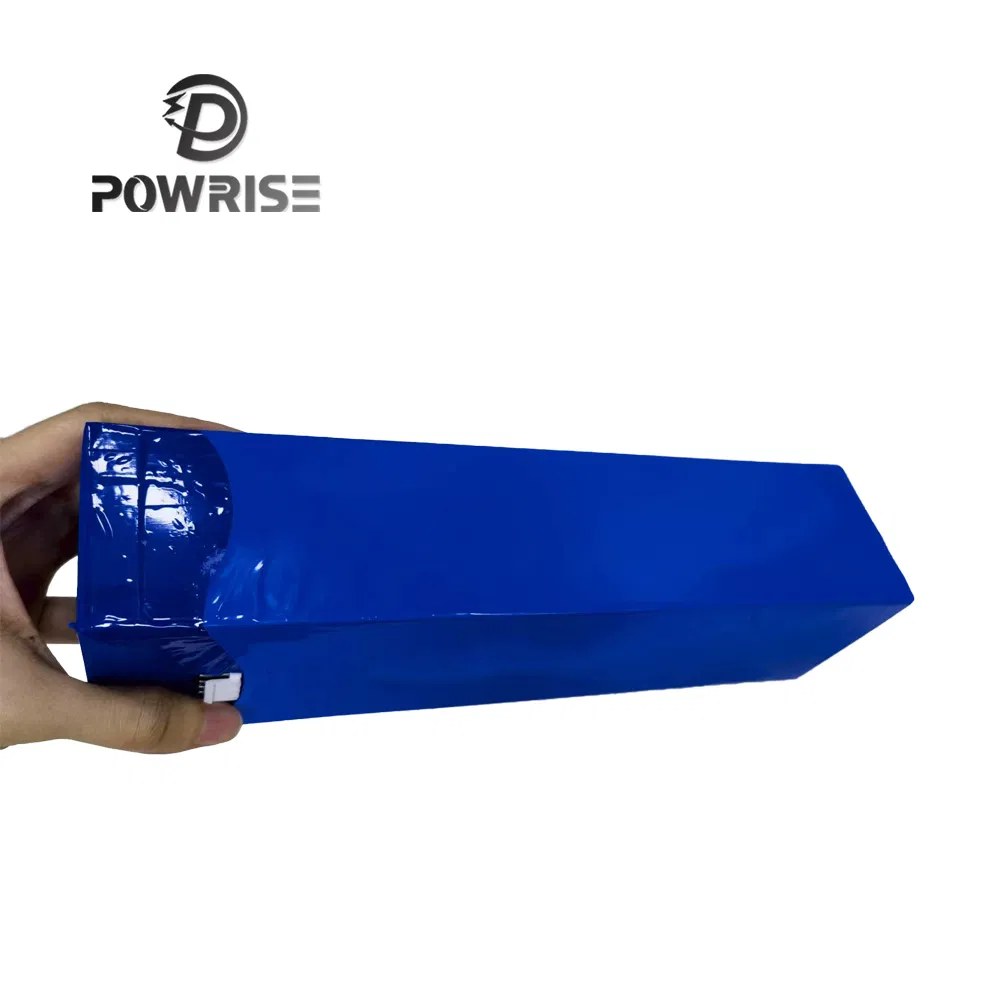

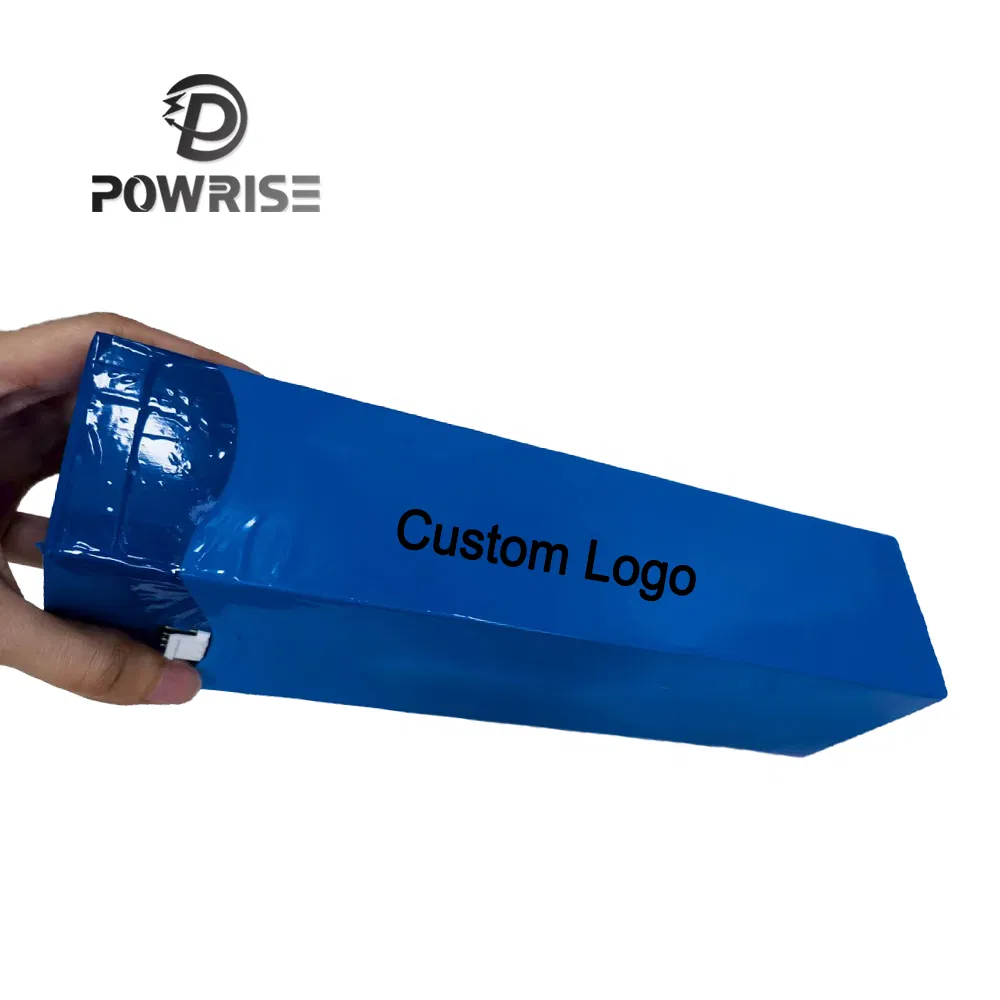

This 32 V 8 Ah (256 Wh) lithium-iron-phosphate (LiFePO4) pack is engineered specifically for ultra-light, foldable electric wheelchairs. At < 2 kg it weighs only one-third of an equivalent lead-acid battery, letting users lift and stow the chair with one hand.
• Automotive-Grade Safety: Smart BMS with five-layer protection (over-charge, over-discharge, over-current, short-circuit, high/low temperature) disconnects the output within 10 ms of any fault.
• Capacity & Voltage: Scalable 6-15 Ah / 24-36 V to match range, weight or certification targets.
• Connectors & Communication: Anderson, XT60, aviation or custom; CAN-bus, RS485 or UART for SOC display on dashboard or smartphone app.

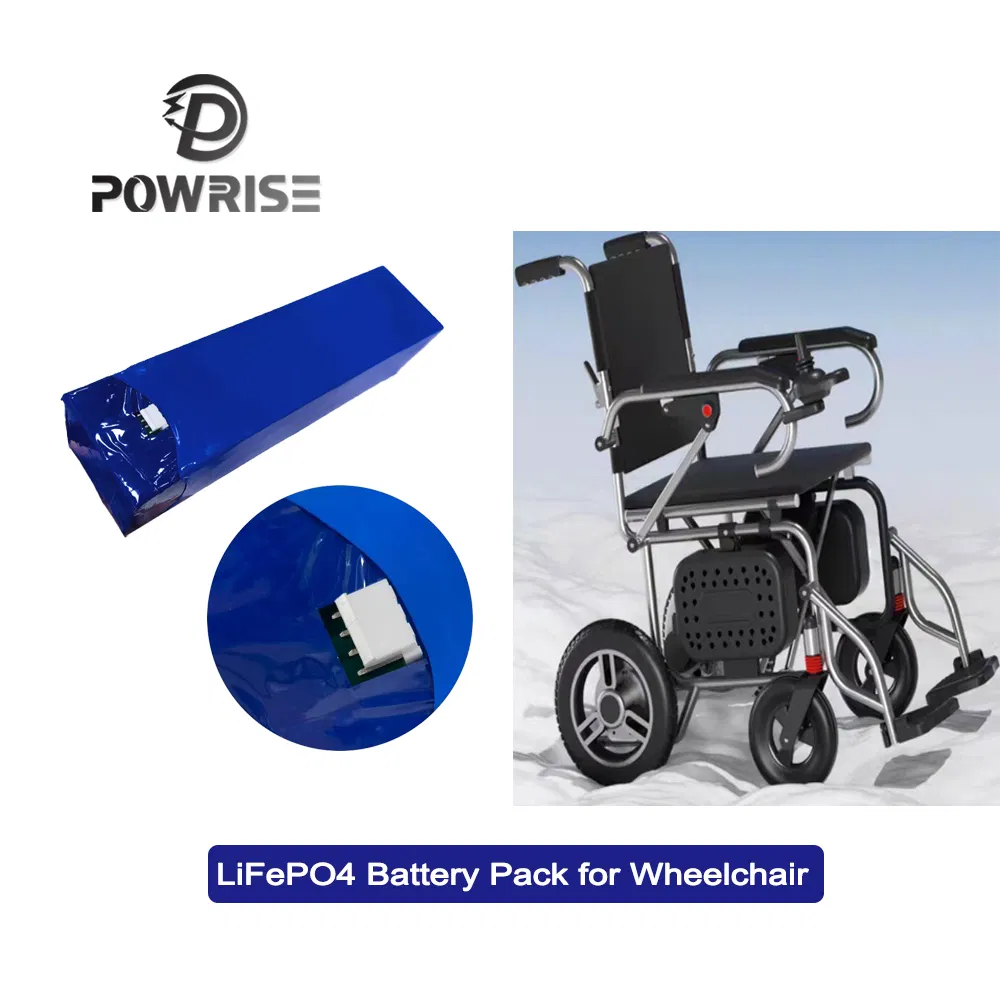

• Lightweight folding electric wheelchairs
• Travel-style mobility scooters
• Senior or rehabilitation assistive device
| Contents | Min. | Type | Max. | Unit |
|---|---|---|---|---|
| Absolute Maximum Rating | ||||
| Input Charging Voltage | - | 36.5 | - | V |
| Input Charging Current | - | 5 | 10 | A |
| Output Discharging Voltage | 20 | 32 | 36.5 | V |
| Continuous Discharging Current | - | 5 | 10 | A |
| Ambient Condition | ||||
| Operating Temperature | -20 | - | 85 | ºC |
| Humidity (No Water-Drop) | 0% | - | 80% | RH |
| Storage Condition | ||||
| Storage Temperature | -20 | - | 60 | ºC |
| Storage Humidity | 0% | - | 60% | RH |
