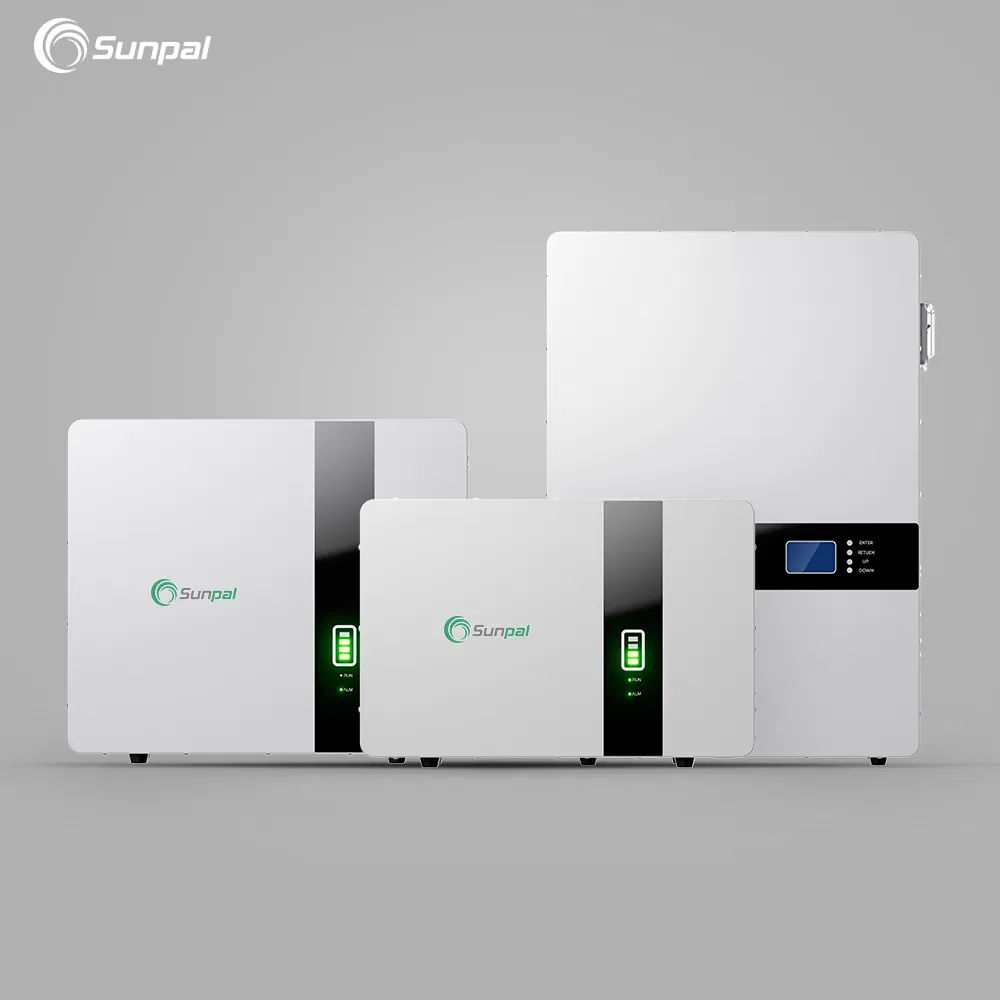

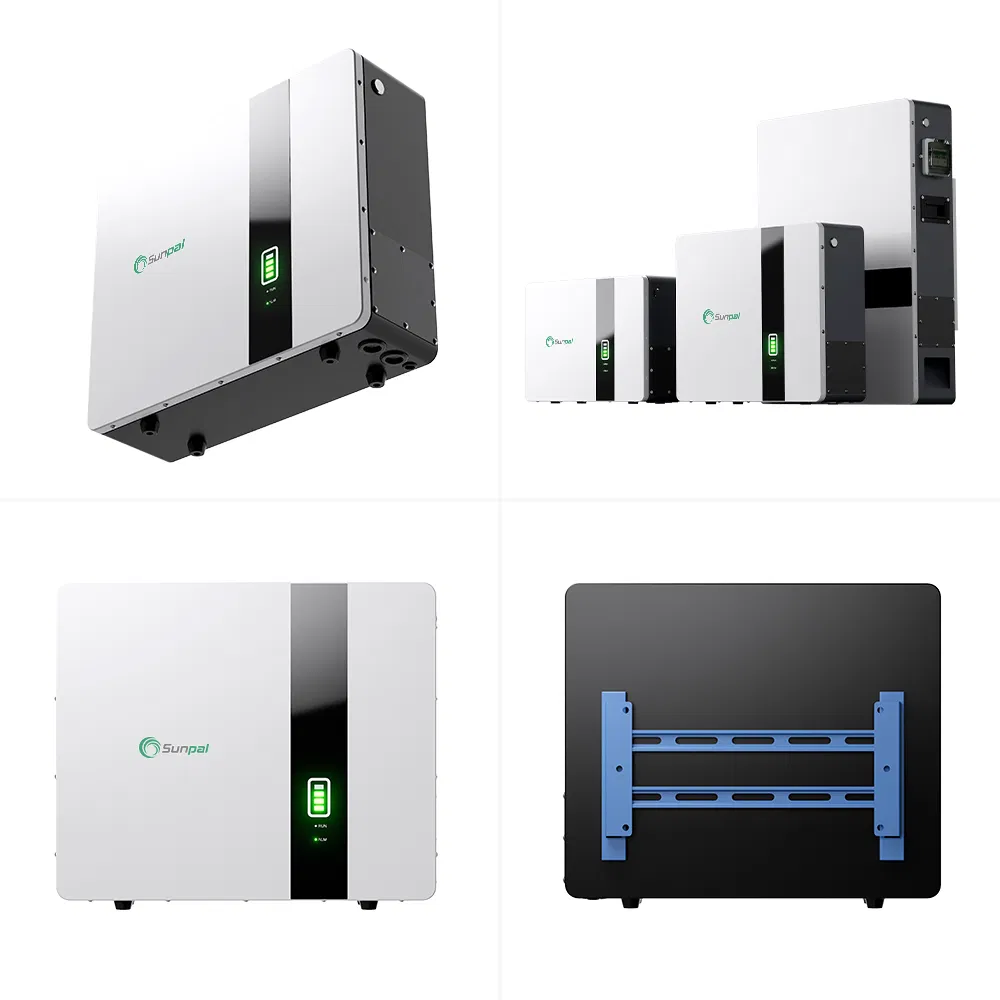

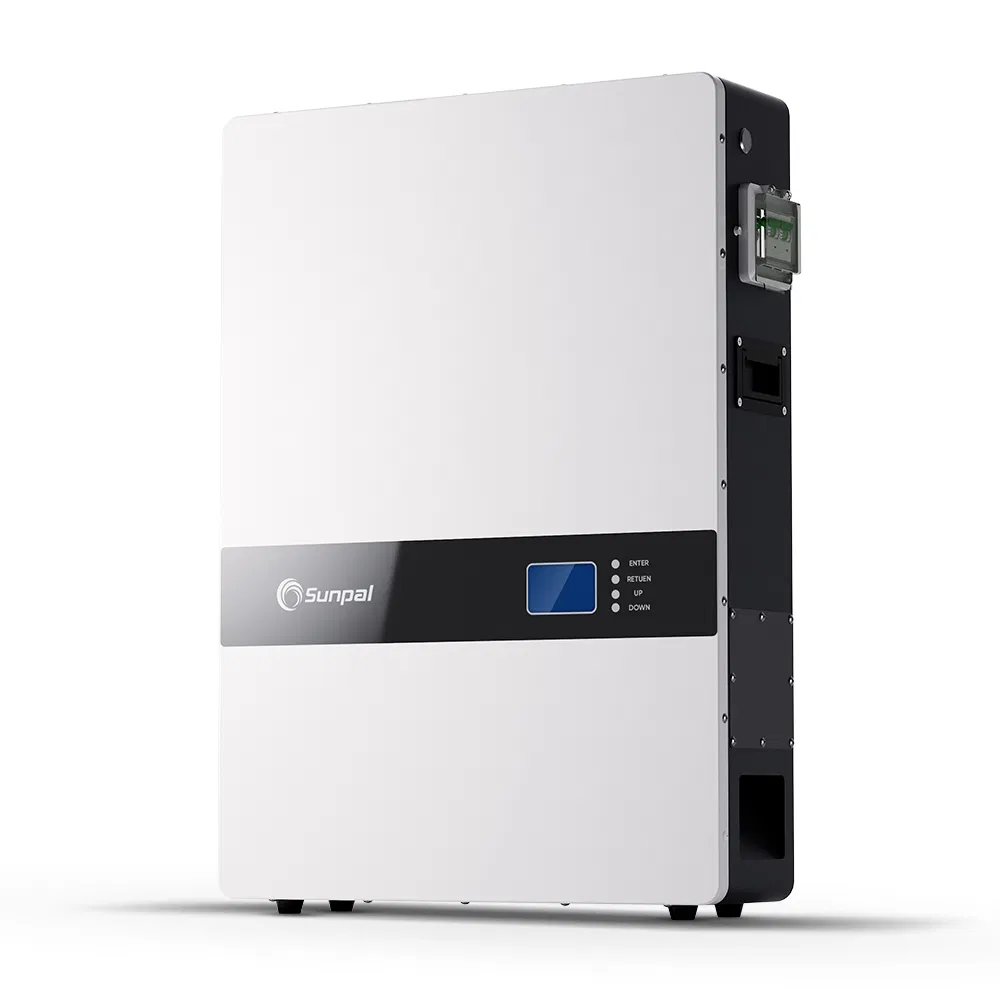

Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
1 / 5
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery
Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery

Portable Power Bank 2.5kwh 5kwh 50ah 48v 100ah Lithium Ion Solar Power Wall Lifepo4 Battery

Customization: Available
Nominal Voltage: 48V/51.2V
Warranty: 10 years
Send Inquiry

Product Description

Basic Information
Model NO. WallArk
Product Name Powerwall, Wall Mount LiFePO4 Battery Pack
Capacity Energy 2.56-10.24KWH
Cycle Life 6000 cycles @ 0.5C
Max Charging Current 0.7C
Max Discharging Current 1C
BMS Built-in Multi Point Monitoring
IP Class IP54
Certification MSDS, UN38.3, ROHS, IEC62619, CE
Dimensions 866x537x174mm (Max)
Production Capacity 1000 Pieces/Day
Product Description

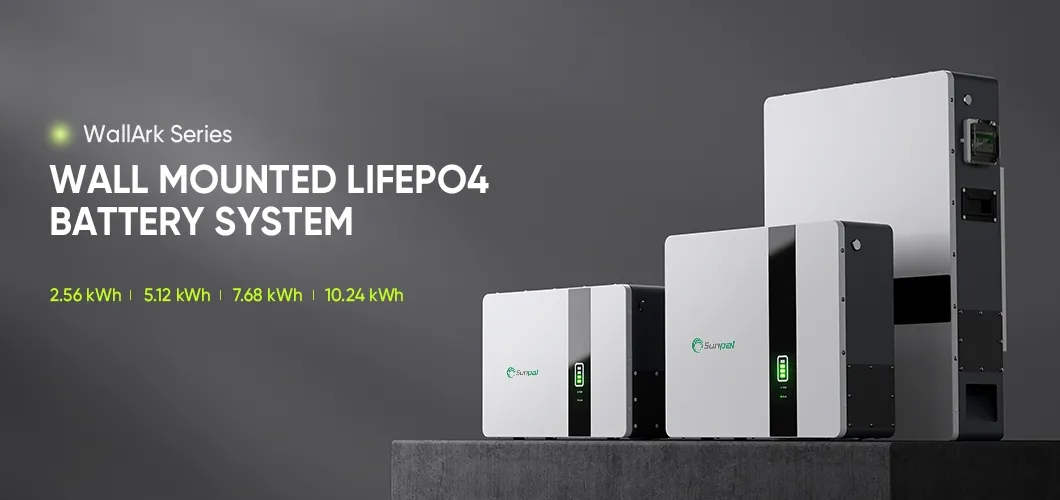

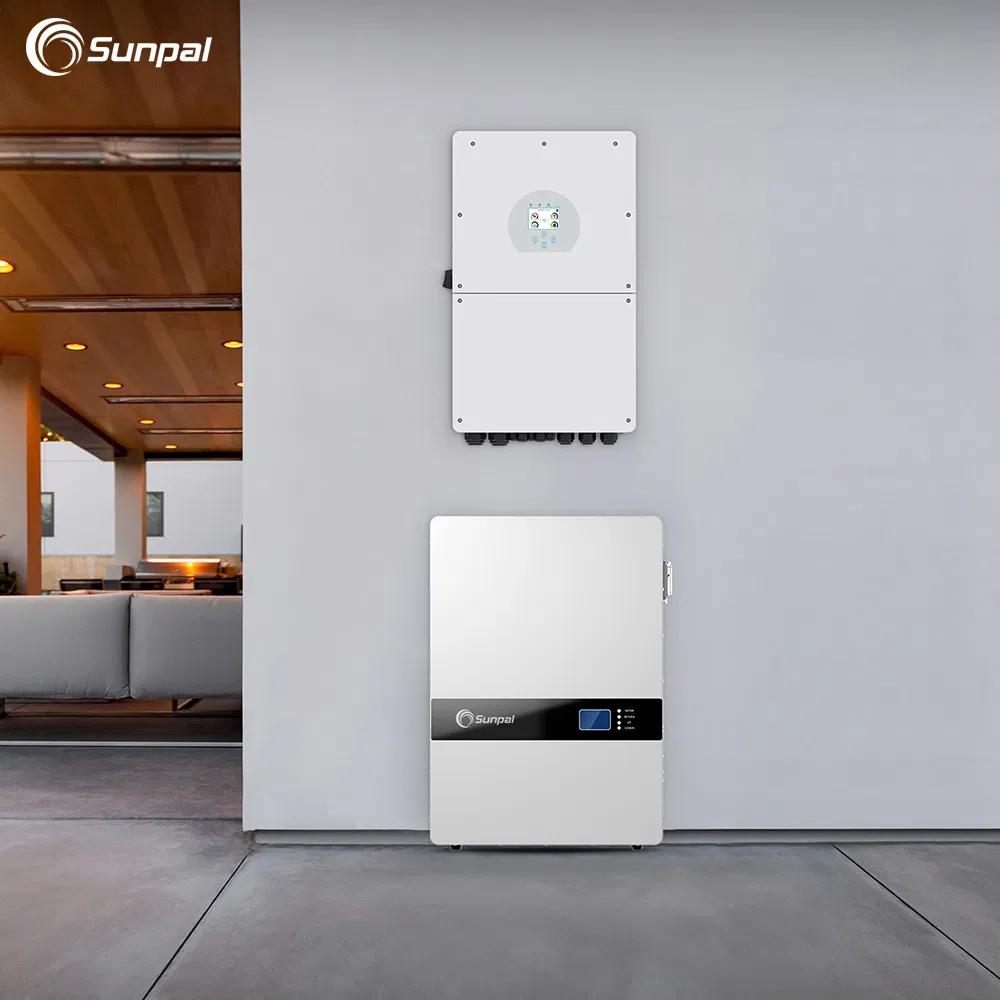

Powerwall Display

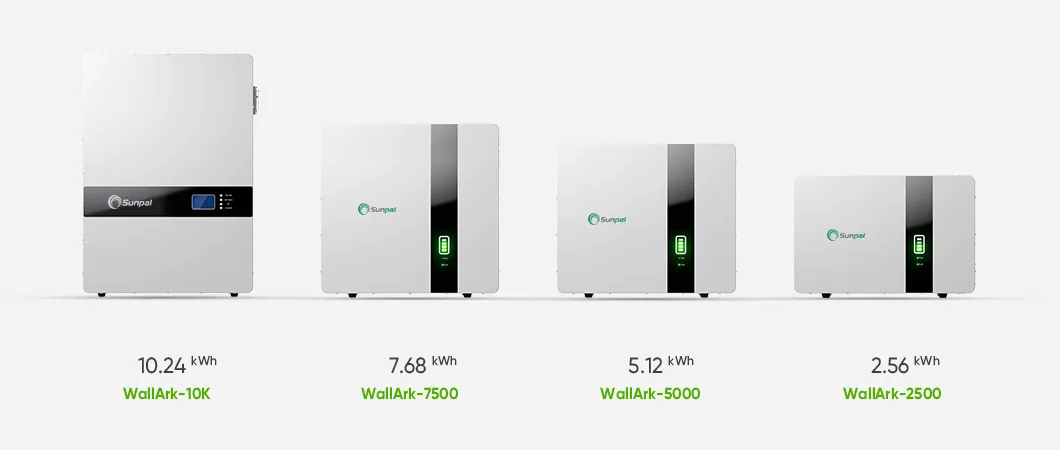

Battery Features
Detailed View
Model WallArk-2500 WallArk-5000 WallArk-7500 WallArk-10K
Capacity Energy2.56kWh5.12kWh7.68kWh10.24kWh
Capacity Ah50Ah100Ah150Ah200Ah
Usable Capacity2.3kWh4.6kWh6.9kWh9.2kWh
Nominal Voltage48 / 51.2V
Max Charging35A70A70A150A
Max Discharging50A100A100A200A
ScalableYes, Maximum 15 Packs in Parallel
Net Weight29kg52kg66kg92kg
Warranty10 Years
CommunicationRS232, RS485, CAN

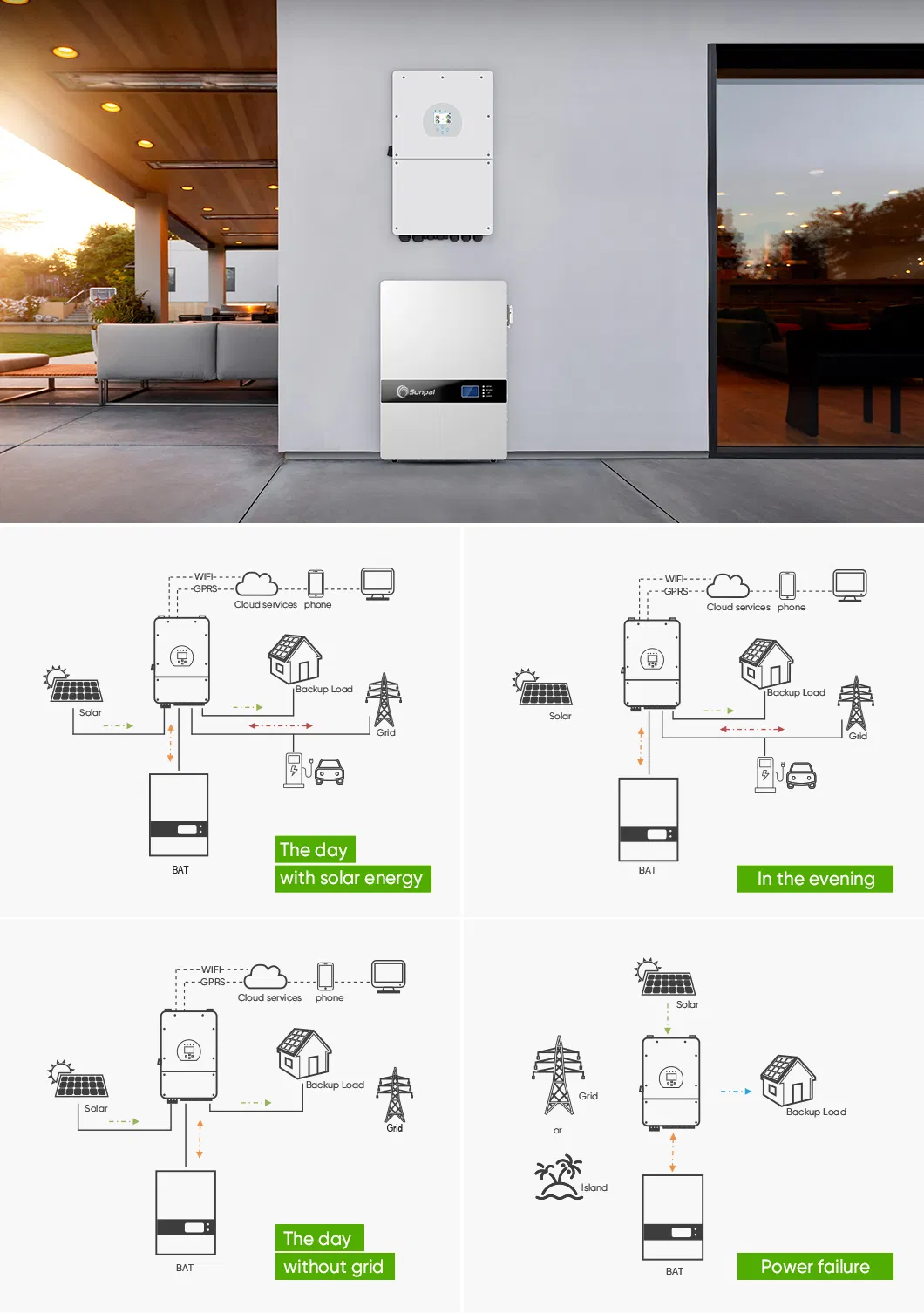

Application Scenarios
Application

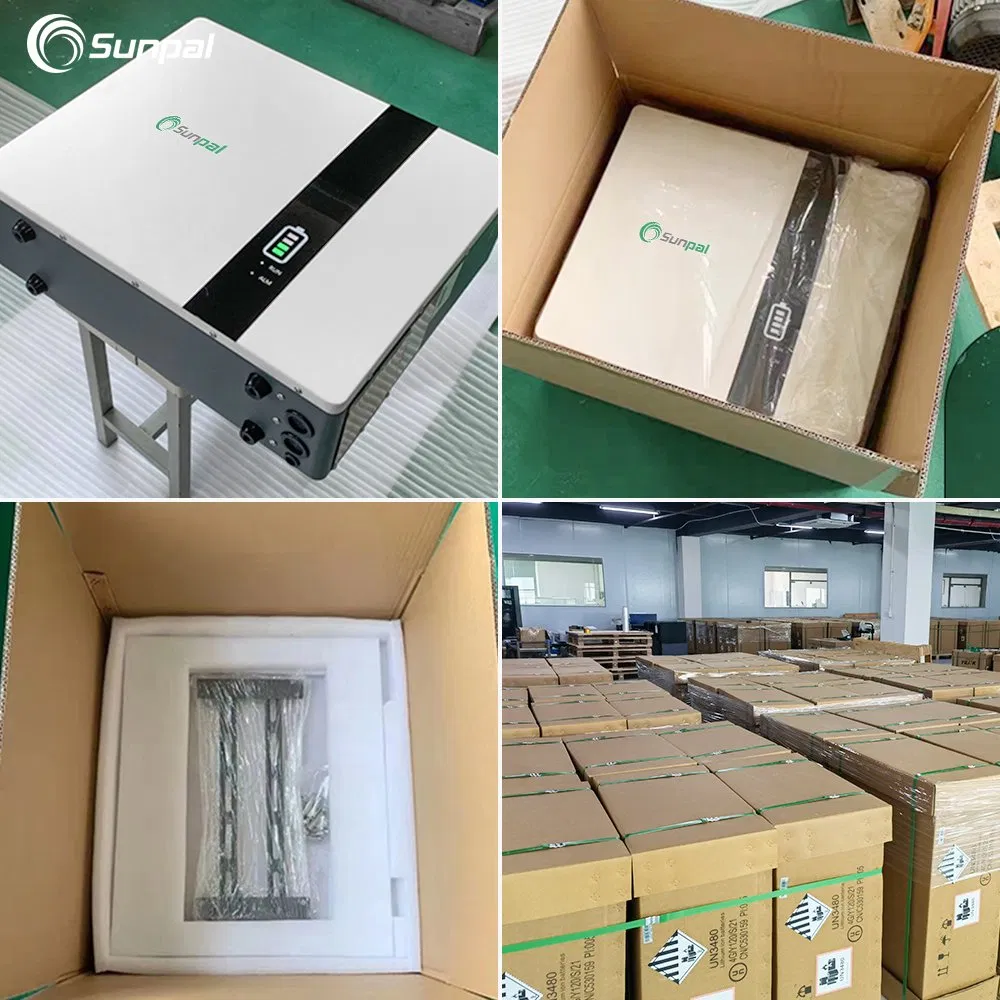

Detailed Images & Packing

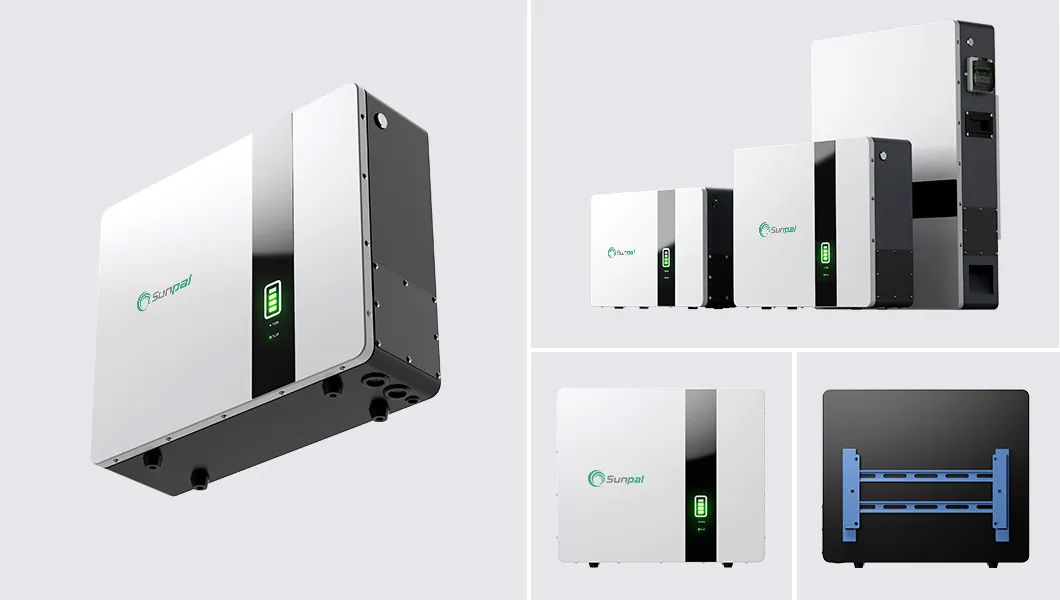

Internal Detail

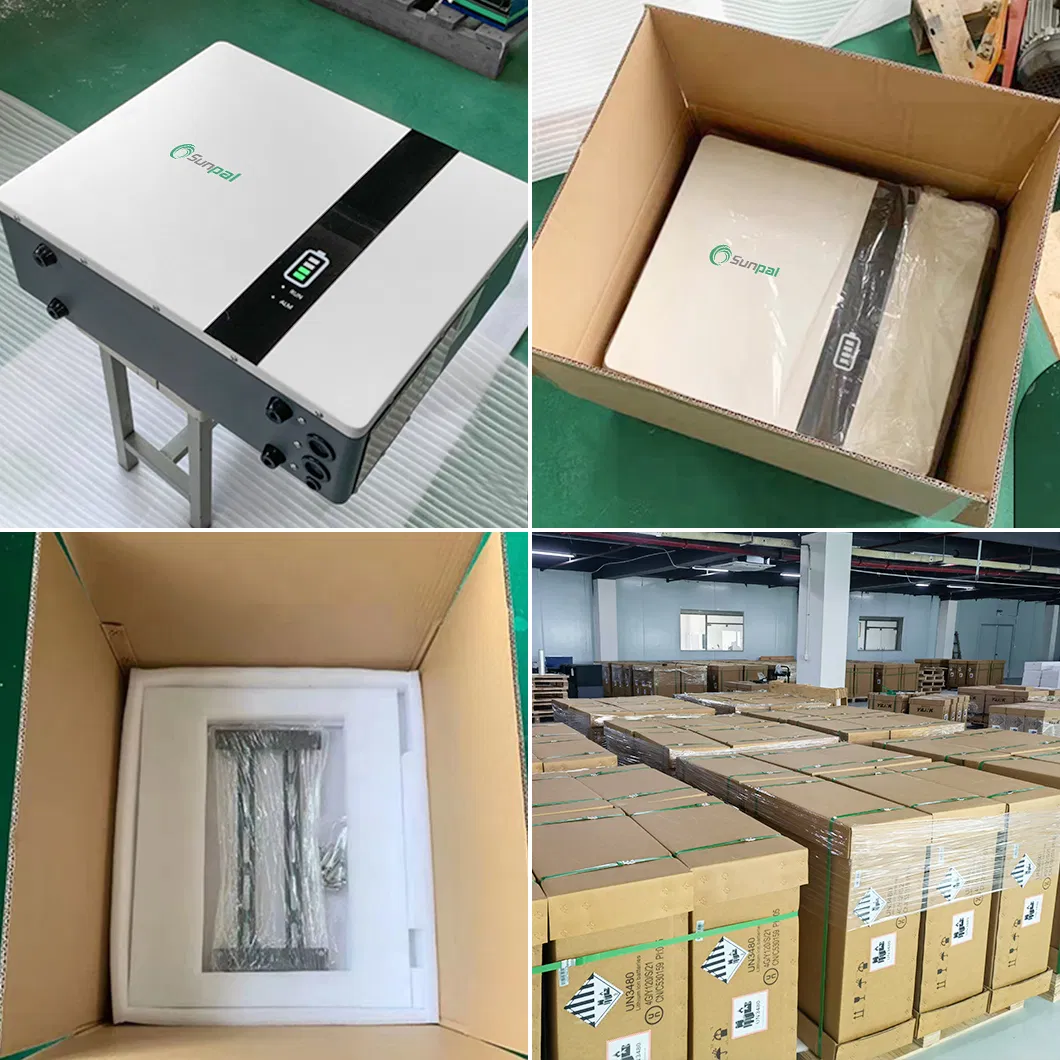

Packing Info
Products Series
WallArk Series

Wall Mounted Battery Solution
48V/51.2V 50-200AH | 2.56-10.24KWH

WallArk

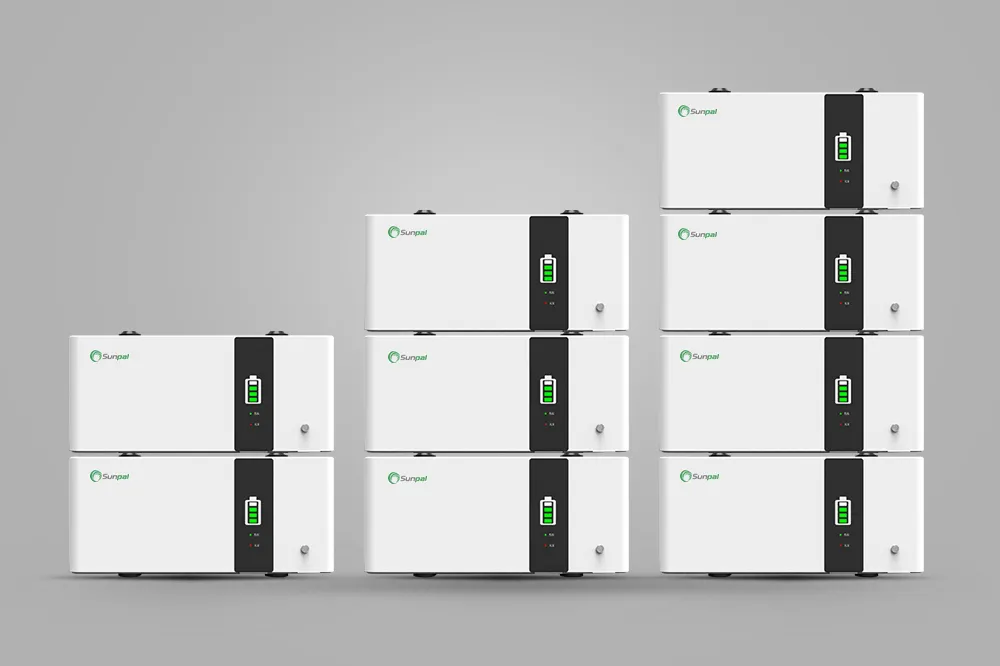

GroundArk Series

Ground Mounted Battery Solution
Voltage 51.2V | 2.6-10.4KWH

GroundArk

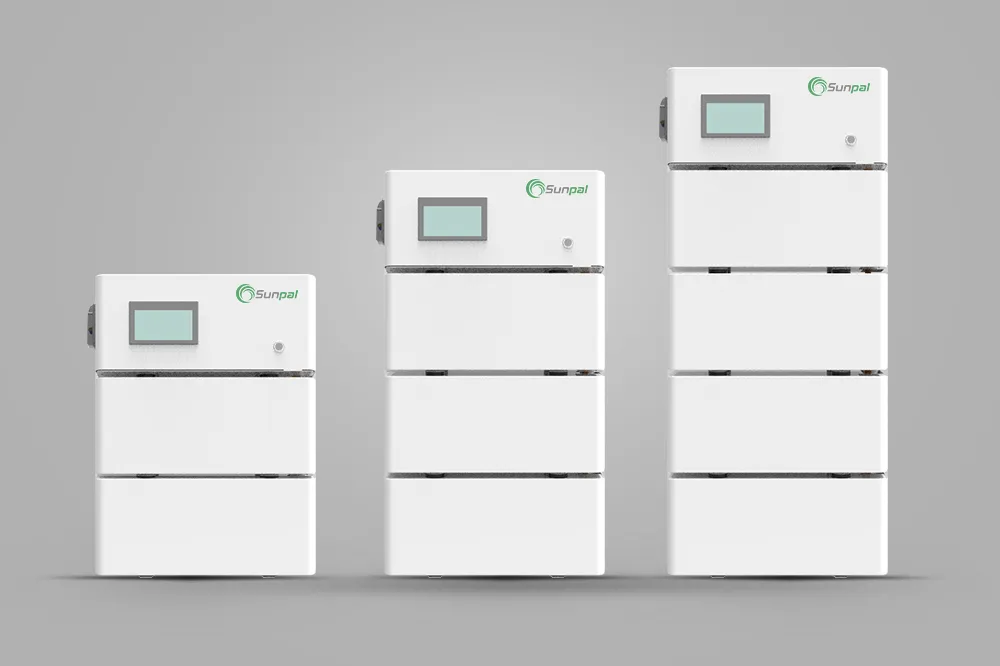

StackArk Series

Stack Mounted High Voltage Battery Solution
Voltage 260-350V | 8KWH-20KWH

StackArk
Factory Tour

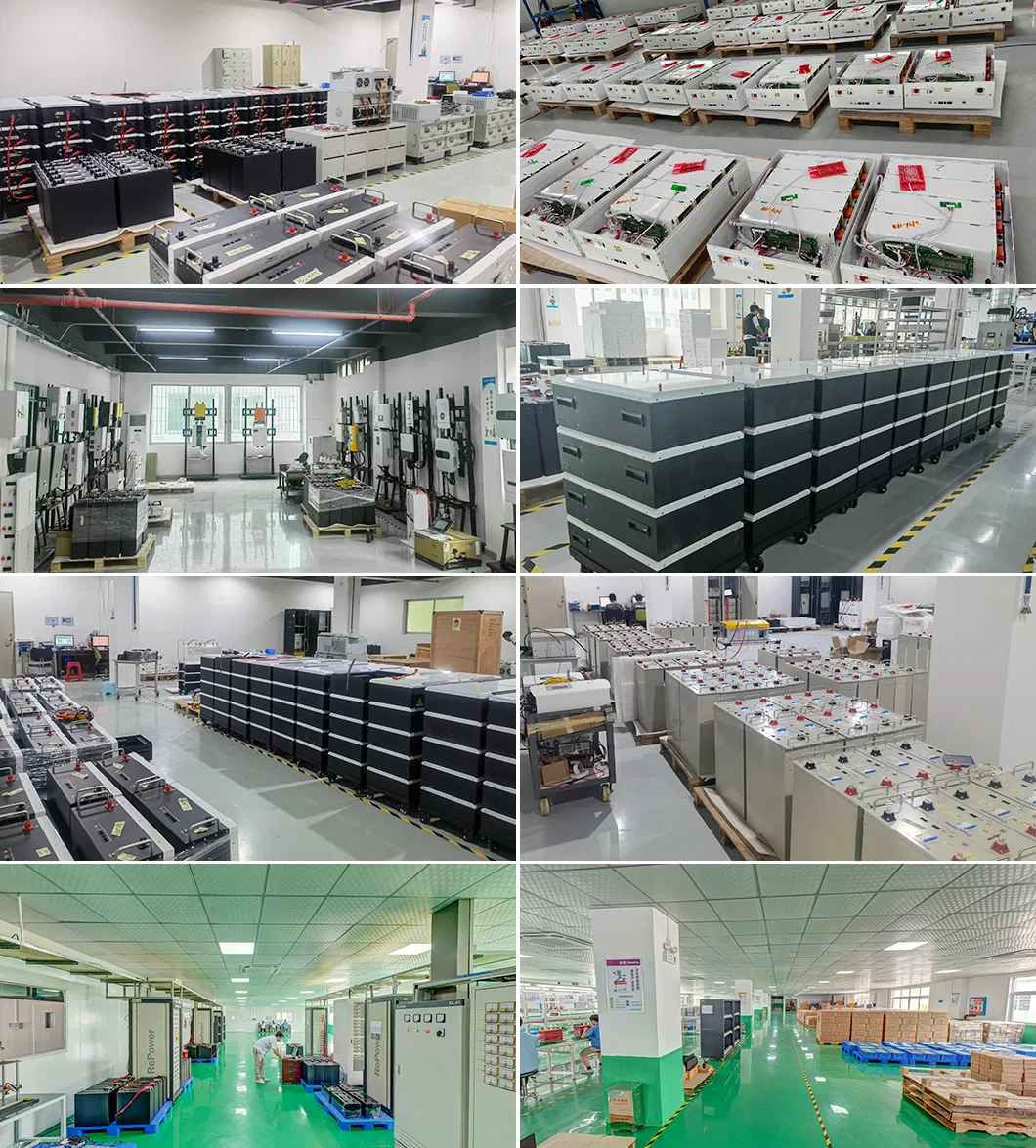

Factory Overview
Compatible Inverters
Compatible List 1

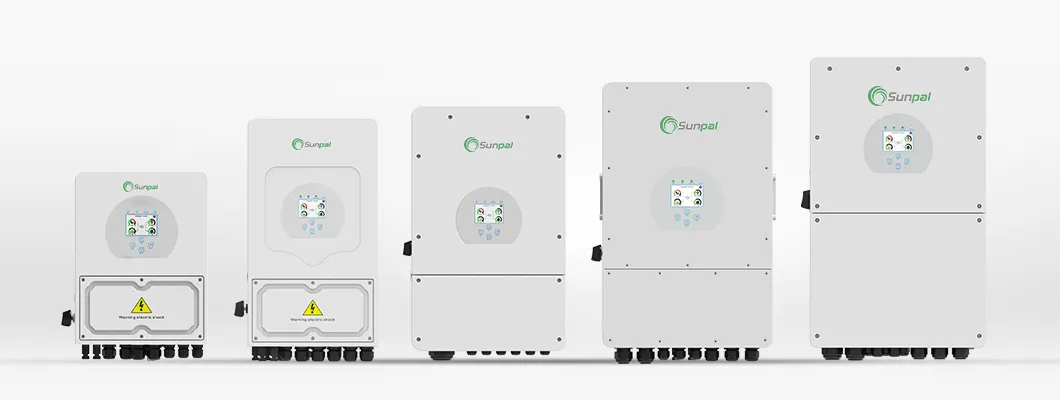

Compatible List 2
Frequently Asked Questions
How many cycles does the battery support?
The battery provides 6000 cycles at 0.5C discharge rate under 25ºC conditions.
Can I connect multiple battery packs together?
Yes, the system supports parallel scaling for up to 15 battery packs to increase your total capacity.
What communication protocols are supported?
It supports RS232, RS485, and CAN communication, making it compatible with most major inverter brands on the market.
Is the battery suitable for outdoor installation?
The battery has an IP54 rating, providing protection against dust and water splashes.
What is the warranty period for this LiFePO4 battery?
We offer a 10-year warranty for this product series, ensuring long-term reliability for your energy storage.
What is the operating temperature range?
Charging: 0 ~ 45ºC; Discharging: -20 ~ 45ºC.
