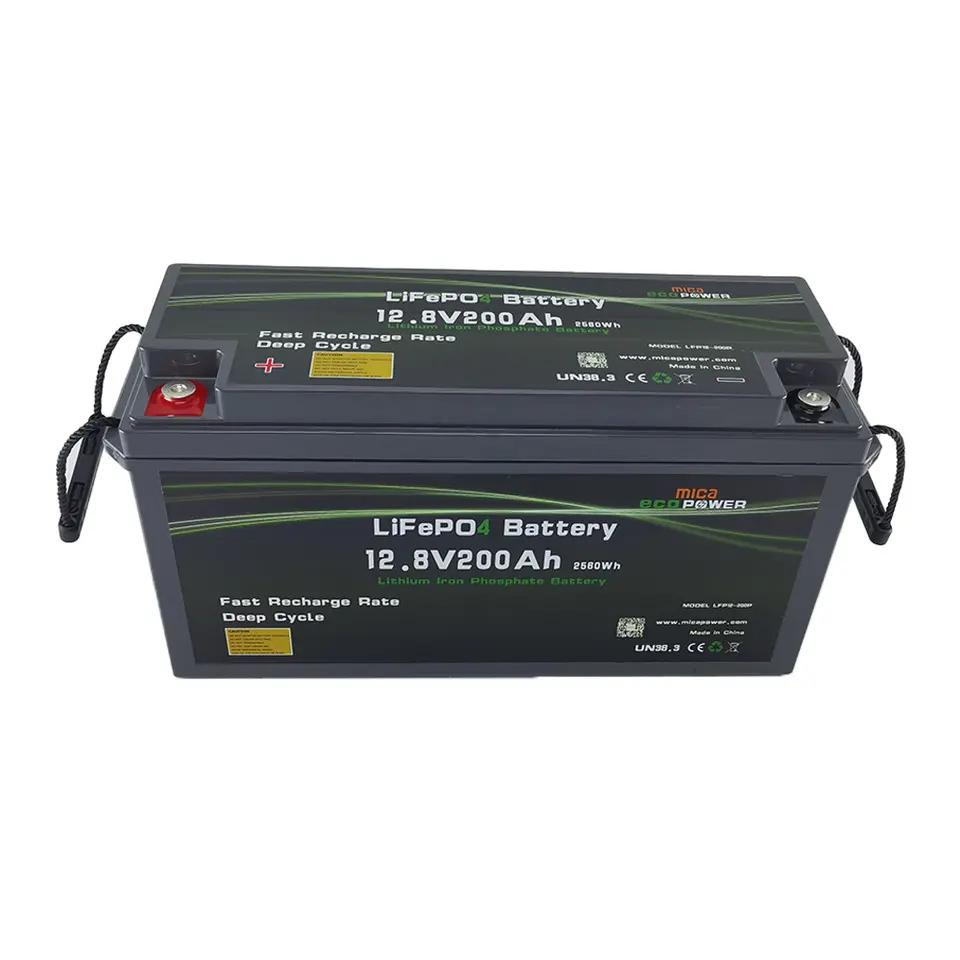

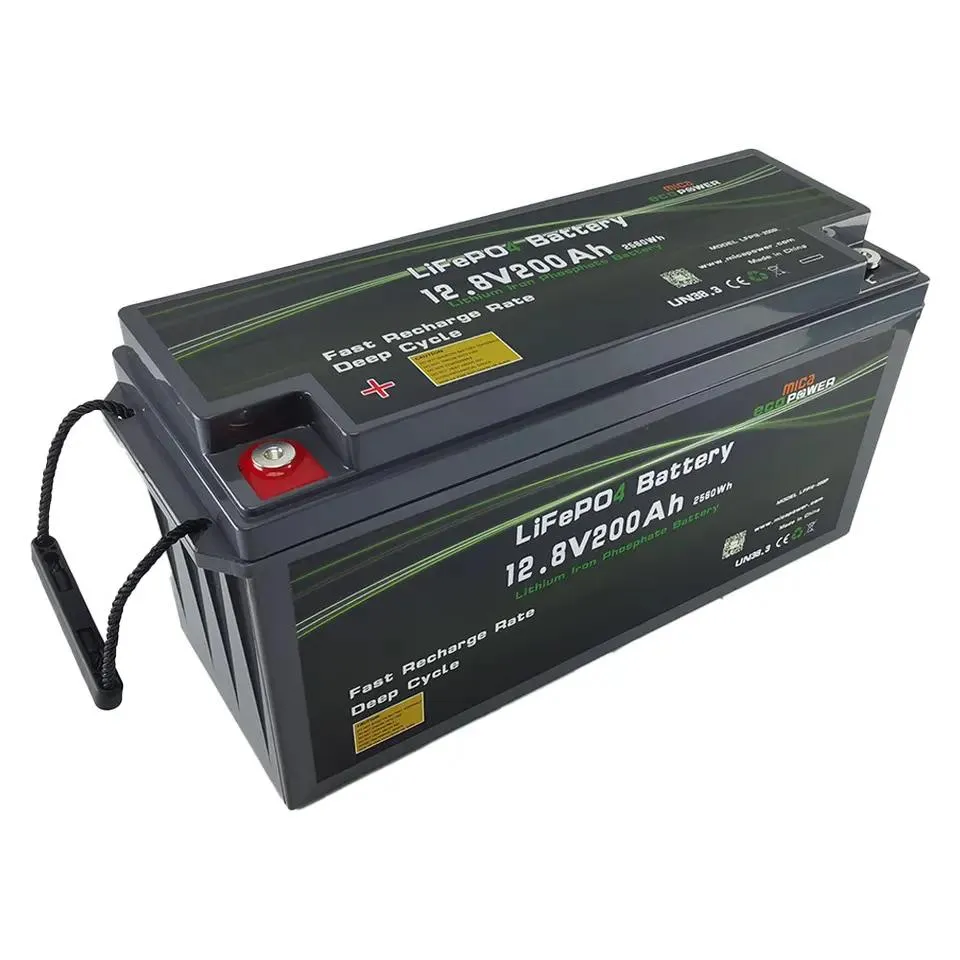

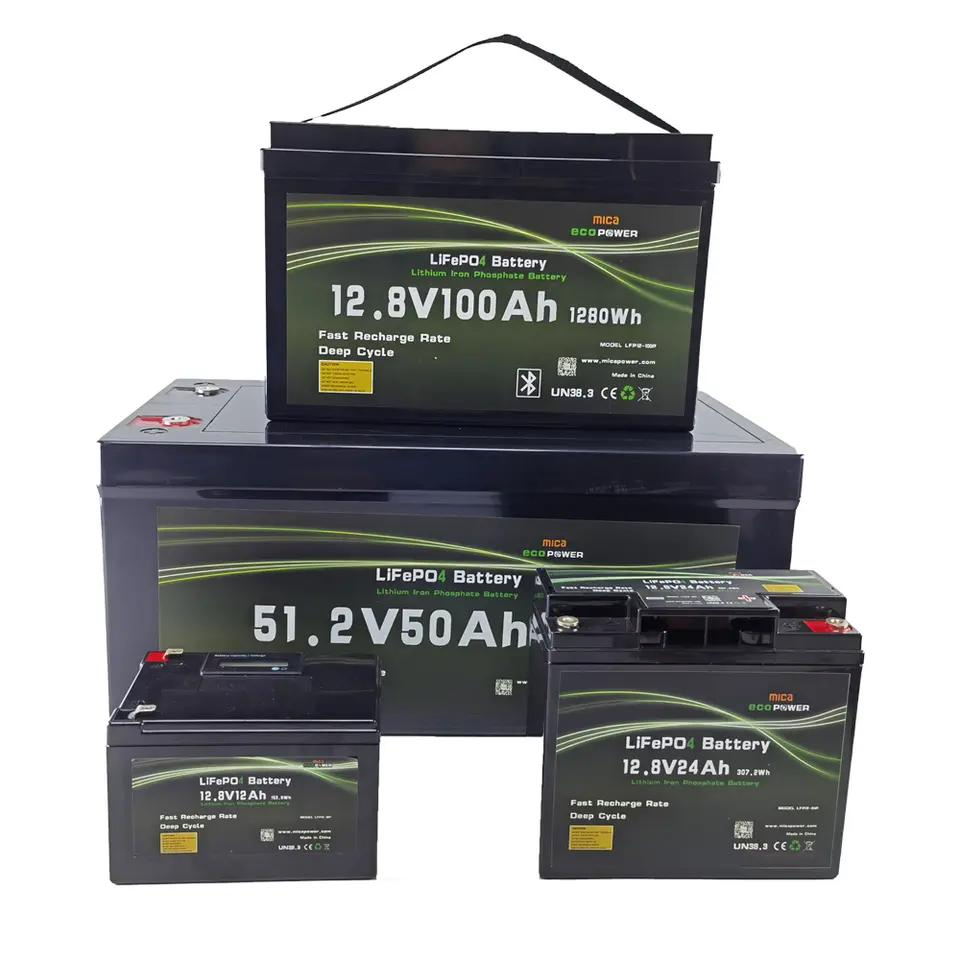

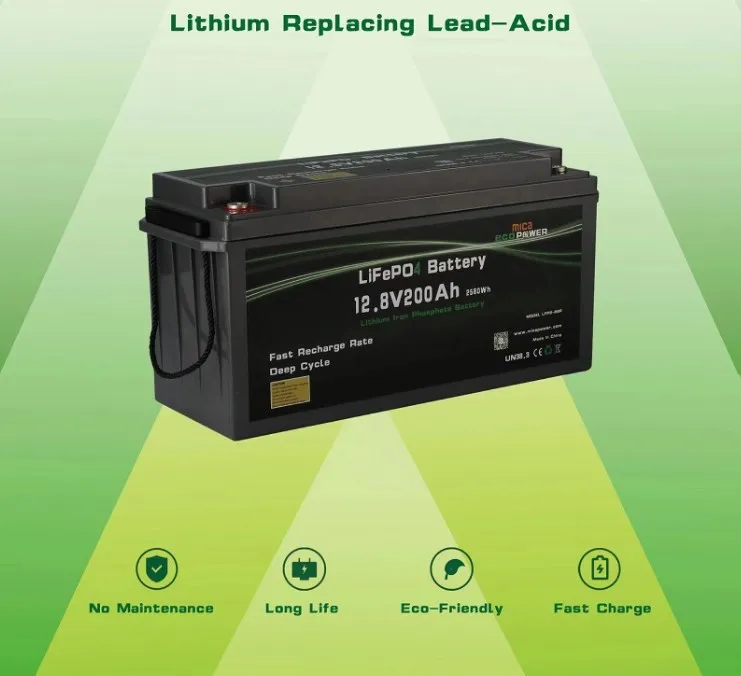

Reliable OEM/ODM solutions for 12V, 24V, and 48V energy storage requirements. Our Lithium Iron Phosphate (LFP) battery packs are designed for Home Storage, RV, Marine, and Off-grid applications.
| General Specification | |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage / Capacity | 12.8V / 200Ah |
| Nominal Energy | 2560Wh (25ºC, C10) |
| Operation Voltage | 10V ~ 14.6V |
| Operation Temperature | Charge: 0°C to 45°C | Discharge: -20°C to 60°C |
| Cycle Life (100% DOD) | >3000 cycles |
| Cycle Life (80% DOD) | >4000 cycles |
| Warranty | 5 Years |
| Protection Class | IP56 |
| BMS & Electrical Parameters | |
|---|---|
| Charge Voltage Max | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Continuous Charge/Discharge | 100A / 100A |
| Peak Discharge Current | 200A (10 seconds) |
| Safety Functions | Over-charge, Over-discharge, Over-current, Balancing, Over-temperature |

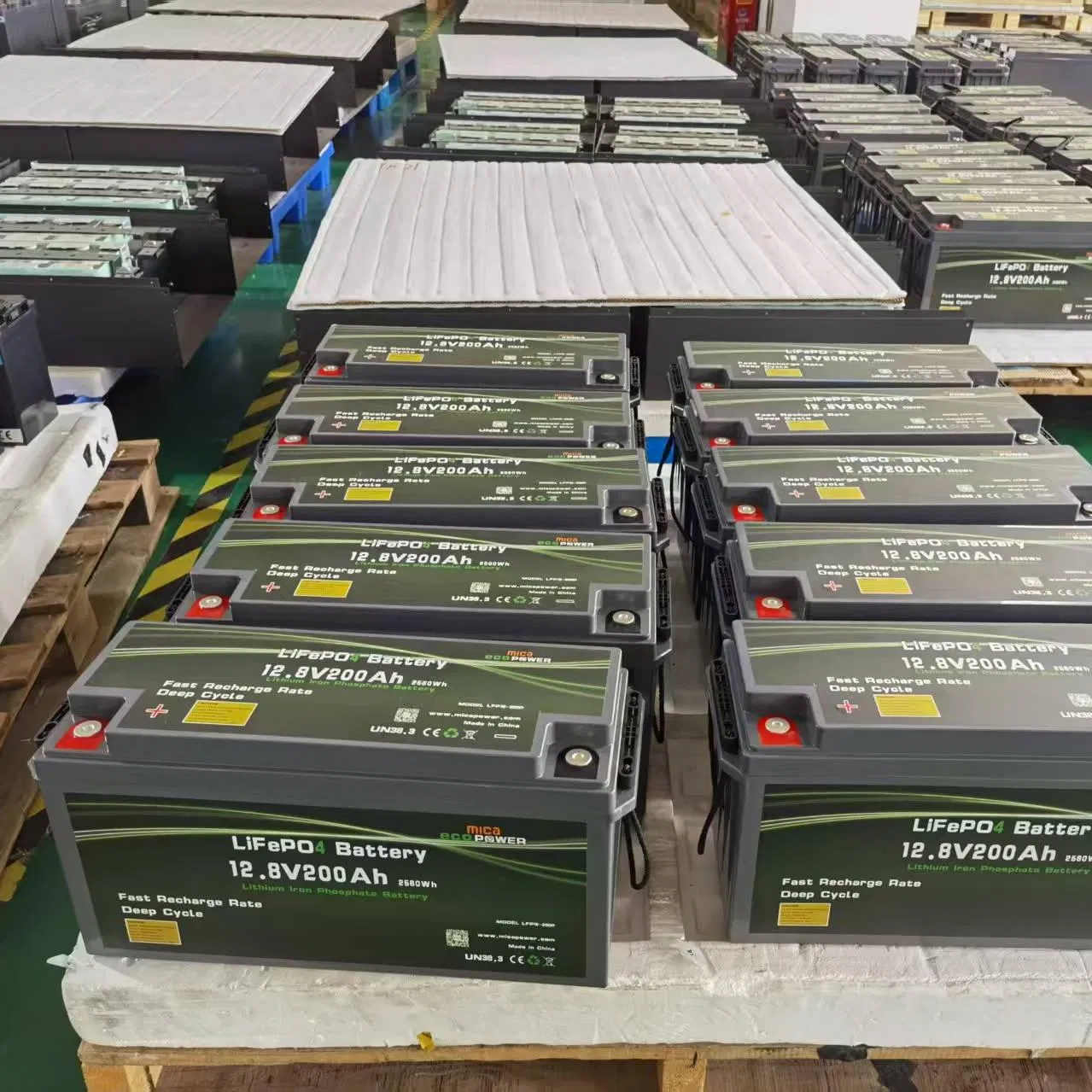

With more than 15 years of experience in the lithium battery industry, our manufacturing facility covers 15,000 square meters and employs over 500 dedicated professionals. We specialize in independent R&D and production of energy systems used globally in household storage, data centers, UPS, and portable power stations.
