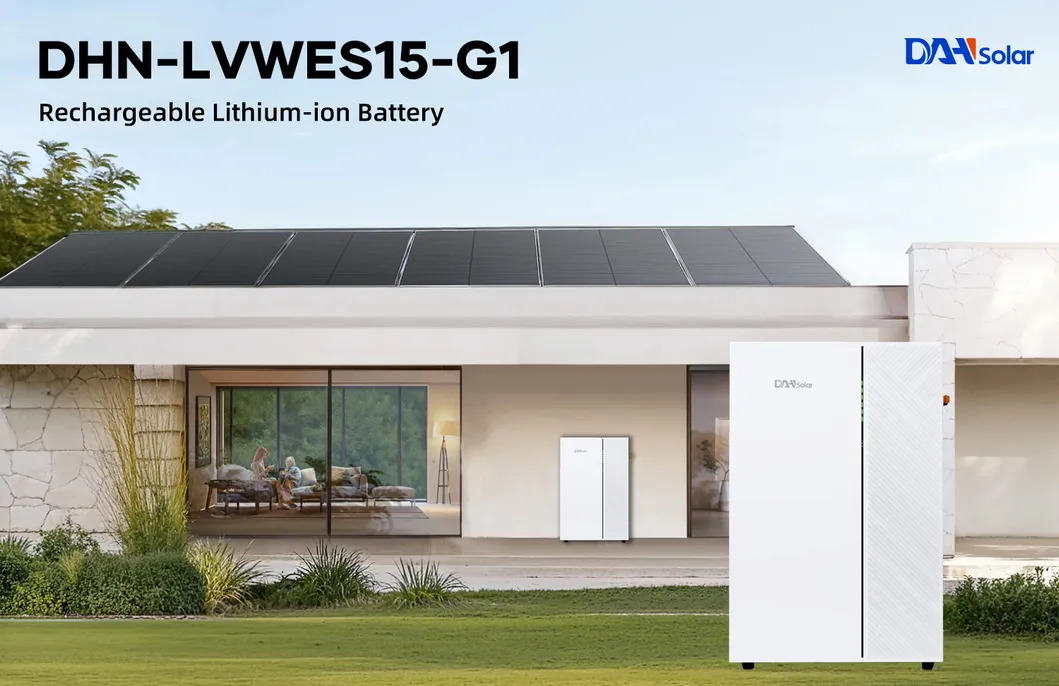

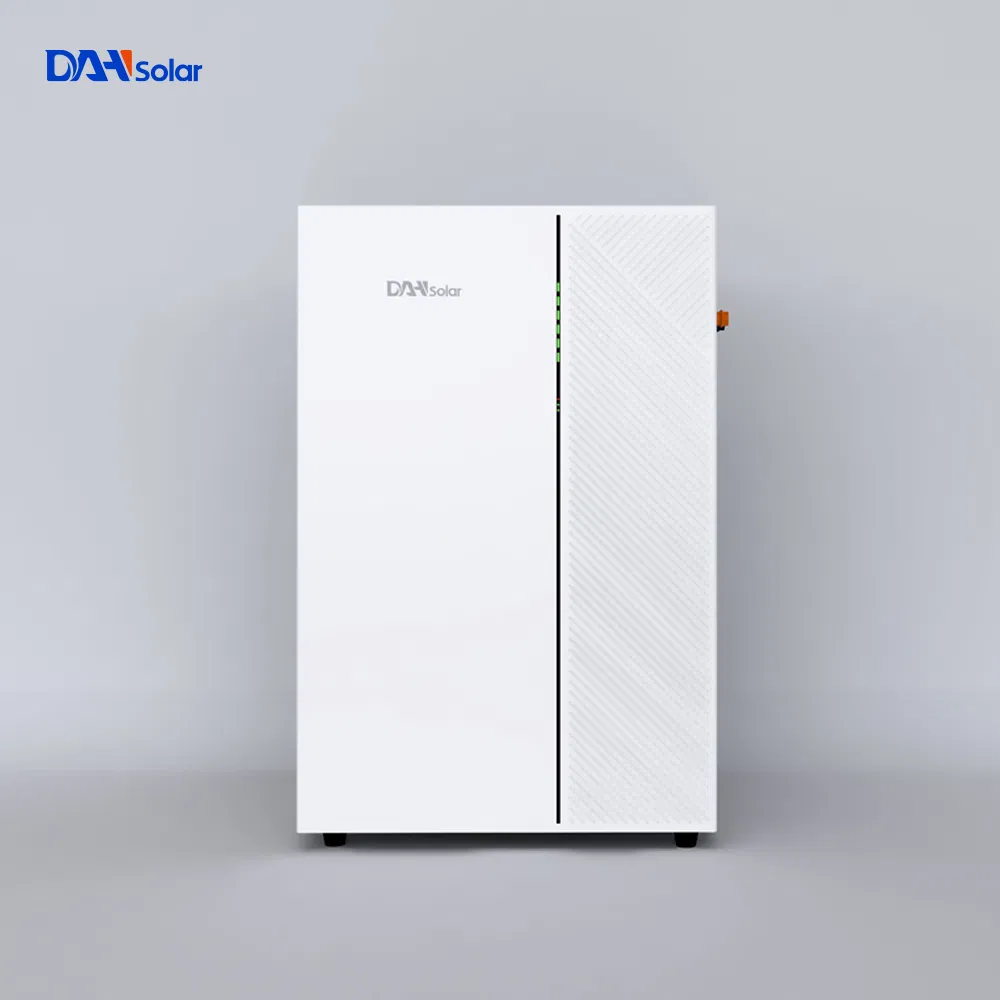

DHN-LVWES15-G1 Rechargeable Lithium-ion Battery

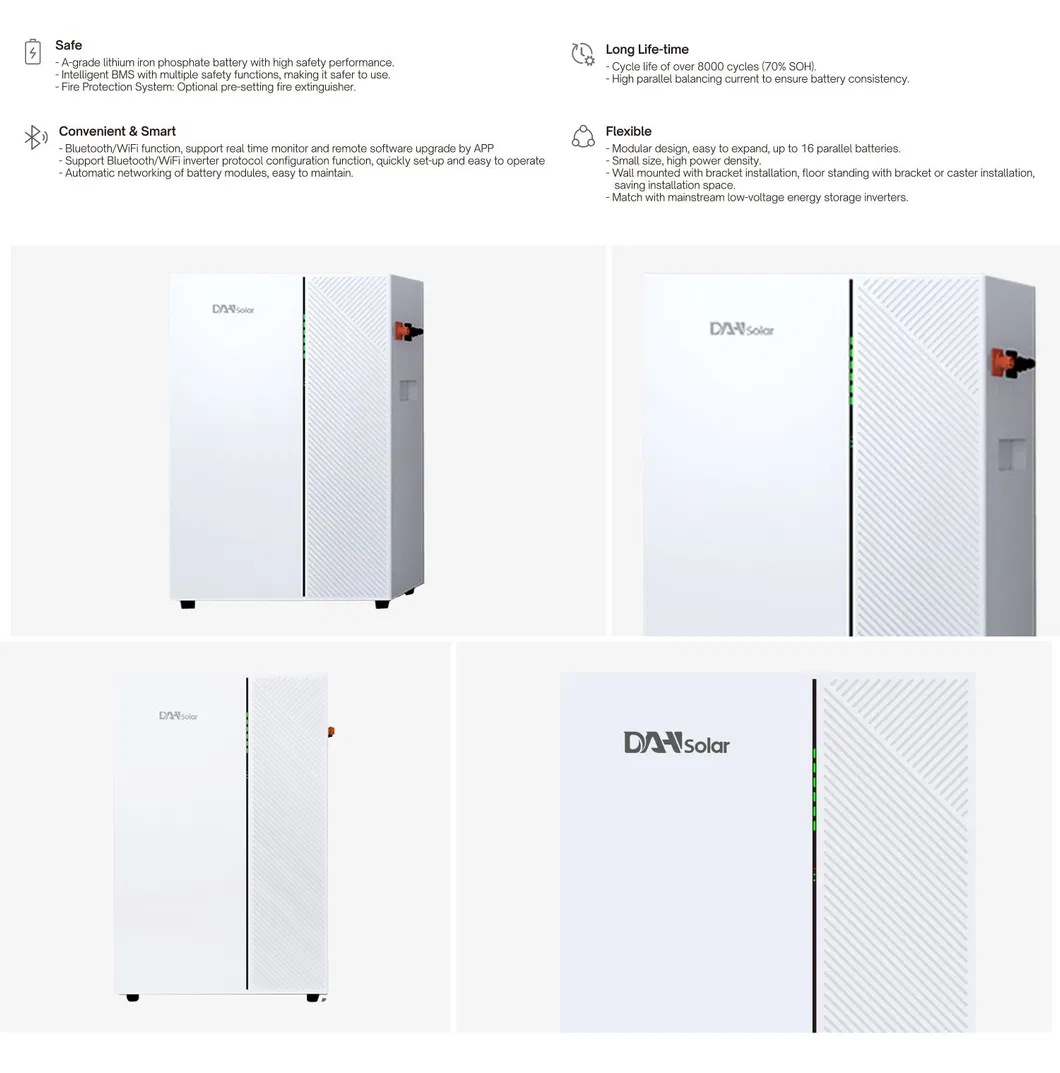

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built in efficient intelligent battery management system (BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable and high-performance operation.
| Model | DHN-LVWES15-G1 |
| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2~57.6 |
| Recommend Charge/Discharge (A) | 140 |
| Max. Charge/Discharge (A) | 200 |
| Depth of Discharge (%) | ≤90 |
| Dimension (W/D/H, mm) | 520x680x232 |
| System Weight (kg) | 114 |
| Cycle Life | ≥8000 (25±2ºC, 0.5C/0.5C) |
| IP Rating | IP20 |
| Compatible Inverters | LUXPOWERTEK/SENERGY/SRD etc |
?
Frequently Asked Questions
What is the expected cycle life of this battery?
The DHN-LVWES15-G1 features a cycle life of ≥8000 cycles at 25±2ºC, 0.5C/0.5C conditions, ensuring long-term reliability for over 10 years.
Can I expand the system capacity in the future?
Yes, the system is highly scalable, allowing for the parallel connection of up to 16 units to meet increasing energy demands.
What type of battery cells are used?
We use top-tier brand Lithium Iron Phosphate (LiFePO4) cells, known for their superior safety, stability, and high energy density.
Is this battery compatible with my current inverter?
This model is compatible with major inverter brands including LUXPOWERTEK, SENERGY, SRD, and other standard systems supporting CAN2.0/RS485 communication.
What installation methods are supported?

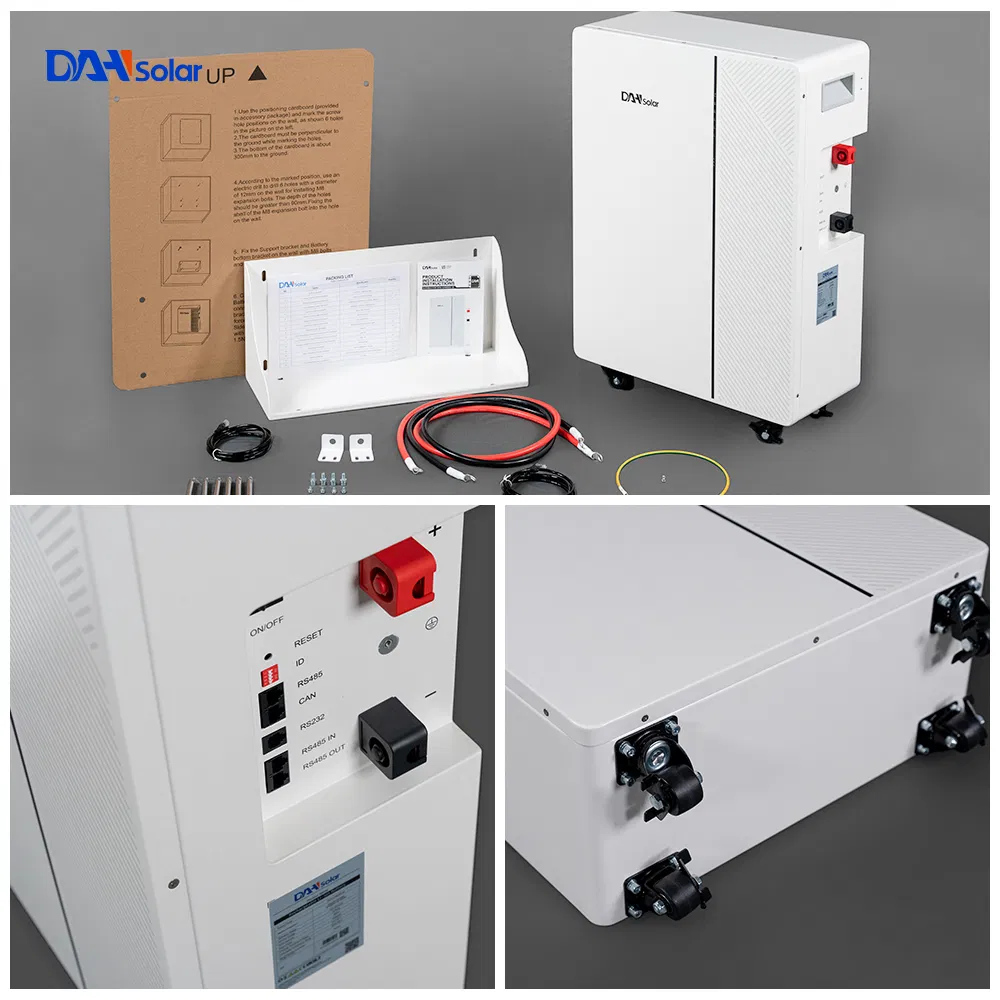

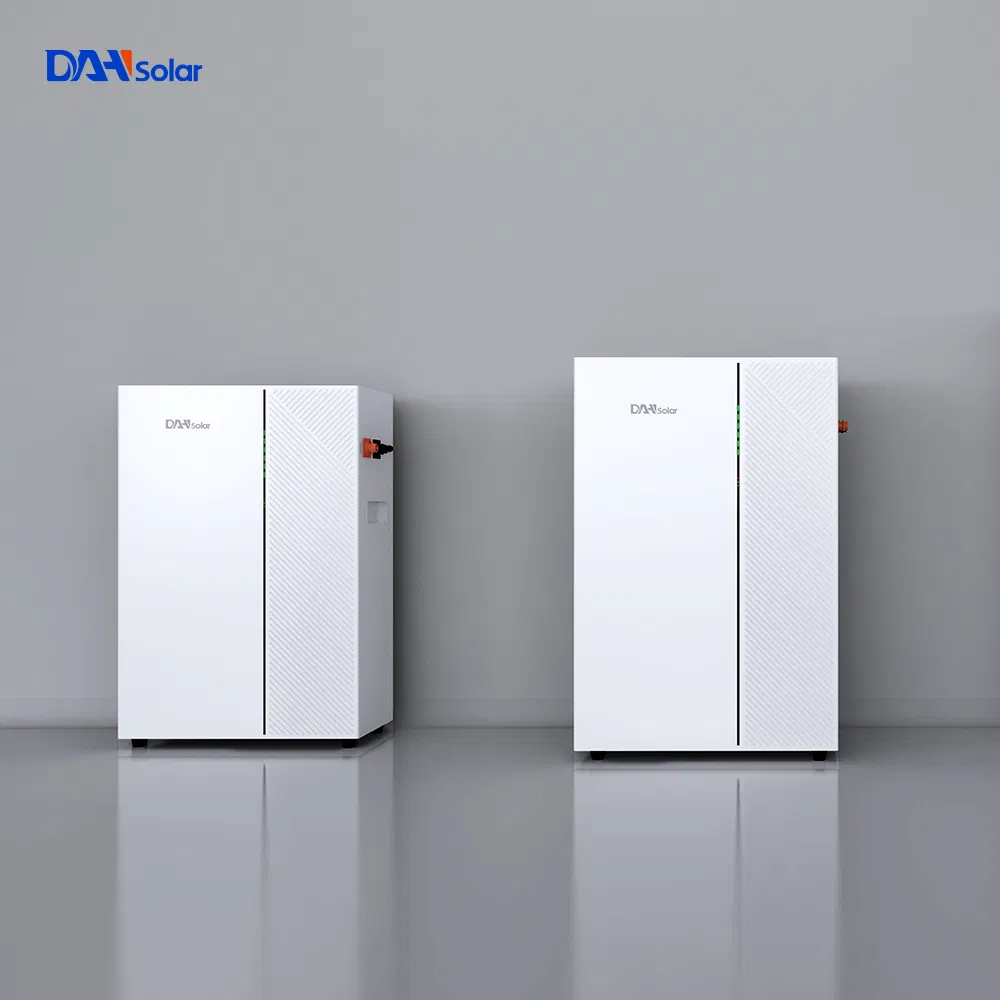

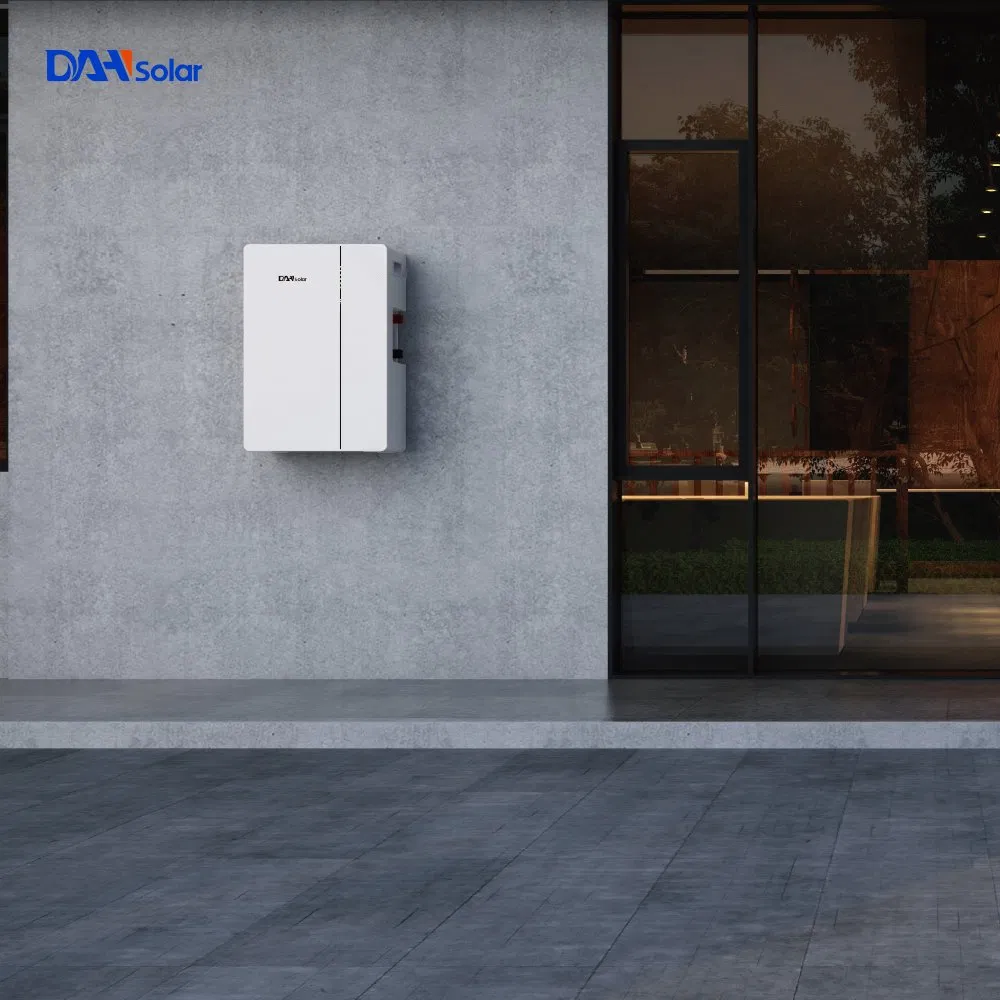

The battery supports both floor-mounted and wall-mounted installations. Optional wheels are available for floor-mounted setups for easier mobility.
Does the system include fire protection?
Yes, there is an optional prefabricated whole fluorine ketone fire extinguishing device available for enhanced safety in specific environments.
