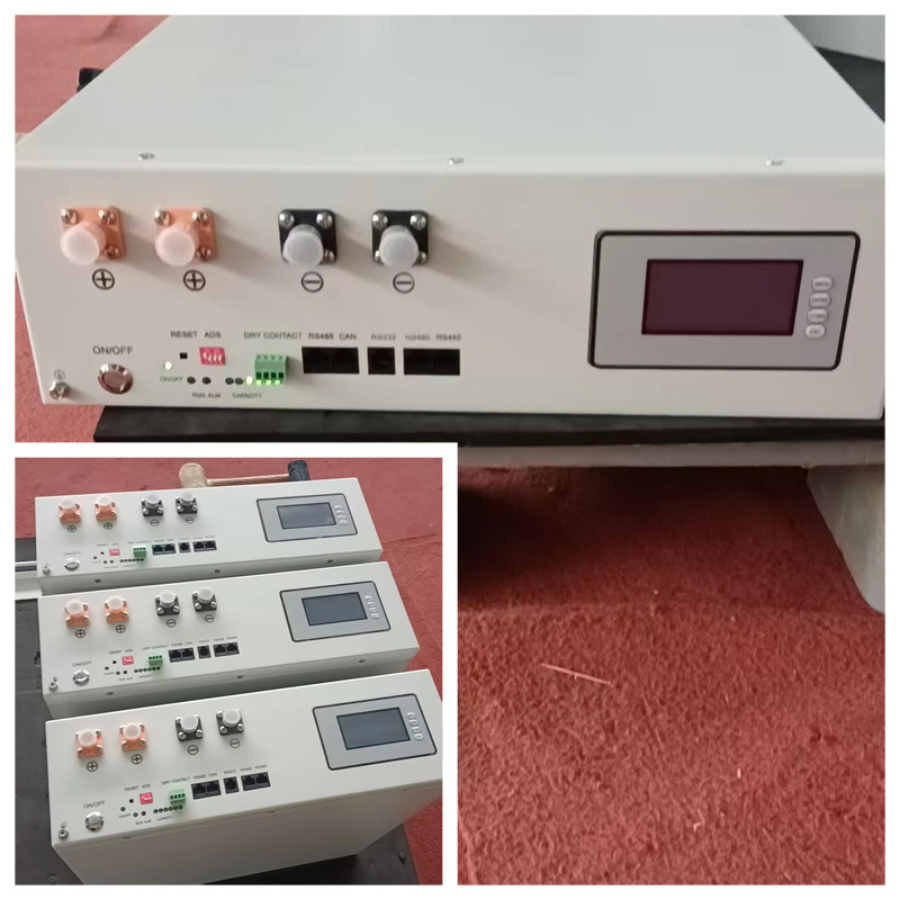

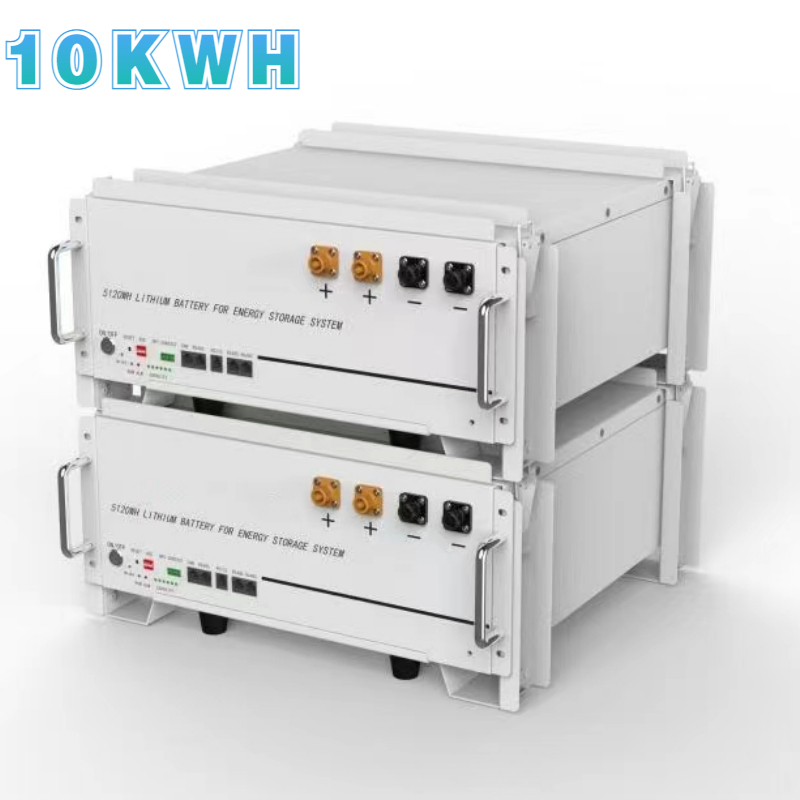

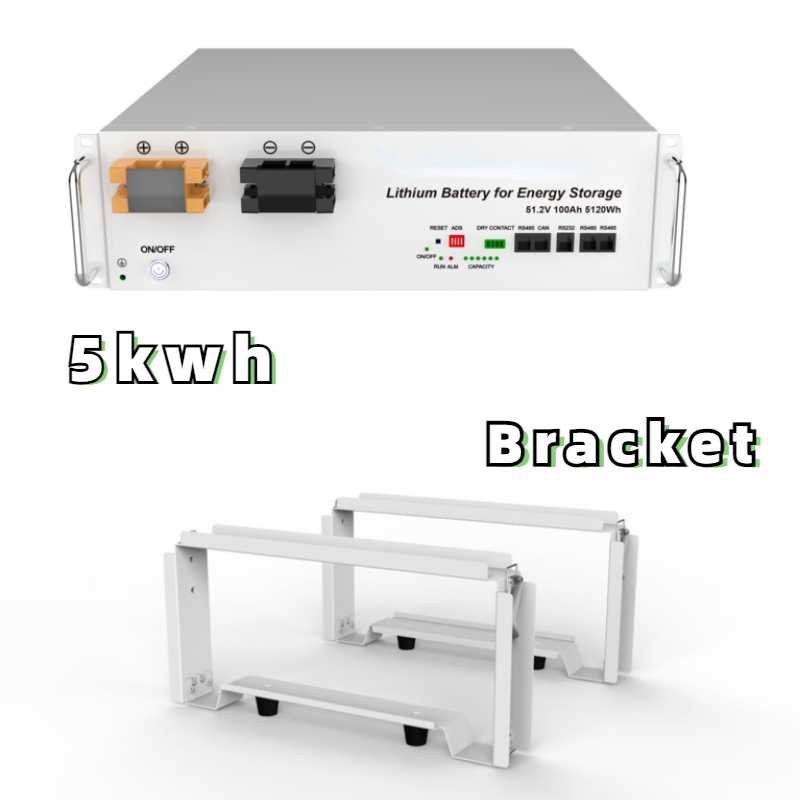

CE Factory Fast Charging 48V 100ah Lithium Ion Battery Pack Solar PV Storage Sodium Battery Pack

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
ATLBOT-R5KWH
Size
Medium
Cycle Life
>6000 Times
Design Life
15 Years
Installation Mode
Rack
IP Grade
IP20
Certificate
Un38.3/MSDS/IEC62619(CB)/CE
Protection
BMS, Breaker
Cell Mode
3.2V 100ah
Voltage Range
153.6-768V
Pack Weight
50kgs
Operation Temperature
0~50℃
Communication
Canbus/Modbus RTU/TCP/IP
Expansibility
Max 15PCS in Parallel
Product Description
Battery Pack Banner

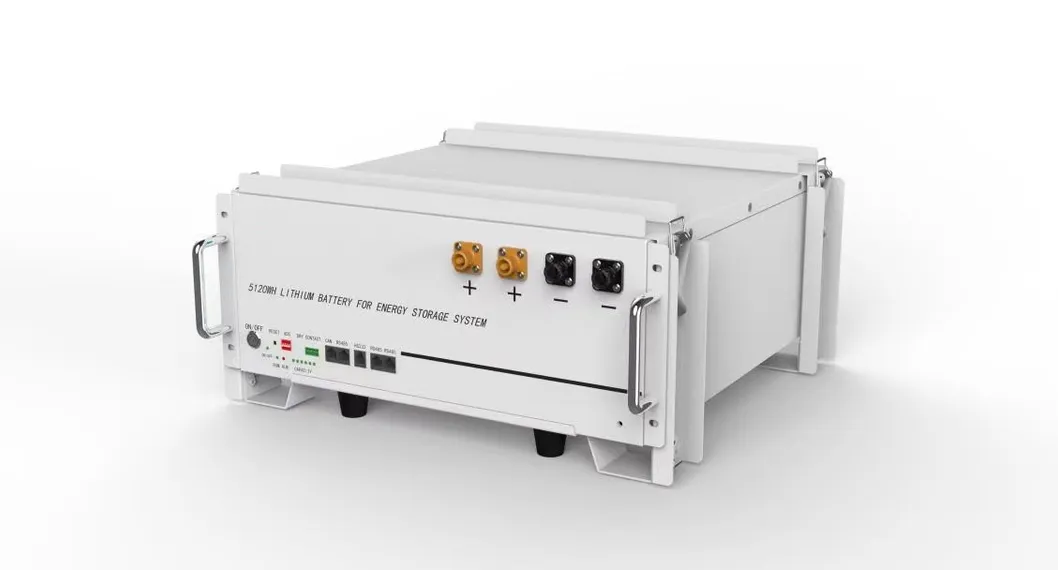

Front View

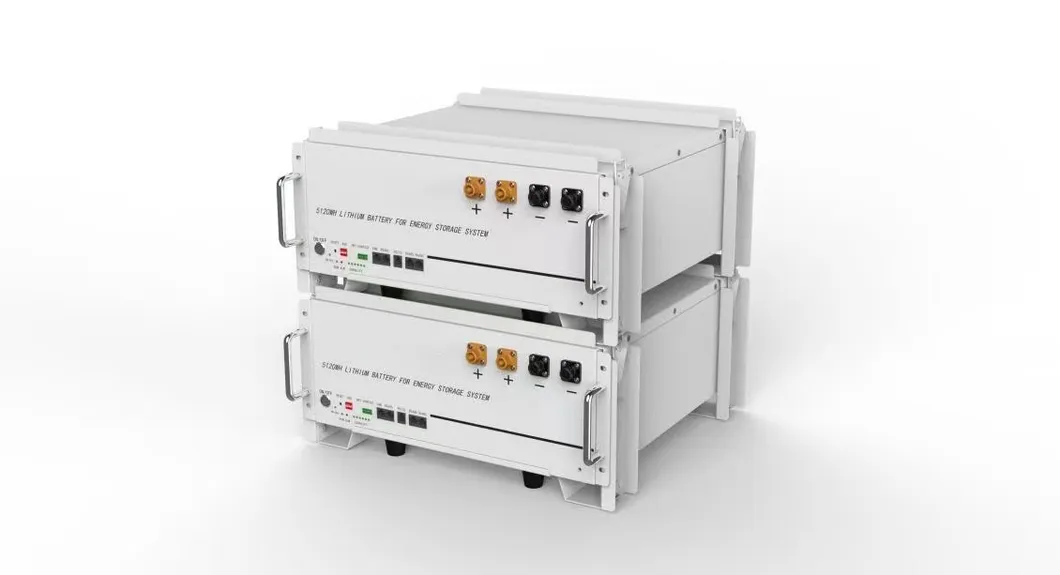

Side View
Product Properties
1
Non-toxic, non-polluting and environmentally friendly module.
2
LiFePO4 cathode material with high safety and long cycle life.
3
Advanced BMS with over-discharge, over-charge, and thermal protection.
4
Self-management on charging and discharging with core balancing.
5
Flexible configuration for parallel capacity expansion.
6
Low self-discharge: recharging period up to 10 months in storage.
7
Wide working temperature range: -20ºC to +55ºC.
8
Standard 19-inch embedded design for easy installation.
Product Parameters
Basic ParametersSpecifications
Nominal Voltage (V)51.2
Nominal Capacity (WH)5120
Usable Capacity (WH)4600
Charge Voltage (V)58.4
Recommend Charge/Discharge Current (A)50
Max. Charge/Discharge Current(A)100
CommunicationRS485/RS232/CAN
Cycle Life>6000
Design LifeMore than 10 years

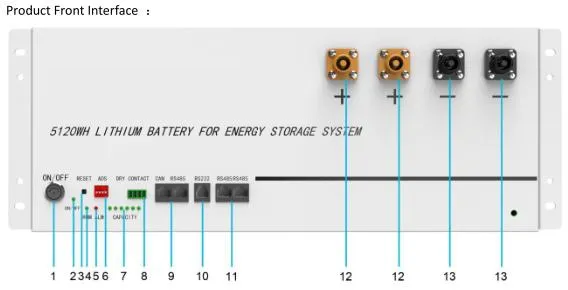

Interface Definition
Interface Diagram
ItemNameDefinition
1Power switchON/OFF state control
3RESETPress >3s to restart battery
4RUNGreen light: standby/charging (flash), discharging (on)
5ALMRed light: Alarm (flash), Protection (on)
7SOCGreen lights showing remaining power level
9/11CAN/RS485Communication cascade ports
12/13Positive/NegativeOutput sockets for parallel or load
Installation Instructions

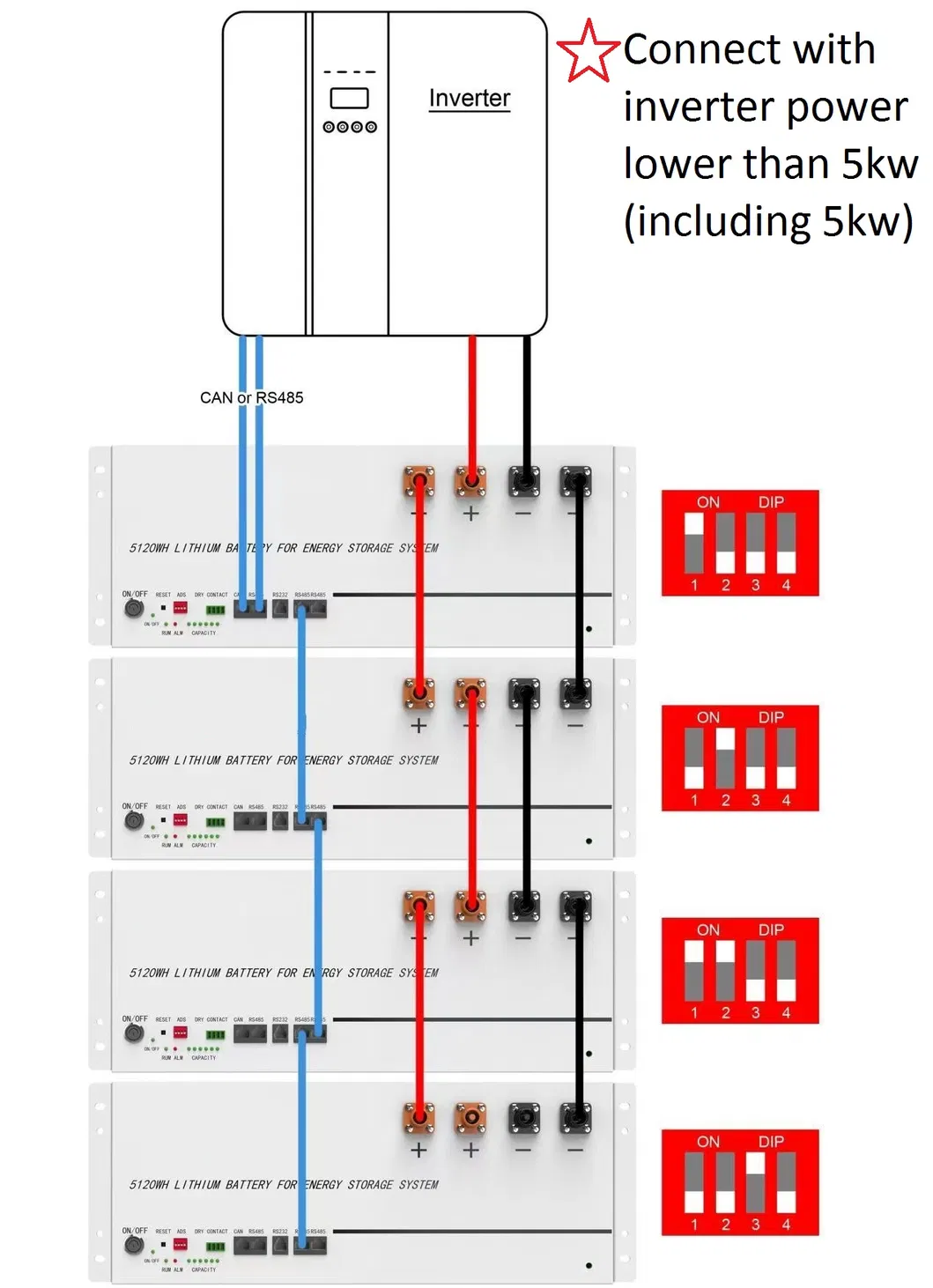

Installation 1

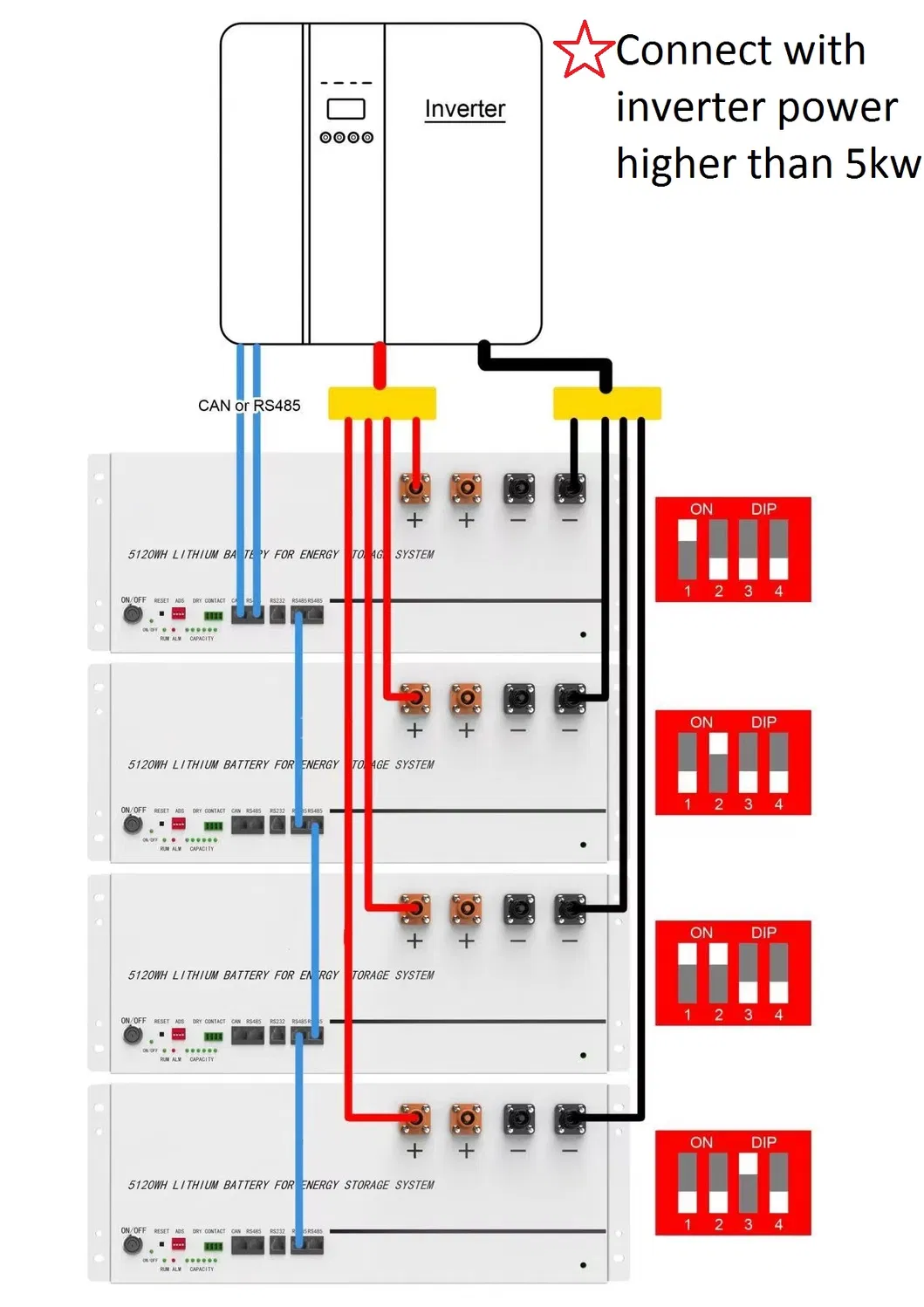

Installation 2

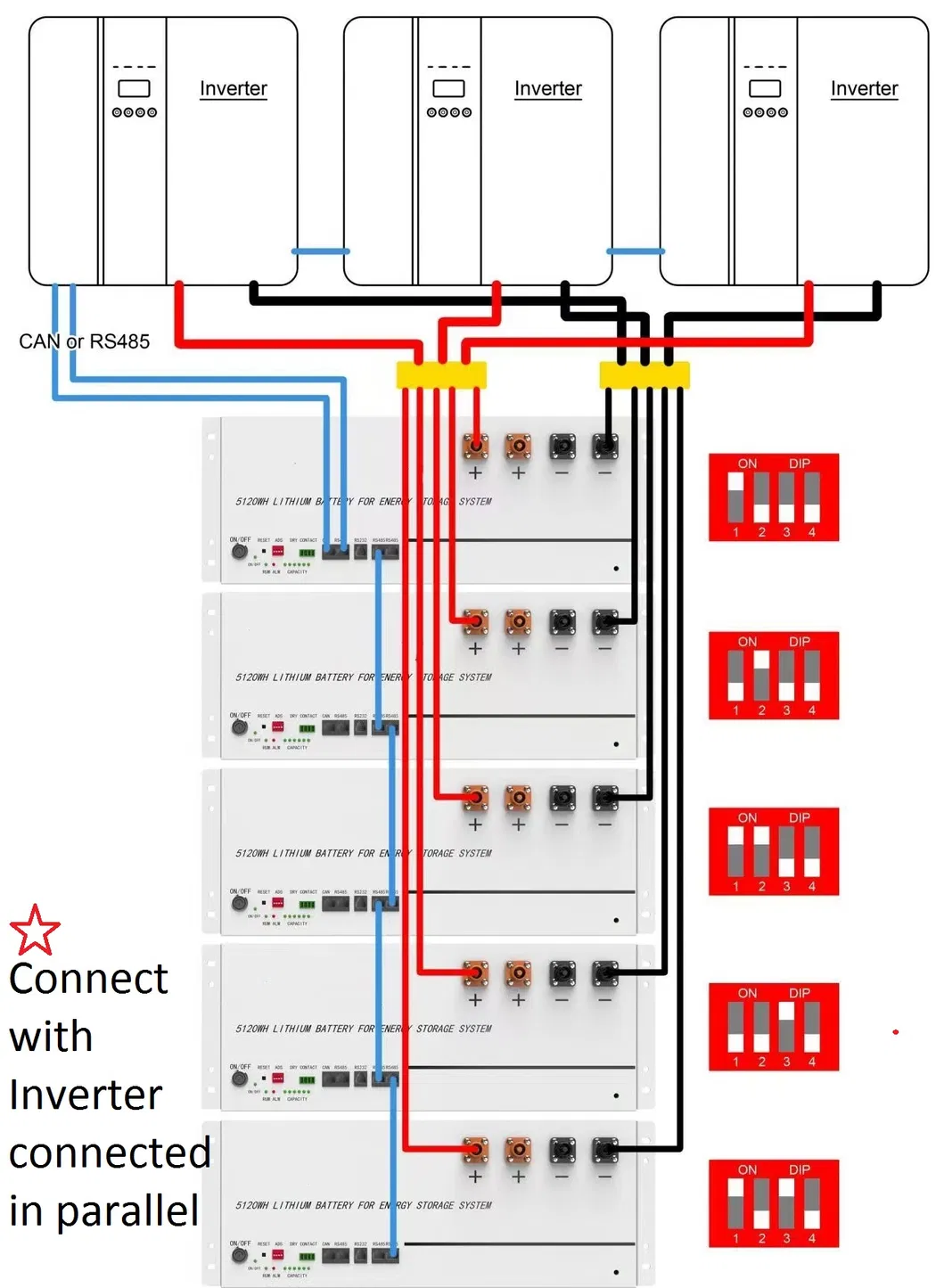

Installation 3
Certifications & Shipping
Certifications

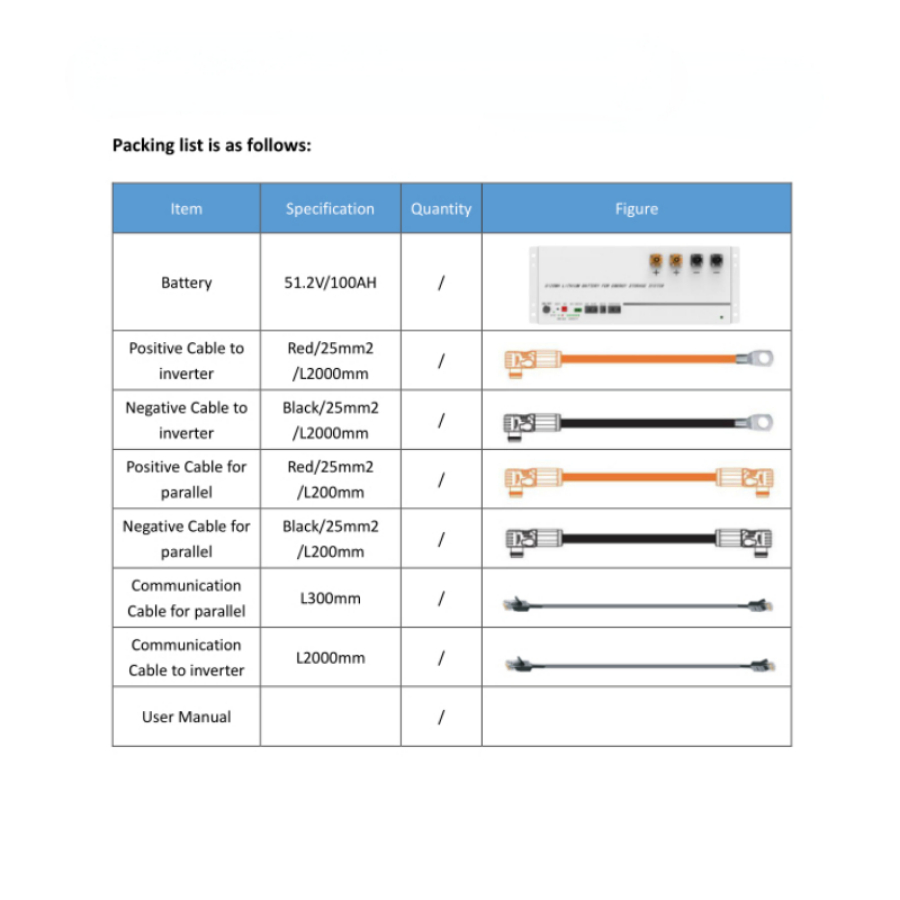

Packing 1

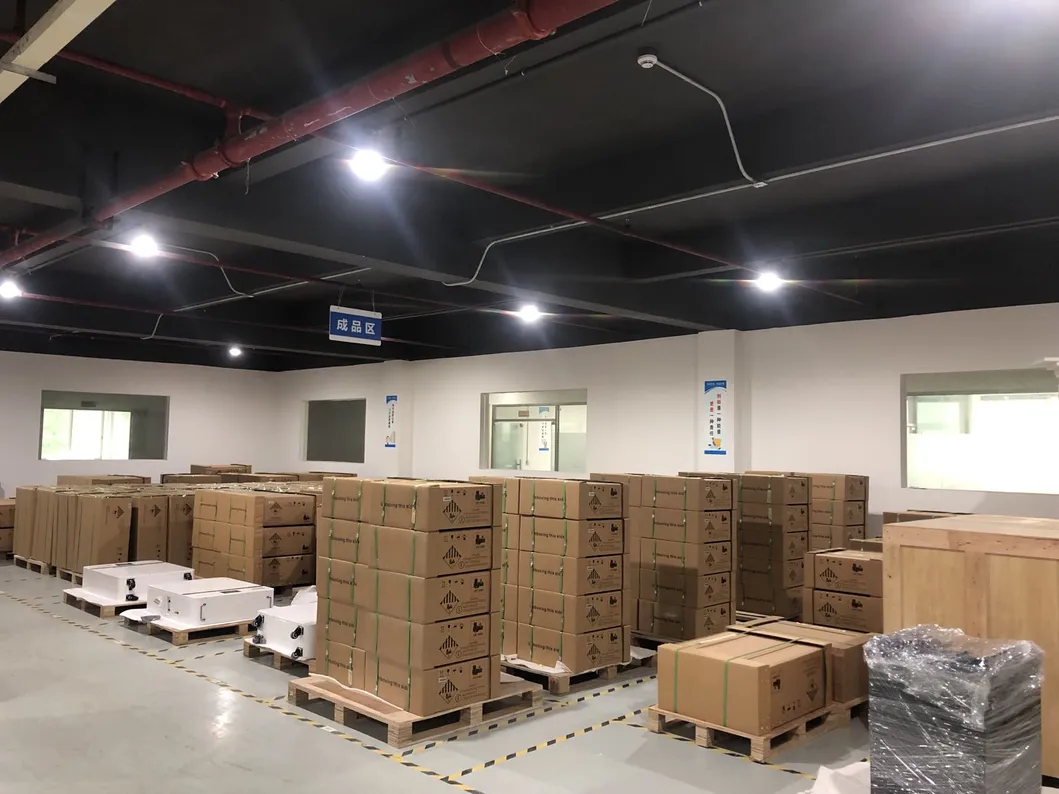

Packing 2

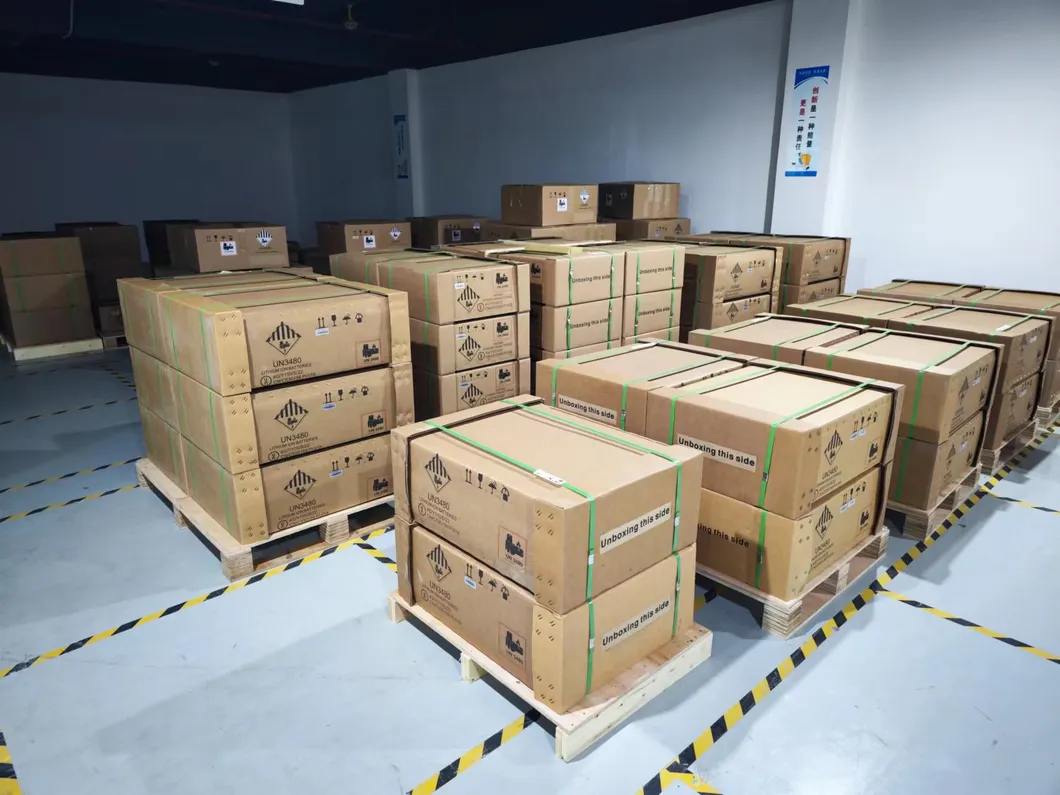

Packing 3

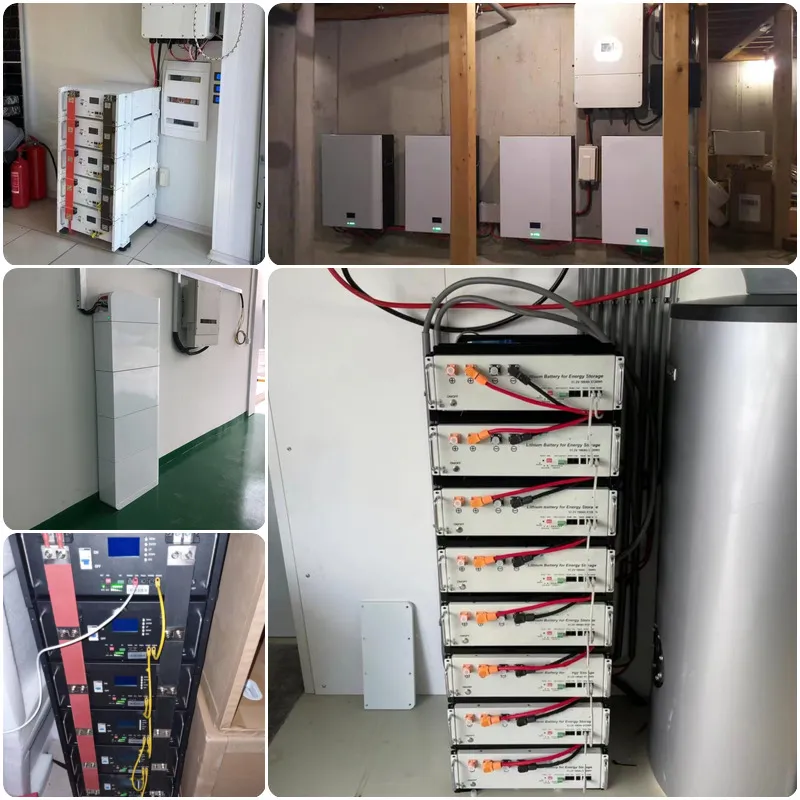

Project Case
Project Case
Frequently Asked Questions
Q: What's your main product range?
A: Our focus includes Tier 1 Solar Panels, Solar Inverters (On-Grid/Off-Grid/Hybrid), and various Lithium Battery solutions including Rack-mounted, Stacked, and Wall-mounted options for residential and commercial energy storage.
Q: What is the typical delivery timeframe?
A: Generally, orders are processed and delivered within 7-15 days. This varies based on specific product requirements; please consult our service team for a detailed timeline.
Q: What payment methods do you accept?
A: We offer flexible payment conditions tailored to our clients' needs. Please contact us to discuss the most suitable terms for your order.
Q: How quickly can I expect a response to my inquiries?
A: We prioritize rapid communication; our online sales team typically responds within 10 minutes during business hours.
Q: What are the advantages of choosing your energy solutions?
A: We operate our own manufacturing facilities and maintain deep partnerships with leading brands like Longi, JA Solar, Jinko, Growatt, and Deye to ensure competitive pricing and a diverse selection for our customers.
Q: Are your batteries compatible with different systems?
A: Yes, our battery modules feature flexible configurations and standard 19-inch designs, supporting parallel expansion to meet various capacity and power requirements.
